Product series

MODUS CRYSTAL

Decorative LED luminaire

MODUS CRYSTAL
11 L80_80000_h.jpg

Price from:

5 200 Kč
( 6 292 Kč including VAT )

Combination of Bohemia glass and modern LED technology

Body:

Clear flat glass with fused glass frit

Chromed ceiling base

Transparent power cable (2m)



LED:

Mid Power LED

3...warm white 3000K

4...cold white 4000K

5...daylight 5700K



Wiring:

LED constant current driver placed in ceiling base

ND - not dimmable

DALI – digital dimmable DALI



Variants:

CRYSTAL C - pendant circle, Ø 580 mm, pending set included
CRYSTAL RM - pendant rectangle 1240x180 mm, pending set included
CRYSTAL SS - pendant square 700x700mm, pending set included

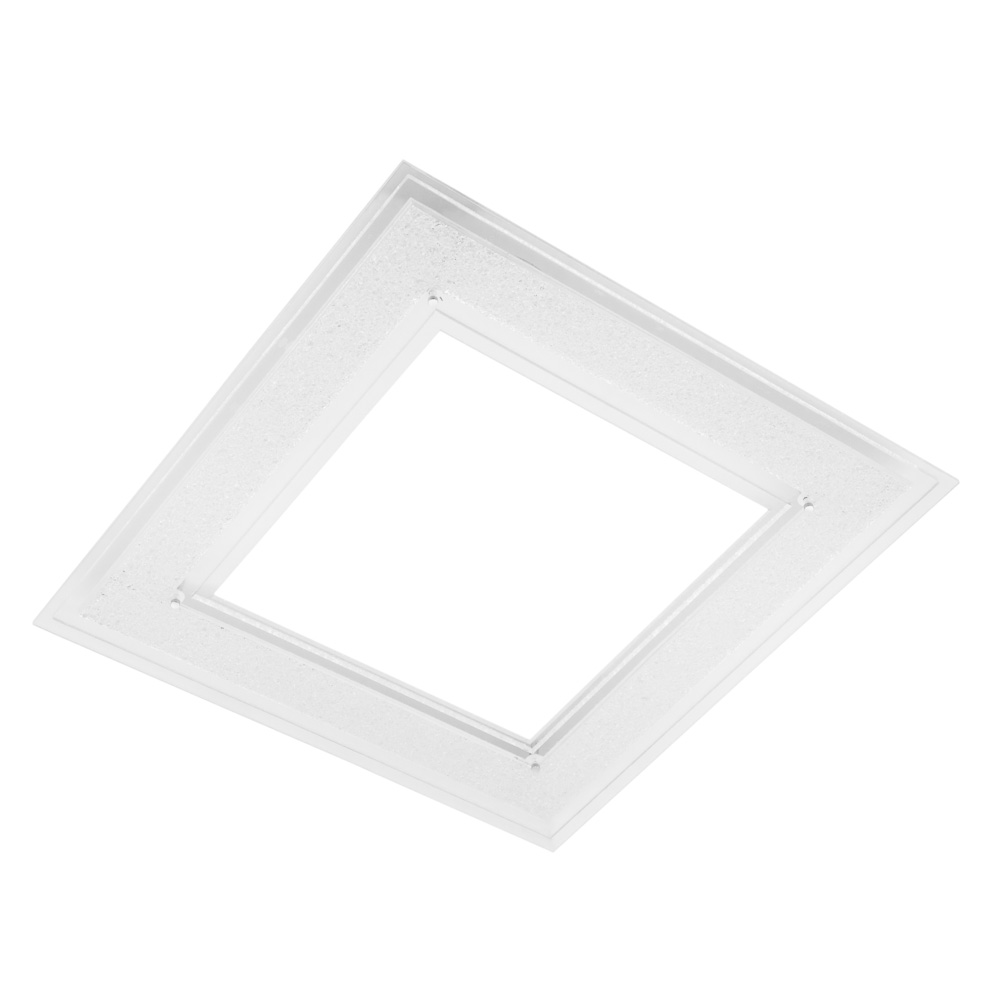

CRYSTAL SXM - smaller square 145x145mm for surface installation into ceiling or wall

Lamp type:LEDColor temperature (K):3000, 5700
Color rendering index CRI:80-89, 90-100Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20Optical system:CRYSTAL
Čiré sklo se spékanými frity
Light outlet:Indirect
Body material:Chromed ceiling base
Mounting method:Surface mounting, PendantProtection class:I
Type of control gear:LED operating device current-controlledDimming DALI:Yes
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1300
6000

System power (W)

11
48
Product name
CRYSTALC3C/DALI
Effective luminous flux (lm): 3500
System power (W): 33
Color temperature (K): 3000
Suitable for suspended mounting: Yes
CRYSTALC4C/DALI
Effective luminous flux (lm): 3500
System power (W): 33
Color temperature (K): 4000
Suitable for suspended mounting: Yes
CRYSTALC5C/DALI
Effective luminous flux (lm): 3500
System power (W): 33
Color temperature (K): 5700
Suitable for suspended mounting: Yes
CRYSTALRM3C/DALI
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3000
Suitable for suspended mounting: Yes
CRYSTALRM4C/DALI
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 4000
Suitable for suspended mounting: Yes
CRYSTALRM5C/DALI
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 5700
Suitable for suspended mounting: Yes
CRYSTALSS3C/DALI
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 3000
Suitable for suspended mounting: Yes
CRYSTALSS4C/DALI
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 4000
Suitable for suspended mounting: Yes
CRYSTALSS5C/DALI
Effective luminous flux (lm): 6000
System power (W): 48
Color temperature (K): 5700
Suitable for suspended mounting: Yes
CRYSTALSXS3C/DALI
Effective luminous flux (lm): 1300
System power (W): 11
Color temperature (K): 3000
CRYSTALSXS3C/ND
Effective luminous flux (lm): 1300
System power (W): 11
Color temperature (K): 3000
CRYSTALSXS4C/DALI
Effective luminous flux (lm): 1300
System power (W): 11
Color temperature (K): 4000
CRYSTALSXS5C/DALI
Effective luminous flux (lm): 1300
System power (W): 11
Color temperature (K): 5700
CRYSTALSXS5C/DIMT
Effective luminous flux (lm): 1300
System power (W): 11
Color temperature (K): 5700
