Product series
MODUS CUBE D
Recessed design square luminaire
Standard price from:
On request
Design family of luminaires from alu profile i sqaure size - pendant, surface and recessed.
It is possible to choose from two types of optics:

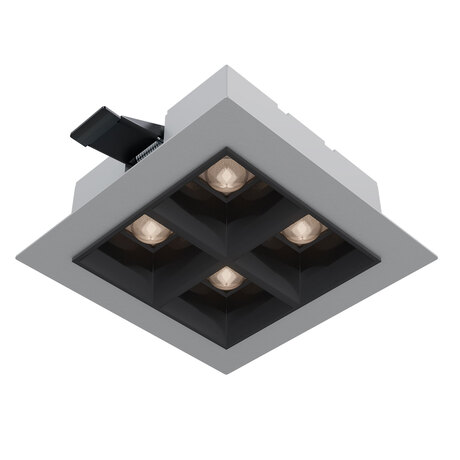

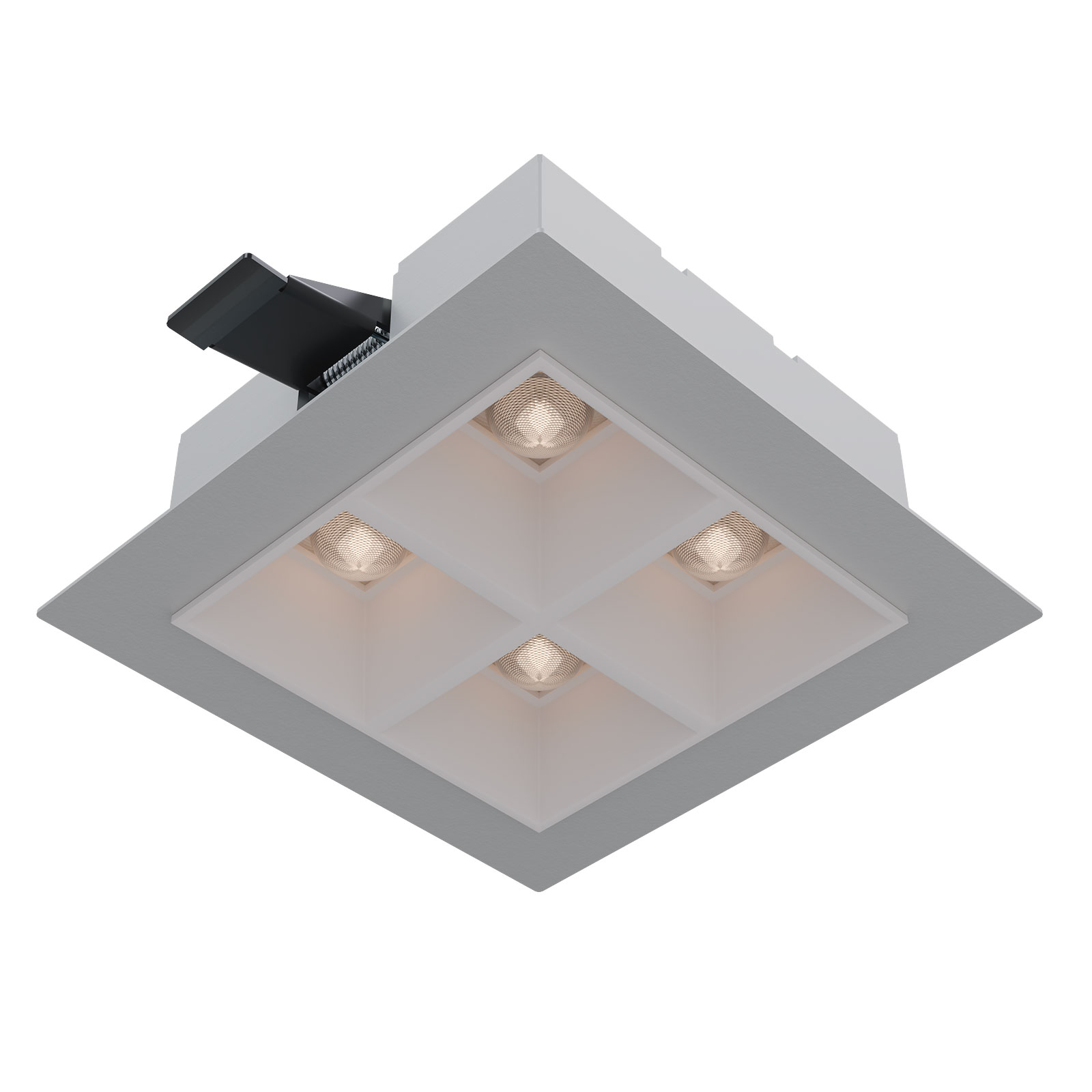

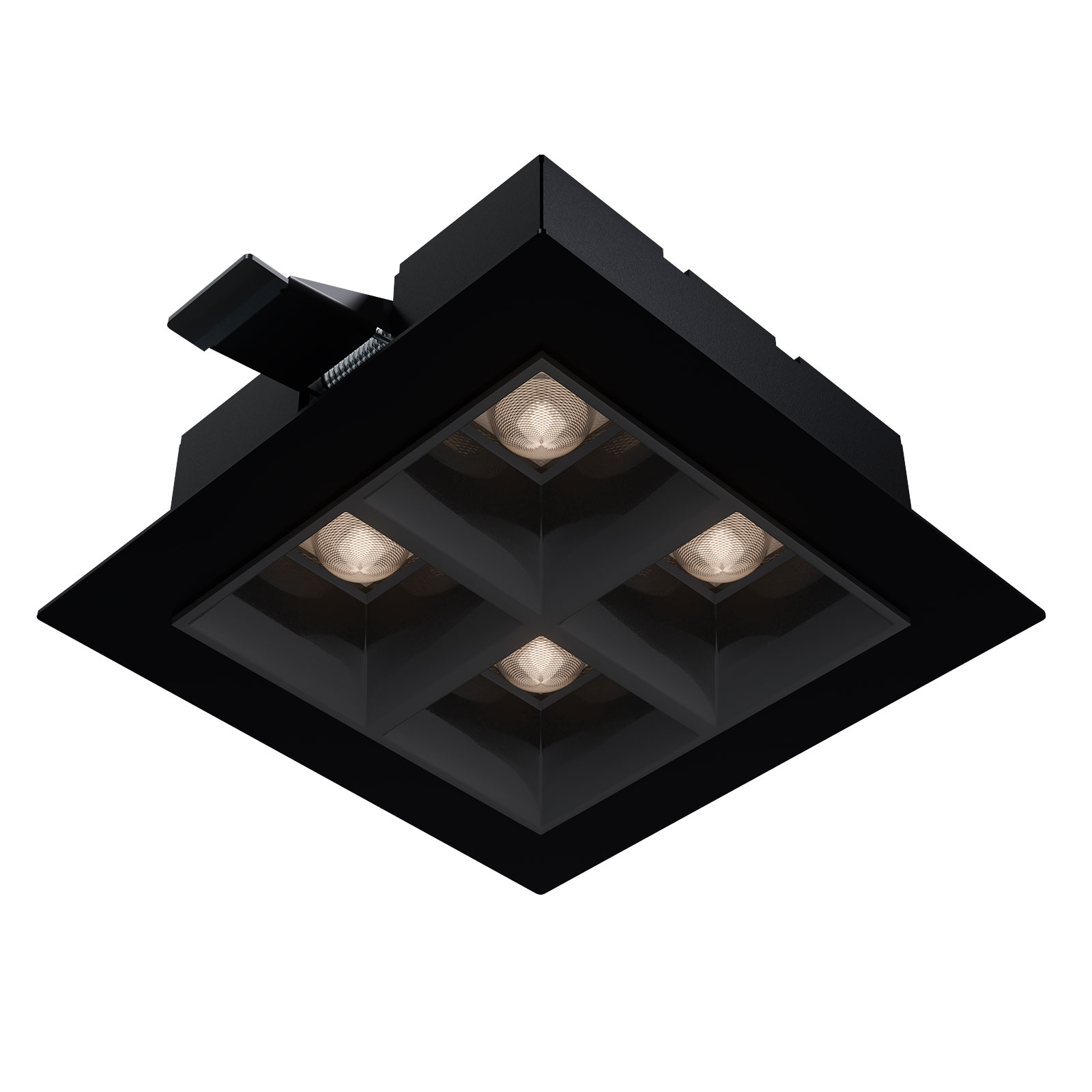

- C80 / B80 - optical part is made from dark-light (Black / White)

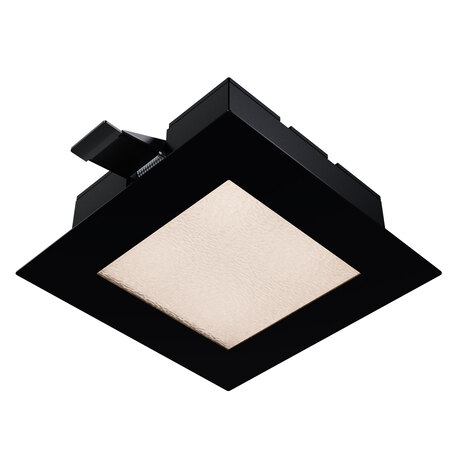

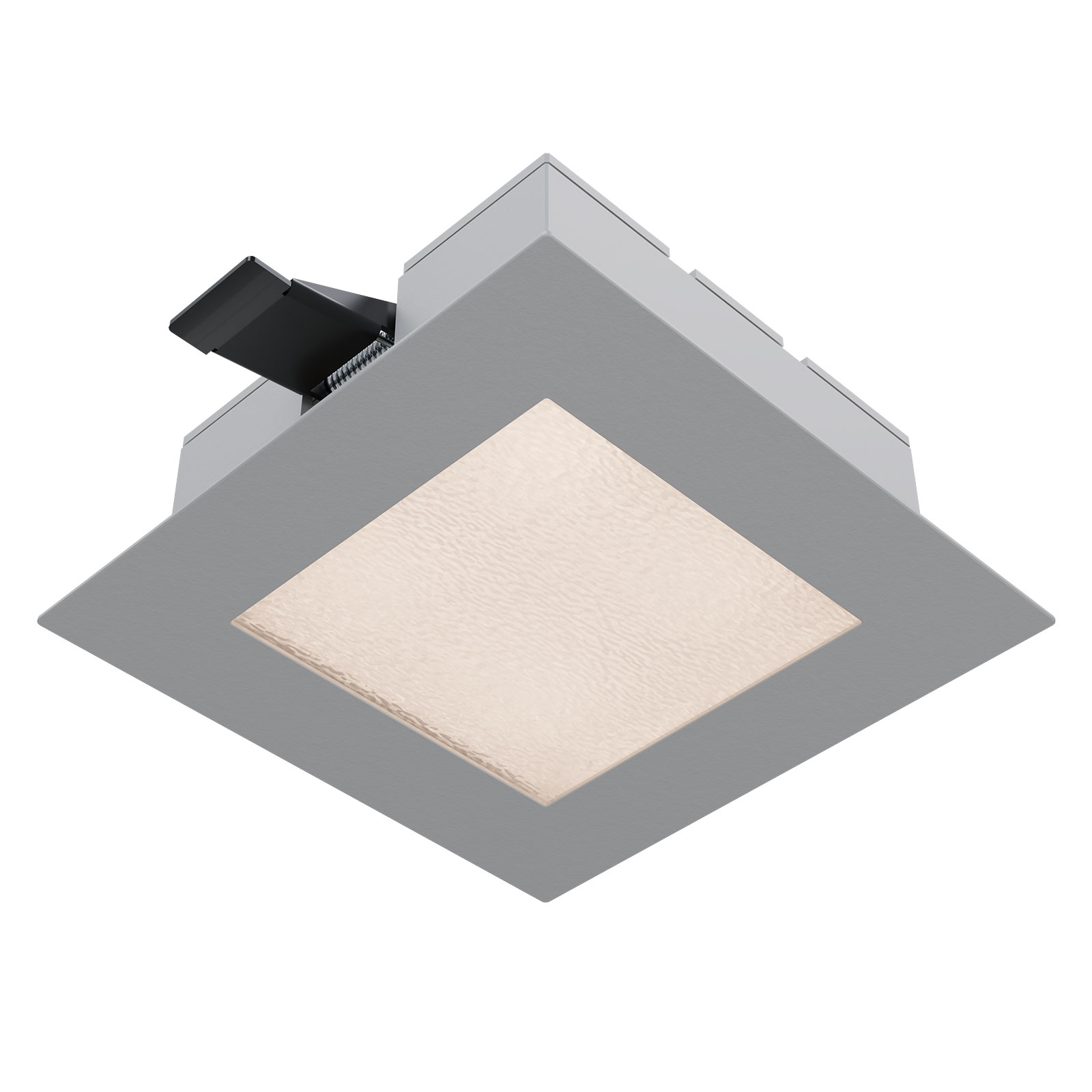

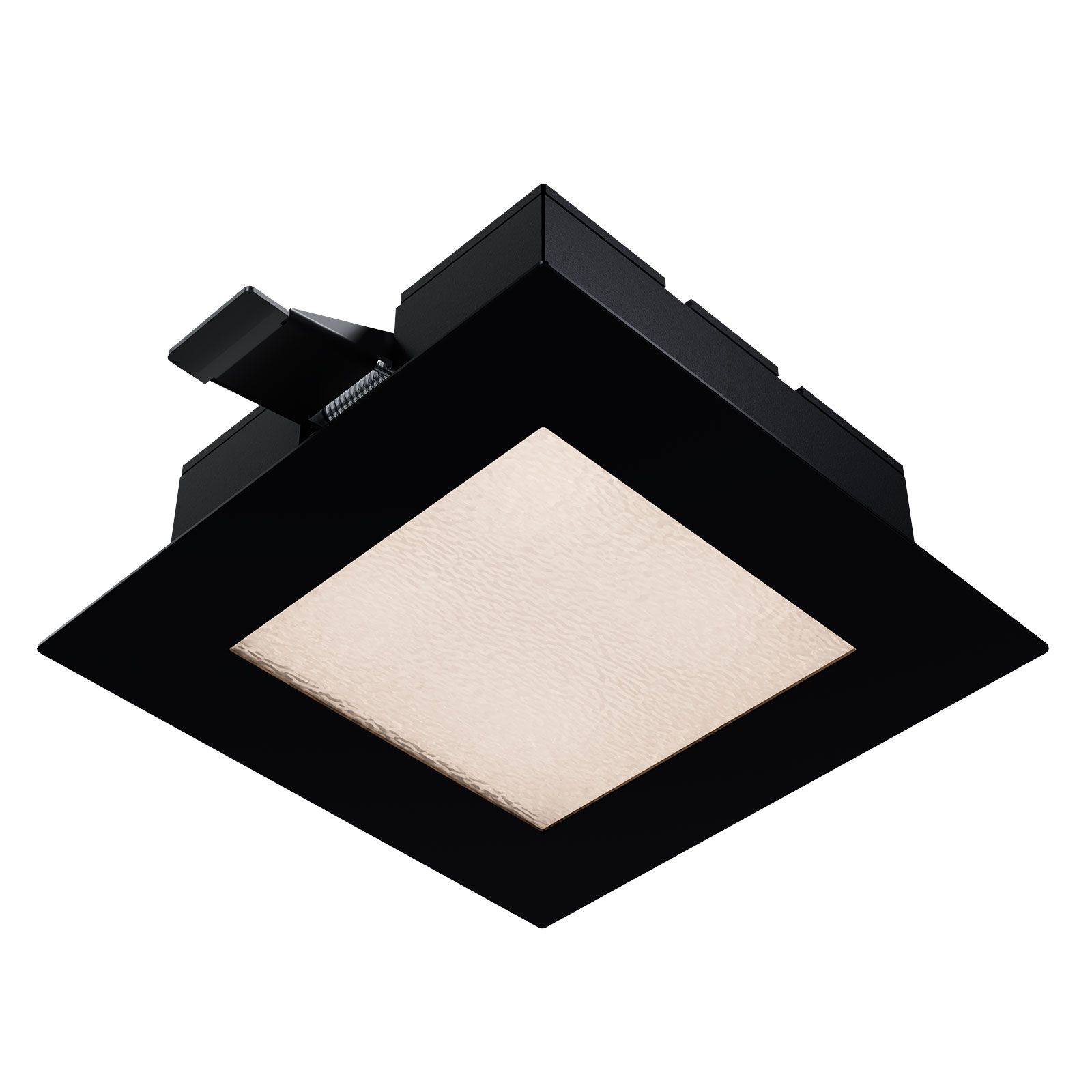

- KO /KN - optical part is made from opal or nanoprisma cover
Luminaires are offered as complete family:
CU P - surface installation
CU D - recessed installation
CU Z (D/I)- pendant installation (pendant kit included)
CU S - wall fitting installation, direct / indirect illumination
| Mounting method: | Built-in | Protection class: | I | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 |
| Dimming DALI: | Yes | Product category: | Downlight | Optical system: | KO opal cover KN nanoprizmatic cover B50 White reflector with lenses 50° C50 Black reflector with lenses 50° C80 Black reflector with lenses 80° B80 White reflector with lenses 80° | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Color housing
CU1000D3BB80/DALI
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 3000
Optical system: B80
Color housing: White
CU1000D3BKO/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 3000
Optical system: KO
Color housing: White
CU1000D4BBM80/ND
Effective luminous flux (lm): 1200
System power (W): 9
Color temperature (K): 4000
Optical system: BM80
Color housing: White
CU1000D4BC50/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
Optical system: C50
Color housing: White
CU1000D4CC80/ND
Effective luminous flux (lm): 1100
System power (W): 9
Color temperature (K): 4000
Optical system: C80
Color housing: Black
CU1000D4CCM80/ND
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 4000
Optical system: CM80
Color housing: Black
CU1000D4CKO/ND
Effective luminous flux (lm): 900
System power (W): 9
Color temperature (K): 4000
Optical system: KO
Color housing: Black
CU1500D3BBM80/DALI
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 3000
Optical system: BM80
Color housing: White
CU1500D4BB80/ND
Effective luminous flux (lm): 1600
System power (W): 14
Color temperature (K): 4000
Optical system: B80
Color housing: White
CU1500D4BC80/DALI
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Optical system: C80
Color housing: White
CU1500D4CC80/DALI
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Optical system: C80
Color housing: Black
CU1500D4CC80/ND
Effective luminous flux (lm): 1450
System power (W): 14
Color temperature (K): 4000
Optical system: C80
Color housing: Black
