MODUS DISC
Pendant circle luminaire

11 L80_80000_h.jpg

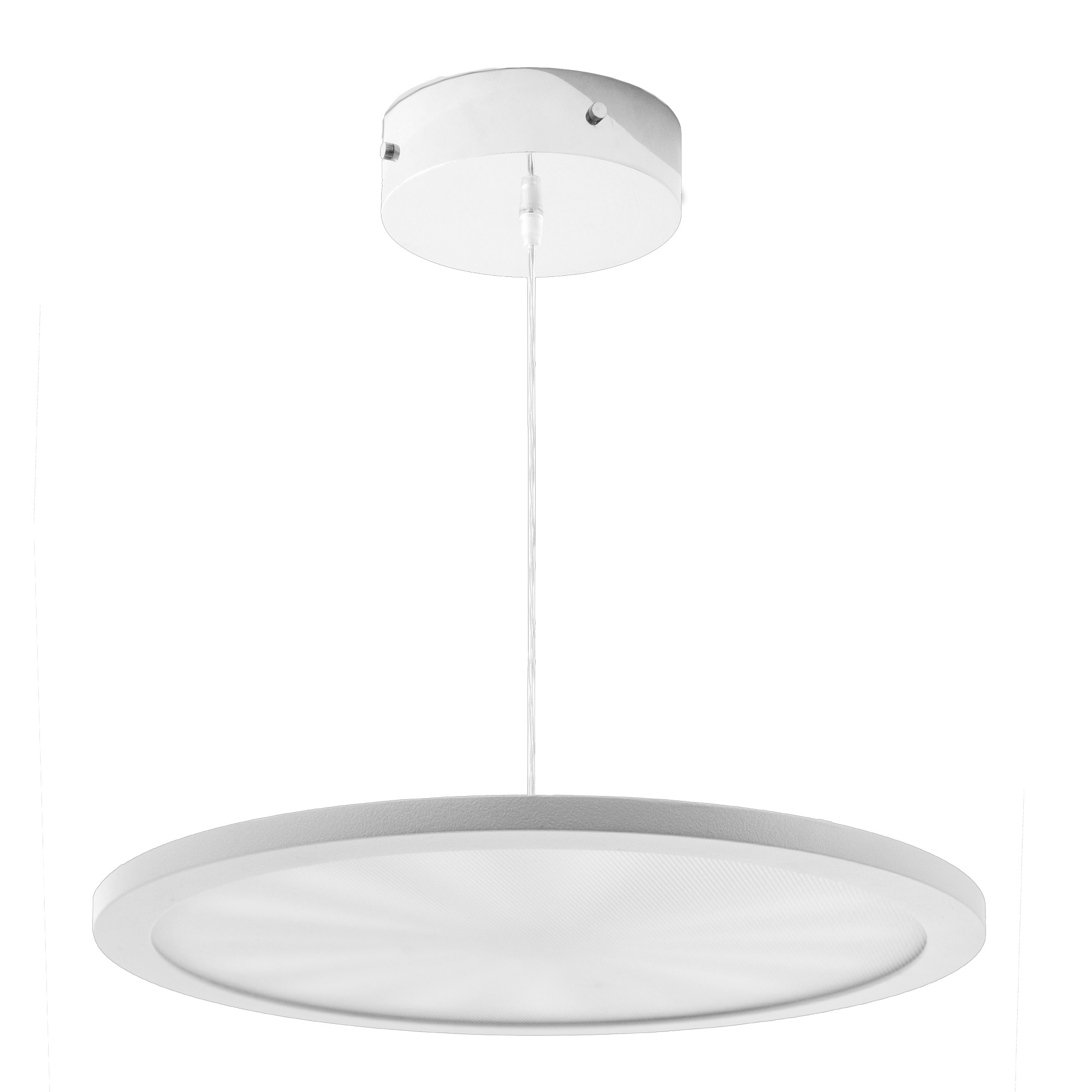

White painted pendant luminaire - wire lenght 2 metres. (self hanging electrical cable)

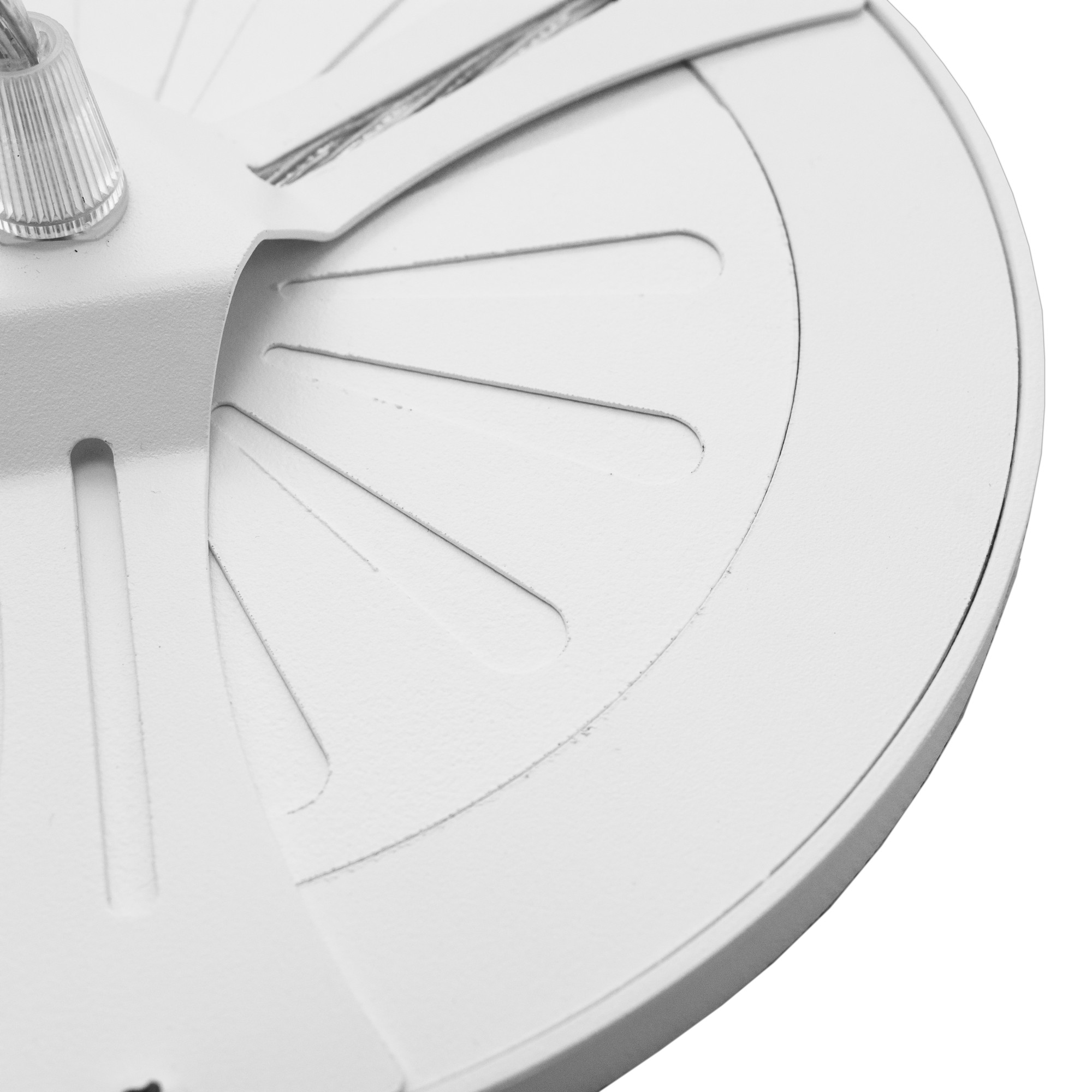

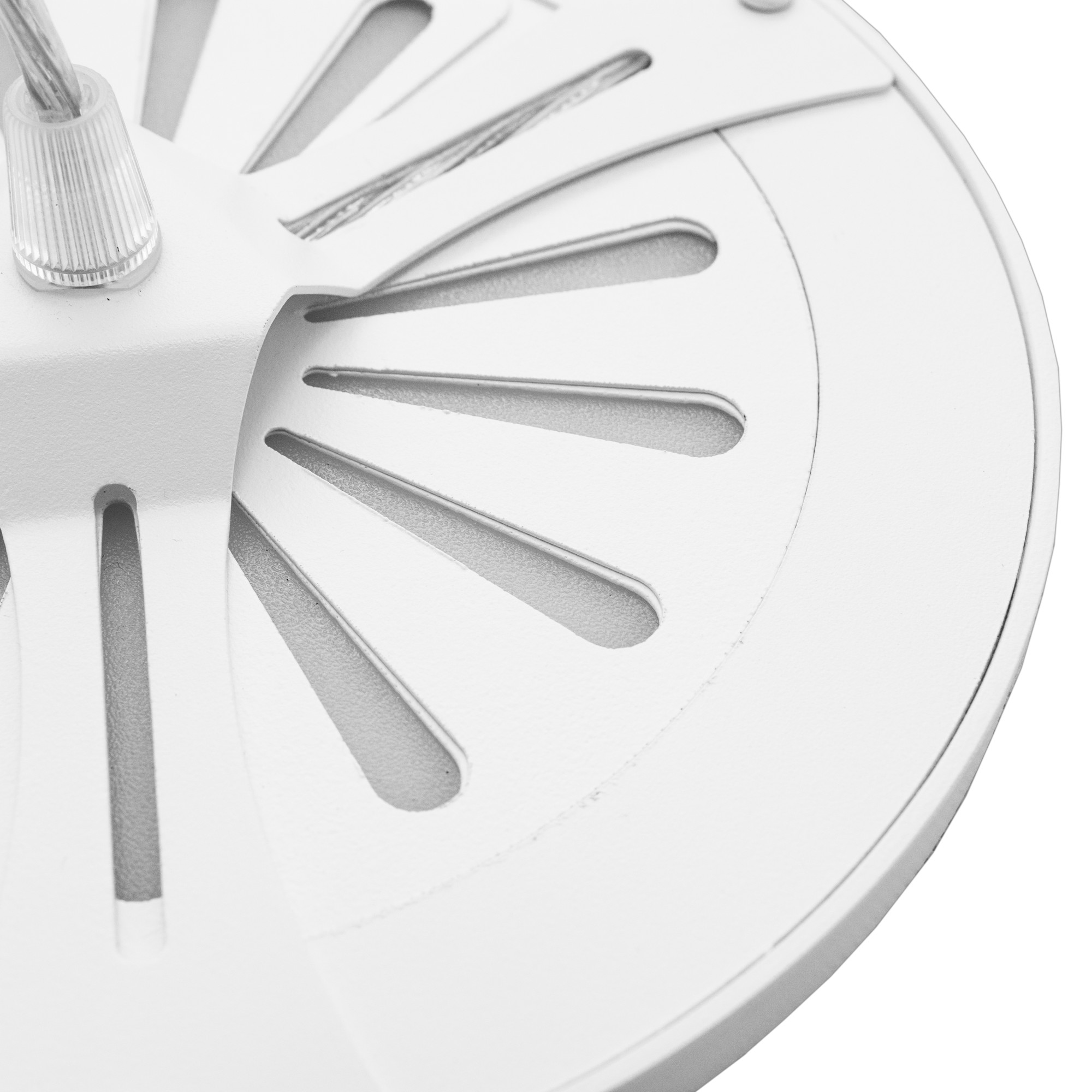

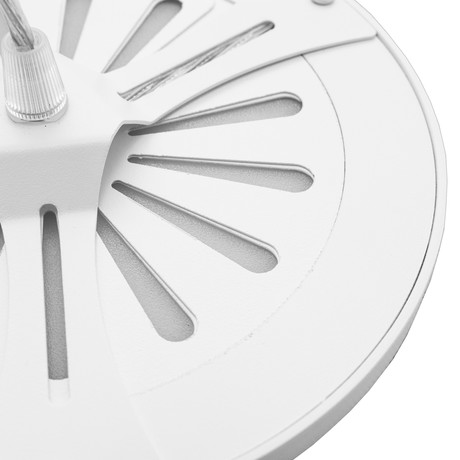

Back part of luminaire is made with sheet plate which allows to set strong of indirect illumination part - move-able metal sheet.

There are in offer two dimensions versions: 200 and 400 mm.

By the type of installation there are two models for selection:

DISC...P - fitting with surfaced driver box - for concrete ceiling

DISC...V - fitting with recessed driver box - for gypsum ceiling





Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000
Color rendering index CRI:80-89
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:KN D/I - Nanoprismatic cover for direct/indirect lighting
Light outlet:Direct/indirect
Body material:White painted aluminium frame
Mounting method:Pendant
Protection class:I
Type of control gear:LED operating device current-controlled
Dimming DALI:Yes

Download

  • MODUS DISCMODUS DISC

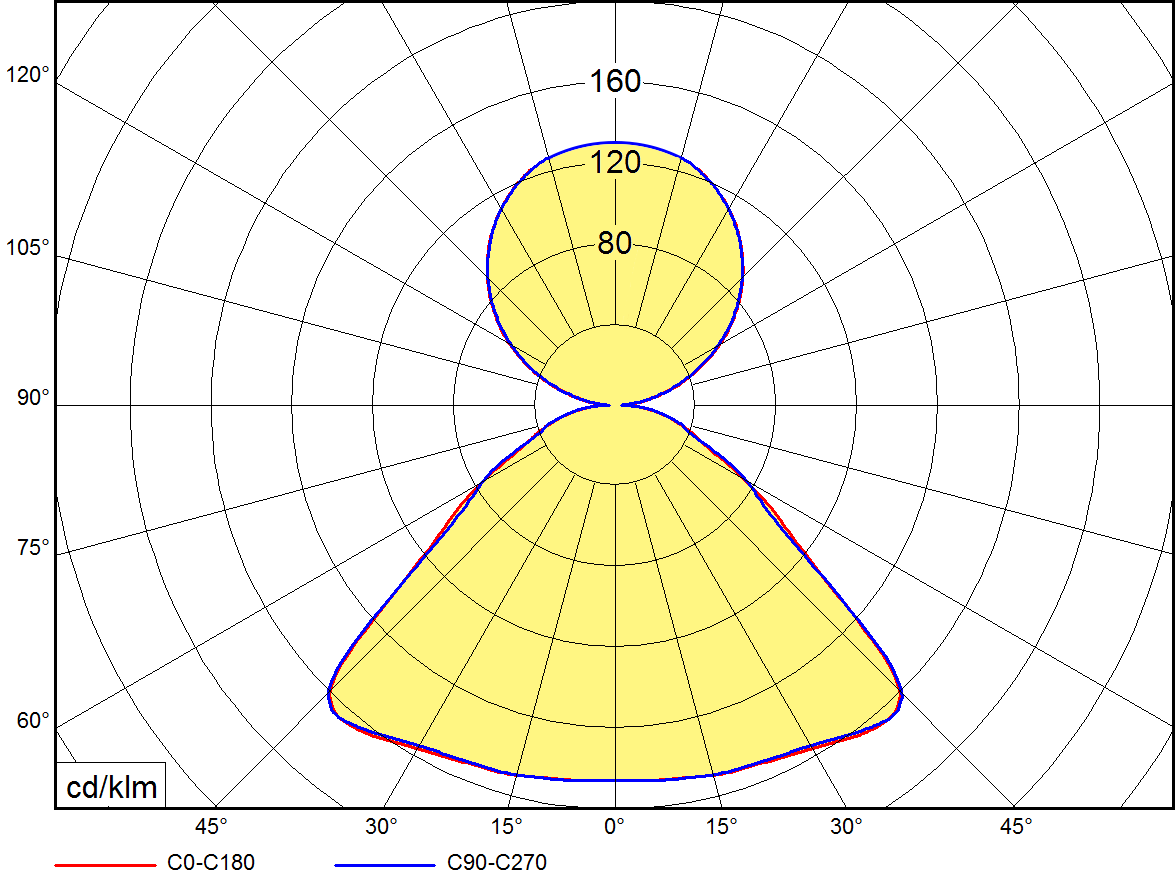

Light distribution


Versions

Effective luminous flux (lm): 1000
System power (W): 10
Color temperature (K): 3000
Diameter (mm): 200
Dimming DALI: Yes
Effective luminous flux (lm): 1000
System power (W): 10
Color temperature (K): 3000
Diameter (mm): 200
Effective luminous flux (lm): 1000
System power (W): 10
Color temperature (K): 4000
Diameter (mm): 200
Effective luminous flux (lm): 1000
System power (W): 10
Color temperature (K): 3000
Diameter (mm): 200
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 3000
Diameter (mm): 400
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 3000
Diameter (mm): 400
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 4000
Diameter (mm): 400
Dimming DALI: Yes
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 4000
Diameter (mm): 400
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 3000
Diameter (mm): 400
Dimming DALI: Yes
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 3000
Diameter (mm): 400
Effective luminous flux (lm): 2900
System power (W): 26
Color temperature (K): 4000
Diameter (mm): 400
