MODUS DM
Recessed LED luminaire with optics / cove
Standard price from:
DM is a modular recessed LED luminaire designed for precise and efficient interior lighting. A wide range of optics, reflectors, and output variants allows flexible lighting solutions.

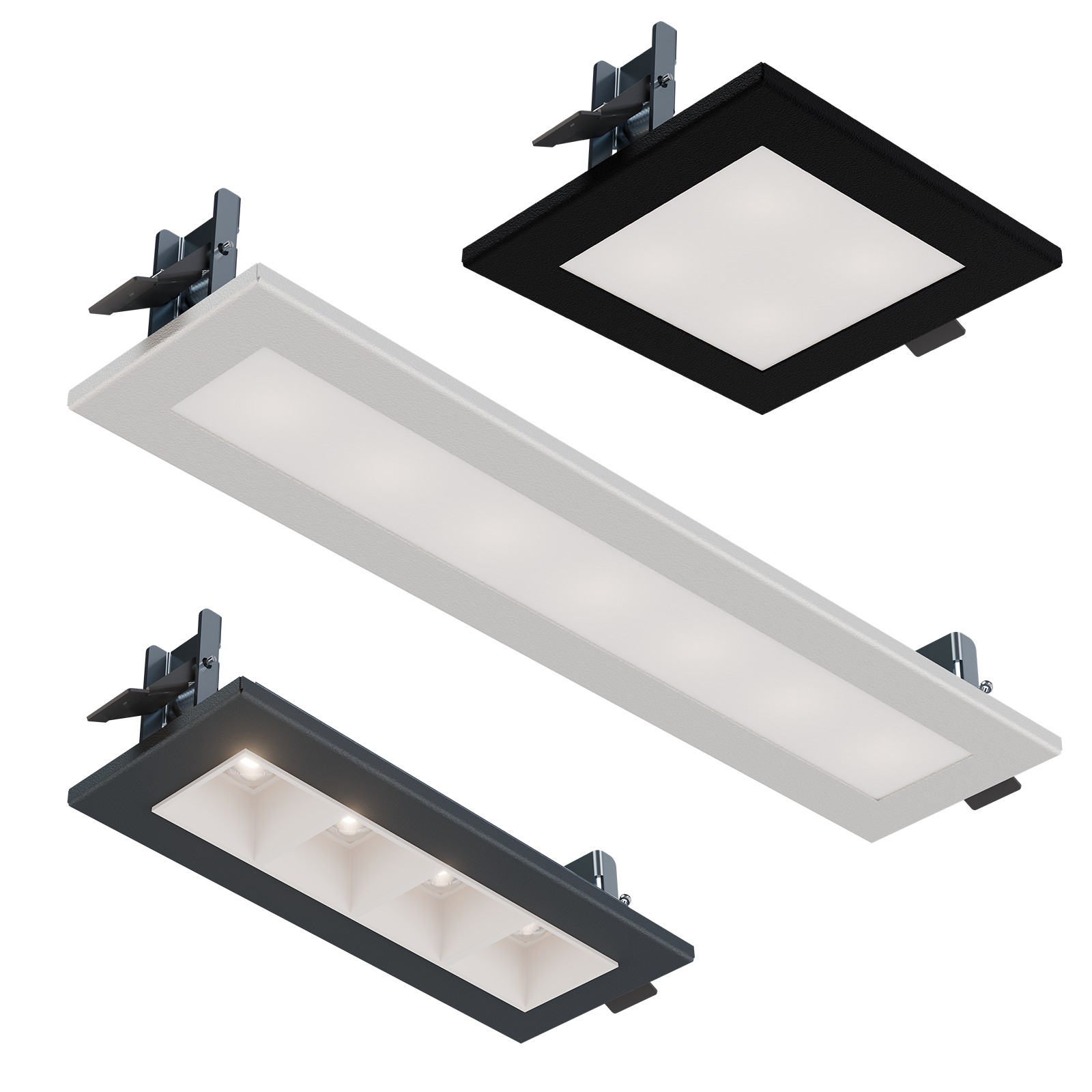

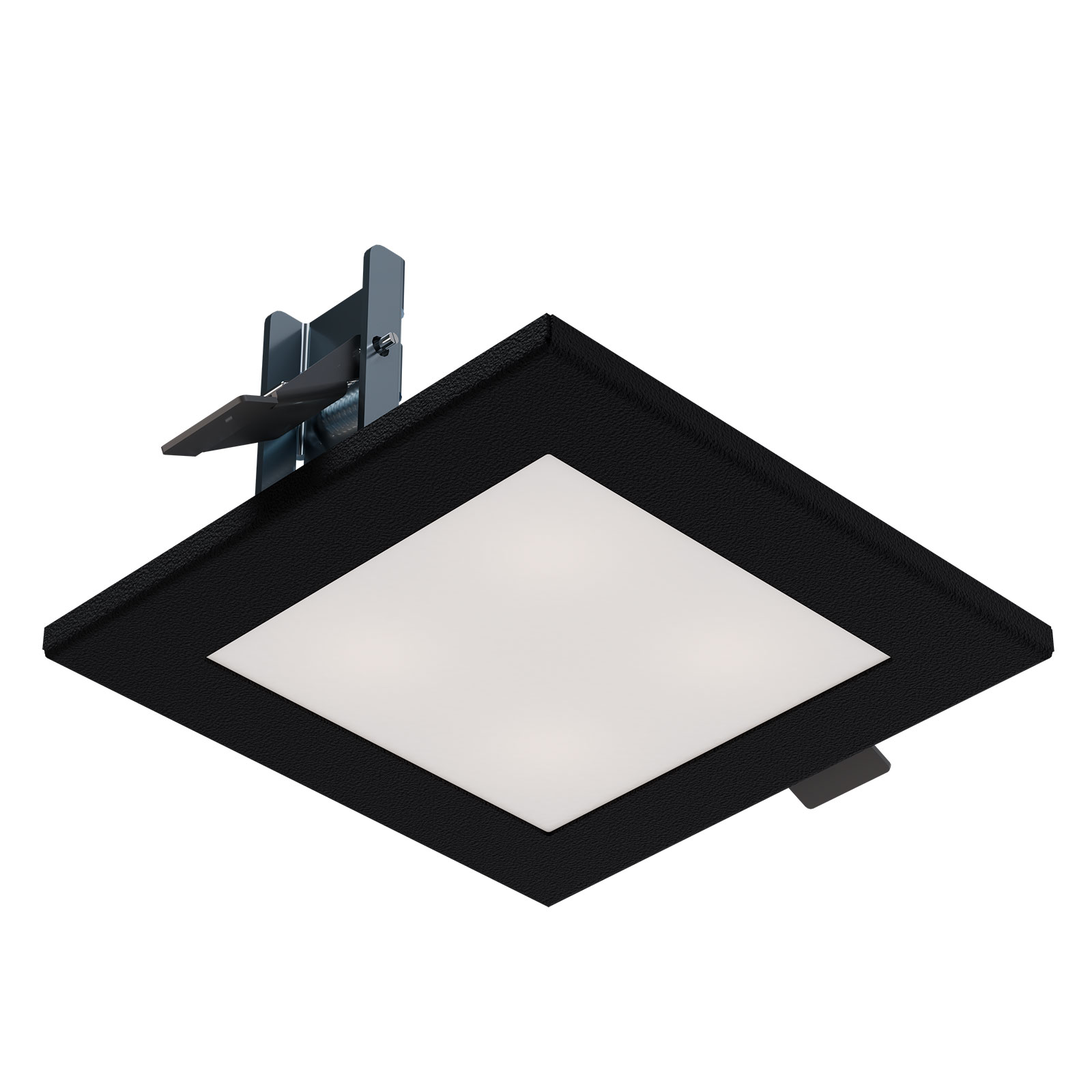

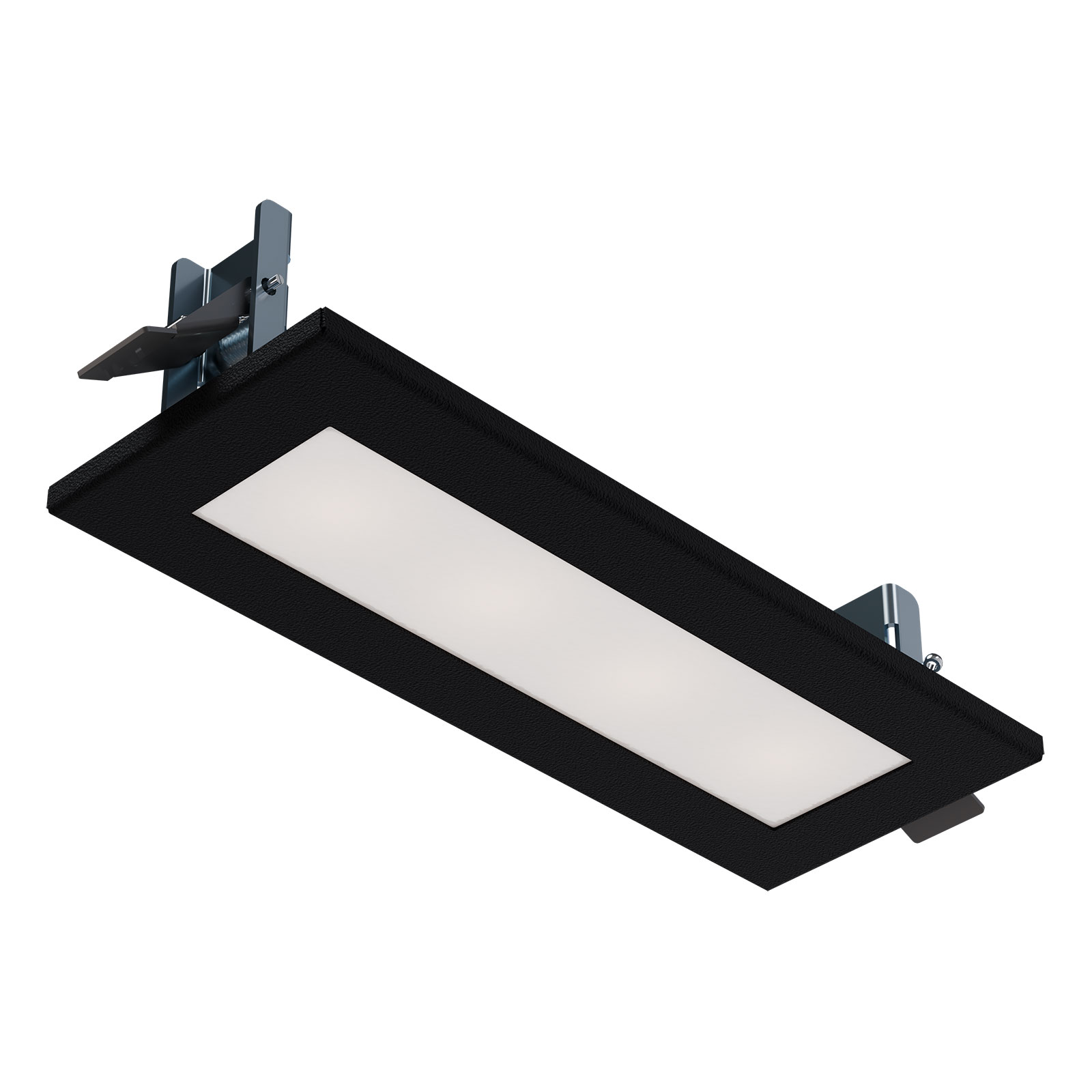

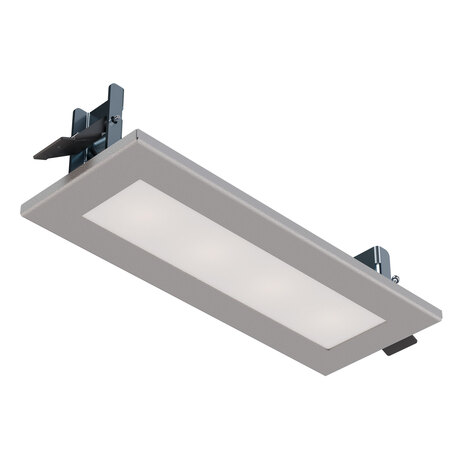

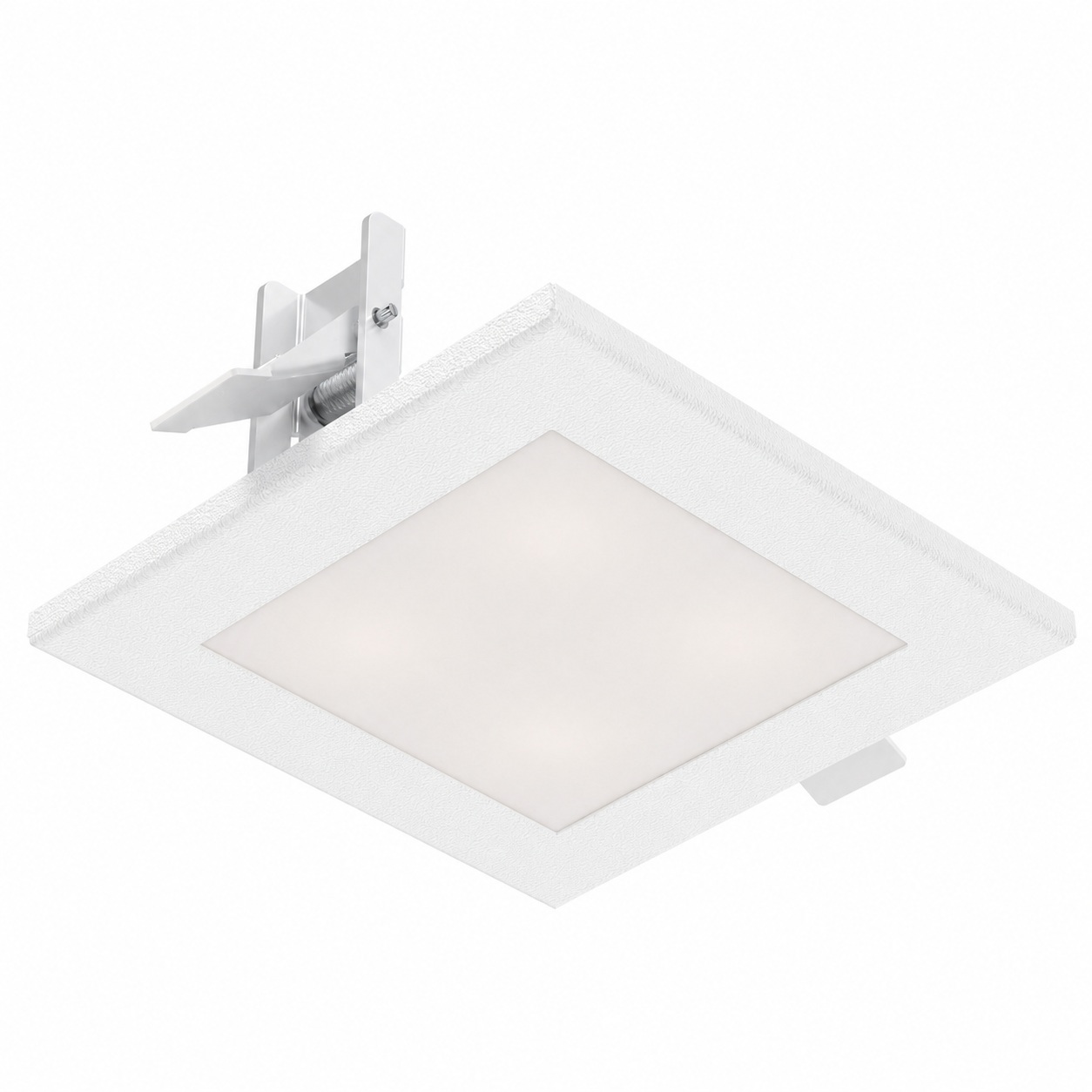

The housing is made of powder-coated steel sheet in white or black, with optional custom RAL colors. The luminaire is available in square and rectangular versions.

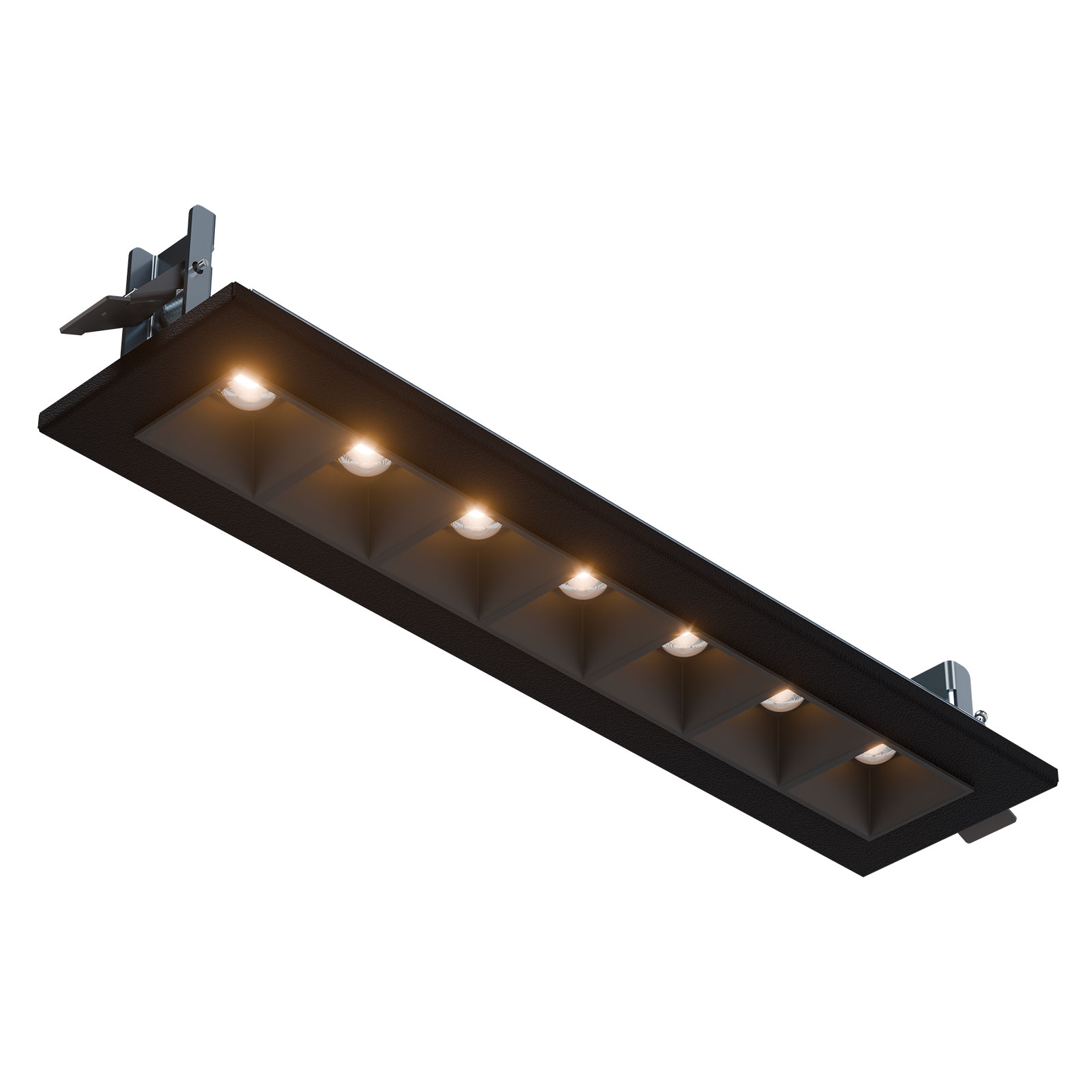

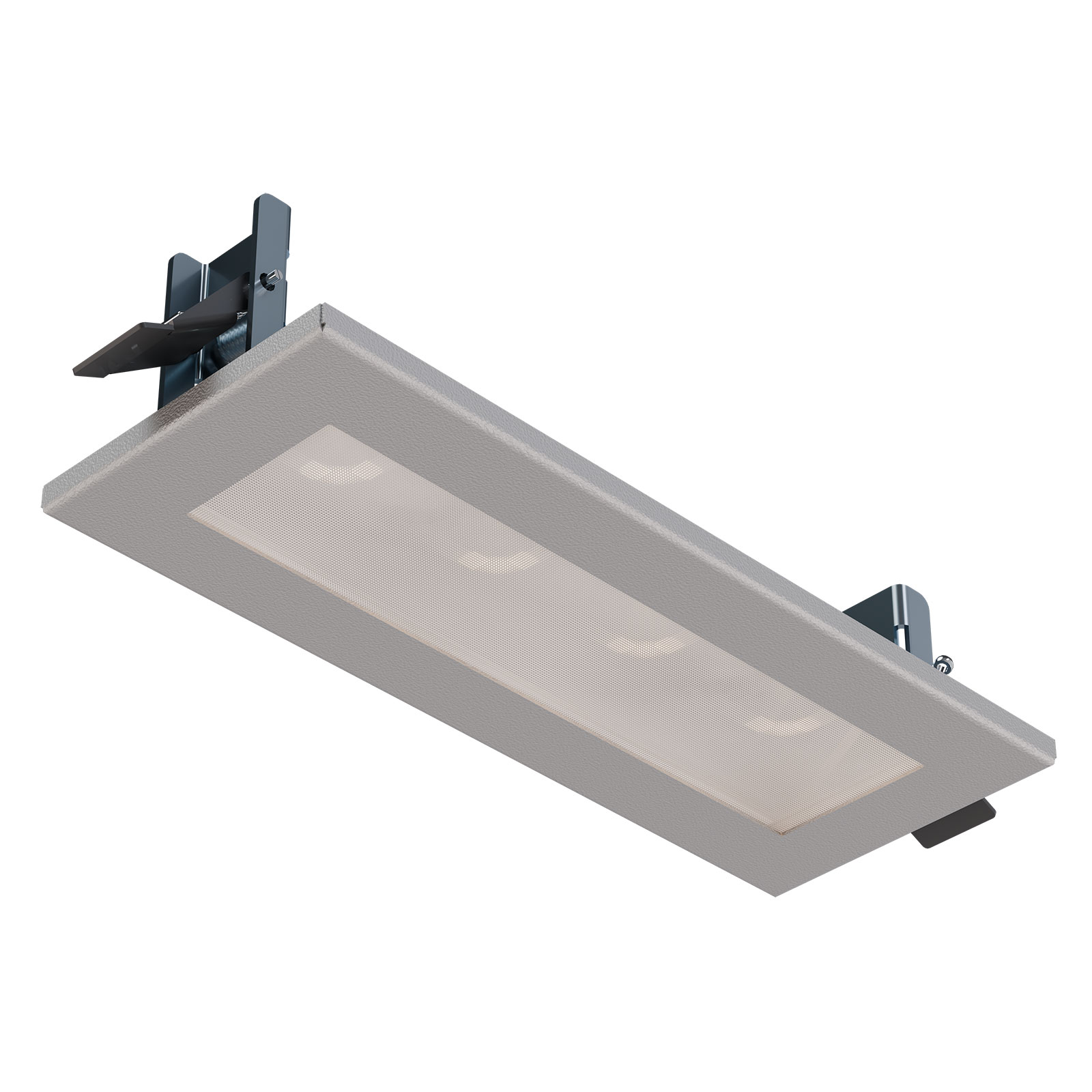

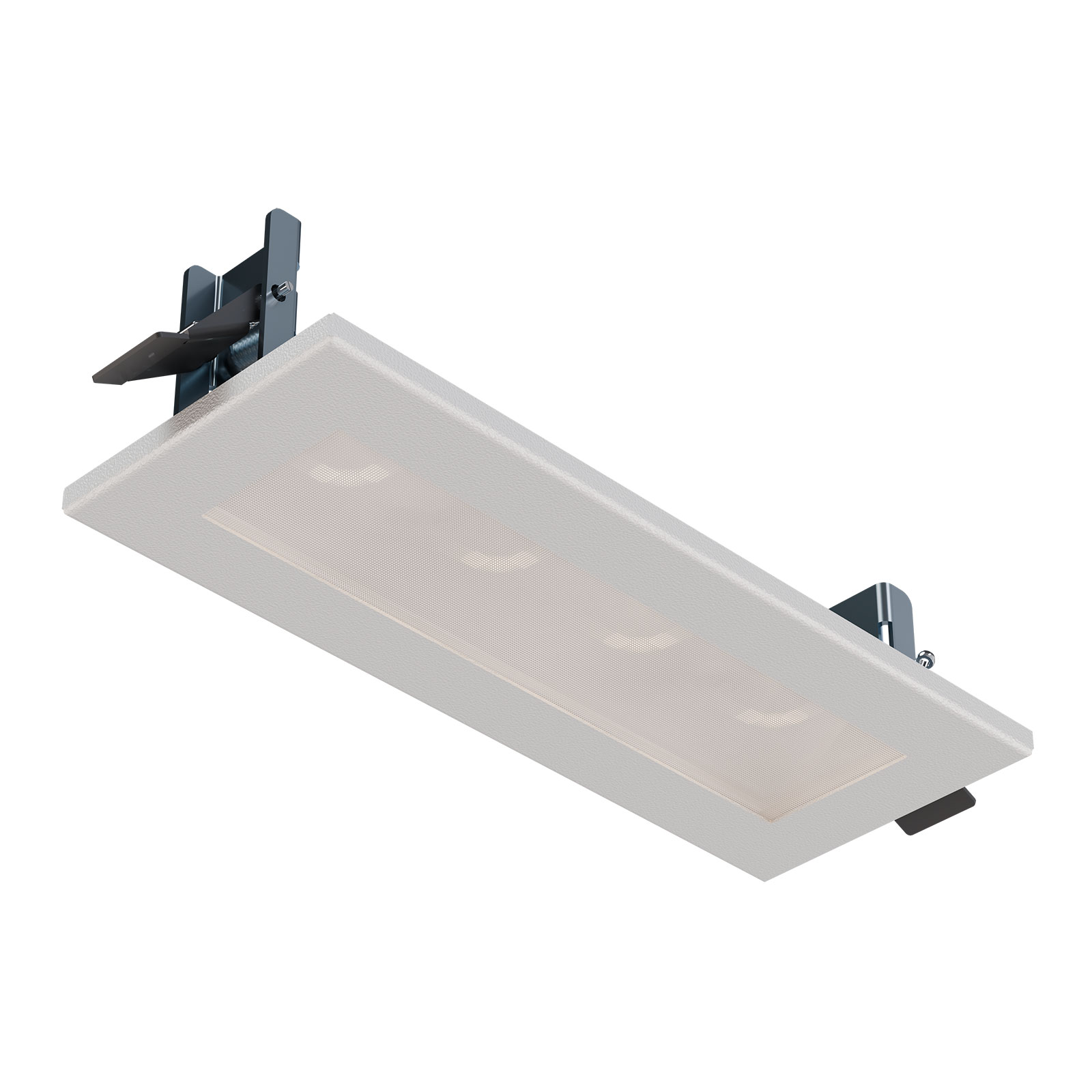

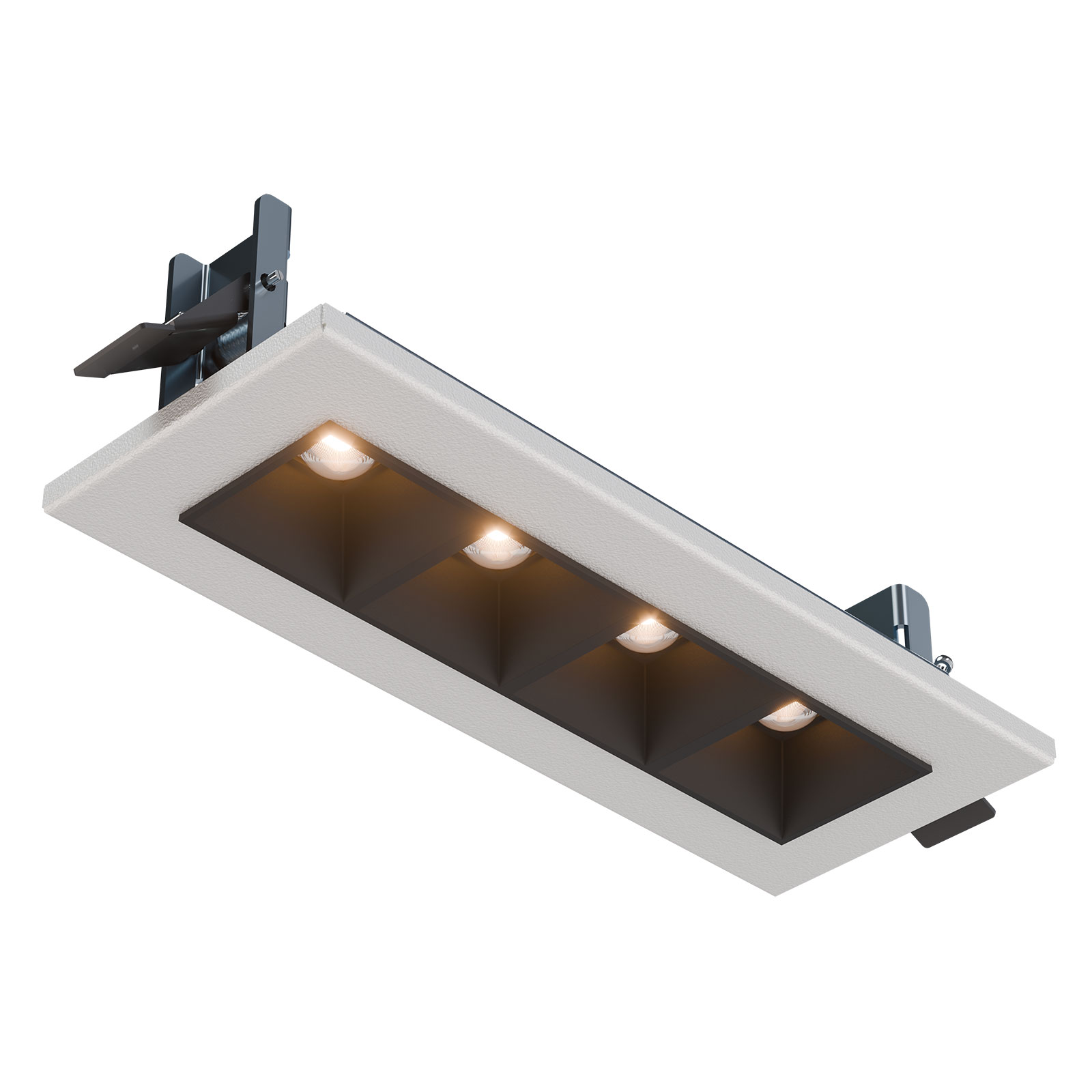

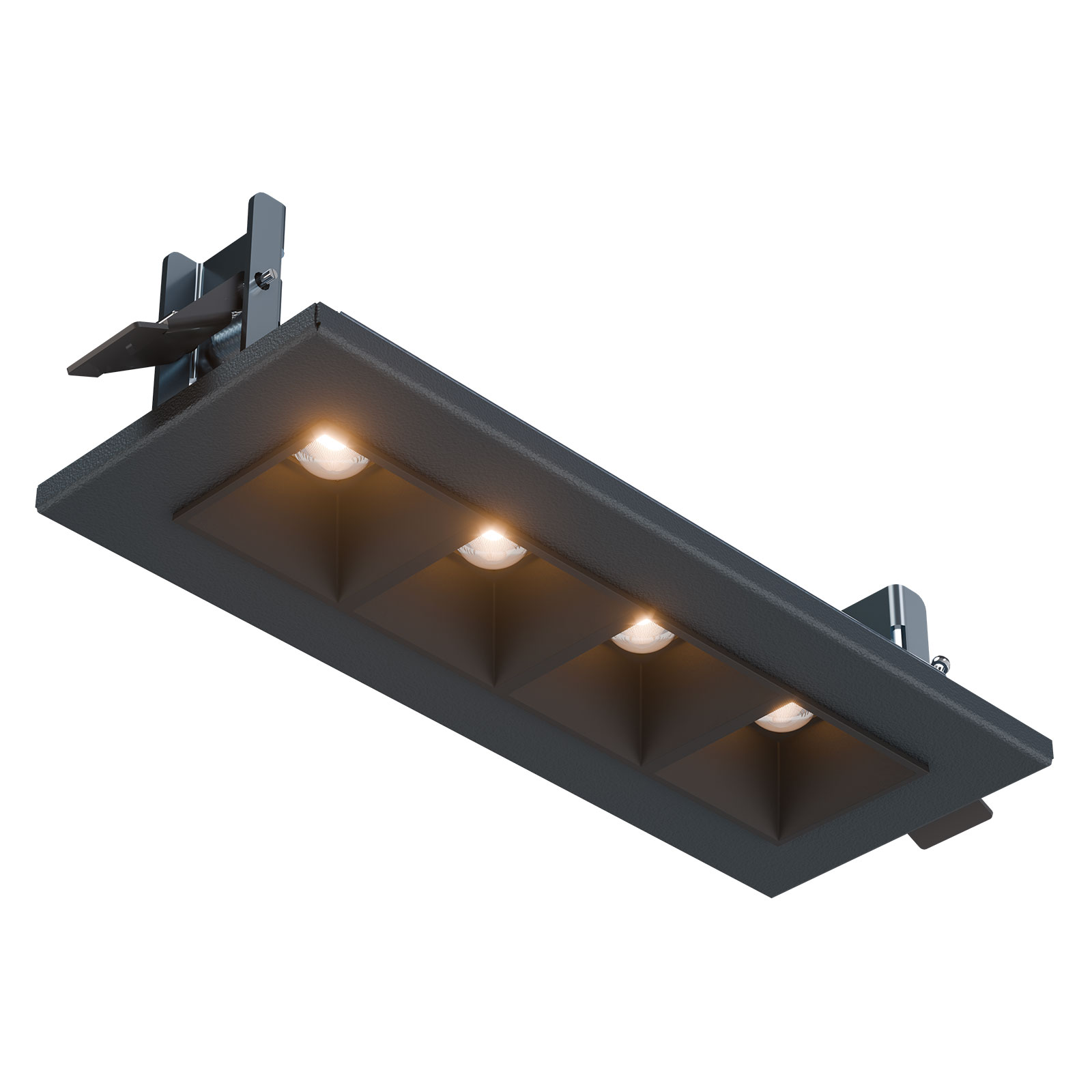

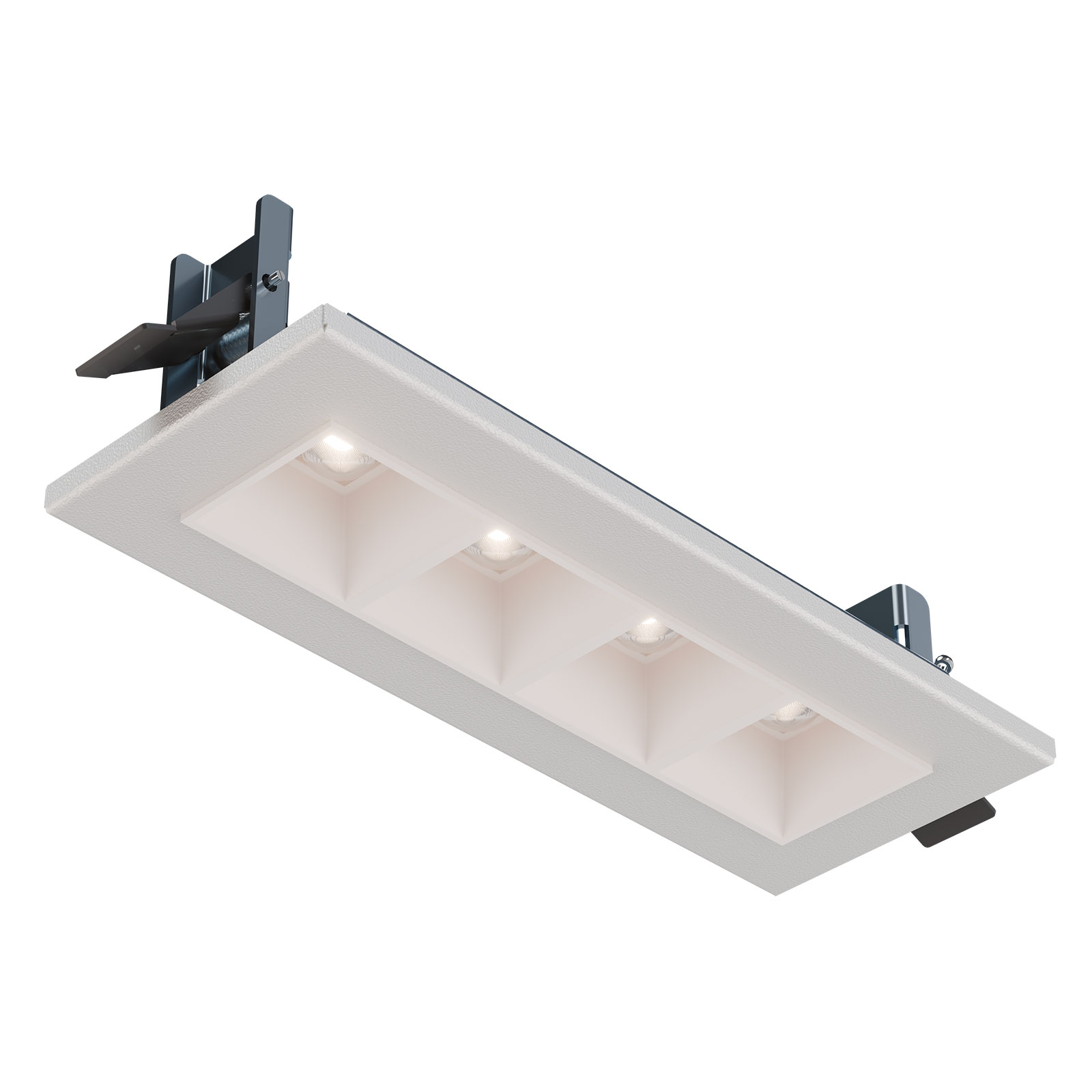

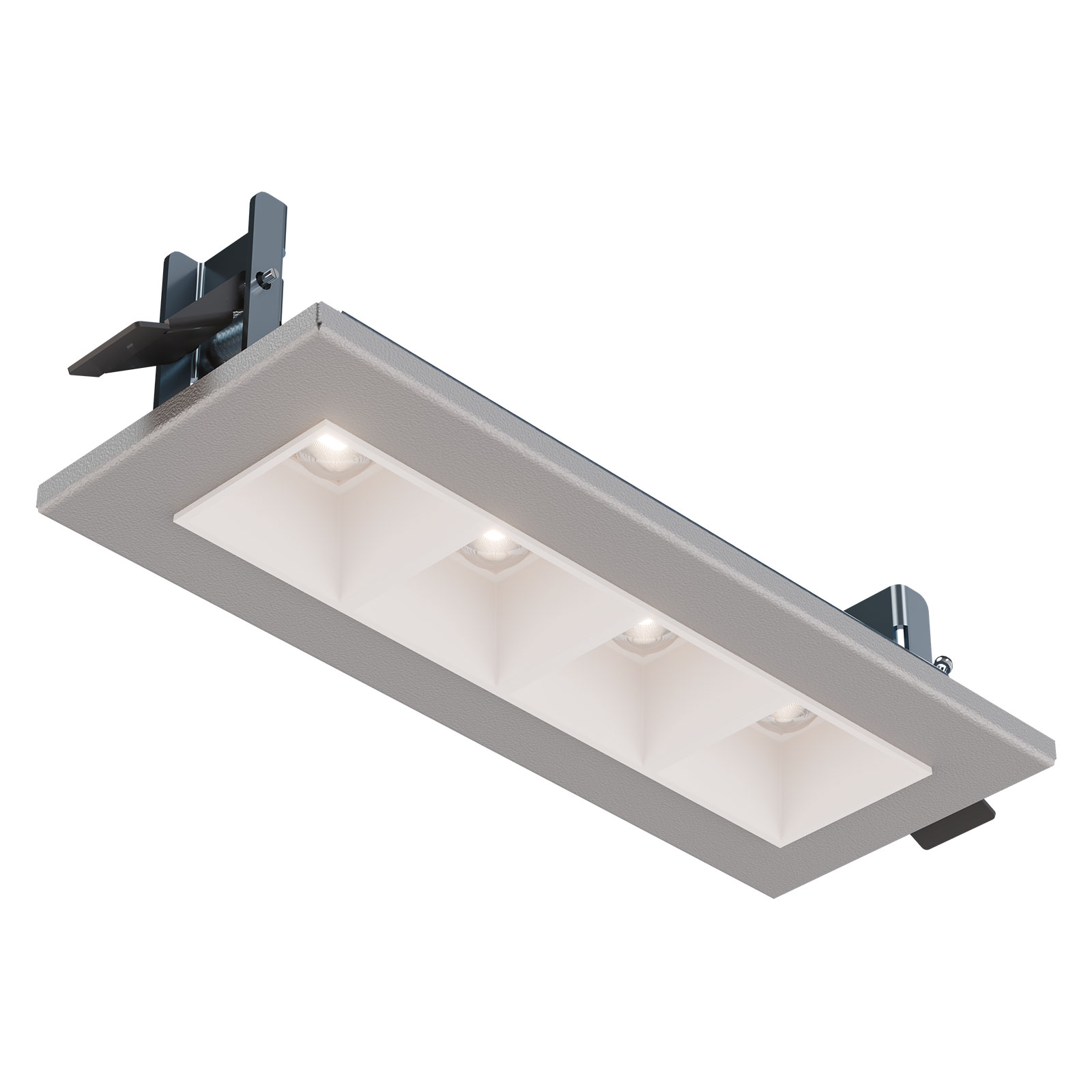

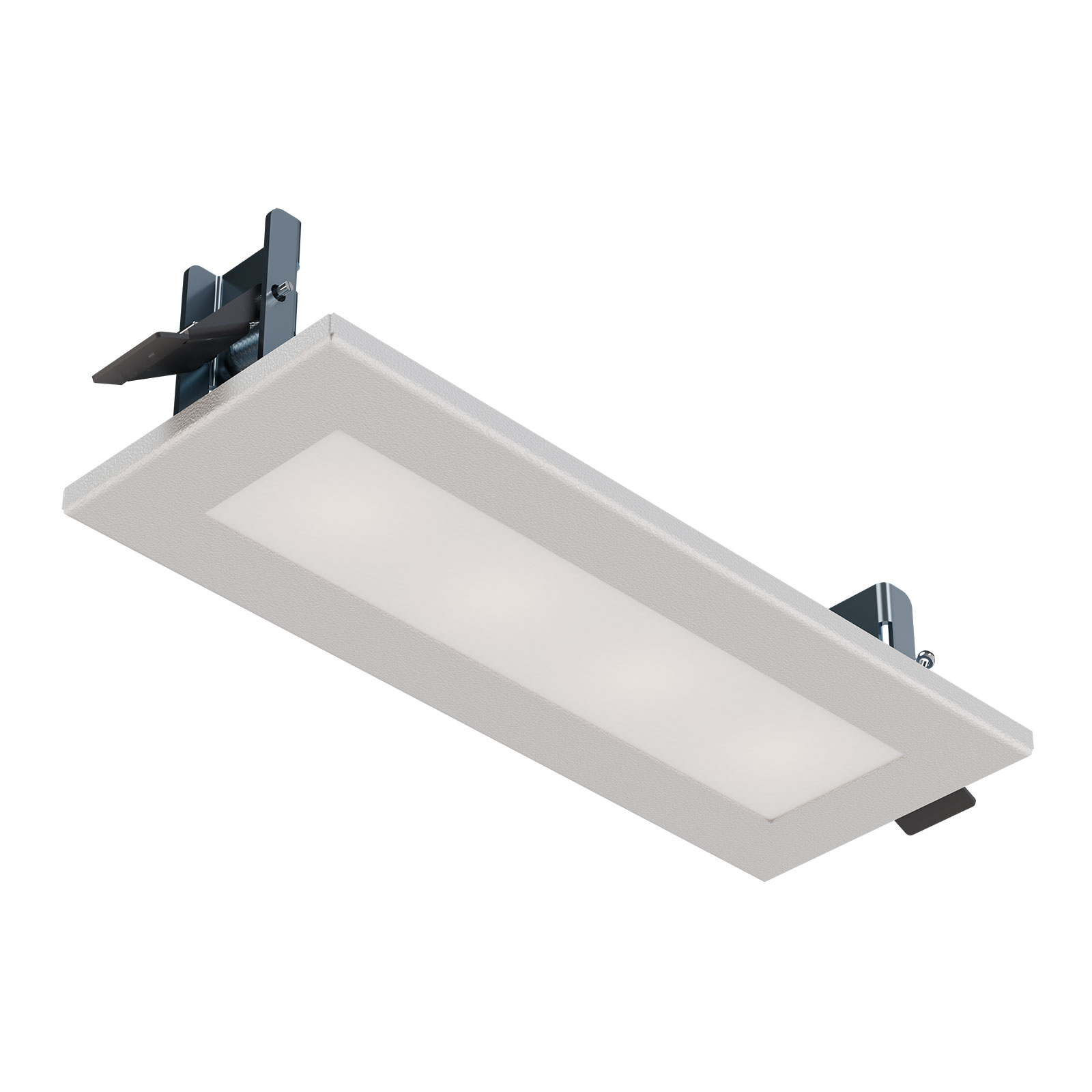

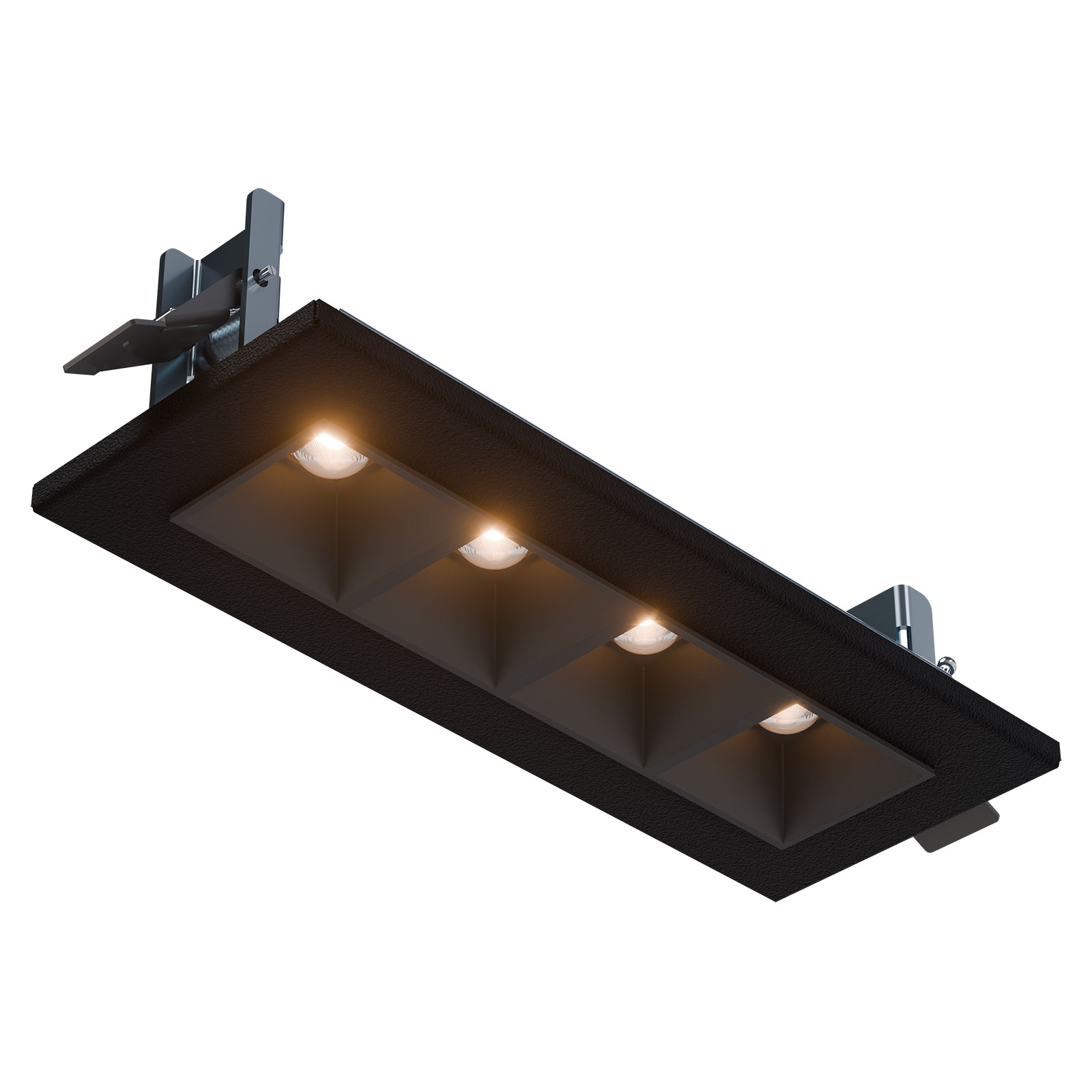

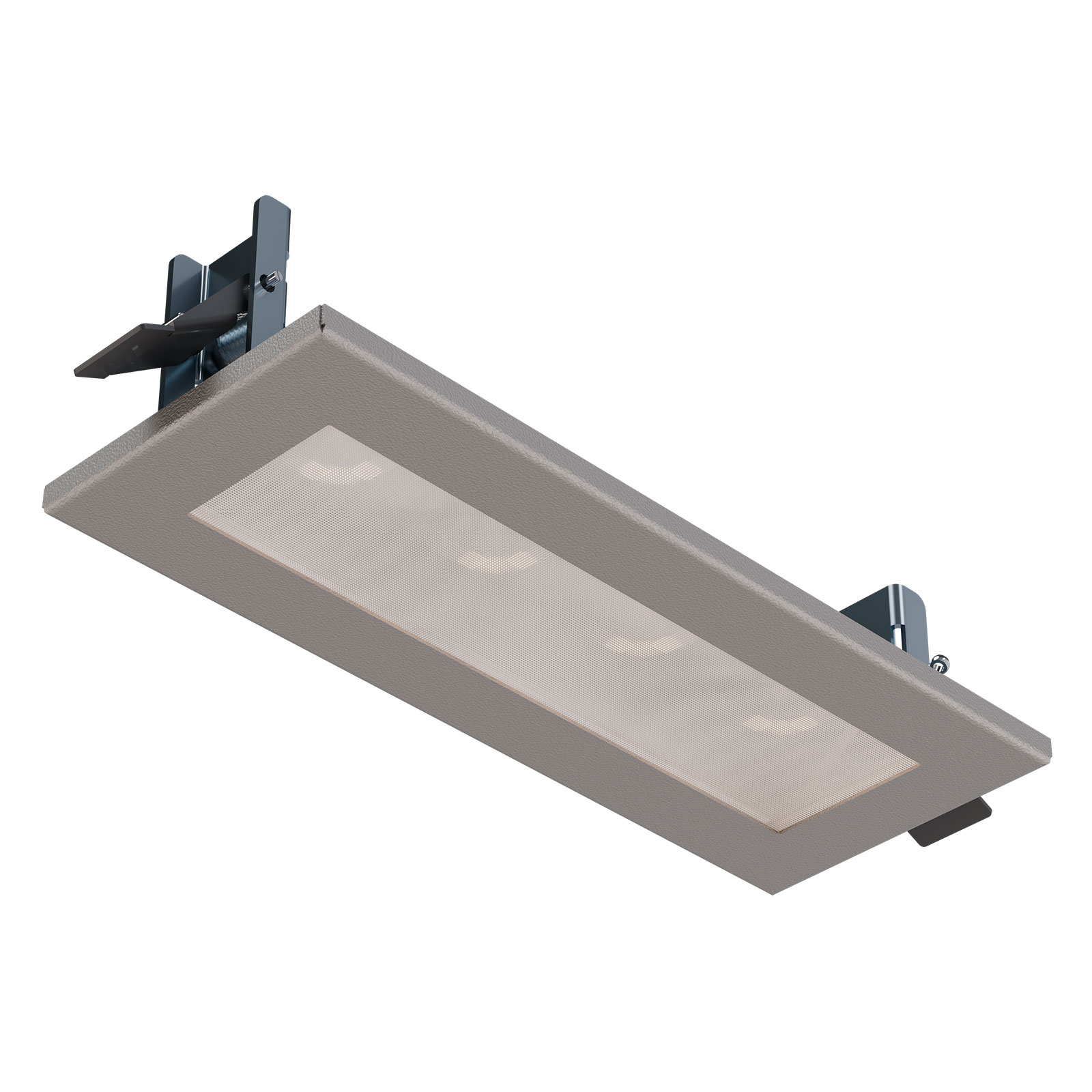

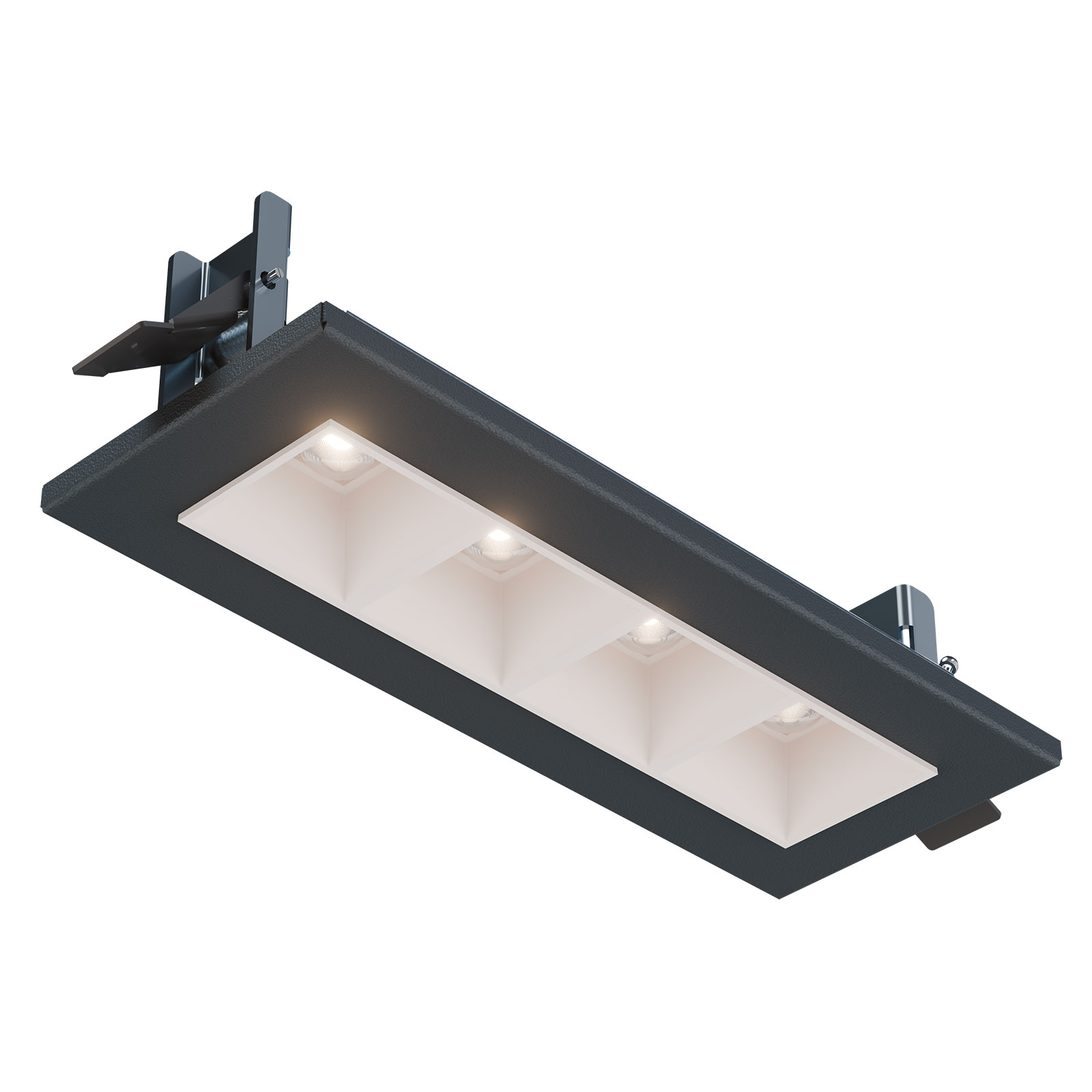

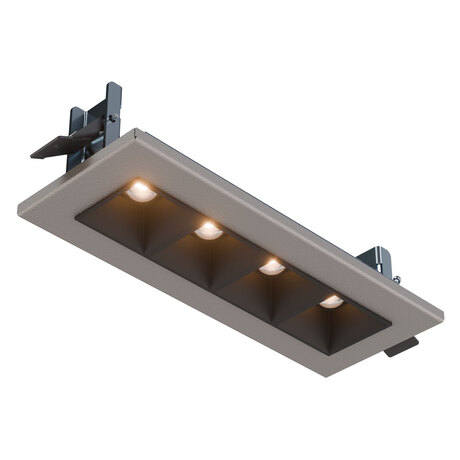

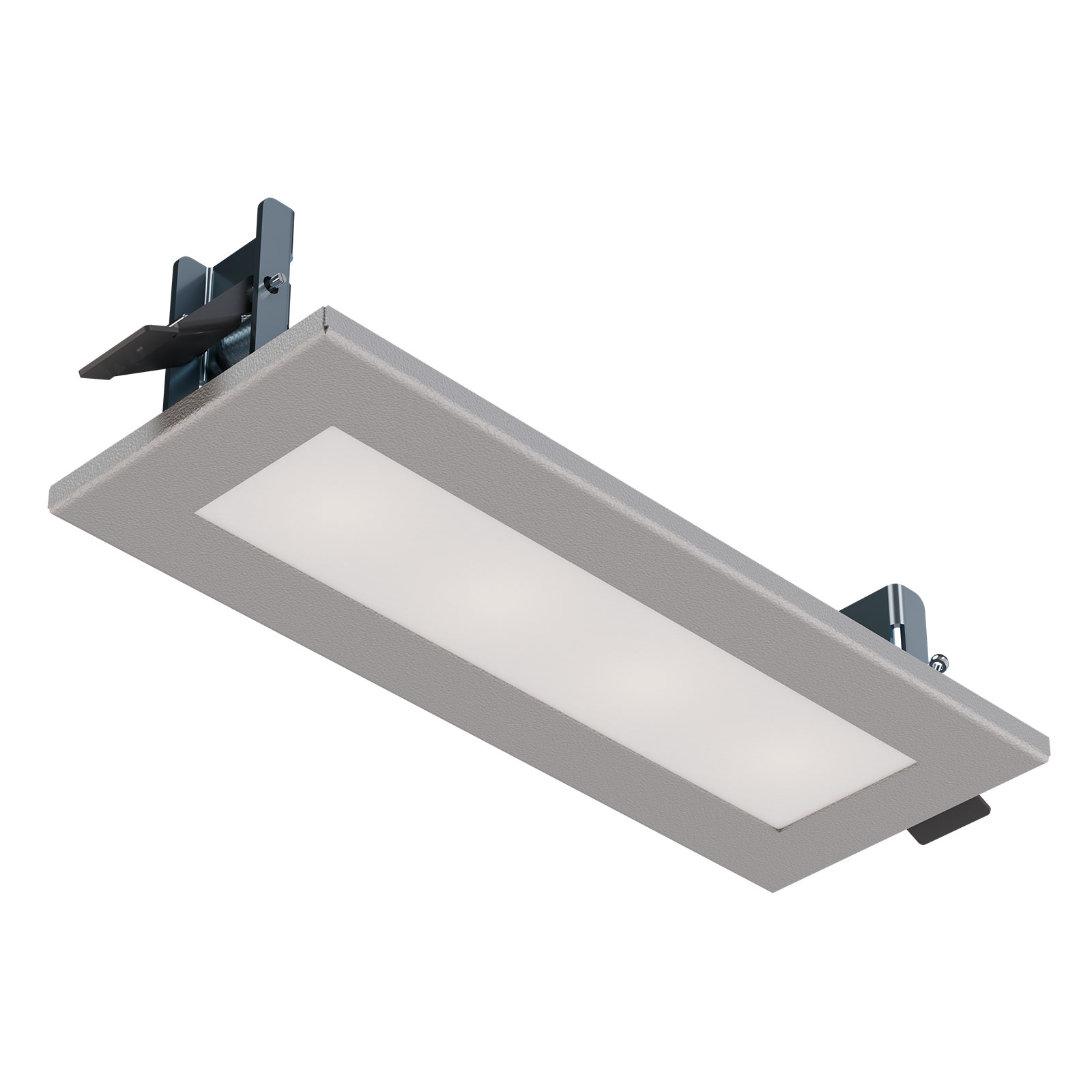

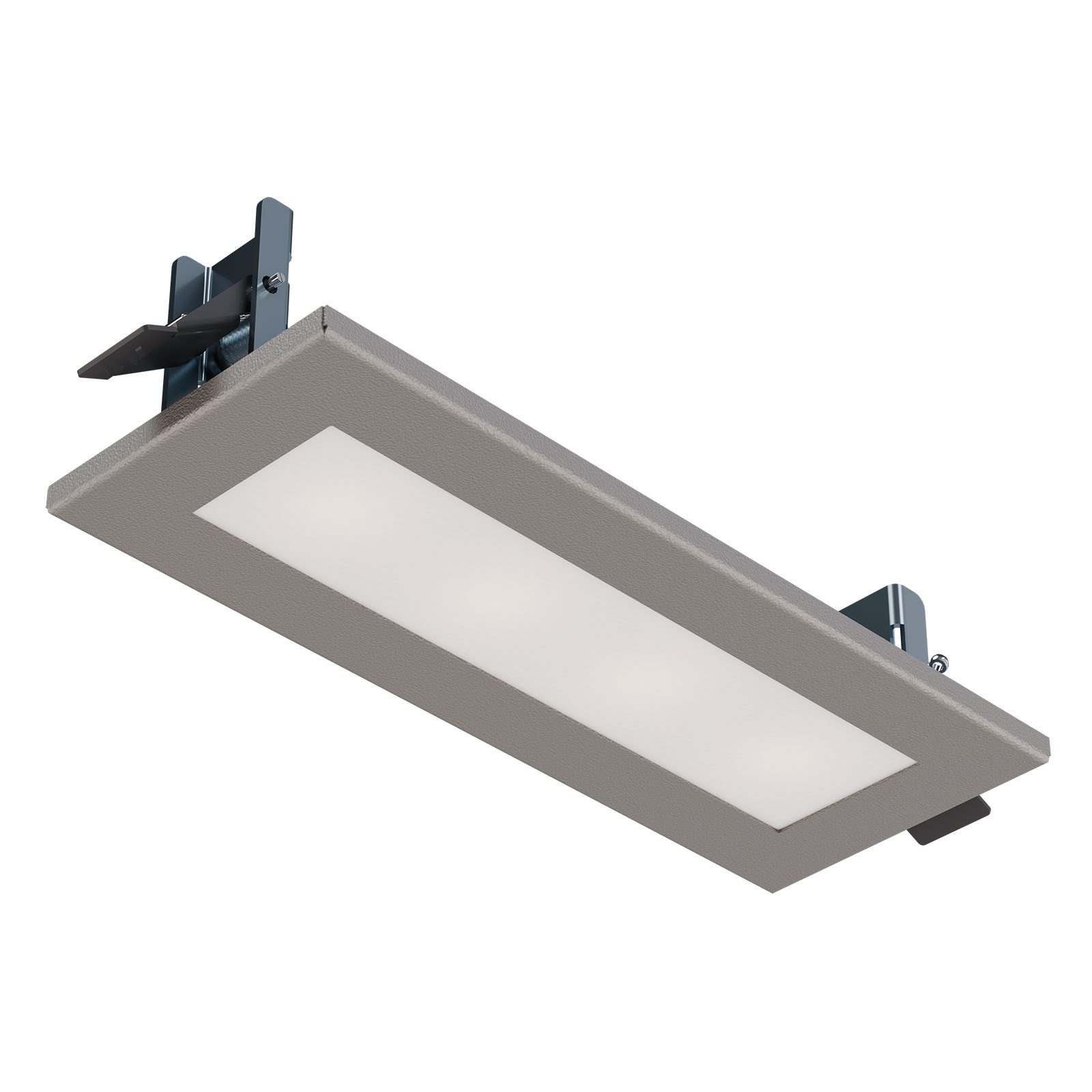

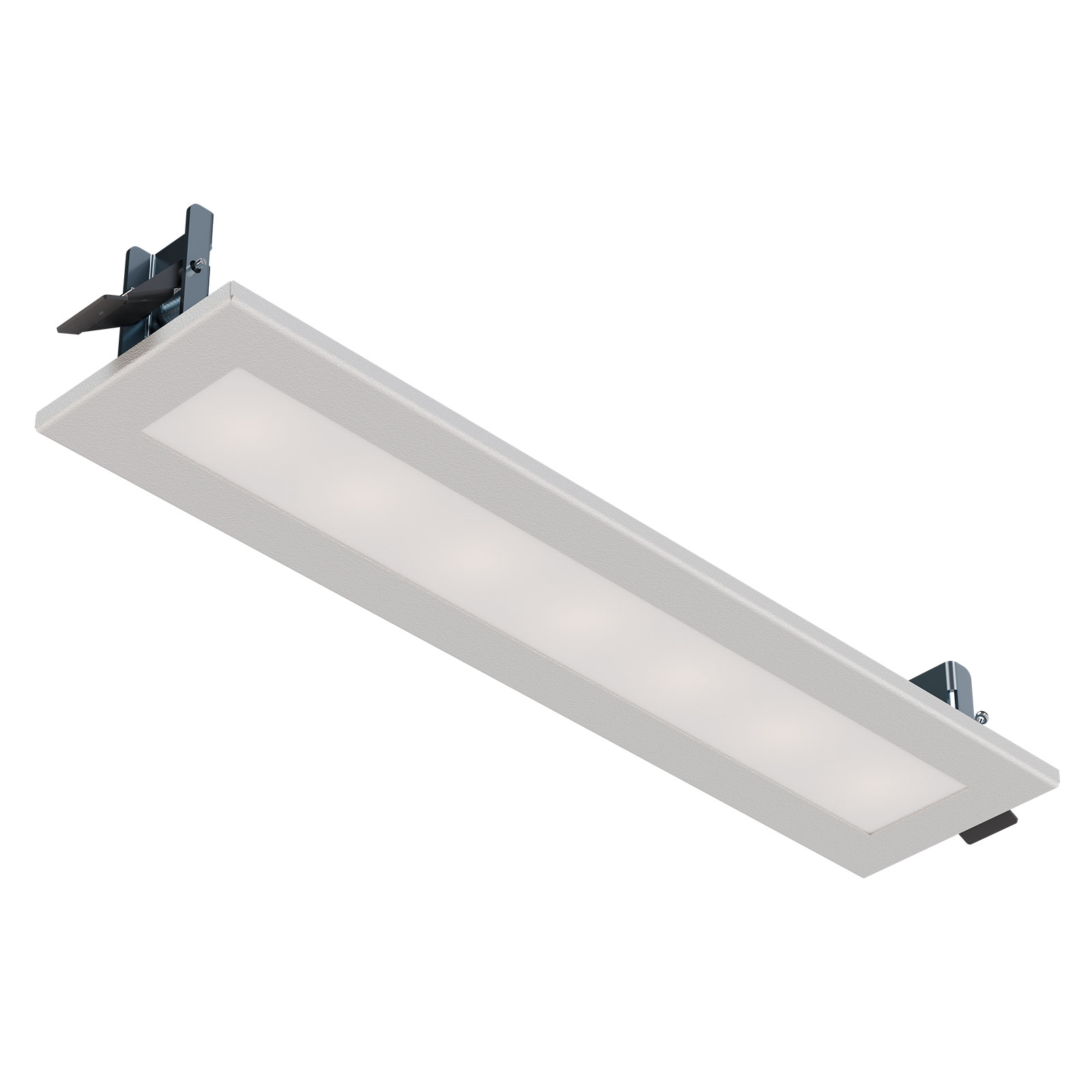

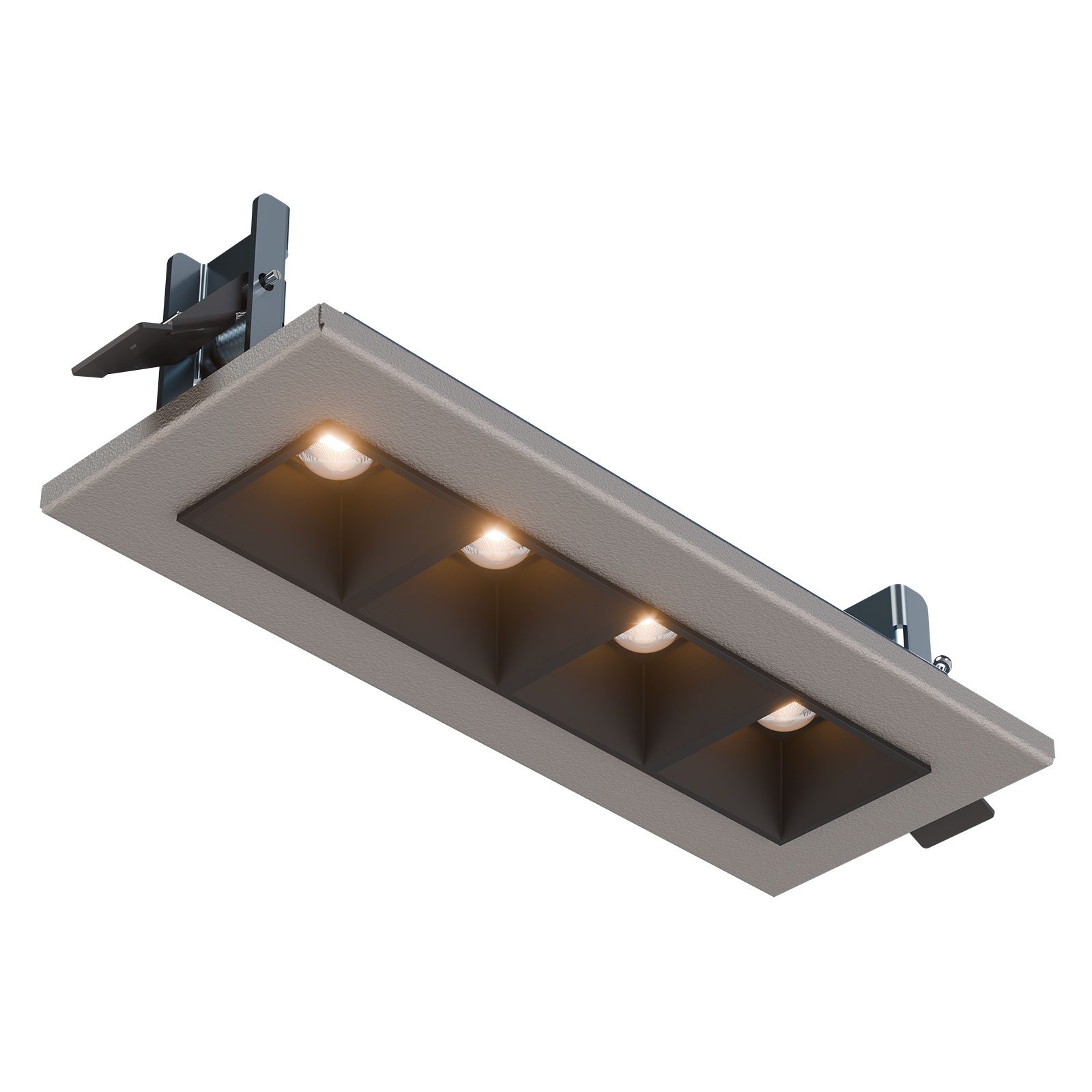

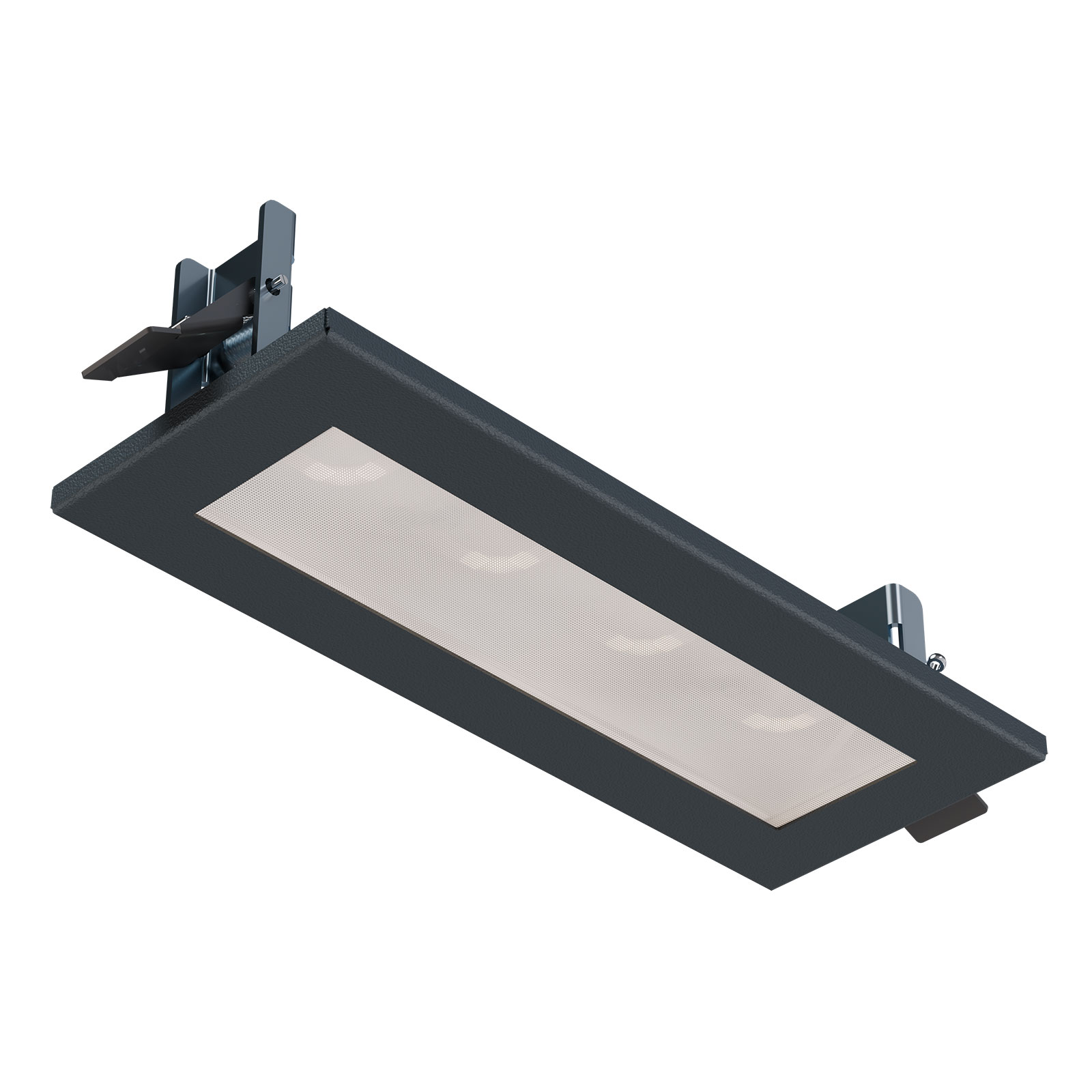

The optical system includes BM and CM reflectors with beam angles of 50° or 80°, combined with clear PMMA lenses or opal and prismatic covers.
The luminaire is suitable for recessed installation in ceilings up to 16 mm thick and is available with ON/OFF, 1–10 V, or DALI power supply.
DM is an ideal choice for offices, retail areas, hotels, corridors, and public buildings.
| Body material: | Painted steel | Mounting method: | Built-in | Protection class: | II | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | No | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20, IP40 |
| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Recessed mounted ceiling- and wall luminaire | Optical system: | KO opal cover KN nanoprizmatic cover CM80 Black MAT reflector with lenses 80° BM80 White MAT reflector with lenses 80° CM50 Black MAT reflector with lenses 50° BM50 White MAT reflector with lenses 50° | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Bluetooth Bluetooth |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product page - PDF
Assembly instruction
LDT files
