Product series
MODUS DON TRACK

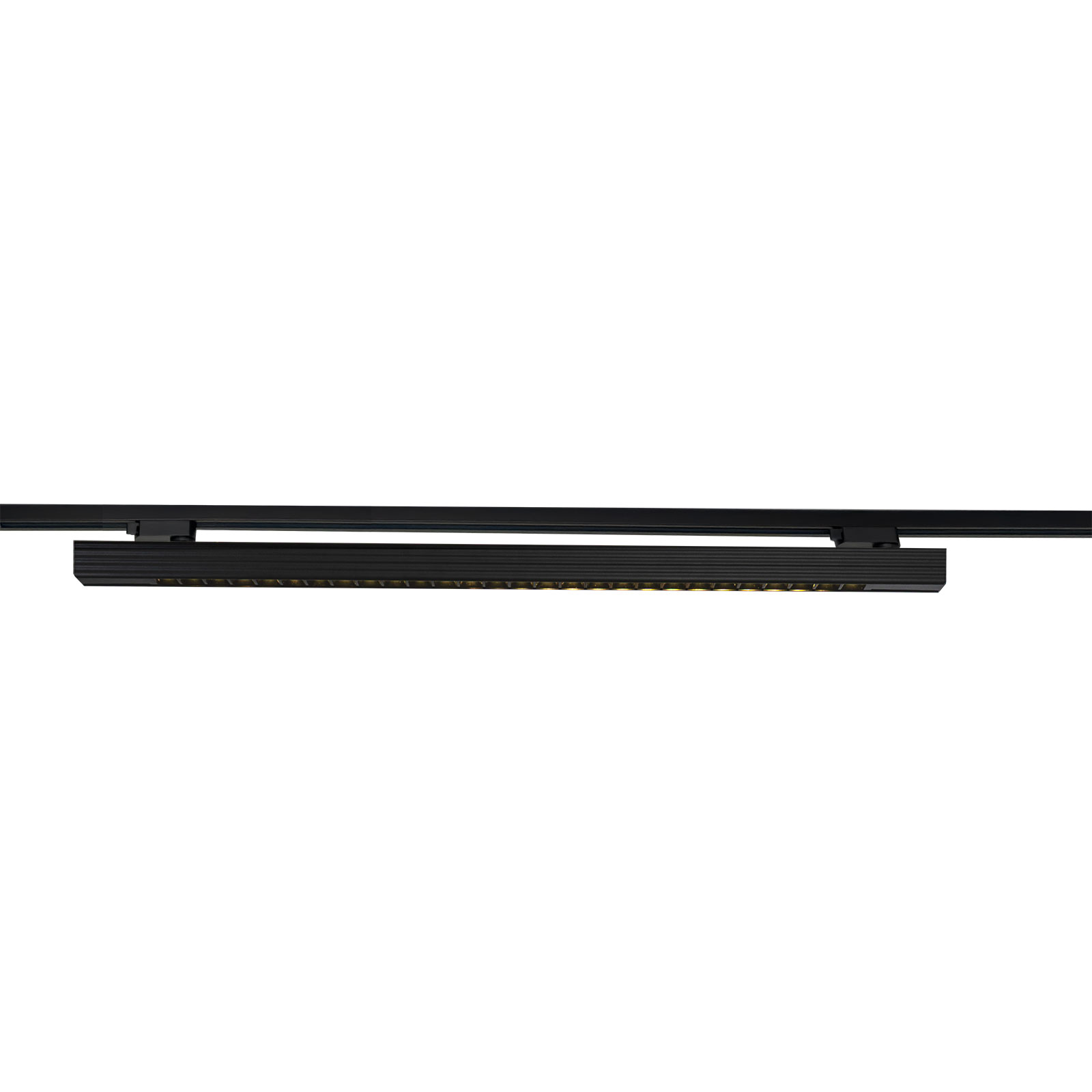

Linear light fixture for a track system with dark-light optics
Standard price from:
On request
A linear light fixture with a subtle appearance and an elegant aluminum profile, designed for installation in a track system.
The optical system is made up of dark optics (modern style, low UGR, high efficiency). The color of the optics can be chosen in the following options:
- Black (C80)
- Matte black (CM80)
- White (B80)
- Matte white (BM80)
Light units are compatible with commonly used systems (EUTRACK 3/, ONETRACK 3P, IVELA 3P, NORDIC ALUMINIUM XTS4 3P, ...)
| Mounting method: | Surface mounting, Suspended | Protection class: | I | Color rendering index CRI: | 80-89 | Light source type: | LED | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 |
| Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
DON1000TR4B4B80/ND
Effective luminous flux (lm): 1200
Color temperature (K): 4000
DON1000TR4C4CM50/ND
Effective luminous flux (lm): 1000
Color temperature (K): 4000
DON1000TR4C4CM80/ND
Effective luminous flux (lm): 1000
Color temperature (K): 4000
DON1500TR4B4B80/ND
Effective luminous flux (lm): 1750
Color temperature (K): 4000
DON1500TR4C4C50/ND
Effective luminous flux (lm): 1550
Color temperature (K): 4000
DON1500TR4C4CM50/ND
Effective luminous flux (lm): 1450
Color temperature (K): 4000
DON2500TRM4BB80/ND
Effective luminous flux (lm): 2300
Color temperature (K): 4000
DON2500TRM4CC80/ND
Effective luminous flux (lm): 2100
Color temperature (K): 4000
DON3000TR4C7CM50/ND
Effective luminous flux (lm): 2500
Color temperature (K): 4000
DON3000TR4C7CM80/ND
Effective luminous flux (lm): 2500
Color temperature (K): 4000
DON4000TRM3BB80/DALI
Effective luminous flux (lm): 3600
Color temperature (K): 3000
DON4000TRM3BB80/ND
Effective luminous flux (lm): 3600
Color temperature (K): 3000
DON4000TRM3BBM80/DALI
Effective luminous flux (lm): 3600
Color temperature (K): 3000
DON4000TRM3CC80/DALI
Effective luminous flux (lm): 3600
Color temperature (K): 3000
DON4000TRM3CC80/ND
Effective luminous flux (lm): 3600
Color temperature (K): 3000
DON4000TRM3CCM80/DALI
Effective luminous flux (lm): 3600
Color temperature (K): 3000
DON4000TRM4BB80/DALI
Effective luminous flux (lm): 3600
Color temperature (K): 4000
DON4000TRM4BB80/DALI/90
Effective luminous flux (lm): 3050
Color temperature (K): 4000
DON4000TRM4BB80/ND
Effective luminous flux (lm): 3600
Color temperature (K): 4000
DON4000TRM4BC80/DALI/90
Effective luminous flux (lm): 3050
Color temperature (K): 4000
DON4000TRM4BC80/ND
Effective luminous flux (lm): 3600
Color temperature (K): 4000
DON4000TRM4CC80/DALI
Effective luminous flux (lm): 3600
Color temperature (K): 4000
DON4000TRM4CC80/ND
Effective luminous flux (lm): 3600
Color temperature (K): 4000
DON4000TRM5CC80/ND
Effective luminous flux (lm): 3600
DON4000TRMMIXWBB80
Effective luminous flux (lm): 4000
Color temperature (K): 2700...6500
DON5000TRM3BB80/DALI
Effective luminous flux (lm): 5200
Color temperature (K): 3000
DON5000TRM3BC80/DALI/90
Effective luminous flux (lm): 5200
DON5000TRM3CC80/BTC
Effective luminous flux (lm): 4700
Color temperature (K): 3000
DON5000TRM3CC80/DALI/90
Effective luminous flux (lm): 5200
DON7000TRL4CC50/DALI
Effective luminous flux (lm): 6800
Color temperature (K): 4000
DON7000TRL4CC80/BTC
Effective luminous flux (lm): 6800
Color temperature (K): 4000
DON7000TRL4CC80/DALI
Effective luminous flux (lm): 6800
Color temperature (K): 4000
