MODUS DON

Subtile pendant/surface luminaire

třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

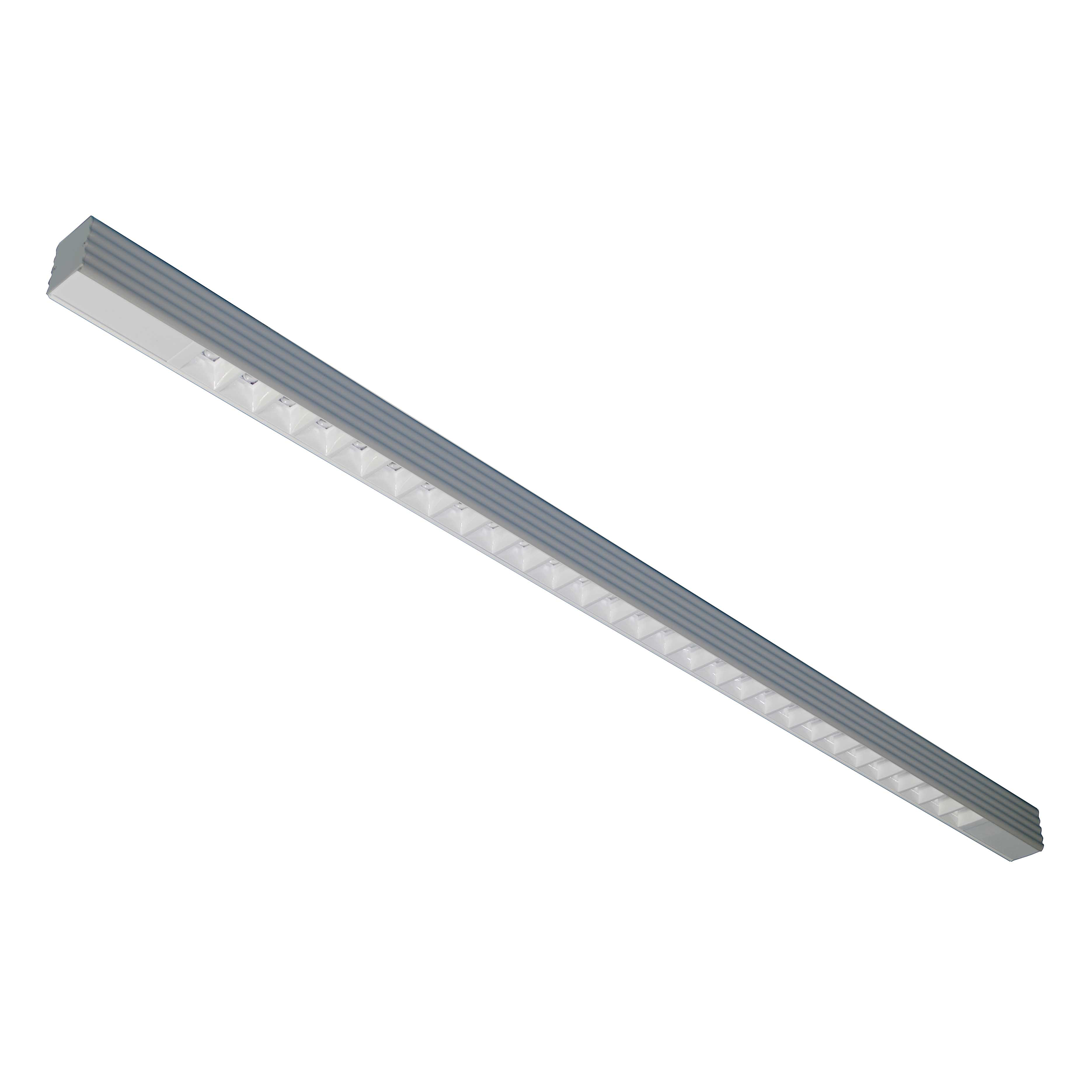

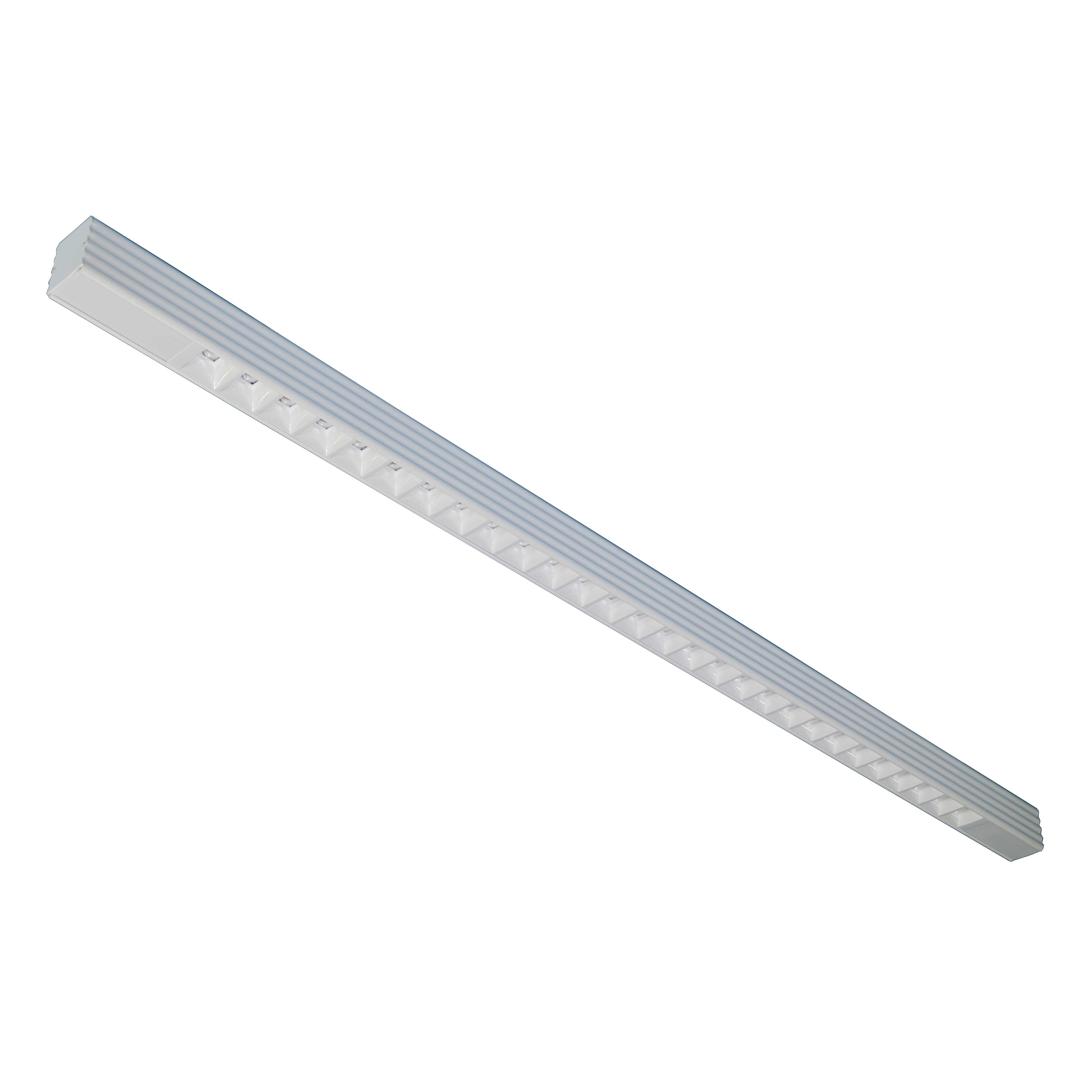

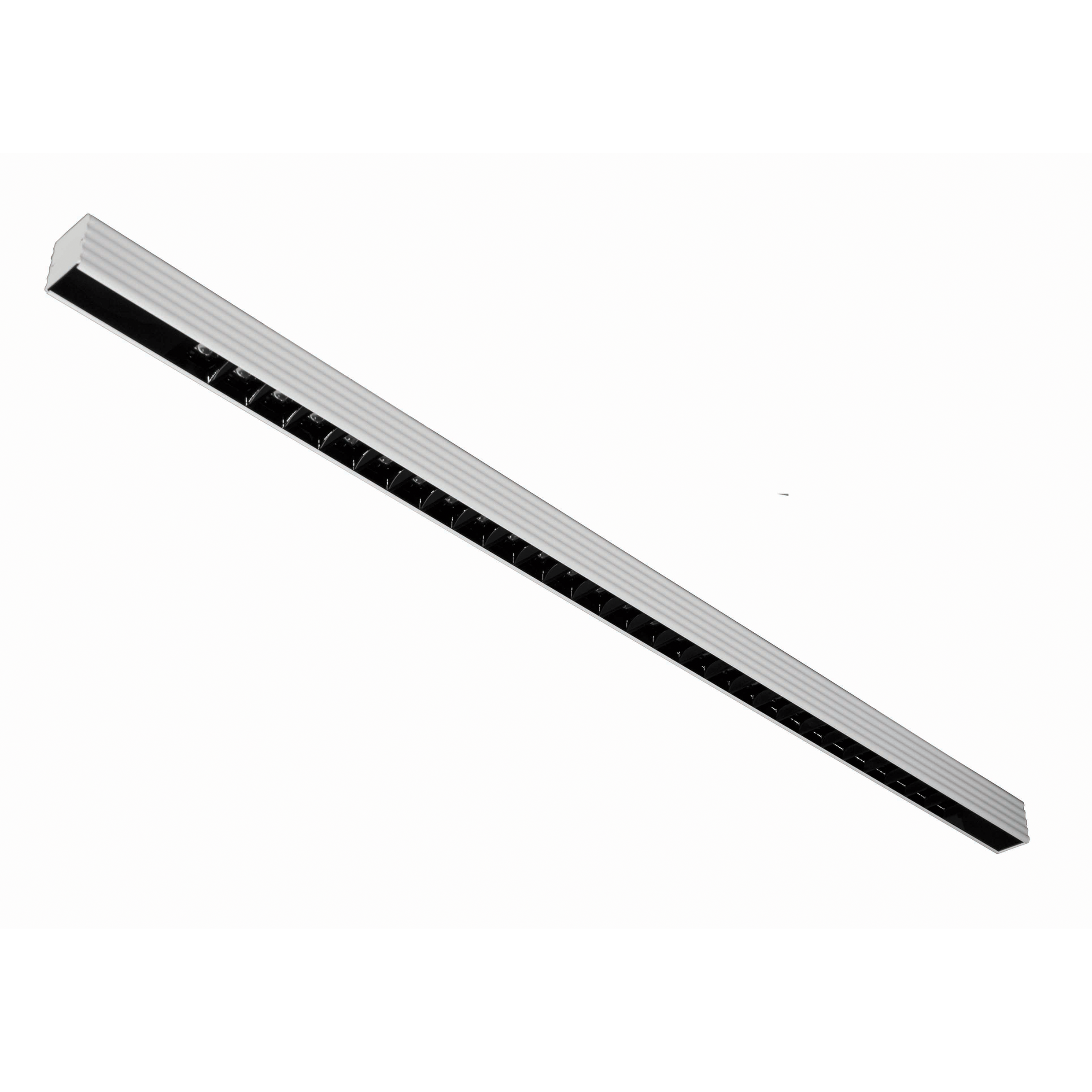

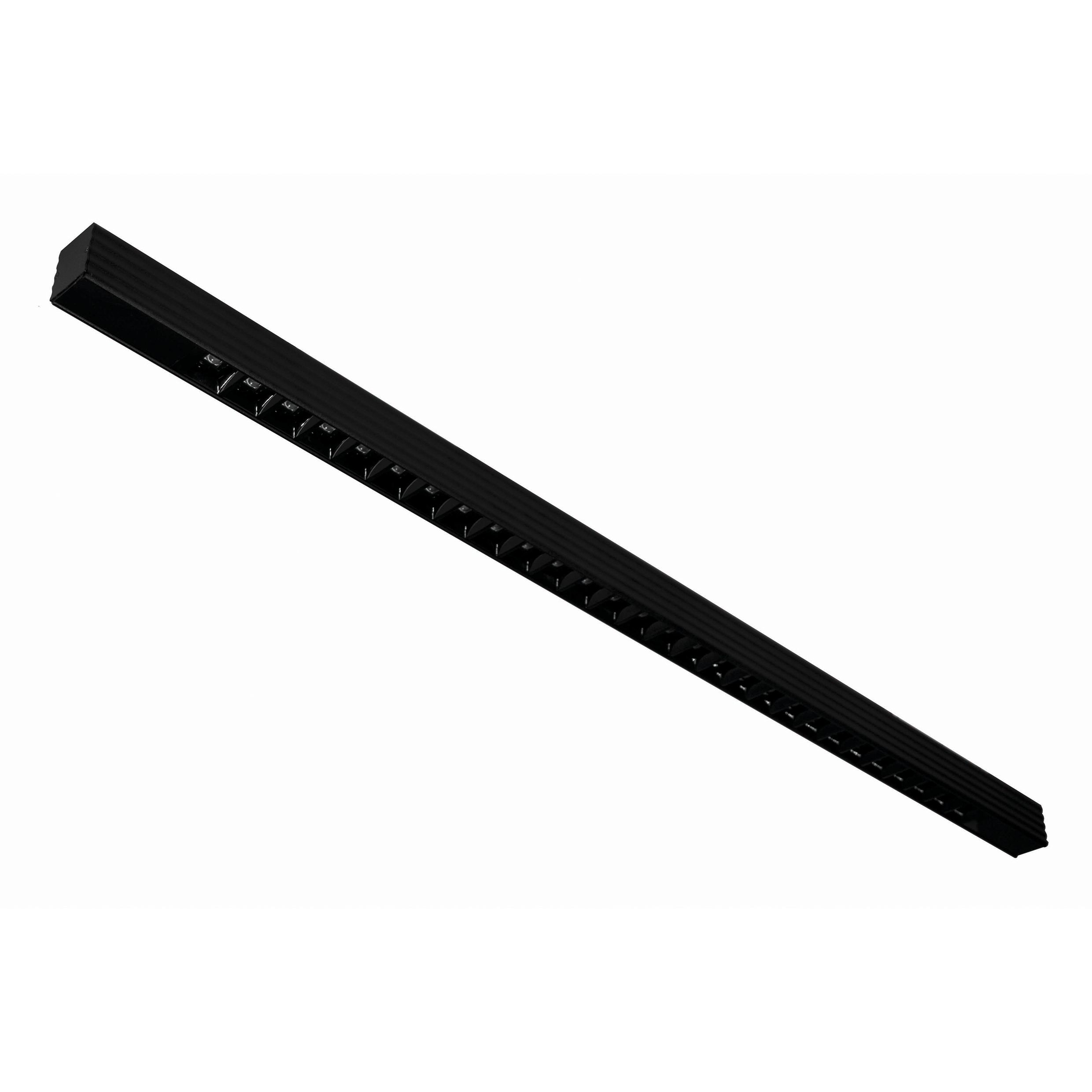

Subtile pendant or surface luminaire with "dark" optics with low glare (UGR16) and interesting design.

Body of luminaire is made by aluminium profile which can be painted by many colours - on request of customer. Standart luminaire is made with black or white painted aluminium body with black or white optical system.

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:Eloxal aluminium profile
Mounting method:Surface mounting, SuspendedProtection class:I
With movement sensor:YesType of control gear:ND
non-dimm
DALI
DALI dimm
Color rendering index CRI:80-89Light source type:LED
Anti-glare limiting UGR:16Color temperature controllable (K):Yes
Light outlet:DirectLight sharing:Symmetric
Nominal voltage (V):220...240Degree of protection (IP):IP20
Fit for monitor workplace:YesColor temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Optical system:PC
polycarbonate cover
B50
White reflector with lenses 50°
C50
Black reflector with lenses 50°
C80
Black reflector with lenses 80°
B80
White reflector with lenses 80°
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

900
7600

System power (W)

7
52
Product name
DON1000M3CC80/ND
Effective luminous flux (lm): 900
System power (W): 7
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON1000M4BB50/ND
Effective luminous flux (lm): 1000
System power (W): 7
Color temperature (K): 4000
Optical system: B50
Color housing: White
DON1500M4BB80/ND
Effective luminous flux (lm): 1600
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON1500M4BC80/ND
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON1500M4CC80/ND
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DON1500S3BB80/ND
Effective luminous flux (lm): 1400
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON2500M3BB80/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON2500M3CC80/DALI
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON2500M4BB80/ND
Effective luminous flux (lm): 2300
System power (W): 16
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON2500M4BC80/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON2500M4CC80/ND
Effective luminous flux (lm): 2100
System power (W): 16
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DON3000L4BB80/ND
Effective luminous flux (lm): 3450
System power (W): 22
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON3000L4BC80/ND
Effective luminous flux (lm): 3200
System power (W): 22
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON3000S3BB80/ND
Effective luminous flux (lm): 3000
System power (W): 22
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON3000S3CC80/DALIT
Effective luminous flux (lm): 3000
System power (W): 22
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON3500M3BB80/DALI/BTC
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON3500M3BB80/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON3500M3BC50/DALI
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 3000
Optical system: C50
Color housing: White
DON3500M3CC80/DALI
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DON3500M3CC80/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 3000
Optical system: C80
Color housing: White
DON3500M4BB80/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON3500M4BC80/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON3500M4CB80/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Color housing: Black
DON3500M4CC50/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C50
Color housing: Black
DON3500MMIXWBB80/BTC
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 2700...6500
Optical system: B80
Color housing: White
DON4000M3BB80/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON4000M3BB80/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 3000
Optical system: B80
Color housing: White
DON4000M3BC80/DALI
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Color housing: White
DON4000M3BC80/ND
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Color housing: White
DON4000M3CC80/DALI
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON4000M3CC80/DALI/90
Effective luminous flux (lm): 3100
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON4000M3CC80/ND
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON4000M4BB80/ND
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON4000M4BC80/ND
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON4000M4CC80/DALI
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DON4000M4CC80/ND
Effective luminous flux (lm): 3600
System power (W): 28
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DON4000MMIXWBB80/BTC
Effective luminous flux (lm): 4000
System power (W): 31
Color temperature (K): 2700...6500
Optical system: B80
Color housing: White
DON5000L4BB80/ND
Effective luminous flux (lm): 5900
System power (W): 39
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON5000L4BC80/ND
Effective luminous flux (lm): 5500
System power (W): 39
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON5000M3CC80/DALIT
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DON5000M4BB80/DALI
Effective luminous flux (lm): 5200
System power (W): 37
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON5000M4BB80/ND
Effective luminous flux (lm): 5200
System power (W): 37
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON5000M4CC80/DALI
Effective luminous flux (lm): 4700
System power (W): 37
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DON7000L4BB80/ND
Effective luminous flux (lm): 7600
System power (W): 52
Color temperature (K): 4000
Optical system: B80
Color housing: White
DON7000L4BC80/ND
Effective luminous flux (lm): 6800
System power (W): 52
Color temperature (K): 4000
Optical system: C80
Color housing: White
DON7000L4GB80/ND
Effective luminous flux (lm): 7600
System power (W): 52
Color temperature (K): 4000
Optical system: B80
Color housing: White
