Product series New

MODUS DOP

Subtile pendant luminaire

MODUS DOP
11 L80_80000_h.jpg

Price from:

2 300 Kč
( 2 783 Kč including VAT )

Subtile pendant luminaire with "dark" optics with low glare (UGR16) and interesting design.

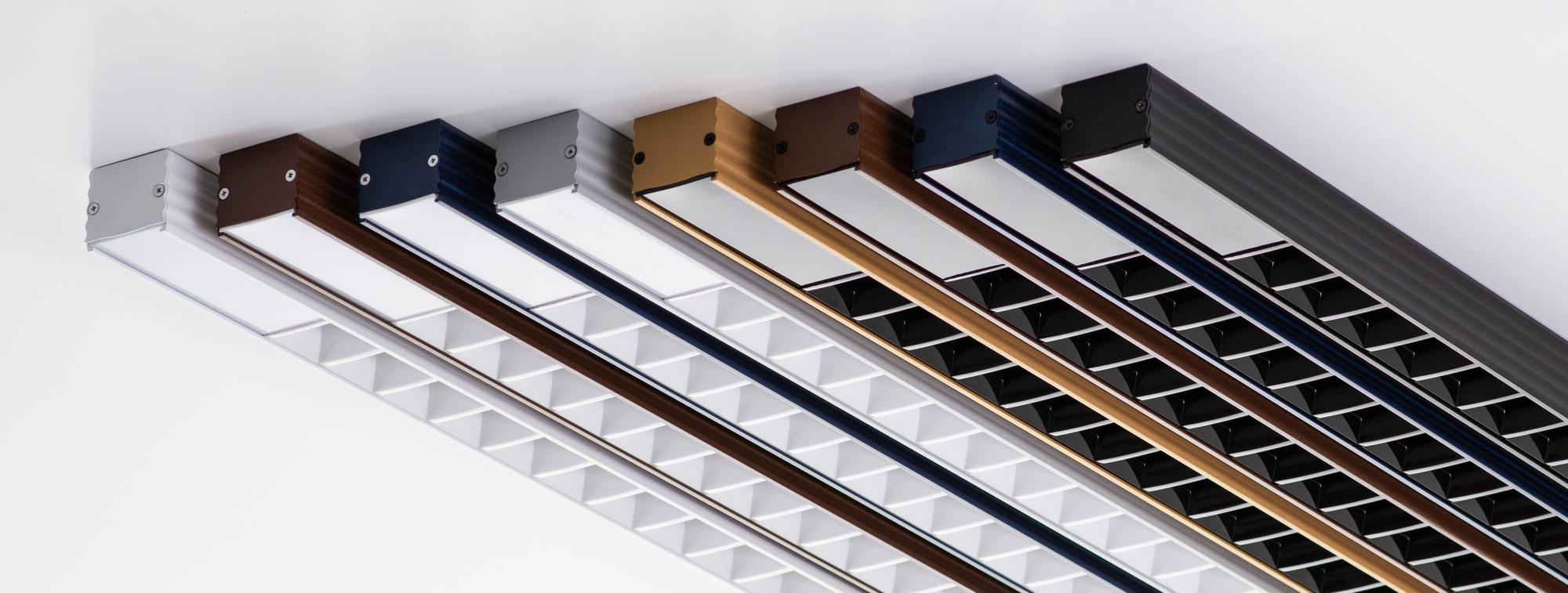

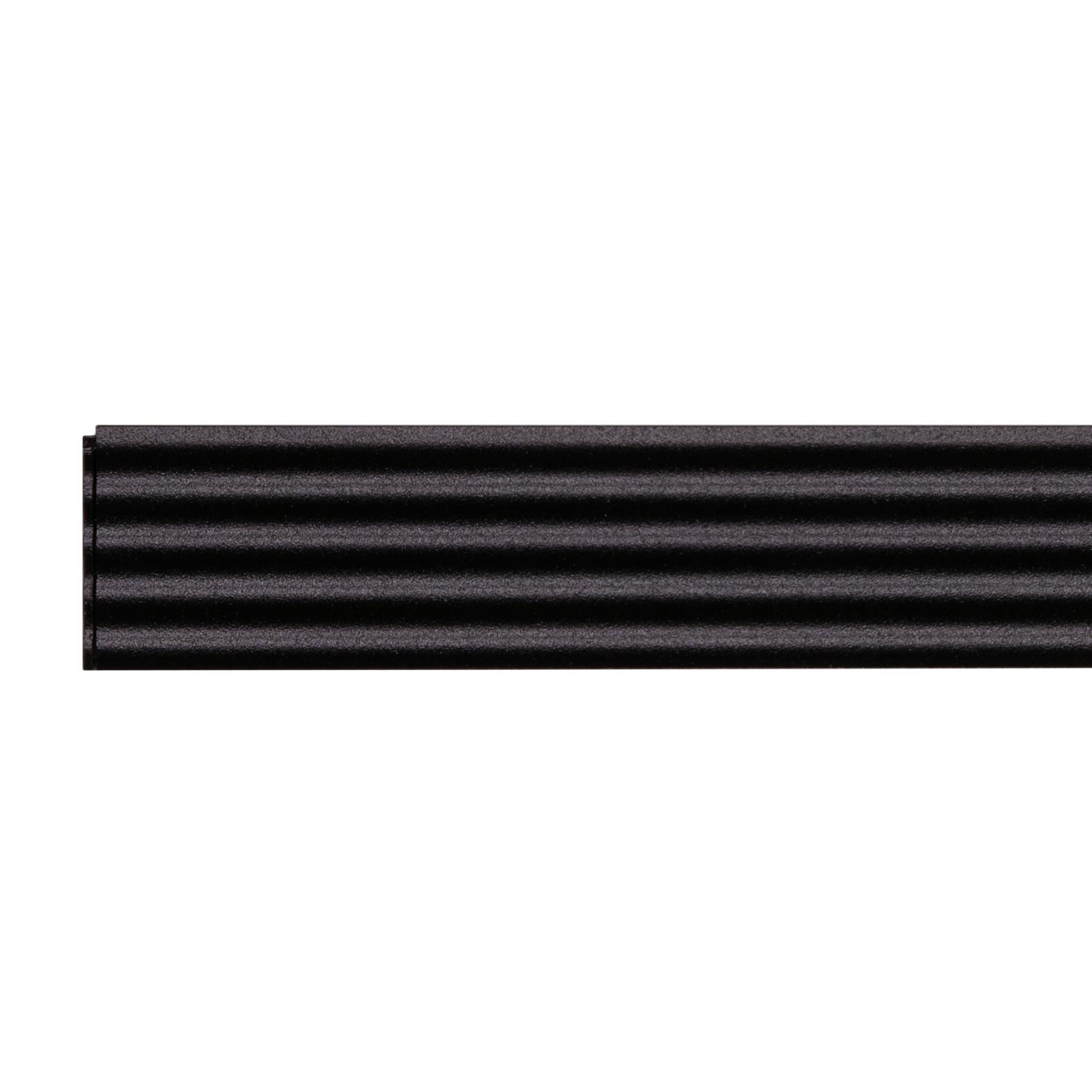

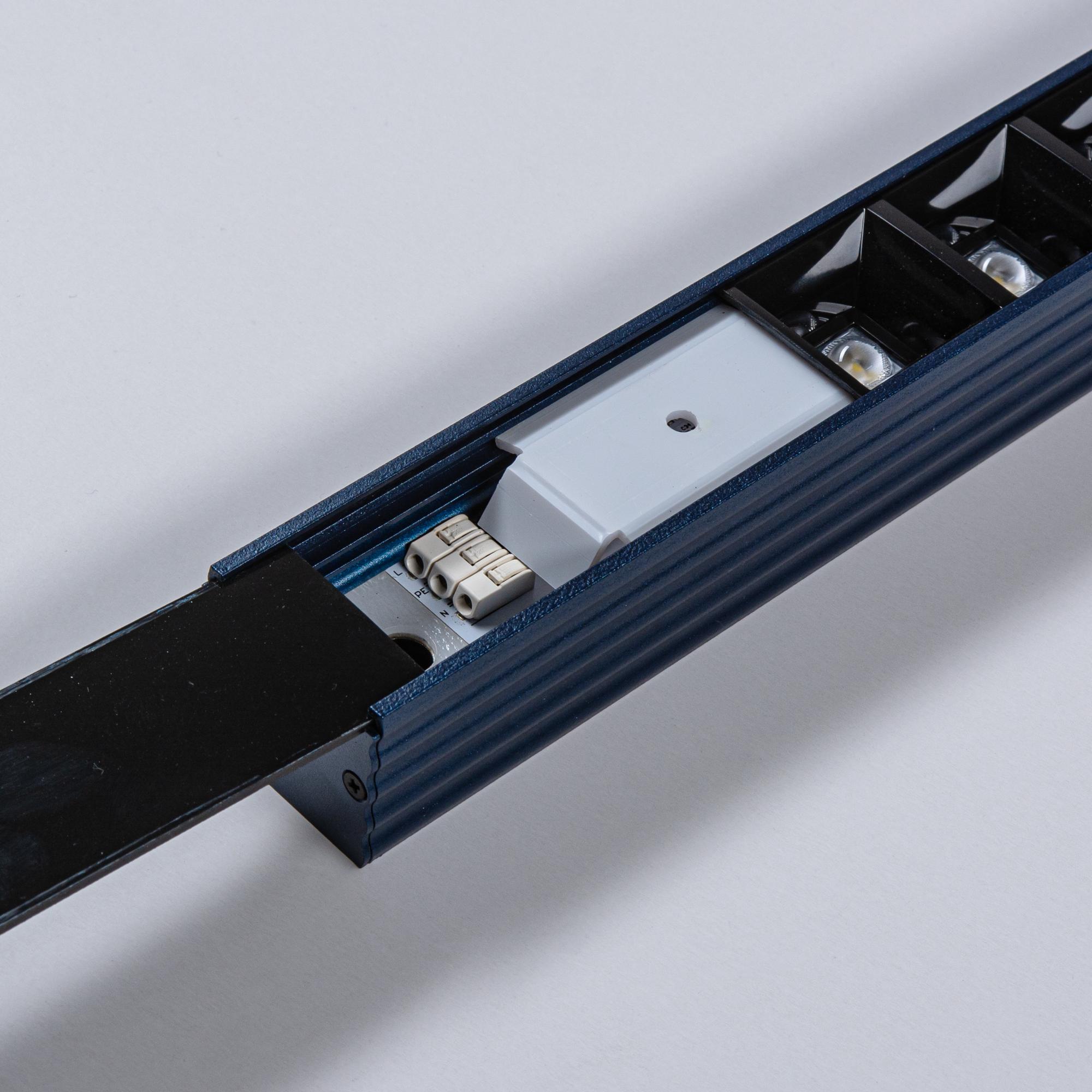

Body of luminaire is made by aluminium profile which can be painted by many colours - on request of customer. Standart luminaire is made with black or white painted aluminium body with black or white optical system.

Luminaire is produced with our driver (DOB: driver-on-board), thanks to this luminaire has subtile body and we can offer it with many electical control systems, all the possible systems you can see down in this page, where they are listed.

Size version:M
1200 mm
Body material:Eloxal aluminium profile
Mounting method:PendantProtection class:I
Type of control gear:ND
non-dimm
DALI
DALI dimm
BTSM
wireless bluetooth control with microwave sensor
PIR
luminaire with PIR sensor
PIRM
luminaire with PIR sensor - master
BT
wireless bluetooth control
Color rendering index CRI:80-89
Lamp type:LEDColor temperature controllable (K):Yes
Light outlet:Direct

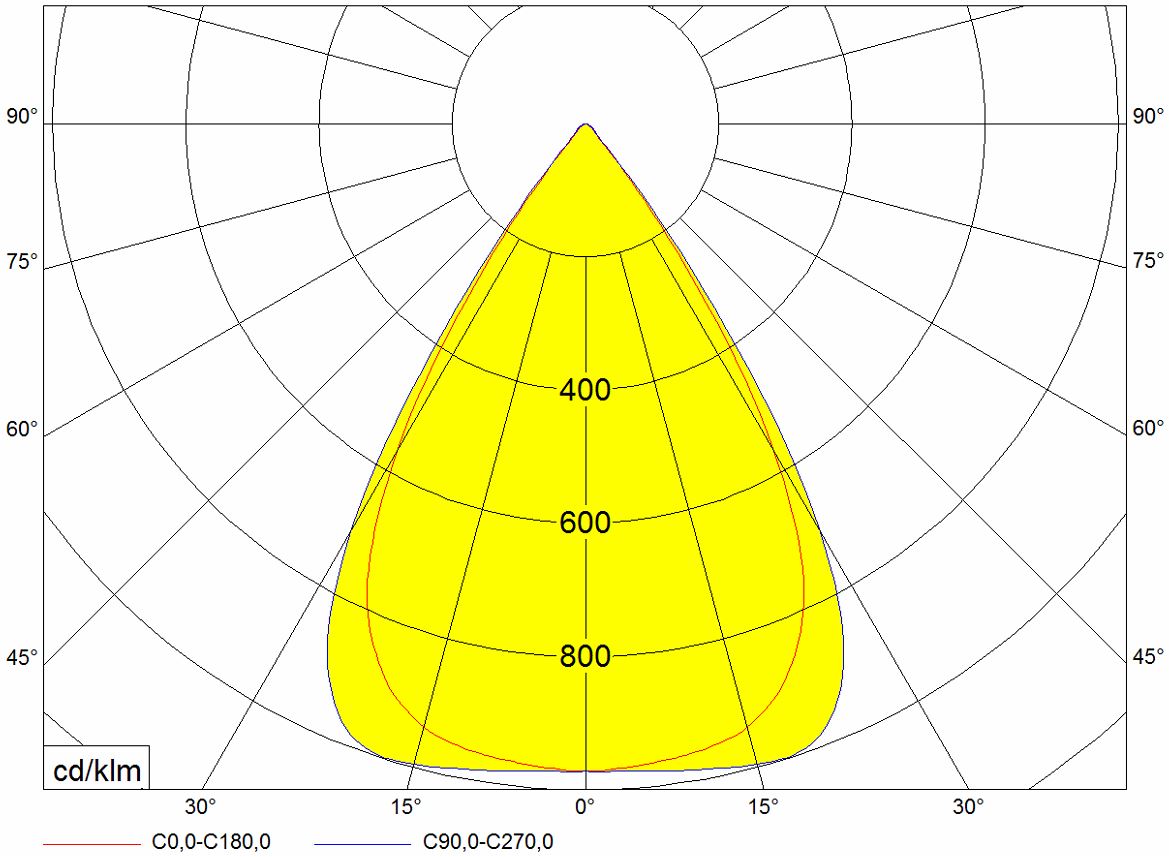

Light sharing:Symmetric
Degree of protection (IP):IP20Fit for monitor workplace:Yes
Color temperature (K):4000, 3000, 2700, 5700Rated life time L80/B50 (h):80000
Dimming DALI:YesOptical system:B80

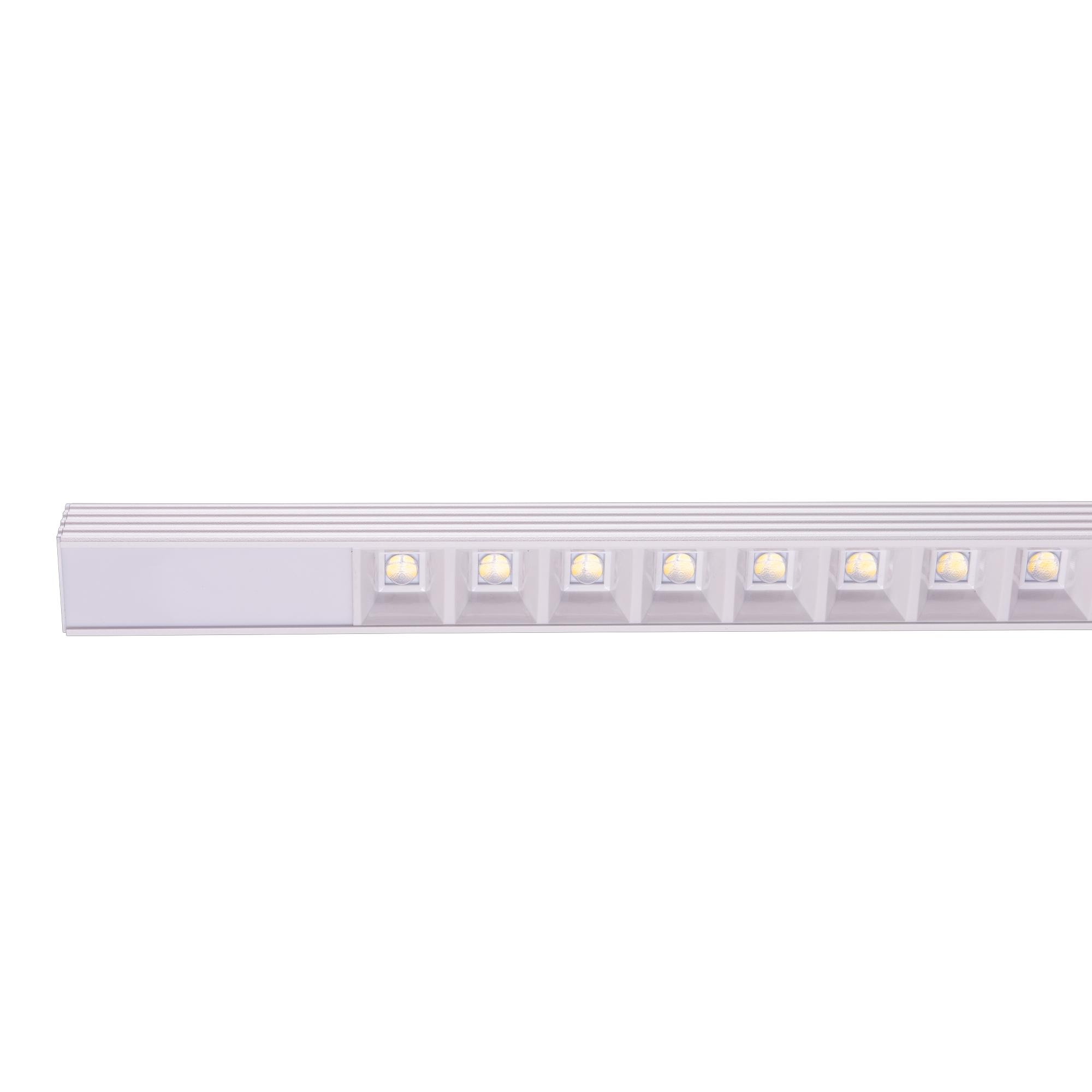

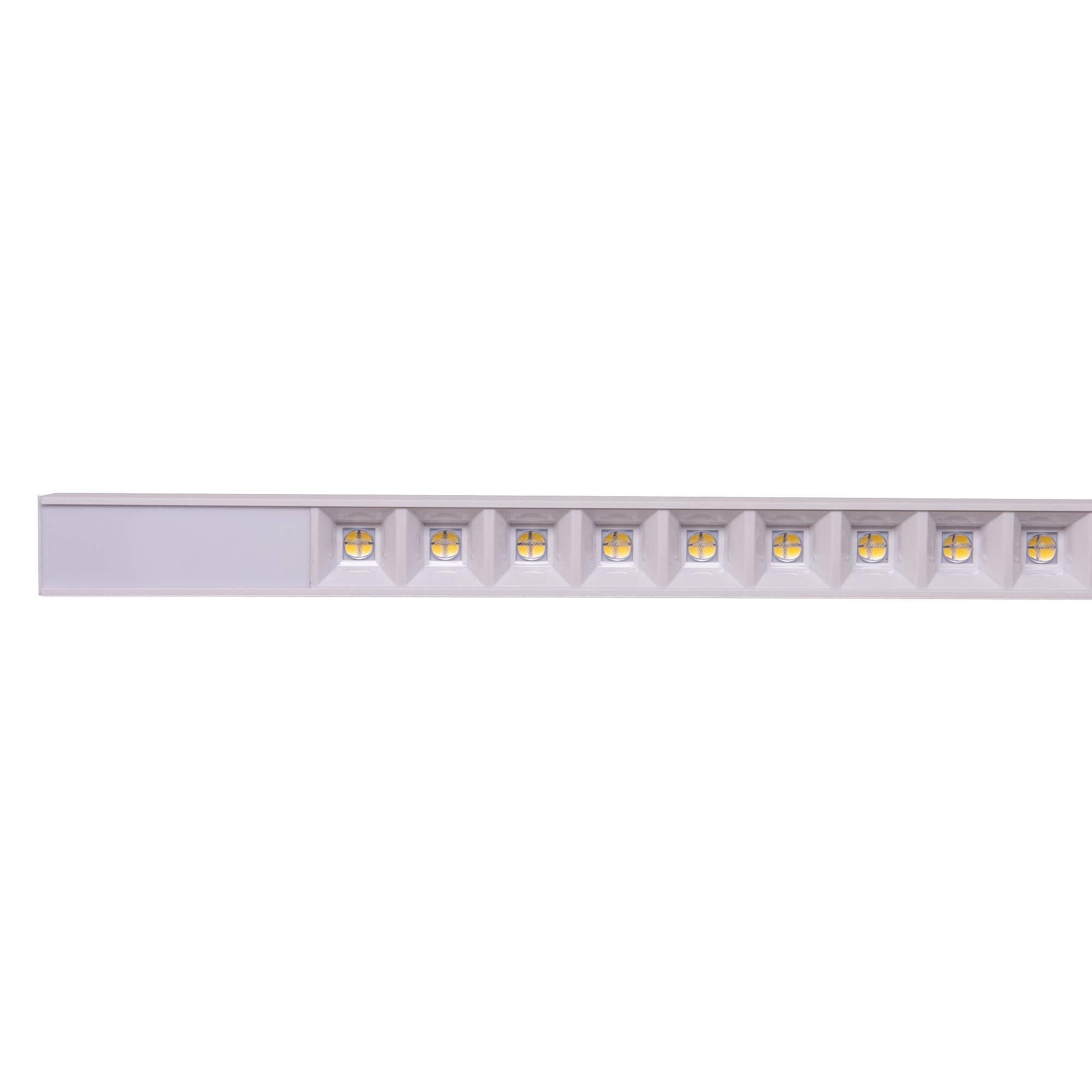

Clear PMMA optic with PC louvre in white colour with UGR16
C80

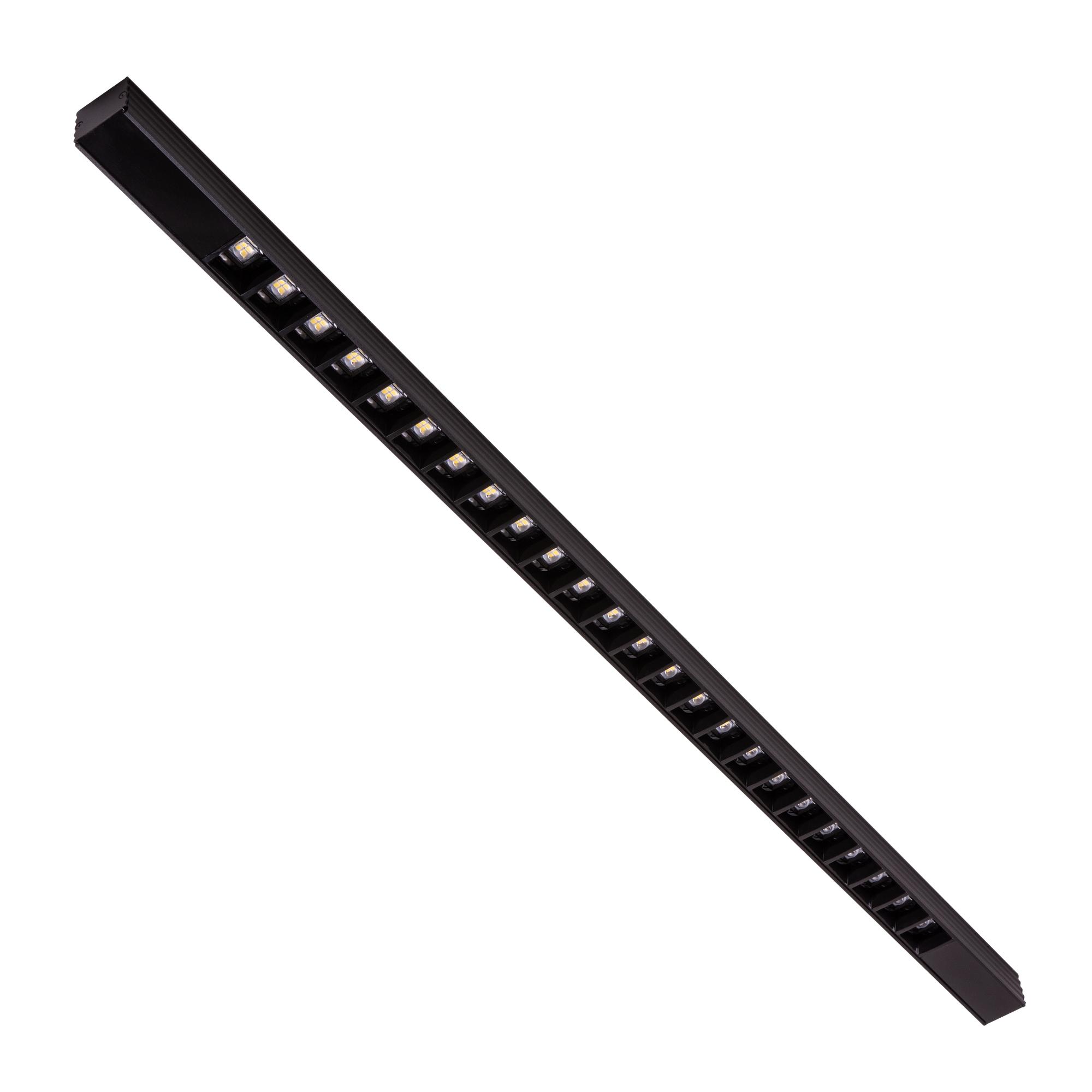

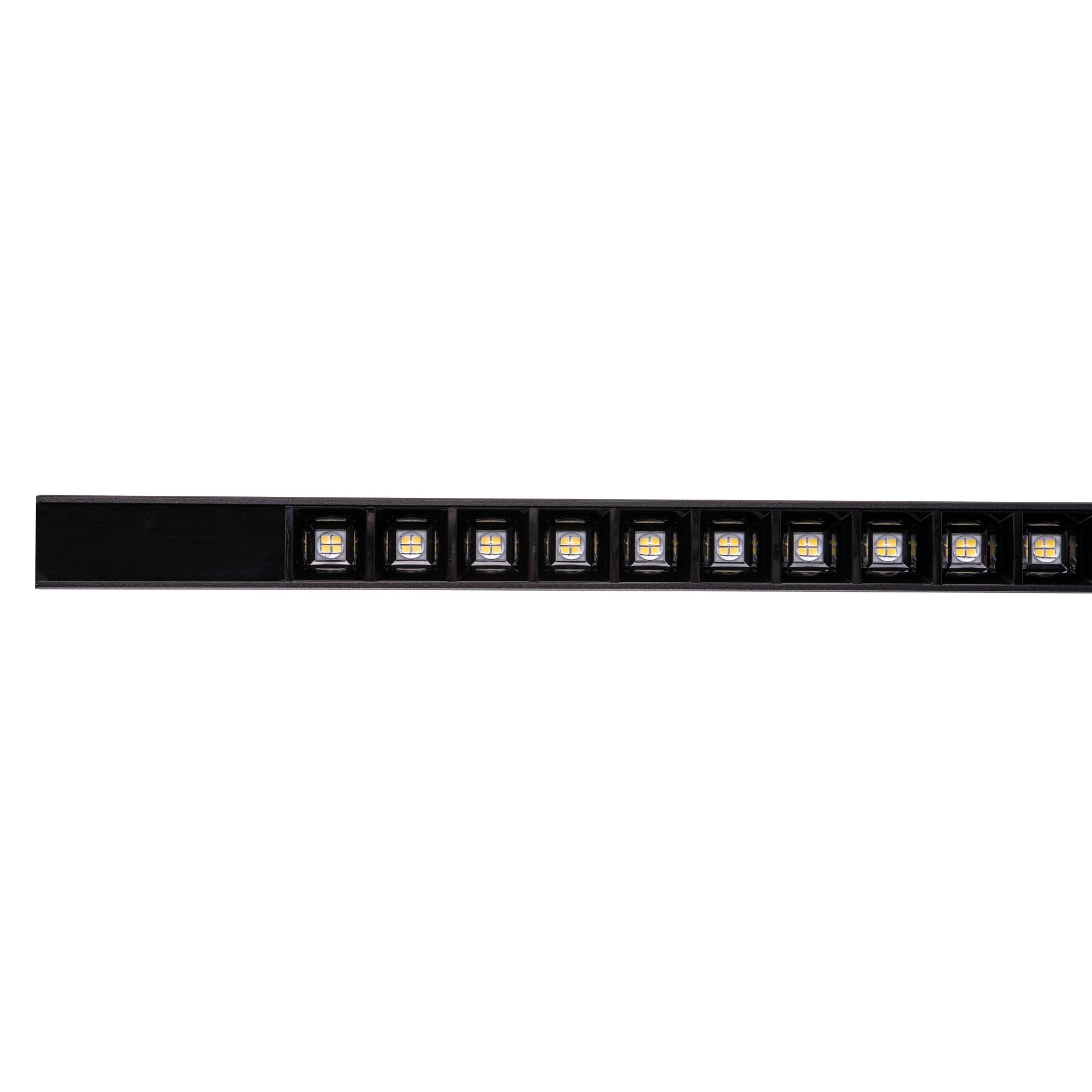

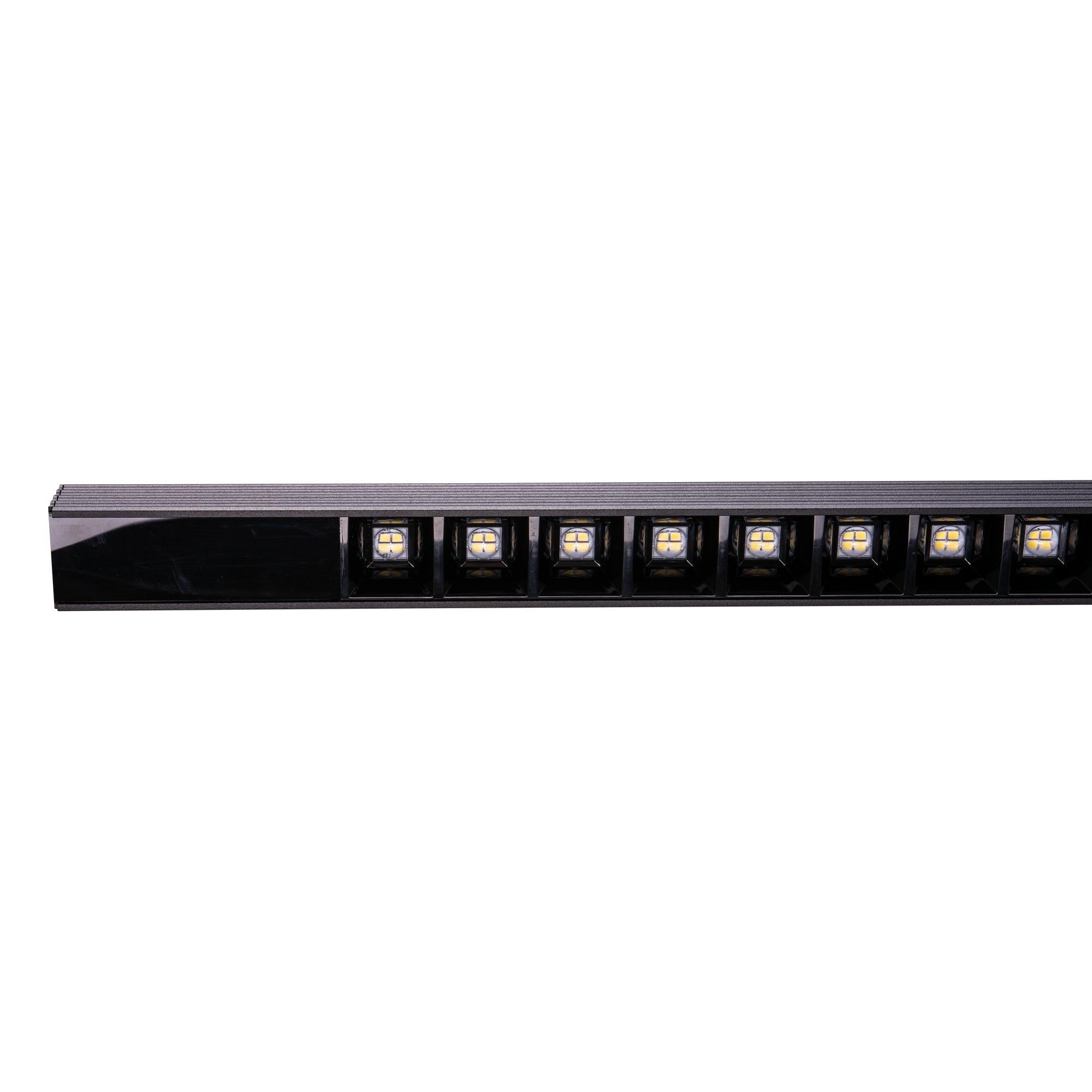

Clear PMMA optic with PC louvre in black colour with UGR16
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1300
3400

System power (W)

10
24
Product name
DOP1000M4BB80/ND
Effective luminous flux (lm): 1400
System power (W): 10
Color temperature (K): 4000
Optical system: B80
Color housing: White
DOP1000M4CC80/ND
Effective luminous flux (lm): 1300
System power (W): 10
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DOP2000M3BB80/ND
Effective luminous flux (lm): 2200
System power (W): 17
Color temperature (K): 3000
Optical system: B80
Color housing: White
DOP2000M3CB80/ND
Effective luminous flux (lm): 2200
System power (W): 17
Color temperature (K): 3000
Optical system: B80
Color housing: Black
DOP2000M3CC80/ND
Effective luminous flux (lm): 2200
System power (W): 17
Color temperature (K): 3000
Optical system: C80
Color housing: Black
DOP2000M4BB80/ND
Effective luminous flux (lm): 2200
System power (W): 17
Color temperature (K): 4000
Optical system: B80
Color housing: White
DOP2000M4CC80/ND
Effective luminous flux (lm): 2000
System power (W): 17
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DOP3000M3BB80/ND
Effective luminous flux (lm): 2800
System power (W): 20
Color temperature (K): 4000
Optical system: B80
Color housing: White
DOP3000M4BB80/BTC
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Color housing: White
DOP3000M4BB80/ND
Effective luminous flux (lm): 3400
System power (W): 24
Color temperature (K): 4000
Optical system: B80
Color housing: White
DOP3000M4CC80/BTC
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DOP3000M4CC80/DALI
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DOP3000M4CC80/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: C80
Color housing: Black
DOP3000MMIXBB80/BTC
Color temperature (K): 2700...6500
Optical system: B80
Color housing: White
DOP3000MMIXCC80/BTC
Color temperature (K): 2700...6500
Optical system: C80
Color housing: Black
DOP3000MMIXGC80/BTC
Color temperature (K): 2700...6500
Optical system: C80
Color housing: Grey
