MODUS DOPL
Subtile built-in luminaire
Standard price from:

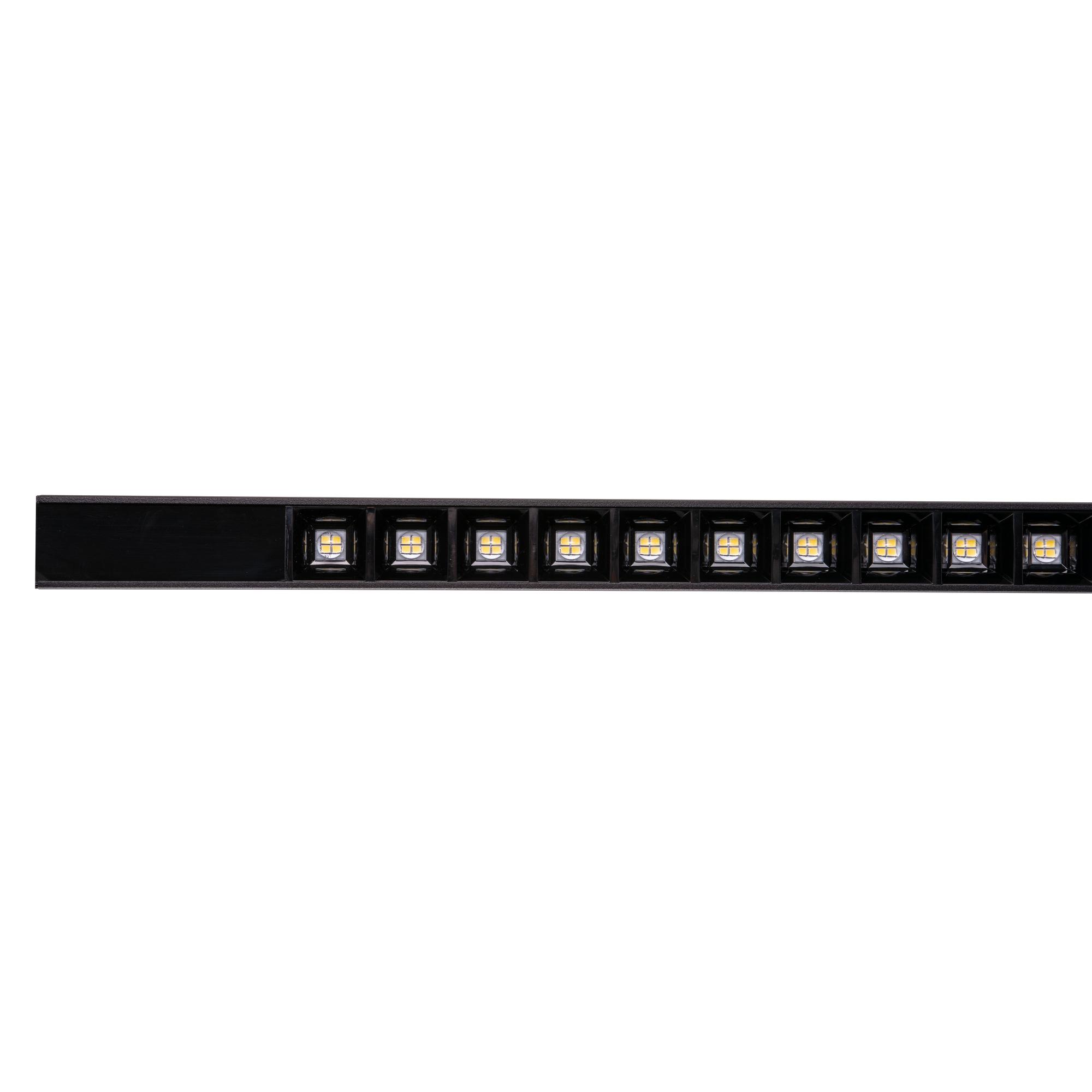

Subtile pendant luminaire with "dark" optics with low glare (UGR16) and interesting design.
Body of luminaire is made by aluminium profile which can be painted by many colours - on request of customer. Standart luminaire is made with black or white painted aluminium body with black or white optical system.
Luminaire is produced with our driver (DOB: driver-on-board), thanks to this luminaire has subtile body and we can offer it with many electical control systems, all the possible systems you can see down in this page, where they are listed.
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
| Size version: | M 1200 mm | Body material: | Eloxal aluminium profile | Mounting method: | Built-in | Protection class: | I | With movement sensor: | Yes | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP20 | Fit for monitor workplace: | Yes | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | B50 White reflector with lenses 50° C50 Black reflector with lenses 50° C80 Black reflector with lenses 80° B80 White reflector with lenses 80° | Made in Czech republic: | Yes | Replaceability: | Removeable light source , without ballast Removeable light source , without ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
