Product series
MODUS EB

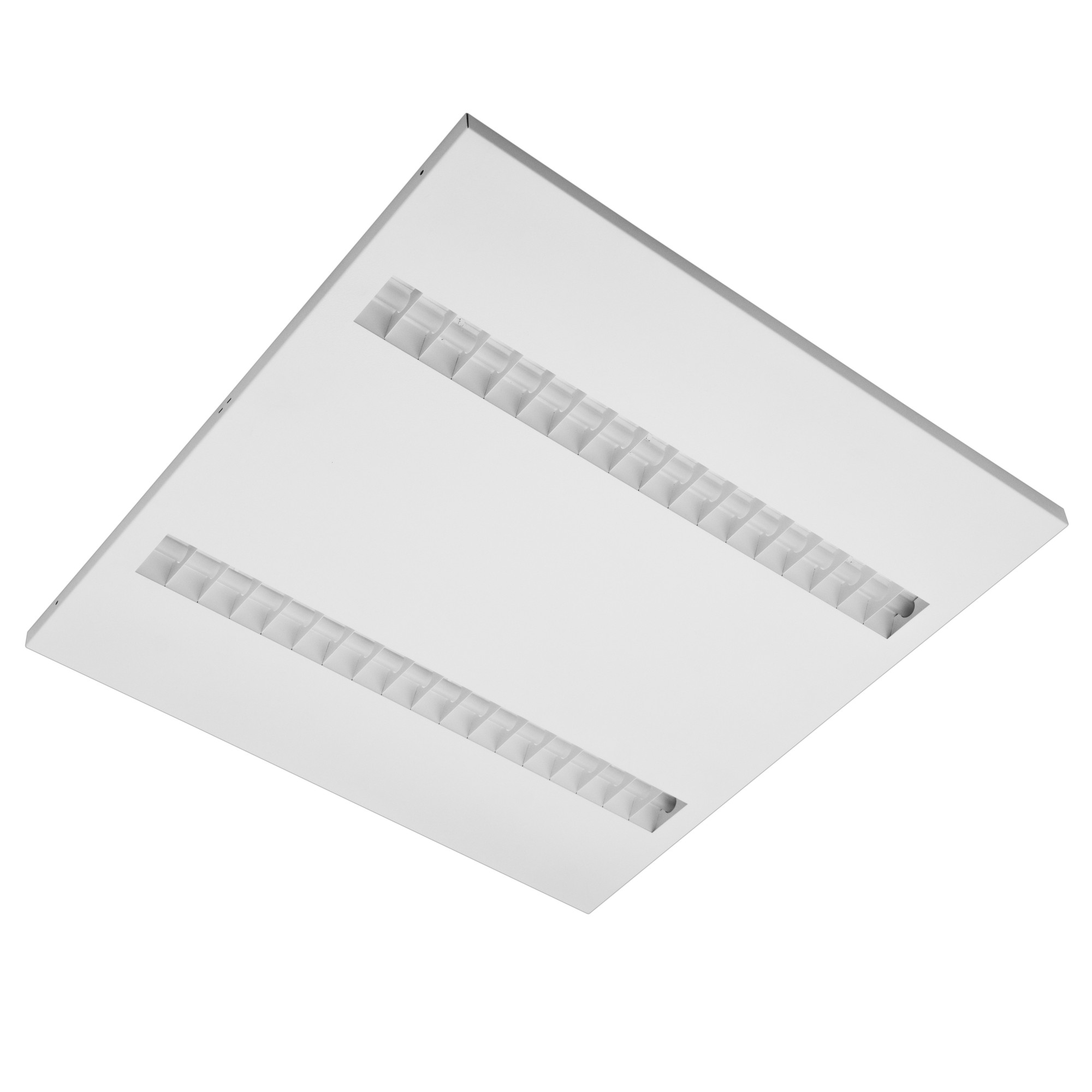

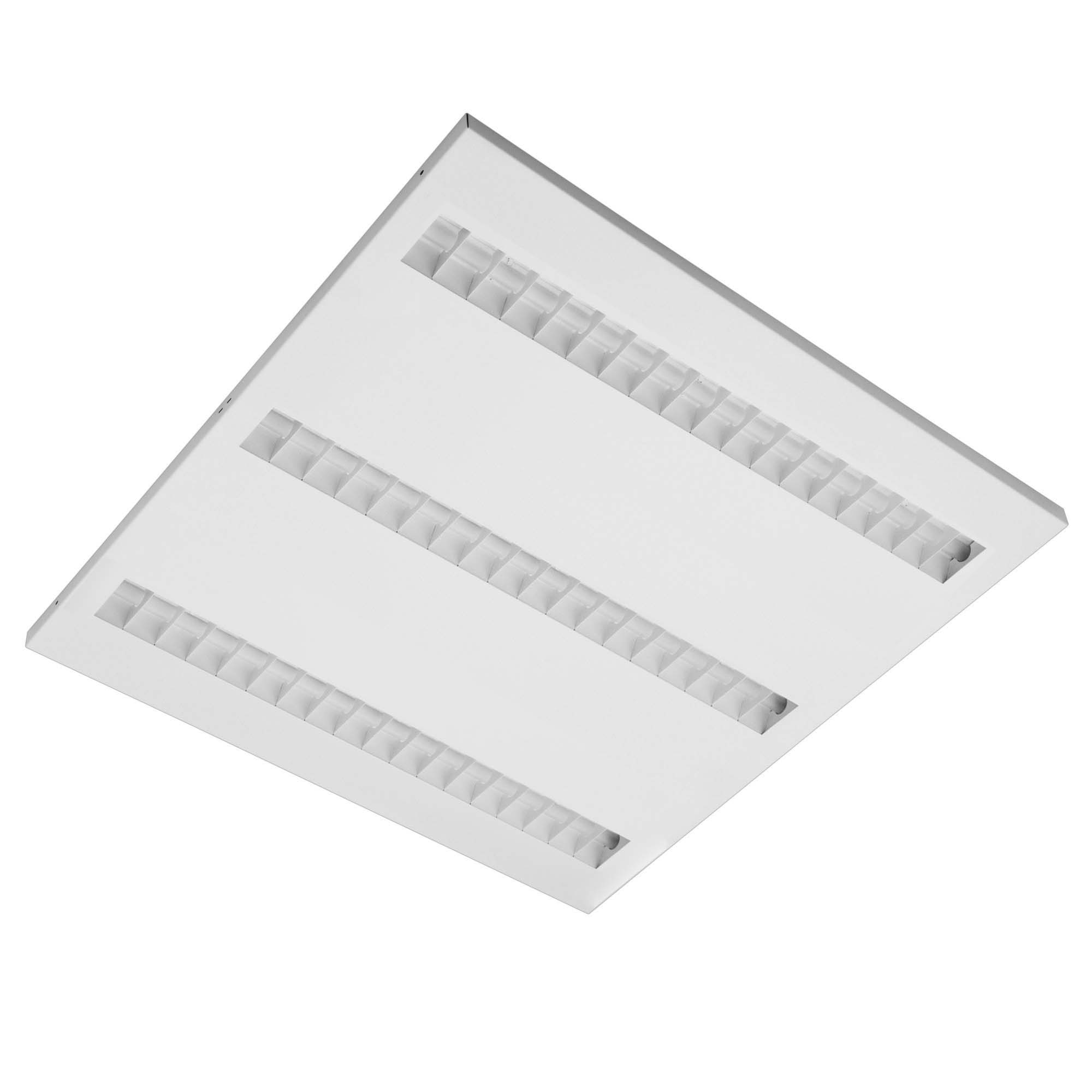

Recessed luminaire with white louvre
Standard price from:
On request
Brand new concept of recessed luminaires - alternative to LED panels.

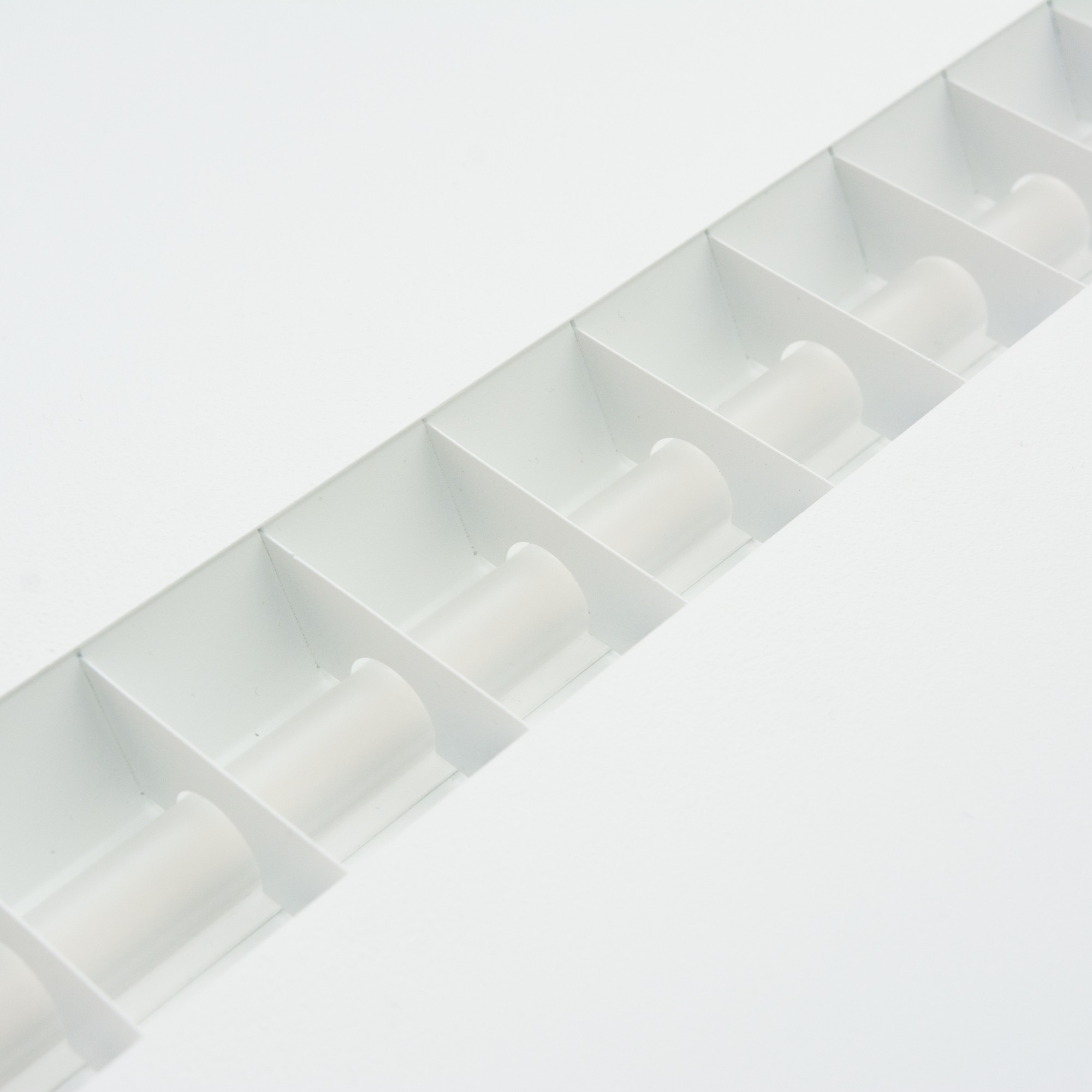

Main part is PMMA plastic optical system in combination with white louvre - double optics, which take care about perfect lighting distribution: low UGR and high effectivity (up to 147lm/W from luminaire).

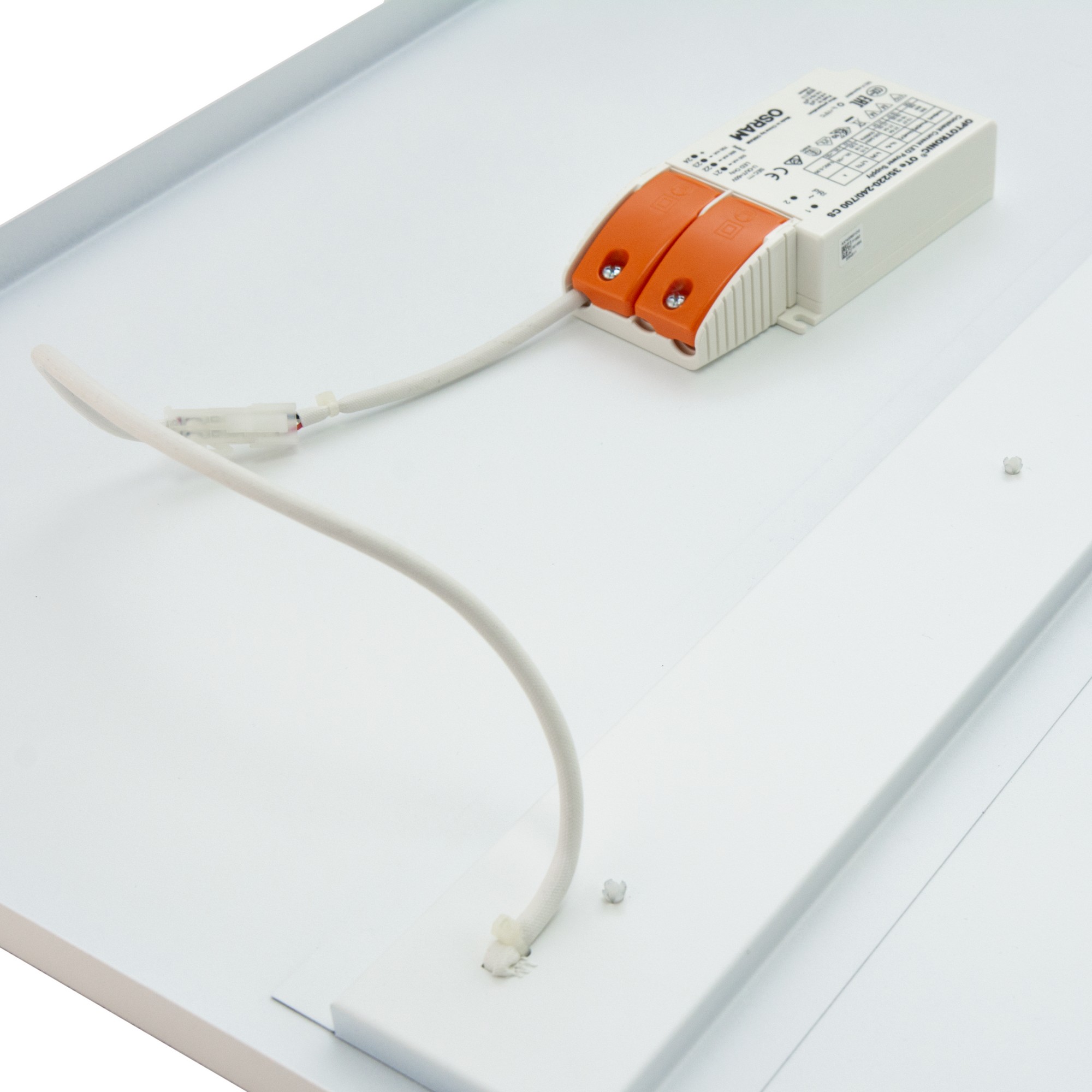

It is produced with external driver - quick installation, no need to open the luminaire.
Standart luminaire is for installation like recessed into T-Bar ceiling. As accessories we offer frame for gypsum ceiling recessed installation (UQRAM) or for surface installation (UQRAM).
Luminaire can be supplied with wireless Bluetooth control - more information here.
| Size version: | A 600x600 mm or 625x625 mm | Body material: | White painted steel | Mounting method: | Built-in, Surface mounting | Protection class: | II | With movement sensor: | Yes | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Optical system: | B white parabolic louvre | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Length (mm)
Raster (mm)
EB3000A3BS2/2/600/ND
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 596
Raster (mm): 600
EB3000A4BS2/2/600/DALI
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 596
Raster (mm): 600
EB3000A4BS2/2/600/ND
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 596
Raster (mm): 600
EB3000A4BS2/2/625/ND
Effective luminous flux (lm): 2800
System power (W): 19
Length (mm): 622
Raster (mm): 625
EB4000A3BS2/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A3BS2/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A3BS2/2/600/NDOK/SDK
Effective luminous flux (lm): 3800
System power (W): 28
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/DALI
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/DIM
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/ND
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/ND/9005
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/ND/PIR
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 596
Raster (mm): 600
EB4000A4BS2/2/600/SR/S59
EB4000A4BS2/2/625/ND
Effective luminous flux (lm): 3800
System power (W): 26
Length (mm): 622
Raster (mm): 625
EB6000A3BS2/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/2/600/DALI
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/2/600/ND
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/2/625/ND
Effective luminous flux (lm): 5500
System power (W): 42
Length (mm): 622
Raster (mm): 625
EB6000A4BS2/3/600/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/3/600/ND
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 596
Raster (mm): 600
EB6000A4BS2/3/625/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 622
Raster (mm): 625
EB6000A4BS2/3/625/ND
Effective luminous flux (lm): 5800
System power (W): 42
Length (mm): 622
Raster (mm): 625
Product page - PDF
CE declaration
Assembly instruction
LDT files
15_1 EB.JPGProjekty realizované se svítidly MODUS:
