Product series

MODUS EC

Recessed luminaires with individual optic

MODUS EC
11 L80_80000_h.jpg

Price from:

1 100 Kč
( 1 331 Kč including VAT )

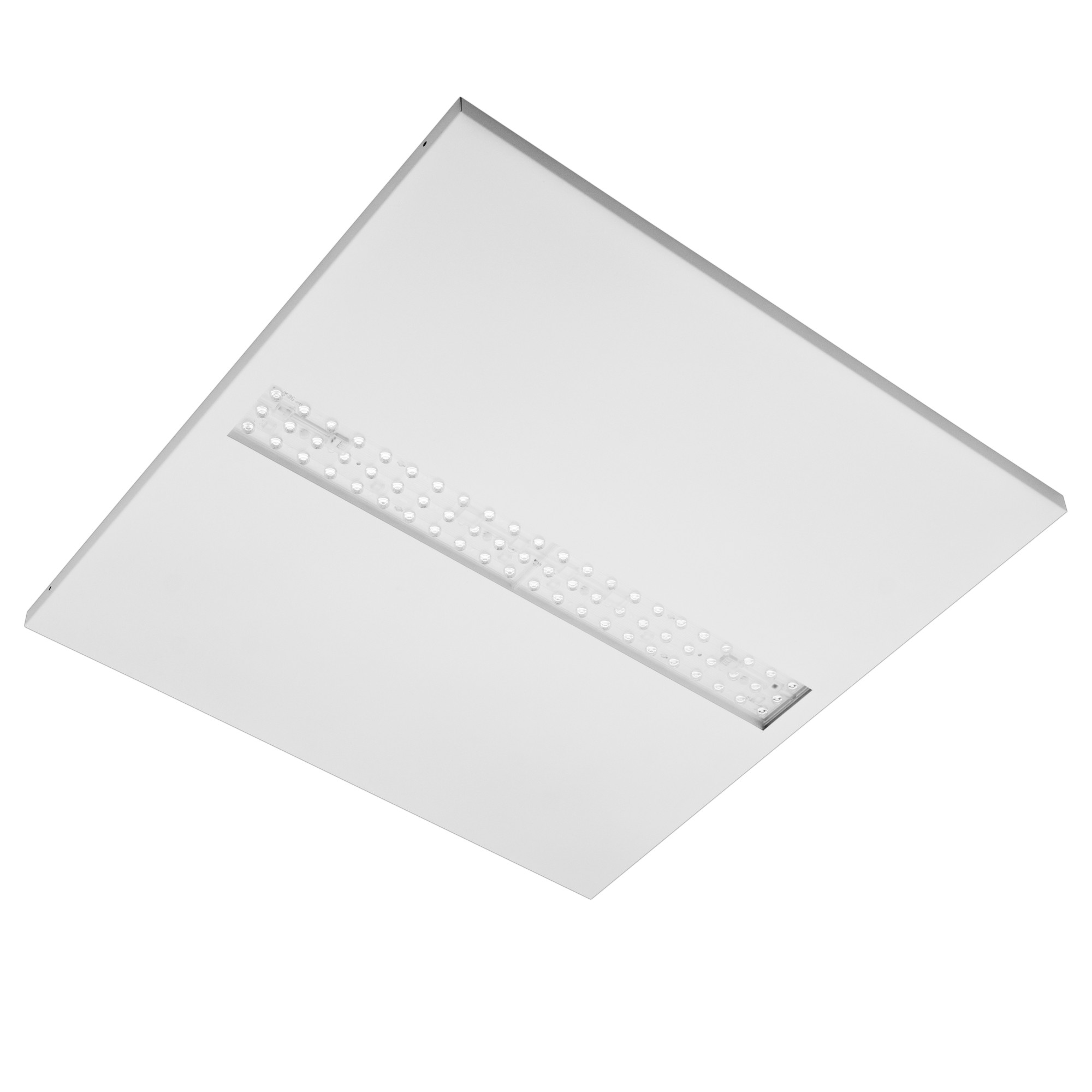

Brand new concept of recessed luminaires - alternative to LED panels.

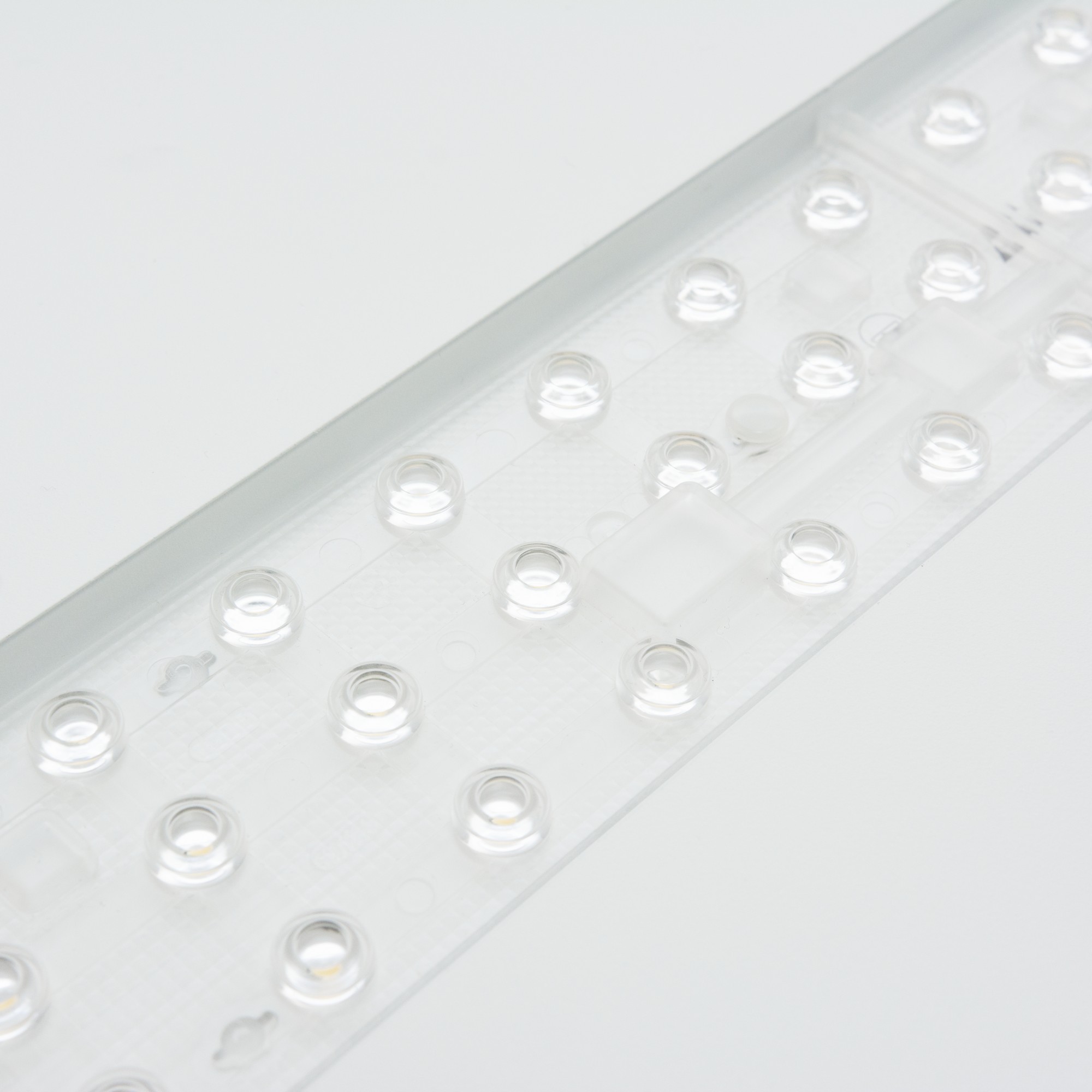

Main part is PMMA plastic optical system, which take care about perfect lighting distribution: low UGR and high effectivity (up to 163 lm/W from luminaire).

Optical system which is standartly offered:

Z60 - narrow beam 600

Z90 - wide beam 900

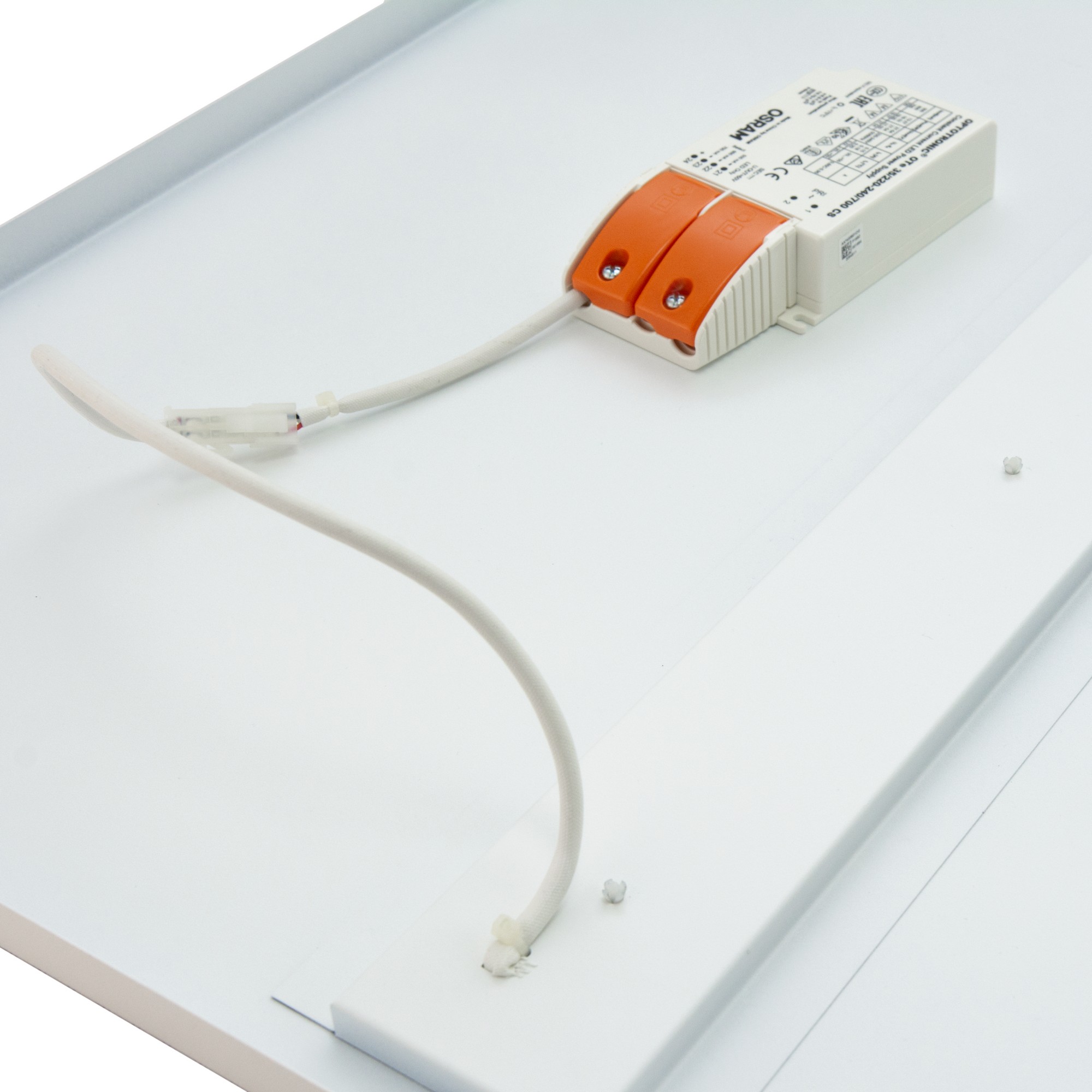

Luminaire is produced with external driver - quick installation, no need to open the luminaire.

Luminaire can be supplied with wireless Bluetooth control - more information here.

Standart luminaire is for installation like recessed into T-Bar ceiling. As accessories we offer frame for gypsum ceiling recessed installation (UQRAM) or for surface installation (UQRAM)

Body material:White painted steelMounting method:Built-in
Protection class:IIColor rendering index CRI:80-89
Lamp type:LEDDegree of protection (IP):IP20
Color temperature (K):4000, 3000, 2700Rated life time L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes

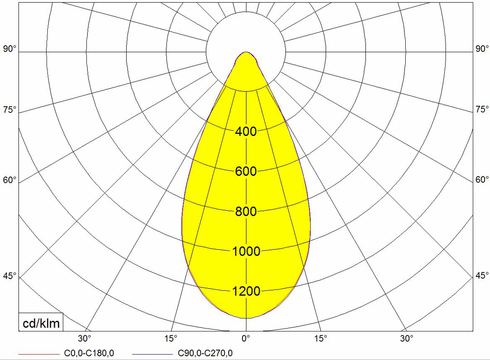

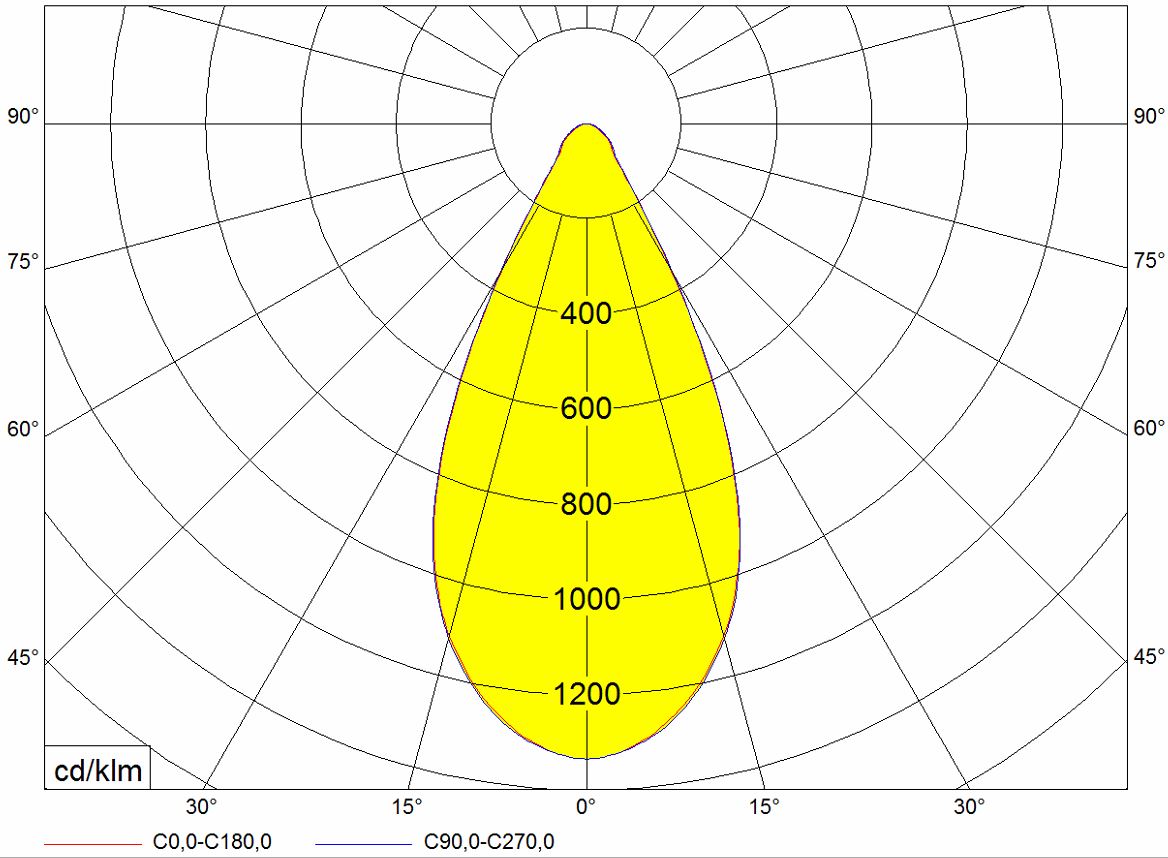

Optical system:Z60
Narrow beam optic 60°

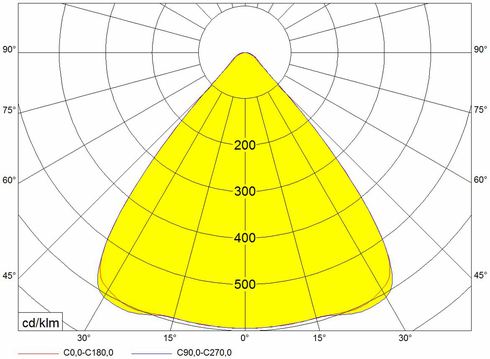

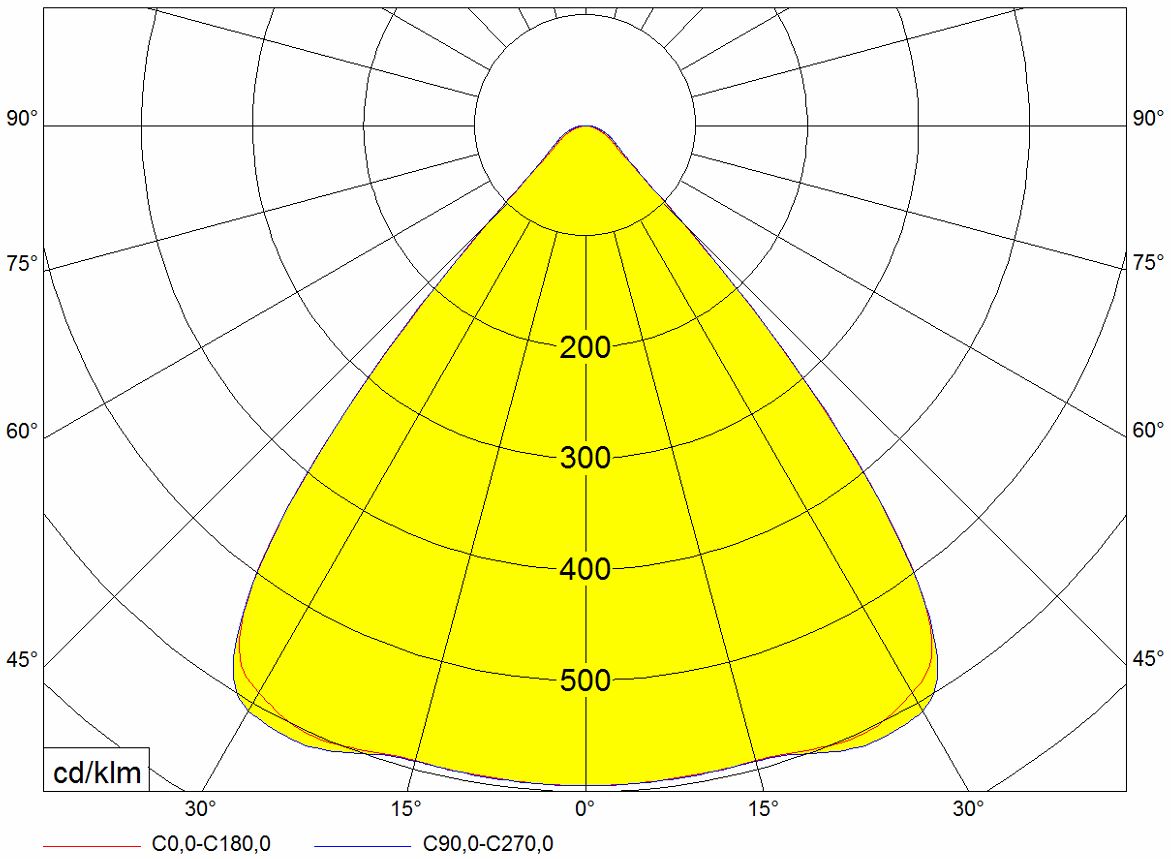

Z90
Wide beam optic 90°
Show more...

Luminaire can be made with smart system - "MODUS MOWI"

This system include two different possible smart methods:

Philips SR

  • sensor located inside luminaire
  • luminaire communicates to each other to select the right lumen level based on actual situation
  • setup by IR communication via mobile phone



Casambi

  • wireless comunication by mobile phone application
  • possible to setup scenes, timming, groups...
