Standard price from:
On request

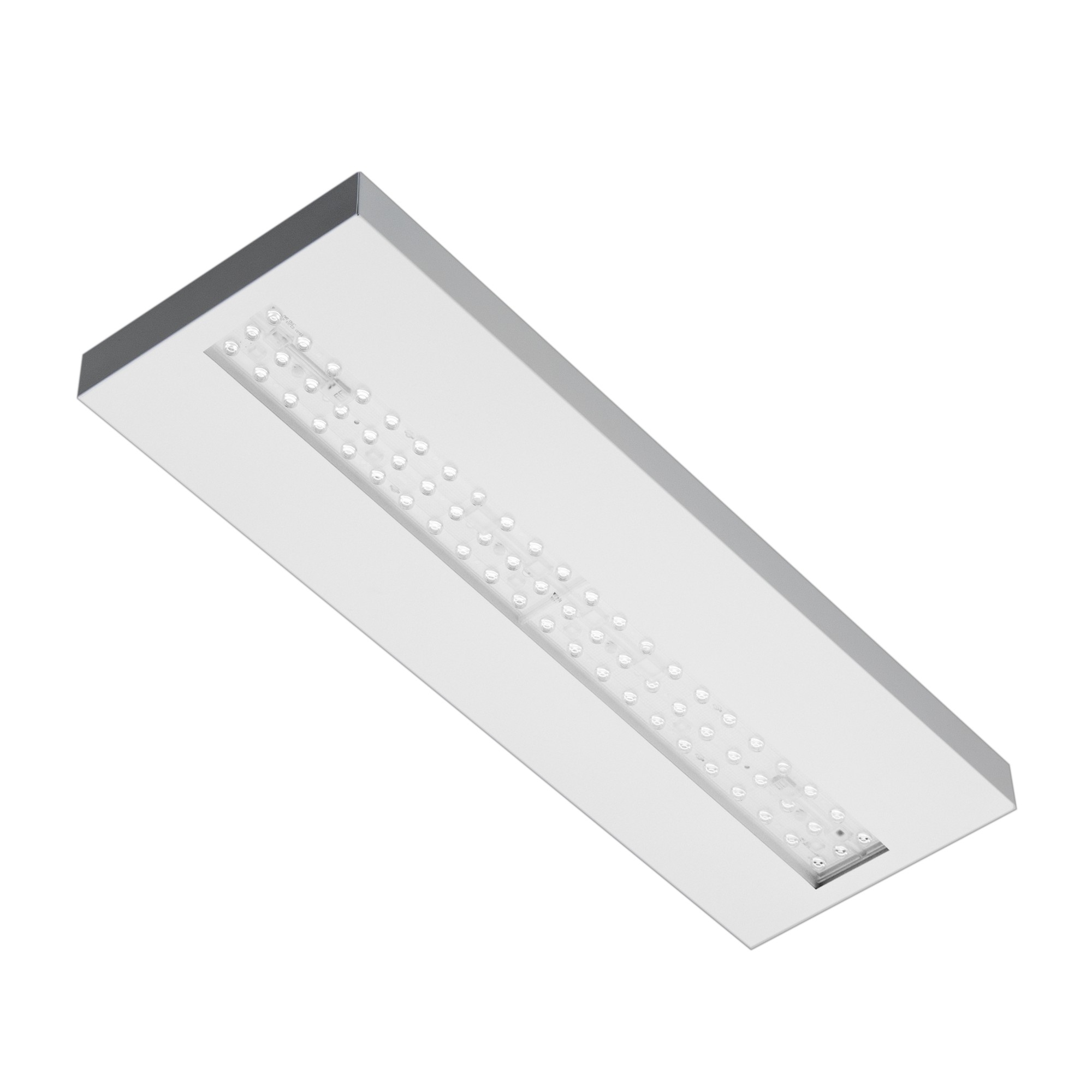

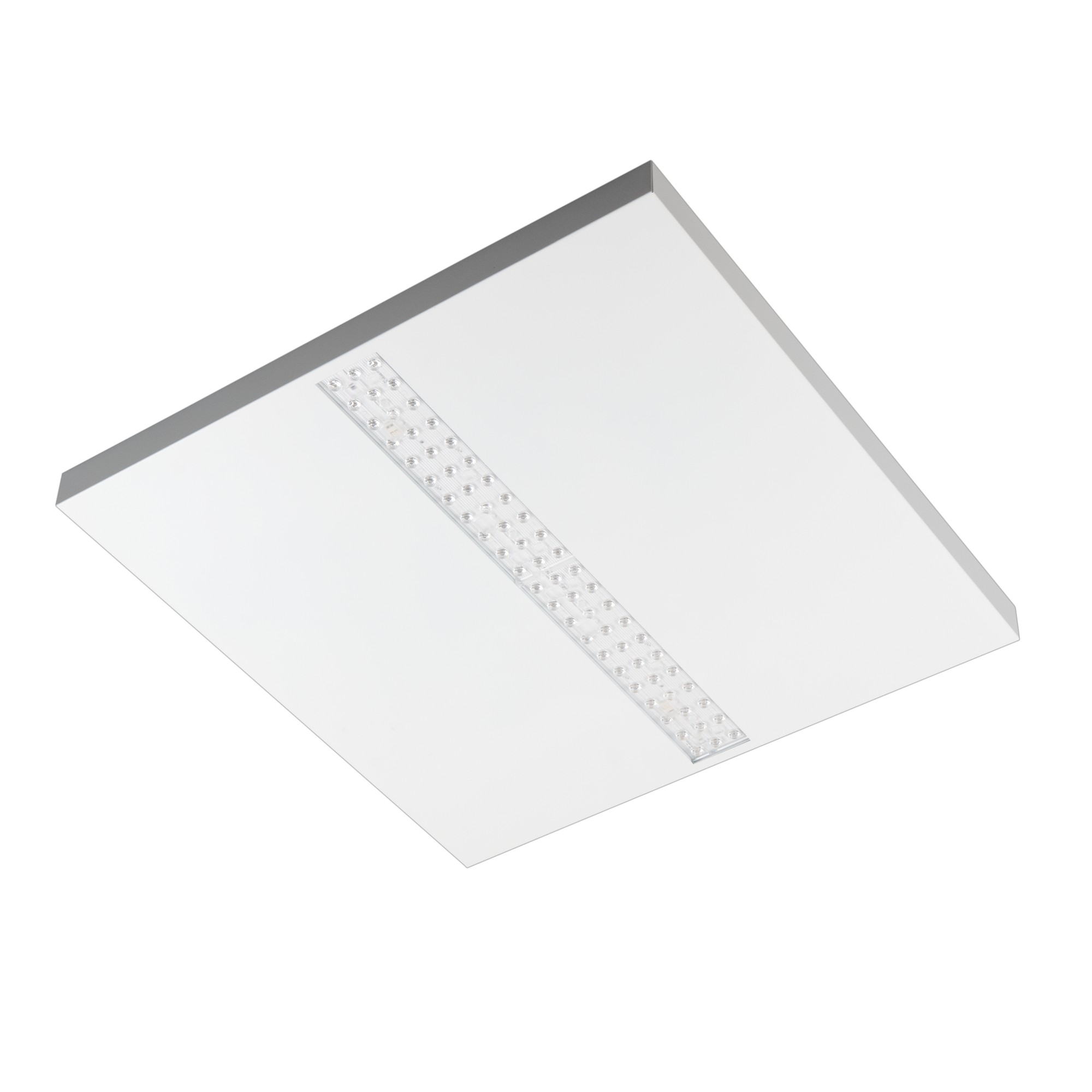

Brand new concept of surfaced luminaires - alternative to LED panels.
Main part is PMMA plastic optical system, which take care about perfect lighting distribution: low UGR and high effectivity (up to 163 lm/W from luminaire).
Optical system which is standartly offered:
Z60 - narrow beam 600
Z90 - wide beam 900
Luminaire is produced with external driver - quick installation, no need to open the luminaire.
| Size version: | S 600 mm | Body material: | White painted steel | Mounting method: | Pendant, Surface mounting | Protection class: | II | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Light outlet: | Direct | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Fit for monitor workplace: | Yes |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Product category: | Surface mounted ceiling- and wall luminaire | Optical system: | Z60 Narrow beam optic 60° Z90 Wide beam optic 90° | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
EPC2000B4Z60/1/ND
EPC2000RS4Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 13
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPC3000RS4Z60/1/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPC4000RS4Z60/1/ND
Effective luminous flux (lm): 3500
System power (W): 24
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPC4000RS4Z90/1/ND
Effective luminous flux (lm): 3500
System power (W): 24
Color temperature (K): 4000
Optical system: Z90
Length (mm): 655
EPC4000SS4Z60/1/ND
Effective luminous flux (lm): 3500
System power (W): 24
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
Product page - PDF
CE declaration
LDT files

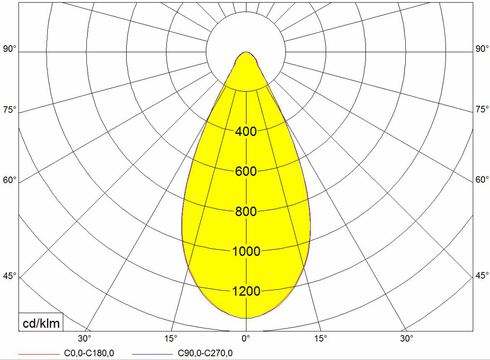

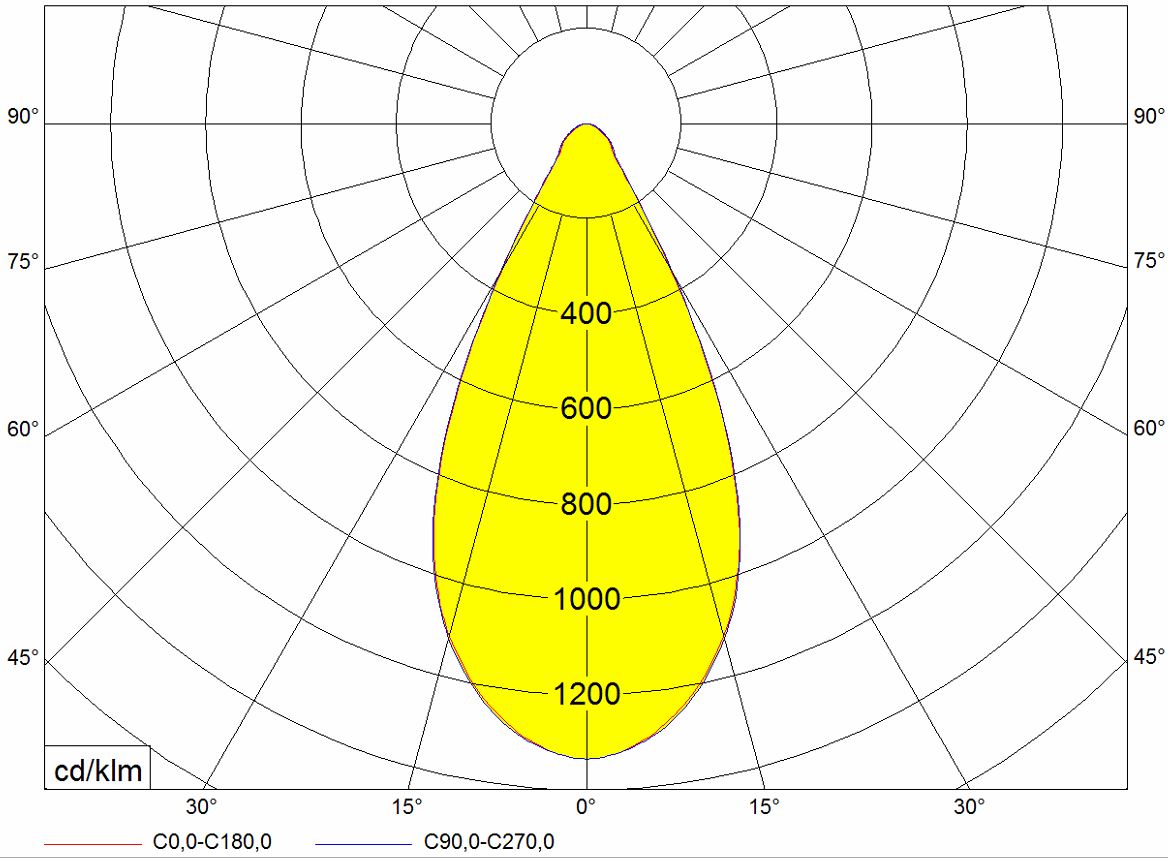

48_1 EPC_Z60.JPG

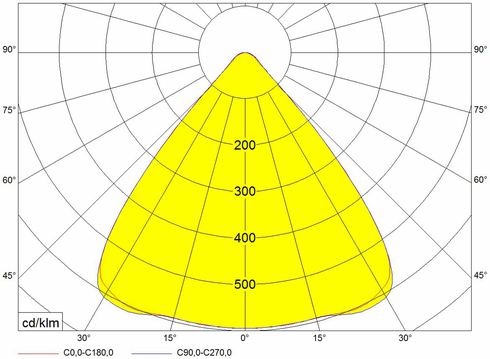

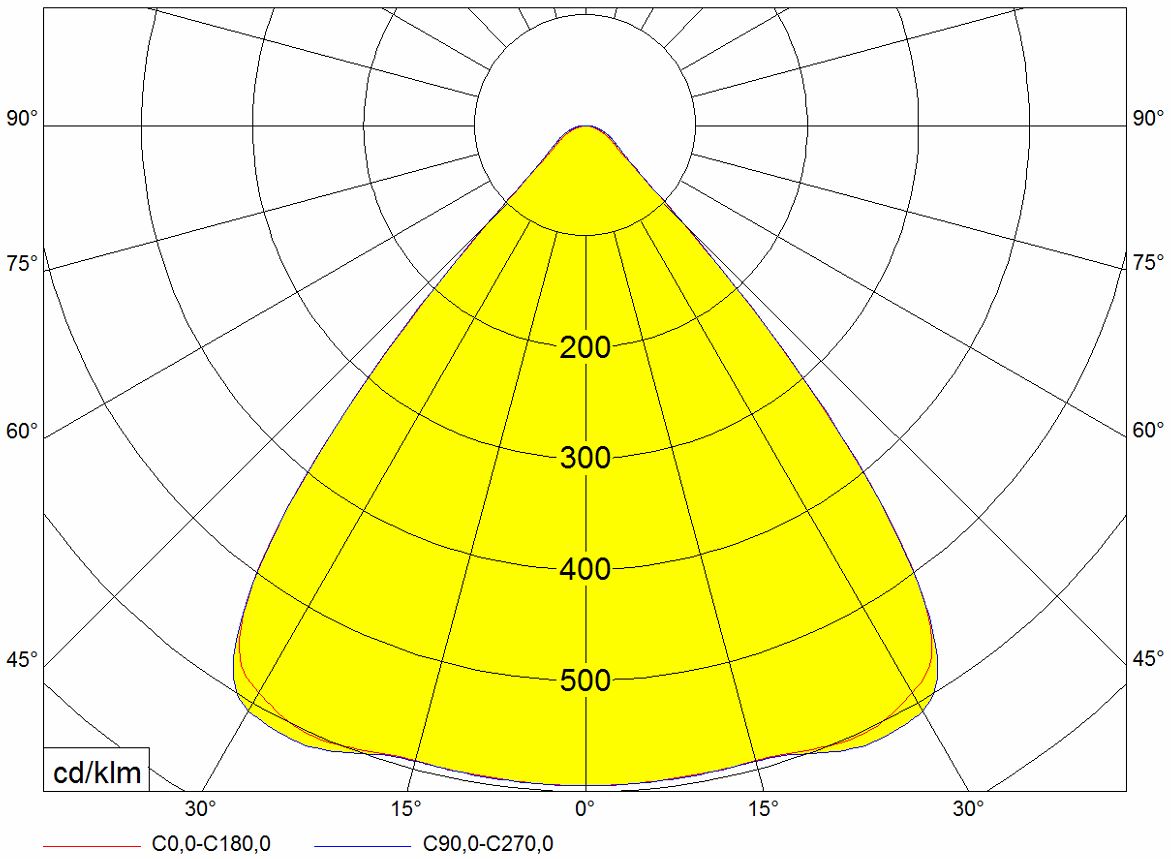

48_2 EPC_Z90.JPGProjekty realizované se svítidly MODUS:
