Product series

MODUS EPD

Surfaced luminaires with individual optic

220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

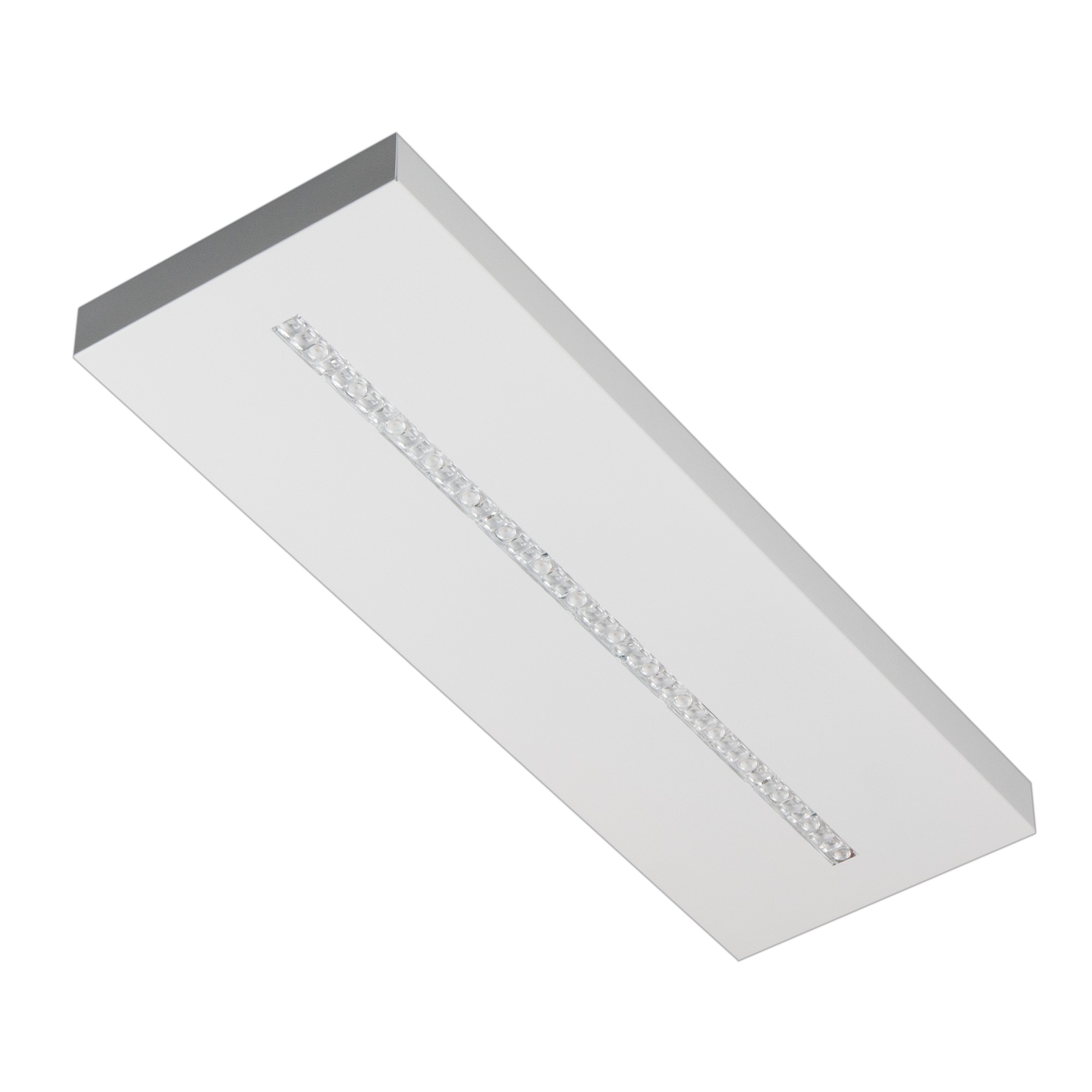

Brand new concept of surfaced luminaires - individual lighting optics.

Main part is PMMA plastic optical system, which take care about perfect lighting distribution: low UGR and high effectivity (up to 163 lm/W from luminaire).

Luminaire is produced in two designs:

1 LED modul with clear optic
2 LED moduls with clear optic
3 LED moduls with clear optic

In offer are these versions:
EPD RXS /05 - 375x225 mm with 1x LED modul
EPD RS /1 - 655x255 mm with 1x LED modul
EPD RS /2 - 655x255 mm with 2x LED modul
EPD SS/1 - 595x595 mm with 1x LED modul
EPD SS/2 - 595x595 mm with 2x LED modul
EPD SS/3 - 595x595 mm with 3x LED modul
EPD RM/1 - 1230x225 mm with 1x LED modul
EPD RM/2 - 1230x225 mm with2x LED modul


Optical system which is standartly offered:

Z60 - narrow beam 600

Z90 - wide beam 900
Luminaire is produced with external driver - no need to open the luminare.
Surface installation is made by magnetic holder - packed together with luminaire.
Size version:M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Pendant, Surface mountingProtection class:II
With movement sensor:YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Color temperature controllable (K):YesLight outlet:Direct
Nominal voltage (V):220...240Degree of protection (IP):IP20
Fit for monitor workplace:YesColor temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes

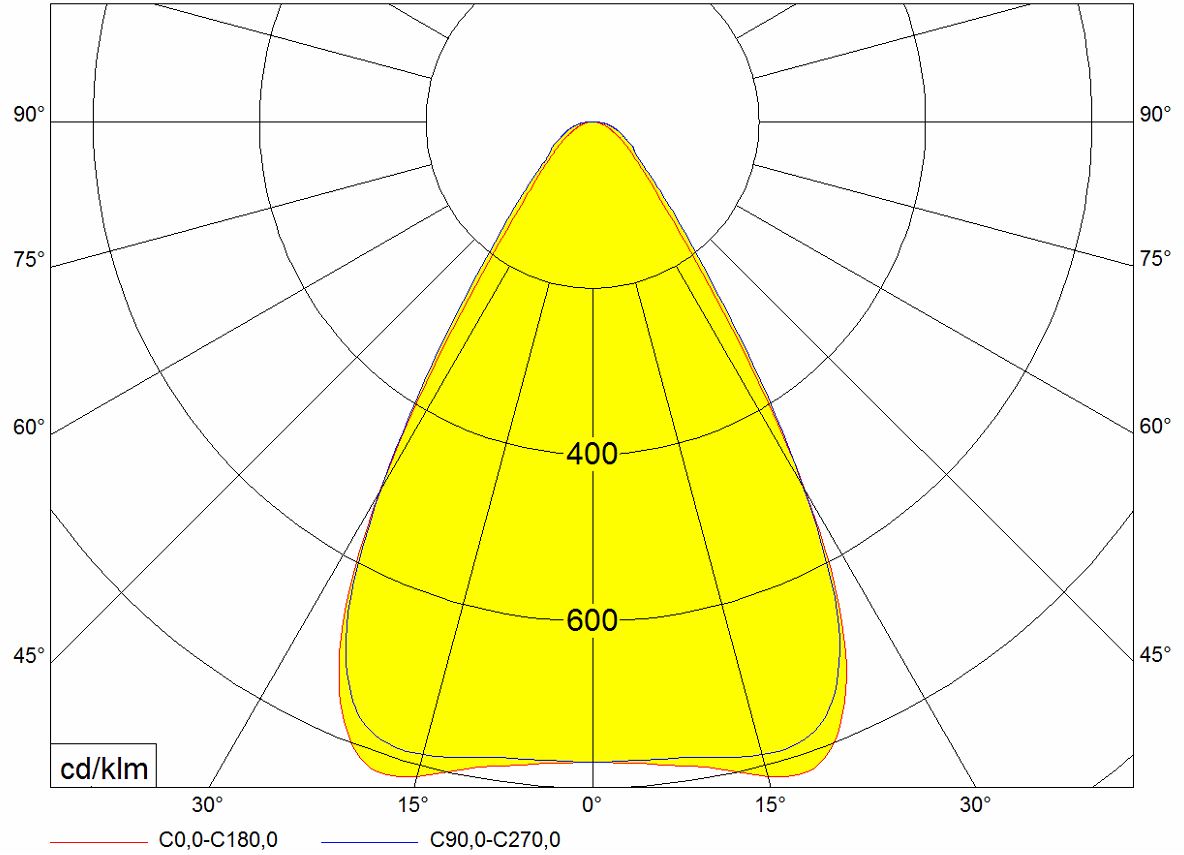

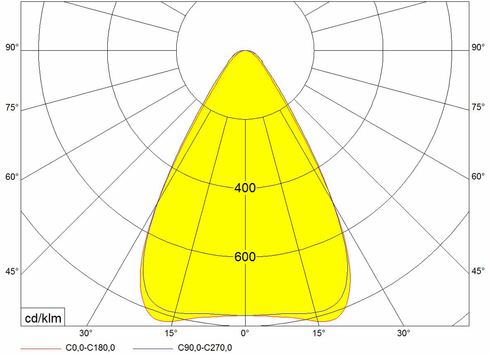

Dimming Touch and Dim:YesOptical system:Z60
Narrow beam optic 60°

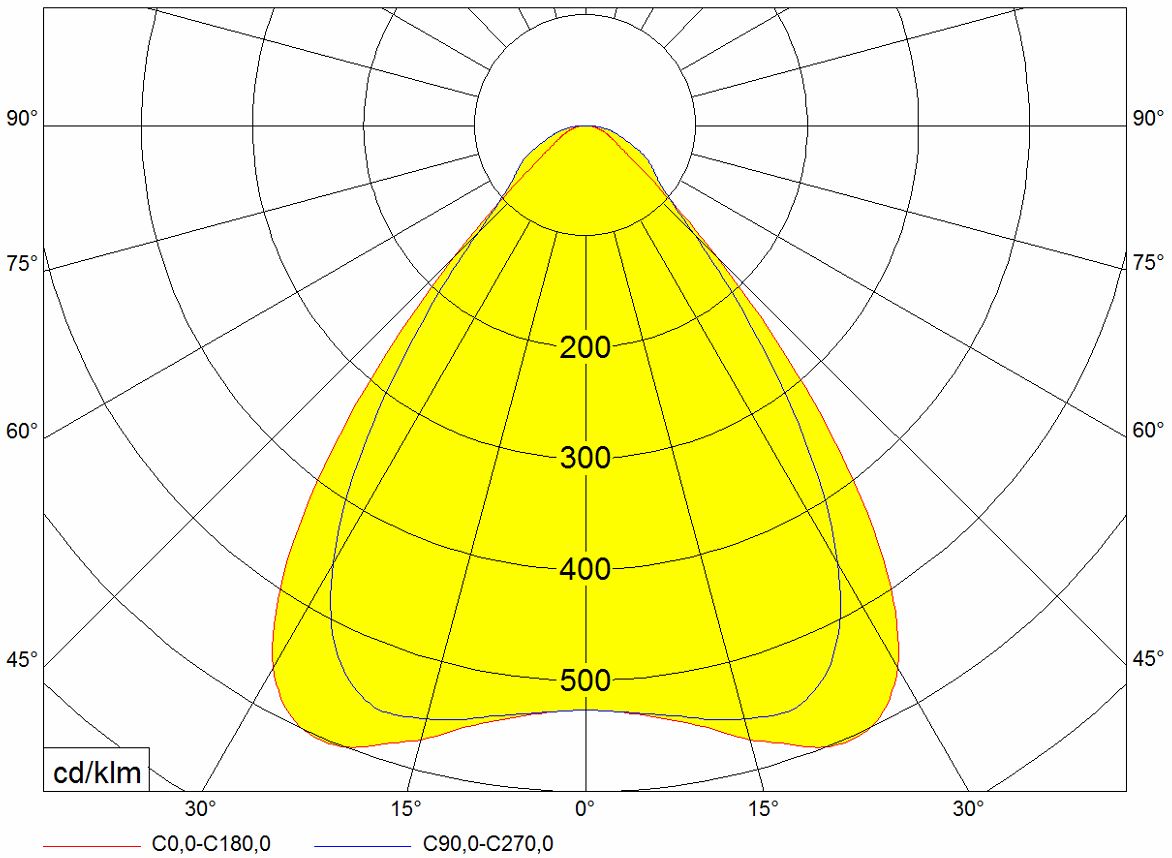

Z90
Wide beam optic 90°

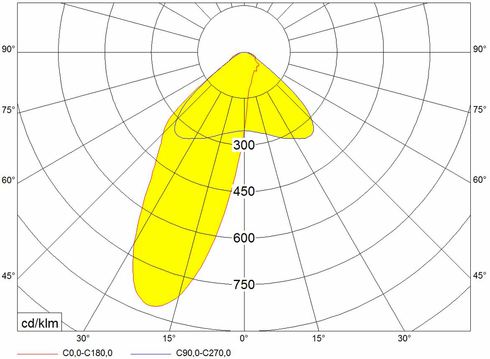

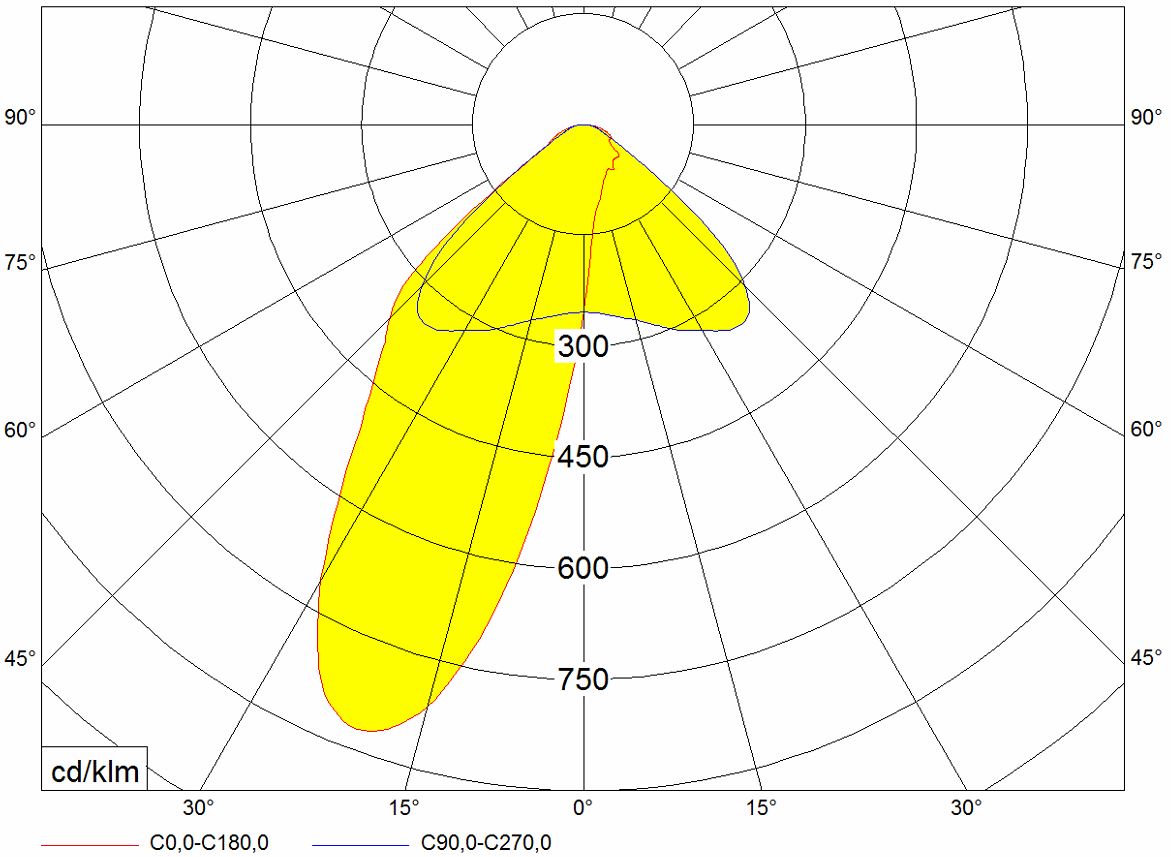

Z25
Asymmetric optic 25°
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1000
7700

System power (W)

8
54
Product name
EPD1000RS4Z60/05/ND
Effective luminous flux (lm): 1000
System power (W): 8
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD1000RXS4Z60/05/ND
Effective luminous flux (lm): 1000
System power (W): 8
Color temperature (K): 4000
Optical system: Z60
Length (mm): 375
EPD1500RXS4Z60/05/ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Optical system: Z60
Length (mm): 375
EPD1500RXS4Z90/05/ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Optical system: Z90
Length (mm): 375
EPD2000RS3Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: Z60
Length (mm): 655
EPD2000RS4Z60/1/DALI
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD2000RS4Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD2000RS4Z90/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z90
Length (mm): 655
EPD2000SS4Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD2000SS4Z90/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD3000RM4Z60/1/DALI
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD3000RM4Z60/1/ND
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD3000RM4Z90/1/ND
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD3000RM4Z90/1/NDNZ3
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD4000RM3Z60/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1230
EPD4000RM3Z90/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z90
Length (mm): 1230
EPD4000RM4Z25AS/1/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z25
Length (mm): 1230
EPD4000RM4Z25AS/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z25
Length (mm): 1230
EPD4000RM4Z60/1/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD4000RM4Z60/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD4000RM4Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD4000RM4Z90/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD4000RM4Z90/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD4000RS3Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 655
EPD4000RS4Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD4000RS4Z90/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 655
EPD4000SS2Z60/2/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 2700
Optical system: Z60
Length (mm): 595
EPD4000SS3Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD4000SS3Z60/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD4000SS3Z90/3/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 595
EPD4000SS3Z90/3/DALI/9005
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 595
EPD4000SS3Z90/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 595
EPD4000SS4Z60/2/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/3/ND/NZ3
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/4X/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z90/2/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD4000SS4Z90/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD4000SS4Z90/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD4000SS5Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 5700
Optical system: Z60
Length (mm): 595
EPD4000SS5Z60/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 5700
Optical system: Z60
Length (mm): 595
EPD4000SS5Z90/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 5700
Optical system: Z90
Length (mm): 595
EPD5000RM4Z60/2/ND
Effective luminous flux (lm): 5000
System power (W): 34
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD5000RM4Z90/2/ND
Effective luminous flux (lm): 5000
System power (W): 34
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD5000SS4Z90/3/ND
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD6000RM3Z60/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1230
EPD6000RM3Z90/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 3000
Optical system: Z90
Length (mm): 1230
EPD6000RM4Z60/2/DALI
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD6000RM4Z60/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD6000RM4Z90/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD6000SS3Z60/3/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD6000SS3Z60/3/NDNZ
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD6000SS4Z60/3/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD6000SS4Z90/2/ND
Effective luminous flux (lm): 5400
System power (W): 41
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD6000SS4Z90/3/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD8000RM3Z25AS/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 3000
Optical system: Z25
Length (mm): 1230
EPD8000RM3Z60/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1230
EPD8000RM4Z60/2/DALI
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD8000RM4Z60/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD8000RM4Z90/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD8000RM6Z90/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 6500
Optical system: Z90
Length (mm): 1230
Show all versions
46_3 EPD_AS.JPG46_3 EPD_AS.JPG
46_1 EPD_Z60.JPG46_1 EPD_Z60.JPG
46_2 EPD_Z90.JPG46_2 EPD_Z90.JPG

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
