MODUS ESO

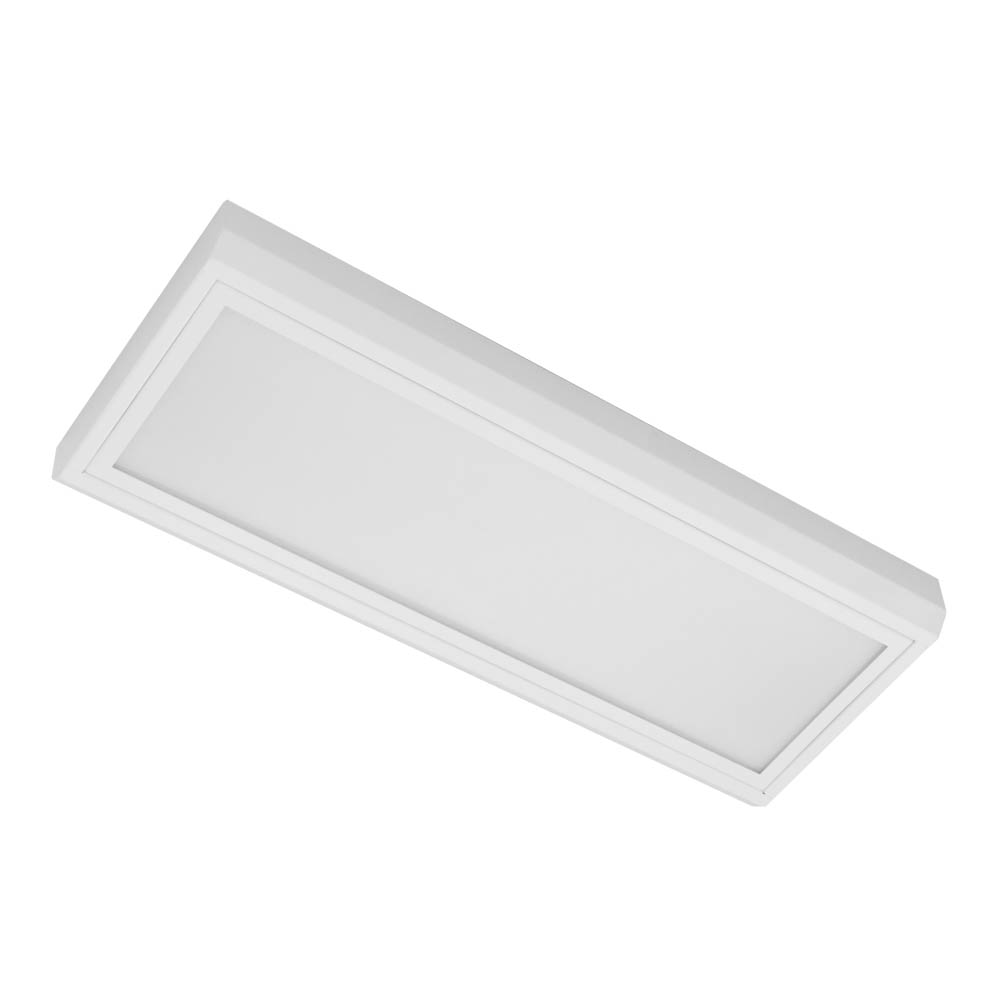

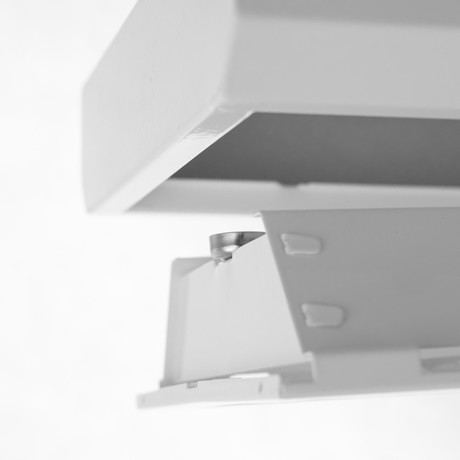

Surface LED fitting with cover

MODUS ESO RM
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

Body:

White painted (RAL 9016) metal sheet

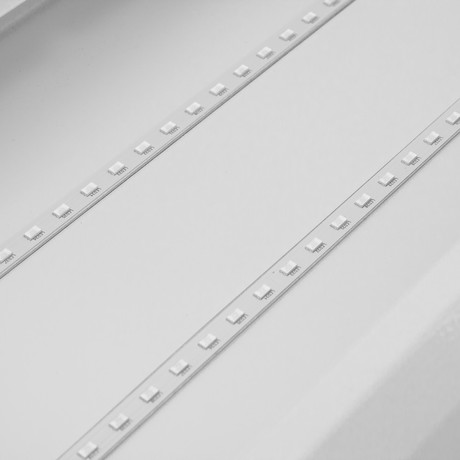

LED:

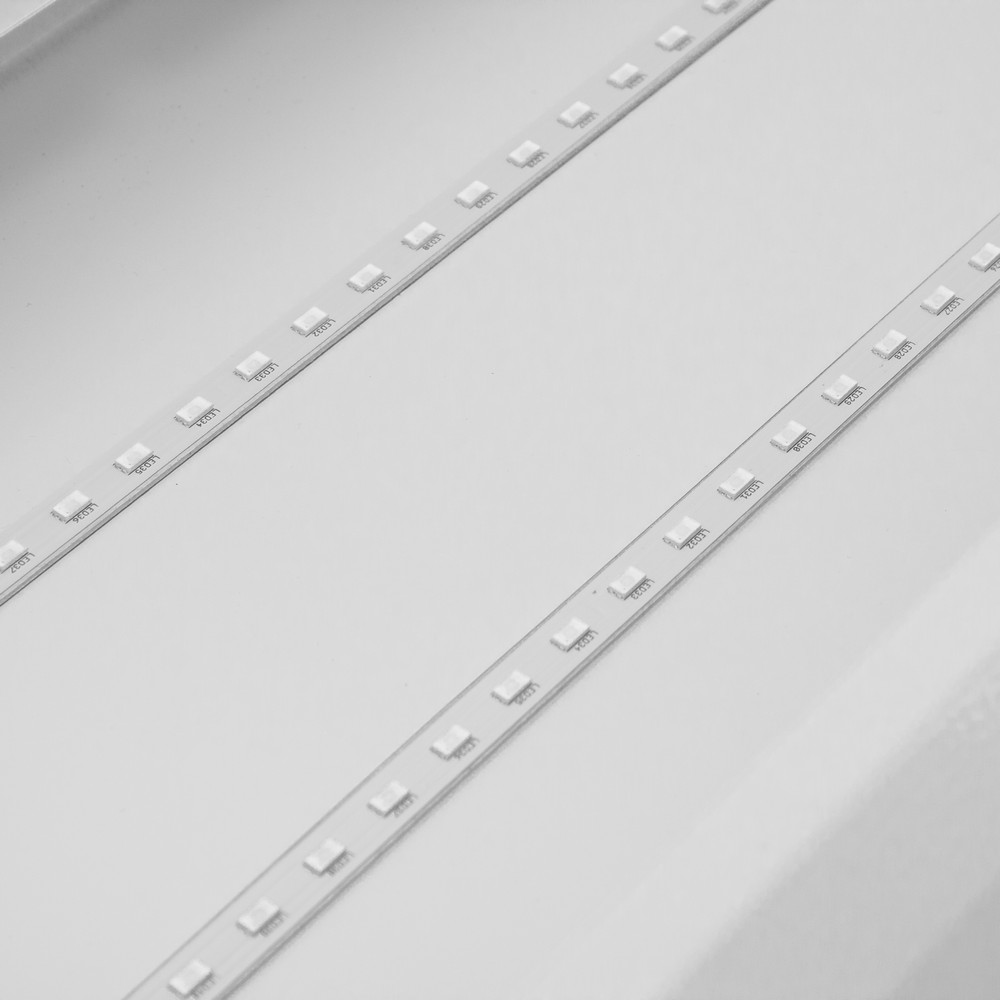

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V



Application:

Default way of using is a surface installation. Using suspension set ZH22 also pendant installation is possible.



Accessories:

ZH22 - suspension set



Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Pendant, Surface mountingProtection class:I
With movement sensor:YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Lamp type:LED
Color temperature controllable (K):YesNominal voltage (V):220...240
Degree of protection (IP):IP40
Color temperature (K):4000, 3000, 2700, 5700, 2700...6500, 1800...6500
Rated life time L80/B50 (h):80000Dimming 1-10 V:Yes

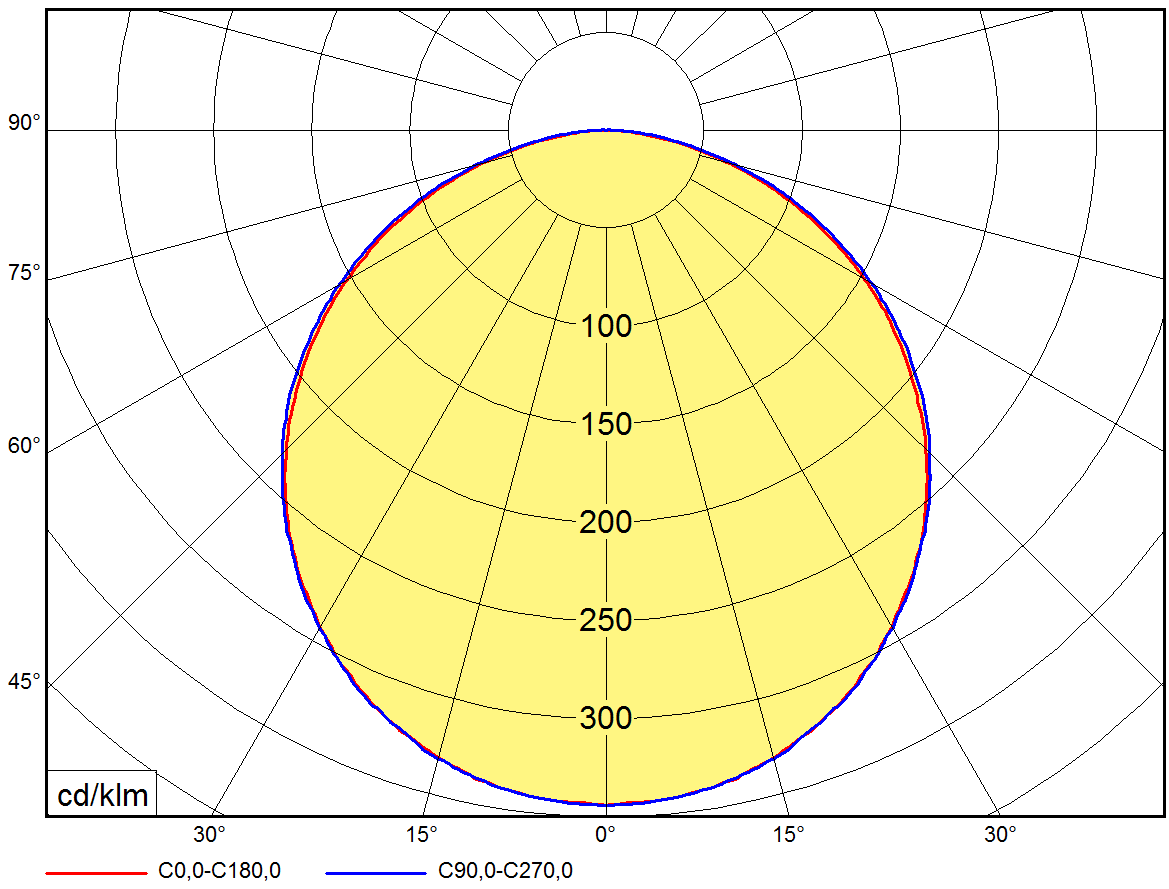

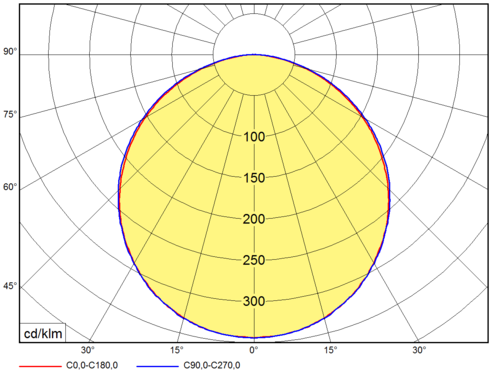

Dimming DALI:YesOptical system:KO
opal cover

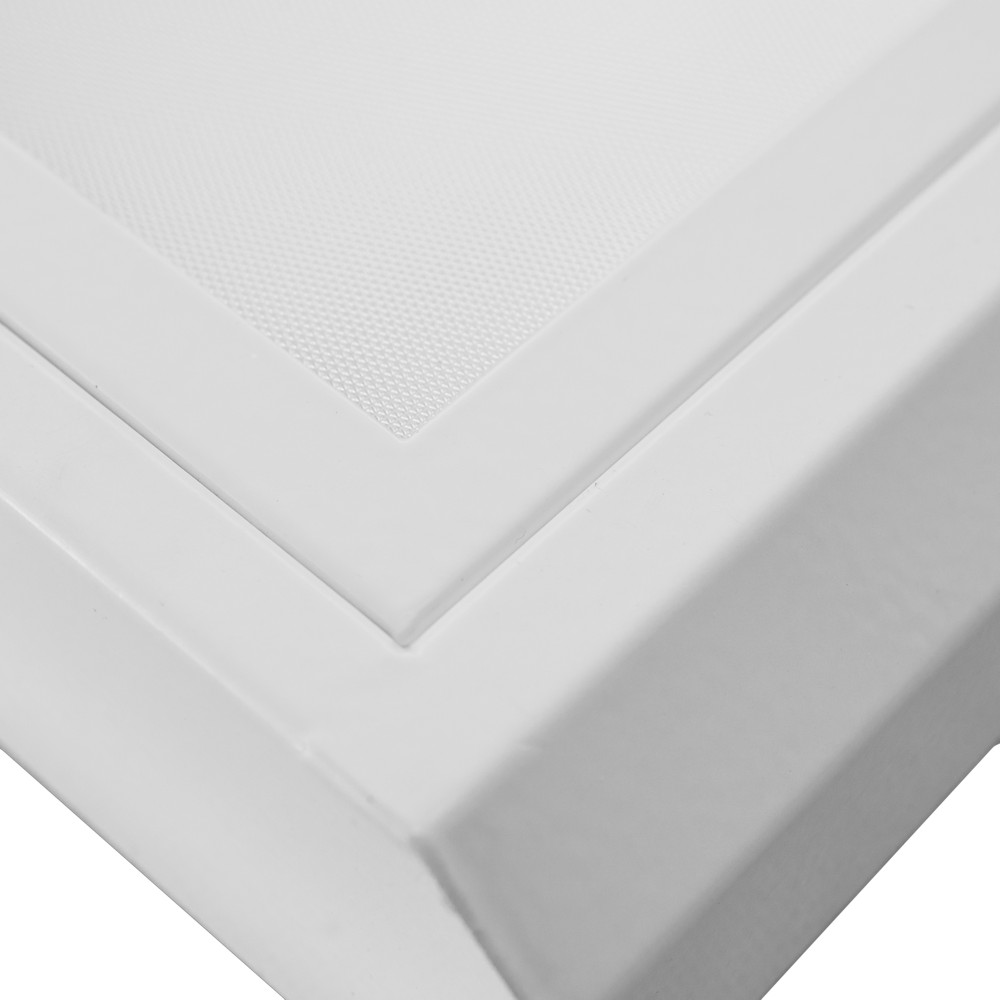

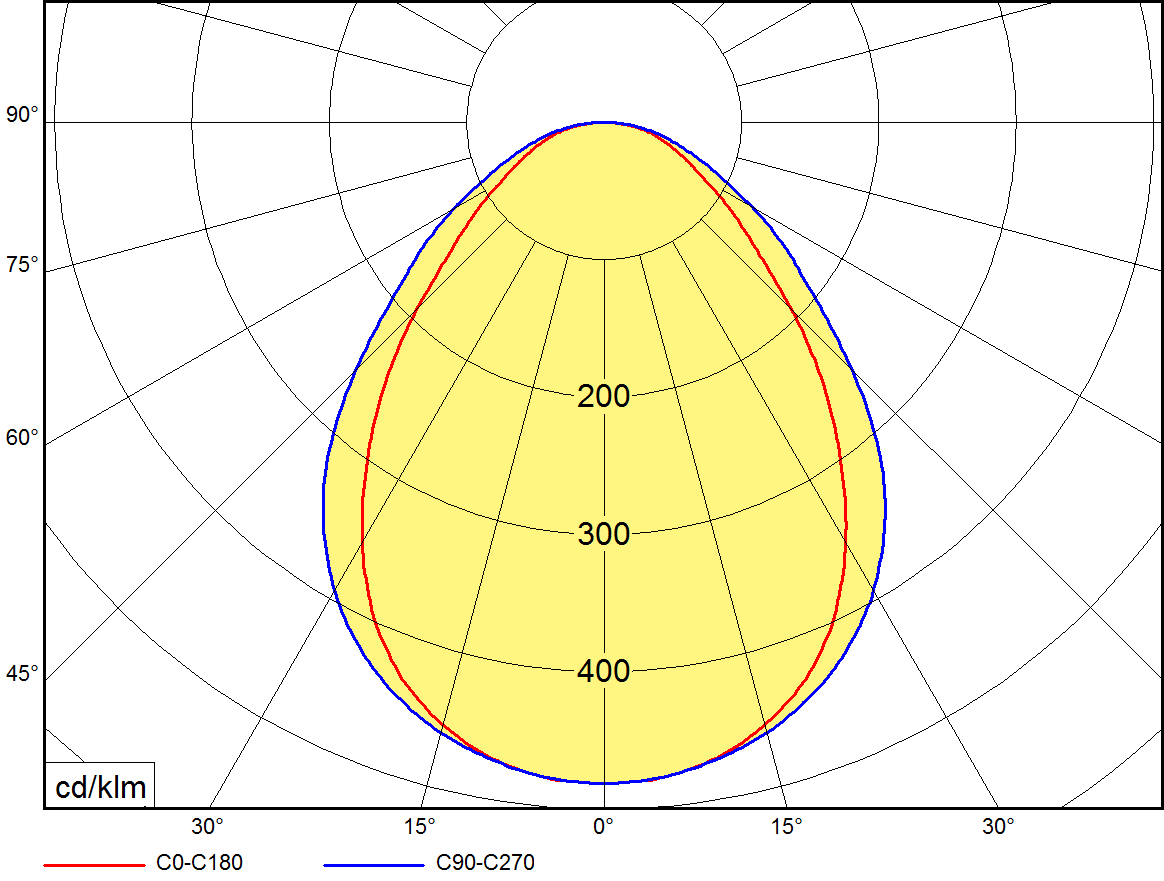

KN
nanoprizmatic cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1900
7500

System power (W)

16
57
Product name
ESO2000RMKN4ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Optical system: KN
ESO2000RMKN4NDNZ
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 4000
Optical system: KN
ESO2000RSKN3ND
Effective luminous flux (lm): 2300
System power (W): 20
Color temperature (K): 3000
Optical system: KN
ESO2000RSKN4DALI
Effective luminous flux (lm): 2300
System power (W): 20
Color temperature (K): 4000
Optical system: KN
ESO2000RSKN4DALI/90
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Optical system: KN
ESO2000RSKN4ND
Effective luminous flux (lm): 2300
System power (W): 20
Color temperature (K): 4000
Optical system: KN
ESO2000RSKO3DALI
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
ESO2000RSKO3DIM
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
ESO2000RSKO3ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
ESO2000RSKO3ND/9005
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
ESO2000RSKO4DALI
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Optical system: KO
ESO2000RSKO4DALI/90
Effective luminous flux (lm): 1900
System power (W): 20
Color temperature (K): 4000
Optical system: KO
ESO2000RSKO4DIM
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Optical system: KO
ESO2000RSKO4ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Optical system: KO
ESO2000RSKO5ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 5700
Optical system: KO
ESO3000RMKN3DIM
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 3000
Optical system: KN
ESO3000RMKN3ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 3000
Optical system: KN
ESO3000RMKN4DALI
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 4000
Optical system: KN
ESO3000RMKN4ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 4000
Optical system: KN
ESO3000RMKN4ND/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
ESO3000RMKN4NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KN
ESO3000RMKN6ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 6500
Optical system: KN
ESO3000RMKO3DALI
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
ESO3000RMKO3DIM
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
ESO3000RMKO3ND
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
ESO3000RMKO3NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
ESO3000RMKO4DALI
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
ESO3000RMKO4DALI/90
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 4000
Optical system: KO
ESO3000RMKO4DIM
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
ESO3000RMKO4ND
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
ESO3000RMKO4NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
ESO3000SSKN3DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
ESO3000SSKN3ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
ESO3000SSKN3ND/9005
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
ESO3000SSKN4DALI/90
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
ESO3000SSKN4ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
ESO3000SSKN4NDNZ
Effective luminous flux (lm): 2900
System power (W): 24
Color temperature (K): 4000
Optical system: KN
ESO3000SSKO3DALI
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KO
ESO3000SSKO3ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KO
ESO3000SSKO3ND/9005
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KO
ESO3000SSKO4DALI
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KO
ESO3000SSKO4ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KO
ESO3000SSKO4NDNZ
Effective luminous flux (lm): 2900
System power (W): 24
Color temperature (K): 4000
Optical system: KO
ESO4000RMKN3DALI
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
ESO4000RMKN3ND
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
ESO4000RMKN3ND/7040
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
ESO4000RMKN3NDNZ
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
ESO4000RMKN4DALI
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKN4DALI/90
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKN4ND
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKN4ND/90
Effective luminous flux (lm): 4100
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKN4ND/EU
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKN4NDNZ
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKN5ND
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 5700
Optical system: KN
ESO4000RMKN6ND
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 6500
Optical system: KN
ESO4000RMKO3DALI
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
ESO4000RMKO3DIM
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
ESO4000RMKO3ND
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
ESO4000RMKO3ND/90
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 3000
Optical system: KO
ESO4000RMKO3NDNZ
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
ESO4000RMKO4DALI
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4DALI/90
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4DALINZ3
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4DIM
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4DIM/EU
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4ND
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4ND/90
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4ND/EU
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KN
ESO4000RMKO4NDNZ
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO4NDNZ3
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
ESO4000RMKO5DALI
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 5700
Optical system: KO
ESO4000RMKO5ND
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 5700
Optical system: KO
ESO4000RMKOMIX
System power (W): 45
Color temperature (K): 2700...6500
Optical system: KO
ESO4000SSKN3DALI
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 3000
Optical system: KN
ESO4000SSKN3ND
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 3000
Optical system: KN
ESO4000SSKN3ND/9005
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 3000
Optical system: KN
ESO4000SSKN4DALI
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 4000
Optical system: KN
ESO4000SSKN4DALI/90
Effective luminous flux (lm): 4200
System power (W): 36
Color temperature (K): 4000
Optical system: KN
ESO4000SSKN4ND
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 4000
Optical system: KN
ESO4000SSKN4ND/90
Effective luminous flux (lm): 4200
System power (W): 36
Color temperature (K): 4000
Optical system: KN
ESO4000SSKN5ND
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 5700
Optical system: KN
ESO4000SSKN5ND/90
Effective luminous flux (lm): 4800
System power (W): 36
Color temperature (K): 5700
Optical system: KN
ESO4000SSKO3DALI
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 3000
Optical system: KO
ESO4000SSKO3ND
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 3000
Optical system: KO
ESO4000SSKO3ND/90
Effective luminous flux (lm): 3500
System power (W): 36
Color temperature (K): 3000
Optical system: KO
ESO4000SSKO4DALI
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 4000
Optical system: KO
ESO4000SSKO4DALI/90
Effective luminous flux (lm): 3500
System power (W): 36
Color temperature (K): 4000
Optical system: KO
ESO4000SSKO4DALIT
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 4000
Optical system: KO
ESO4000SSKO4DIM
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 4000
Optical system: KO
ESO4000SSKO4ND
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 4000
Optical system: KO
ESO5000RLKN3DIM
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 3000
Optical system: KN
ESO5000RLKN3ND
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 3000
Optical system: KN
ESO5000RLKN4DALI
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKN4DALI/90
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKN4DALI/BTC
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKN4ND
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKN4ND/90
Effective luminous flux (lm): 4500
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKN4ND/P1
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKN4NDNZ
Effective luminous flux (lm): 5900
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000RLKO3DIM
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 3000
Optical system: KO
ESO5000RLKO3ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 3000
Optical system: KO
ESO5000RLKO4DALI
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO5000RLKO4DALI/90
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO5000RLKO4DIM
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO5000RLKO4ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO5000RLKO4NDNZ
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO5000SSKN4ND
Effective luminous flux (lm): 5200
System power (W): 44
Color temperature (K): 4000
Optical system: KN
ESO5000SSKO4DALI/90
Effective luminous flux (lm): 4300
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO5000SSKO4ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
ESO6000RLKN3DALI
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 3000
Optical system: KN
ESO6000RLKN3ND
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 3000
Optical system: KN
ESO6000RLKN4DALI
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000RLKN4DALI/90
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000RLKN4ND
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000RLKN4ND/90
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000RLKN4ND/EU
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000RLKN4NDNZ
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000RLKN5ND
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 5700
Optical system: KN
ESO6000RLKN5ND/90
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 5700
Optical system: KN
ESO6000RLKN6ND
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 6500
Optical system: KN
ESO6000RLKO2DALI
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 2700
Optical system: KO
ESO6000RLKO3DALI
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 3000
Optical system: KO
ESO6000RLKO3DIM
Effective luminous flux (lm): 7250
System power (W): 57
Color temperature (K): 3000
Optical system: KO
ESO6000RLKO3ND
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 3000
Optical system: KO
ESO6000RLKO3ND/90
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 3000
Optical system: KO
ESO6000RLKO4DALI
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
ESO6000RLKO4DIM
Effective luminous flux (lm): 7250
System power (W): 57
Color temperature (K): 4000
Optical system: KO
ESO6000RLKO4ND
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
ESO6000RLKO4ND/90
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
ESO6000RLKO4ND/EU
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
ESO6000RLKO5DALI
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
ESO6000RLKO5ND
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
ESO6000RLKO6ND
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 6500
Optical system: KO
ESO6000SSKN3ND
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 3000
Optical system: KN
ESO6000SSKN4DALI
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000SSKN4DALI/90
Effective luminous flux (lm): 5700
System power (W): 57
Color temperature (K): 4000
Optical system: KN
ESO6000SSKN4ND
Effective luminous flux (lm): 6600
System power (W): 55
Color temperature (K): 4000
Optical system: KN
ESO6000SSKO3DALI
Effective luminous flux (lm): 6300
System power (W): 55
Color temperature (K): 3000
Optical system: KN
ESO6000SSKO3ND
Effective luminous flux (lm): 6300
System power (W): 55
Color temperature (K): 3000
Optical system: KO
ESO6000SSKO4DALI
Effective luminous flux (lm): 6300
System power (W): 55
Color temperature (K): 4000
Optical system: KO
ESO6000SSKO4DIM
Effective luminous flux (lm): 6300
System power (W): 55
Color temperature (K): 4000
Optical system: KO
ESO6000SSKO4ND
Effective luminous flux (lm): 6300
System power (W): 55
Color temperature (K): 4000
Optical system: KO

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Pendant mounting of luminaires

Pendant mounting of luminaires

Wire suspensions sets

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
