Product series

MODUS EVO

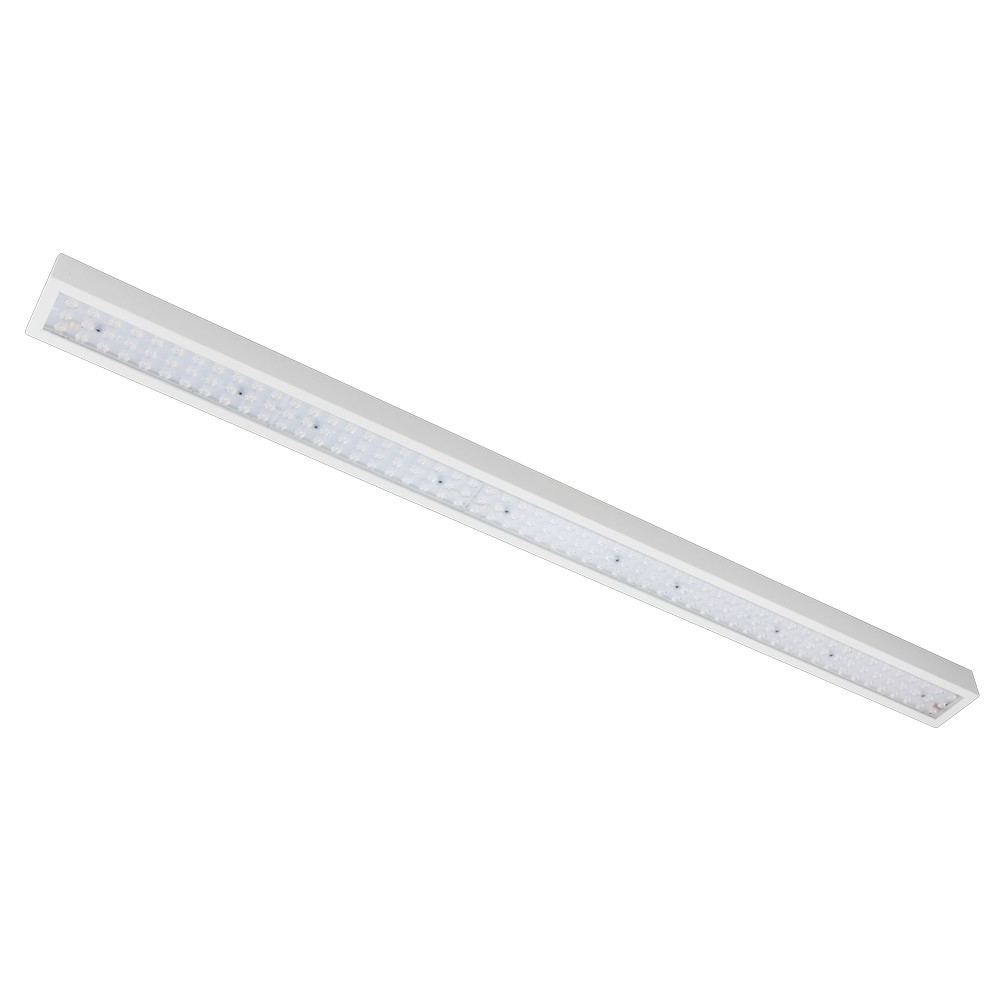

Linear LED luminaire with optic

MODUS EVO
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Linear luminaire with individual optical system, ideal for use in retail of warehouse places.

Luminaires can be made for continous assembly (code:EVO.../R), in case of this installation we recommend order also connection part (EVOSPOJ) which will make mechanical connection.

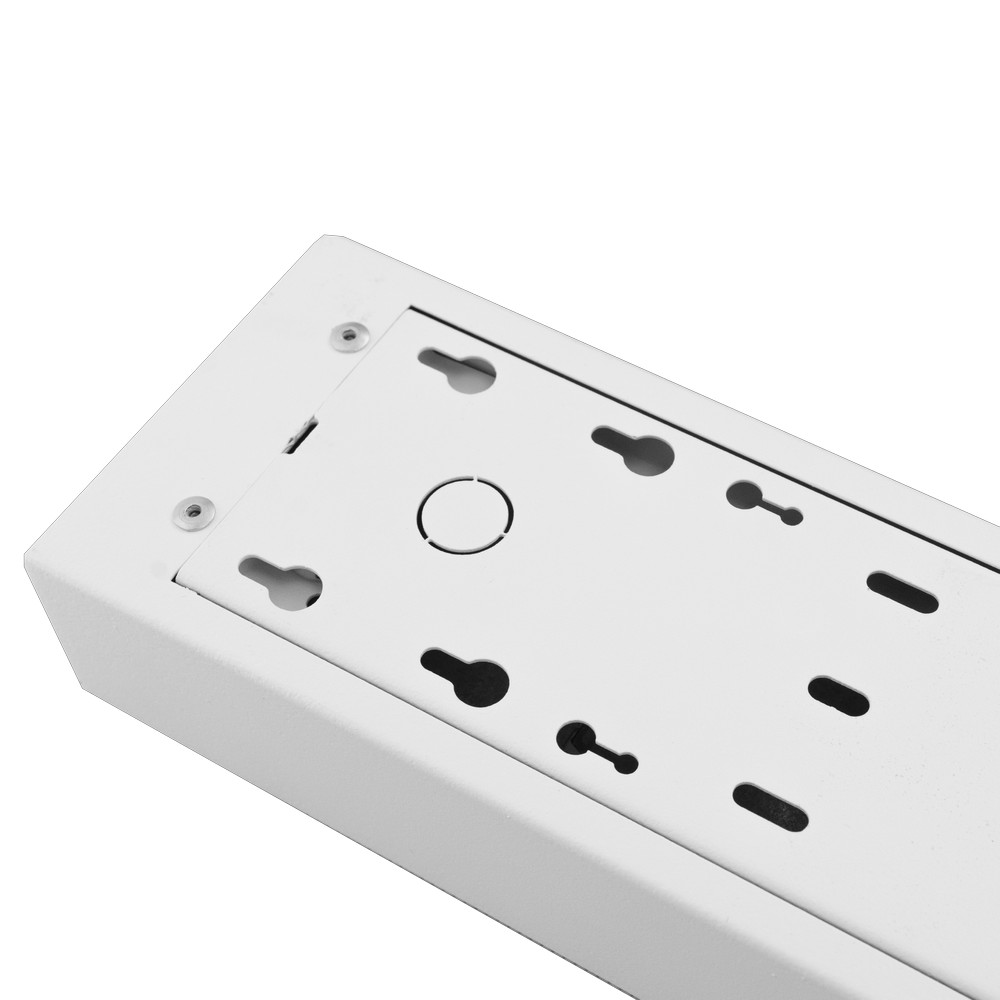

Installation is primary for surface installlation. Pendant installation is possible with suspension wire set - ZH11.

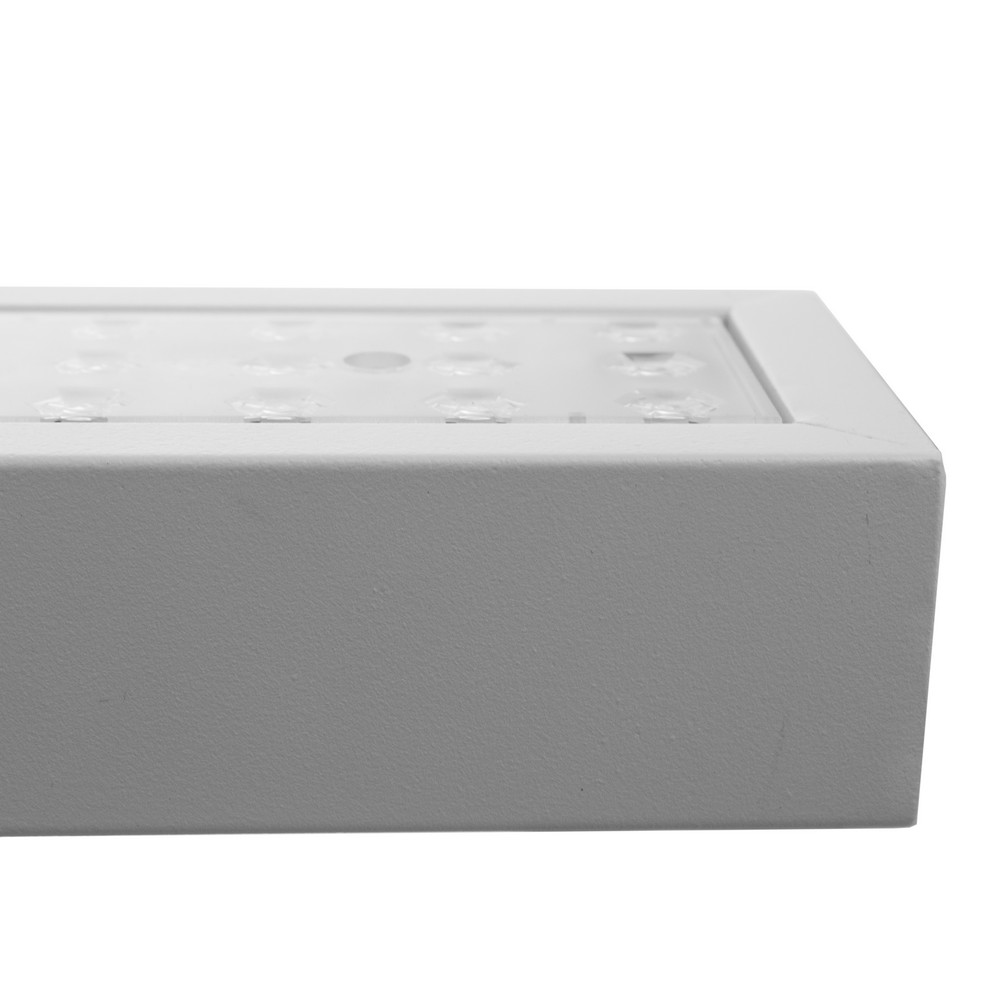

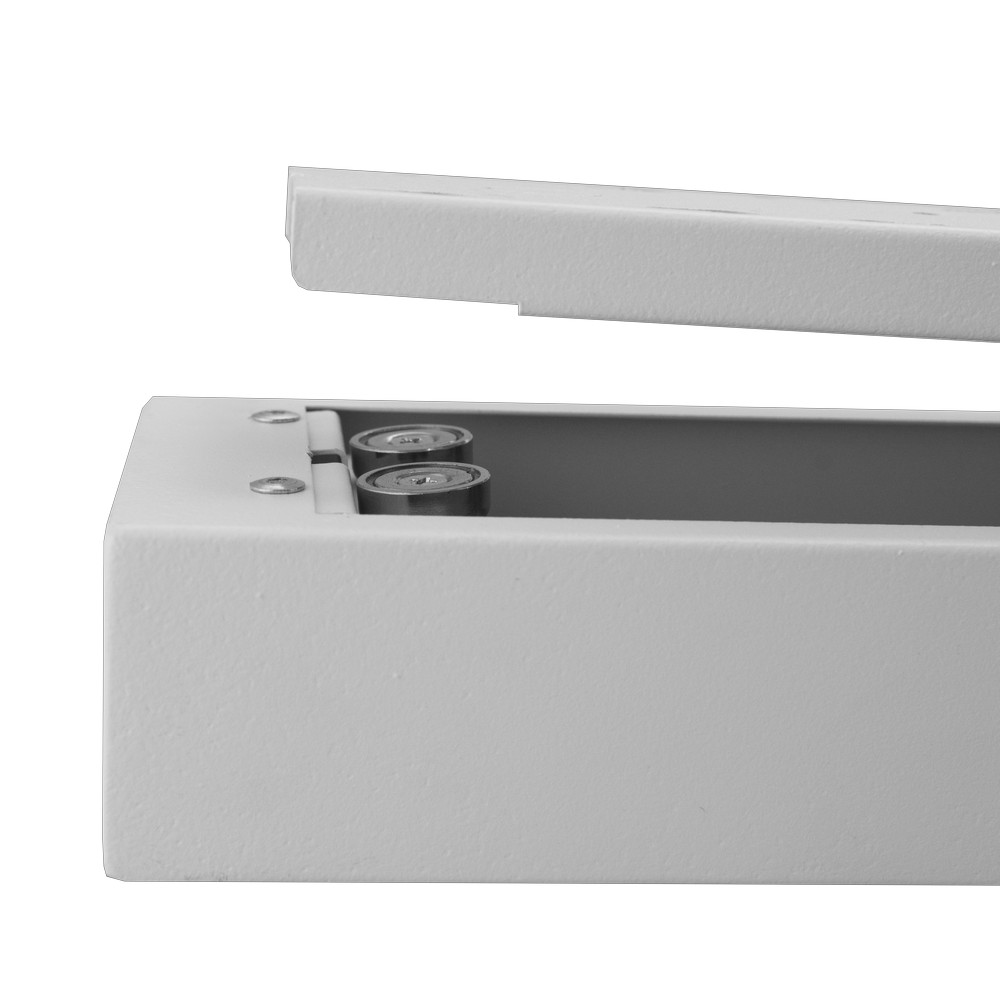

Body:
White painted (RAL9003) metal sheet

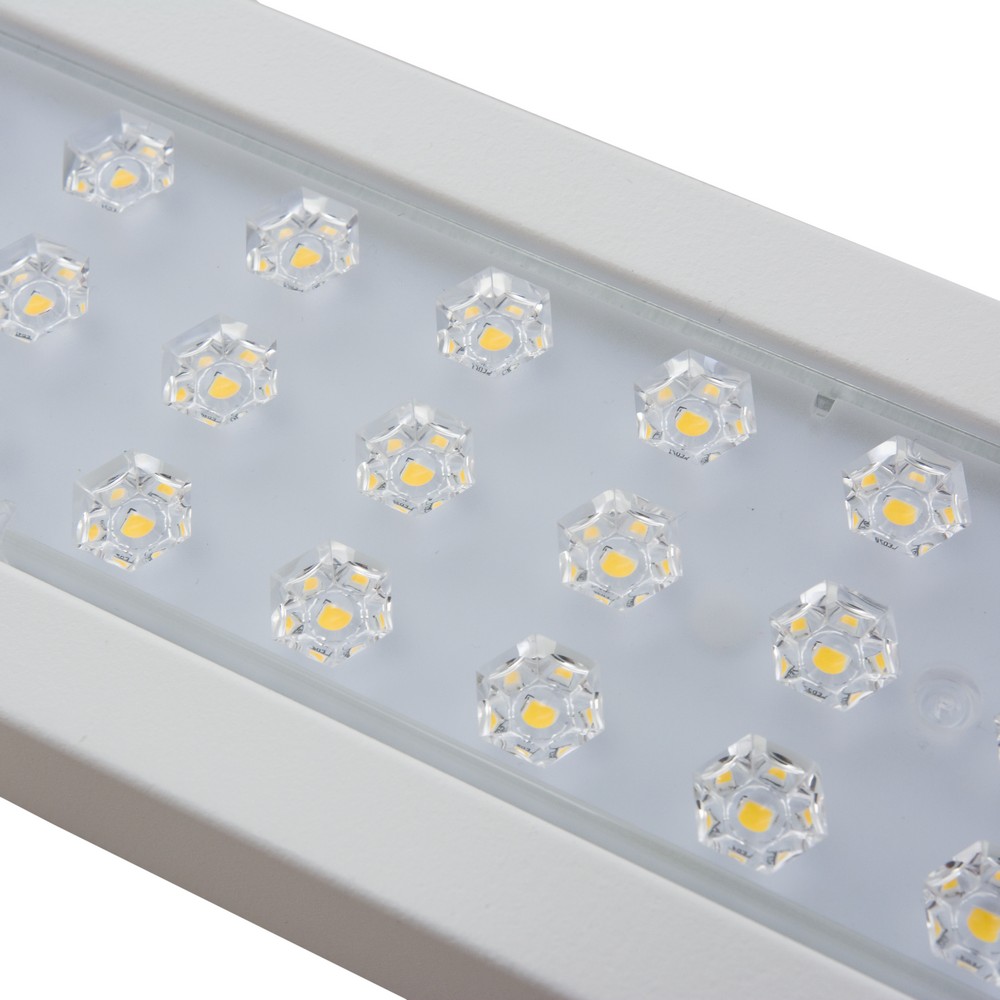

Optics:
CN - narrow
CW - wide
CEW - extra white
CRA - asymetric

LED:
Mid Power LED
CRI80 (CRI90 od request)
3...warm white 3000K
4...cold white 4000K
5...daylight 5700K

Wirring:
ND - nondimmable driver
DALI - dimmable by DALI

Application:
Surface or pendant installation
Can be installed in line - EVO/P

Accessories:
ZH11 - suspension set
EVOSPOJ - connection part between luminaires

Body material:White painted steelMounting method:Surface mounting, Suspended
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Suitable for light line configuration:YesLight outlet:Direct
Nominal voltage (V):220...240Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000

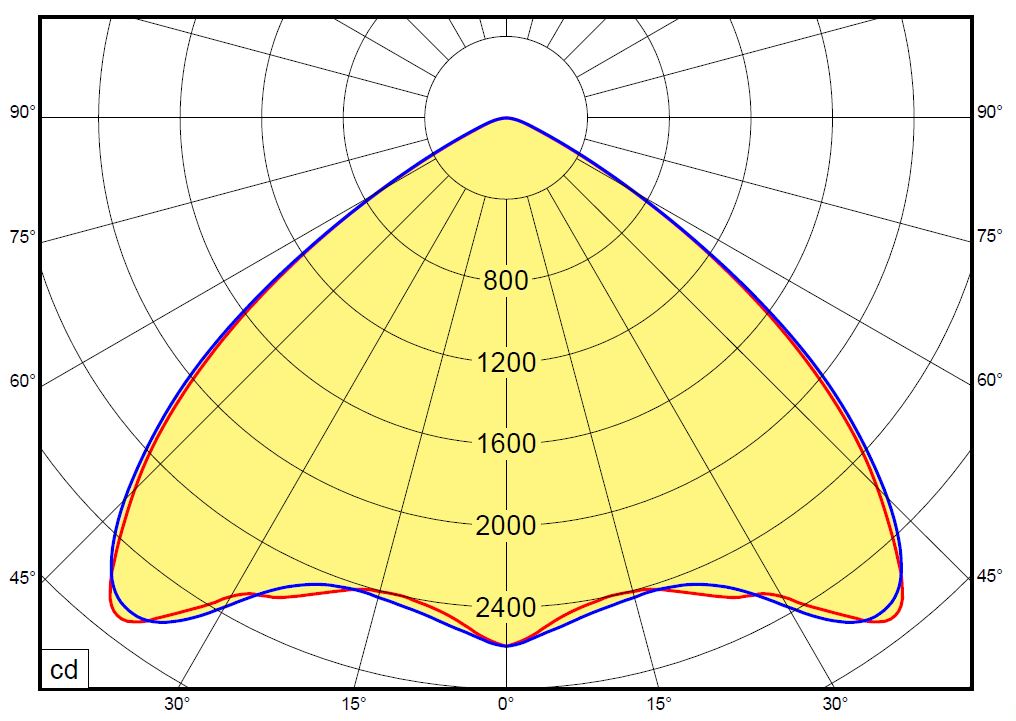

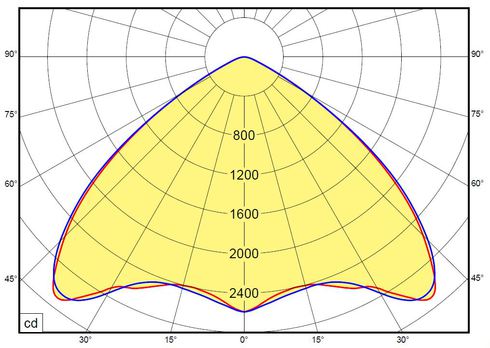

Dimming DALI:YesOptical system:CEW
Extra wide 90°

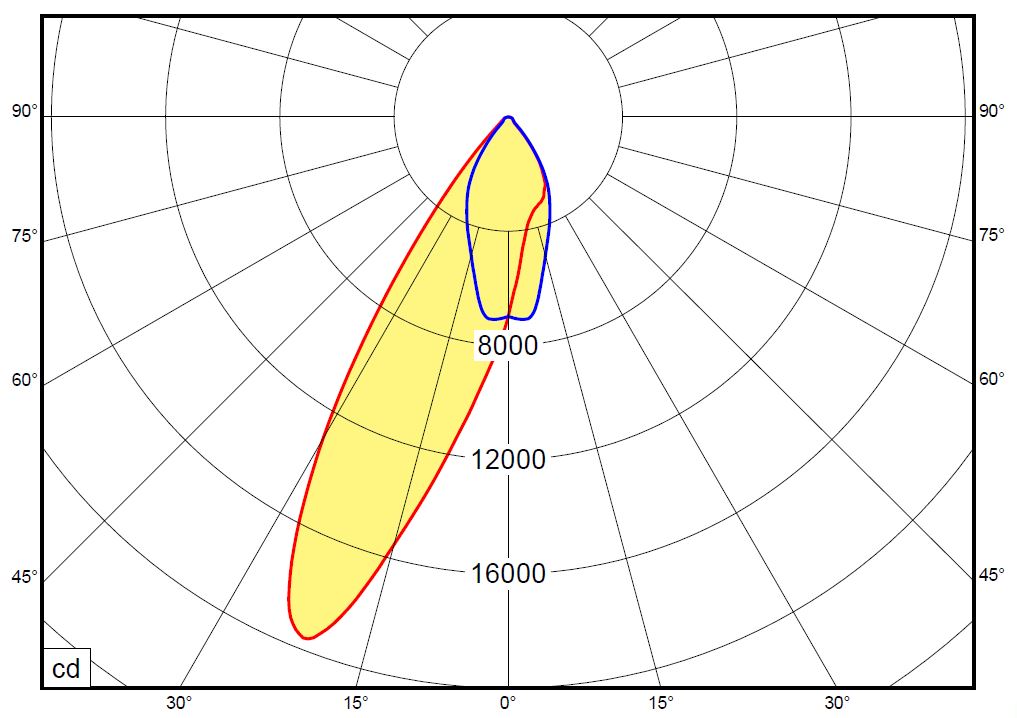

CRA
Retail asymetric optics

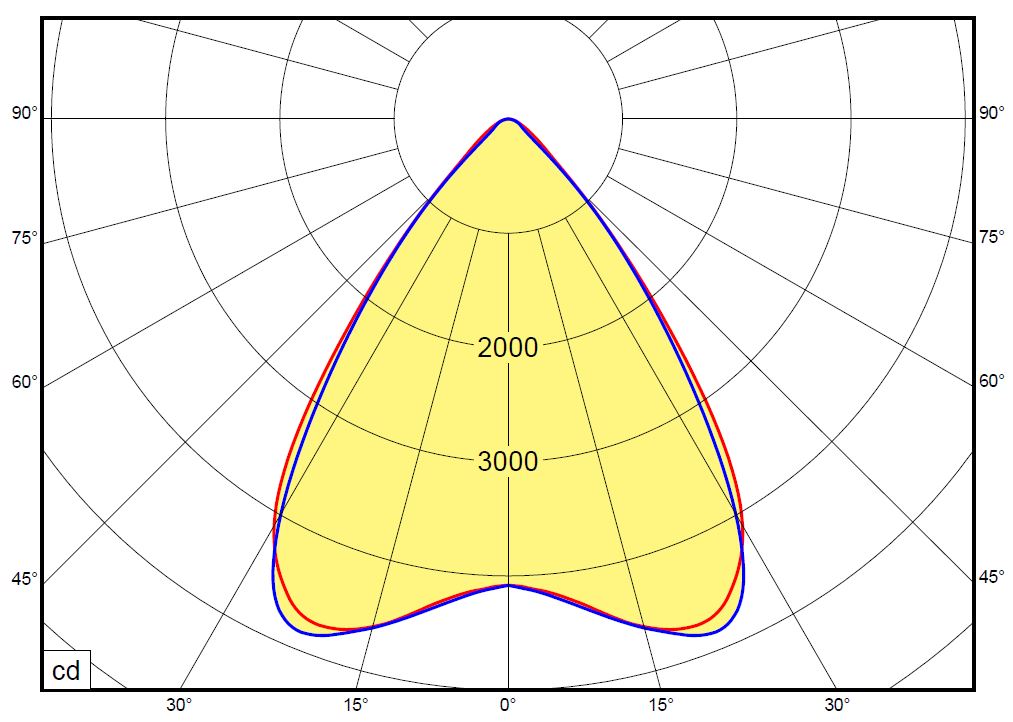

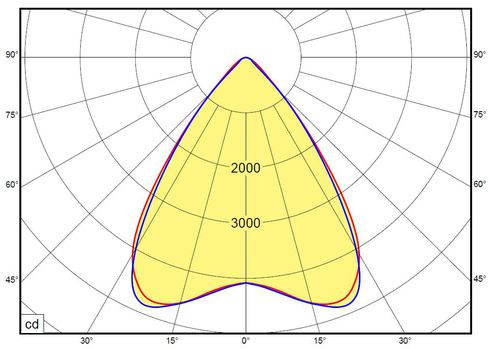

CW
Wide

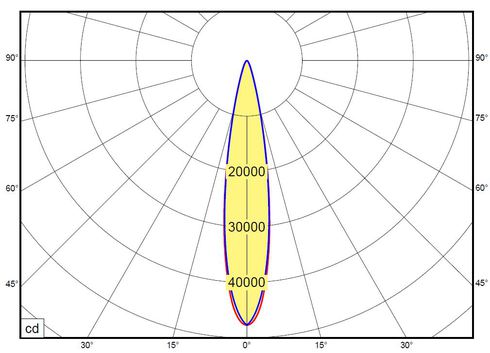

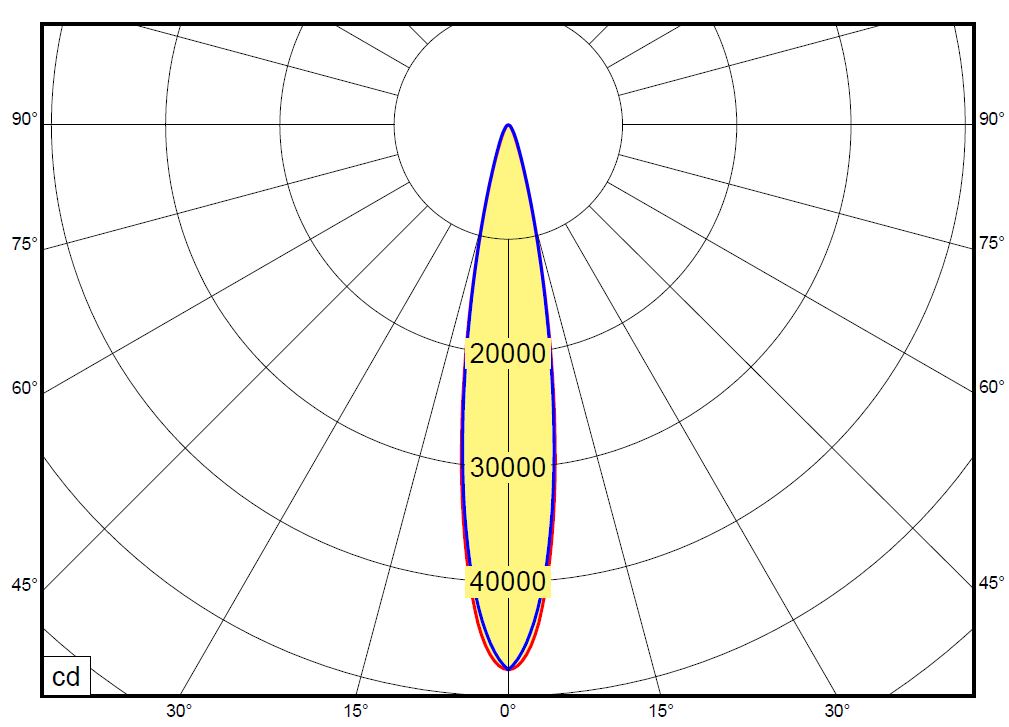

CN
Narrow beam
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2200
8700

System power (W)

14
60
Product name
EVO2500L4CW/ND
Effective luminous flux (lm): 2500
System power (W): 16
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO2500S4CEW/ND
Effective luminous flux (lm): 2200
System power (W): 14
Color temperature (K): 4000
Optical system: CW
Length (mm): 610
Size version: S
EVO2500S4CEW/R/ND
Effective luminous flux (lm): 2200
System power (W): 14
Color temperature (K): 4000
Optical system: CEW
Length (mm): 610
Size version: S
EVO2500S4CRA/ND
Effective luminous flux (lm): 2200
System power (W): 14
Color temperature (K): 4000
Optical system: CRA
Length (mm): 610
Size version: S
EVO2500S4CW/DALI
Effective luminous flux (lm): 2200
System power (W): 14
Color temperature (K): 4000
Optical system: CW
Length (mm): 610
Size version: S
EVO2500S4CW/ND
Effective luminous flux (lm): 2200
System power (W): 14
Color temperature (K): 4000
Optical system: CW
Length (mm): 610
Size version: S
EVO3000M3CW/ND/9016
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Optical system: CW
Length (mm): 1182
Size version: M
EVO3500M4CW/ND
Effective luminous flux (lm): 3400
System power (W): 22
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO3500S4CEW/ND
Effective luminous flux (lm): 3400
System power (W): 25
Color temperature (K): 4000
Optical system: CW
Length (mm): 610
Size version: S
EVO3500S4CRA/DALI
Effective luminous flux (lm): 3400
System power (W): 25
Color temperature (K): 4000
Optical system: CRA
Length (mm): 610
Size version: S
EVO3500S4CRA/ND
Effective luminous flux (lm): 3400
System power (W): 25
Color temperature (K): 4000
Optical system: CRA
Length (mm): 610
Size version: S
EVO3500S4CW/DALI
Effective luminous flux (lm): 3400
System power (W): 25
Color temperature (K): 4000
Optical system: CW
Length (mm): 610
Size version: S
EVO3500S4CW/ND
Effective luminous flux (lm): 3400
System power (W): 25
Color temperature (K): 4000
Optical system: CW
Length (mm): 610
Size version: S
EVO4000XM4CEW/ND
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
Optical system: CEW
Length (mm): 896
Size version: XM
EVO4000XM4CW/ND
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
Optical system: CW
Length (mm): 896
Size version: XM
EVO5000M3CEW/ND
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 3000
Optical system: CEW
Length (mm): 1182
Size version: M
EVO5000M3CW/ND
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 3000
Optical system: CW
Length (mm): 1182
Size version: M
EVO5000M4CEW/ND
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO5000M4CEW/ND/9005
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1182
Size version: M
EVO5000M4CEW/R/ND
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1182
Size version: M
EVO5000M4CRA/DALI
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1182
Size version: M
EVO5000M4CRA/ND
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1182
Size version: M
EVO5000M4CW/DALI
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO5000M4CW/ND
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO5000M4CW/ND/9005
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO5000M4CW/ND/NZ
Effective luminous flux (lm): 5000
System power (W): 33
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO5000XM3CEW/DALI
Effective luminous flux (lm): 5200
System power (W): 37
Color temperature (K): 3000
Optical system: CEW
Length (mm): 896
Size version: XM
EVO5000XM3CW/DALI
Effective luminous flux (lm): 5200
System power (W): 37
Color temperature (K): 3000
Optical system: CW
Length (mm): 896
Size version: XM
EVO5000XM4CEW/ND
Effective luminous flux (lm): 5200
System power (W): 37
Color temperature (K): 4000
Optical system: CEW
Length (mm): 896
Size version: XM
EVO5000XM4CW/ND
Effective luminous flux (lm): 5200
System power (W): 37
Color temperature (K): 4000
Optical system: CW
Length (mm): 896
Size version: XM
EVO6000L3CEW/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 3000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO6000L3CRA/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 3000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO6000L3CW/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 3000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L3CW/R/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 3000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L4CEW/DALI
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO6000L4CEW/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO6000L4CEW/ND/9005
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO6000L4CEW/R/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO6000L4CN/DALI
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CN
Length (mm): 1468
Size version: L
EVO6000L4CN/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CN
Length (mm): 1468
Size version: L
EVO6000L4CRA/DALI
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO6000L4CRA/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO6000L4CRA/ND/9007
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO6000L4CRA/R/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO6000L4CW/DALI
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L4CW/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L4CW/ND/NZ
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L4CW/R/DALI
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L4CW/R/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO6000L5CEW/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 5700
Optical system: CEW
Length (mm): 1468
Size version: L
EVO6000L5CN/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 5700
Optical system: CN
Length (mm): 1468
Size version: L
EVO6000L5CW/ND
Effective luminous flux (lm): 5850
System power (W): 38
Color temperature (K): 5700
Optical system: CW
Length (mm): 1468
Size version: L
EVO7000M3CW/ND
Effective luminous flux (lm): 7000
System power (W): 48
Color temperature (K): 3000
Optical system: CW
Length (mm): 1182
Size version: M
EVO7000M4CEW/ND
Effective luminous flux (lm): 7000
System power (W): 48
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1182
Size version: M
EVO7000M4CN/R/DALI
Effective luminous flux (lm): 7000
System power (W): 48
Color temperature (K): 4000
Optical system: CN
Length (mm): 1182
Size version: M
EVO7000M4CRA/ND
Effective luminous flux (lm): 7000
System power (W): 48
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1182
Size version: M
EVO7000M4CW/ND
Effective luminous flux (lm): 7000
System power (W): 48
Color temperature (K): 4000
Optical system: CW
Length (mm): 1182
Size version: M
EVO7000M5CEW/ND
Effective luminous flux (lm): 7000
System power (W): 48
Color temperature (K): 5700
Optical system: CEW
Length (mm): 1182
Size version: M
EVO9000L3CEW/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO9000L3CEW/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO9000L3CW/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L3CW/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L3CW/R/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L4CEW/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO9000L4CEW/R/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CEW
Length (mm): 1468
Size version: L
EVO9000L4CN/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CN
Length (mm): 1468
Size version: L
EVO9000L4CN/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CN
Length (mm): 1468
Size version: L
EVO9000L4CRA/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO9000L4CRA/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CRA
Length (mm): 1468
Size version: L
EVO9000L4CW/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L4CW/DALI/90
Effective luminous flux (lm): 7400
System power (W): 60
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L4CW/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L4CW/ND/90
Effective luminous flux (lm): 7400
System power (W): 60
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L4CW/ND/S31
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L4CW/R/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 4000
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L5CEW/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5700
Optical system: CEW
Length (mm): 1468
Size version: L
EVO9000L5CEW/R/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5700
Optical system: CEW
Length (mm): 1468
Size version: L
EVO9000L5CW/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5700
Optical system: CW
Length (mm): 1468
Size version: L
EVO9000L6CW/DALI
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 6500
Optical system: CW
Length (mm): 1468
Size version: L
Show all versions
EVO CN.JPGEVO CN.JPG
EVO CEW.JPGEVO CEW.JPG
EVO CRA.JPGEVO CRA.JPG
EVO CW.JPGEVO CW.JPG

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
