Product series

MODUS EXAL

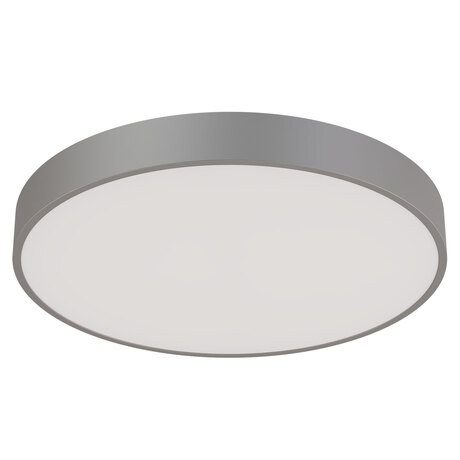

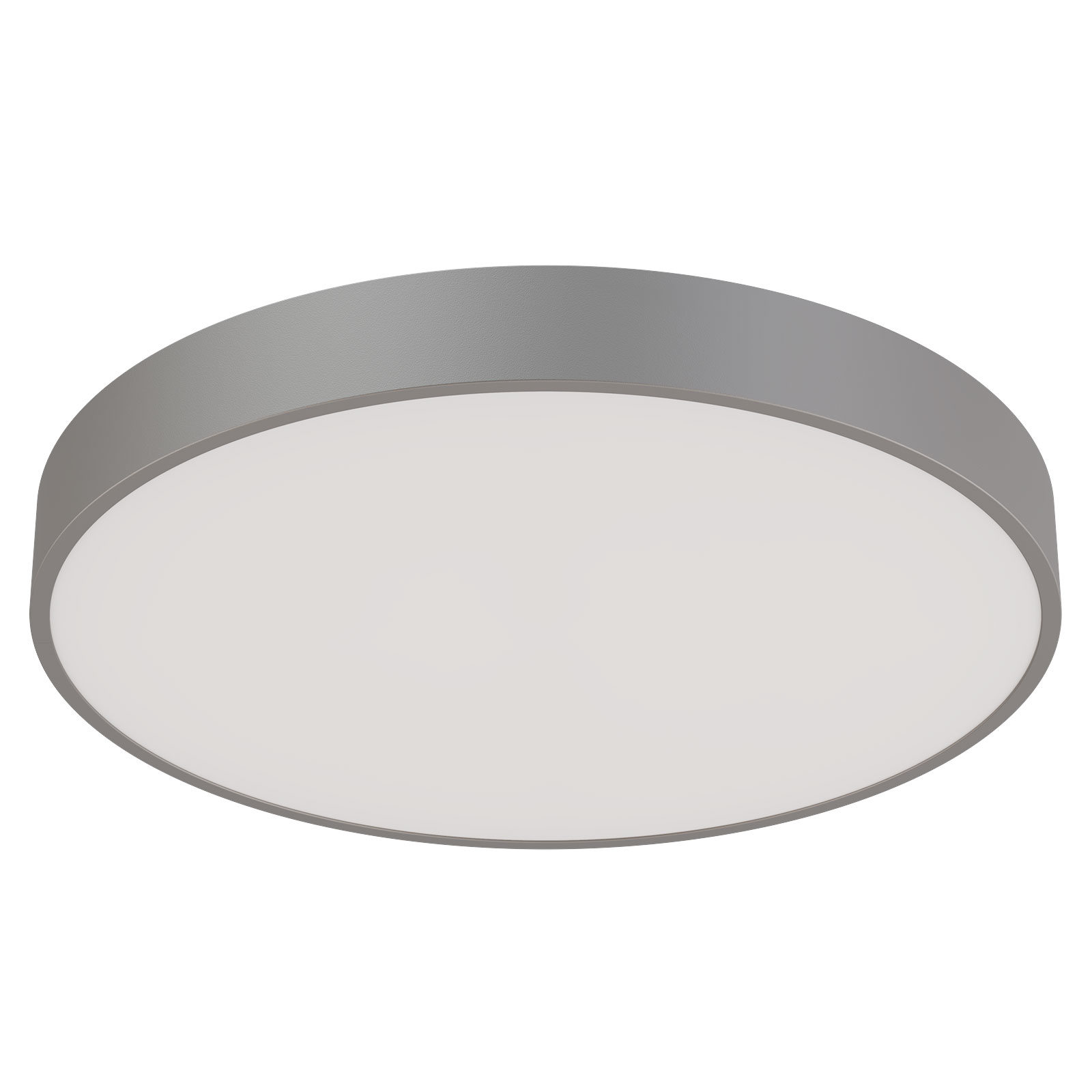

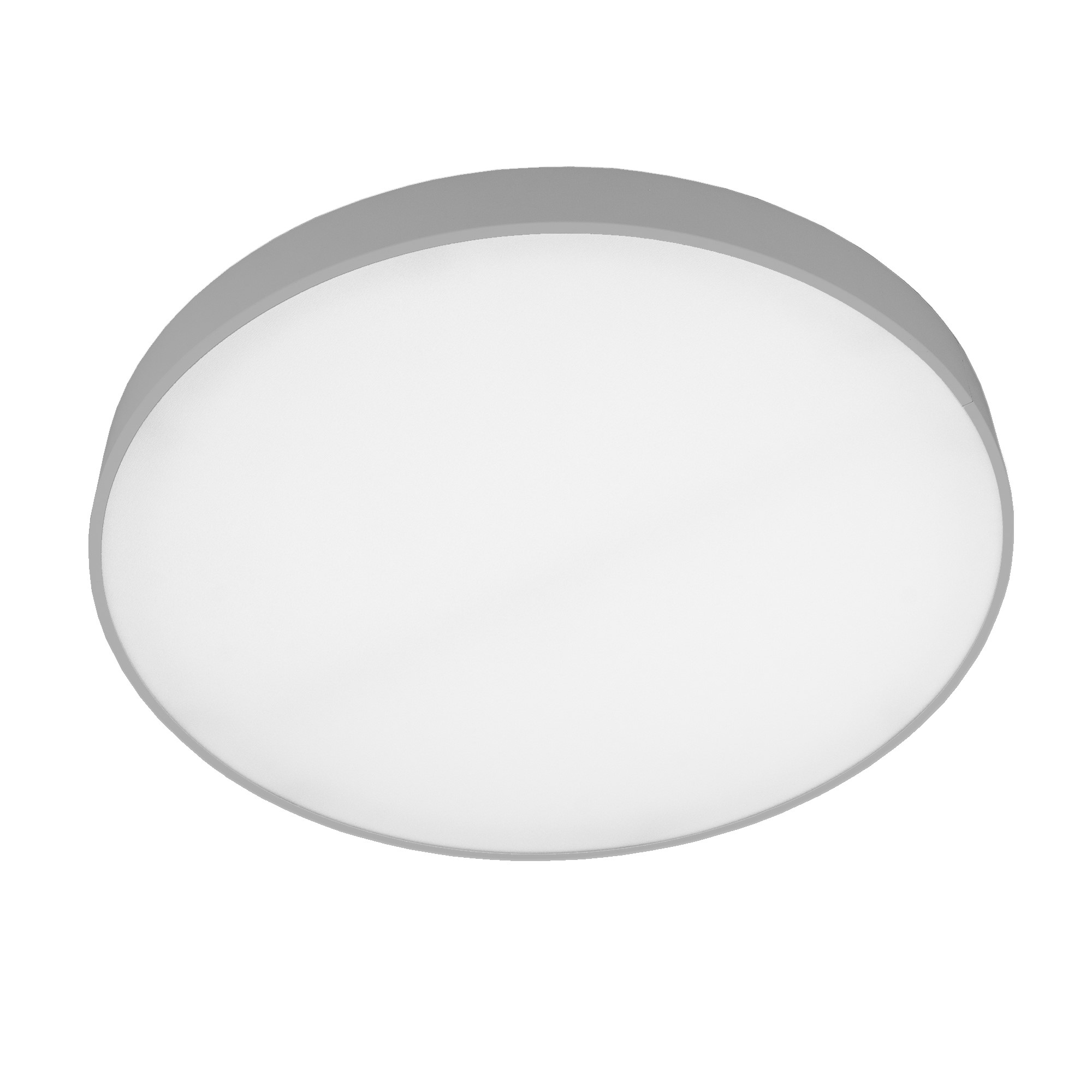

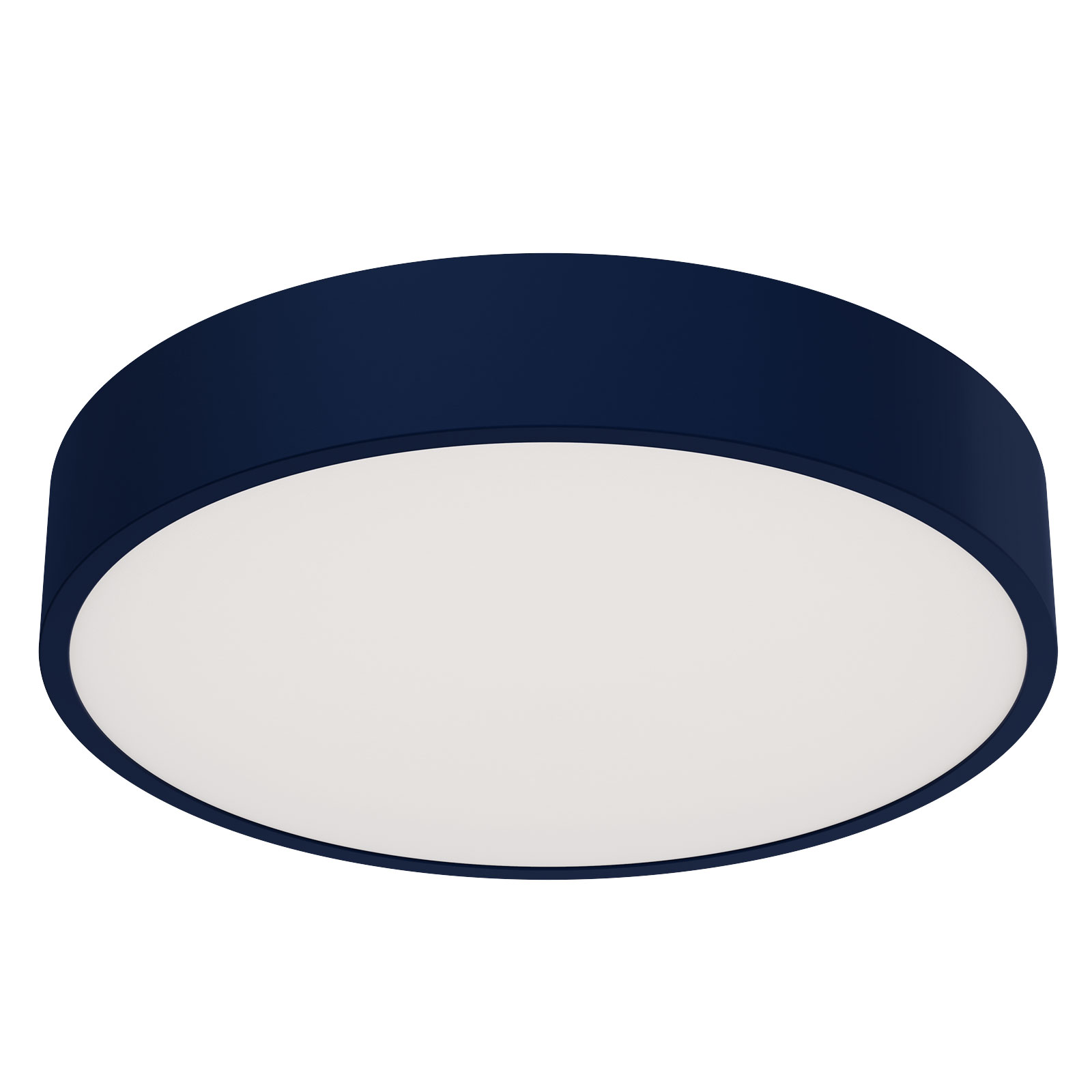

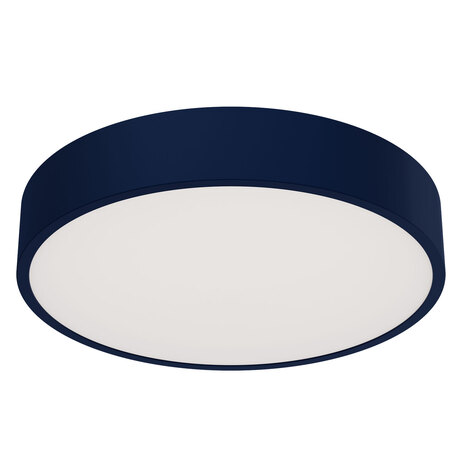

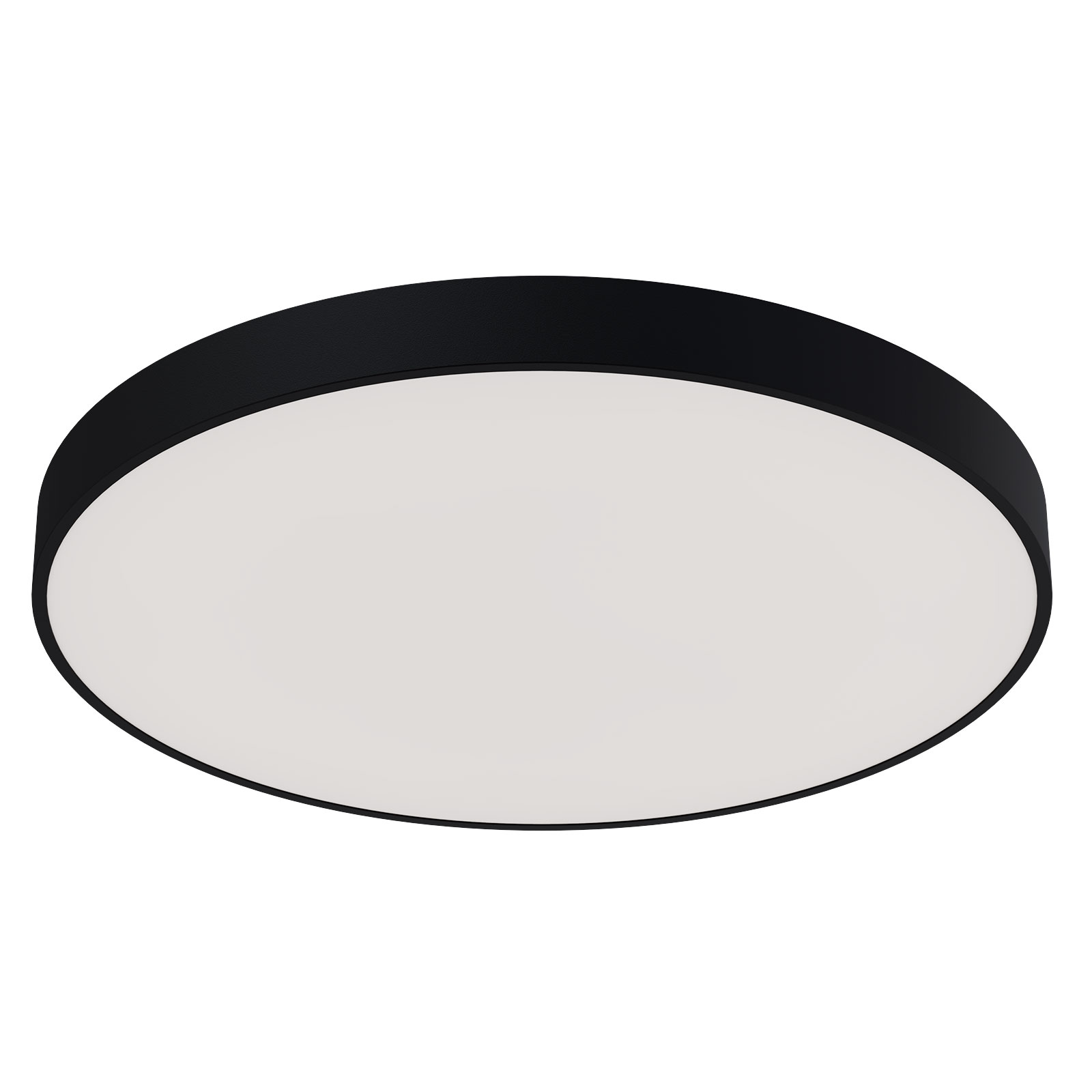

Aluminium round luminaire

MODUS EXAL
11 L80_80000_h.jpg

Price from:

3 600 Kč
( 4 356 Kč including VAT )

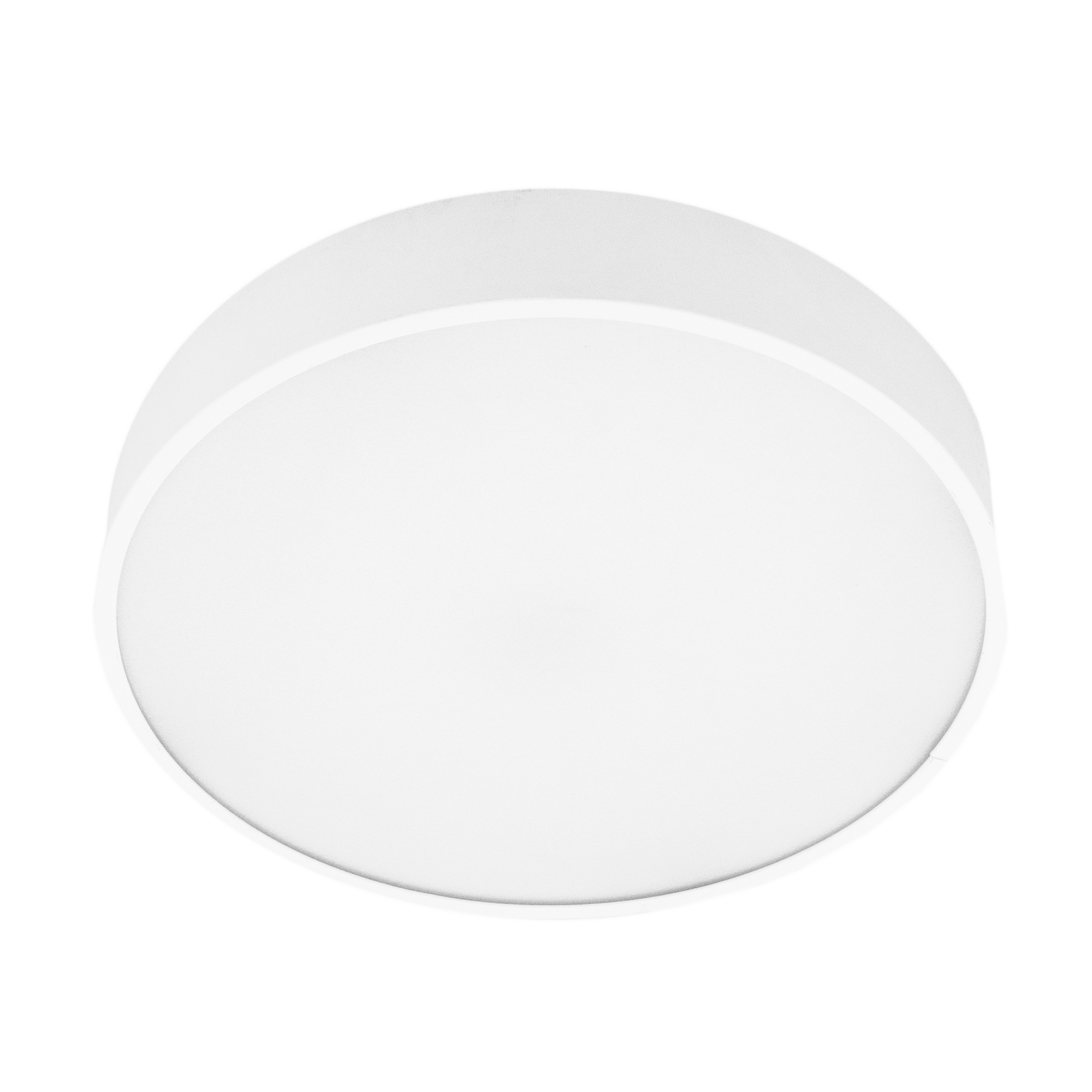

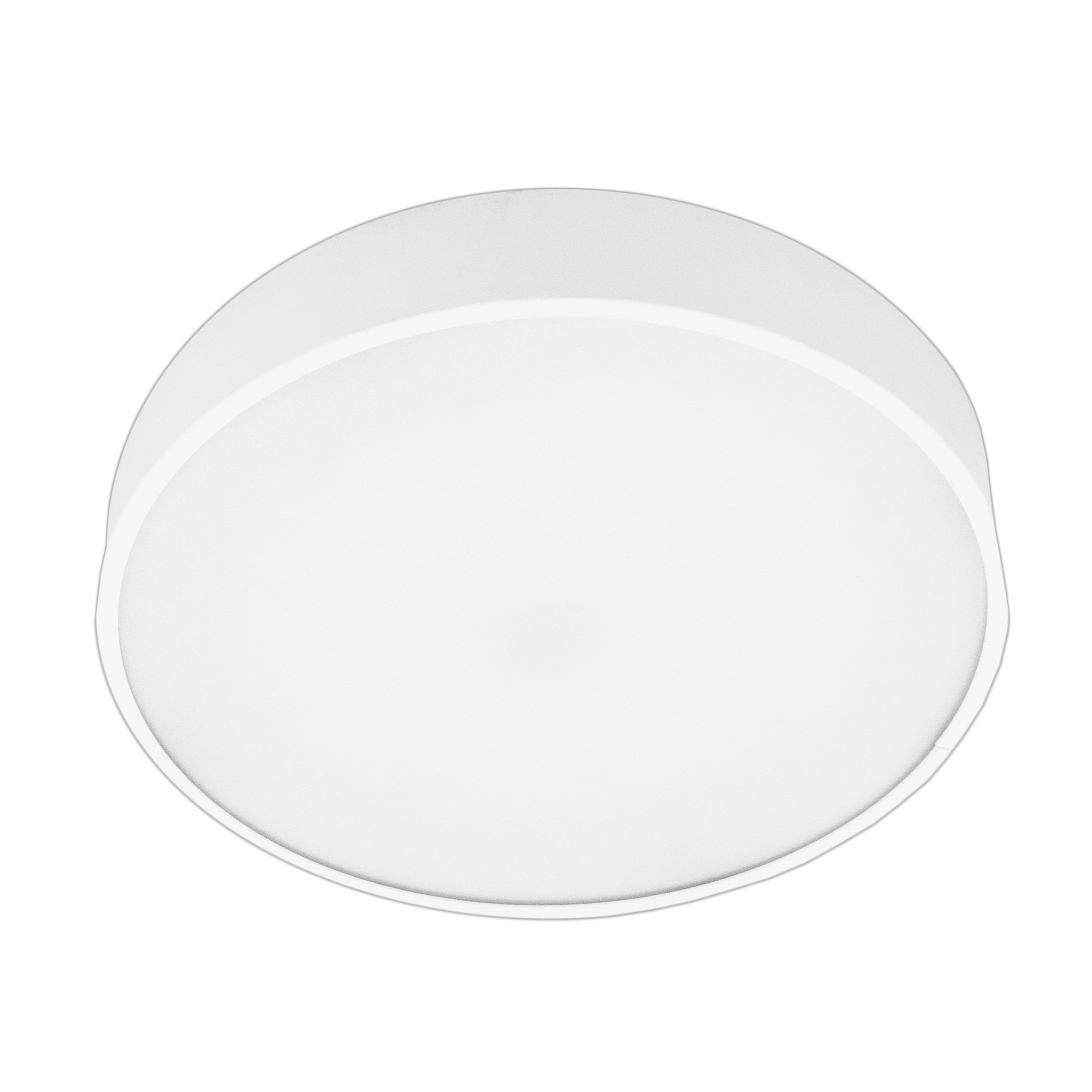

Round eloxal luminaire with white painted finish. On customer request also another colours are possible.

Optical system can be made with two different materials: opal or nanoprisma.

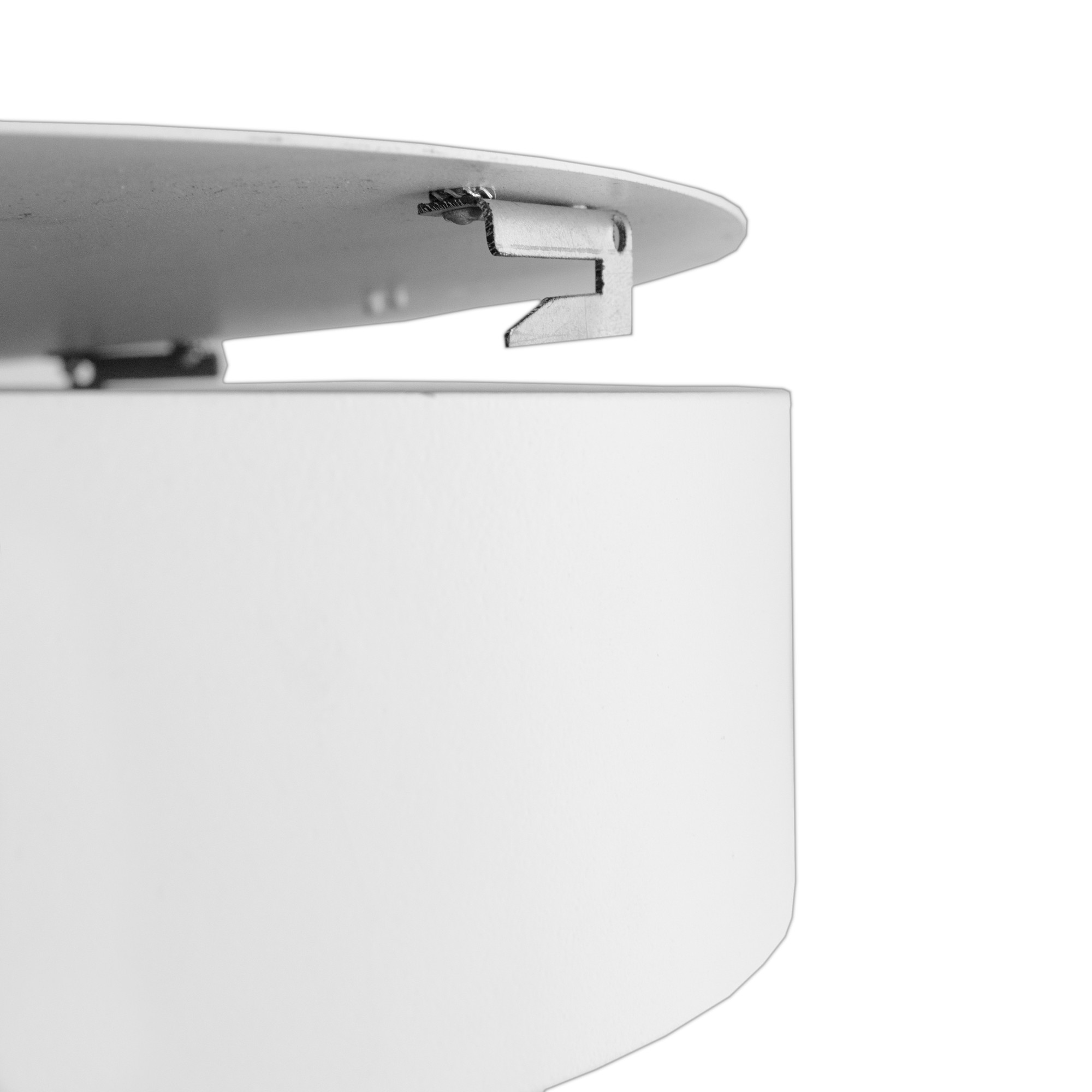

Standart installation is like surfaced, for pending installation is produced special hanging set.

Height of luminaire is 72 mm.

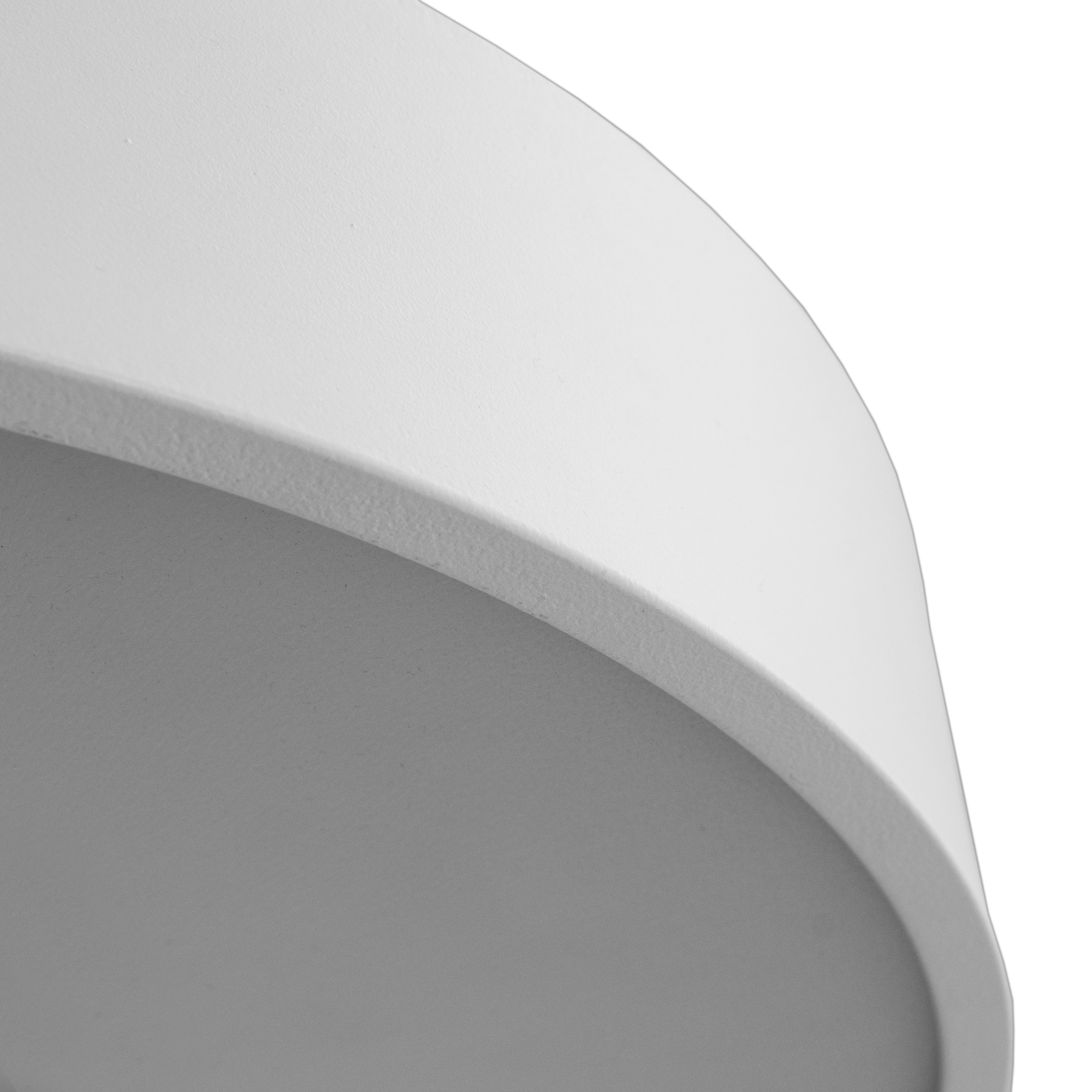

Body material:White painted aluminium frameMounting method:Surface mounting, Suspended
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Lamp type:LED

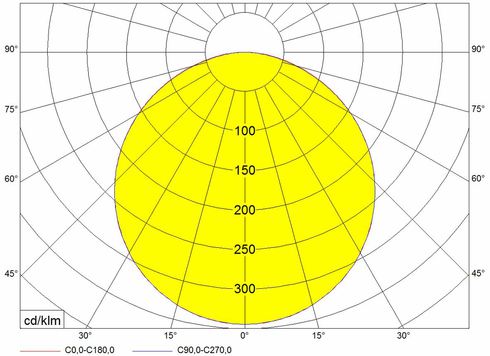

Light outlet:Direct
Degree of protection (IP):IP20
Color temperature (K):4000, 3000Rated life time L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1700
16000

System power (W)

14
126
Product name
EXAL12000CM3KOPDB/DALI
Effective luminous flux (lm): 11900
System power (W): 96
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL12000CM3KOPDB/ND
Effective luminous flux (lm): 11900
System power (W): 96
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL12000CM4KOPDB/DALI
Effective luminous flux (lm): 11900
System power (W): 96
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL12000CM4KOPDB/ND
Effective luminous flux (lm): 11900
System power (W): 96
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL12000CMMIXKOPDB
Effective luminous flux (lm): 11800
System power (W): 93
Color temperature (K): 2700...6500
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL12000CMMIXKOPDB/BTC
Effective luminous flux (lm): 11800
System power (W): 93
Color temperature (K): 2700...6500
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL1500CS3KOPDB/ND
Effective luminous flux (lm): 1700
System power (W): 14
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL16000CM3KOPDB/DALI
Effective luminous flux (lm): 16000
System power (W): 126
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL16000CM4KOPDB/DALI
Effective luminous flux (lm): 16000
System power (W): 126
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL16000CM4KOPDB/ND
Effective luminous flux (lm): 16000
System power (W): 126
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL2500CS3KOPDB/ND
Effective luminous flux (lm): 2400
System power (W): 20
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS2KOPDB/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 2700
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KNOPDB/DALI
Effective luminous flux (lm): 3550
System power (W): 28
EXAL3000CS3KOPDB/DALI
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KOPDB/DALIBTC
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KOPDB/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KOPDC/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KOPDS/DALI
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KOPDS/DALIBTC
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS3KOPDS/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS4KNOPDB/ND
Effective luminous flux (lm): 3550
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS4KOPDB/DALI
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS4KOPDB/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS4KOPDC/DALI
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS4KOPDC/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL3000CS4KOPDS/ND
Effective luminous flux (lm): 3300
System power (W): 28
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL4000CX4KOPDB/ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL5000CS3KOPDB/DALI
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS3KOPDB/DALIT
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS3KOPDB/ND
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS3KOPDS/DALI
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS3KOPDS/ND
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDB/DALI
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDB/DALIBTC
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDB/DALICOR
Effective luminous flux (lm): 4700
System power (W): 40
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDB/ND
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDB/NDNZ
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDC/ND
Effective luminous flux (lm): 4700
System power (W): 41
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CS4KOPDS/DALI/90
Effective luminous flux (lm): 3800
System power (W): 41
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CSMIXKOPDB
Effective luminous flux (lm): 4700
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KO
Outer diameter (mm): 400
Height/depth (mm): 72
EXAL5000CX4KOPDB/ND
Effective luminous flux (lm): 4900
System power (W): 40
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX3KOPDB/DALI
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX3KOPDB/ND
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX3KOPDC/ND
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX3KOPDS/DALIT
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX3KOPDS/ND
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX4KOPDB/DALI
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX4KOPDB/ND
Effective luminous flux (lm): 5900
System power (W): 48
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 610
Height/depth (mm): 72
EXAL6000CX4KOPDC/ND
Effective luminous flux (lm): 5900
System power (W): 48
EXAL8000CM3KOPDB/DALI
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM3KOPDB/DALIBTC
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM3KOPDC/ND
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM3KOPDS/DALI
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM3KOPDS/DALIBTC
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM3KOPDS/ND
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM3KOPDS9007/DALI
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM4KNOPDB/ND
Effective luminous flux (lm): 8800
System power (W): 78
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM4KOPDB/DALI
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM4KOPDB/ND
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM4KOPDS/DALI
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CM4KOPDS/ND
Effective luminous flux (lm): 8000
System power (W): 78
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CMMIXKOPDB
Effective luminous flux (lm): 7800
System power (W): 80
Color temperature (K): 2700...6500
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL8000CMMIXKOPDB/BTC
Effective luminous flux (lm): 7800
System power (W): 80
Color temperature (K): 2700...6500
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72
EXAL9000CM3KOPDB/ND
Effective luminous flux (lm): 8500
System power (W): 68
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 800
Height/depth (mm): 72

Product page - PDF

CE declaration

Assembly instruction

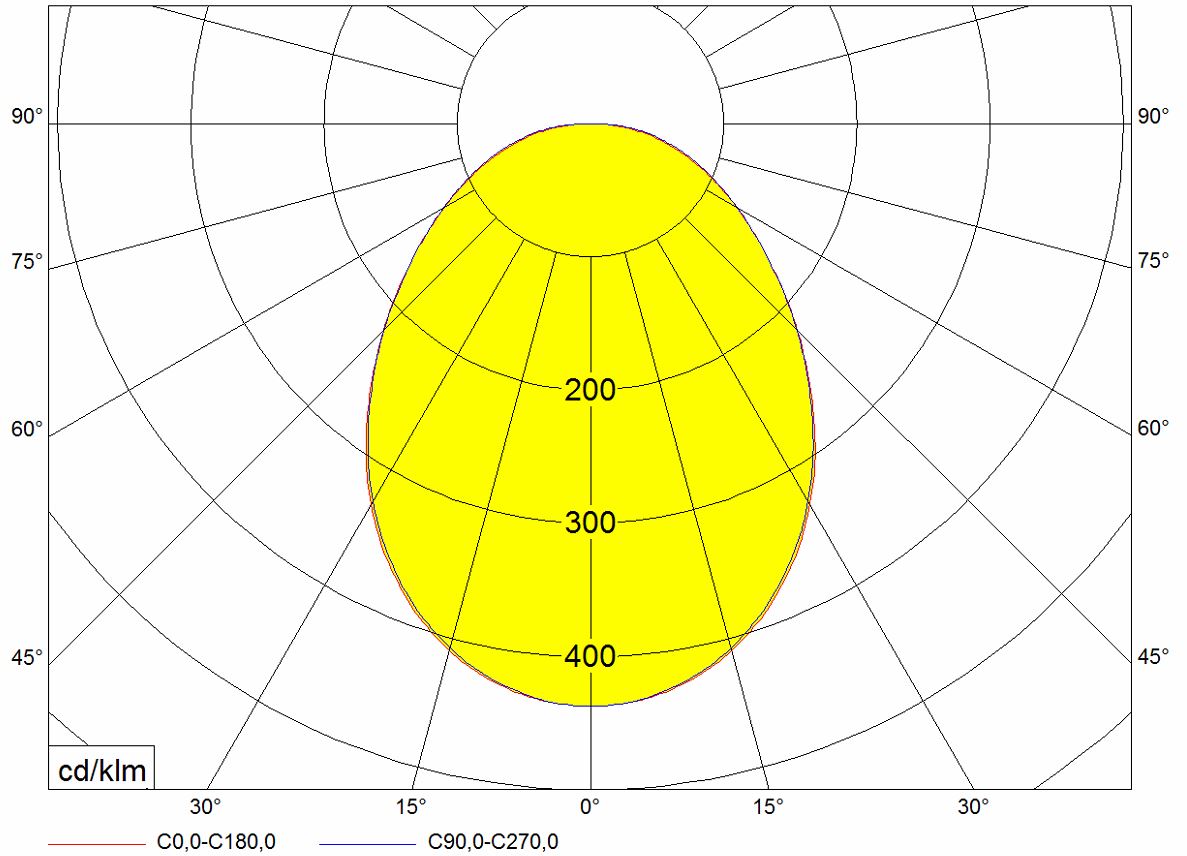

74_2 EXAL_KO.JPG74_2 EXAL_KO.JPG

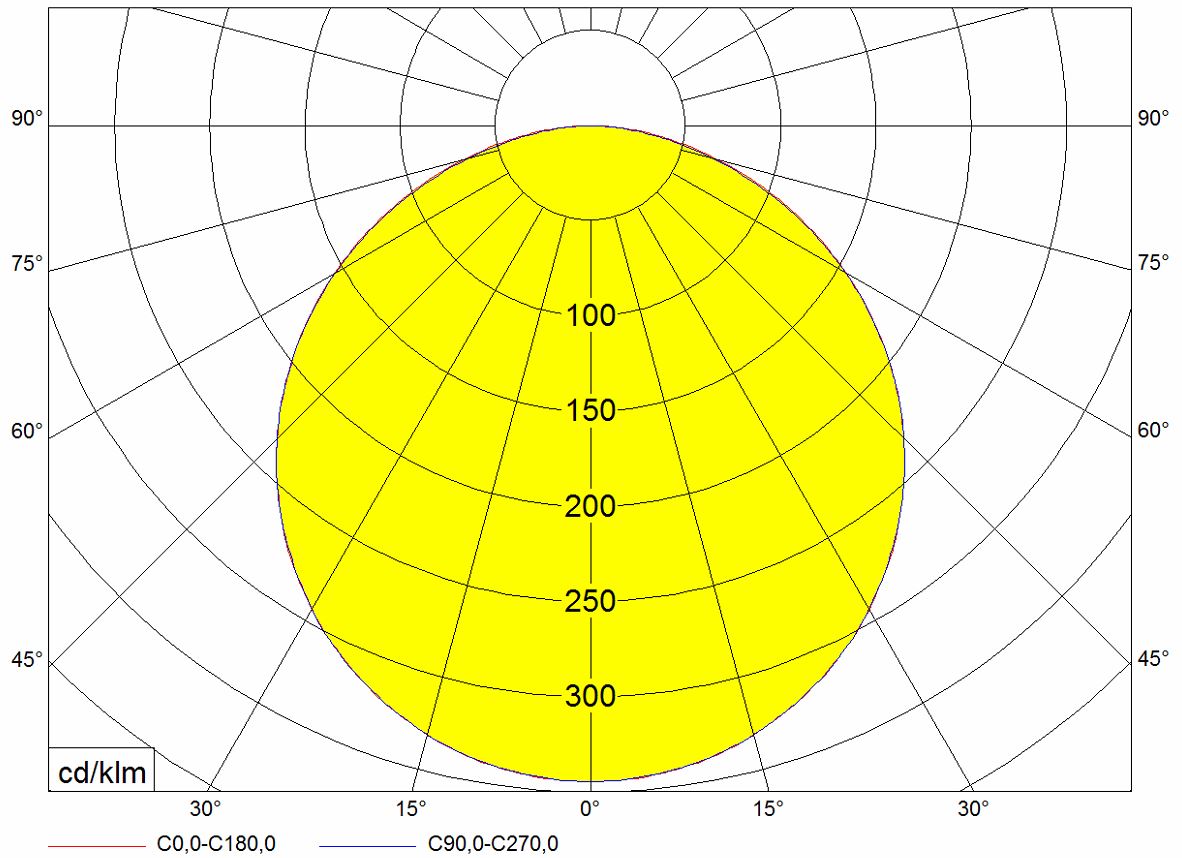

74_1 EXAL_KNO.JPG74_1 EXAL_KNO.JPG

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
