MODUS FIT DI
LED panel for direct / indirect lighting
Standard price from:
FIT DI is a design-oriented LED panel intended for combined direct and indirect lighting of interiors, providing high visual comfort and uniform illumination.
The aluminum frame in RAL 9003 ensures a modern appearance and long service life. The optical system consists of a light guide acrylic panel together with opal or nanoprisma cover.
The luminaire is available in suspended and surface-mounted versions with various direct/indirect light ratios.
Electrical options include ON/OFF, 1–10 V, and DALI, as well with sensors or another smart controls.
Ideal applications include offices, meeting rooms, and administrative spaces.
Versions:

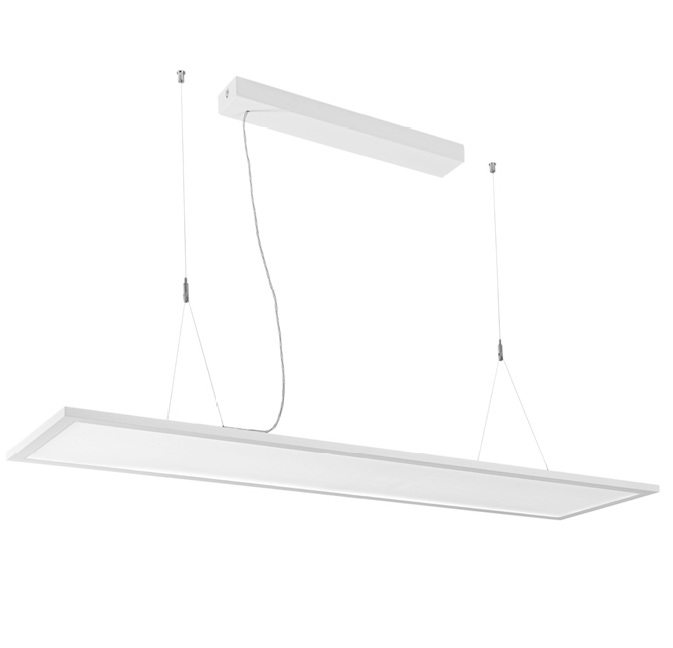

FIT…DI – suspended luminaire with pendants points to the ceiling, light distribution: 60% direct / 40% indirect
FIT…Z…DI – suspended luminaire with pendant points directly to driver box, light distribution: 60% direct / 40% indirect
FITP…DI – surface mounted or suspended luminaire (for suspended installation is needed to order: ZH/UNI2 suspension kit), light distribution: 90% direct / 10% indirect
| Body material: | White painted aluminium frame | Mounting method: | Pendant DI | Protection class: | I | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Color temperature controllable (K): | Yes | Light outlet: | Direct/indirect | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Pendant luminaire | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
