Product series New

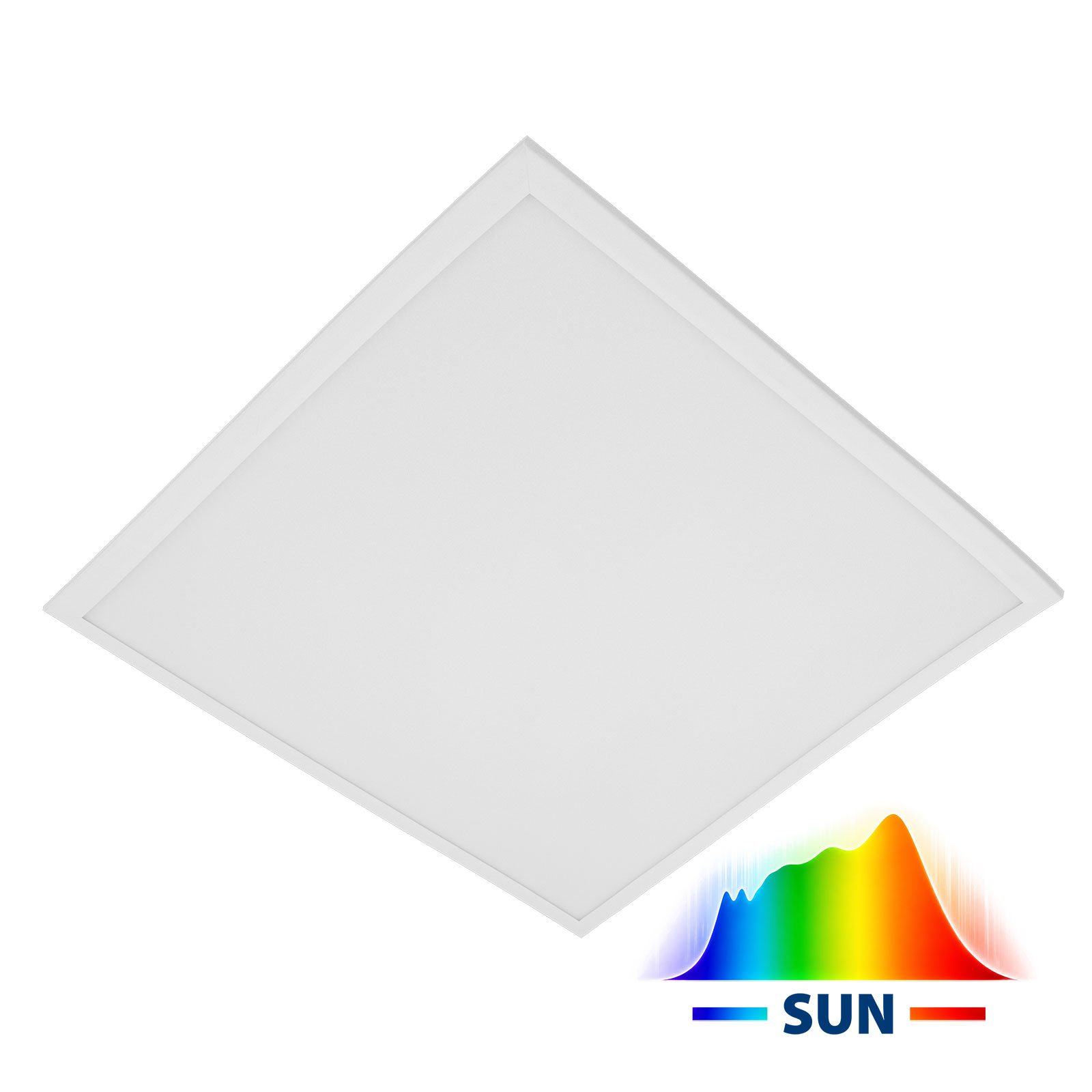

MODUS FIT SUN
LED panel fitted with full-spectrum chips
Standard price from:
On request
| Body material: | White painted aluminium frame | Mounting method: | Built-in, Pendant, Surface mounting | Protection class: | II | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 90-100 | Light source type: | LED | Anti-glare limiting UGR: | 22 | Light outlet: | Direct | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20, IP40 | Fit for monitor workplace: | Yes |
| Color temperature (K): | 4000, 5000 | Rated lifetime L70/B50 (h): | 100000 100000 | Dimming DALI: | Yes | Product category: | Ceiling / wall luminaires | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
FIT4000A4SUNKN600/ND
Effective luminous flux (lm): 3850
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Length (mm): 596
FIT5000A4SUNKN600/ND
Effective luminous flux (lm): 5000
System power (W): 54
Color temperature (K): 4000
Optical system: KN
Length (mm): 596
FIT5000A5SUNKN600/ND
Effective luminous flux (lm): 5300
System power (W): 54
Color temperature (K): 5000
Optical system: KN
Length (mm): 596
CE declaration
LDT files
Projekty realizované se svítidly MODUS:
Magnety
For tight installation of LED panels to gypsum ceiling
Pendant mounting of luminaires
Wire suspensions sets
FITVESTSET
For installation of MODUS FIT into hidden T-bar
