MODUS FIT

LED panel

MODUS FIT
11 L80_80000_h.jpg

Price from:

2 000 Kč
( 2 420 Kč including VAT )
Distribution network
Contacts

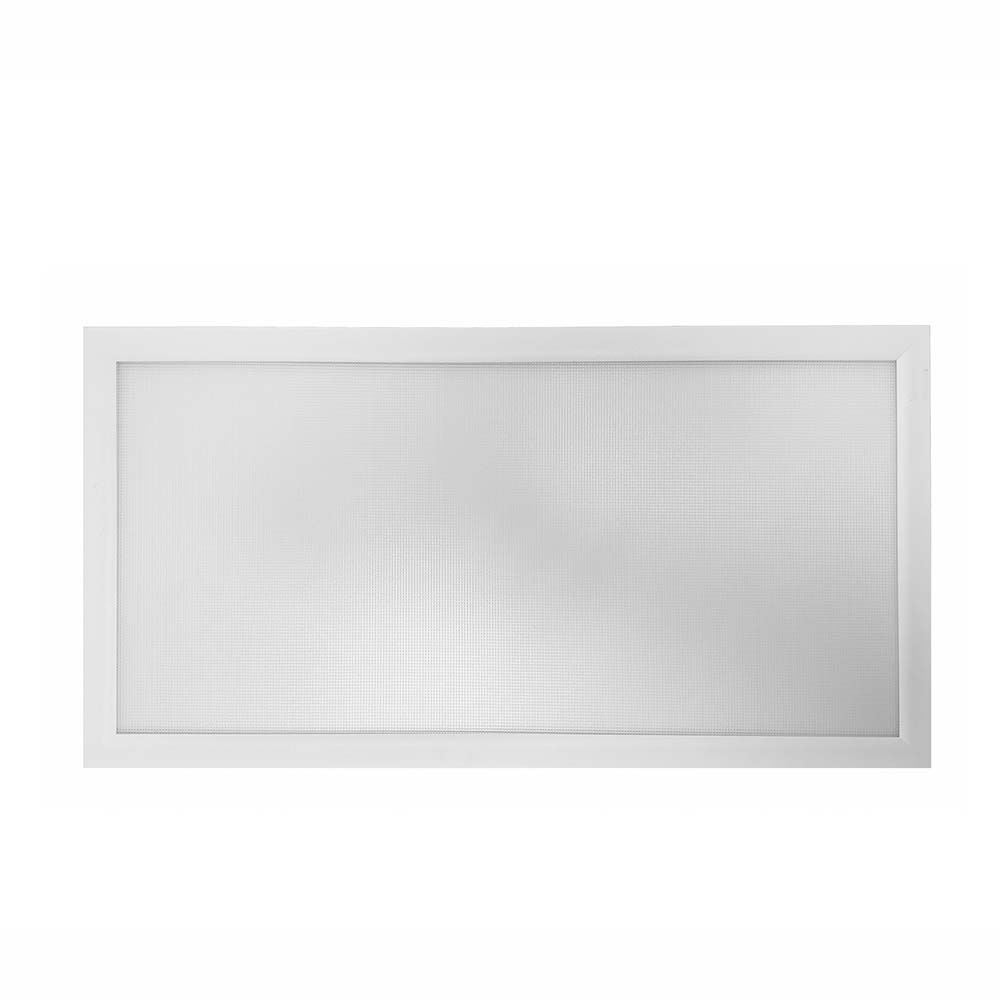

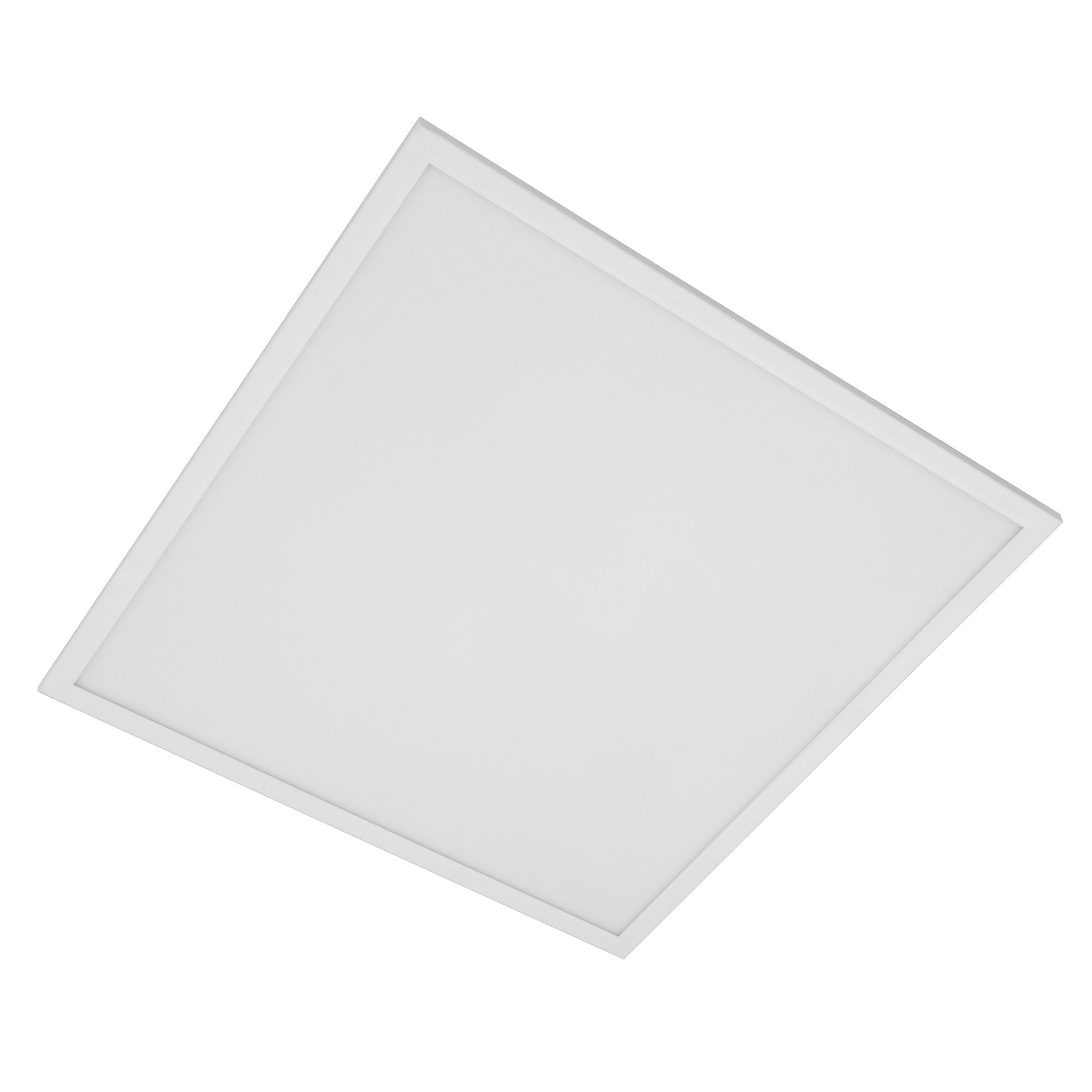

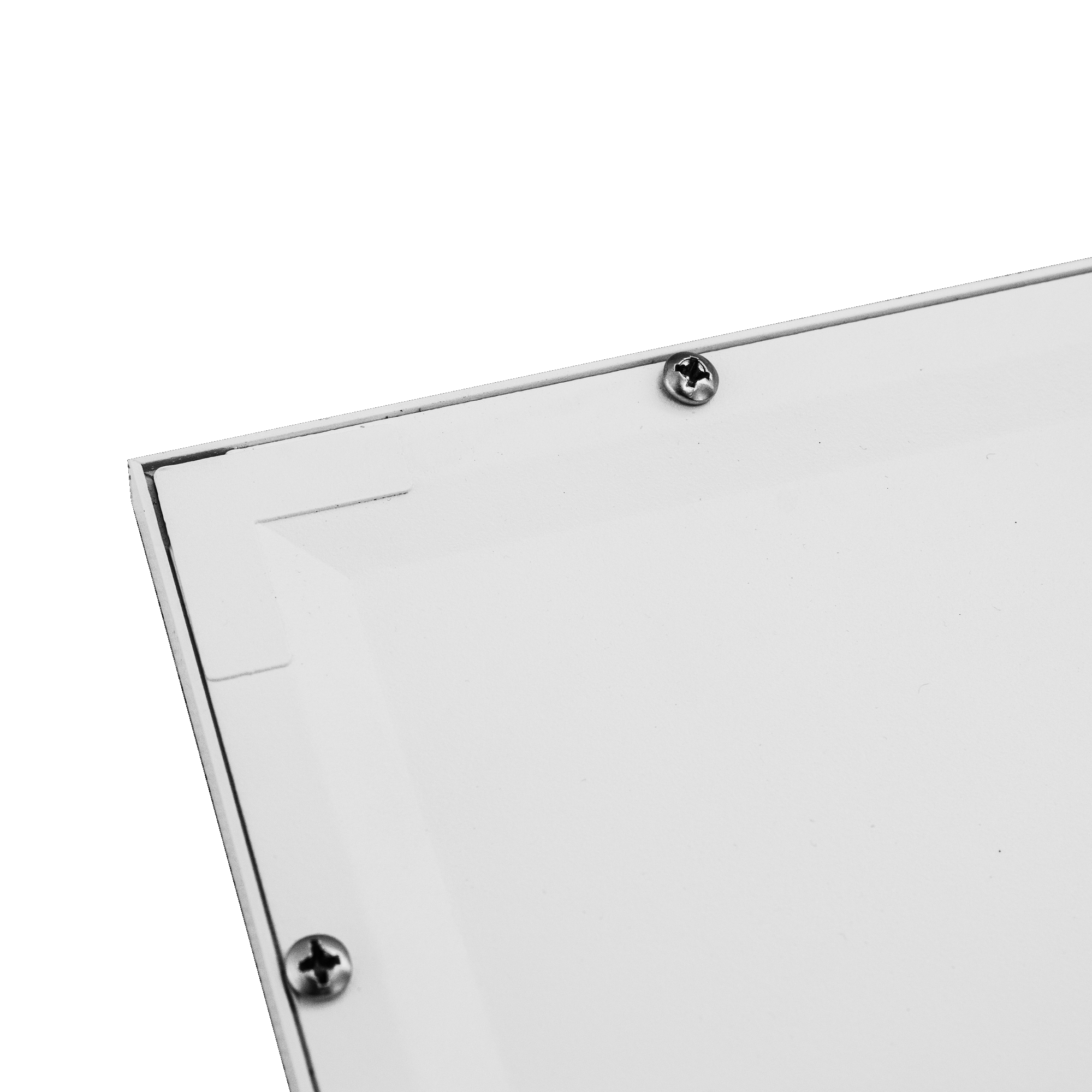

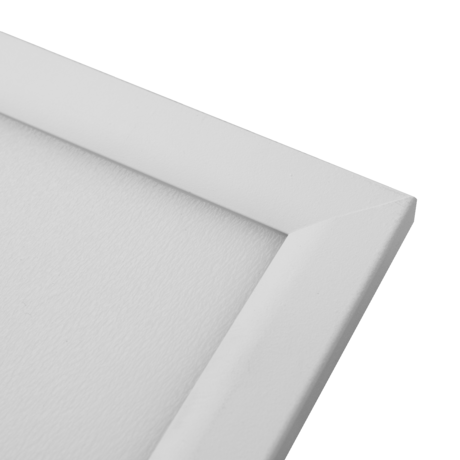

LED panel with white painted frame. On choose opal or nanoprisma cover (UGR19).

Avaiable are two versions:

FIT - recessed luminaire

FITP - surface luminaire

Luminaire can be supplied with wireless Bluetooth control - more information here.

In offer also version with effectivity more than 140 lm/W - MODUS FIT...EF.

Size version:A
600x600 mm or 625x625 mm
C
1200x300 mm

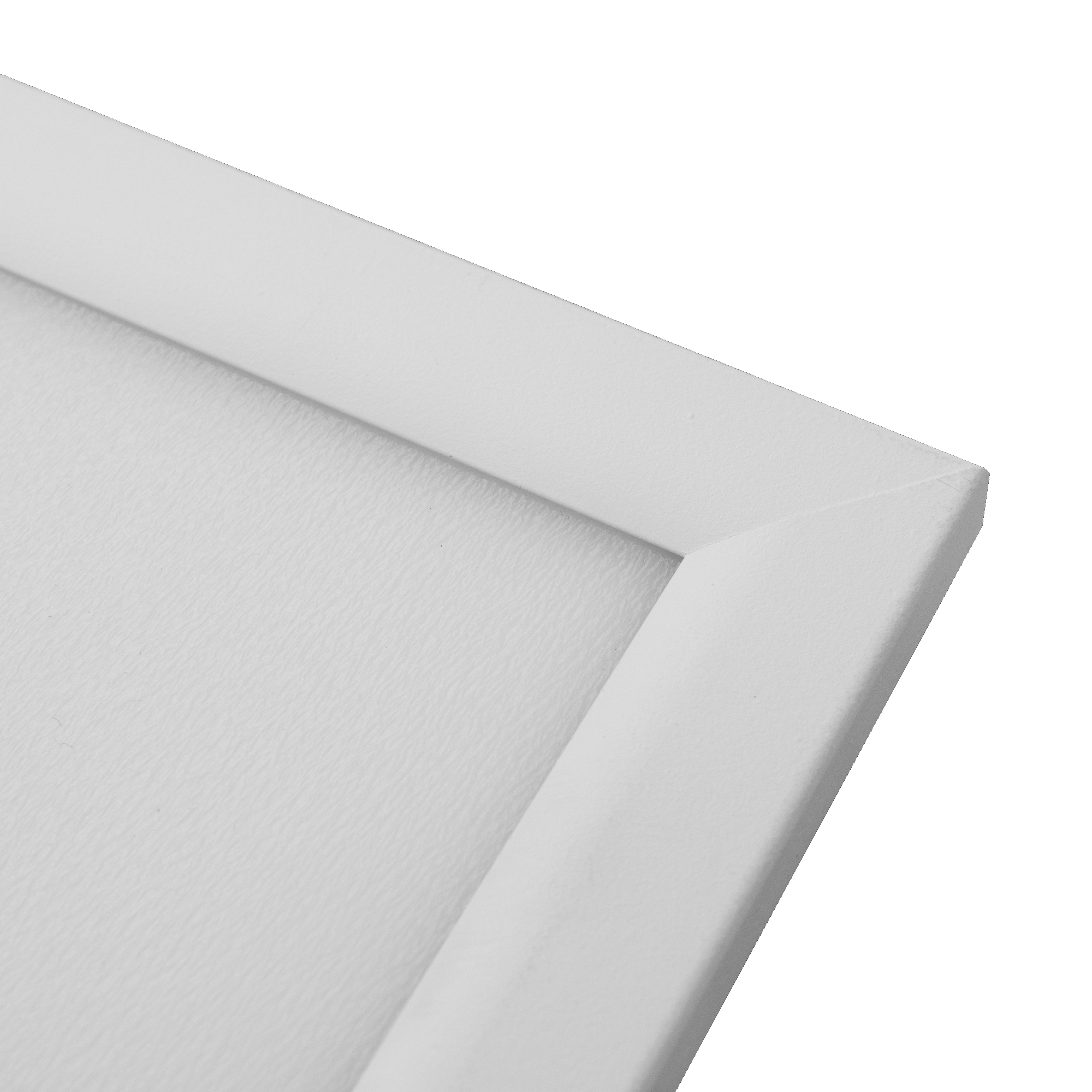

Body material:White painted aluminium frame
Mounting method:Built-in, Surface mounting, SuspendedProtection class:II
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Lamp type:LEDDegree of protection (IP):IP20, IP40
Fit for monitor workplace:YesColor temperature (K):4000, 3000, 5700
Rated life time L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesProduct category:Ceiling / wall luminaires
Optical system:KO
opal cover
KN
nanoprizmatic cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2000
6600

System power (W)

16
57
Product name
FIT2000A4KN600/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT3000A3KN600/DALI
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT3000A3KN600/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT3000A4KN600/DALI
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT3000A4KN600/DIM
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT3000A4KN600/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT3000A4KN600/ND/90
Effective luminous flux (lm): 2650
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT3000A4KN625/DIM
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT3000A4KN625/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT3000A4KN625/ND/EU
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT3000A4KO600/DALI
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT3000A4KO600/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT3000A4KO600/ND/90
Effective luminous flux (lm): 2650
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT3000A4KO625/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FIT3000C4KN600/ND
Effective luminous flux (lm): 3100
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT3000C4KO600/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT3500A4KNEF600/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A2KN600/ND
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 2700
Optical system: KN
Raster (mm): 600
FIT4000A2KN625/ND
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 2700
Optical system: KN
Raster (mm): 625
FIT4000A3KN600/DALI
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4000A3KN600/ND
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4000A3KN600/ND/90
Effective luminous flux (lm): 3950
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
FIT4000A3KN600/ND/PIR
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4000A3KN600/SRS/S59
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4000A3KN625/DIM
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
FIT4000A3KO600/DALI
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT4000A3KO600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT4000A3KO600/SRS/S59
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT4000A3KO625/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
FIT4000A4KN600/DALI
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN600/DALI/90
Effective luminous flux (lm): 3950
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KN600/DALIT/S54
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN600/DIM
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN600/ND
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN600/ND/90
Effective luminous flux (lm): 3950
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KN600/ND/EU
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN600/ND/PIR
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN600/SRS/S59
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KN625/DALI
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KN625/DALI/EU
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KN625/DIM
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KN625/ND
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KN625/ND/EU
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000A4KNT600/ND
Effective luminous flux (lm): 4300
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000A4KO600/DALI
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000A4KO600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000A4KO600/ND/90
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000A4KO600/ND/EU
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000A4KO625/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FIT4000A4KOT600/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000A5KN600/ND
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FIT4000A5KN600/ND/90
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FIT4000A5KO600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
FIT4000A5KO600/ND/90
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
FIT4000B4KN600/ND
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000C3KN600/DALI
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4000C3KN600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4000C3KO600/DALI
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT4000C3KO600/ND
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT4000C4KN600/DALI
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000C4KN600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000C4KN600/ND/90
Effective luminous flux (lm): 3600
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000C4KN600/ND/EU
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000C4KN600/ND/PIR
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000C4KN625/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT4000C4KO600/ND
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000C4KO600/SRS/90/S59
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT4000C4KO625/ND
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FIT4000C5KN600/ND/90
Effective luminous flux (lm): 3800
System power (W): 35
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FIT4000C6KN600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 6500
Optical system: KN
Raster (mm): 600
FIT4000D4KN600/SRS/S59
Effective luminous flux (lm): 4500
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4000H3KN600/ND
Effective luminous flux (lm): 4000
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4500A3KNEF600/SRS/S59
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT4500A4KNEF600/ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT4500A4KNEF600/SRS/S59
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000A3KN600/DALI
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT5000A3KN600/DIM
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT5000A3KN600/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT5000A3KN625/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
FIT5000A3KO600/DALI/S129
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT5000A3KO600/ND
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT5000A4KN600/DALI
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT5000A4KN600/DALI/90
Effective luminous flux (lm): 4900
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000A4KN600/DALI/COR
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000A4KN600/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000A4KN600/ND/90
Effective luminous flux (lm): 4900
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000A4KN625/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT5000A4KO600/DALI
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT5000A4KO600/DALI/90
Effective luminous flux (lm): 4900
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT5000A4KO600/ND
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT5000A4KO600/ND/9005
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT5000A4KO625/ND
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FIT5000A5KN600/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FIT5000A5KN625/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 5700
Optical system: KN
Raster (mm): 625
FIT5000A5KO600/ND/90
Effective luminous flux (lm): 4900
System power (W): 49
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
FIT5000A6KO600/ND
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 6500
Optical system: KO
Raster (mm): 600
FIT5000C3KO600/ND
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FIT5000C4KN600/DALI
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000C4KN600/ND
Effective luminous flux (lm): 5700
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000C4KN600/ND/90
Effective luminous flux (lm): 4900
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT5000C4KO600/ND
Effective luminous flux (lm): 5500
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT5000C6KN600/ND/90
Effective luminous flux (lm): 4900
System power (W): 49
Color temperature (K): 6500
Optical system: KN
Raster (mm): 600
FIT6000A3KN600/DALI
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT6000A3KN600/ND
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FIT6000A4KN600/DALI
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT6000A4KN600/DALI/90
Effective luminous flux (lm): 5650
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT6000A4KN600/ND
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT6000A4KN600/ND/90
Effective luminous flux (lm): 5650
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT6000A4KN625/ND
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT6000A4KO600/DALI/90
Effective luminous flux (lm): 5400
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT6000A4KO600/ND
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT6000A4KO600/ND/90
Effective luminous flux (lm): 5400
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT6000A5KN600/ND
Effective luminous flux (lm): 6600
System power (W): 57
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FIT6000A5KO625/ND/90
Effective luminous flux (lm): 5350
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 625
FIT6000C4KN600/DALI
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT6000C4KN600/ND
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FIT6000C4KN625/DALI
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT6000C4KN625/ND
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FIT6000C4KO600/DALI
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT6000C4KO600/ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FIT6000C5KN600/ND/90
Effective luminous flux (lm): 5500
System power (W): 57
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FIT6000C5KN625/ND
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 5700
Optical system: KN
Raster (mm): 625
Show all versions

Product page - PDF

FIT_EN.pdf >

CE declaration

CE_FIT_CZ_AJ.pdf >

Assembly instruction

FIT.pdf >
FIT_SRS.pdf >
.pdf >

LDT files

MODUS FIT-ldt-data.zip >
8_1 FIT_KN.JPG8_1 FIT_KN.JPG

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
OZMAGNET

Magnety

For tight installation of LED panels to gypsum ceiling

Pendant mounting of luminaires

Pendant mounting of luminaires

Wire suspensions sets

UQRAM

UQRAM

Aluminium frame for surface installation of LED panels

QVESTRAM

QVESTRAM

Aluminium frame for recessed installation

no-thumbnail

FITVESTSET

For installation of MODUS FIT into hidden T-bar

 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
