Product series New
MODUS FITL

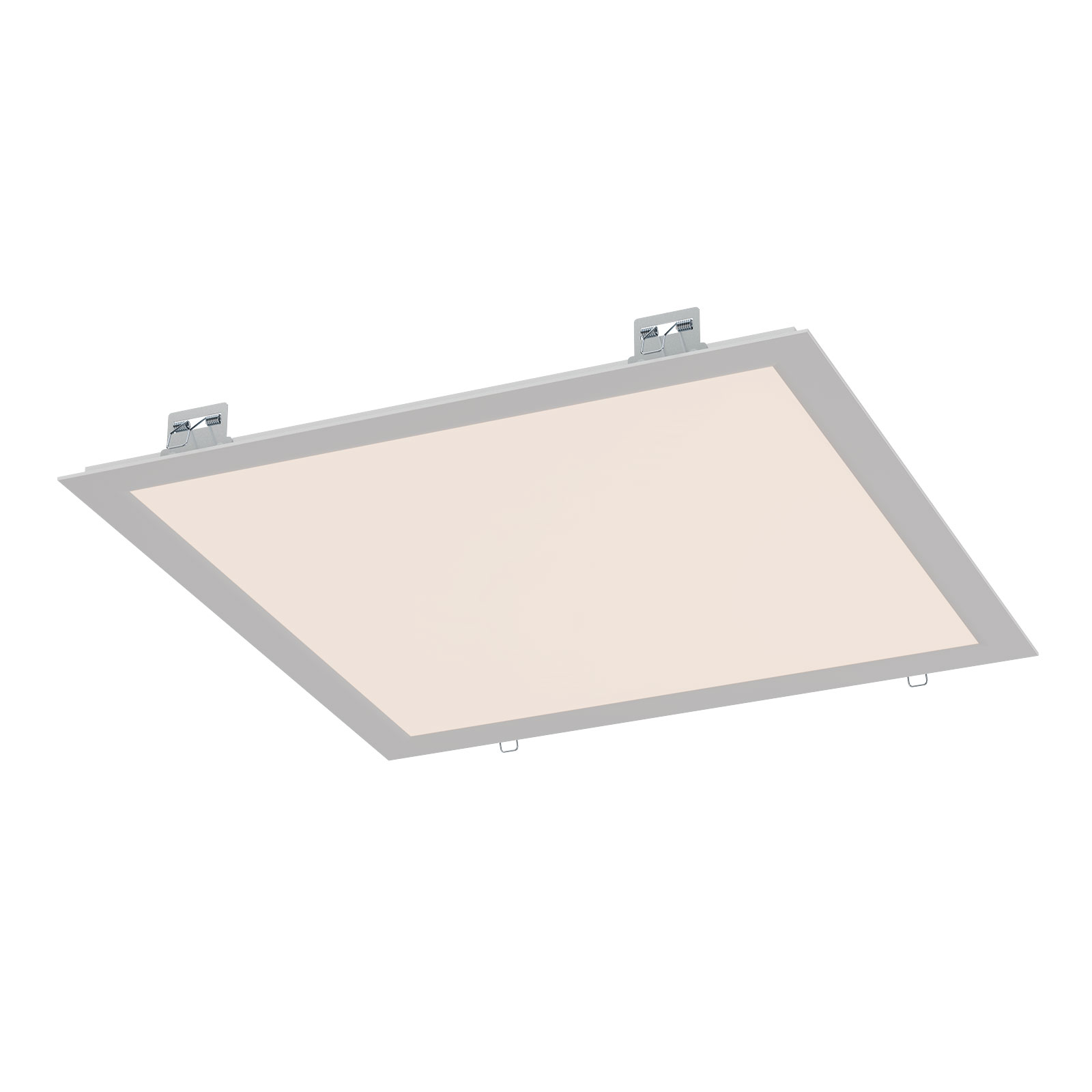

LED panel for plasterboard ceilings
Standard price from:
On request
FITL is a slim LED panel designed for installation into plasterboard and mineral ceilings within modular ceiling systems and at places you is not clear them are aluminium profiles above a plasterboard ceiling.
The installation height of only 12 mm allows use even in limited ceiling voids.
The luminaire offers high efficacy up to 139 lm/W and low glare with UGR < 19.

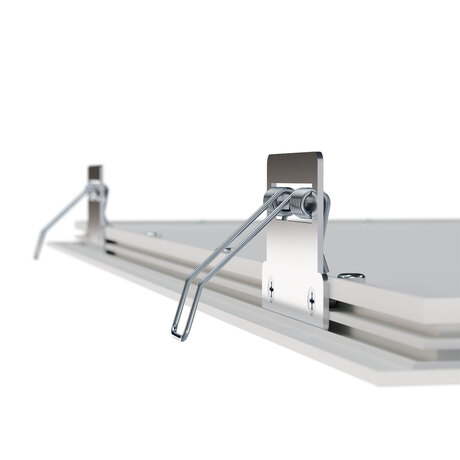

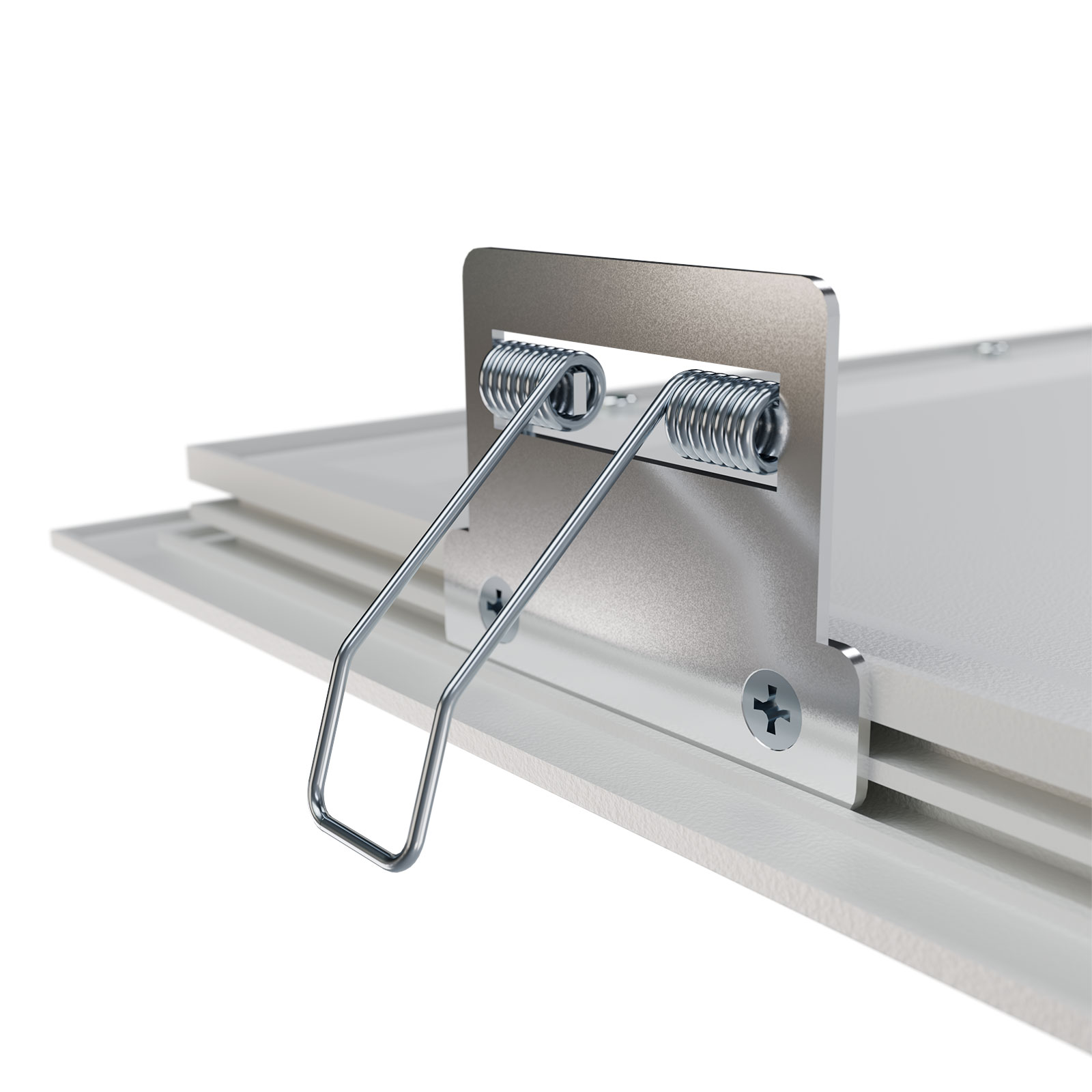

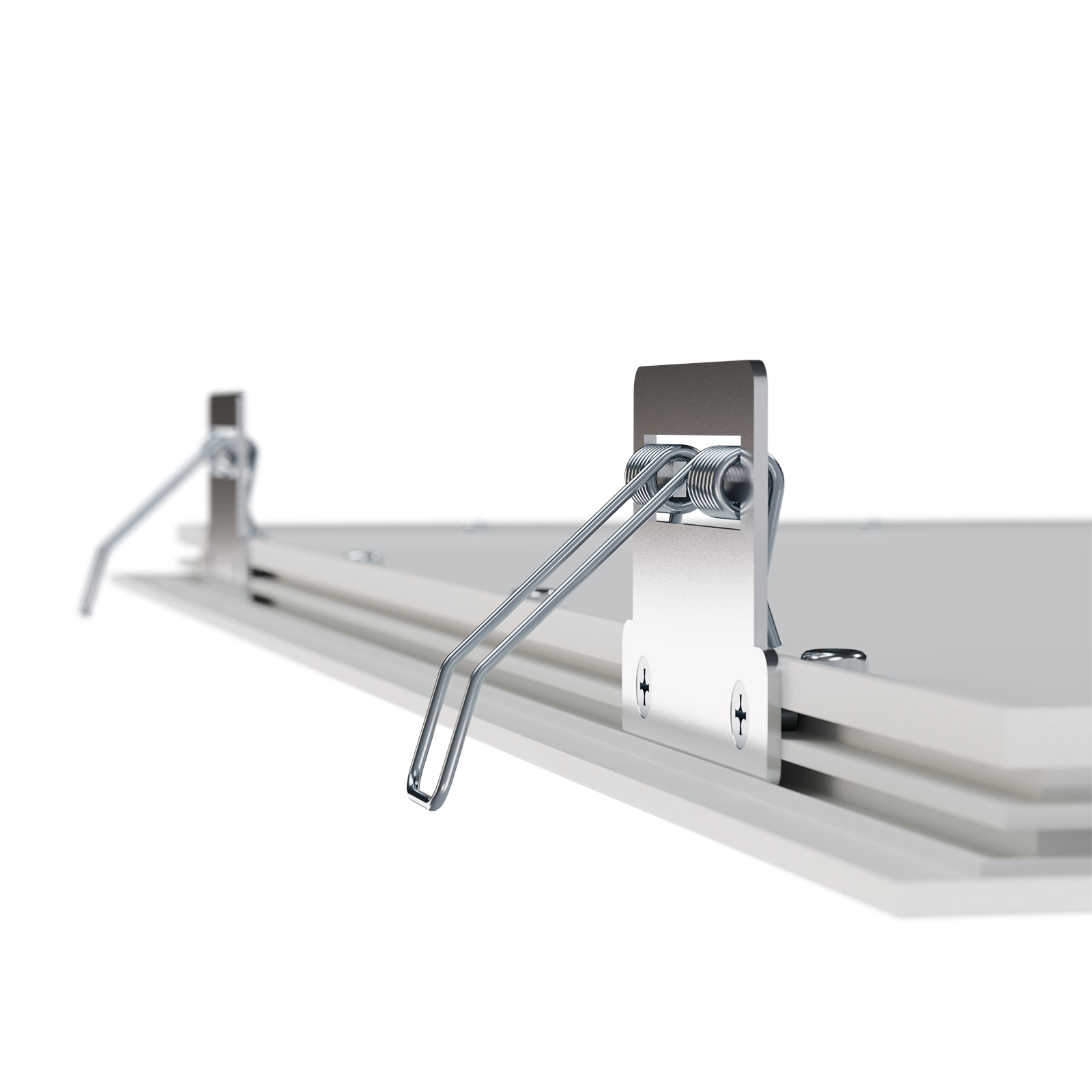

Installation is carried out using integrated mounting clips.
Applications include offices, schools, healthcare facilities, and public buildings.
| Body material: | White painted aluminium frame | Mounting method: | Built-in | Protection class: | II | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Fit for monitor workplace: | Yes |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L70/B50 (h): | 100000 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Dimming manufacturer's proprietary system: | Yes | Product category: | Recessed mounted ceiling- and wall luminaire | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Yes, Bluetooth Bluetooth |
