Product series New
MODUS FITP DI
LED surface direct/indirect luminaires
Standard price from:
On request

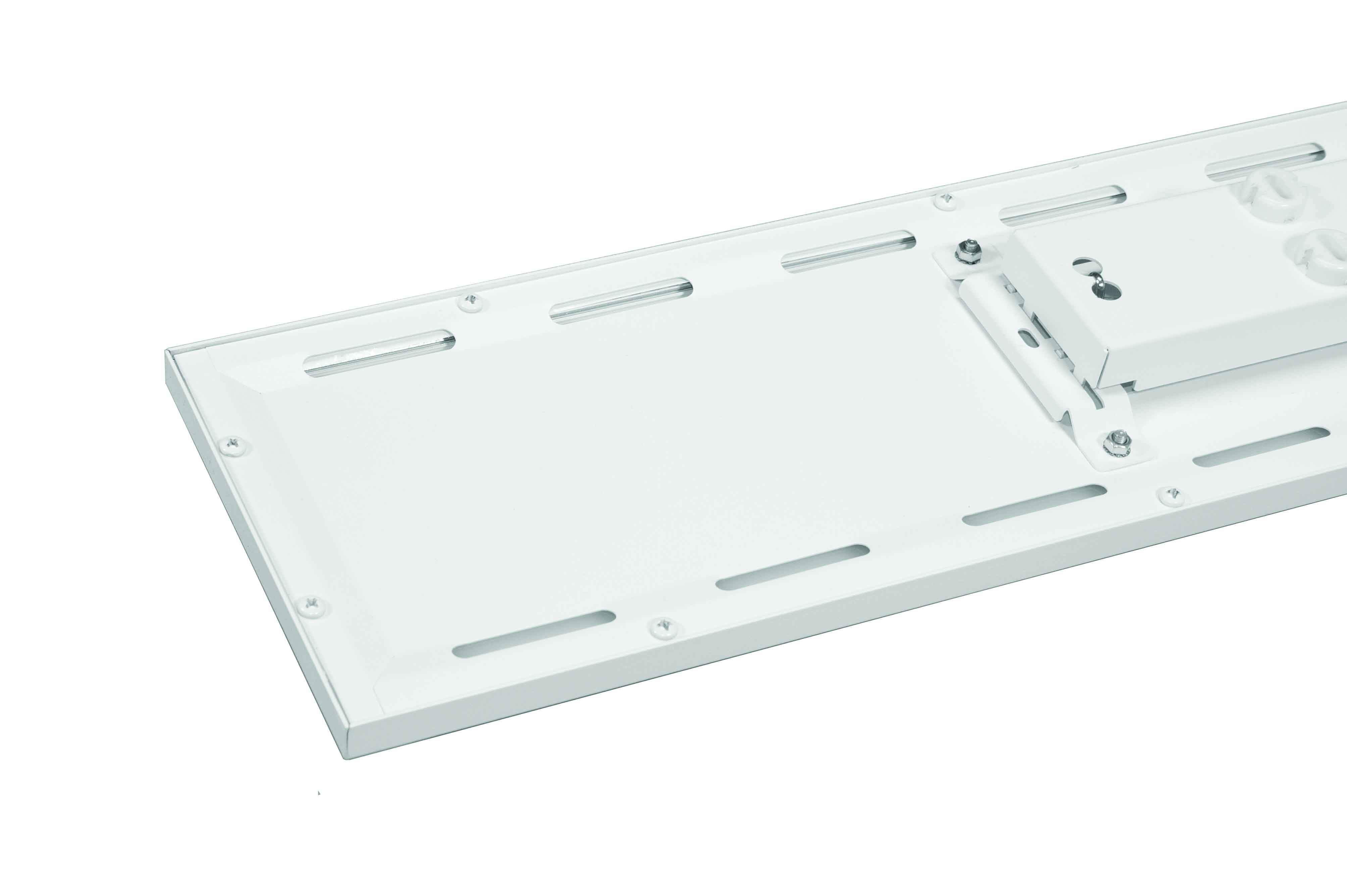

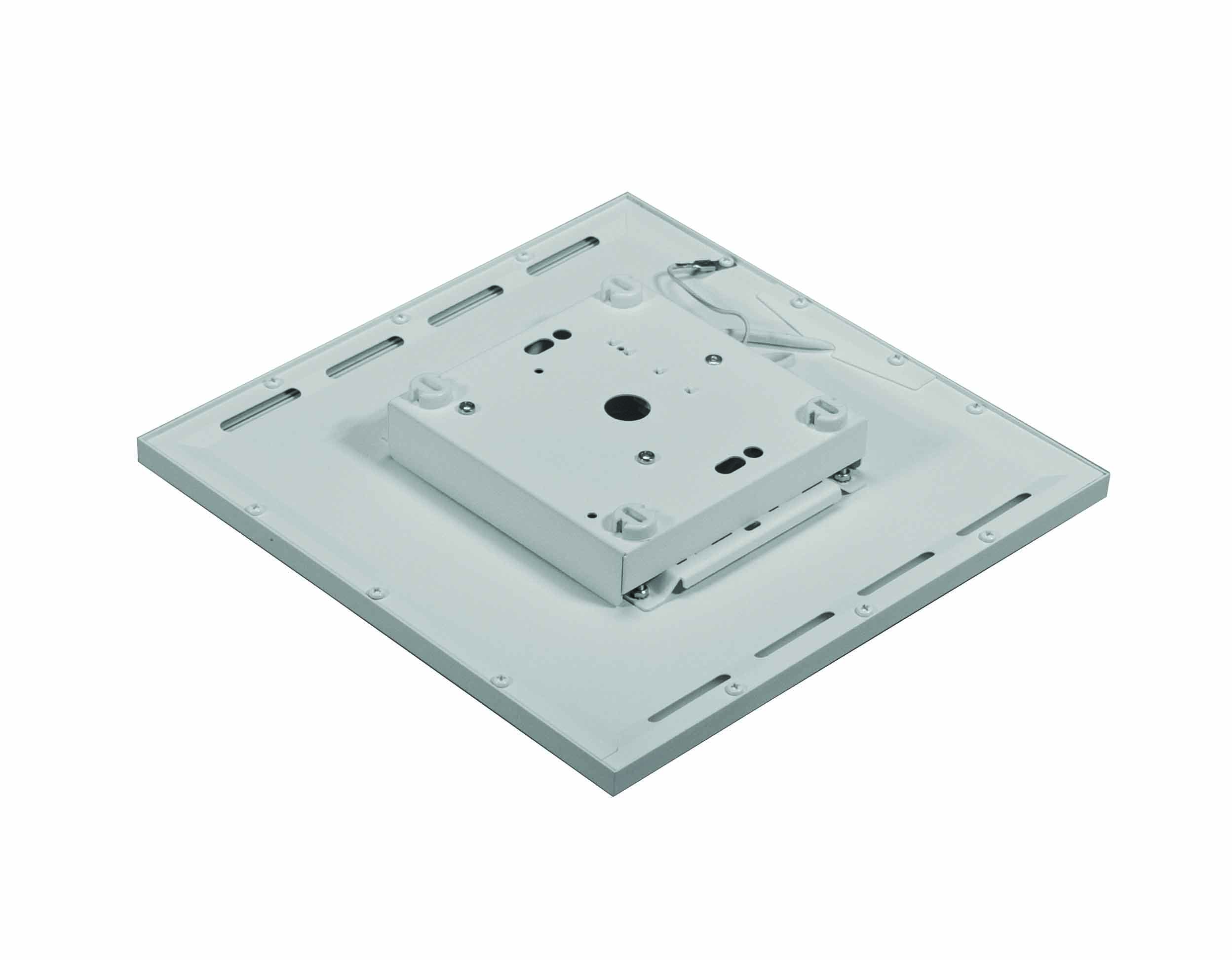

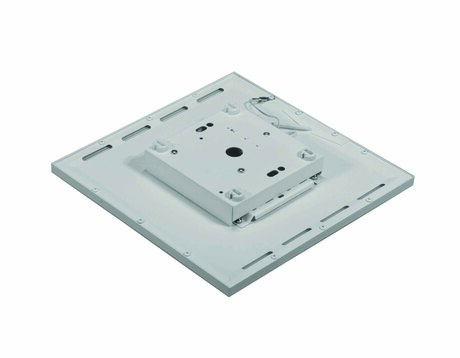

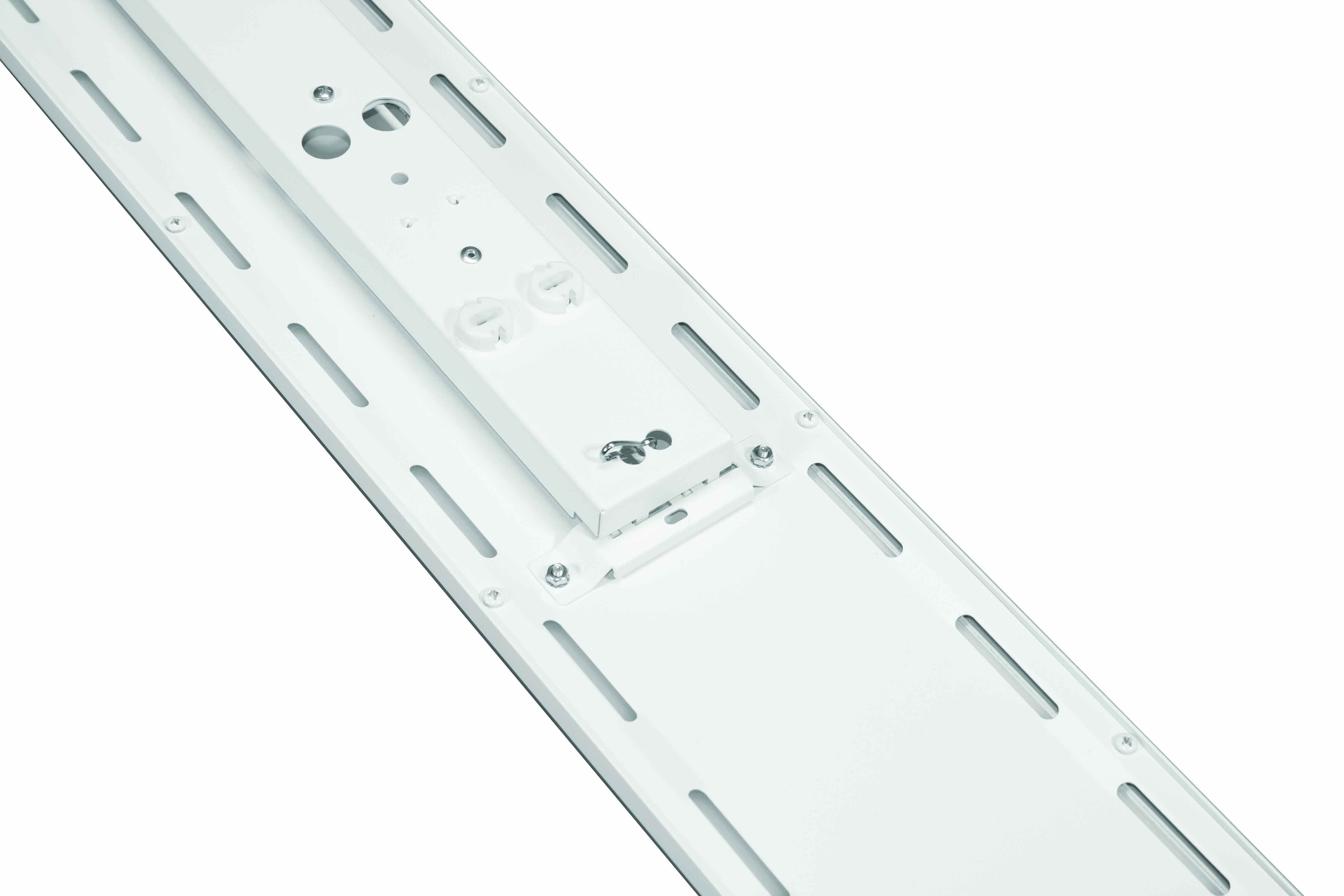

DI LED surface panel - surface installation is made via driver box on back side of luminaire. Between luminaire and ceiling is space which makes nice efect - luminaire looks like flying near to ceiling.
Two types of optical systems are in offer:
KO - opal cover
KN - nanoprisma cover (UGR limitation)
Body of luminaire is made from white painted aluminium profile

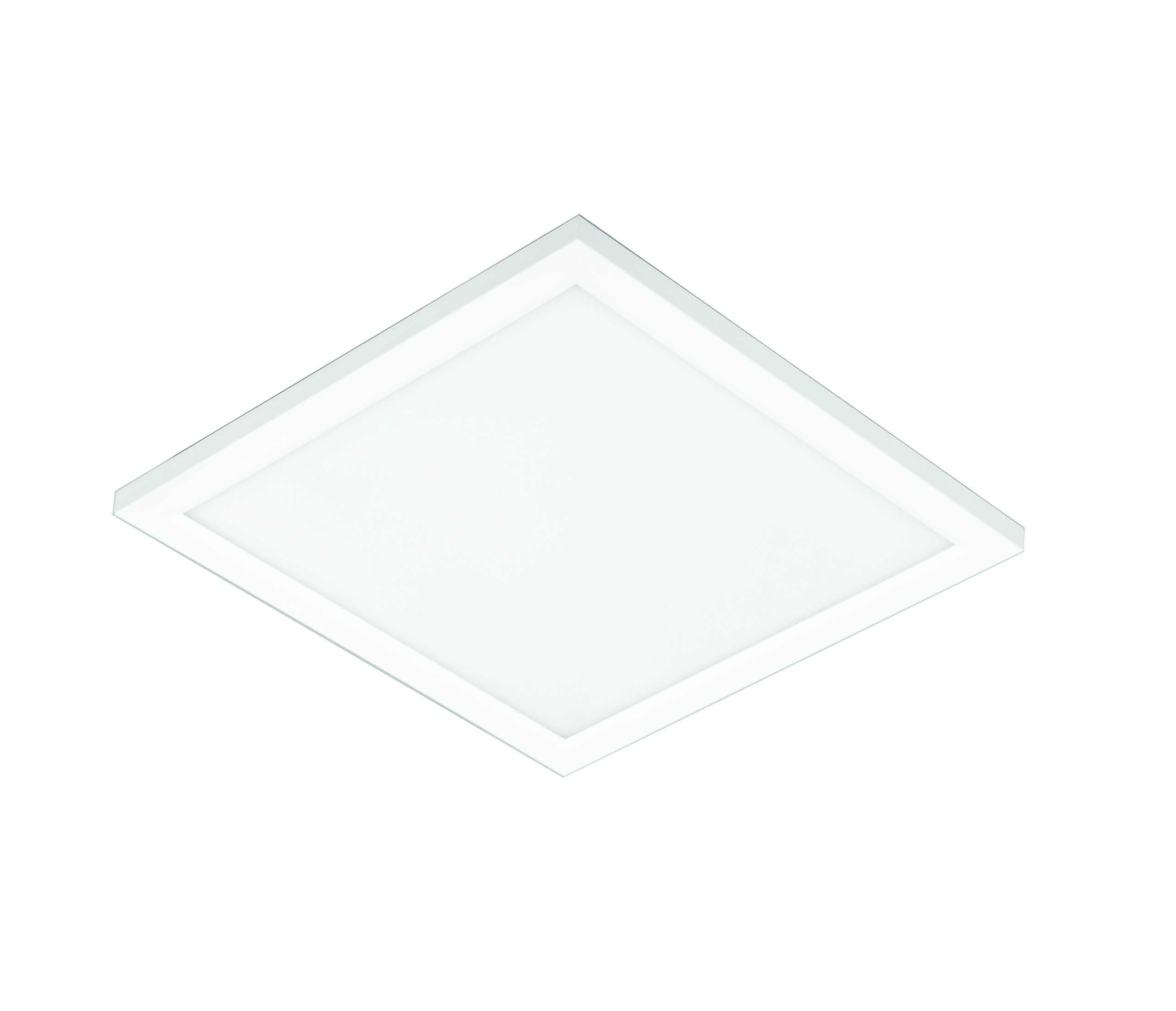

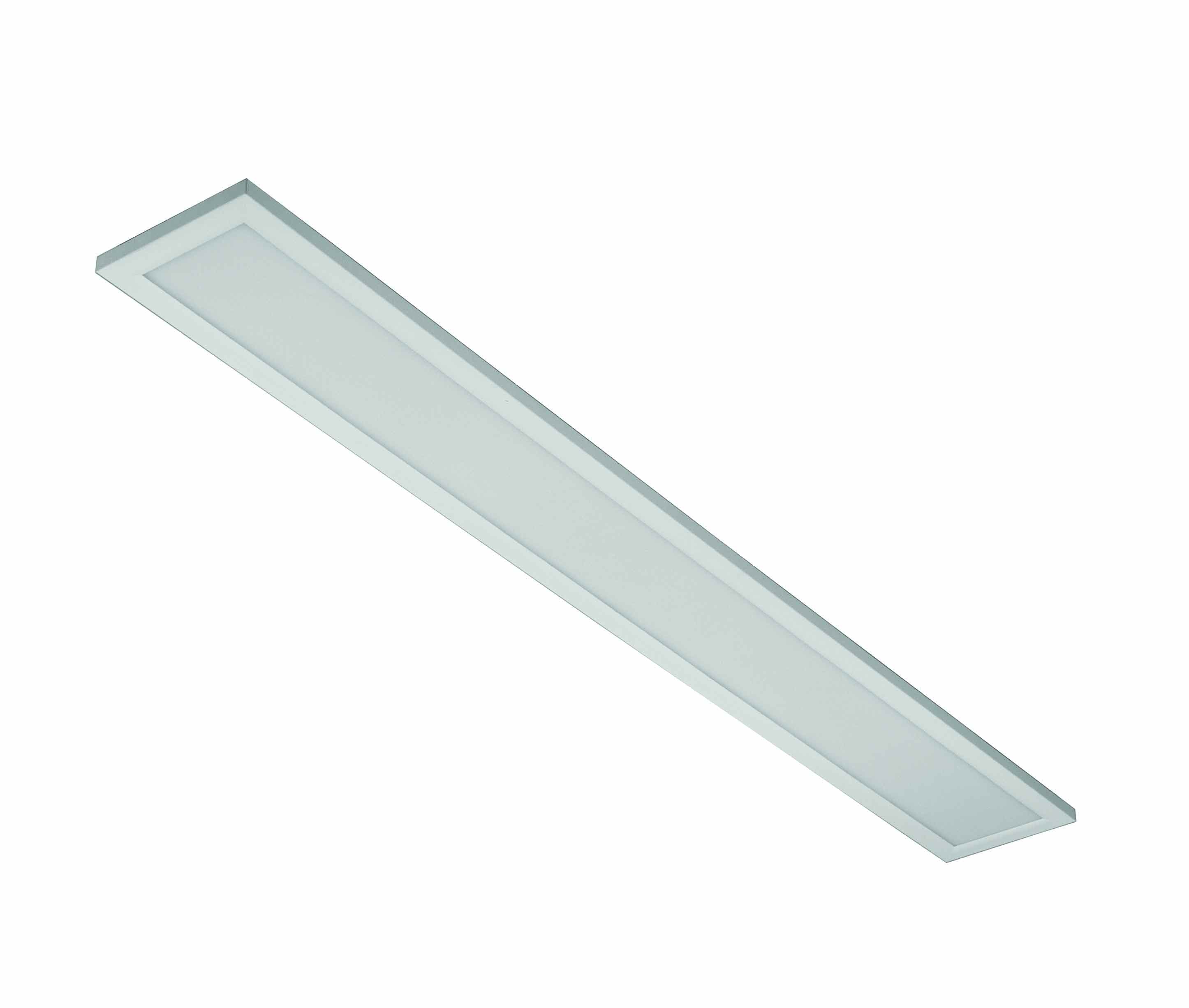

In offer are two dimension: square J 30x30 cm and rectangle H 120x15 cm.
Using accessories (ZH/UNI2) the FITP DI can be also installed as pendant.
| Body material: | White painted aluminium frame | Mounting method: | Wall surface mounted, Surface mounting | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Anti-glare limiting UGR: | 19 | Color temperature controllable (K): | Yes | Light outlet: | Direct/indirect | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Optical system
Length (mm)
FITP2000G4KO600/DI/ND
Effective luminous flux (lm): 1750
System power (W): 16
Optical system: KO D/I
Length (mm): 596
FITP2000H4KO600/DI/ND
Effective luminous flux (lm): 1850
System power (W): 16
Optical system: KN D/I
Length (mm): 1196
FITP3000G4KO600/DI/ND
Effective luminous flux (lm): 3000
System power (W): 28
Optical system: KO D/I
Length (mm): 596
FITP3000H4KN600/DI/ND
Effective luminous flux (lm): 3300
System power (W): 28
Optical system: KN D/I
Length (mm): 1196
FITP3000H4KO600/DI/ND
Effective luminous flux (lm): 3200
System power (W): 28
Optical system: KO D/I
Length (mm): 1196
FITP3000J4KO/DI/ND
Effective luminous flux (lm): 2550
System power (W): 24
Optical system: KO D/I
Length (mm): 310
FITP4000H4KN600/DI/ND
Effective luminous flux (lm): 4100
System power (W): 35
Optical system: KN D/I
Length (mm): 1196
