Product series

MODUS FITP

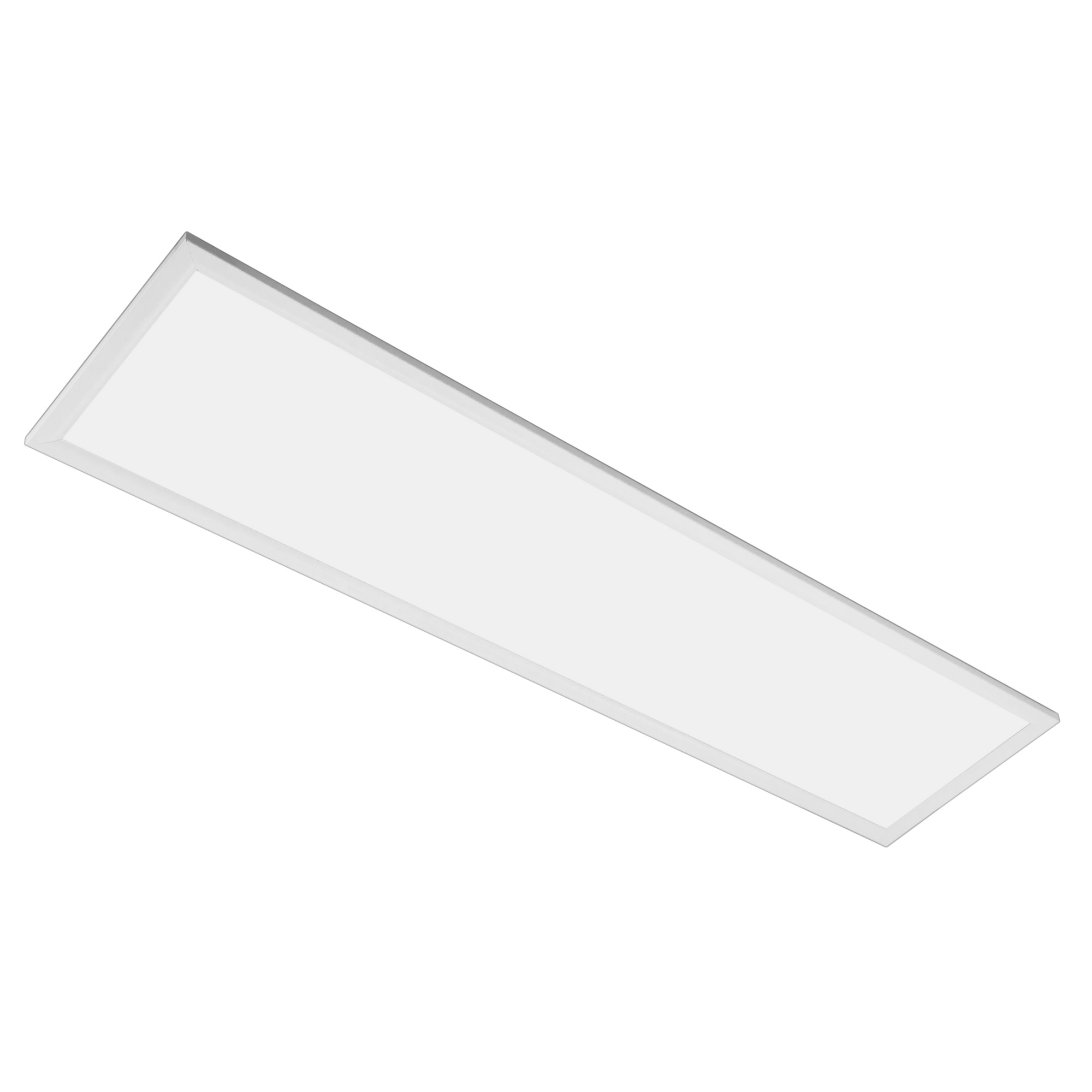

LED panel for surface installation

MODUS FITP
11 L80_80000_h.jpg

Price from:

2 300 Kč
( 2 783 Kč including VAT )

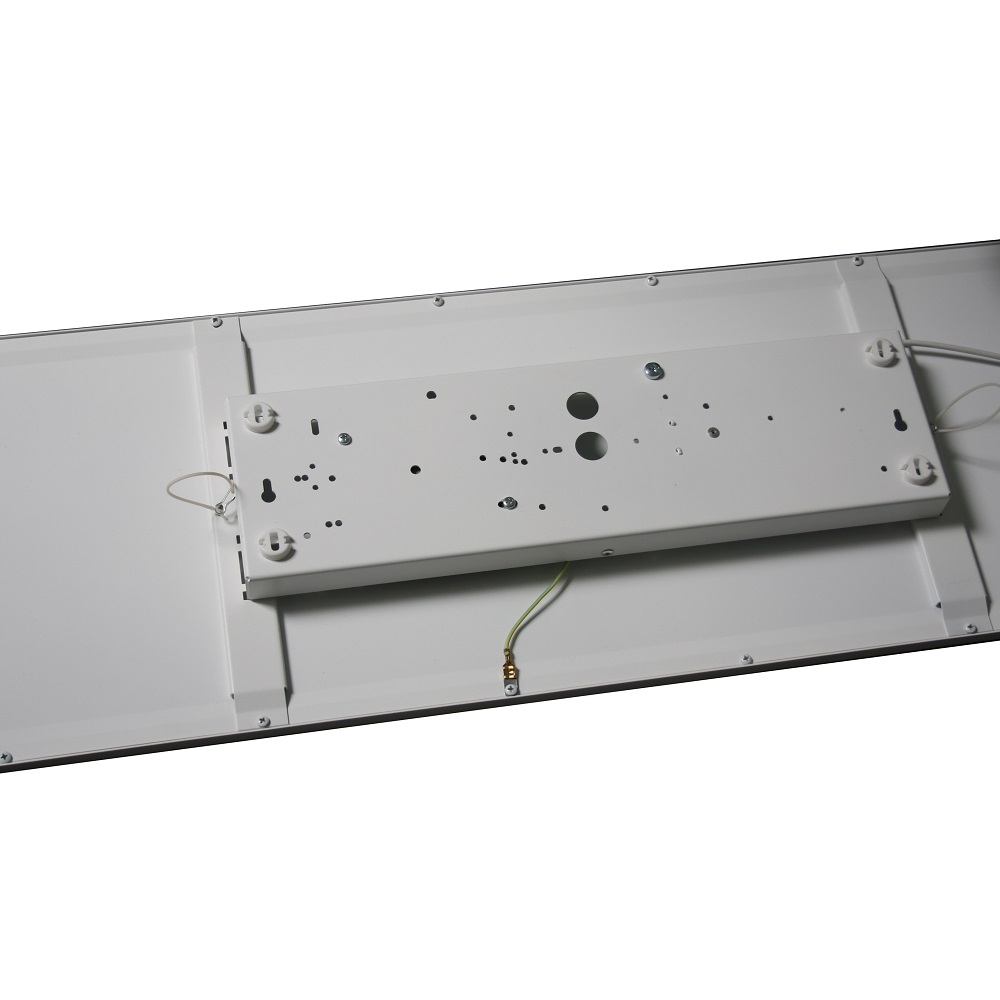

LED panel with surface possibility - surface installation is made via driver box on back side of luminaire - between luminaire and ceiling is space which makes nice efect - luminaire looks like flying near to ceiling.

Two types of optical systems are in offer:

KO - opal cover

KN - nanoprisma cover (UGR limitation)

Body of luminaire is made from white painted aluminium profile

In offer are two dimension: 60x60 cm and 120x30 cm.

Luminaire can be supplied with wireless Bluetooth control - more information here.



Body material:White painted aluminium frameMounting method:Built-in, Surface mounting
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89Lamp type:LED
Light outlet:Direct
Degree of protection (IP):IP20
Color temperature (K):4000, 3000, 5700Rated life time L80/B50 (h):80000
Dimming DALI:YesOptical system:KO
opal cover
KN
nanoprizmatic cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3000
6200

System power (W)

23
57
Product name
FITP3000A3KN600/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FITP3000A3KO600/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FITP3000A4KN600/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP3000A4KN600/NDNZ
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP3000A4KO600/ND
Effective luminous flux (lm): 3000
System power (W): 24
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP3000A4KO600/NDNZ
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP4000A3KN600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FITP4000A3KO600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FITP4000A3KO625/DALI
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
FITP4000A3KO625/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
FITP4000A4KN600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP4000A4KN600/NDNZ
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP4000A4KN625/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FITP4000A4KO600/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP4000A4KO600/NDNZ
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP4000A4KO625/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FITP4000A5KO625/ND
Effective luminous flux (lm): 4400
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FITP4000C3KN600/DALI
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FITP4000C3KN600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FITP4000C3KN625/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
FITP4000C3KO600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FITP4000C3KO625/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
FITP4000C4KN600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP4000C4KN625/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
FITP4000C4KO600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP4000C4KO625/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FITP4000C5KN600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 5700
Optical system: KN
Raster (mm): 600
FITP4000C5KO600/ND
Effective luminous flux (lm): 4200
System power (W): 35
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
FITP5000A4KN600/ND
Effective luminous flux (lm): 5400
System power (W): 49
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP5000A4KO600/ND
Effective luminous flux (lm): 5400
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP5000C4KO600/ND
Effective luminous flux (lm): 5400
System power (W): 49
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP5000C5KO600/ND
Effective luminous flux (lm): 5400
System power (W): 49
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
FITP6000A4KN600/DALI
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP6000A4KN600/DALIBTC
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
FITP6000A4KN600/ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP6000A4KN600/NDNZ
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP6000A4KO625/ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
FITP6000A5KO625/ND
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 625
FITP6000C3KN600/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
FITP6000C3KN625/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
FITP6000C3KO600/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
FITP6000C3KO625/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
FITP6000C4KN600/DALI
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP6000C4KN600/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
FITP6000C4KO600/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
FITP6000C5KO600/ND
Effective luminous flux (lm): 6000
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
