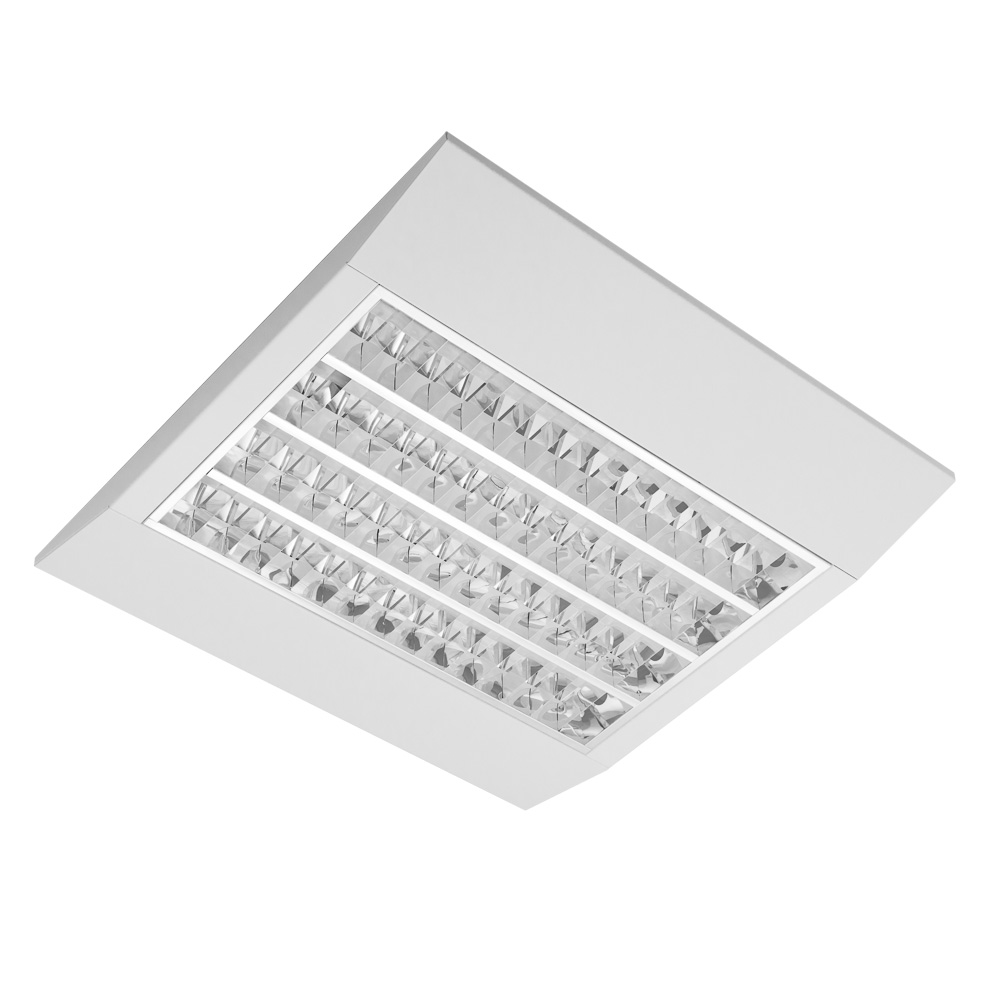

MODUS FL
Semi-recessed LED fitting with optic system

11 L80_80000_h.jpg

Body:

White painted (RAL 9016) metal sheet



Optic:

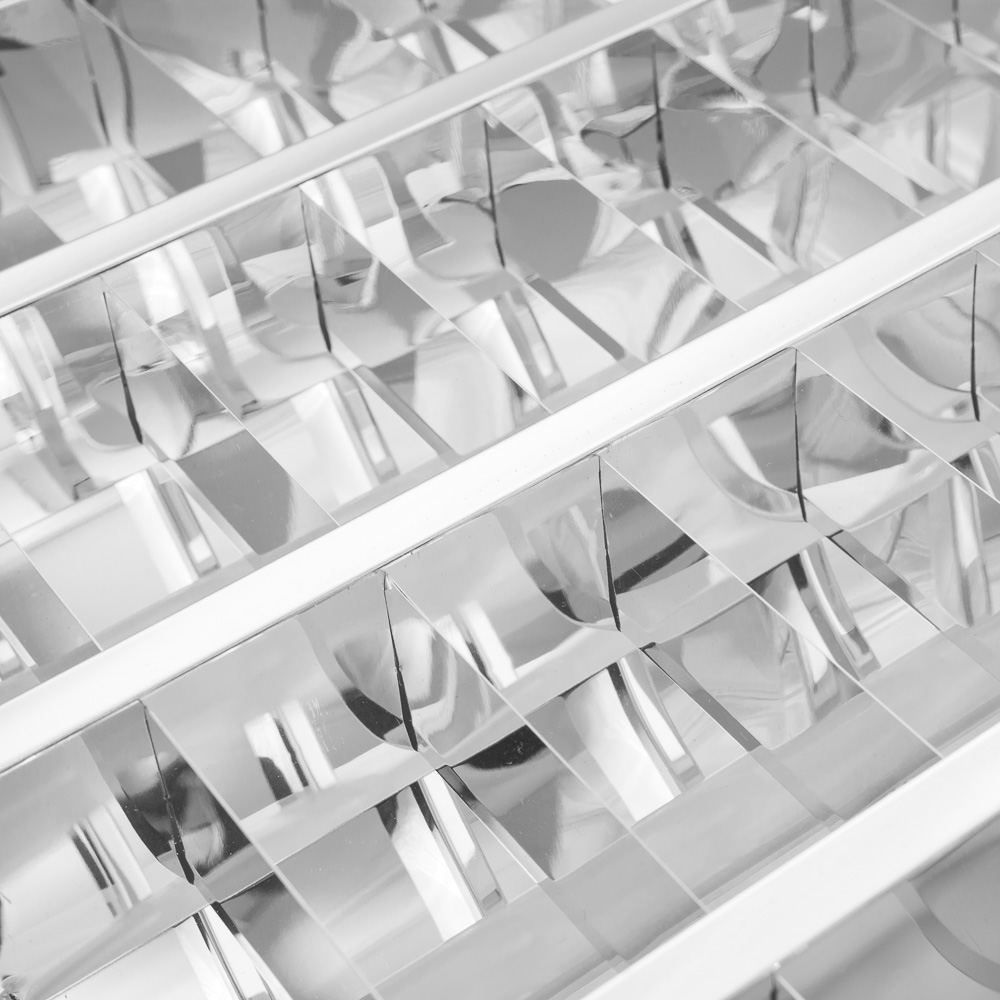

KV - double parabolic louvre category C2 of highly polished aluminium, with opal cover of LED modules

KVM - double parabolic louvre category C2 of mat aluminium, with opal cover of LED modules

LOR  of both matt and highly polished louvres are equal



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

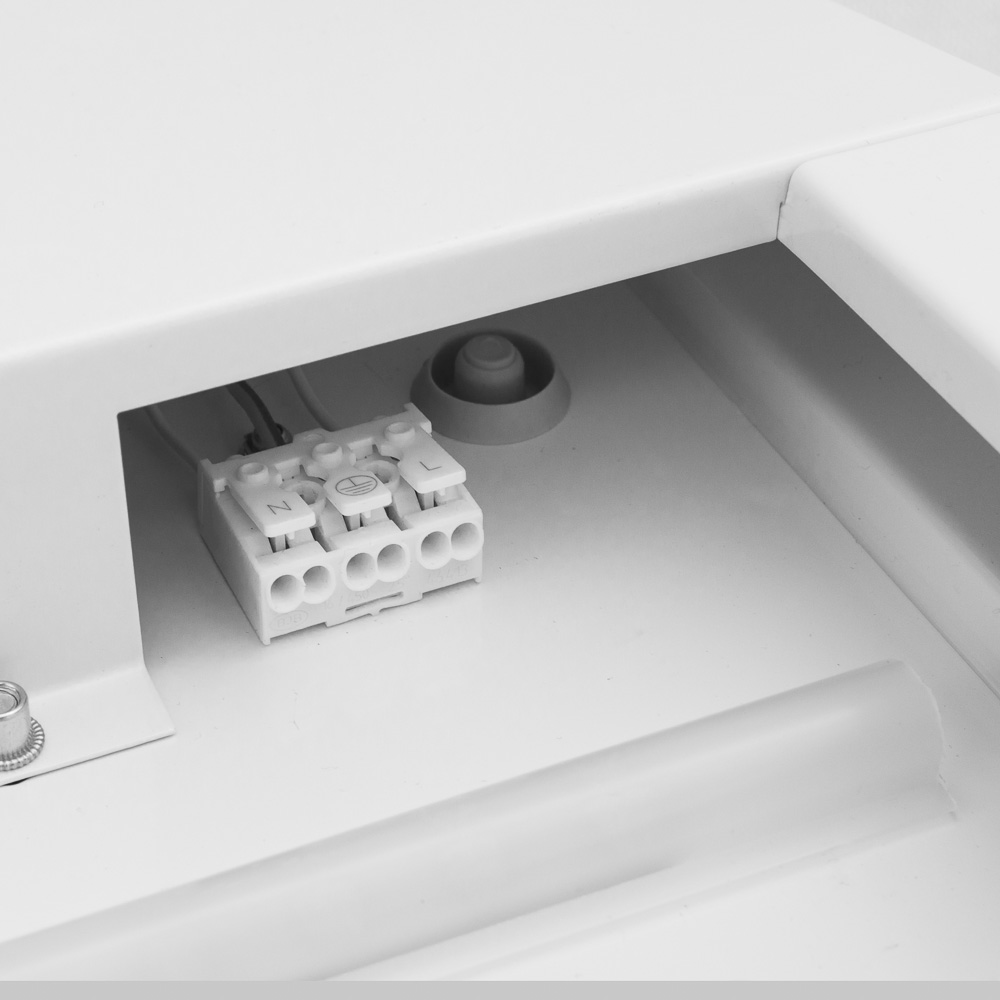

Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - dimmable 1-10V DC

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

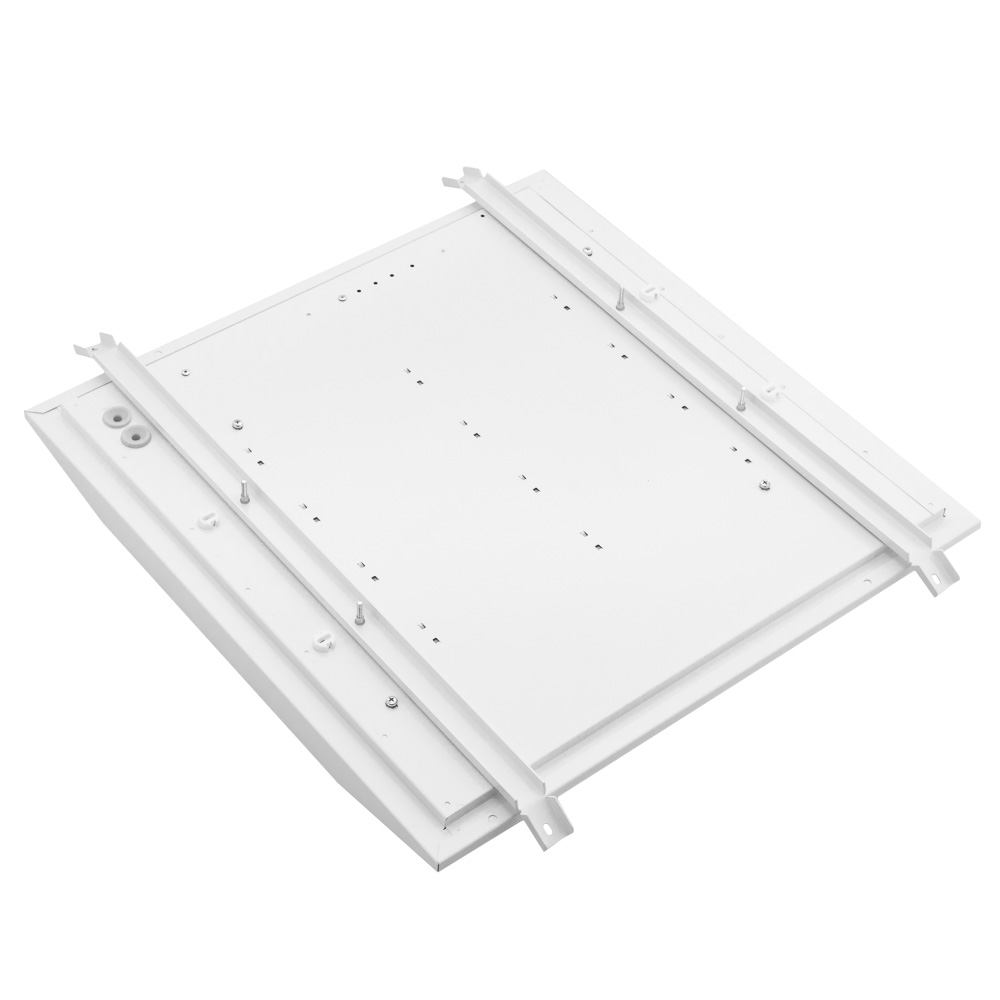

These light fittings can be used as surface mounted or partially recessed into false ceiling with visible supporting structure ( 600x600 module) or gypsum plasterboard type ceiling by holders

These fittings are recomended for offices, for lighting areas with high requirements for light and glare control.



Accessories:

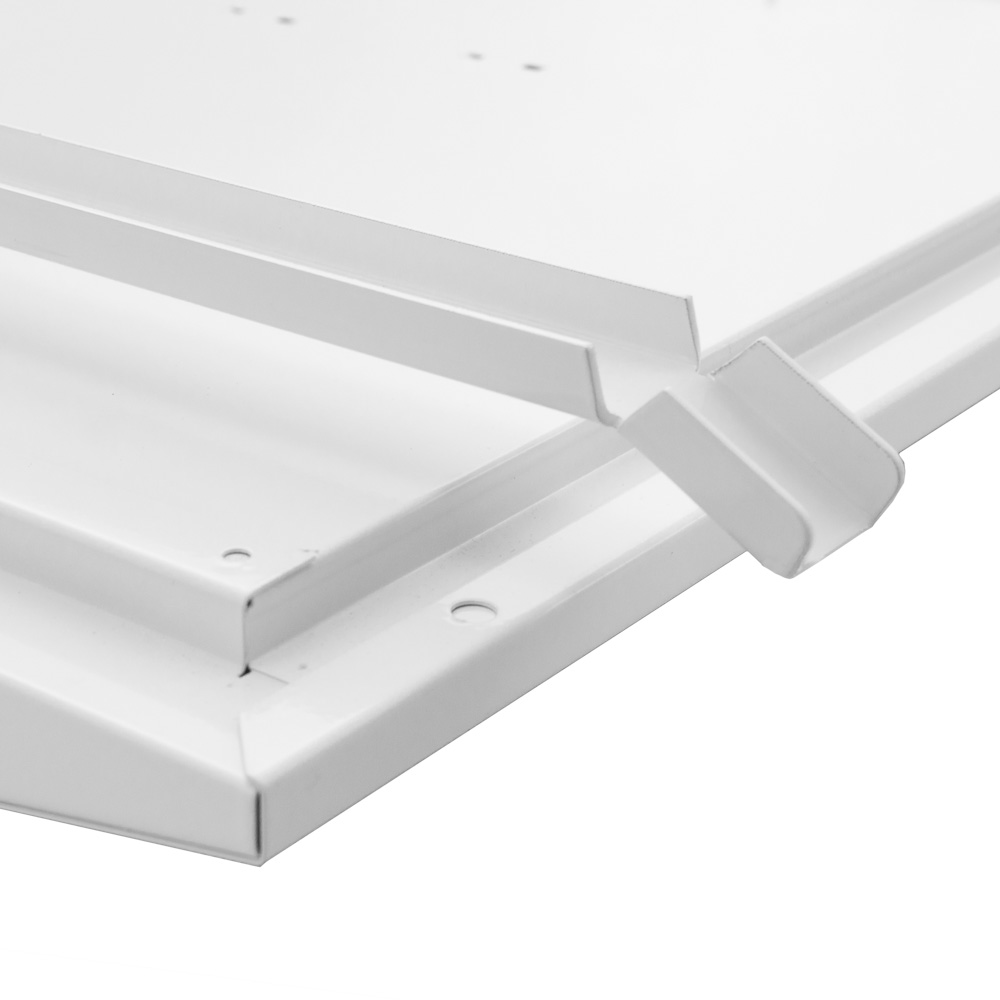

1674004001 - holders set for recessed installation

Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:KV - opal profile + louvre ALDP
KVM - opal profile + louvre matt DP
Body material:White painted steel
Mounting method:Surface mounting, Built-in
Protection class:I
Type of control gear:LED operating device current-controlled
Dimming 1-10 V:Yes
Dimming DALI:Yes

Download

  • MODUS FL SS KVMODUS FL SS KV

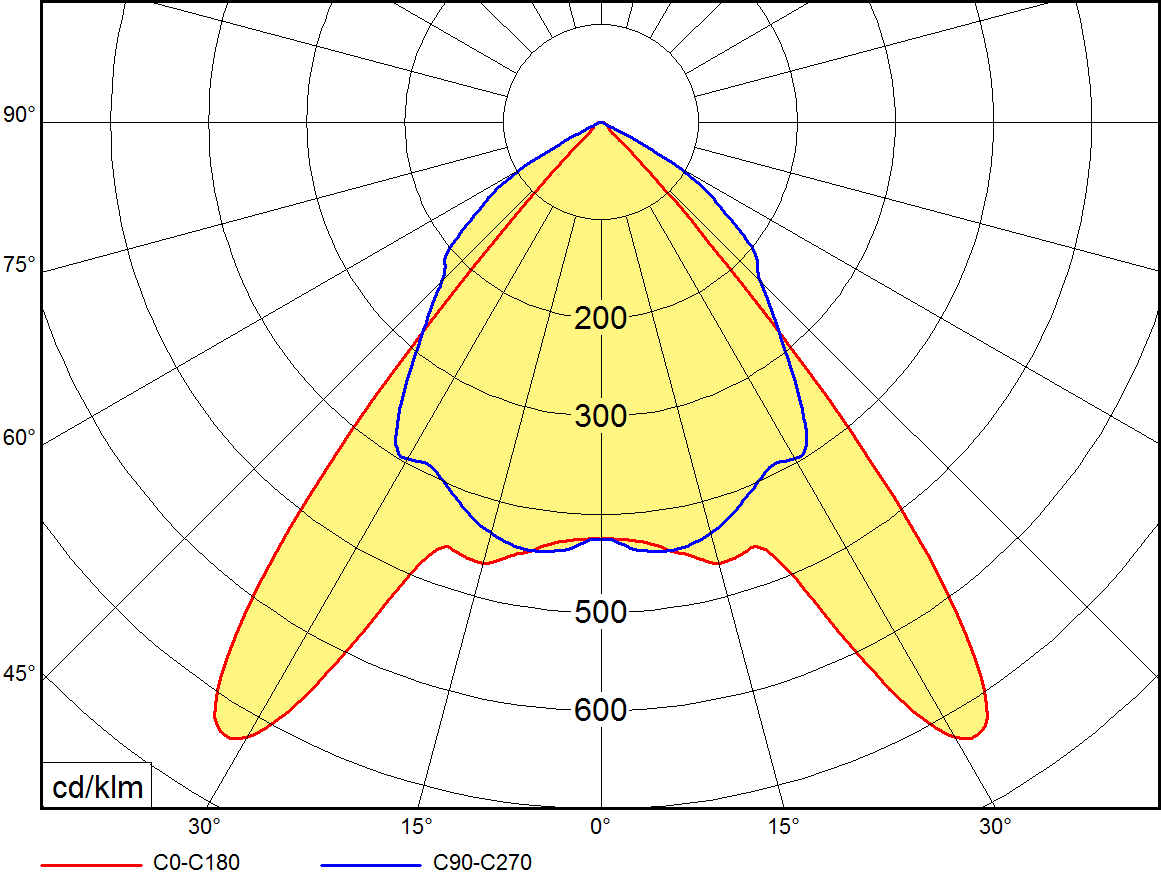

Light distribution


Accessories

Accessories FSady pro vestavnou montáž MODUS F

Versions

Effective luminous flux (lm): 3000
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3000
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3000
System power (W): 30
Color temperature (K): 4000
Optical system: KV
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3000
System power (W): 30
Color temperature (K): 4000
Optical system: KV
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3000
System power (W): 30
Effective luminous flux (lm): 3000
System power (W): 30
Color temperature (K): 4000
Optical system: KVM
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 4000
Optical system: KV
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 3000
Optical system: KVM
Length (mm): 620
Width (mm): 620
Effective luminous flux (lm): 3700
System power (W): 39
Color temperature (K): 4000
Optical system: KVM
Length (mm): 620
Width (mm): 620
