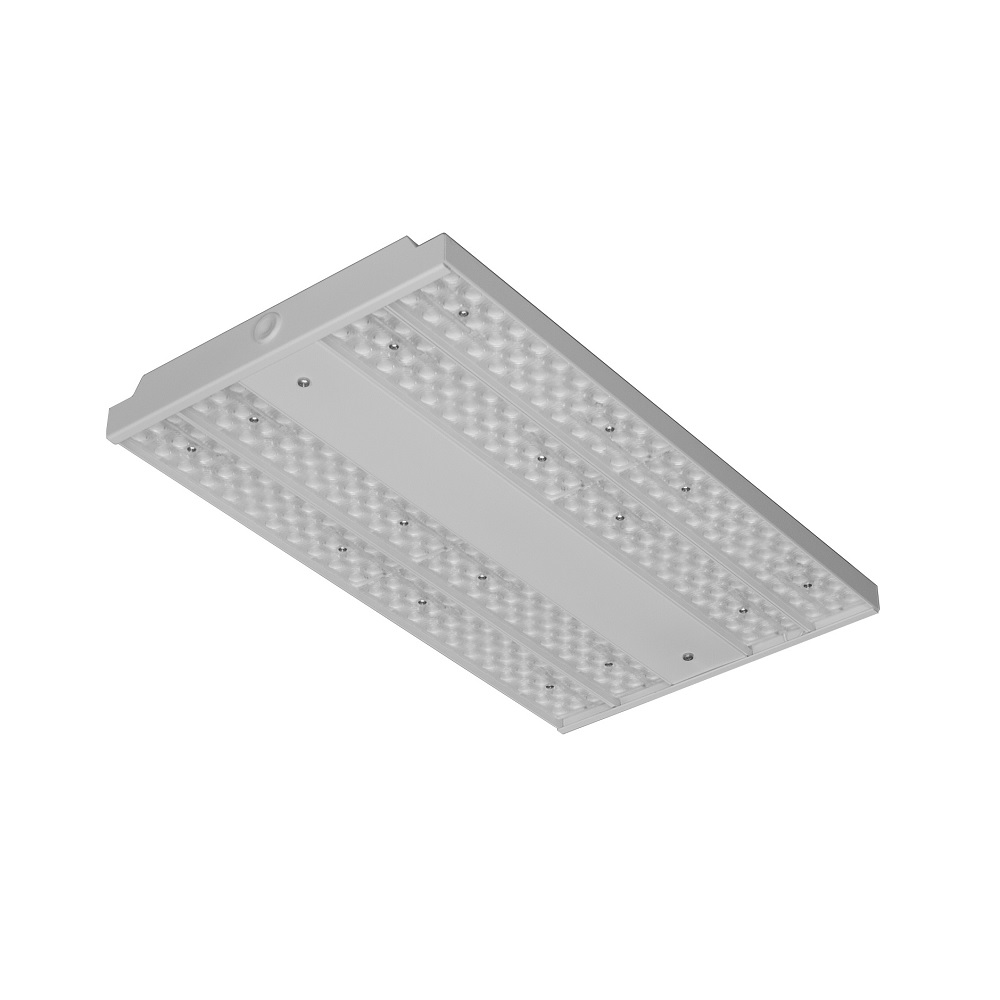

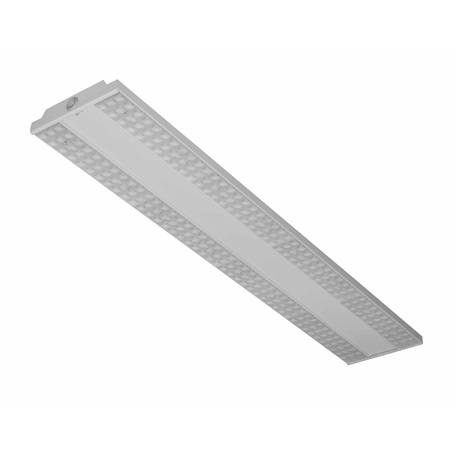

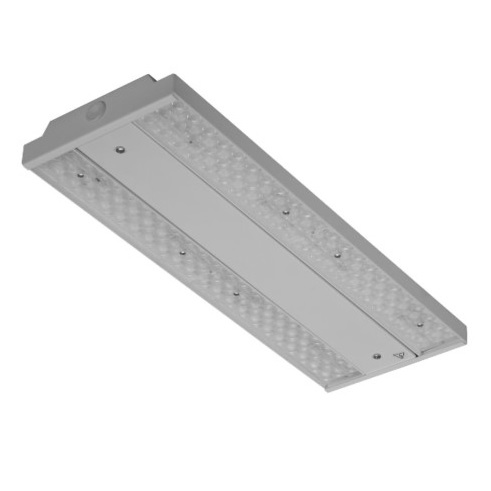

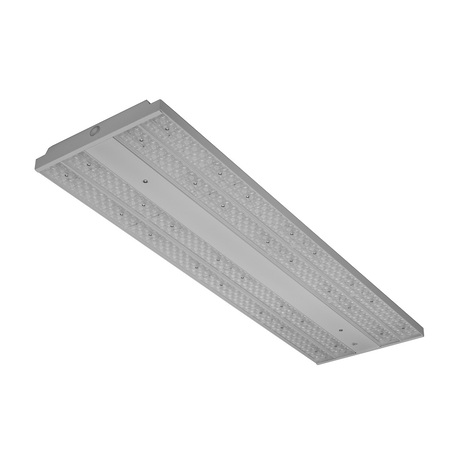

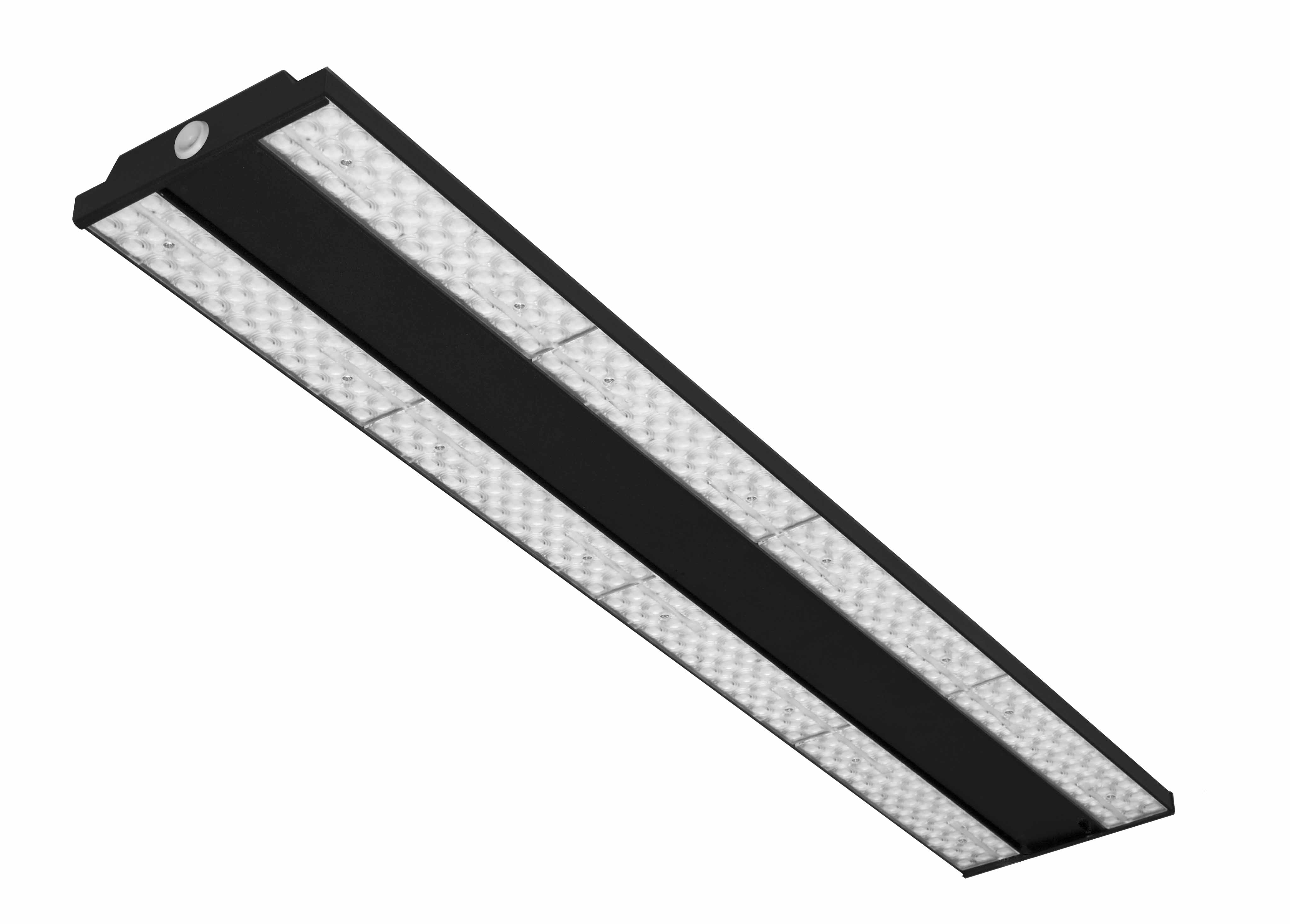

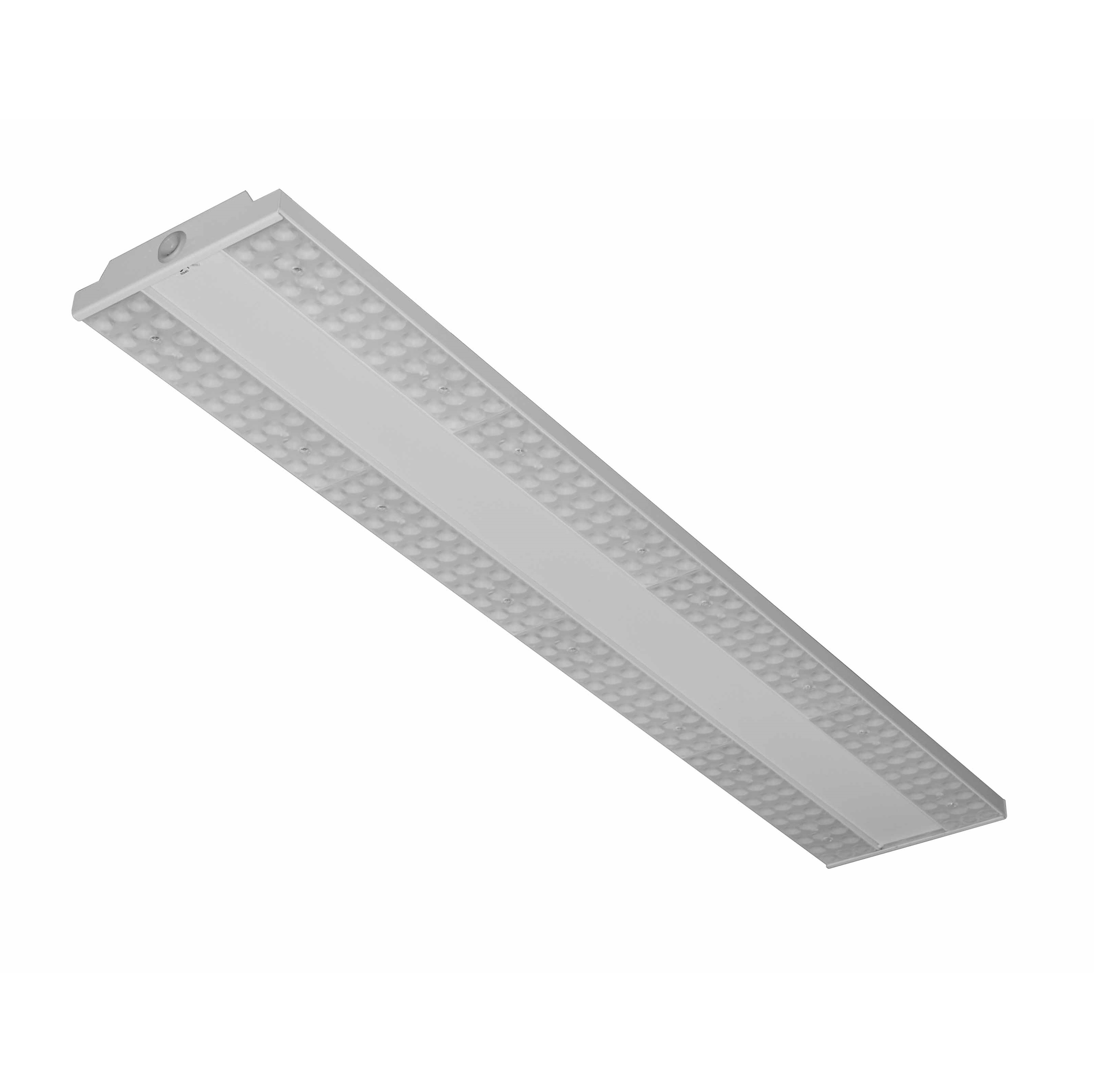

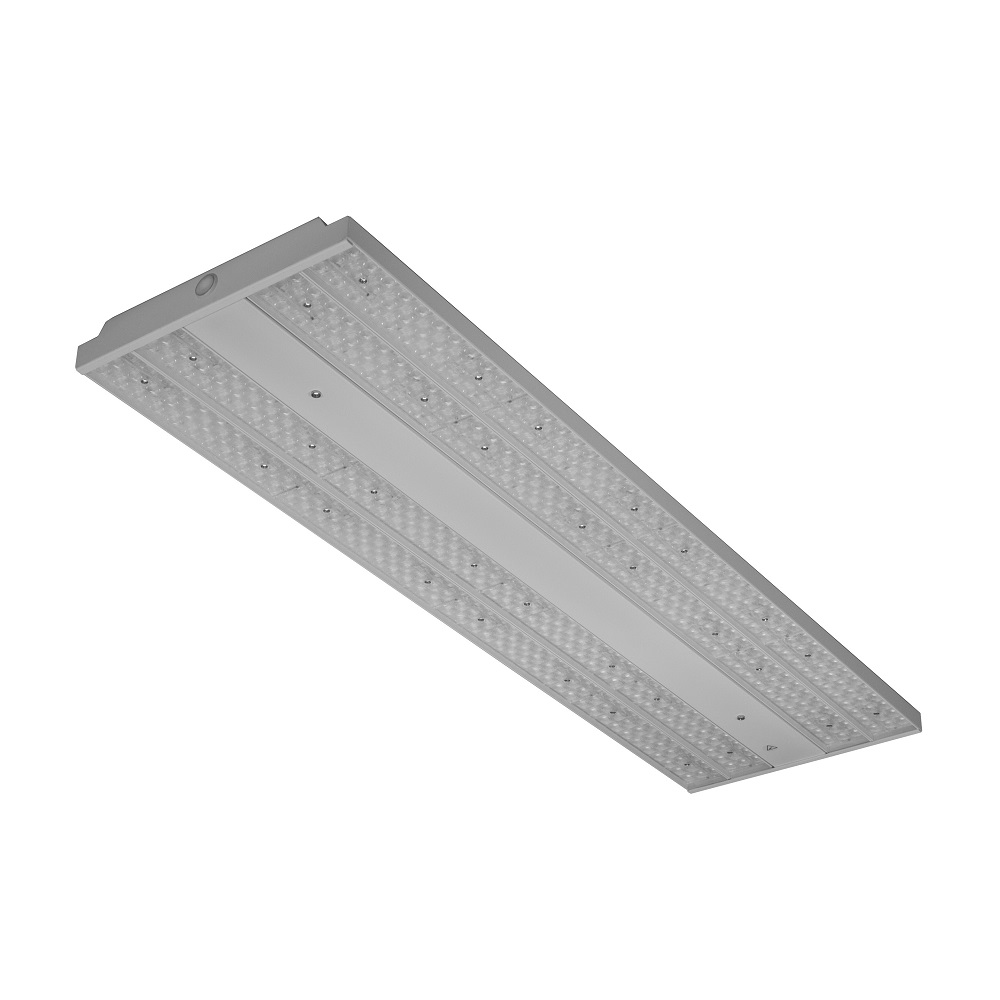

MODUS GAME
Compact aluminium luminaire with optic and ball-test
Standard price from:
Light light but powerfull - that is MODUS GAME. With a lot of different types of clear lentil optic (extra narrow, narrow, extra wide, wide and asymetrical), is this luminaire perfect choice for use in sport halls or industry areas. Thanks to precise optic system the luminaire has a low UGR.
Luminaire offers a superb effectivity (up to more than 180 lmW).
Luminaire is ideal choice for industry places in installation in high height or in sport halls - luminaire has a ball-test certification.

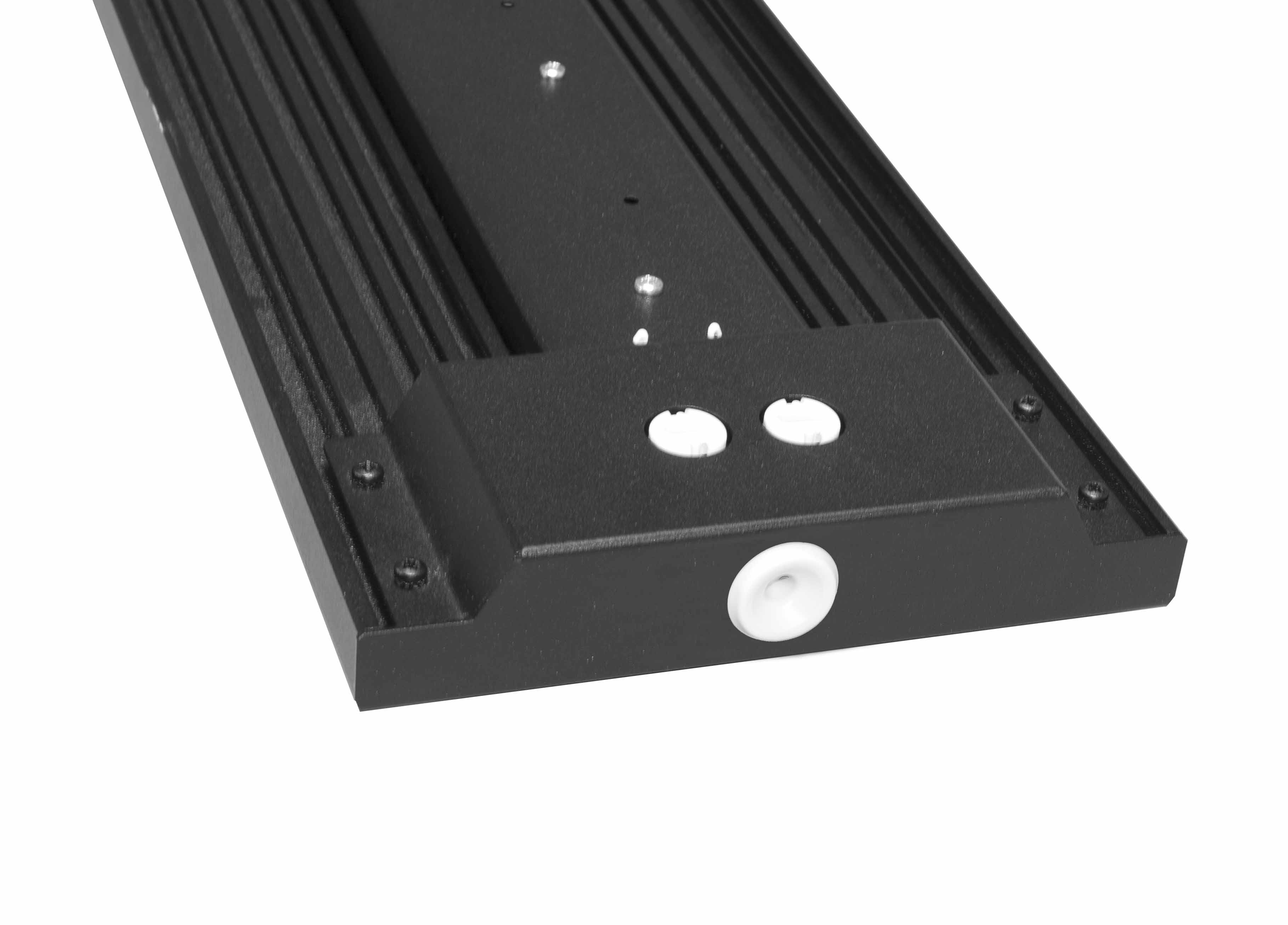

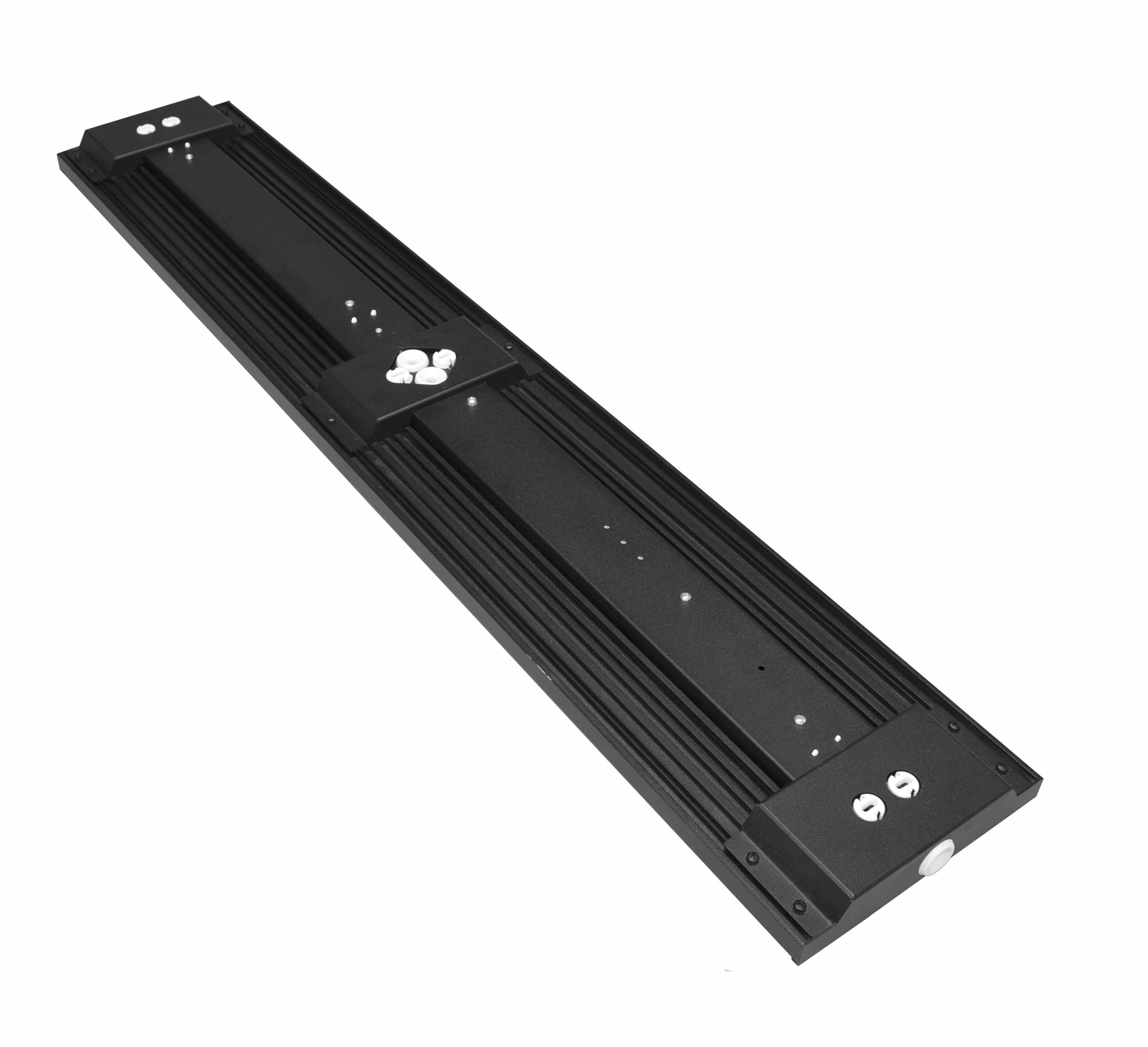

In standart version luminaire is made as universal one - for installation as solo luminaire (cable entry on top) and also for throughtwirring (cable entry and endcaps).
Size versions (lenght): 585mm (GAME S), 1165mm (GAME M), 1450mm (GAME XL), 1375mm (GAME)
Power versions: from 8.000 lm to 25.000 lm
Standart installation of luminaire is as surface one, the another possibilities shall be with accesorie for:
- pendant installation - GAME/HAK
- pendant installation on horizontal wire - GAME/VL
- surface installation with movable bracket - GAME/SD (can be used also in case of installation on wall)
On request luminaire can be done with:
- Sensor (on/off or dimmable)
- Wireless control (Casambi, Hubsense, etc...)
- Emergency kit (1 or 3 hours)
| Mounting method: | Pendant, Wall surface mounted, Surface mounting | Protection class: | I | With movement sensor: | No, Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Ball-proof: | Yes | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 |
| Degree of protection (IP): | IP40 | Color temperature (K): | 4000, 3000, 2700, 5700, 2700...6500, 1800...6500 | Rated lifetime L80/B50 (h): | 80000 | Rated ambient temperature (°C): | -10...+45 | Dimming DALI: | Yes | Product category: | Ceiling / wall luminaires | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
