MODUS HB

Aluminium industrial IP65 luminaire

1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

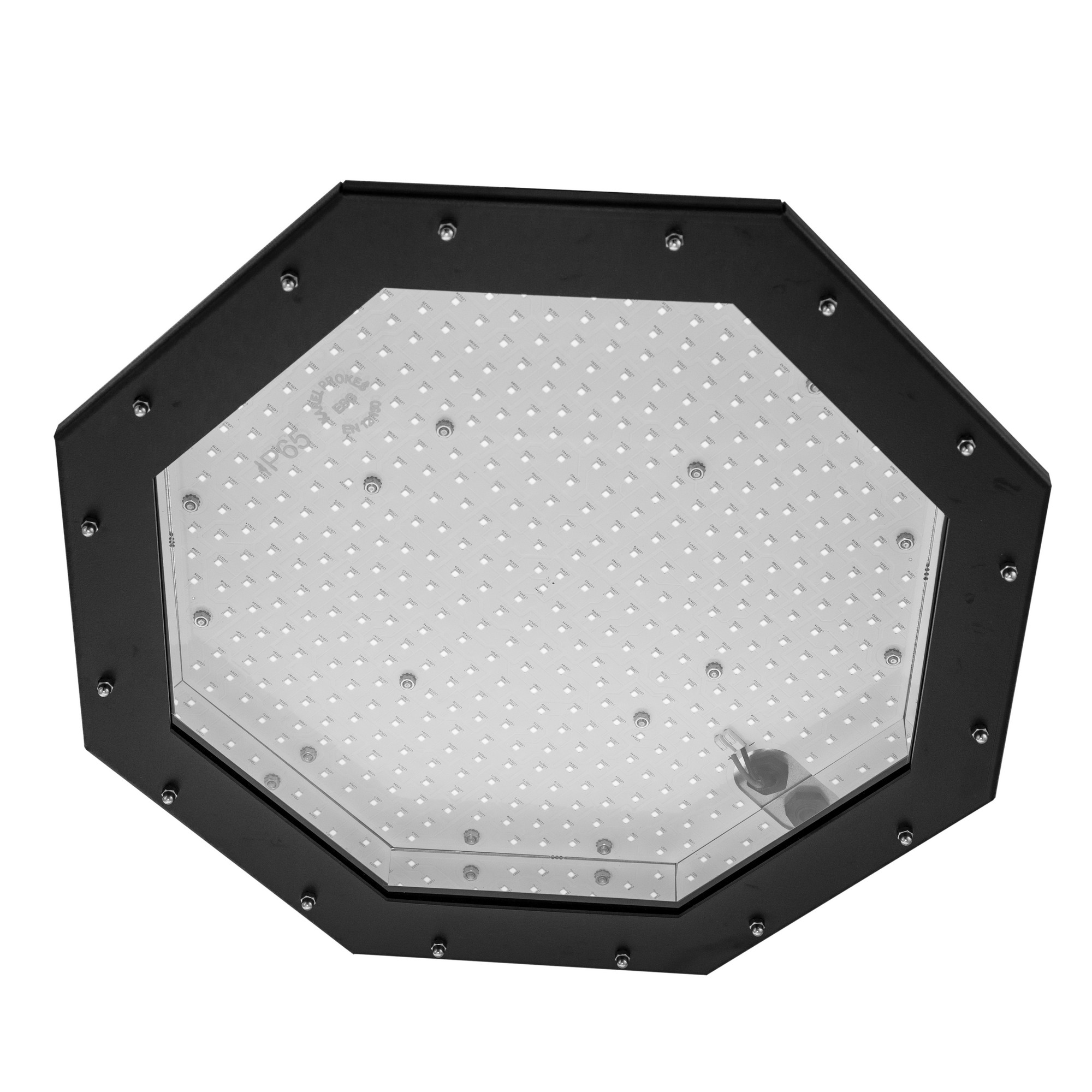

Luminaire with aluminium body a IP65 protection.

Luminaires are standartly produced with external connector and installation is made by one pendant wire (= quick installation).

Installation like surface or pendant. Also can be installed on wall - there is need to order special longer holders.

In offer are two power versions: HBS (dia. 335 mm) with 12.600 lm and HBM (dia. 460 mm) with 26.500 lm.

Special version (HB.../HT) has certification for use in ambient temperature up to 60 0C.

MODUS HB product group is produced with new SAMSUNG 301B chips which has high effectivity (220 lmW), designed for high temperature and they had chemical resistance.

Accessories:

1810004010 - wall holder for HBS

1810004008 - wall holder for HBM

Size version:M
1200 mm
S
600 mm
Body material: Welded aluminum
Mounting method:Wall surface mounted, Surface mounting, Wall bracket, SuspendedProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDLight outlet:Direct
Impact strength:IK10Nominal voltage (V):220...240
Degree of protection (IP):IP65
Color temperature (K):4000, 6500, 3000, 2700, 5700
Rated lifetime L80/B50 (h):80000Rated ambient temperature (°C):-10...+45, -30...+60
Dimming DALI:YesOptical system:PC
polycarbonate cover

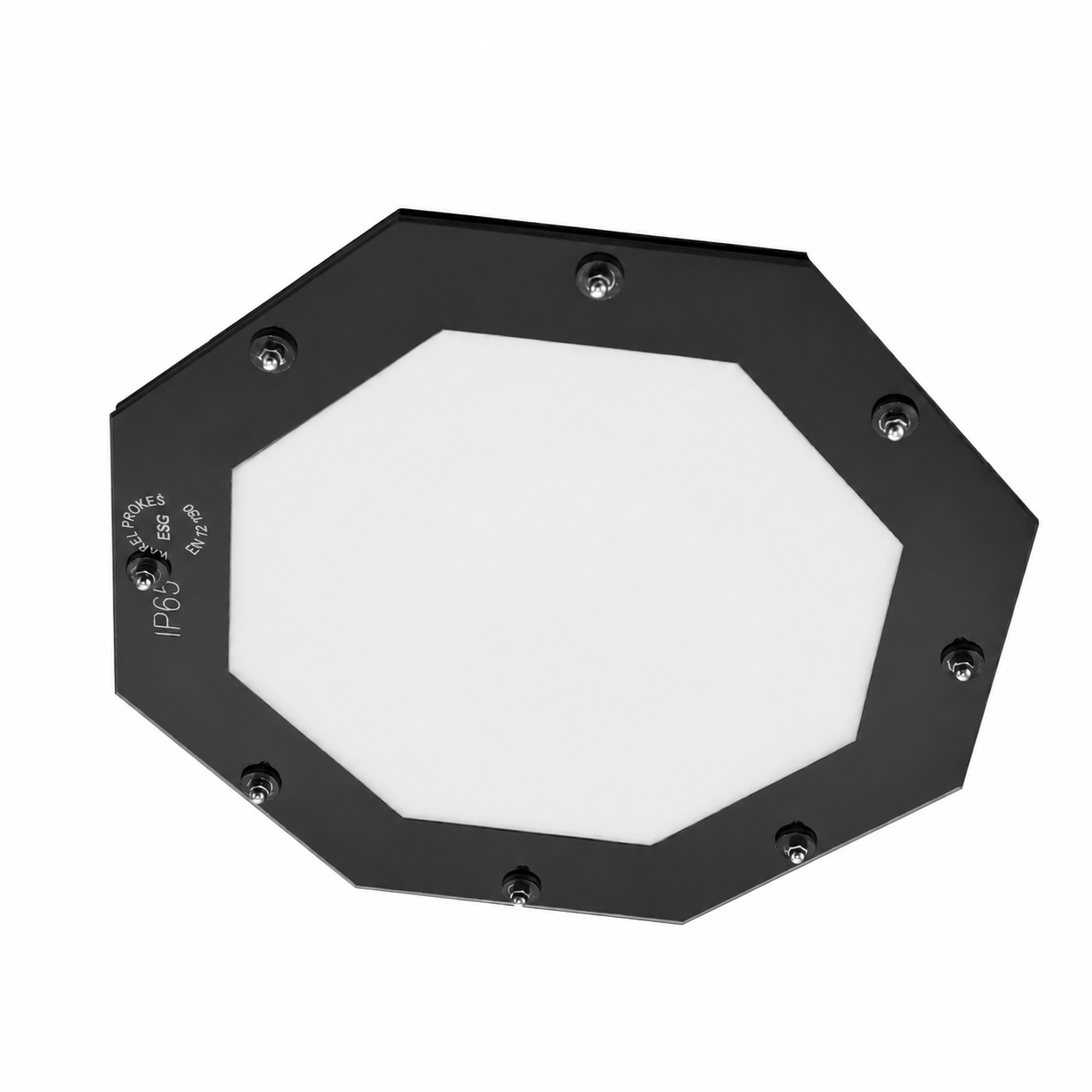

PCO
polycarbonate opal cover
KC
clear cover
PCN
Polycarbonate nanoprismatic cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

5000
26500

System power (W)

162
82
Product name
HBM250N3PCN/ND
Effective luminous flux (lm): 20000
System power (W): 162
Color temperature (K): 3000
Optical system: PCN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250N4KN/ND
Effective luminous flux (lm): 24000
System power (W): 162
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250N4PCN/ND
Effective luminous flux (lm): 20000
System power (W): 162
Color temperature (K): 4000
Optical system: PCN
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3KC/B/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3KC/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3PC/DALI
Effective luminous flux (lm): 26000
System power (W): 162
Color temperature (K): 3000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3PCO/B/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3PCO/DALI
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W3PCO/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/B/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/B/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4KC/ND/HT55
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4KC/V1/DALI/HT55
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4KC/V1/DALI/HT55/EU
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4KC/V1/ND
Effective luminous flux (lm): 26500
System power (W): 163
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PC/DALI
Effective luminous flux (lm): 26000
System power (W): 162
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PC/ND
Effective luminous flux (lm): 26000
System power (W): 162
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W4PC/ND/HT55
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W4PCO/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5KC/DALI
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5KC/ND/HT55
Effective luminous flux (lm): 26500
System power (W): 163
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W5PC/ND
Effective luminous flux (lm): 26000
System power (W): 162
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5PC/ND/HT55
Effective luminous flux (lm): 26000
System power (W): 163
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 424
Rated ambient temperature (°C): -30...+55
HBM250W5PCO/DALI
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W5PCO/ND
Effective luminous flux (lm): 21200
System power (W): 162
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBM250W6KC/ND
Effective luminous flux (lm): 26500
System power (W): 162
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 424
Rated ambient temperature (°C): -10...+45
HBS120W3KC/DALI
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 3000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W3PCO/B/ND
Effective luminous flux (lm): 10000
System power (W): 82
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W3PCO/DALI
Effective luminous flux (lm): 10000
System power (W): 82
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4KC/DALI
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4KC/ND/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4KC/V1/DALI/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4KC/V1/DALI/HT60/EU
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4PC/DALI
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PC/ND
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PC/V1/DALI/HT60
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W4PC/V1/ND
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PC/V1/ND/2K
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W4PCO/ND
Effective luminous flux (lm): 10000
System power (W): 82
Color temperature (K): 4000
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5KC/DALI
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5KC/ND/SG
Effective luminous flux (lm): 12000
System power (W): 82
Color temperature (K): 5700
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5PC/ND
Effective luminous flux (lm): 12300
System power (W): 82
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W5PCO/ND
Effective luminous flux (lm): 10000
System power (W): 82
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W6KC/ND
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS120W6KC/ND/HT60
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -30...+60
HBS120W6KC/V1/DALI
Effective luminous flux (lm): 12600
System power (W): 82
Color temperature (K): 6500
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
HBS50W4KC/ND
Effective luminous flux (lm): 5000
System power (W): 38
Color temperature (K): 4000
Optical system: C
Outer diameter (mm): 310
Rated ambient temperature (°C): -10...+45
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
