MODUS HL
Linear opal cover fitting

11 L80_80000_h.jpg

Body:

Eloxal aluminium profile, metal plate endcaps finished in RAL9007



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V DC



Application:

Slim aluminium linear fittings for direct or direct/indirect light distribution.

Possible installation to the row (version /R) with continous assembly.

Should be installed as pendant (pendant set included)

Surface installation is possible with MODUS HLP.

Intended to illumination of reprezentative work places or decorative lighting.



Variants:

HL - single pendant luminaire, direct

HLP - single luminaire for surface installation

HL /DI - single pendant luminaire, direct/indirect

HL /R - direct pendant luminairefor installation to straight rows



Note:

Cord suspension set included in the fitting for HL and HL /R.

Fitting HL can be produced in modification enabling join them into straight row. In this case are luminaires delivered with connecting endcaps, with through wiring with connectors.

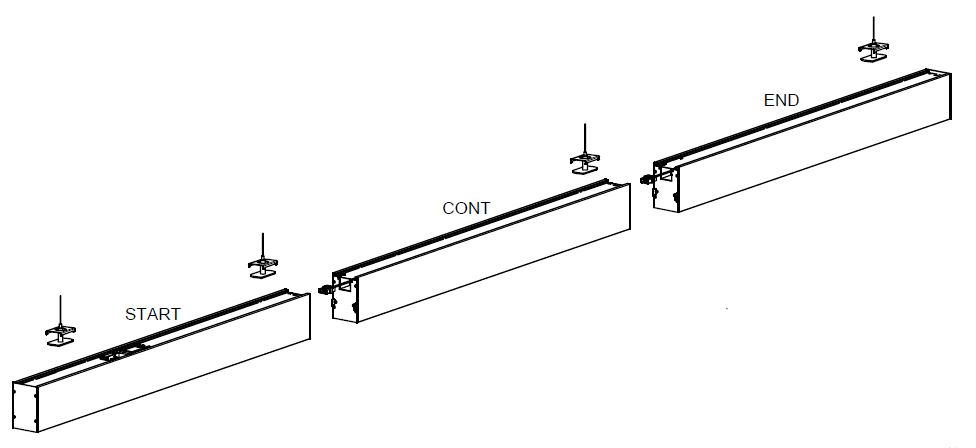

The row can be compilated by START, CONT and END fitting.

Show more...

Main features

Lamp type:LED
Color temperature (K):3000, 4000, 5700
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:KO - opal cover
KO D/I - Opal cover for direct/indirect lighting
Light outlet:Direct, Direct/indirect
Size version:S - 600 mm
M - 1200 mm
L - 1500 mm
Body material:Eloxal aluminium frame
Mounting method:Pendant
Protection class:I
Type of control gear:LED operating device current-controlled
Suitable for light line configuration:Yes
Dimming 1-10 V:Yes
Dimming DALI:Yes

Download

  • MODUS HLMODUS HL

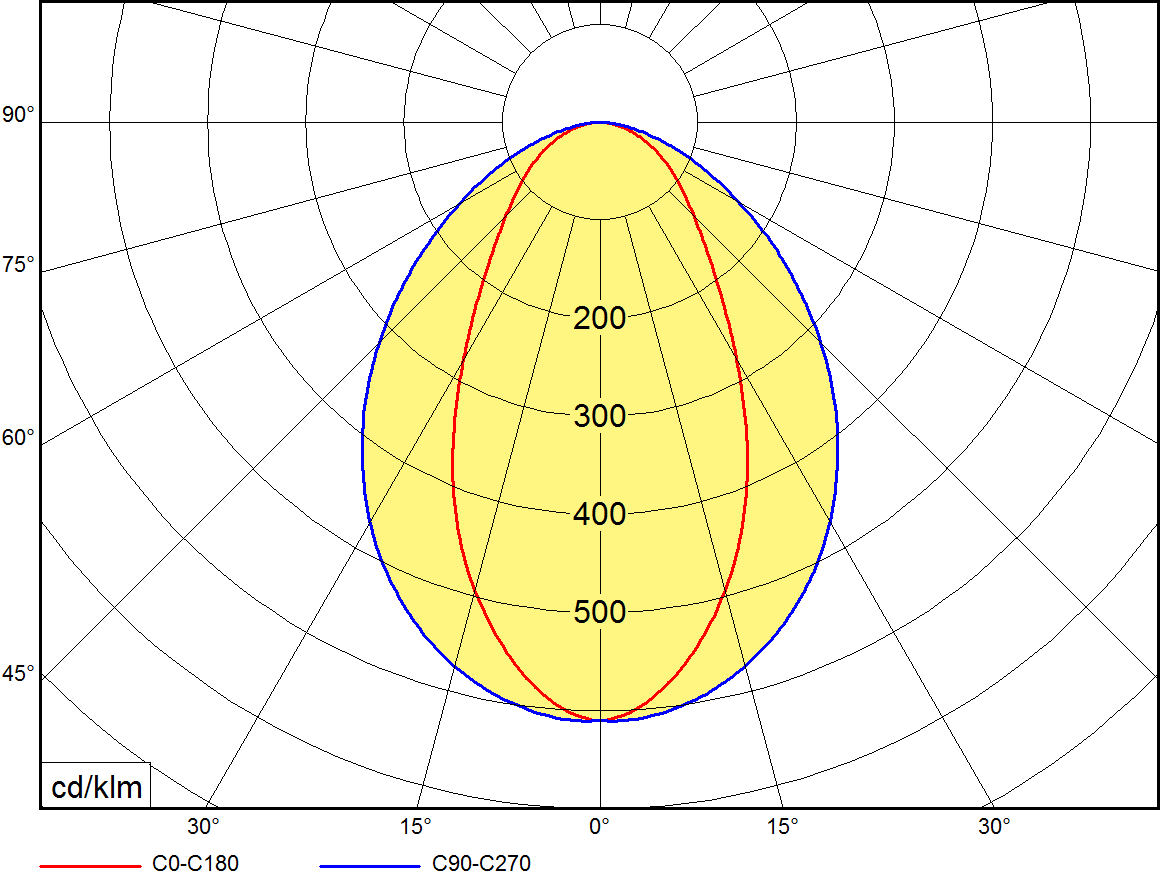

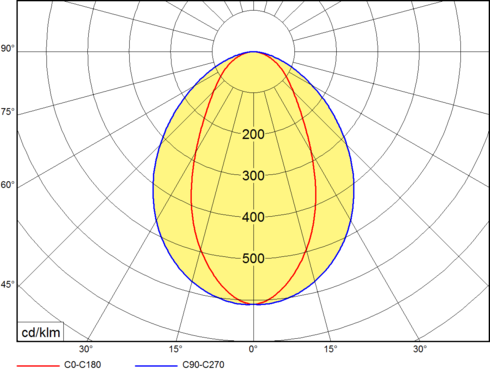

Light distribution


Versions

Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 5600
System power (W): 68
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: No
Effective luminous flux (lm): 5600
System power (W): 66
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 5600
System power (W): 68
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: No
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 5600
System power (W): 66
Effective luminous flux (lm): 5600
System power (W): 66
Effective luminous flux (lm): 5600
System power (W): 66
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4300
System power (W): 50
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 5600
System power (W): 66
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 5600
System power (W): 66
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 5600
System power (W): 66
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 4000
System power (W): 39
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Dimming 1-10 V: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 6400
System power (W): 62
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Dimming DALI: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4000
System power (W): 39
Effective luminous flux (lm): 4000
System power (W): 39
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Suitable for light line configuration: Yes
Effective luminous flux (lm): 4450
System power (W): 54
Color temperature (K): 5700
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 3000
System power (W): 34
Color temperature (K): 5700
Light outlet: Direct
Length (mm): 1185
Suitable for light line configuration: No
Effective luminous flux (lm): 1450
System power (W): 17
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: No
Effective luminous flux (lm): 2000
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: No
Effective luminous flux (lm): 1450
System power (W): 17
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: Yes
Effective luminous flux (lm): 1450
System power (W): 17
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: Yes
Effective luminous flux (lm): 1450
System power (W): 17
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: Yes
Effective luminous flux (lm): 1450
System power (W): 17
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: No
Effective luminous flux (lm): 2000
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 592
Suitable for light line configuration: No

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.


Be in touch

Do you have any question about our products?

Use our contacts here.

Whery you can buy?

Distribution network
