Product series
MODUS HLS

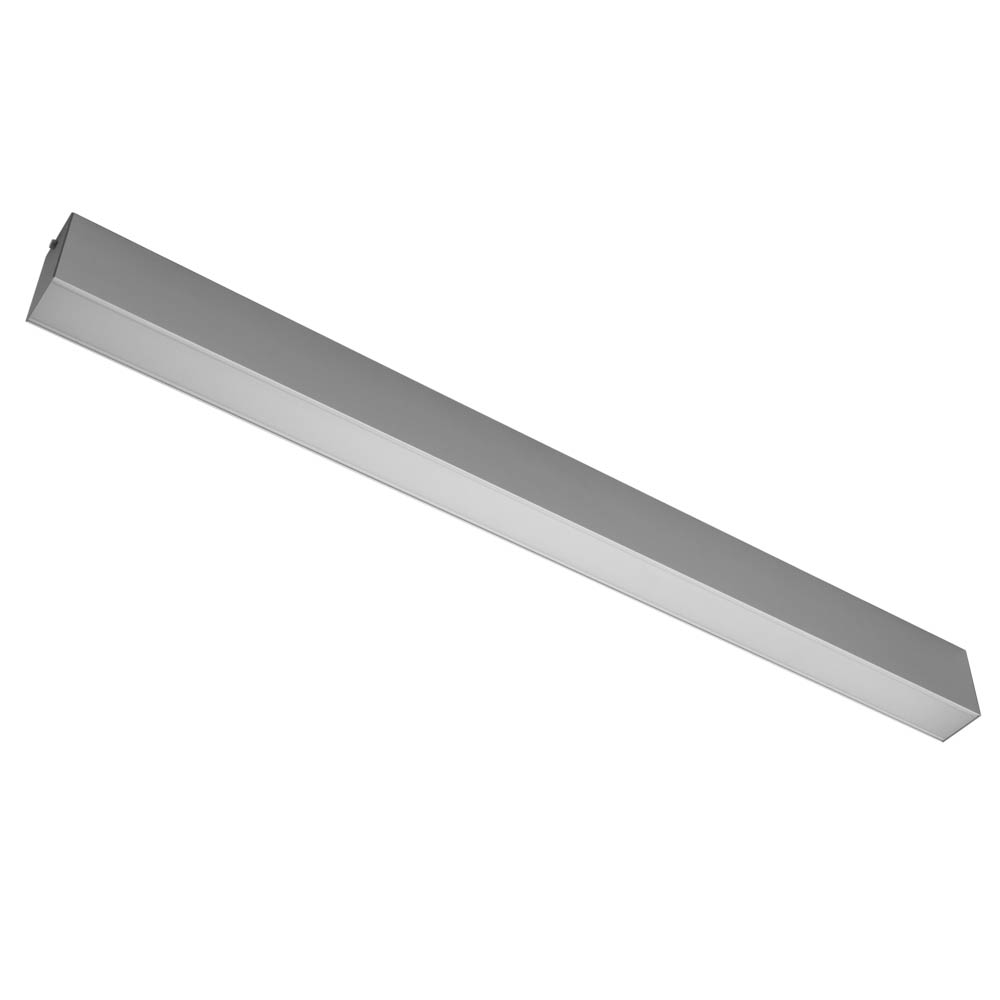

Wall fitting aluminum luminaire
Standard price from:
On request
| Mounting method: | Wall mounted D/I, Wall mounted direct | Protection class: | I | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct, Direct/indirect | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 | Product category: | Ceiling / wall luminaires | Optical system: | KO opal cover KN nanoprizmatic cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 | MODUS SMART: | Yes, Bluetooth Bluetooth |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Light outlet
Length (mm)
Color housing
HLS2000SKO2/B/ND/PIR
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 2700
Light outlet: Direct
Length (mm): 622
Color housing: White
HLS2000SKO2/BDI/ND
Effective luminous flux (lm): 2000
System power (W): 16
HLS2000SKO3/B/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 592
Color housing: White
HLS2000SKO3/BDI/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 592
Color housing: White
HLS2000SKO4/DALI
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 592
Color housing: Aluminium
HLS2000SKO4/DI/ND
Effective luminous flux (lm): 2000
System power (W): 16
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 592
Color housing: Aluminium
HLS3000LKO4/BDI/DALI
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1485
Color housing: White
HLS3000MKO4/DI/ND
Effective luminous flux (lm): 4400
System power (W): 31
HLS3000XMKO3/CDI/DALI
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 3000
Light outlet: Direct/indirect
Length (mm): 860
Color housing: Black
HLS3000XMKO4/B/ND
Effective luminous flux (lm): 3000
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 860
Color housing: White
HLS3000XMKO4/B/NDNZ
Effective luminous flux (lm): 3000
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 860
Color housing: White
HLS3000XMKO4/BDI/NDOK
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 860
Color housing: White
HLS3000XMKO4/DI/NDOK
Effective luminous flux (lm): 2800
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 860
Color housing: Aluminium
HLS3000XMKO4/ND
Effective luminous flux (lm): 3000
System power (W): 25
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 860
Color housing: Aluminium
HLS4000MKO3/ND
Effective luminous flux (lm): 4200
System power (W): 33
Color temperature (K): 3000
Light outlet: Direct
Length (mm): 1185
Color housing: Aluminium
HLS4000MKO4/DI/ND
Effective luminous flux (lm): 6200
System power (W): 47
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1185
Color housing: Aluminium
HLS5000LKO4/B/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Color housing: White
HLS5000LKO4/BDI/2DALIT
Effective luminous flux (lm): 7900
System power (W): 65
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1485
Color housing: White
HLS5000LKO4/BDI/DALI
Effective luminous flux (lm): 7900
System power (W): 65
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1485
Color housing: White
HLS5000LKO4/DI/DALI
Effective luminous flux (lm): 7900
System power (W): 65
Color temperature (K): 4000
Light outlet: Direct/indirect
Length (mm): 1485
Color housing: Aluminium
HLS5000LKO4/ND
Effective luminous flux (lm): 5400
System power (W): 42
Color temperature (K): 4000
Light outlet: Direct
Length (mm): 1485
Color housing: Aluminium
