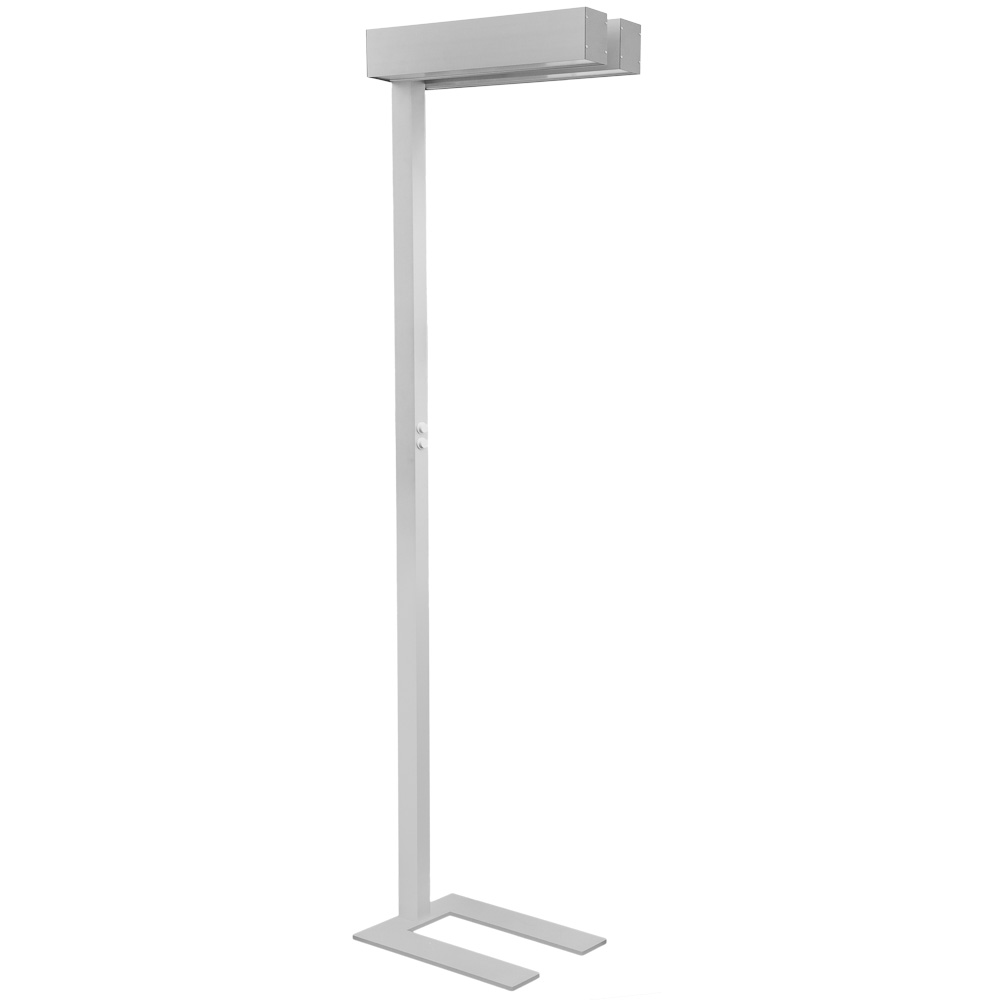

MODUS HLT
Floorstanding fitting

11 L80_80000_h.jpg

Body:

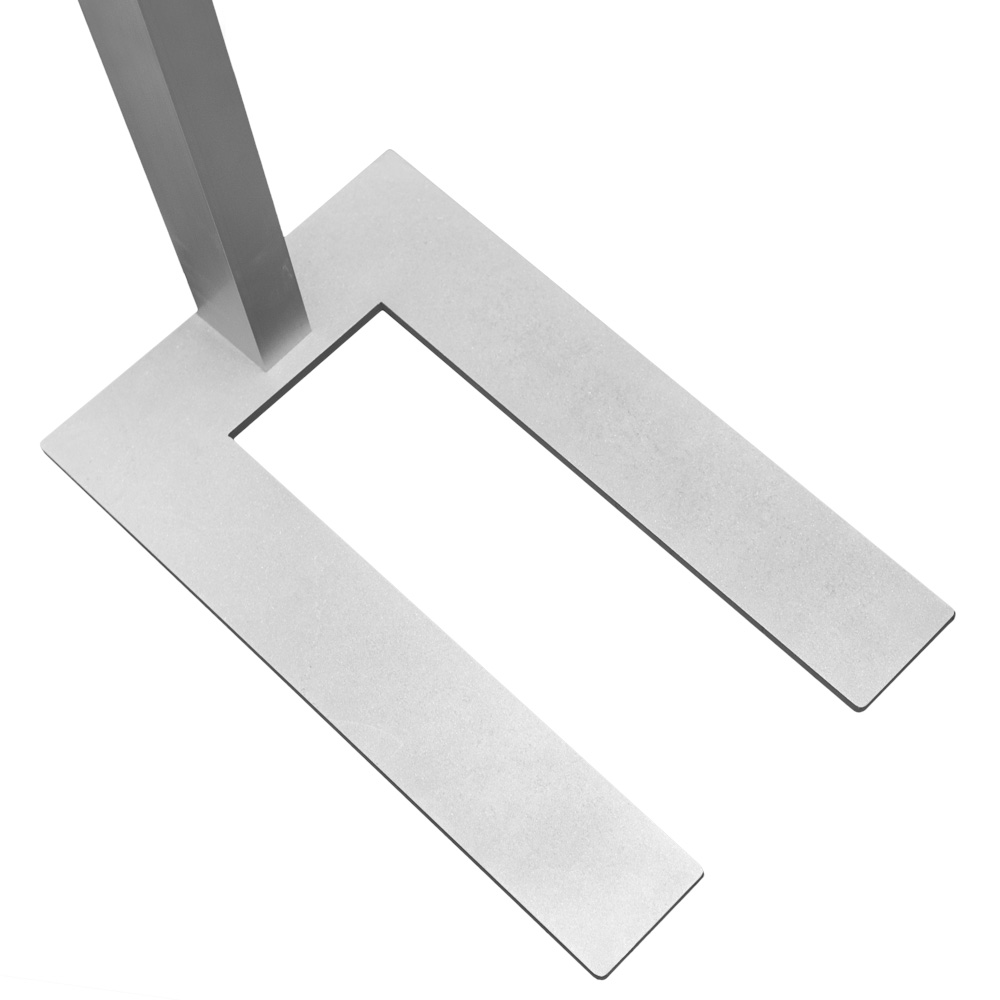

Eloxal aluminium profile, steel base (RAL9007) for improved stability

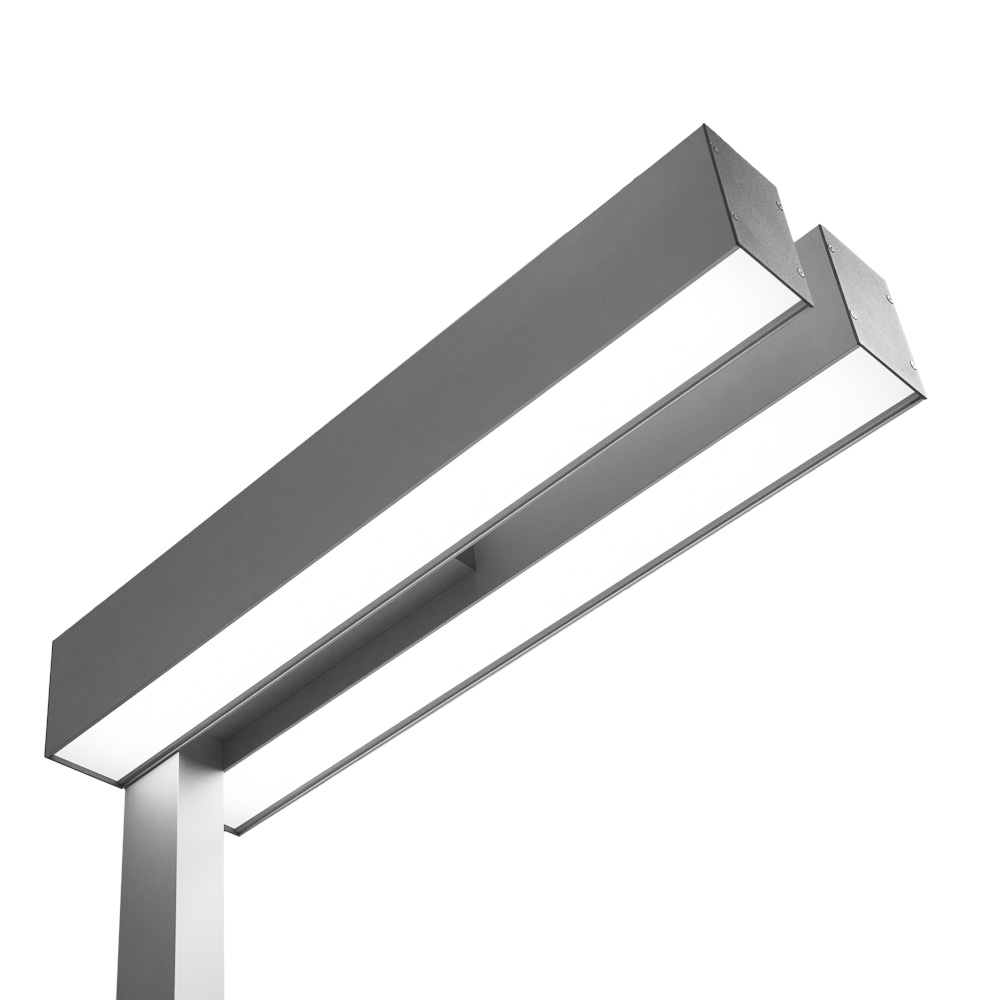

Optic:

KO - opal cover ACRYL SATINE

Direct / indirect light distribution



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

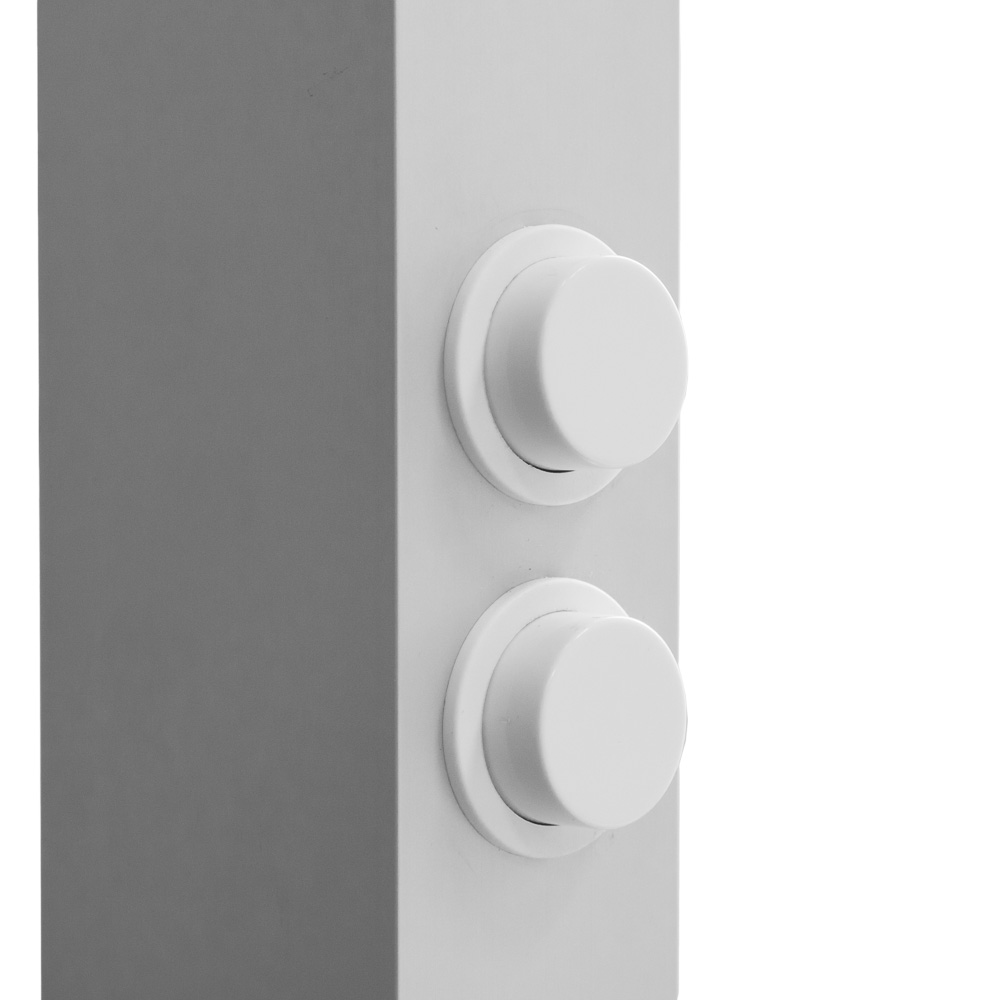

TD - touch dimmable



Application:

Free-standing luminaires can be positioned in any location in the room, at any position relative to the task area.

Indirect / direct light can be switched / dimmed separately. Light distribution - 50% direct / 50% indirect.

Luminaire height 2m.

Show more...

Main features

Product category:Floor luminaire
Lamp type:LED
Color temperature (K):3000, 4000
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20
Optical system:KO D/I - Opal cover for direct/indirect lighting
Light outlet:Direct/indirect
Body material:Eloxal aluminium profile
Protection class:I
Type of control gear:LED operating device current-controlled
Dimming Touch and Dim:Yes

Download

  • MODUS HLTMODUS HLT

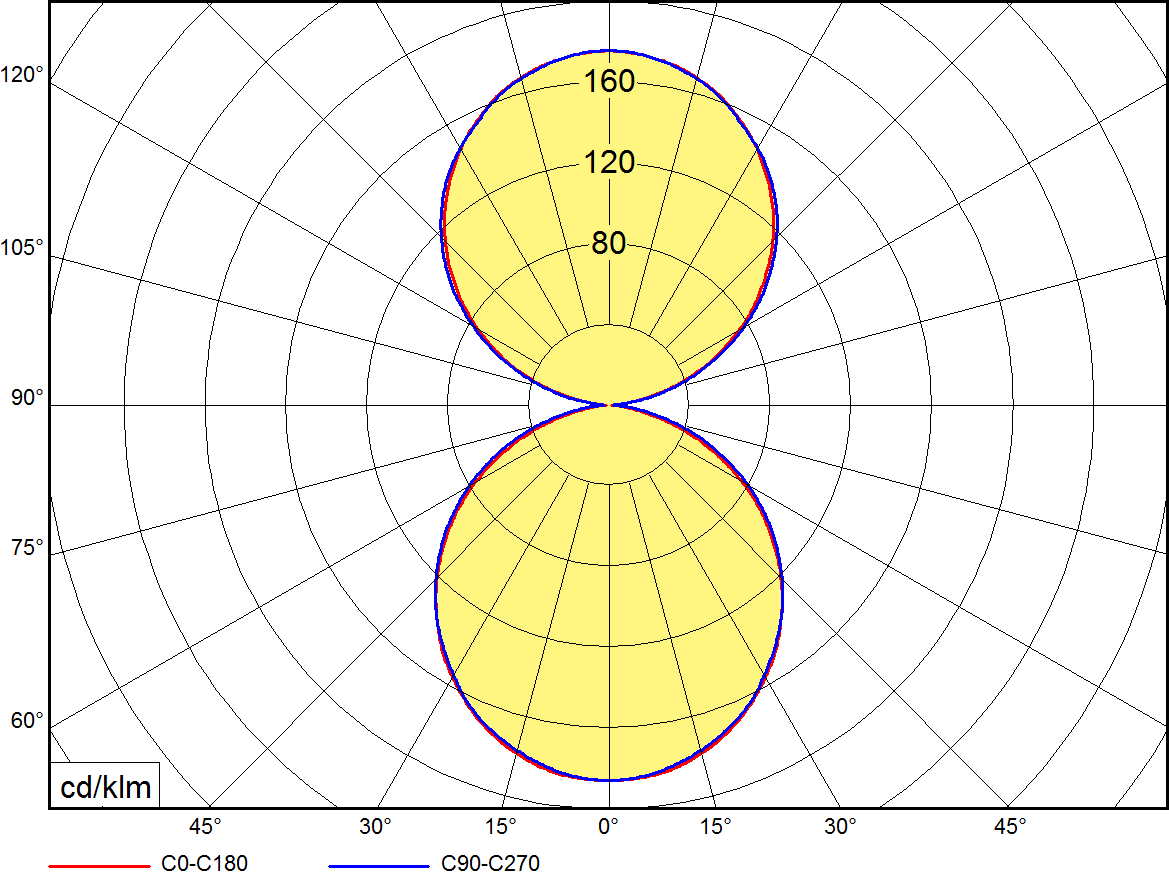

Light distribution


Versions

Effective luminous flux (lm): 5600
System power (W): 72
Color temperature (K): 3000
Effective luminous flux (lm): 5600
System power (W): 72
Color temperature (K): 3000
Dimming Touch and Dim: Yes
Effective luminous flux (lm): 5600
System power (W): 72
Color temperature (K): 4000
Effective luminous flux (lm): 5600
System power (W): 72
Color temperature (K): 4000
Dimming Touch and Dim: Yes

Produced in Czech Republic

Fittings are proudly produced in our production plant.

Only quality electro-components used


LED fittings

Long-life. Minimal consuption.

No service needed.
