MODUS IBP

Recessed LED fitting with cover

MODUS IBP
11 L80_80000_h.jpg

Price from:

900 Kč
( 1 089 Kč including VAT )

Recessed luminaire with opal (KO) or nanoprisma cover (KN). With nanoprisma cover luminaire has UGR 19.



Luminaire is produced in three different sizes:

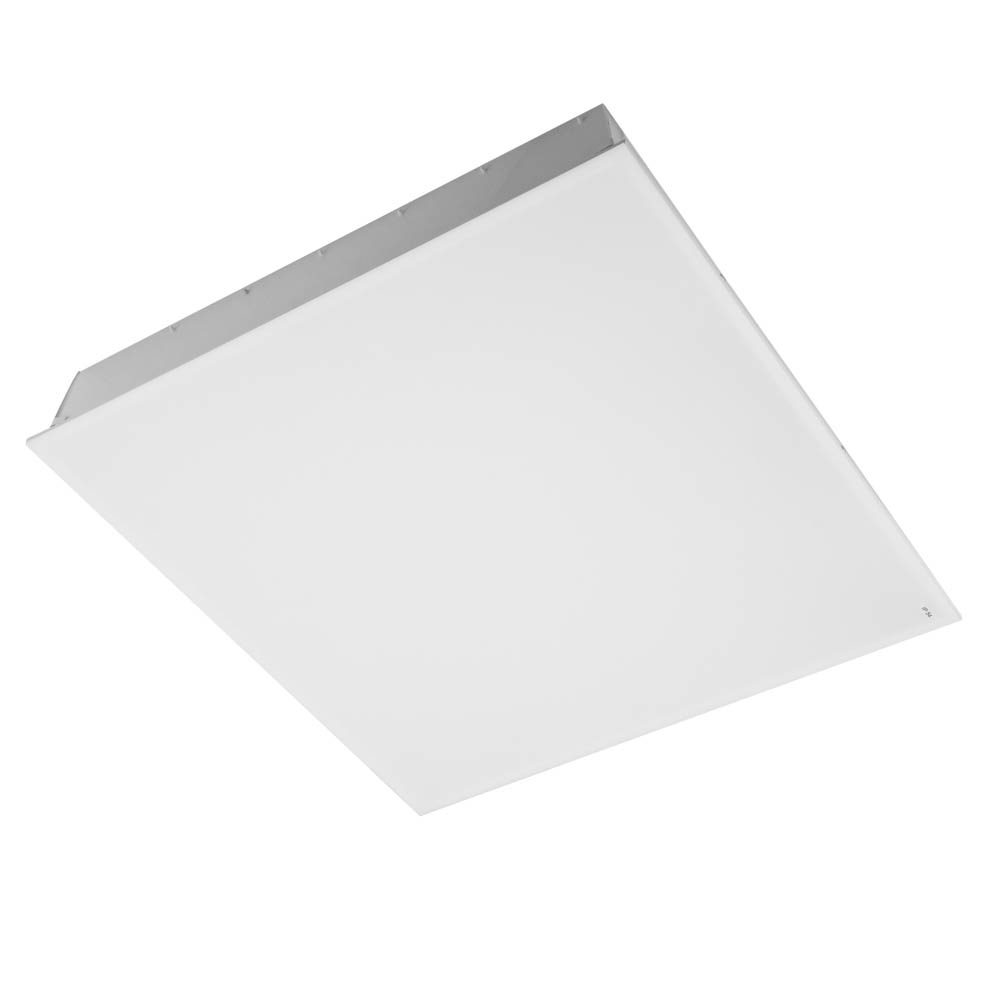

A - 596x596mm

B - 596x296mm

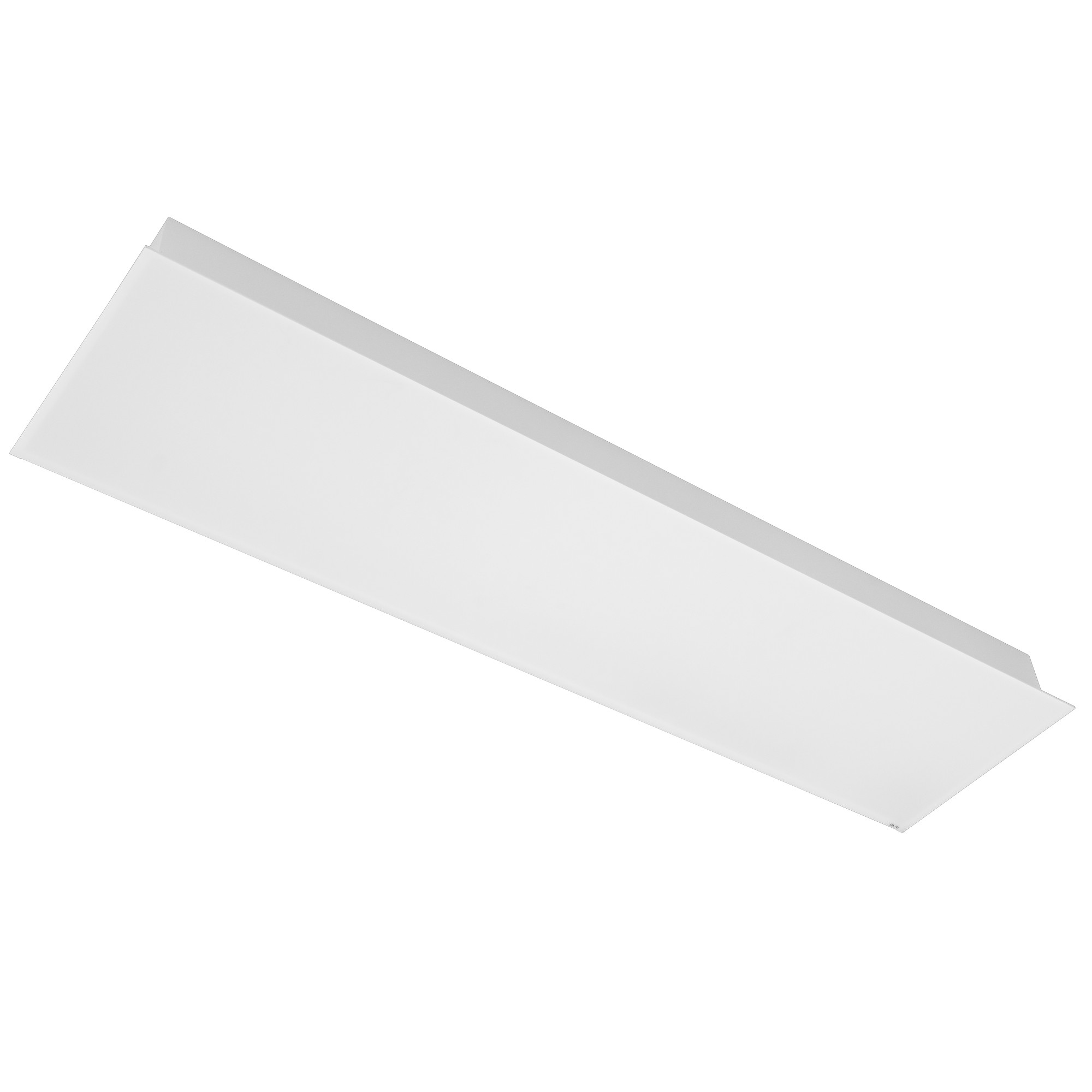

C - 1196x296mm

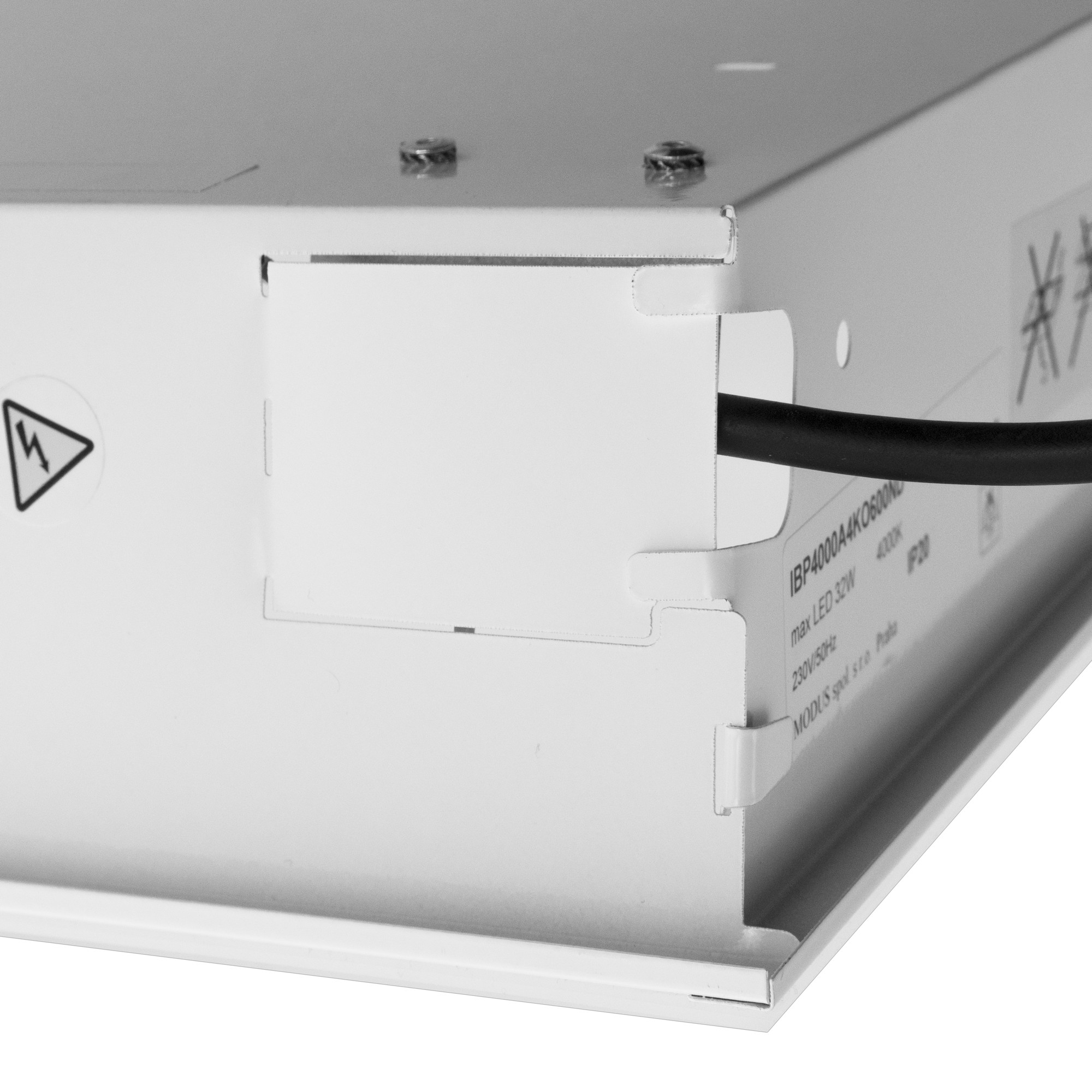

Luminaire is made like non-openable - there is not possibility of emergency kit.

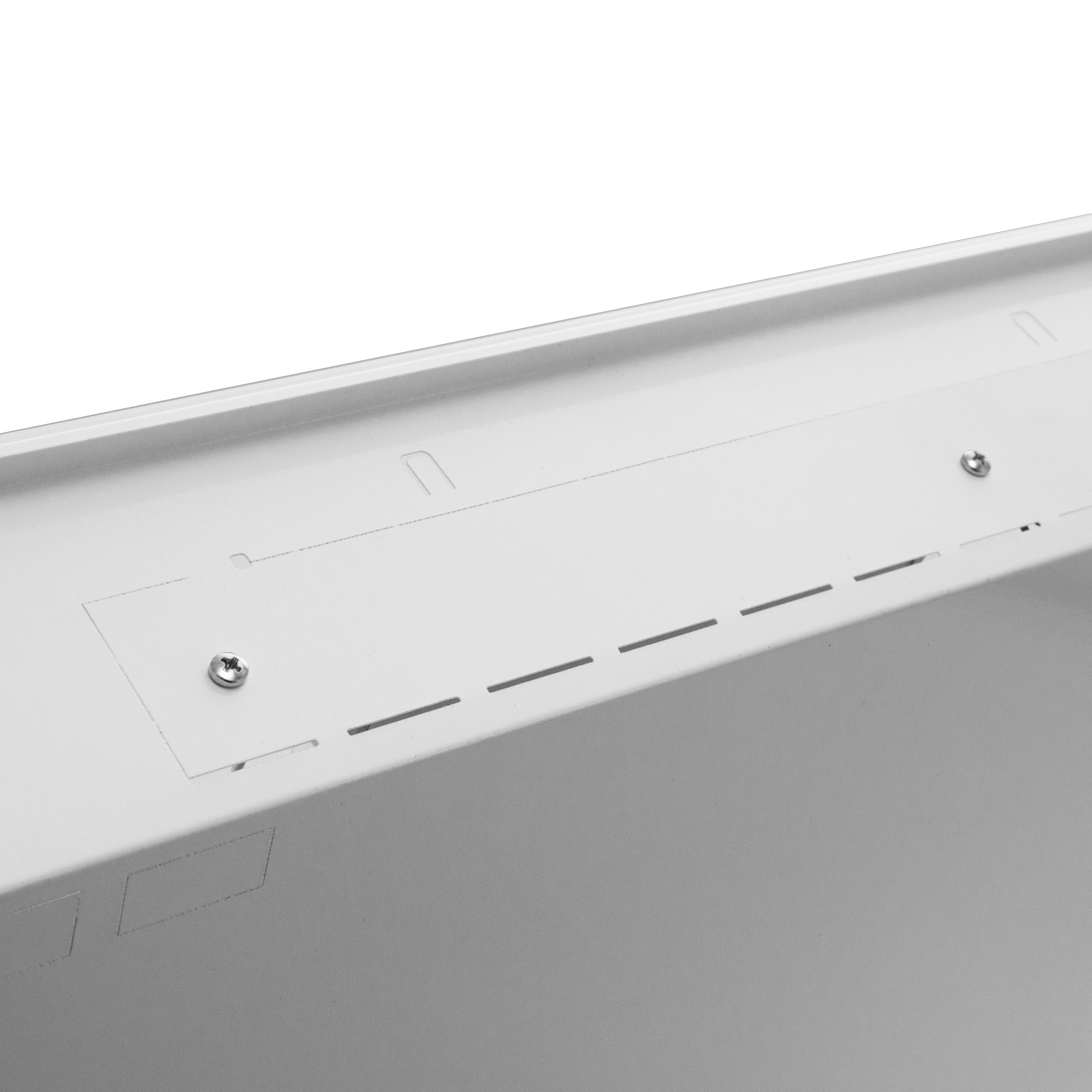

Body:

White painted (RAL 9016) metal sheet



Optic:

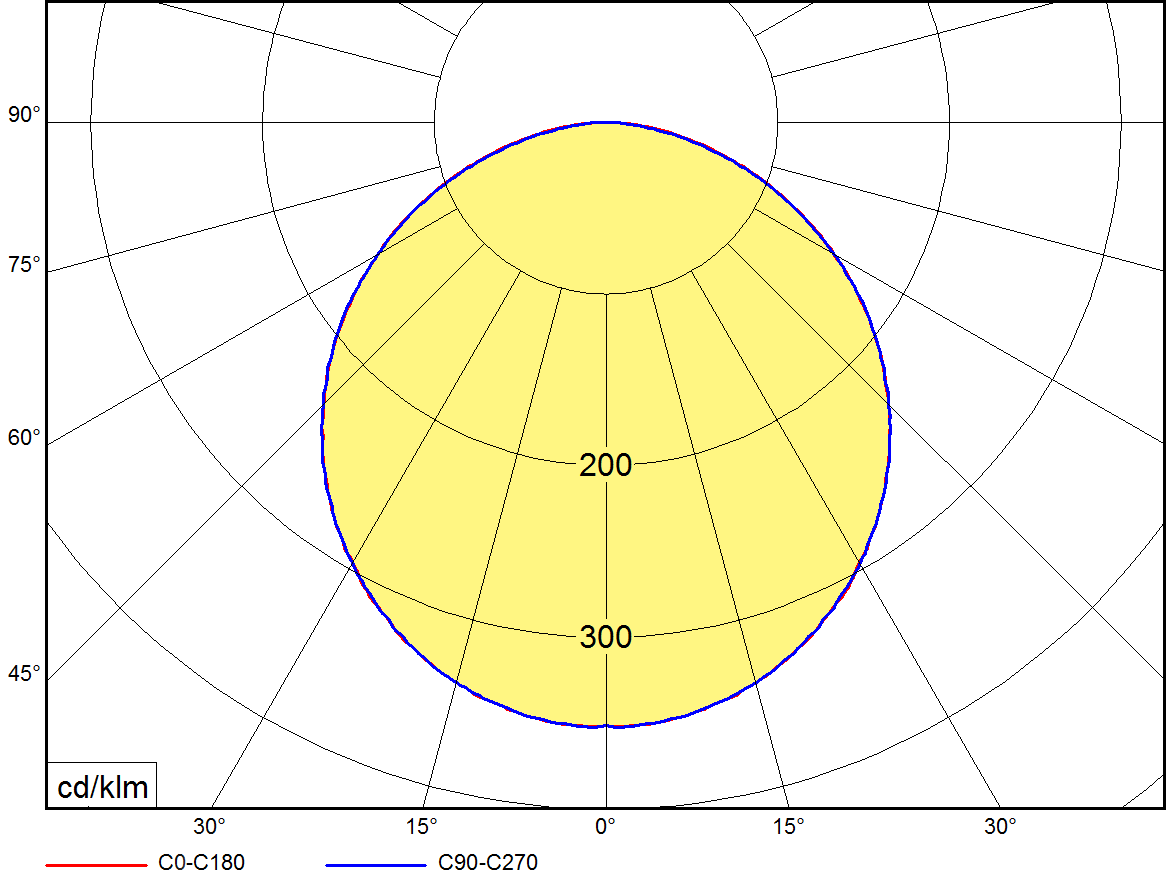

KO - opal PS cover

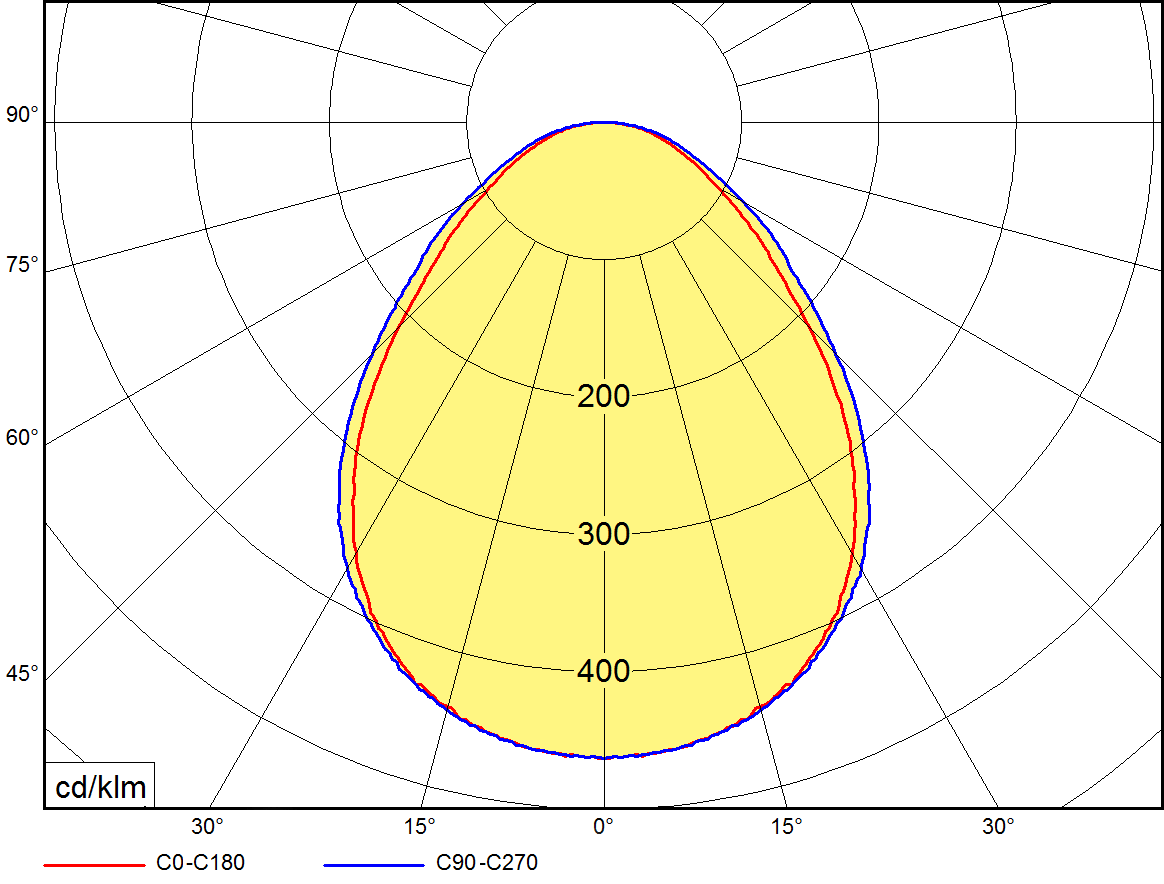

KN - microprizma cover (UGR limitation)



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

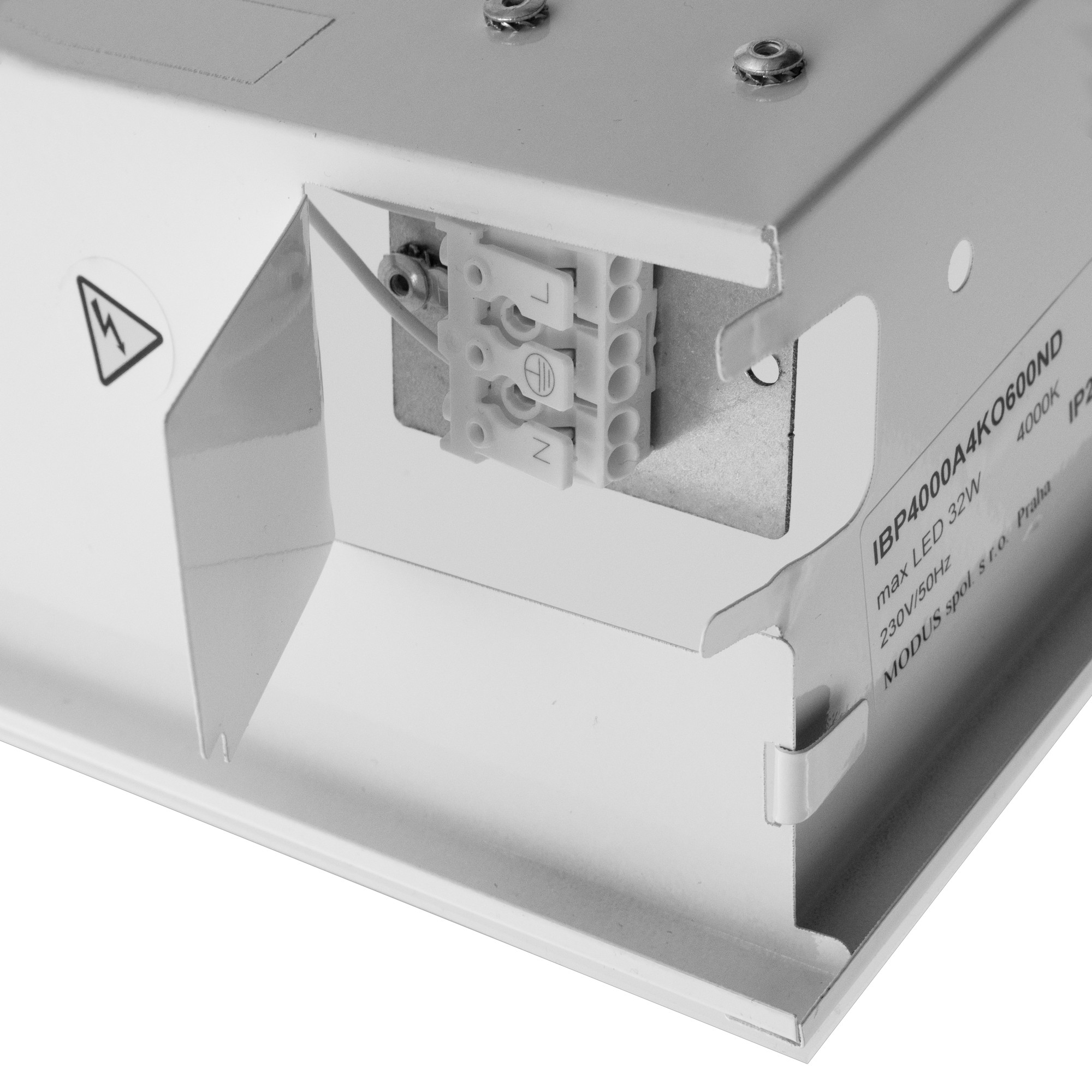

Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

- Recessed - lighting for installation into false ceiling with visible supporting structure (both 600x600 or 625x625 modules).

- Installation into a gypsum plasterboard ceiling can by done with a QVESTRAM frame

The fixture can not be open - emergency module no available



Versions:

600 - for 600 module

625 - for 625 module

K - with GESIS connector (another type of connector on request)

F - with flexible cord



Accessories:

QVESTRAM - a frame for recessed installation into gypsum plasterboard ceiling

Size version:A
600x600 mm or 625x625 mm
B
600x300 mm
C
1200x300 mm
Body material:White painted steel
Mounting method:Built-inProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Lamp type:LED

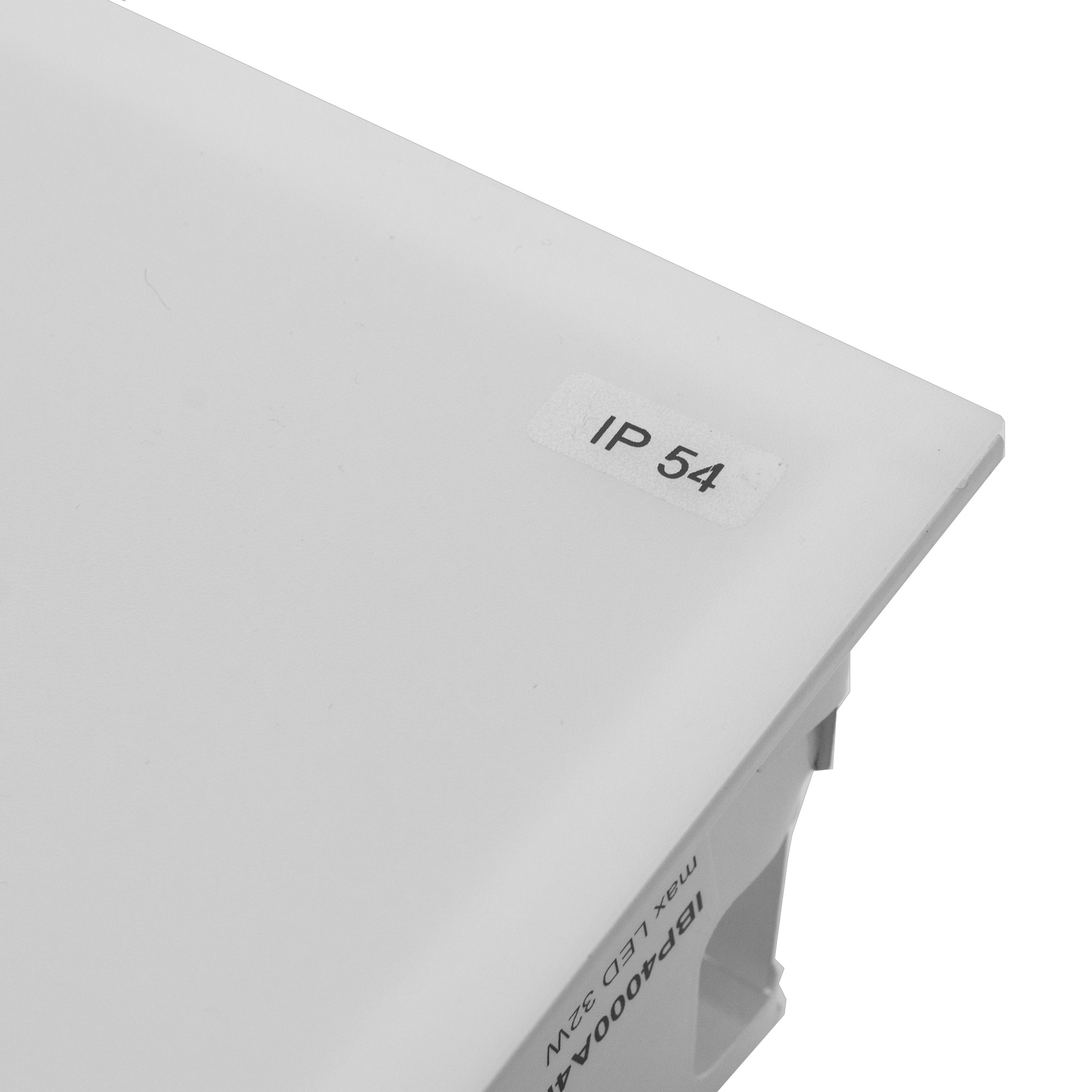

Degree of protection (IP):IP54
Color temperature (K):4000, 3000Rated life time L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KO
opal cover
KN
nanoprizmatic cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1950
6900

System power (W)

15
57
Product name
IB4000A4KO600ND
IBP2000A4KO600DALI
Effective luminous flux (lm): 2000
System power (W): 15
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP2000B3KN600ND
Effective luminous flux (lm): 2050
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP2000B4KN600ND
Effective luminous flux (lm): 2050
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP2000B4KO600ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A2KO600ND/K
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 2700
Optical system: KO
Raster (mm): 600
IBP3000A3KN600DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP3000A3KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP3000A3KN600ND/K
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP3000A3KN600ND/S31
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP3000A3KN625DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IBP3000A3KN625ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IBP3000A3KO600DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000A3KO600DIM
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000A3KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000A3KO600ND/F
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000A3KO600ND/K
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000A3KO625DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP3000A3KO625ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP3000A4KN600DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP3000A4KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP3000A4KN600ND/FW
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP3000A4KN600ND/K
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP3000A4KN625DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IBP3000A4KN625ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IBP3000A4KO600DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A4KO600DALI/K5
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A4KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A4KO600ND/FW/S59
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A4KO600ND/K
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A4KO600ND/KW
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000A4KO625DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP3000A4KO625ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP3000C3KN600DALI/COR
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP3000C3KN600ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP3000C3KO600ND
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000C3KO600ND/K
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP3000C4KN600DALI/COR
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP3000C4KN600ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP3000C4KO600DALI
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000C4KO600ND
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000C4KO600ND/K
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP3000C4KO600ND/S59
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A3KN600DALI
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KD
Raster (mm): 600
IBP4000A3KN600ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP4000A3KN600ND/K
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP4000A3KN600ND/S155
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP4000A3KN625DALI
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IBP4000A3KN625ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IBP4000A3KO600DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000A3KO600DALIBTC/K3
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000A3KO600DIM
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000A3KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000A3KO600ND/K
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000A3KO625DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000A3KO625ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000A3KO625ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000A3KO625ND/K
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000A4KN600DALI
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000A4KN600DALI/90
Effective luminous flux (lm): 3600
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000A4KN600ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000A4KN600ND/90
Effective luminous flux (lm): 3600
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000A4KN600ND/ED
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000A4KN600ND/K
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000A4KN625DALI
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IBP4000A4KN625ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IBP4000A4KO600DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600DALI/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600DALI/K5
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600DALIT
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600ND/ED
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600ND/K
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO600ND/K/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000A4KO625DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP4000A4KO625DIM
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP4000A4KO625ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP4000A4KO625ND/K
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP4000A4PCO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KOPC
Raster (mm): 600
IBP4000A5KN625ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 5700
Optical system: KN
Raster (mm): 625
IBP4000A5KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IBP4000A5KO600ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IBP4000A5KO625ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 5700
Optical system: KO
Raster (mm): 625
IBP4000A6KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 6500
Optical system: KO
Raster (mm): 600
IBP4000C2KO600ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 2700
Optical system: KO
Raster (mm): 600
IBP4000C3KN600DALI/S129
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP4000C3KN600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP4000C3KN600ND/F
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP4000C3KN625ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IBP4000C3KO600DALI
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000C3KO600ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000C3KO600ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP4000C3KO625DIM
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000C3KO625ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000C3KO625ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP4000C4KN600DALI
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000C4KN600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP4000C4KN625ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IBP4000C4KO600DALI
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000C4KO600ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000C4KO600ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP4000C4KO625ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP4000C4KO625ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP5000A3KN600ND
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IBP5000A3KO600ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP5000A4KN600DALI
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP5000A4KN600ND
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP5000A4KO600DALI
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP5000A4KO600DALI/90
Effective luminous flux (lm): 4400
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP5000A4KO600ND
Effective luminous flux (lm): 5000
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP5000C4KO600ND
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP6000A3KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP6000A3KO625ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IBP6000A4KN600DALI
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP6000A4KN600DALI/90
Effective luminous flux (lm): 5600
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP6000A4KN600ND
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IBP6000A4KN600ND/90
Effective luminous flux (lm): 5600
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP6000A4KN625ND
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IBP6000A4KO600DALI
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP6000A4KO600DALI/90
Effective luminous flux (lm): 5500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP6000A4KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP6000A4KO600ND/90
Effective luminous flux (lm): 5500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IBP6000A4KO625ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IBP6000A4PCO600DALI
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KOPC
Raster (mm): 600
IBP6000A5KO600DALI
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IBP6000A5KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IBP6000A5KO625ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Raster (mm): 625
IBP6000C3KO600ND
Effective luminous flux (lm): 6500
System power (W): 52
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IBP6000C5KO600DALI
Effective luminous flux (lm): 6500
System power (W): 52
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
QVESTRAM

QVESTRAM

Aluminium frame for recessed installation

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
