Product series

MODUS ID

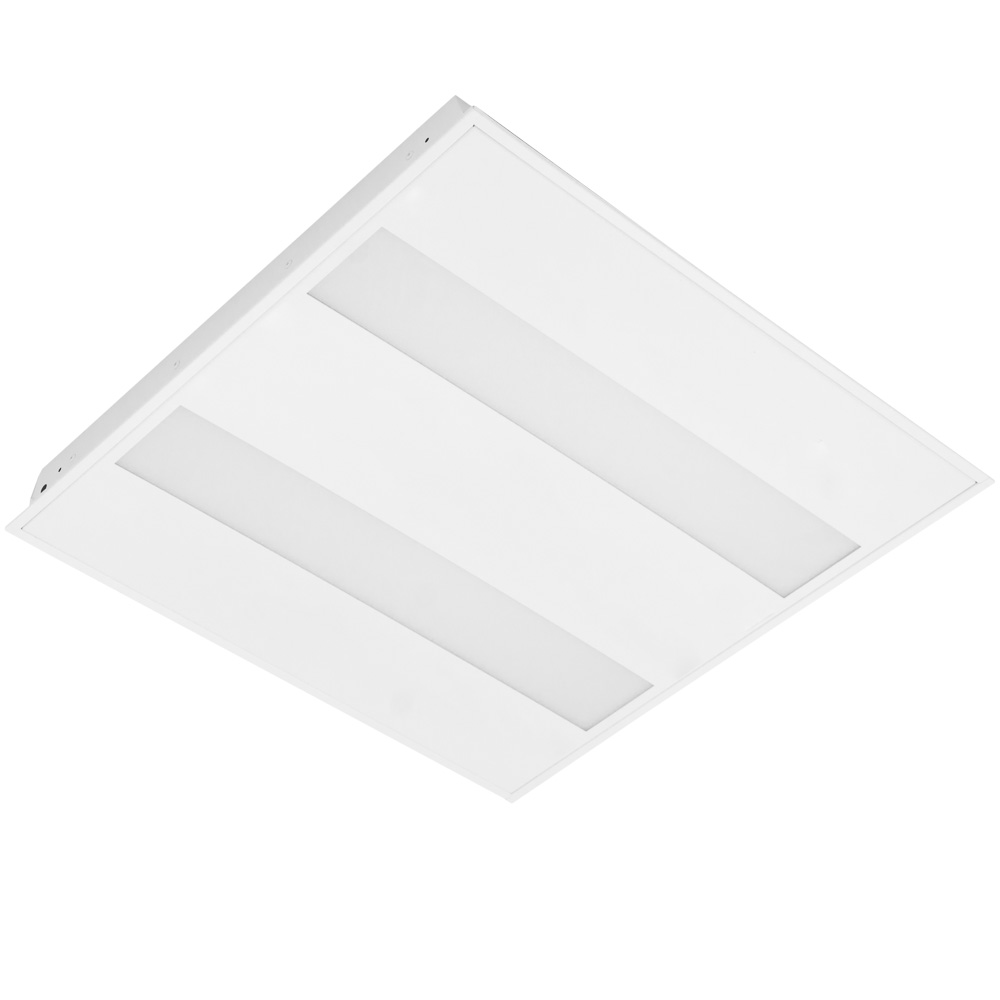

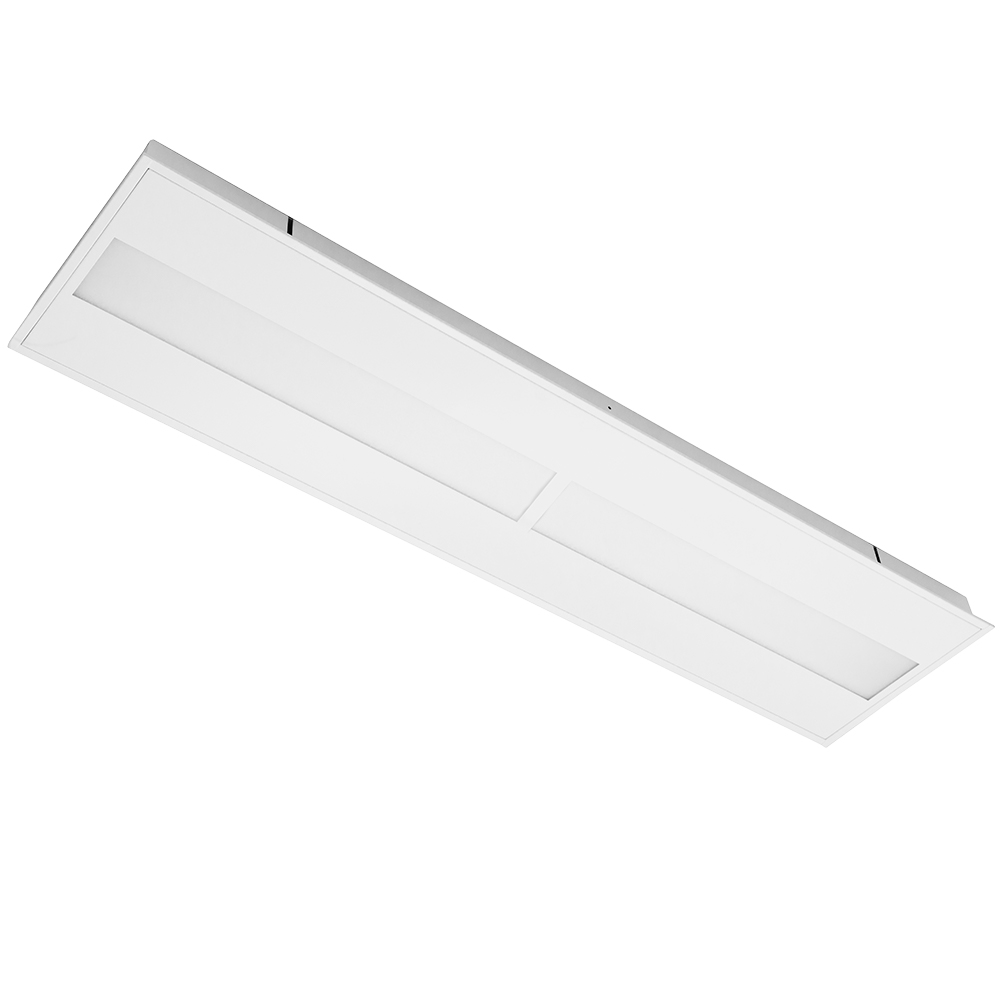

Recessed LED fitting with cover

MODUS IDRA2KOY
11 L80_80000_h.jpg

Price from:

1 700 Kč
( 2 057 Kč including VAT )

Recessed luminaire with opal or nanoprisma cover.



Body:

White painted (RAL 9003) galvanized metal sheet



Optic:

KO - opal PMMA cover

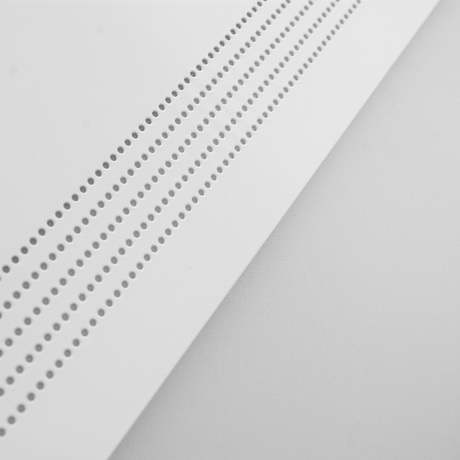

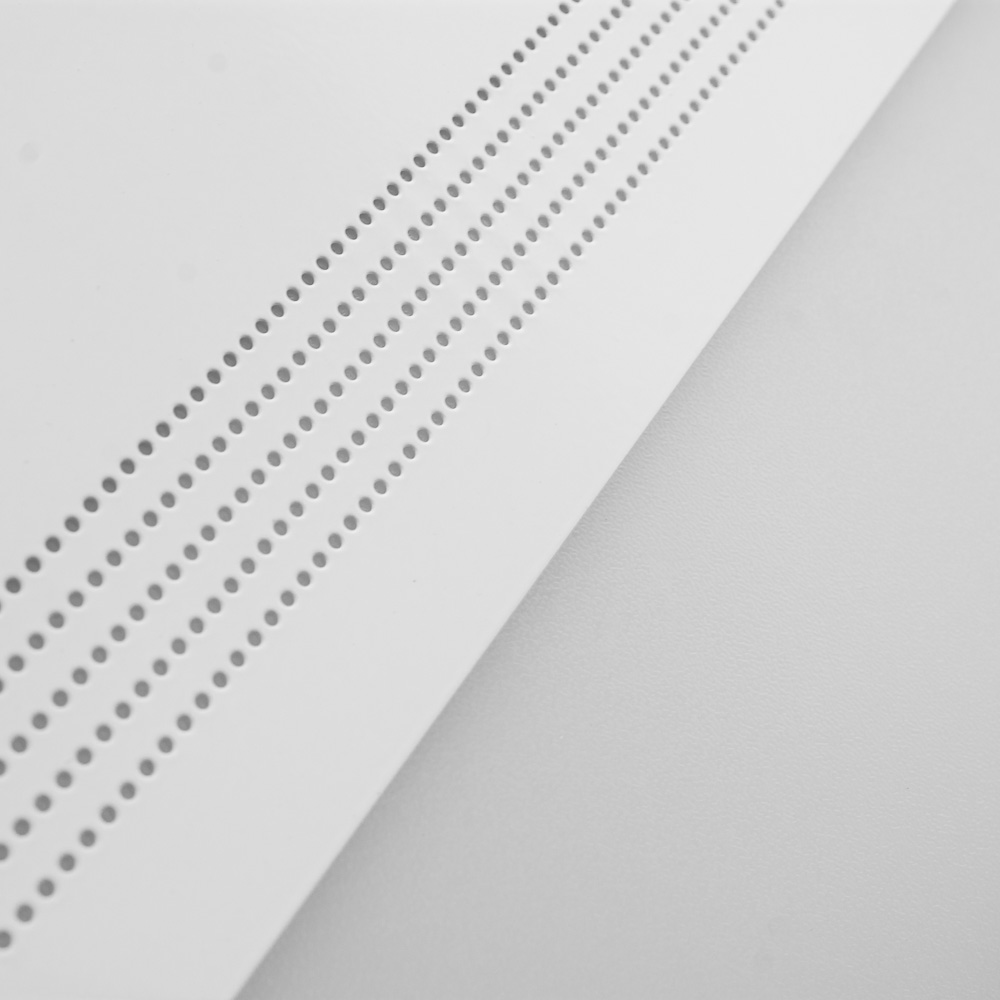

KOY - opal PMMA with perforated steel cover

KN - micro-prizmatic PMMA diffusor JUNGBECKER

KNY - micro-prizmatic PMMA diffusor JUNGBECKER with perforated steel cover



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - dimmable 1-10V DC

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

IDR - Recessed - lighting for installation into false ceiling with visible supporting structure (both 600x600 or 625x625 modules). The fixture can not be open - emergency module no available

IDS - Recessed - lighting for installation into gypsum plasterboard-type ceiling or into false ceiling with visible supporting structure (both 600x600 or 625x625 modules). Included fixing clips 1000004004 for installation into gypsum ceiling



Versions:

600 - for 600 module

625 - for 625 module

K - with GESIS connector

F - with flexible cord

Lamp type:LEDColor temperature (K):3000, 4000
Color rendering index CRI:80-89, 90-100Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20Optical system:KN
nanoprizmatic cover
KNY
kryt nanoprizma + perforovaný plech
KO
opal cover
KOY
kryt opál + perforovaný plech
Body material:White painted steel
Mounting method:Built-in
Protection class:IType of control gear:LED operating device current-controlled
Dimming 1-10 V:YesDimming DALI:Yes
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2700
5800

System power (W)

25
50
Product name
IDRA2KN3V1DALI625/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IDRA2KN3V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDRA2KN3V1ND600/1050K
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDRA2KN3V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDRA2KN3V1ND600/700K
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDRA2KN3V1ND625/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 625
IDRA2KN4V1DALI600/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRA2KN4V1DALI625/1050ISO5
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IDRA2KN4V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRA2KN4V1ND600/1050K
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRA2KN4V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRA2KN4V1ND600/700K
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRA2KN4V1ND625/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IDRA2KNY3V1ND600/1050K
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KNY
Raster (mm): 600
IDRA2KNY3V1ND600/700K
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KNY
Raster (mm): 600
IDRA2KNY4V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KNY
Raster (mm): 600
IDRA2KNY4V1ND600/1050K
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KNY
Raster (mm): 600
IDRA2KNY4V1ND600/700K
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KNY
Raster (mm): 600
IDRA2KNY5V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 5700
Optical system: KNY
Raster (mm): 600
IDRA2KO3V1DALI600/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1DIM600/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1DIM600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1ND600/1050K
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1ND600/700K
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRA2KO3V1ND625/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IDRA2KO3V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IDRA2KO4V1DALI600/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRA2KO4V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRA2KO4V1DALI625/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDRA2KO4V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRA2KO4V1ND600/1050K
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRA2KO4V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRA2KO4V1ND600/700K
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRA2KO4V1ND625/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDRA2KO4V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDRA2KO4V1ND625/700K
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDRA2KO5V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IDRA2KO5V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IDRA2KOY3V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 600
IDRA2KOY3V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 600
IDRA2KOY3V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 625
IDRA2KOY4V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KOY
Raster (mm): 600
IDRA2KOY4V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KOY
Raster (mm): 600
IDRA2KOY4V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KOY
Raster (mm): 625
IDRA2KOY5V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: KOY
Raster (mm): 600
IDRA5KOY4V1ND600/1400ISO3
IDRA5KOY4V1ND625/1400ISO3
IDRC1KN3V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDRC1KN3V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDRC1KN4V1DALI600/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRC1KN4V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRC1KN4V1ND600/500ISO3
Effective luminous flux (lm): 2700
System power (W): 25
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRC1KN4V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDRC1KN4V1ND625/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IDRC1KO3V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRC1KO3V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDRC1KO4V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRC1KO4V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRC1KO4V1ND600/1050K
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRC1KO4V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRC1KO4V1ND600/700K
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDRC1KO4V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDSA2KN3V1DIM600/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDSA2KN3V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDSA2KN3V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDSA2KN3V1ND600NZ/1050ISO5
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDSA2KN4V1DALI600/1050ISO5
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSA2KN4V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSA2KN4V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSA2KN4V1ND600NZ/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSA2KN4V1ND625/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IDSA2KN4V1SRS600/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSA2KNY3V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KNY
Raster (mm): 600
IDSA2KNY3V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KNY
Raster (mm): 600
IDSA2KNY4V1ND600NZ3/1050ISO5
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KNY
Raster (mm): 600
IDSA2KO3V1DALI600/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1DIM600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600/1050FS
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600/1050K
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600/700K
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600NZ/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND600NZ3/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSA2KO3V1ND625/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IDSA2KO3V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IDSA2KO3V1ND625/700K
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IDSA2KO3V1ND625NZ3/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
IDSA2KO4V1DALI600/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1DIM600/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1DIM600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND600/1050K
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND600NZ/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND600NZ/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND600NZ3/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
IDSA2KO4V1ND625/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDSA2KO4V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDSA2KO4V1ND625NZ3/1050ISO5
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
IDSA2KO5V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IDSA2KO5V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 5700
Optical system: KO
Raster (mm): 600
IDSA2KOY3V1DALI600/700ISO5
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 600
IDSA2KOY3V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 600
IDSA2KOY3V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 600
IDSA2KOY3V1ND625/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 625
IDSA2KOY4V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KOY
Raster (mm): 600
IDSC1KN3V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDSC1KN3V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
IDSC1KN4V1DALI625/700ISO5
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
IDSC1KN4V1ND600/1050ISO3
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSC1KN4V1ND600/700ISO3
Effective luminous flux (lm): 4100
System power (W): 33
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
IDSC1KO3V1ND600/700ISO3
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSC1KO3V1ND600NZ/700K4
Effective luminous flux (lm): 4000
System power (W): 33
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
IDSC1KO4V1ND600/1050ISO3
Effective luminous flux (lm): 5600
System power (W): 50
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600

Commercial centrum, České Budějovice

MODUS ID, MODUS HVL, MODUS US, MODUS SBL/R

Detail reference
Recessed installation of luminaires

Recessed installation of luminaires

Accessories for installation into gypsum ceiling

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
