Product series

MODUS KSK

LED fitting with cover - IP44

MODUS KSL4000M
MODUS KSL4000MMODUS KSL4000M
MODUS KSL2000SMODUS KSL2000S
11 L80_80000_h.jpg

Standard price from:

On request
Distribution network
Contacts

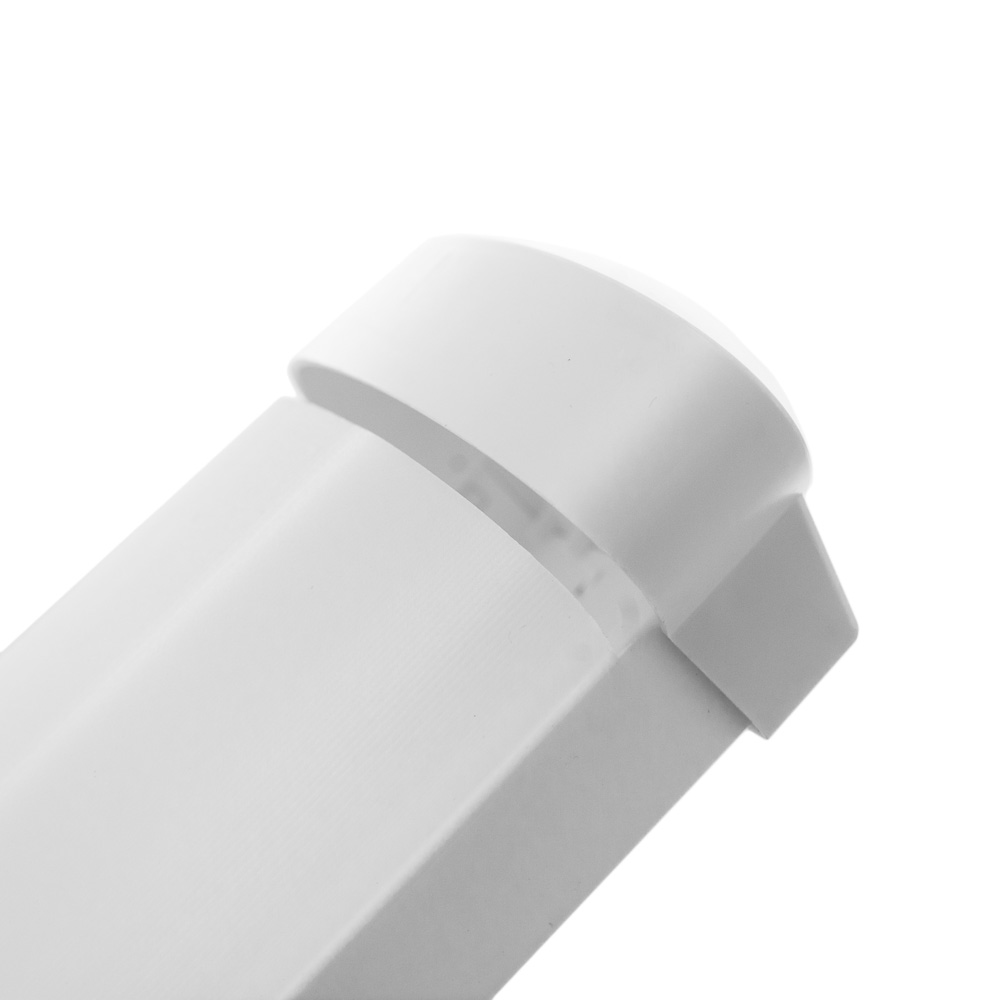

Body:

White painted (RAL 9016) metal sheet

White plastic endcaps

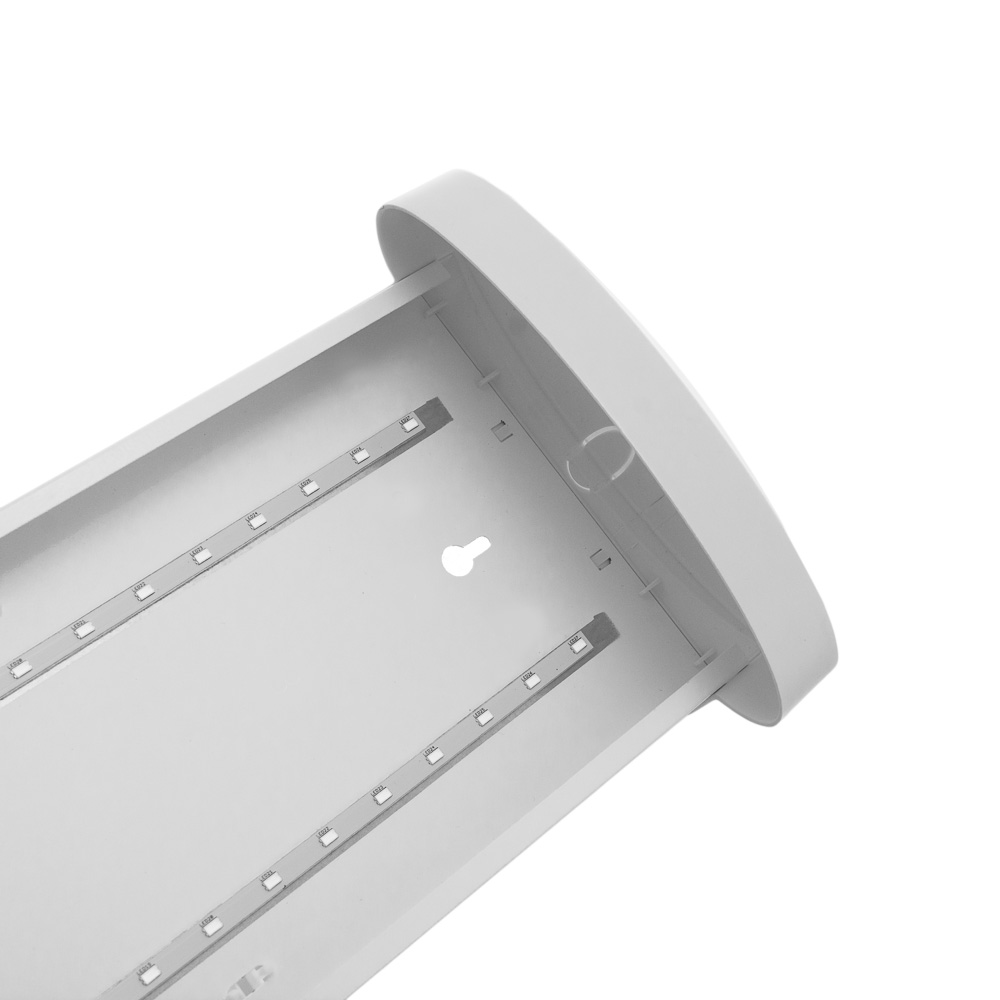

LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

These light fitting can be used as surface mounted



Accessories:

Protection grid - OM

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LED
Degree of protection (IP):IP44
Color temperature (K):4000, 3000Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes

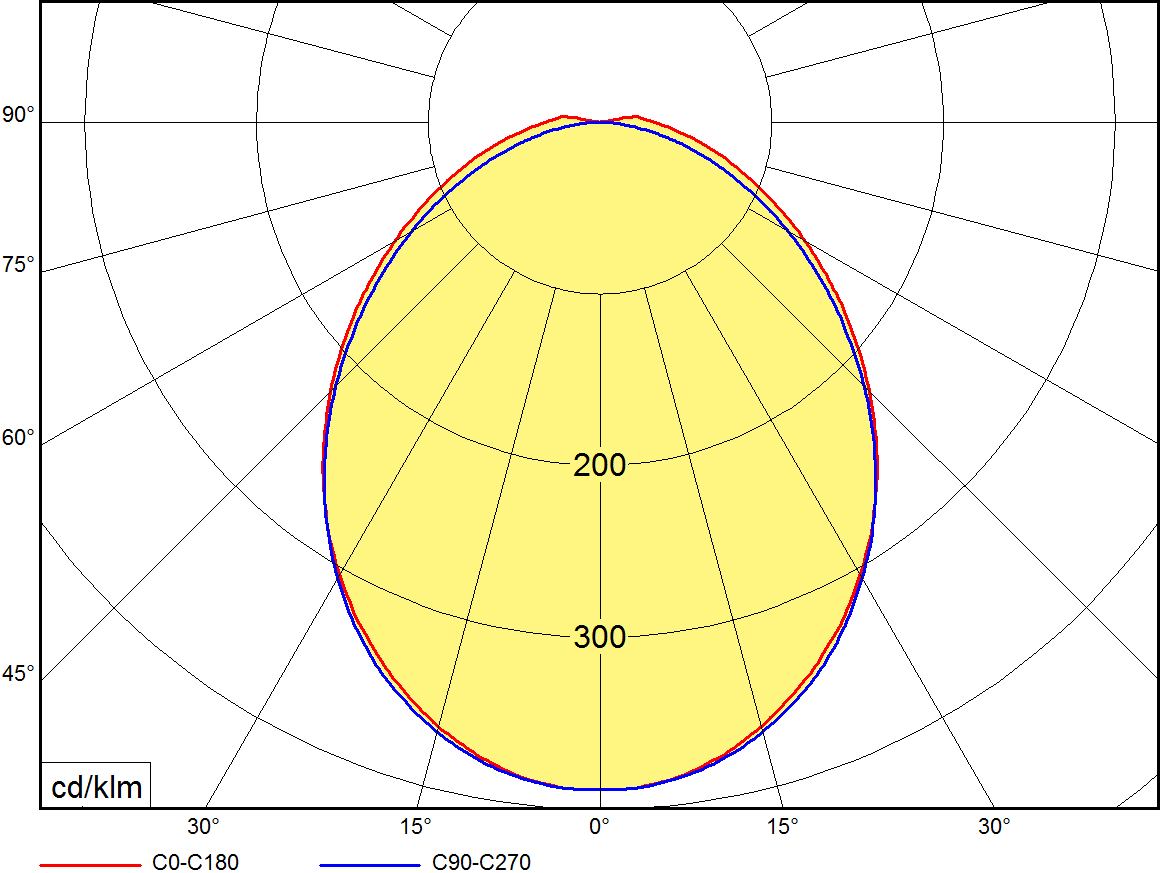

Optical system:KS
semi opal (frosted) cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2500
7500

System power (W)

20
67
Product name
KSK2000M3KS/DALI
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK2000M3KS/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK2000M3KS/NDSL/P1
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK2000M3KS/NDSM
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK2000M3KS/NDSMM
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK2000M3KS/NDSMM/P1
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK2000M4KS/DALI
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK2000M4KS/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK2000M4KS/NDNZ3
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK2000M4KS/NDSM
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK2000S3KS/DALI
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 3000
Length (mm): 683
Size version: S
KSK2000S3KS/ND
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 3000
Length (mm): 683
Size version: S
KSK2000S3KS/NDSM
Effective luminous flux (lm): 2500
System power (W): 23
Color temperature (K): 3000
Length (mm): 683
Size version: S
KSK2000S3KS/NDSM/S106
Effective luminous flux (lm): 2500
System power (W): 23
Color temperature (K): 3000
Length (mm): 683
Size version: S
KSK2000S4KS/DALI
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 4000
Length (mm): 683
Size version: S
KSK2000S4KS/DALIT
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 4000
Length (mm): 683
Size version: S
KSK2000S4KS/ND
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 4000
Length (mm): 683
Size version: S
KSK2000S4KS/NDSM
Effective luminous flux (lm): 2500
System power (W): 23
Color temperature (K): 4000
Length (mm): 683
Size version: S
KSK3000L3KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK3000L3KS/NDNZ
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK3000L3KS/NDSM
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK3000L4KS/DALIT
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK3000L4KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK4000M3KS/DALI
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/DALI/90
Effective luminous flux (lm): 4200
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/DALI/F5W
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/DIM
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/ND
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/ND/90
Effective luminous flux (lm): 4200
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/ND/FW
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/NDNZ
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/NDSM
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M3KS/NDSM/S106
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK4000M4KS/DALI
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/ND
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/ND/90
Effective luminous flux (lm): 4200
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/NDNZ
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/NDNZ3
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/NDSL/P1
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/NDSM
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK4000M4KS/NDSM/S106
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK5000L4KS/ND
System power (W): 48
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK6000L3KS/DALI
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK6000L3KS/DALIT
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK6000L3KS/ND
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK6000L3KS/NDSM
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 3000
Length (mm): 1593
Size version: L
KSK6000L4KS/DALI
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK6000L4KS/ND
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK6000L4KS/ND/P2,5
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK6000L4KS/NDSM
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK6000L4KS/NDSM/S106
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 4000
Length (mm): 1593
Size version: L
KSK6000L5KS/ND
Effective luminous flux (lm): 7300
System power (W): 52
Color temperature (K): 5700
Length (mm): 1593
Size version: L
KSK8000M3KS/ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 3000
Length (mm): 1293
Size version: M
KSK8000M4KS/ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 4000
Length (mm): 1293
Size version: M
KSK8000M4KS/NDSM
Effective luminous flux (lm): 7500
System power (W): 67
Color temperature (K): 4000
Length (mm): 1293
Size version: M
Show all versions
