Product series

MODUS KSL

LED fitting with cover

MODUS KSL4000M
1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

Body:

White painted (RAL 9016) metal sheet

White plastic endcaps



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

These light fitting can be used as surface mounted or suspended



Accessories:

ZH/UNI4 - suspension set

Protection grid - OM

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Wall surface mounted, Surface mounting, SuspendedProtection class:I
With movement sensor:YesColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Nominal voltage (V):220...240Degree of protection (IP):IP40
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes

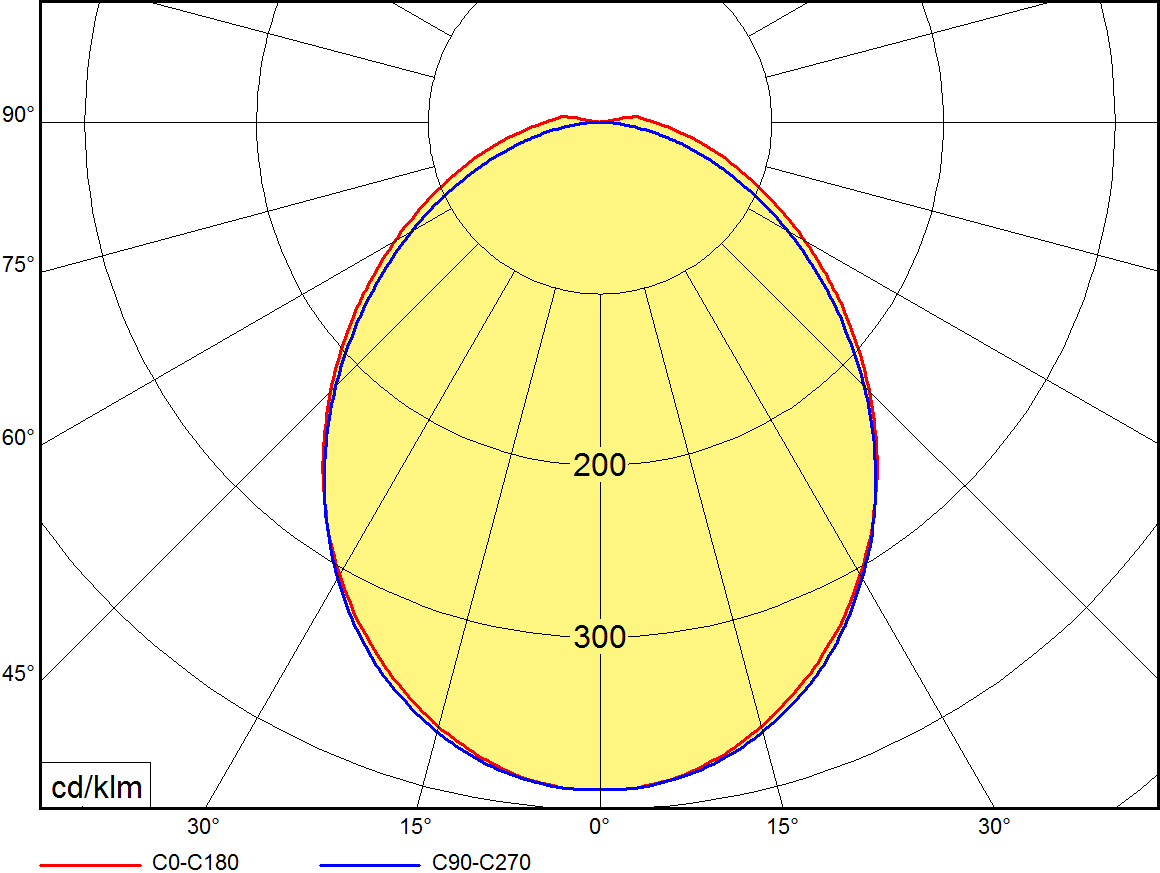

Optical system:KS
semi opal (frosted) cover
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2500
7500

System power (W)

20
65
Product name
KSL2000M3KS/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
KSL2000M4KS/DALIT
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
KSL2000M4KS/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
KSL2000S3KS/DALI
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 3000
KSL2000S3KS/ND
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 3000
KSL2000S4KS/DALI
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 4000
KSL2000S4KS/ND
Effective luminous flux (lm): 2500
System power (W): 21
Color temperature (K): 4000
KSL3000L3KS/DALI
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
KSL3000L3KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
KSL3000L3KS/NDNZ
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 3000
KSL3000L4KS/DALI
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 4000
KSL3000L4KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 4000
KSL3000L4KS/NDNZ
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 4000
KSL3000L5KS/ND
Effective luminous flux (lm): 4400
System power (W): 30
Color temperature (K): 5700
KSL4000M3KS/DIM
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
KSL4000M3KS/ND
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
KSL4000M3KS/NDNZ
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 3000
KSL4000M4KS/DALI
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
KSL4000M4KS/DIM
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
KSL4000M4KS/ND
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
KSL4000M4KS/NDNZ
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
KSL4000M4KS/NDNZ3
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
KSL4000M4KS/NDSM
Effective luminous flux (lm): 5000
System power (W): 41
Color temperature (K): 4000
KSL4000S3KS/ND
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 3000
KSL4000S4KS/ND
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 4000
KSL6000L3KS/DALI
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 3000
KSL6000L3KS/ND
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 3000
KSL6000L3KS/NDSM
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 3000
KSL6000L4KS/DALI
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 4000
KSL6000L4KS/DIM
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 4000
KSL6000L4KS/ND
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 4000
KSL6000L4KS/NDNZ
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 4000
KSL6000L4KS/NDNZ3
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 4000
KSL6000L4KS/NDSM
Effective luminous flux (lm): 7300
System power (W): 51
Color temperature (K): 4000
KSL8000M3KS/ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 3000
KSL8000M4KS/ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 4000
