MODUS KX

Surface luminaire with IP54

MODUS KX
1 M10_nasten_celkove_osv.jpg
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

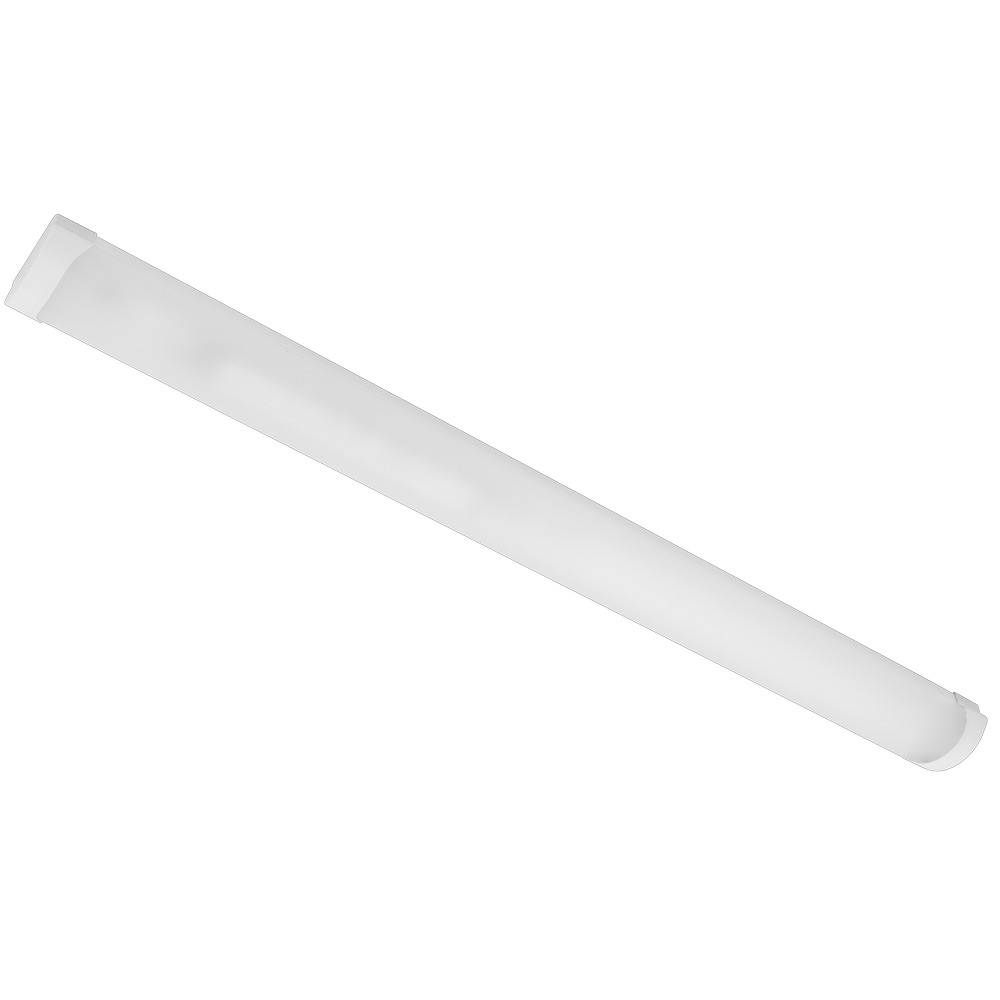

Surfaced opal cover luminaire with higher IP protection (IP54)

In additional this luminaire can be delivered also with emergency modul and sensor.

For tips and standards for school classes, gyms and facilities take a look on our Luminaires for School magazine

Body:

White painted (RAL 9016) metal sheet

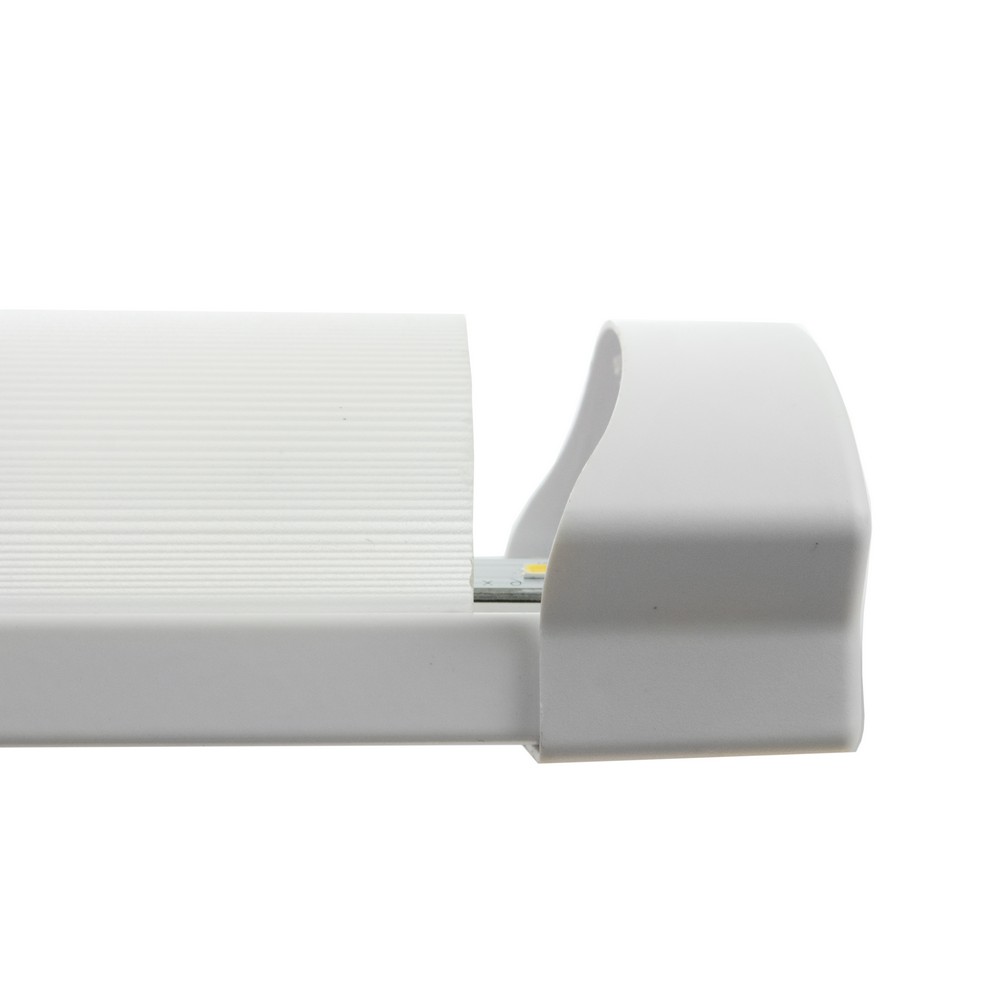

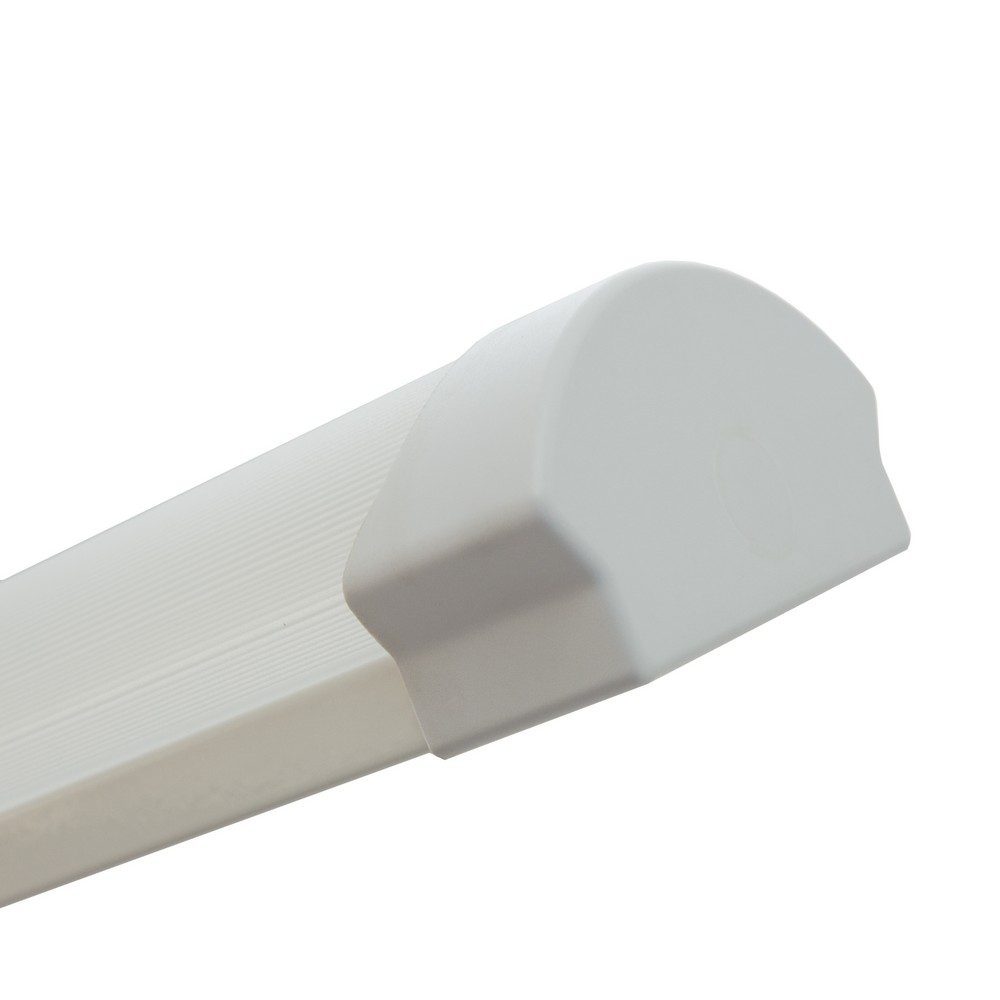

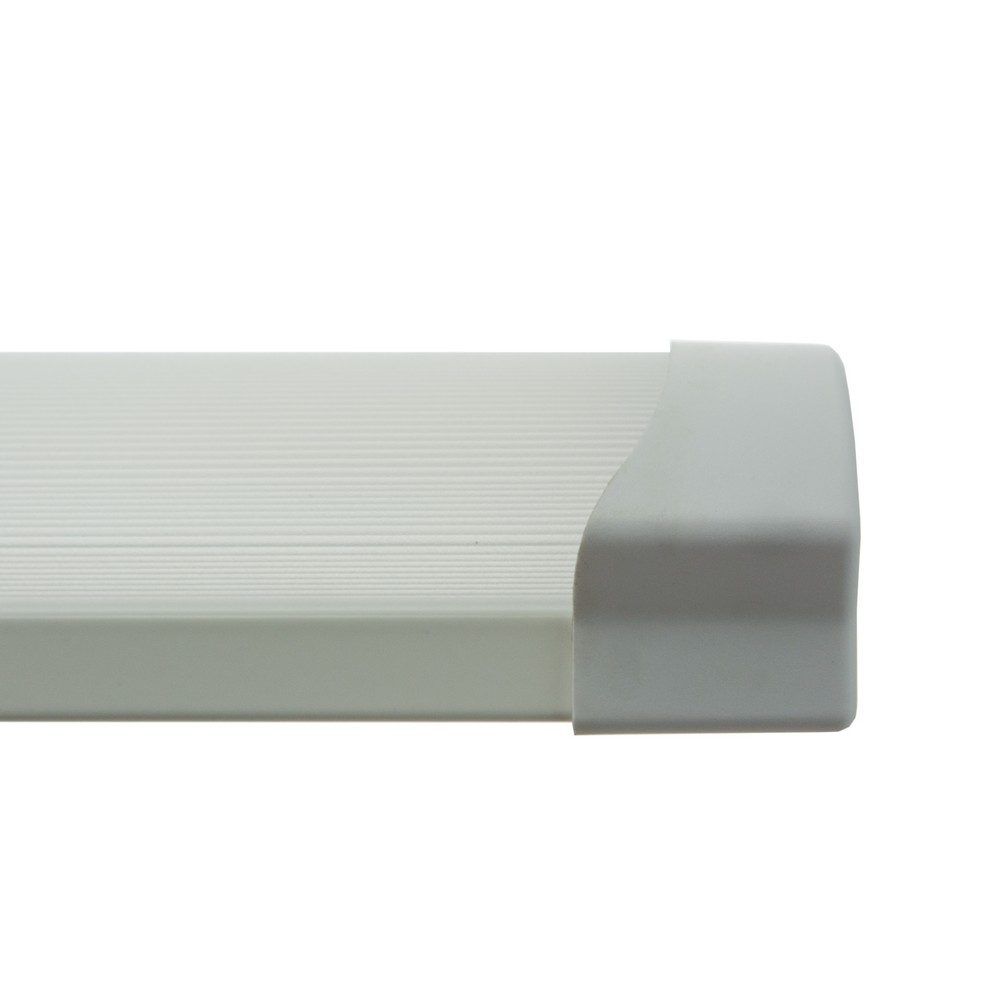

White plastic endcaps

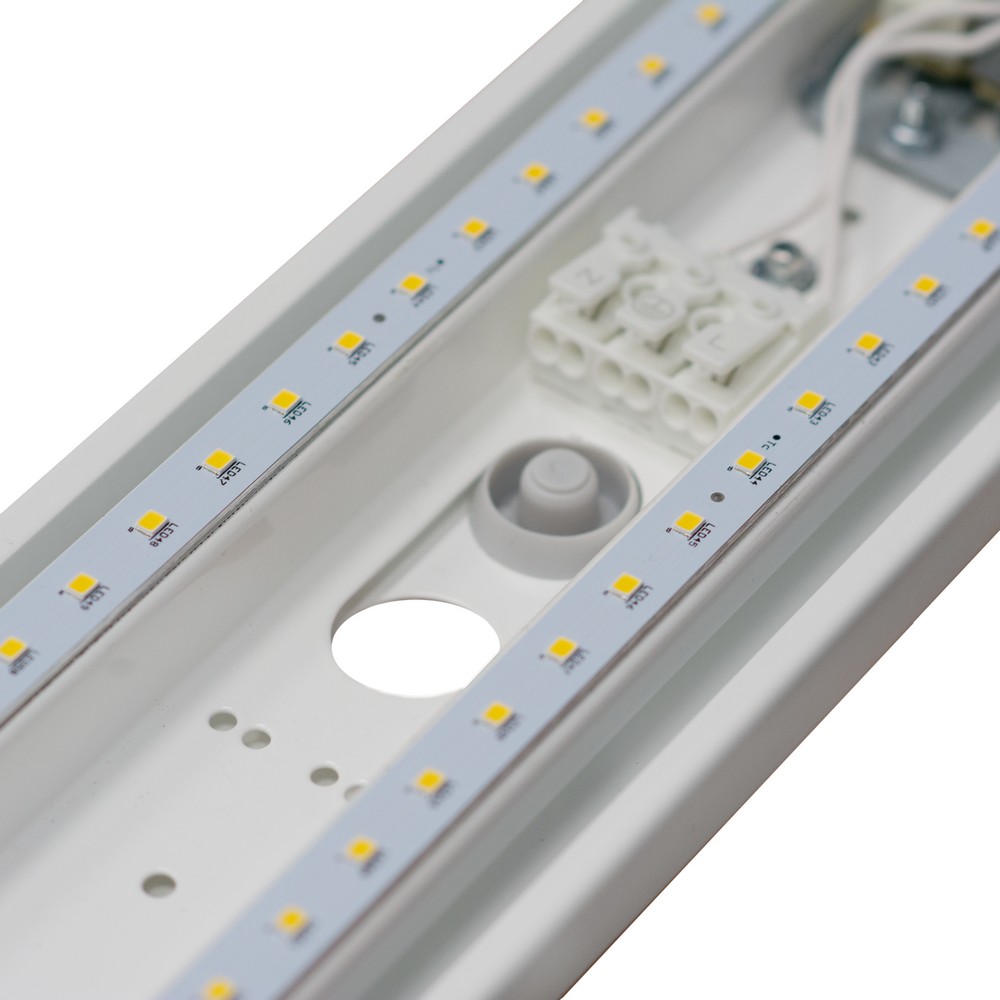

LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K

Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

SM - microwave sensor Hytronic

Luminaire can be supplied with wireless Bluetooth control - more information here.

Application:

These light fitting can be used as surface mounted

Size version:L
1500 mm
M
1200 mm
S
600 mm
Body material:White painted steel
Mounting method:Wall surface mounted, Surface mounting, SuspendedProtection class:I
With movement sensor:No, YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Lamp type:LED
Color temperature controllable (K):YesNominal voltage (V):220...240
Degree of protection (IP):IP54
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated life time L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesOptical system:KS
semi opal (frosted) cover
Made in Czech republic:Yes Without Chinese components:Ano
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1300
8200

System power (W)

18
60
Product name
KX1000S3KO/ND
Effective luminous flux (lm): 1300
Color temperature (K): 3000
KX1000S4KO/ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
KX1000S4KO/NDSM
Effective luminous flux (lm): 1300
Color temperature (K): 4000
With movement sensor: Yes
KX1000S4KO/NDSMM
Effective luminous flux (lm): 1300
Color temperature (K): 4000
With movement sensor: Yes
KX2000S2KO/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 2700
KX2000S3KO/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
KX2000S3KO/ND/S116
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
KX2000S3KO/NDSM
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 3000
With movement sensor: Yes
KX2000S4KO/DALI
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
KX2000S4KO/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
KX2000S4KO/ND/90
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
KX2000S4KO/NDSM
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 4000
With movement sensor: Yes
KX2000S4KO/NDSMM
Effective luminous flux (lm): 2500
System power (W): 22
Color temperature (K): 4000
With movement sensor: Yes
KX2000S5KO/ND
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 5700
KX3000L4KO/ND
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
KX3000L4KO/NDNZ
Effective luminous flux (lm): 3300
System power (W): 22
Color temperature (K): 4000
KX3000M3KO/DIM
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 3000
KX3000M3KO/ND
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 3000
KX3000M3KO/ND/P2,5
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 3000
KX3000M3KO/NDNZ
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 3000
KX3000M3KO/NDSL/P1
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 3000
KX3000M3KO/NDSM
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 3000
With movement sensor: Yes
KX3000M3KO/NDSM/S106
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 3000
With movement sensor: Yes
KX3000M3KO/NDSMM/P1
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 3000
With movement sensor: Yes
KX3000M3KO/NDSMM/P1/90
Effective luminous flux (lm): 2100
System power (W): 20
Color temperature (K): 3000
With movement sensor: Yes
KX3000M4KO/DALI
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/DALISM/COR
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
With movement sensor: Yes
KX3000M4KO/ND
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/ND/P2,5
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/ND/P2,5/S31
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/NDNZ
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/NDNZ3
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/NDNZPT
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
KX3000M4KO/NDSM
Effective luminous flux (lm): 2600
System power (W): 20
Color temperature (K): 4000
With movement sensor: Yes
KX3000M5KO/ND
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 5700
KX3000S4KO/ND
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 4000
KX3500S4KO/ND
Effective luminous flux (lm): 3500
System power (W): 25
Color temperature (K): 4000
KX4000L3KO/ND
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 3000
KX4000L3KO/NDNZ
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 3000
KX4000L4KO/DALI
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
KX4000M3KO/DALI
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 3000
KX4000M3KO/ND
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 3000
KX4000M3KO/NDNZ
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 3000
KX4000M4KO/DALI
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/DALINZ3
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/ND
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/ND/90
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/ND/EU
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/NDNZ
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/NDNZ3
Effective luminous flux (lm): 3800
System power (W): 25
Color temperature (K): 4000
KX4000M4KO/NDSM
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
With movement sensor: Yes
KX4000M4KO/NDSM/S106
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
With movement sensor: Yes
KX4000M6KO/NDSM
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 6500
With movement sensor: Yes
KX4000S3KO/DALI
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 3000
KX4000S3KO/ND
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 3000
KX4000S3KO/NDSM
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
With movement sensor: Yes
KX4000S4KO/DALI
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
KX4000S4KO/ND
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
KX4000S4KO/ND/EU
Effective luminous flux (lm): 4000
System power (W): 30
Color temperature (K): 4000
KX4000S4KO/NDSM
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
With movement sensor: Yes
KX4500M4KO/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 4000
KX5000L4KO/ND
Effective luminous flux (lm): 5200
System power (W): 36
Color temperature (K): 4000
KX5000M3KMO/NDNZ
Effective luminous flux (lm): 4200
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/DALI
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/DALI/BTC
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/DALI/COR
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/DALINZ
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/DALISMM/COR
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
With movement sensor: Yes
KX5000M3KO/DALISMM/COR/P1
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
With movement sensor: Yes
KX5000M3KO/DALIT
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/ND
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/ND/90
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/ND/P1
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/ND/P2,5
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/ND/S116
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/NDNZ
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/NDNZ3
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/NDSL/P1
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 3000
KX5000M3KO/NDSM
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
With movement sensor: Yes
KX5000M3KO/NDSMM/P1
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 3000
With movement sensor: Yes
KX5000M4KMO/ND
Effective luminous flux (lm): 4200
System power (W): 36
Color temperature (K): 4000
KX5000M4KMO/NDNZ
Effective luminous flux (lm): 4200
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/DALI
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/DALI/COR
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/DALI/P1
Effective luminous flux (lm): 5000
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/DALISMM/COR
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
With movement sensor: Yes
KX5000M4KO/ND
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/ND/90
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/ND/EU
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/ND/P
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/ND/P2,5
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/ND/S116
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/NDNZ
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/NDNZ/P1
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/NDNZ3
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/NDNZPT
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/NDSL/P1
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 4000
KX5000M4KO/NDSM
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
With movement sensor: Yes
KX5000M4KO/NDSM/S106
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
With movement sensor: Yes
KX5000M4KO/NDSMM
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
With movement sensor: Yes
KX5000M4KO/NDSMM/P1
Effective luminous flux (lm): 5400
System power (W): 38
Color temperature (K): 4000
With movement sensor: Yes
KX5000M5KO/DALI/P1/90
Effective luminous flux (lm): 4300
System power (W): 36
Color temperature (K): 5700
KX5000M5KO/ND
Effective luminous flux (lm): 5400
System power (W): 36
Color temperature (K): 5700
KX6000L3KO/DALI
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 3000
KX6000L3KO/DALIT
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 3000
KX6000L3KO/ND
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 3000
KX6000L3KO/ND/S116
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 3000
KX6000L3KO/NDSM
Effective luminous flux (lm): 6900
System power (W): 49
Color temperature (K): 3000
With movement sensor: Yes
KX6000L3KO/NDSM/S106
Effective luminous flux (lm): 6900
System power (W): 49
Color temperature (K): 3000
With movement sensor: Yes
KX6000L4KO/DALI
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/DALIT
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/ND
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/ND/P
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/ND/P2,5
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/ND/S116
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/NDNZ
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/NDNZ3
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 4000
KX6000L4KO/NDSM
Effective luminous flux (lm): 6900
System power (W): 49
Color temperature (K): 4000
With movement sensor: Yes
KX6000L4KO/NDSM/S106
Effective luminous flux (lm): 6900
System power (W): 49
Color temperature (K): 4000
With movement sensor: Yes
KX6000L6KO/ND
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 6500
KX6000L6KO/ND/P2,5
Effective luminous flux (lm): 6900
System power (W): 47
Color temperature (K): 6500
KX6000M4KMO/ND
Effective luminous flux (lm): 5900
System power (W): 49
Color temperature (K): 4000
KX8000L3KO/DALIT
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 3000
KX8000L3KO/ND
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 3000
KX8000L3KO/ND/P1
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 3000
KX8000L3KO/ND/P2,5/90
Effective luminous flux (lm): 7000
System power (W): 58
Color temperature (K): 3000
KX8000L3KO/NDNZ
Effective luminous flux (lm): 7000
System power (W): 58
Color temperature (K): 3000
KX8000L4KO/DALI
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 4000
KX8000L4KO/ND
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 4000
KX8000L4KO/ND/P
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 4000
KX8000L4KO/ND/P2,5
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 4000
KX8000L4KO/NDSMM/P1
Effective luminous flux (lm): 8200
System power (W): 60
Color temperature (K): 4000
With movement sensor: Yes
KX8000L5KO/ND
Effective luminous flux (lm): 8200
System power (W): 58
Color temperature (K): 5700

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Protection grids

Protection grids

Steel protection grids

Pendant mounting of luminaires

Pendant mounting of luminaires

Wire suspensions sets

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
