MODUS LAB

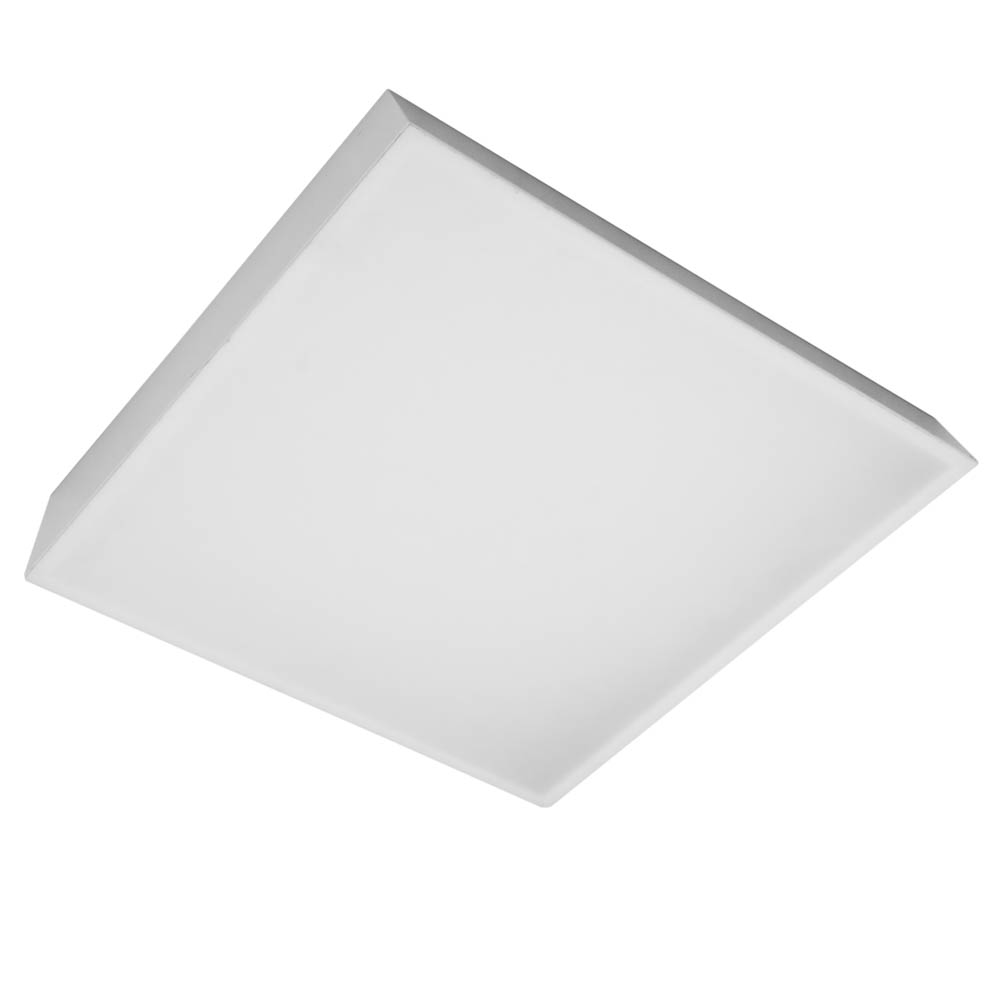

Recessed LED fitting IP65

MODUS LAB
12 CCT_3000.jpg
12 CCT_4000.jpg
11 L80_80000_h.jpg

Price from:

2 000 Kč
( 2 420 Kč including VAT )

Recessed luminaire for moisture places like kitchen, etc.

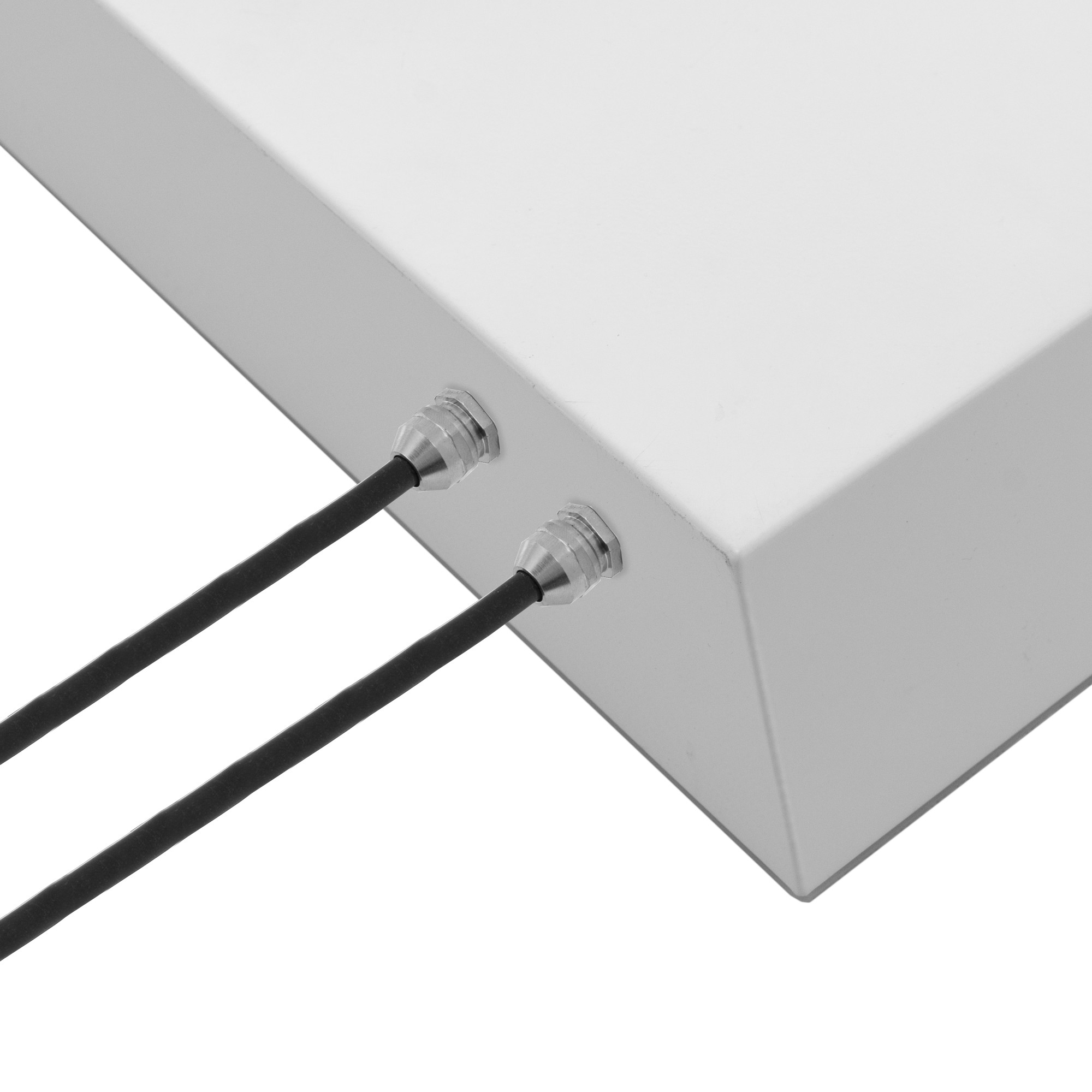

Electrical connection is made via external connectors which allows easy/quick installation and also long-lasting IP protection.

Optical part is consist of opal cover, in case of needed UGR limitation is ideal to use nanoprisma cover.

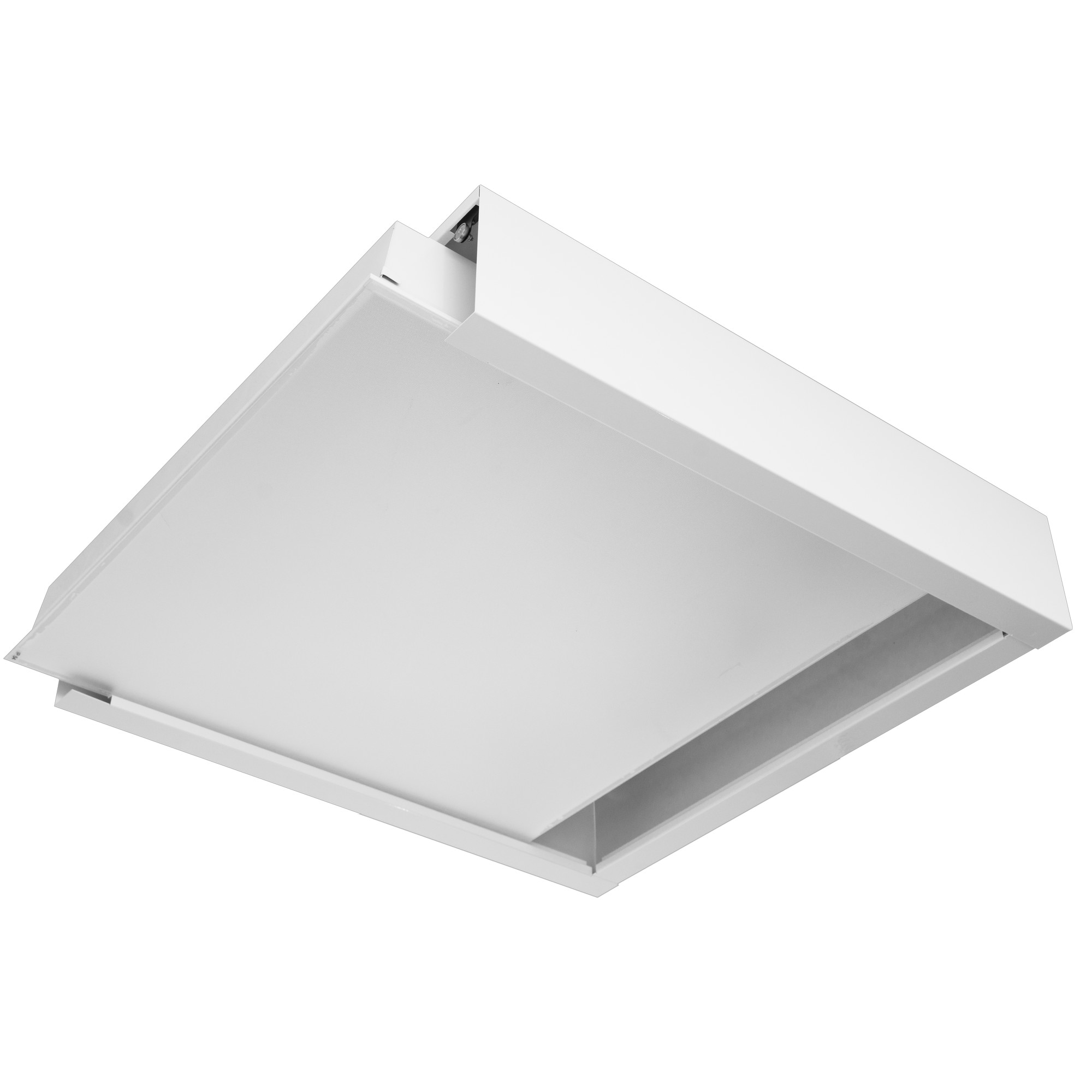

Luminaire can be installed into T-Bar ceiling with visible structure. In case of installation into gypsum ceiling in needed to use UQRAM frame.

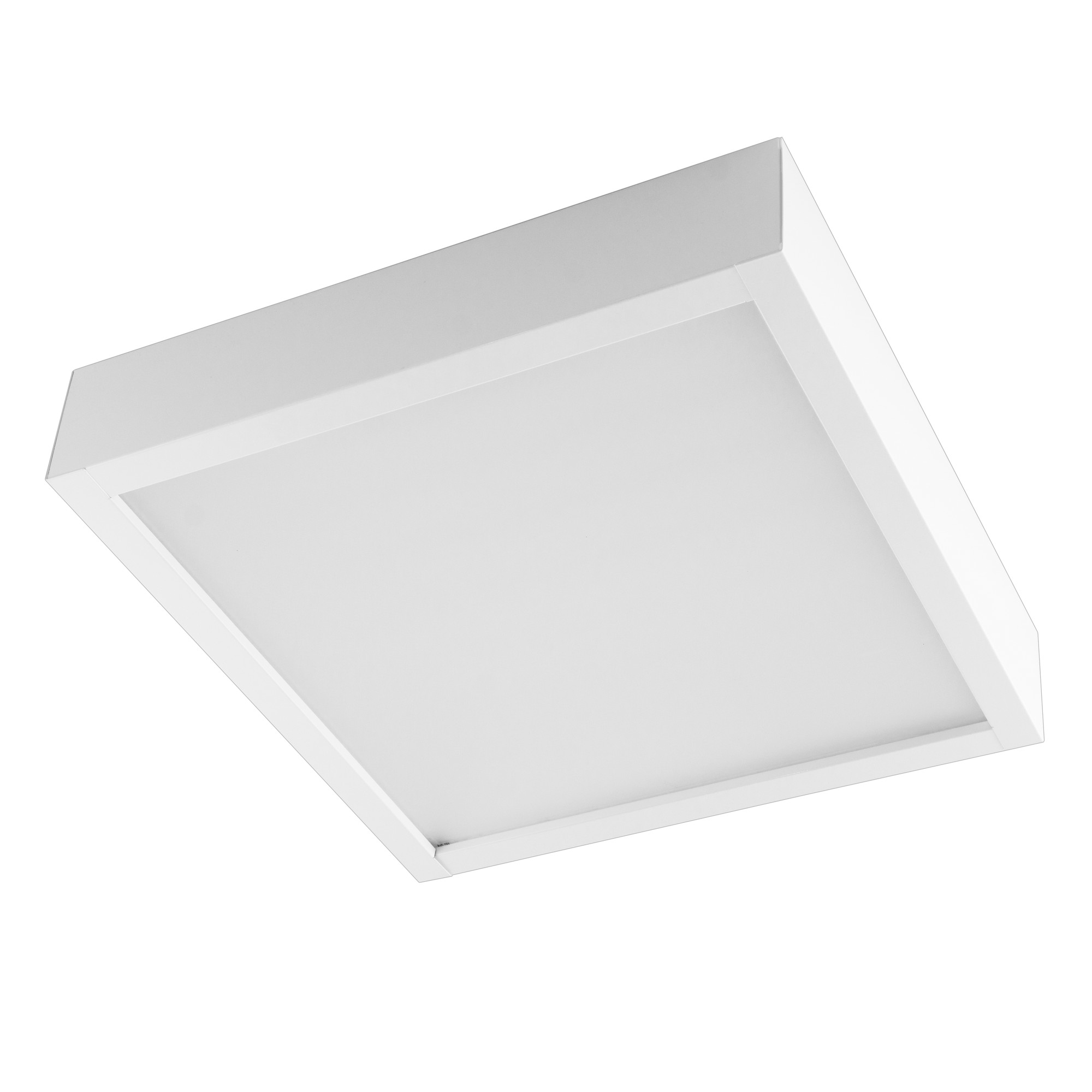

Surface installation can be done via LABRAM frame.

Luminaire can be supplied with wireless Bluetooth control - more information here.

Lamp type:LEDColor temperature (K):3000, 4000
Color rendering index CRI:80-89Rated life time L80/B50 (h):80000
Degree of protection (IP):IP65Optical system:KN

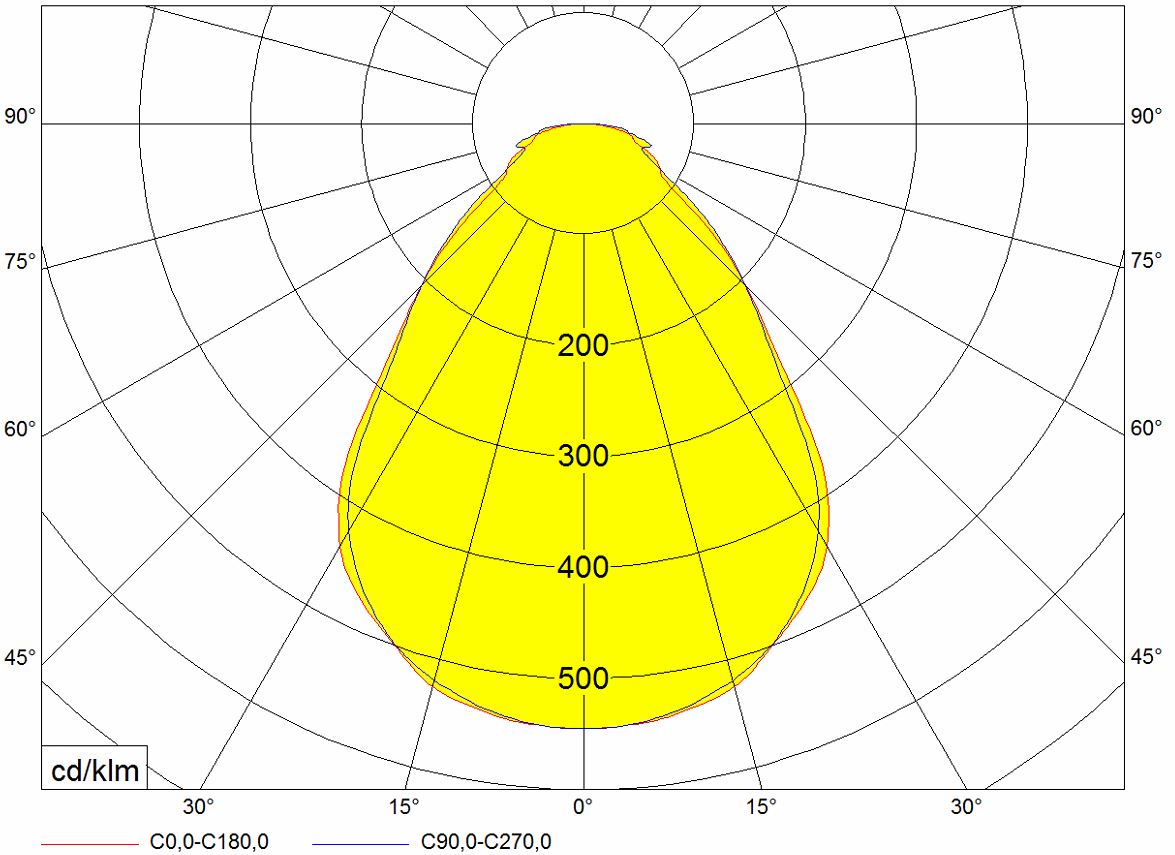

nanoprizmatic cover
KO

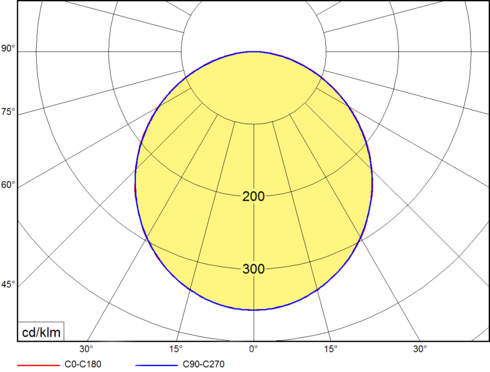

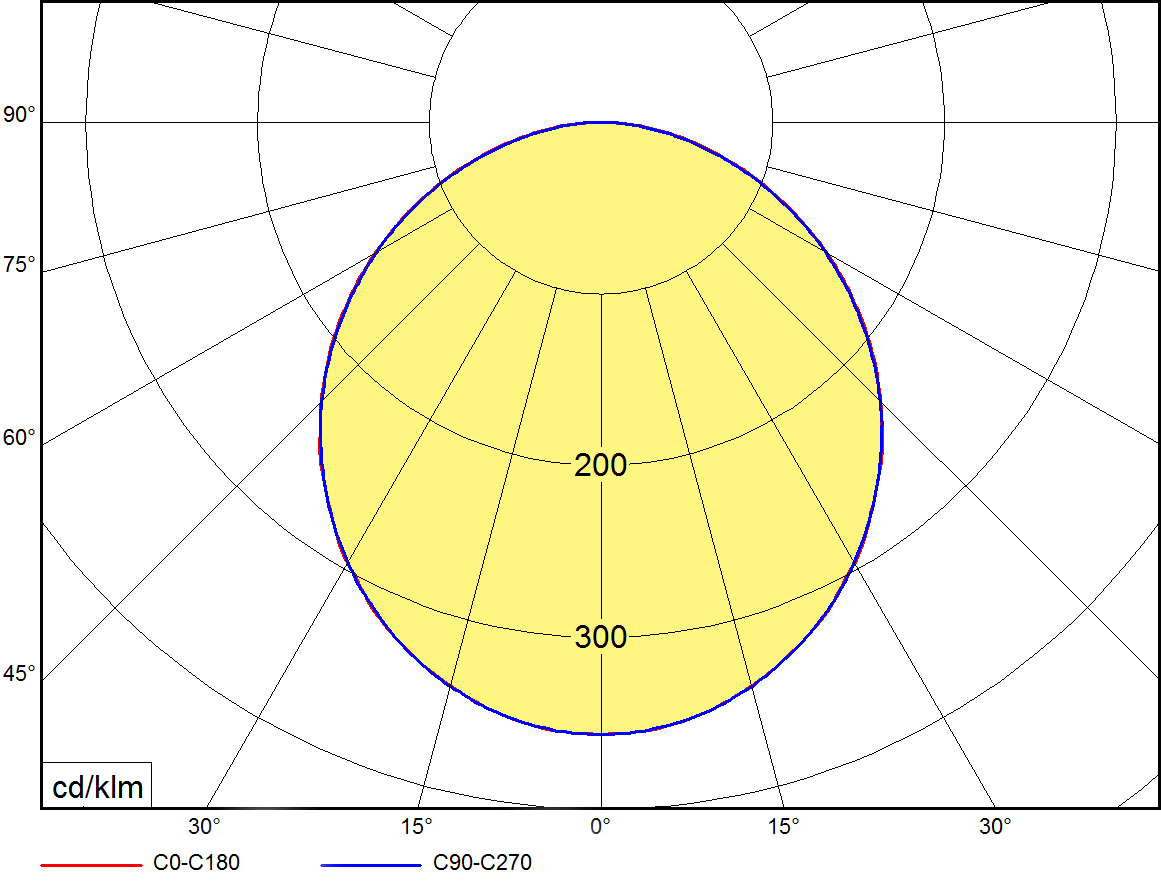

opal cover
Body material:White painted steelMounting method:Surface mounting, Built-in
Protection class:IType of control gear:LED operating device current-controlled
Dimming DALI:Yes
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

2900
6900

System power (W)

23
57
Product name
LAB2500AMIXKO600
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 2700...6500
Optical system: KO
Raster (mm): 600
LAB3000A3KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB3000A3KN600ND/2FS
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB3000A3KO600DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB3000A3KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB3000A3KO600ND/2FS
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB3000A3KO600ND/F
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB3000A3KO625ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
LAB3000A4KN600DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB3000A4KN600DALI/90
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB3000A4KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB3000A4KO600DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB3000A4KO600DALI/2F5S
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB3000A4KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB3000A4KO625ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
LAB4000A3KN600DALI
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB4000A3KN600DALI/2K5
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB4000A3KN600ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB4000A3KN600ND/2FS
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB4000A3KO600DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB4000A3KO600DALI/2F5S
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB4000A3KO600DALI/2K5
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB4000A3KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB4000A3KO600ND/2FS
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB4000A3KO600ND/F
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB4000A3KO625ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
LAB4000A3PCO600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KOPC
Raster (mm): 600
LAB4000A4HO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB4000A4KN600DALI
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB4000A4KN600ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB4000A4KN600ND/90
Effective luminous flux (lm): 3600
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB4000A4KN625ND
Effective luminous flux (lm): 4200
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
LAB4000A4KO600DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB4000A4KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB4000A4KO625DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
LAB4000A4KO625ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
LAB4000A4PCO600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KOPC
Raster (mm): 600
LAB4000A6KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 6500
Optical system: KO
Raster (mm): 600
LAB4000AMIXWKN600
Effective luminous flux (lm): 5700
System power (W): 42
Color temperature (K): 2700...6500
Optical system: KN
Raster (mm): 600
LAB4000C4HO600ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB5000A4KN600ND
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB5000A4KO600DALI
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB5000A4KO600ND
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB6000A3KN600DALI
Effective luminous flux (lm): 6900
System power (W): 55
Color temperature (K): 3000
Optical system: KN
Raster (mm): 600
LAB6000A3KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB6000A3KO625DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
Raster (mm): 625
LAB6000A4KN600DALI/90
Effective luminous flux (lm): 5900
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB6000A4KN600ND
Effective luminous flux (lm): 6900
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB6000A4KN600ND/90
Effective luminous flux (lm): 5900
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Raster (mm): 600
LAB6000A4KN625ND
Effective luminous flux (lm): 6900
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
LAB6000A4KN625ND/90
Effective luminous flux (lm): 5900
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Raster (mm): 625
LAB6000A4KO600DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB6000A4KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB6000A4KO600ND/90
Effective luminous flux (lm): 5700
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB6000A4KO625ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Raster (mm): 625
LAB6000A4PCO600ND
Effective luminous flux (lm): 6200
System power (W): 55
Color temperature (K): 4000
Optical system: KOPC
Raster (mm): 600
LAB6000A6KO625DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 6500
Optical system: KO
Raster (mm): 625
LAB6000C4KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600
LAB8A3KO600
Color temperature (K): 3000
Optical system: KO
Raster (mm): 600
LAB8A4KO600
Color temperature (K): 4000
Optical system: KO
Raster (mm): 600

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
QVESTRAM

QVESTRAM

Aluminium frame for recessed installation

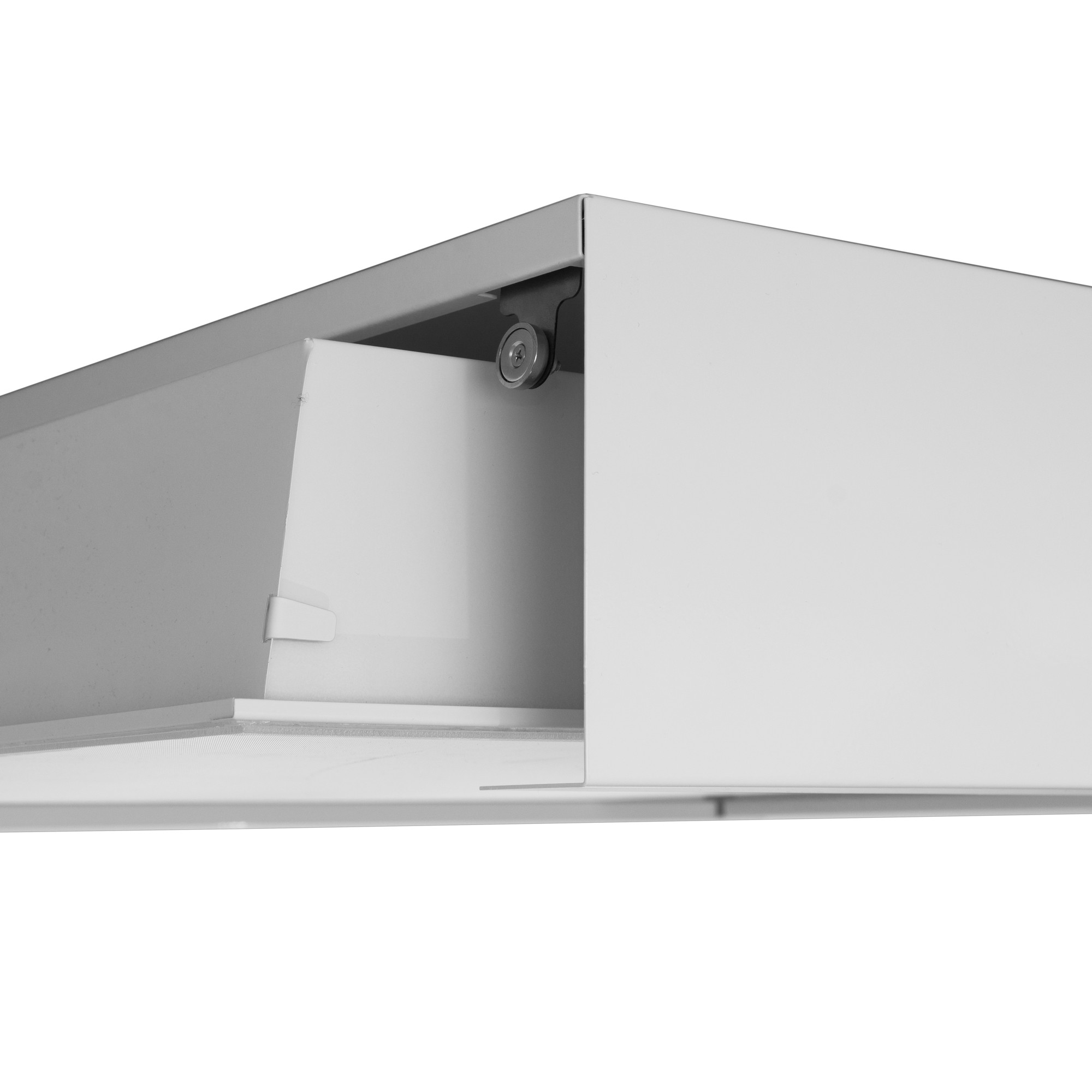

LABRAM
