MODUS LLL

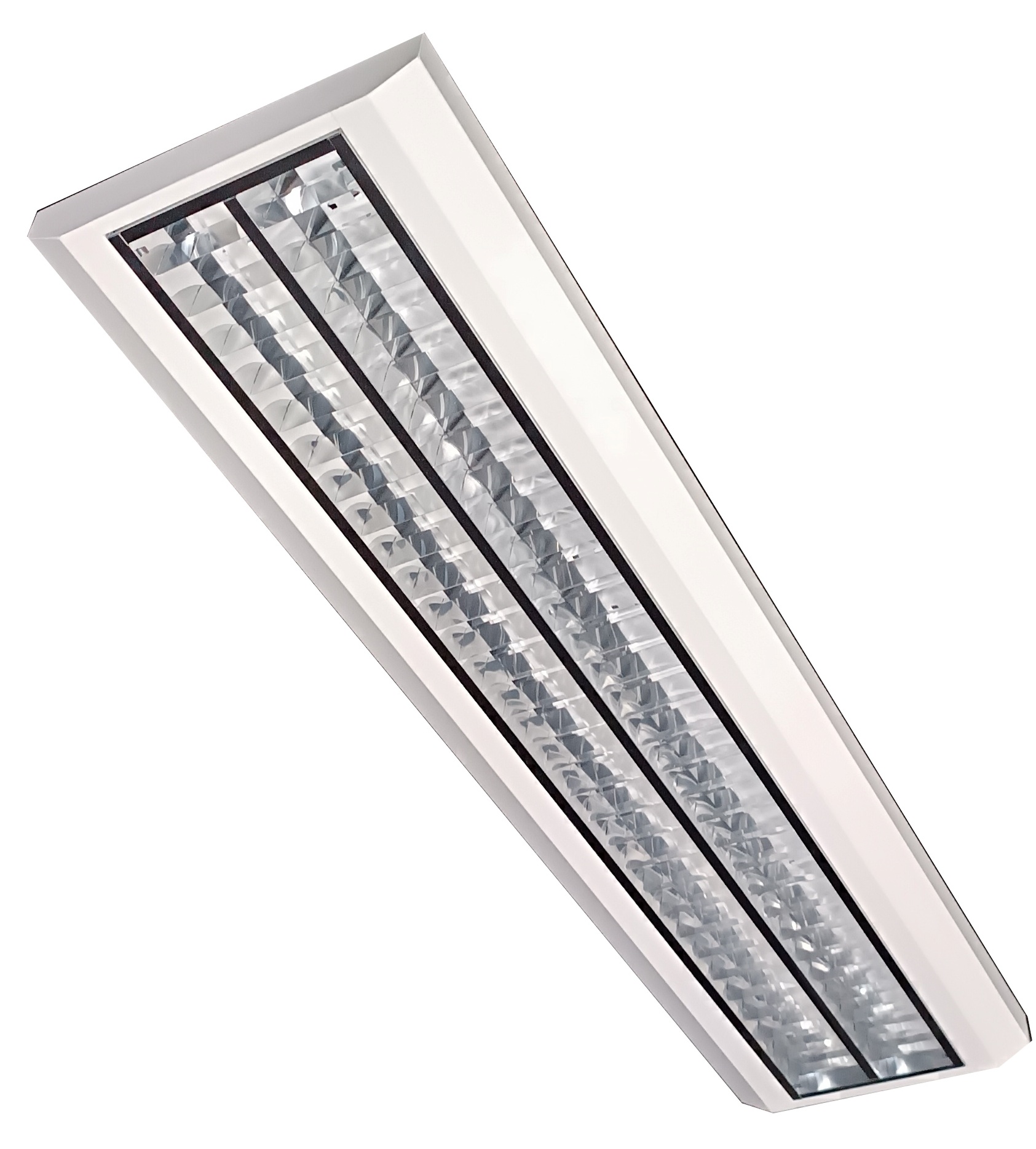

Surface louvre fitting

MODUS LLL RM2 KVM
MODUS LLL RM1 KVMODUS LLL RM1 KV

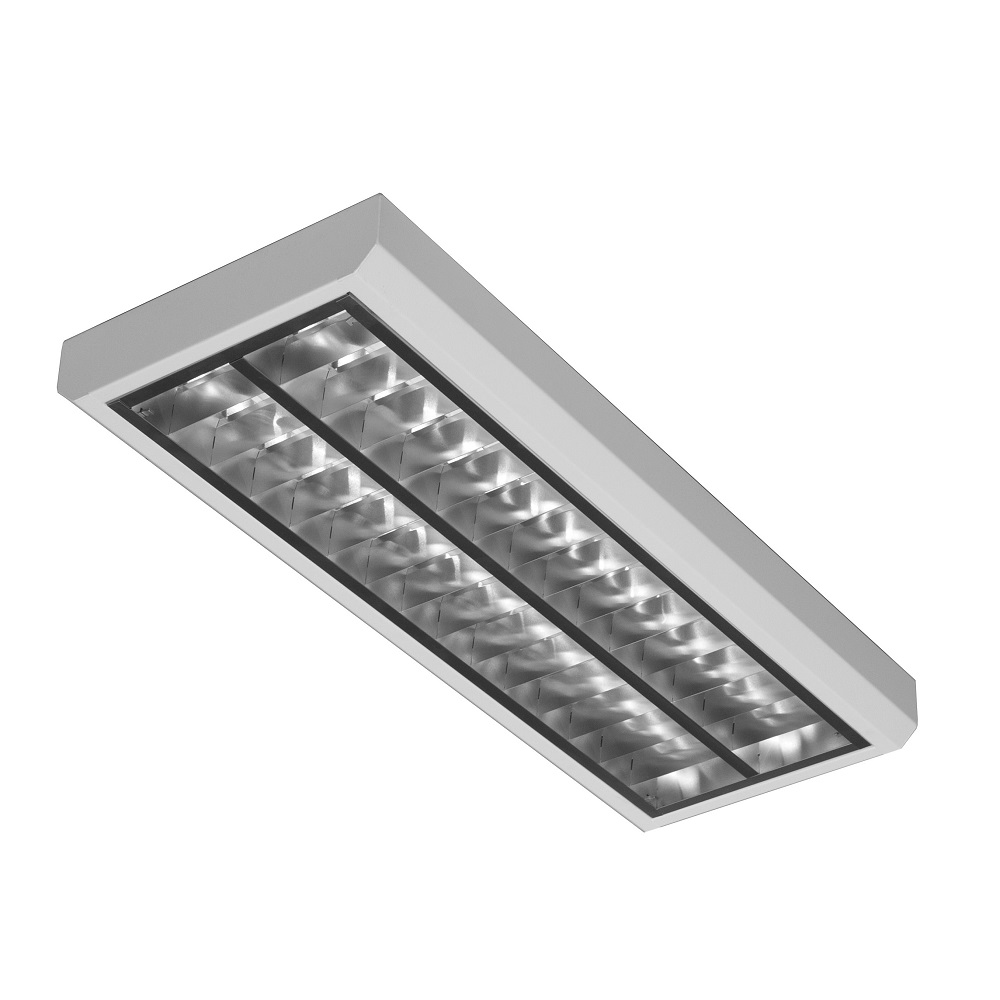

MODUS LLL RM2 KVMODUS LLL RM2 KV
MODUS LLL RM2 KVMMODUS LLL RM2 KVM

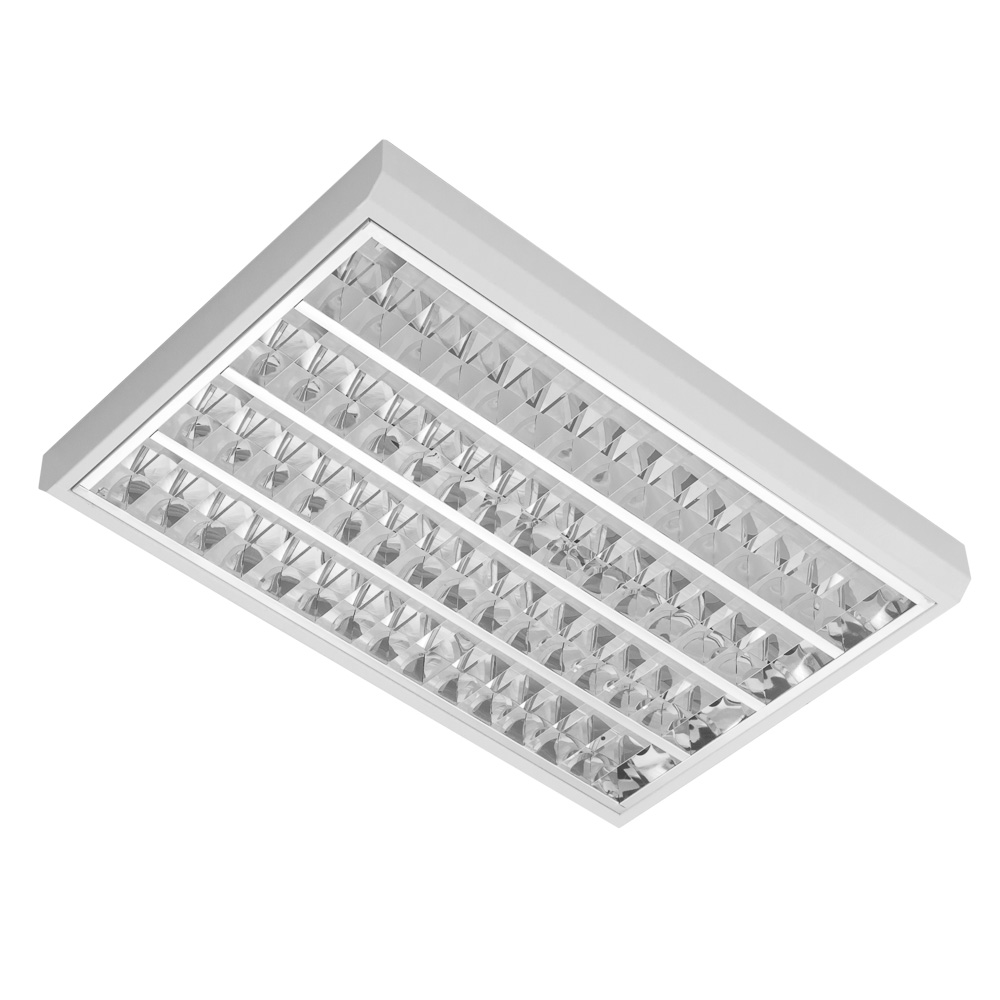

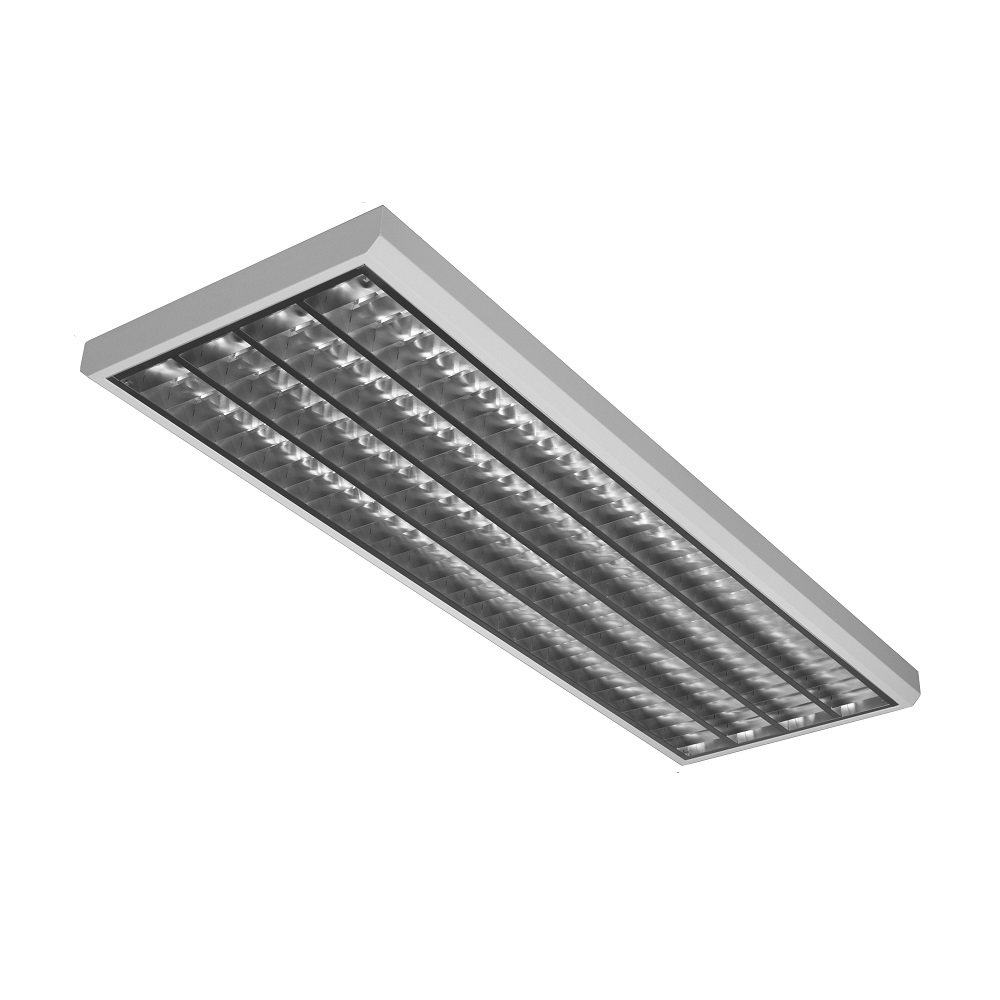

MODUS LLL SS4 KVMODUS LLL SS4 KV
11 L80_80000_h.jpg

Price from:

1 300 Kč
( 1 573 Kč including VAT )
Distribution network
Contacts

Office lighting with glare limitation (UGR19)



Body:

White painted (RAL 9003) metal sheet



Optic:

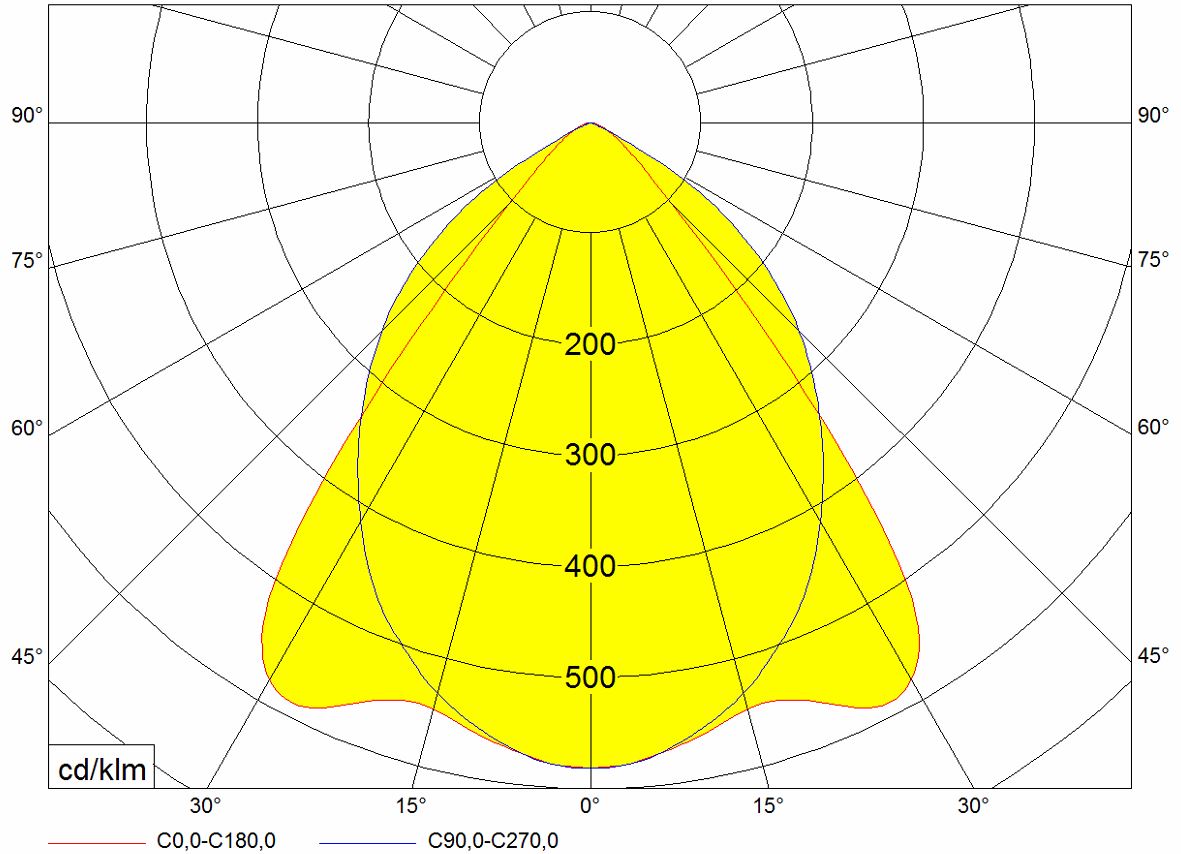

KV - double parabolic louvre category C2 of highly polished aluminium, with opal cover of LED modules

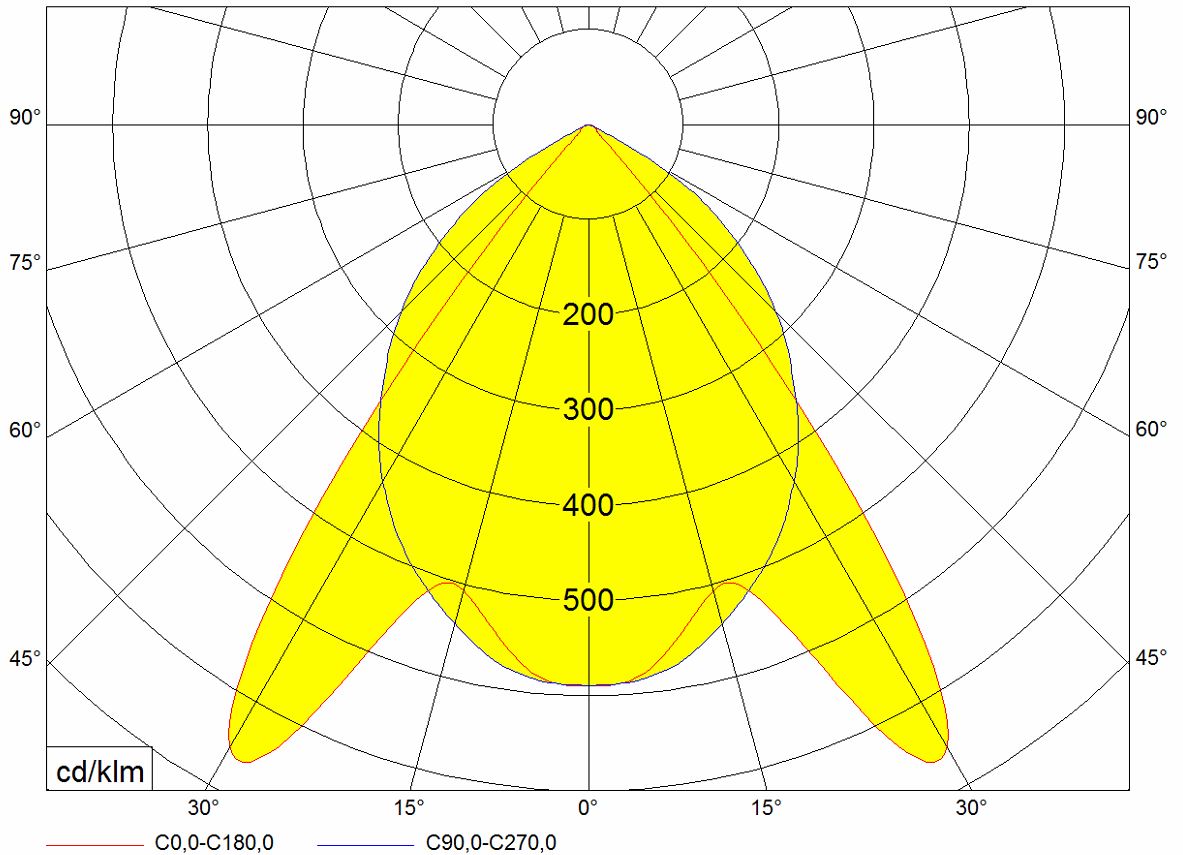

KVM - double parabolic louvre category C2 of mat aluminium, with opal cover of LED modules.



Effectivity of both optical systems are the same.



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Luminaire can be supplied with wireless Bluetooth control - more information here.



Application:

Surface or pendant installation These LED fittings are recomended for offices, for lighting areas with high requirements for light and glare control. UGR<19



Accessories:

ZH22 - suspension set

Lamp type:LEDColor temperature (K):3000, 4000
Color rendering index CRI:80-89, 90-100Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20Optical system:KV
opal profile + louvre ALDP
KVM
opal profile + louvre matt DP
Body material:White painted steel
Mounting method:Surface mounting, Suspended
Protection class:IType of control gear:LED operating device current-controlled
Fit for monitor workplace:YesDimming 1-10 V:Yes
Dimming DALI:Yes
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1900
7200

System power (W)

19
58
Product name
LLL2000RM1KV3DALI
Effective luminous flux (lm): 2200
System power (W): 19
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL2000RM1KV3DALIT
Effective luminous flux (lm): 2200
System power (W): 19
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL2000RM1KV3ND
Effective luminous flux (lm): 2200
System power (W): 19
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL2000RM1KV3ND/90
Effective luminous flux (lm): 1900
System power (W): 19
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL2000RM1KV4DALI
Effective luminous flux (lm): 2200
System power (W): 19
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL2000RM1KV4ND
Effective luminous flux (lm): 2200
System power (W): 19
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL2000RM1KV4ND/90
Effective luminous flux (lm): 1900
System power (W): 19
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL2000RM1KV4NDNZ
Effective luminous flux (lm): 2200
System power (W): 19
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL2000RM1KVM3ND
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL2000RM1KVM3NDNZ
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL2000RM1KVM4DIM
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL2000RM1KVM4ND
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL2000RM1KVM5ND
Effective luminous flux (lm): 2250
System power (W): 19
Color temperature (K): 5700
Optical system: KVM
Size version: M
LLL3000RL1KV3DALI
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL3000RL1KV3ND
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL3000RL1KV3ND/90
Effective luminous flux (lm): 2900
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL3000RL1KV3NDNZ
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL3000RL1KV3NDNZ/90
Effective luminous flux (lm): 2900
System power (W): 30
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL3000RL1KV4DALI
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL3000RL1KV4ND
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL3000RL1KV4ND/RAL9006
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL3000RL1KV4NDNZ
Effective luminous flux (lm): 3400
System power (W): 30
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL3000RL1KVM3DALIT
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL3000RL1KVM3ND
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL3000RL1KVM4DALI
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL3000RL1KVM4ND
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL3000RL1KVM4ND/P
Effective luminous flux (lm): 3000
System power (W): 30
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL3000RL1KVM4NDNZ
Effective luminous flux (lm): 3500
System power (W): 30
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL3000RM2KV3DALI
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL3000RM2KV3ND
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL3000RM2KV3NDNZ
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL3000RM2KV4DALI
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL3000RM2KV4DIM
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL3000RM2KV4ND
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL3000RM2KV4ND/90
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL3000RM2KV4ND/P
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL3000RM2KV4NDNZ
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL3000RM2KV5ND
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 5700
Optical system: KV
Size version: M
LLL3000RM2KVM3DALI
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL3000RM2KVM3ND
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL3000RM2KVM4DALI
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL3000RM2KVM4ND
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL3000RM2KVM4ND/P
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL3000SS4KV3ND
Effective luminous flux (lm): 3100
System power (W): 27
Color temperature (K): 3000
Optical system: KV
Size version: S
LLL3000SS4KV4ND
Effective luminous flux (lm): 3100
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Size version: S
LLL3000SS4KV4NDNZ
Effective luminous flux (lm): 3100
System power (W): 27
Color temperature (K): 4000
Optical system: KV
Size version: S
LLL3000SS4KVM3ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 3000
Optical system: KVM
Size version: S
LLL3000SS4KVM4ND
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Optical system: KVM
Size version: S
LLL4000RM2KV3DALI
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV3DALI/90
Effective luminous flux (lm): 3700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV3DALI/9016
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV3DIM
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV3ND
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV3ND/90
Effective luminous flux (lm): 3700
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV3NDNZ
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: M
LLL4000RM2KV4DALI
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4DALIT
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4DIM
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4ND
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4ND/90
Effective luminous flux (lm): 3700
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4ND/9005
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4ND/P
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4NDNZ
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV4NDNZ3
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: M
LLL4000RM2KV5ND
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 5700
Optical system: KV
Size version: M
LLL4000RM2KV6ND
Effective luminous flux (lm): 4300
System power (W): 37
Color temperature (K): 6500
Optical system: KV
Size version: M
LLL4000RM2KVM3DALI
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL4000RM2KVM3ND
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL4000RM2KVM3NDNZ
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Size version: M
LLL4000RM2KVM4DALI
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000RM2KVM4DALINZ
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000RM2KVM4DIM
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000RM2KVM4ND
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000RM2KVM4ND/90
Effective luminous flux (lm): 3500
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000RM2KVM4ND/P
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000RM2KVM4NDNZ
Effective luminous flux (lm): 4450
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: M
LLL4000SS4KV3DALI
Effective luminous flux (lm): 4200
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: S
LLL4000SS4KV3ND
Effective luminous flux (lm): 4200
System power (W): 37
Color temperature (K): 3000
Optical system: KV
Size version: S
LLL4000SS4KV4DALIT
Effective luminous flux (lm): 4200
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: S
LLL4000SS4KV4ND
Effective luminous flux (lm): 4200
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: S
LLL4000SS4KV4NDNZ
Effective luminous flux (lm): 4200
System power (W): 37
Color temperature (K): 4000
Optical system: KV
Size version: S
LLL4000SS4KVM3DALI
Effective luminous flux (lm): 4350
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Size version: S
LLL4000SS4KVM3ND
Effective luminous flux (lm): 4350
System power (W): 37
Color temperature (K): 3000
Optical system: KVM
Size version: S
LLL4000SS4KVM4DALI
Effective luminous flux (lm): 4350
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: S
LLL4000SS4KVM4DALIT
Effective luminous flux (lm): 4350
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: S
LLL4000SS4KVM4ND
Effective luminous flux (lm): 4350
System power (W): 37
Color temperature (K): 4000
Optical system: KVM
Size version: S
LLL4000SS4KVM5ND
Effective luminous flux (lm): 4350
System power (W): 37
Color temperature (K): 5700
Optical system: KVM
Size version: S
LLL5000RL2KV3DALI
Effective luminous flux (lm): 5200
System power (W): 41
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL5000RL2KV3ND
Effective luminous flux (lm): 5200
System power (W): 41
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL5000RL2KV4DALI
Effective luminous flux (lm): 5200
System power (W): 41
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL5000RL2KV4ND
Effective luminous flux (lm): 5200
System power (W): 41
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL5000RL2KV4ND/90
Effective luminous flux (lm): 4400
System power (W): 41
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL5000RL2KV4NDNZ
Effective luminous flux (lm): 5200
System power (W): 41
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL5000RL2KV5ND
Effective luminous flux (lm): 5200
System power (W): 41
Color temperature (K): 5700
Optical system: KV
Size version: L
LLL5000RL2KVM3DALI
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL5000RL2KVM3DALIT
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL5000RL2KVM3DIM
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL5000RL2KVM3ND
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL5000RL2KVM3NDNZ
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL5000RL2KVM4DALI
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL5000RL2KVM4DALIT
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL5000RL2KVM4DIM
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL5000RL2KVM4ND
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL5000RL2KVM4ND/P
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL5000RL2KVM5ND
Effective luminous flux (lm): 5350
System power (W): 41
Color temperature (K): 5700
Optical system: KVM
Size version: L
LLL6000RL2KV3DALI
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL6000RL2KV3DIM
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL6000RL2KV3ND
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL6000RL2KV3ND/90
Effective luminous flux (lm): 6200
System power (W): 58
Color temperature (K): 3000
Optical system: KV
Size version: L
LLL6000RL2KV4DALI
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4DALI/90
Effective luminous flux (lm): 5700
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4ND
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4ND/90
Effective luminous flux (lm): 6200
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4ND/P
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4NDNZ
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4NDNZ3
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV4NDNZ3/90
Effective luminous flux (lm): 6200
System power (W): 58
Color temperature (K): 4000
Optical system: KV
Size version: L
LLL6000RL2KV5ND
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 5700
Optical system: KV
Size version: L
LLL6000RL2KV5ND/P
Effective luminous flux (lm): 6900
System power (W): 58
Color temperature (K): 5700
Optical system: KV
Size version: L
LLL6000RL2KV6DALI/90
Effective luminous flux (lm): 5700
System power (W): 58
Color temperature (K): 6500
Optical system: KV
Size version: L
LLL6000RL2KVM3DALI
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL6000RL2KVM3DIM
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL6000RL2KVM3ND
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 3000
Optical system: KVM
Size version: L
LLL6000RL2KVM4DALI
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL6000RL2KVM4DIM
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL6000RL2KVM4ND
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL6000RL2KVM4ND/P
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL6000RL2KVM4NDNZ
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 4000
Optical system: KVM
Size version: L
LLL6000RL2KVM5ND
Effective luminous flux (lm): 7200
System power (W): 58
Color temperature (K): 5700
Optical system: KVM
Size version: L
LLL6000RL2KVM5ND/90
Effective luminous flux (lm): 6100
System power (W): 58
Color temperature (K): 5700
Optical system: KVM
Size version: L
Show all versions
LLL KVM.PNGLLL KVM.PNG

Elementary school Vancurova - Hodonin

MODUS LLL

Detail reference

Elementary school Očovská - Hodonin

MODUS LLL

Detail reference

Sport centrum in Serbia - video

MODUS OKTA + RX + LLL

Detail reference
Zobrazit další reference
Pendant mounting of luminaires

Pendant mounting of luminaires

Wire suspensions sets

 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
