MODUS LOGI
A compact luminaire with IP65
Standard price from:

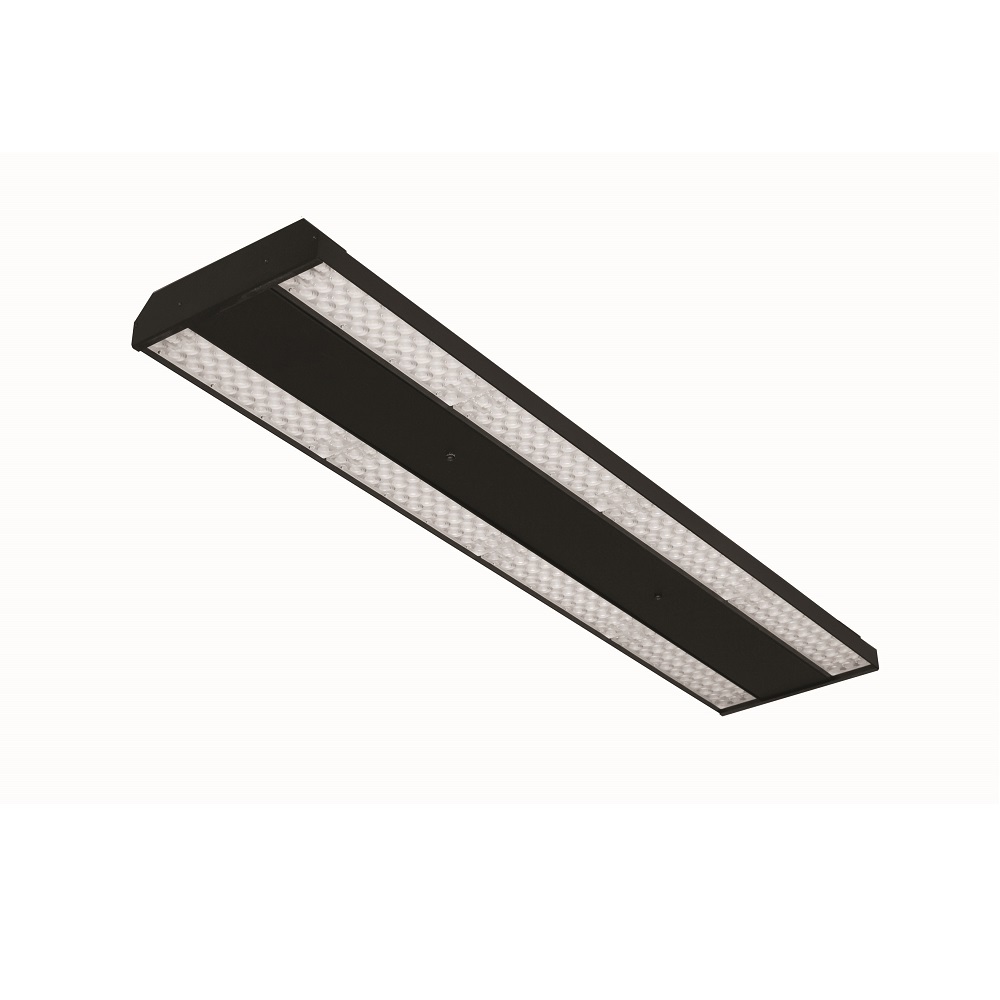

A compact luminaire with IP65, slim yet robust aluminum body and lens optics suitable for various applications. Thanks to a wide range of optics - extra deep, deep, wide, extra wide and asymmetric - this luminaire is perfect for multi purpose sports halls with hight ceilings or industrial application.
Luminaire offers a superb effectivity (up to more than 180 lmW).
Size versions (lenght): 585mm (LOGI S), 1165mm (LOGI M), 1450mm (LOGI XL).

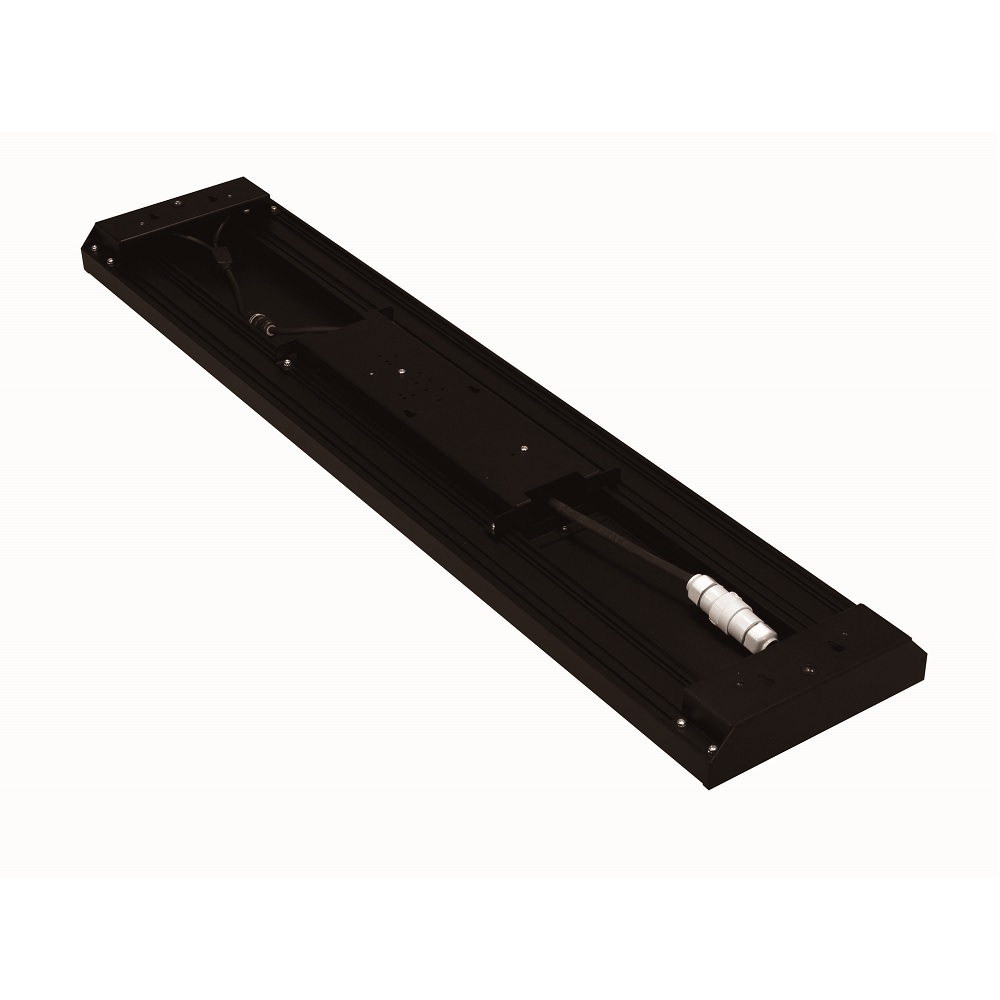

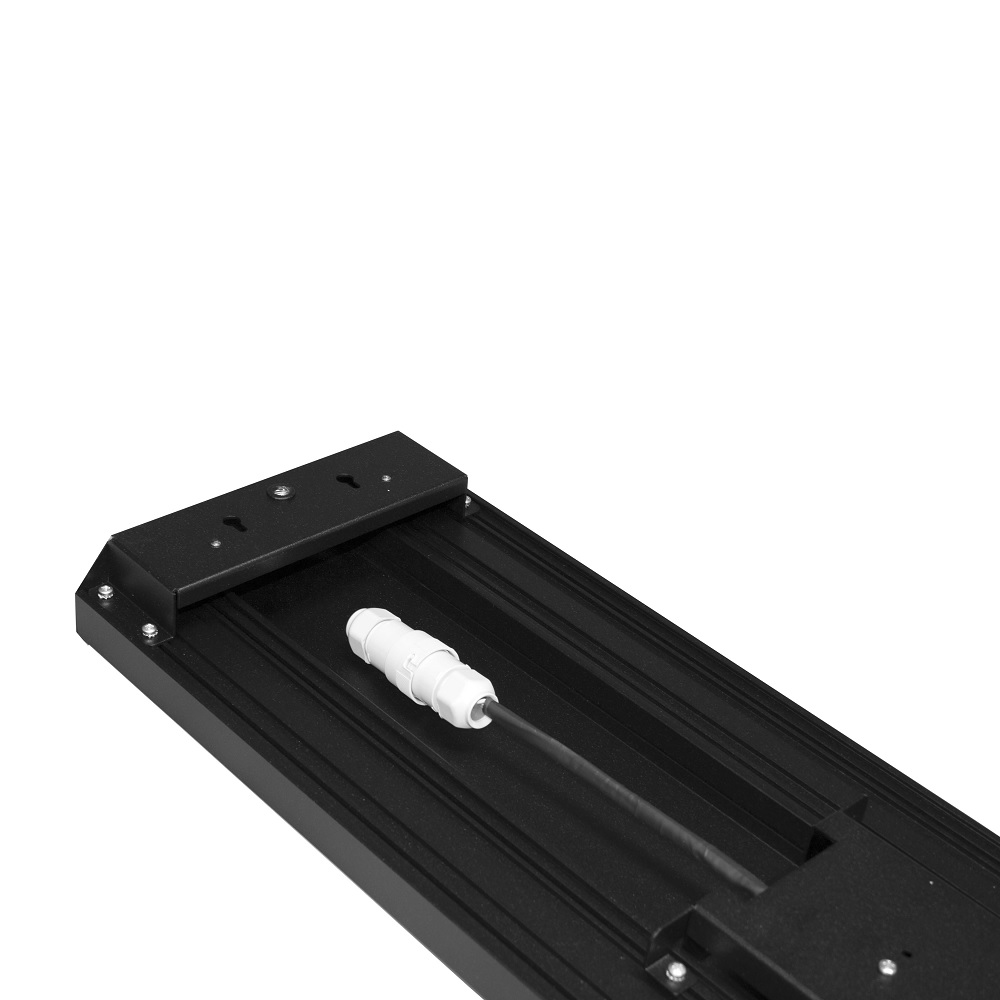

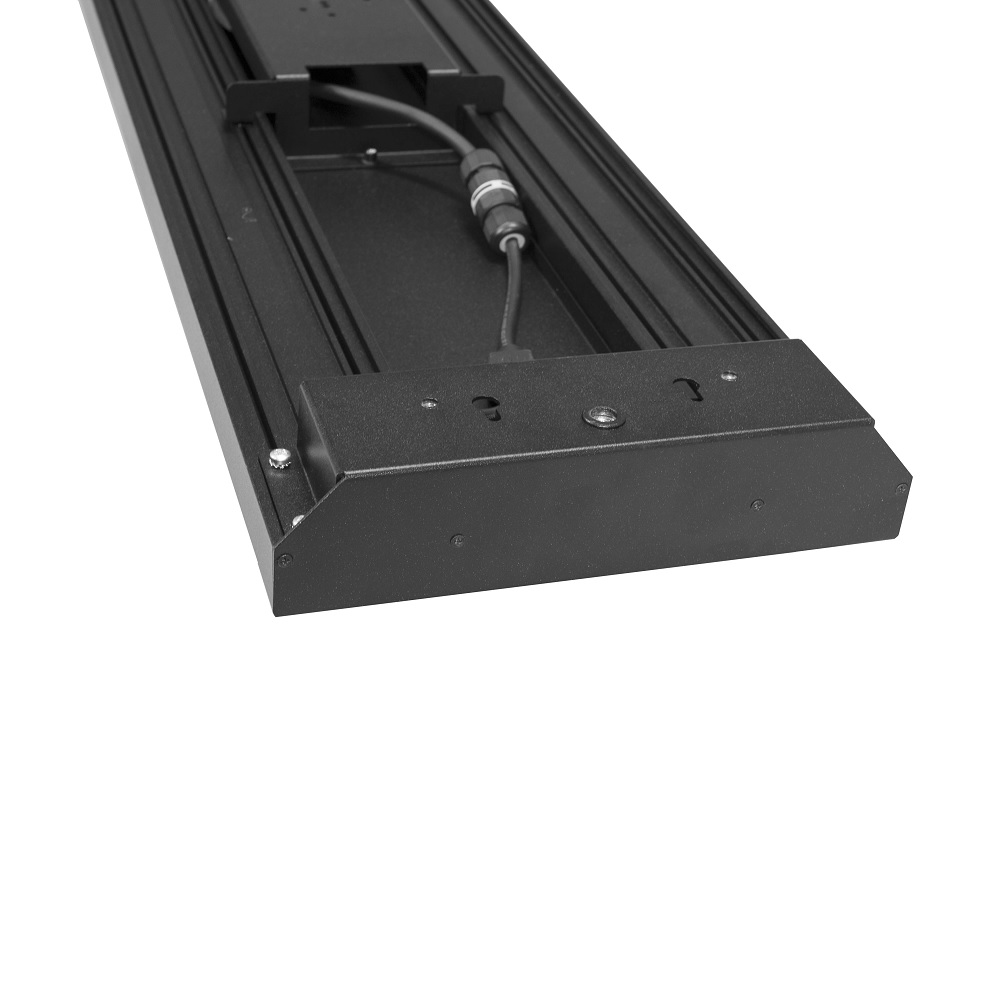

Luminaire is equipped with and IP65 connector - no need to open the luminaire for electrical connection.
Power versions: from 8.000 lm to 35.000 lm.
Standart installation method is surface mounting, the another possibilities shall be with accesories for:
- pendant installation
- wall installation
- pendant installation on horizontal wire
On request luminaire can be equpped with:
- Sensor (on/off or dimmable)
- Wireless control (Casambi, Hubsense, etc...)
| Mounting method: | Wall surface mounted, Surface mounting, Suspended | Protection class: | I | With movement sensor: | Yes | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 100000 | Rated ambient temperature (°C): | -10...+45 | Dimming DALI: | Yes | Dimming manufacturer's proprietary system: | Yes | Product category: | High bay luminaire | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
