Product series

MODUS LV236LED

Luminaire with LED tubes

1 M21_ulicni_sadovka.jpg
třída ochrany I.PNG
11 L70_40000_h.jpg
en 62 471.png

Standard size from:

On request

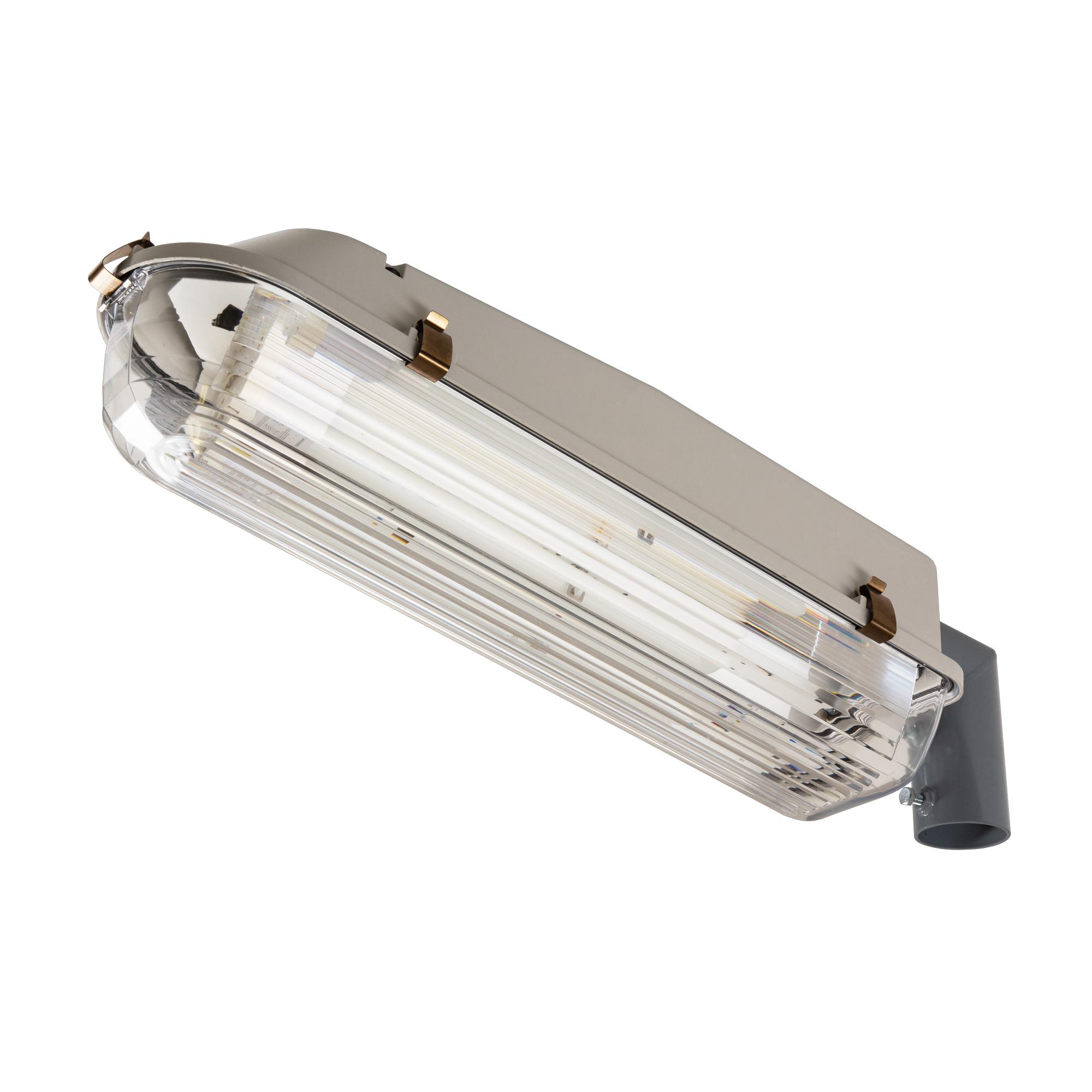

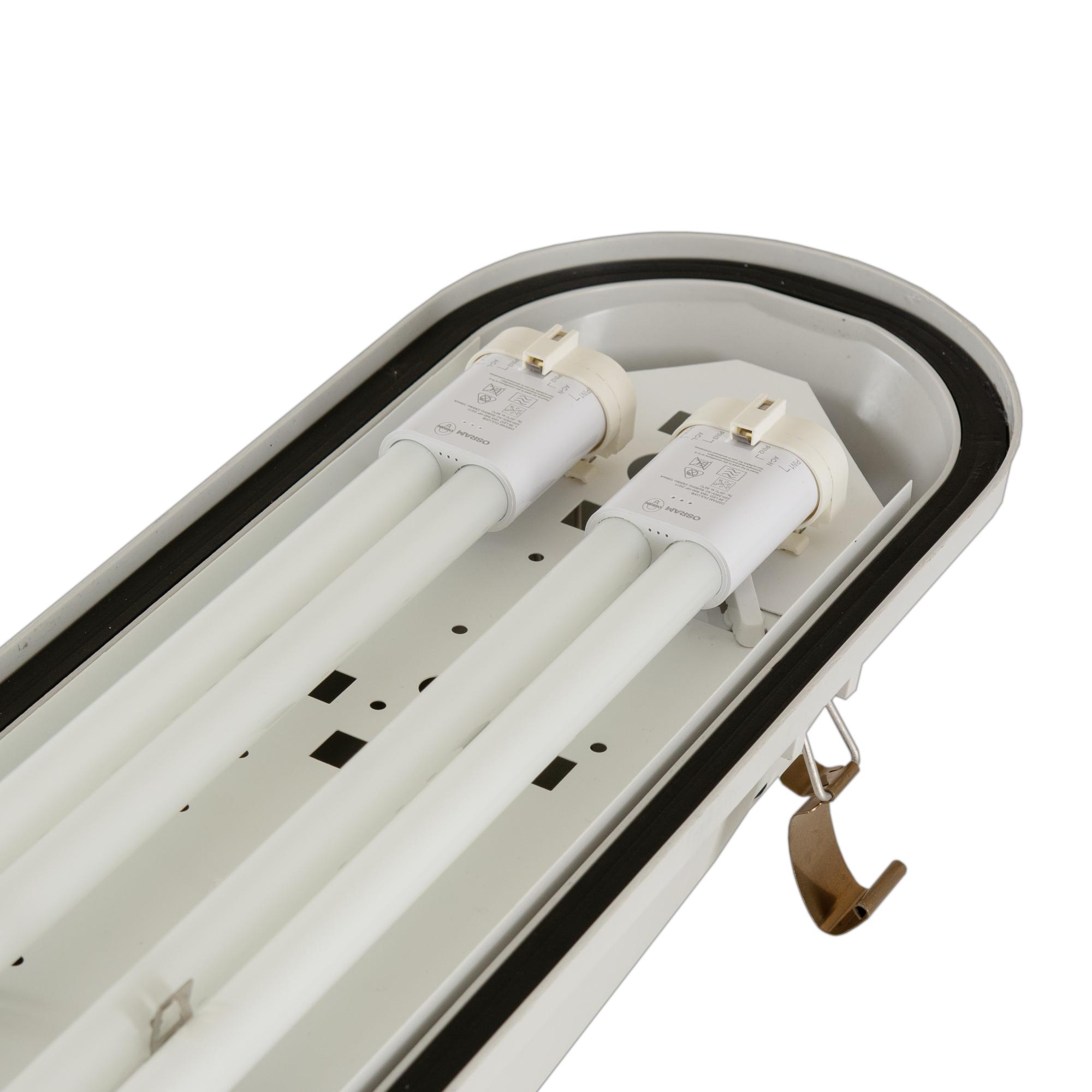

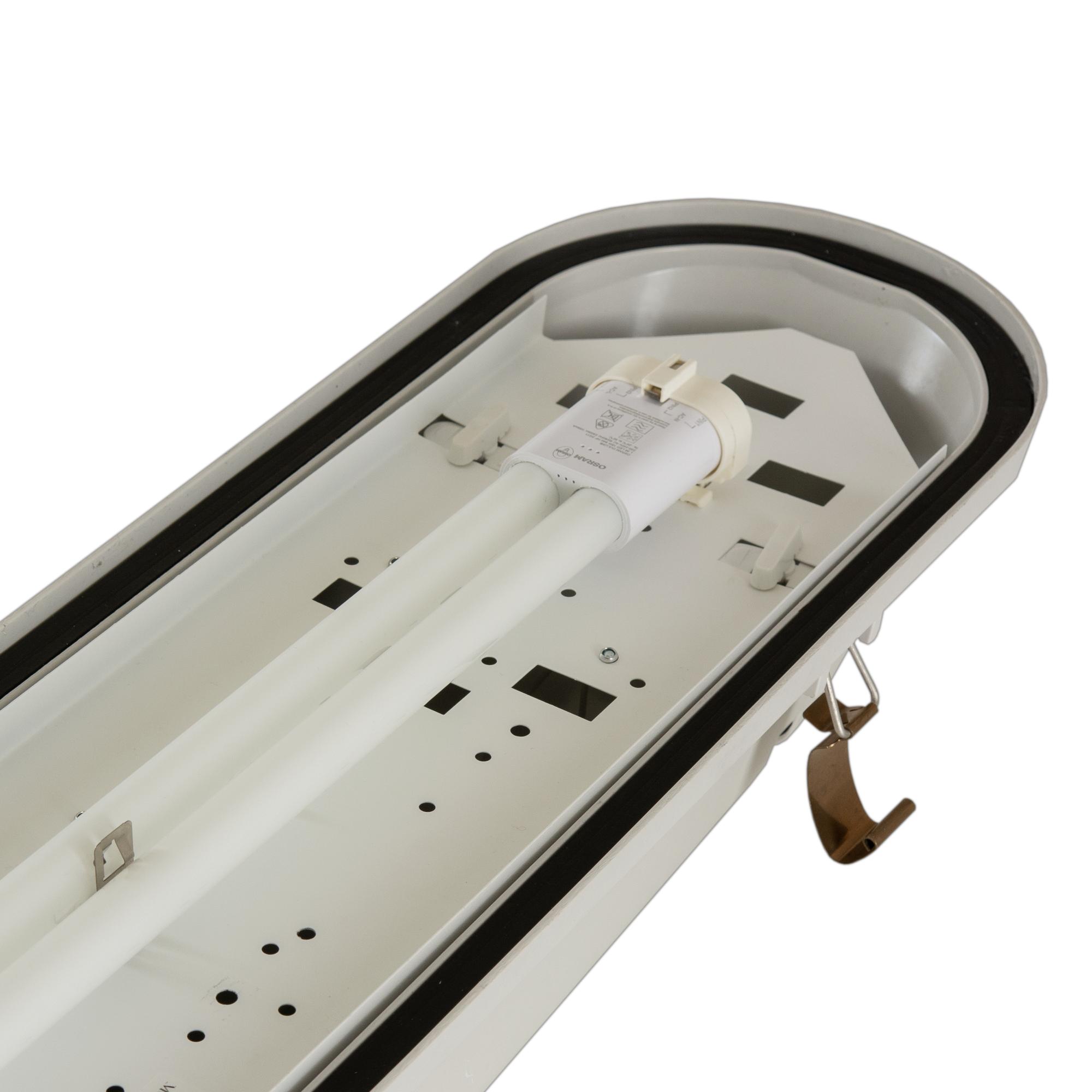

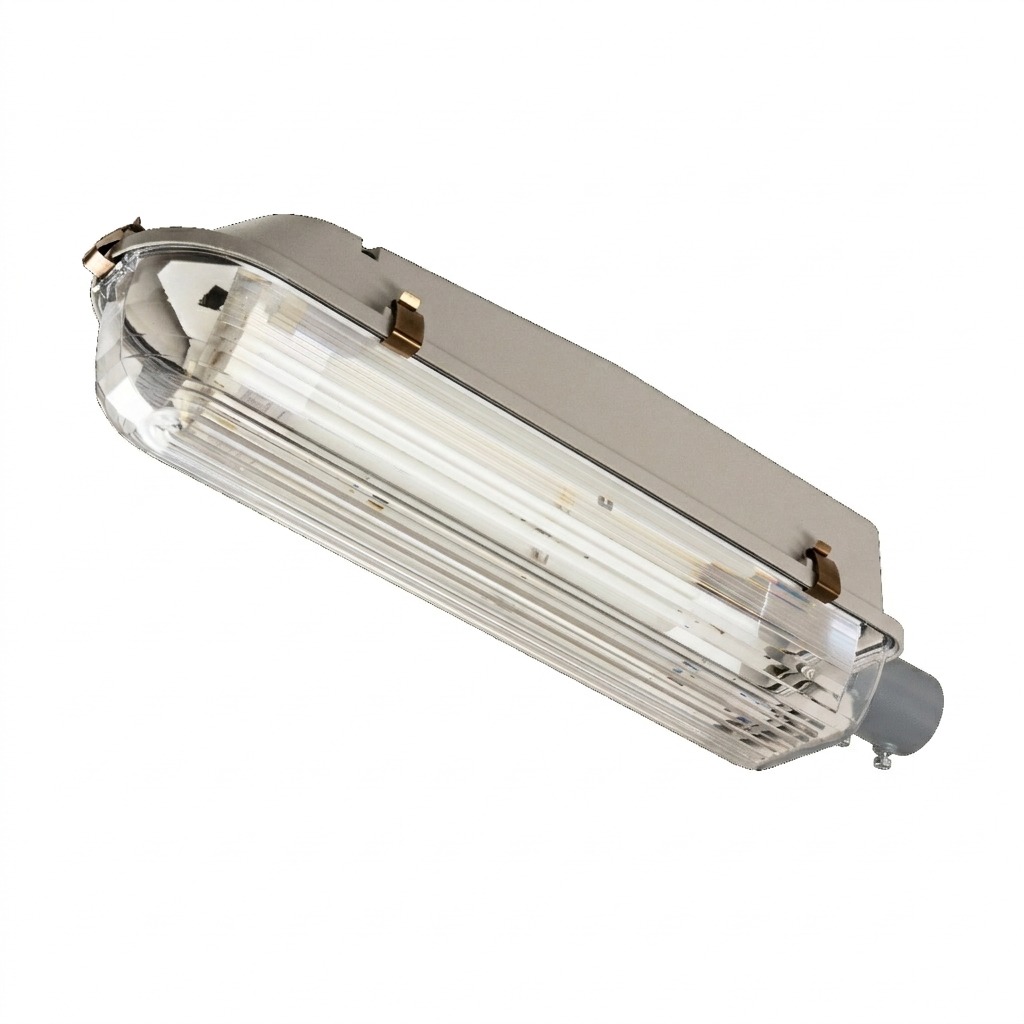

Outdoor luminaire with ex-changeble LED tubes. Luminaire has full certification for use with OSRAM LED tubes. Luminaire is delivered with OSRAM LED tubes 840 or 830.

Body material:High quality glass reinforced pressed polyester bodyMounting method:Side-entry, Post-top
Protection class:IType of control gear:Electronic ballast
Color rendering index CRI:80-89Lamp type:LED
Color temperature controllable (K):NoLight outlet:Direct
Impact strength:IK08
Degree of protection (IP):IP65
Color temperature (K):4000, 3000Rated life time L70/B50 (h):40000
Product category:Luminaire for streets and placesOptical system:PC
polycarbonate cover
Made in Czech republic:YesReplaceability:Replaceable light source, without ballast
Replaceable light source, without ballast
Photobiological safety EN 62 471:RG 0
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1850
3450

System power (W)

17
35

Luminaire efficacy (lm/W)

99
109
Product name
LV136LED/S60/LOS830
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Post-top
LV136LED/S60/LOS840
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Post-top
LV136LED/V60/LOS840
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 4000
Suitable for top end size (mm): 60

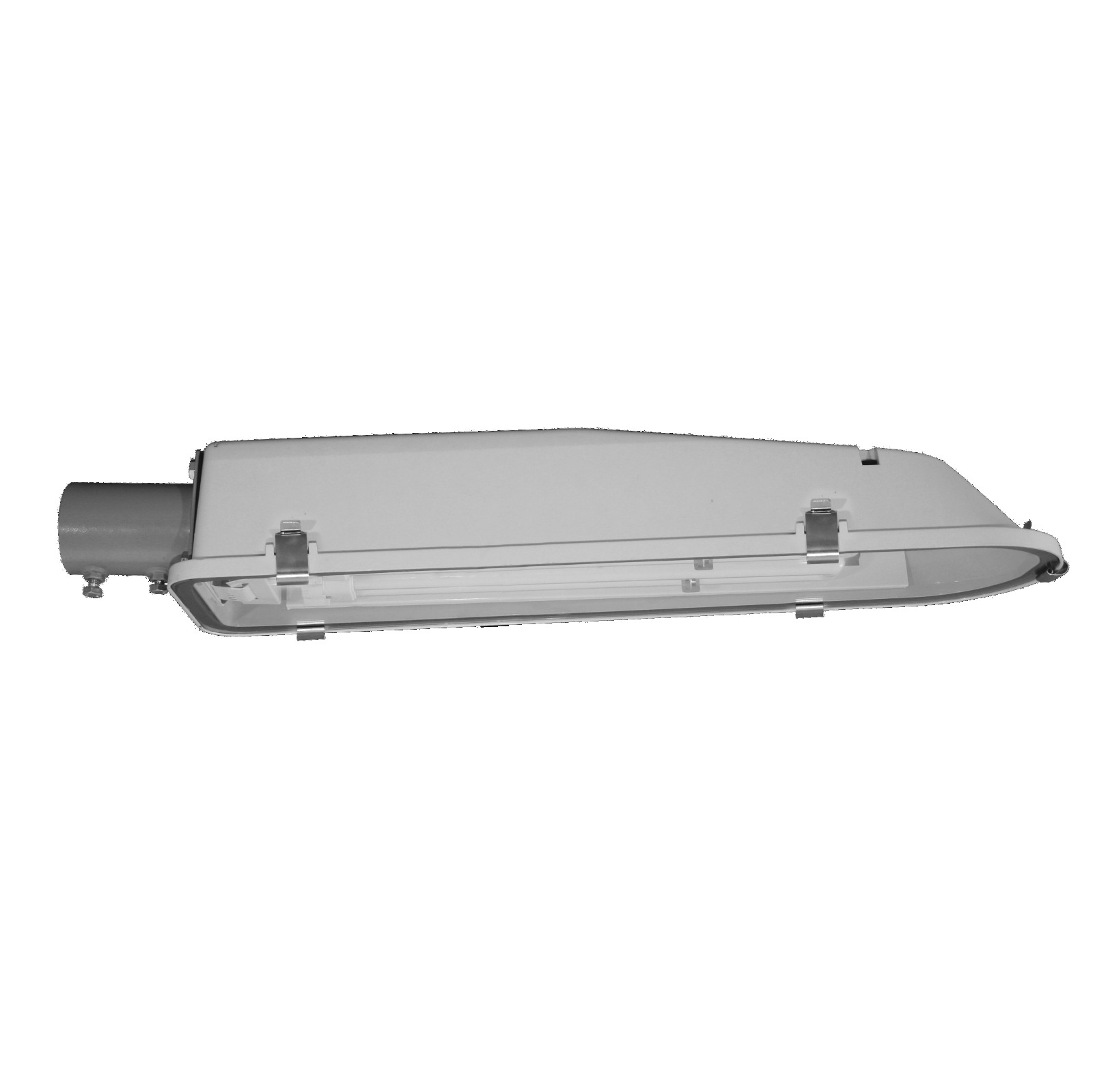

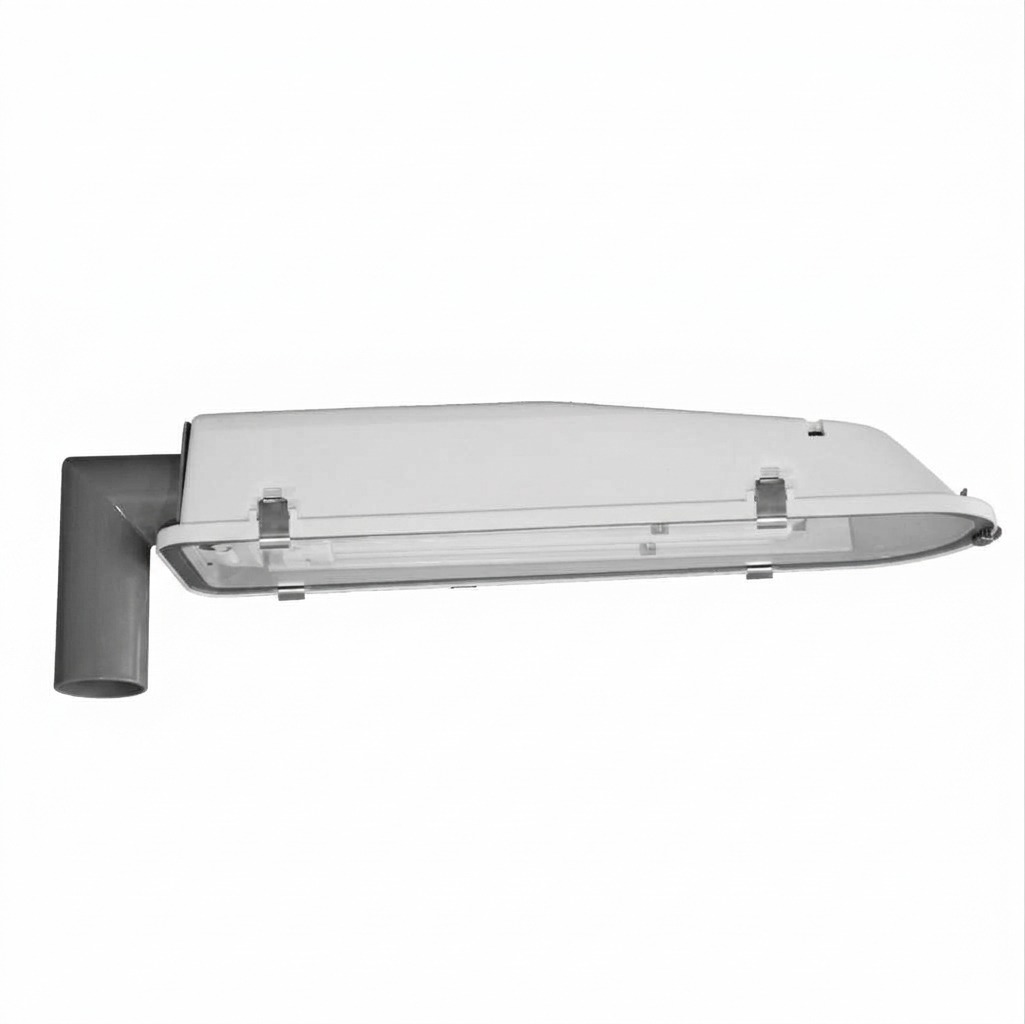

Mounting method: Side-entry
LV136RETROFIT/LOS830
LV136RETROFIT/LOS840
LV236LED/S60/LOS830
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Post-top
LV236LED/S60/LOS840
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Post-top
LV236LED/V60/LOS830
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Side-entry
LV236LED/V60/LOS840
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Side-entry
LV236RETROFIT/LOS830
LV236RETROFIT/LOS840
LVS136LED/S60/LOS830
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Post-top
LVS136LED/S60/LOS840
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Post-top
LVS136LED/V60/LOS830
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVS136LED/V60/LOS840
Effective luminous flux (lm): 1850
System power (W): 17
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVS236LED/S60/LN840
Effective luminous flux (lm): 3450
System power (W): 35
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Post-top
LVS236LED/S60/LOS830
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Post-top
LVS236LED/S60/LOS840
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Post-top
LVS236LED/V60/LN840
Effective luminous flux (lm): 3450
System power (W): 35
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Post-top
LVS236LED/V60/LOS830
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVS236LED/V60/LOS840
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 4000
Suitable for top end size (mm): 60
Mounting method: Side-entry
LVS236LEDOK/V60/LOS830
Effective luminous flux (lm): 3450
System power (W): 34
Color temperature (K): 3000
Suitable for top end size (mm): 60
Mounting method: Side-entry
