Product series

MODUS MEGAN

Industrial aluminium luminaire

třída ochrany I.PNG
220-240 v.png
odolnost D.jpg
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

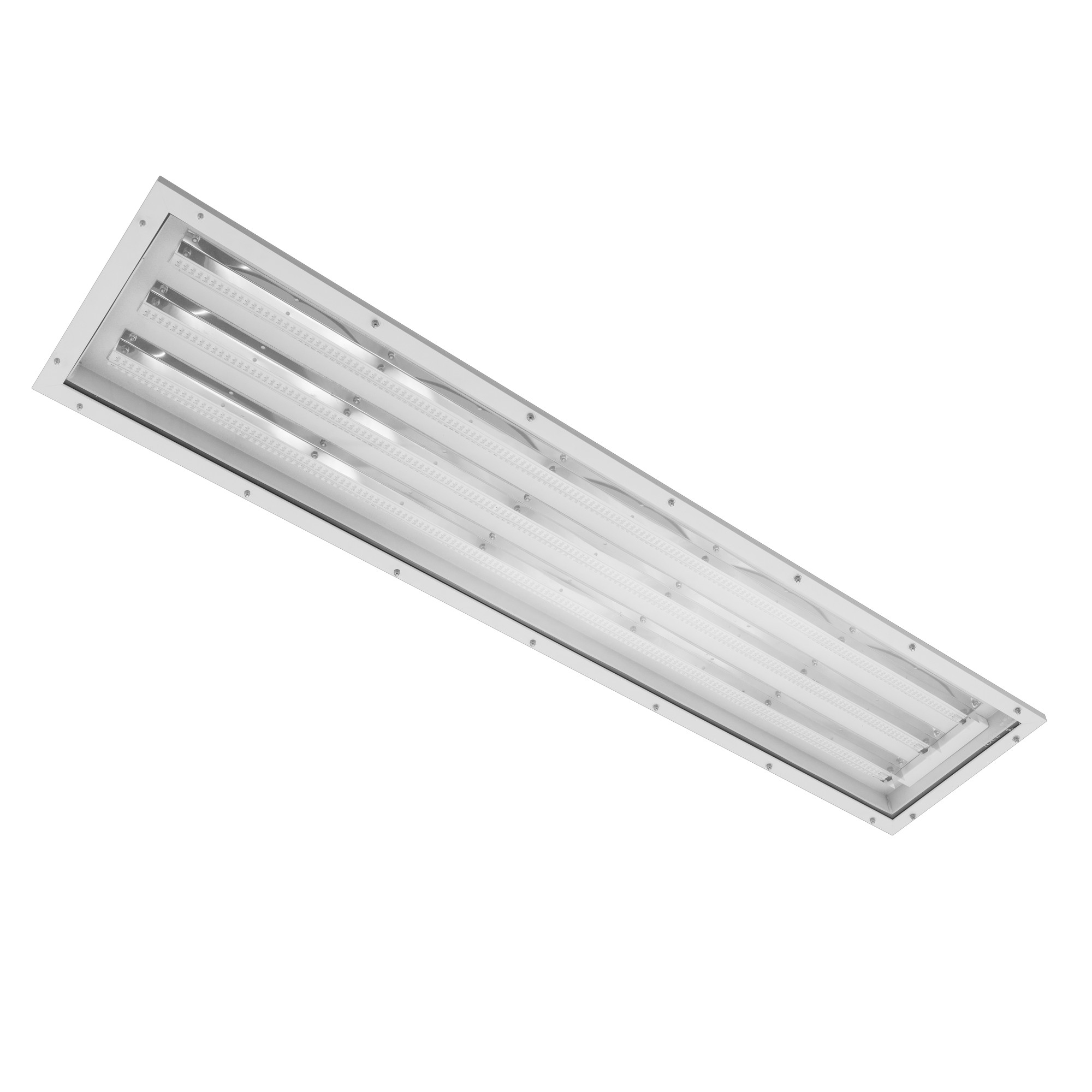

Ideal luminaire for industrial areas with higher IP65 protection. Rectangle size is ideal for reach homogenity in projects.

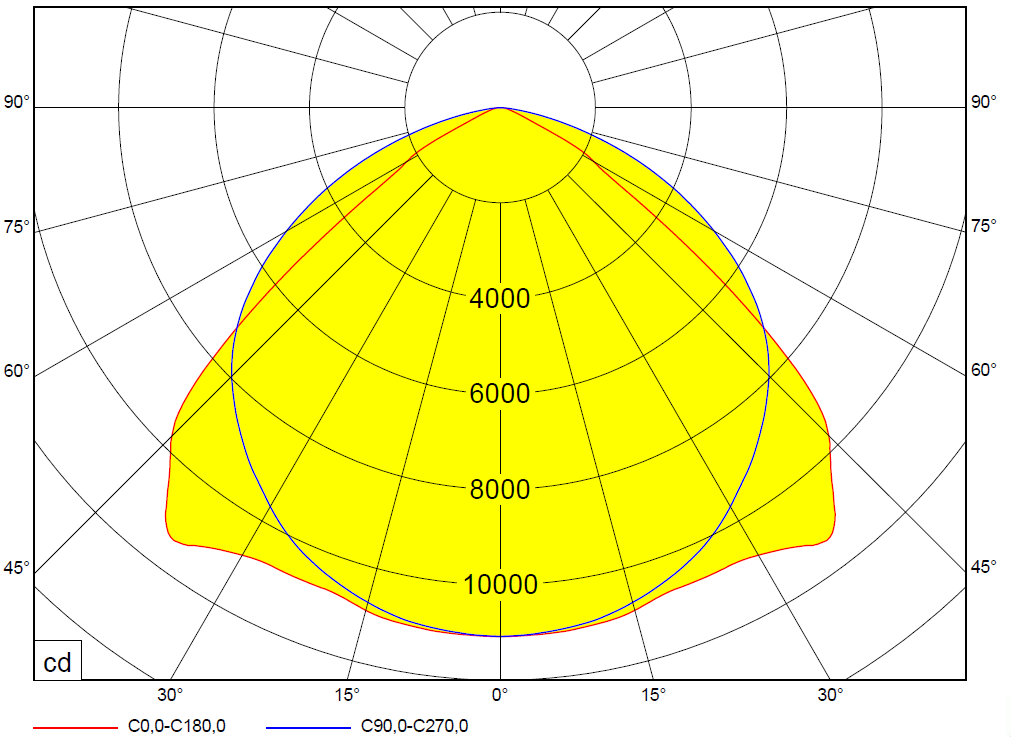

There is possible to choose from two different lighting distributions - wide or narrow. This first optic is made from MIRO reflectors with high effectivity. As more you can choose type of second optic, standartly is used clear glass, but in offer is also clear or opal polycarbonate (IK protection), PMMA nanoprisma (chemical protection and UGR reduction) or PC nanoprisma (IK protection and glare reduction).

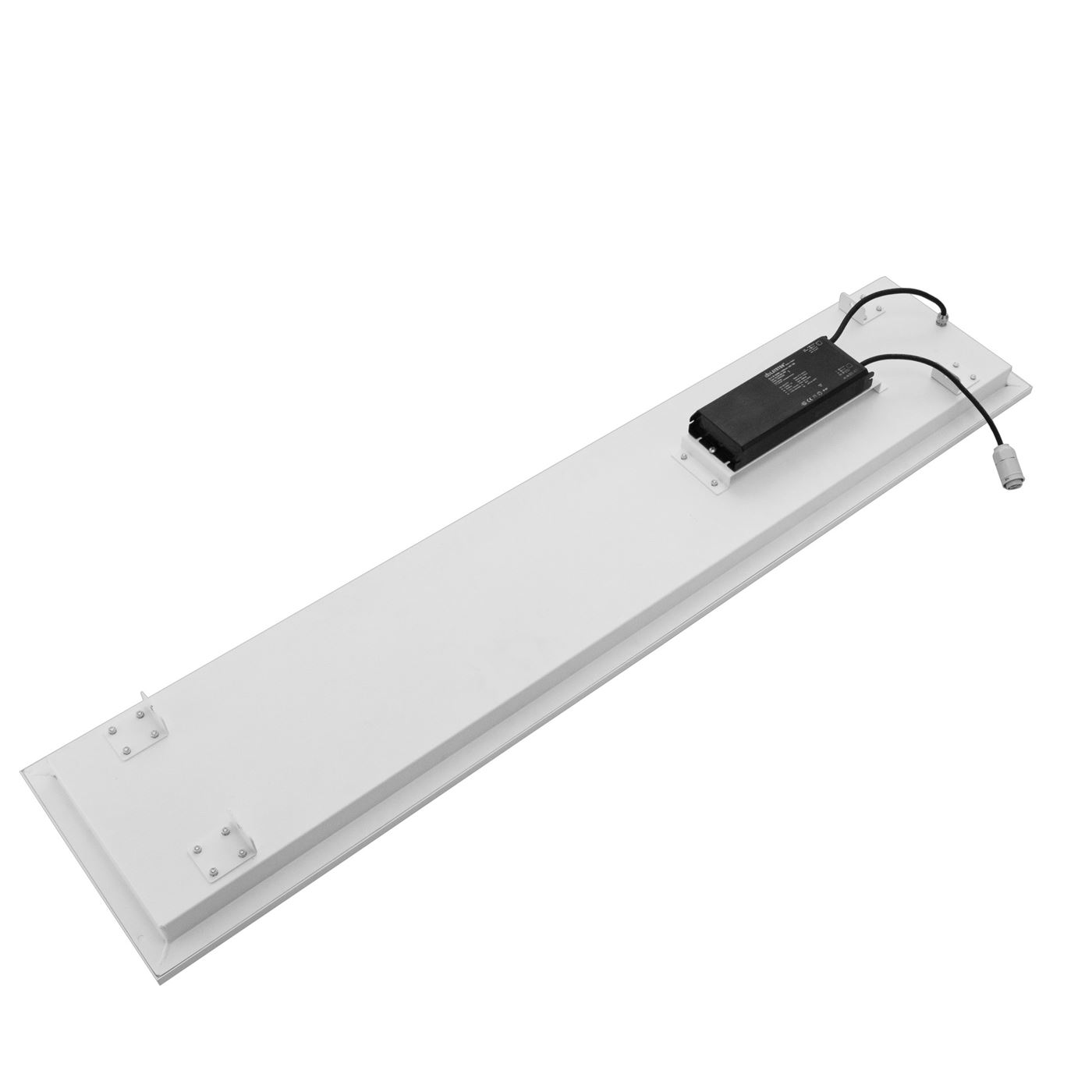

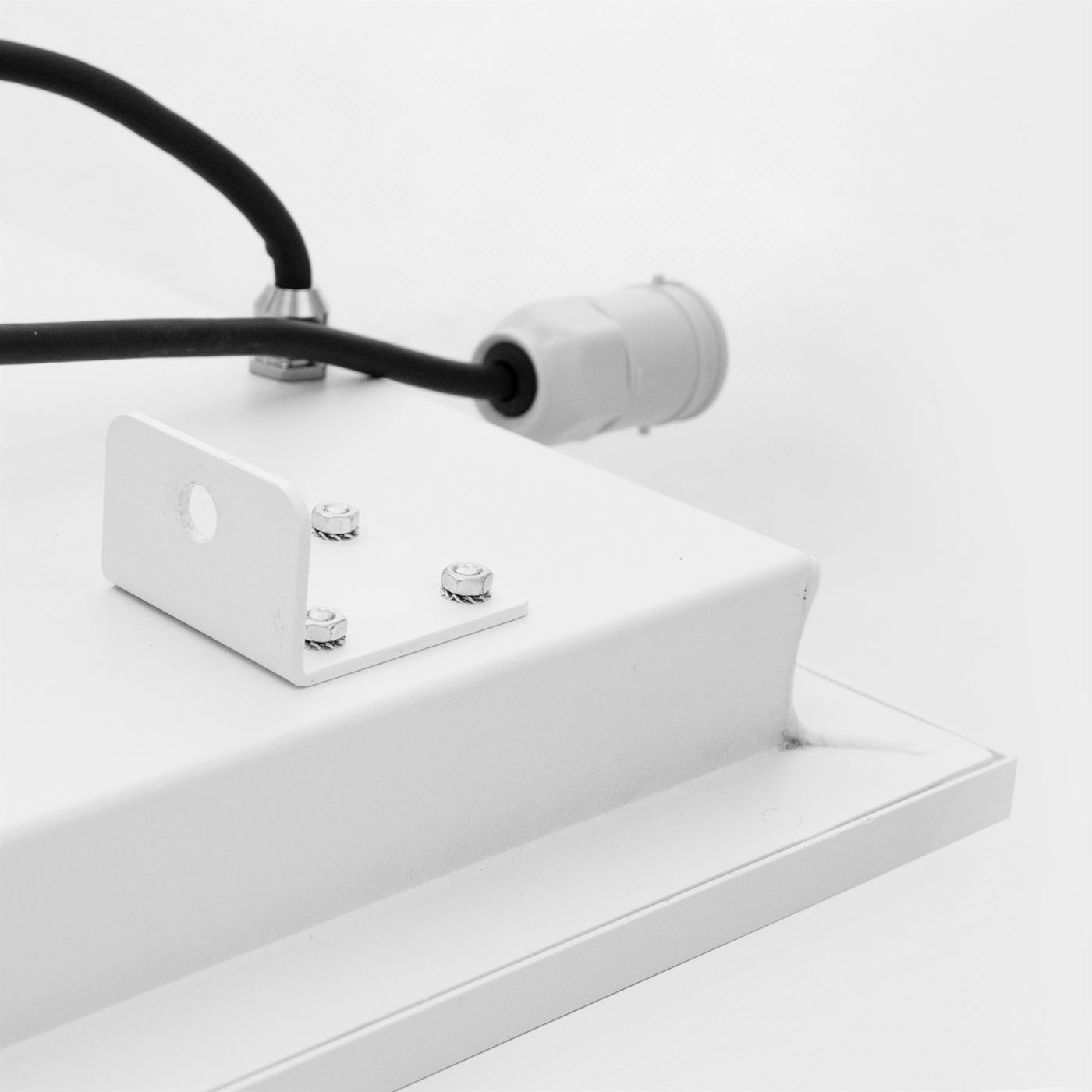

Lumianire is produced with external driver and it is non-openable - quick installation via IP65 quick connector.

Installation is standartly made like suspended, by special holders (MEGANMONTSET) luminaire can be installed also like surface one.

Standartly these luminaires are for Ta 400C.

Special version (MEGAN..../HT60) has certification for Ta 600C.

Effectivity of luminaire up to 174 lm/W (version with clear glass 31.300lm/180W).

Read more about news in industry fitting.

Size version:M
1200 mm

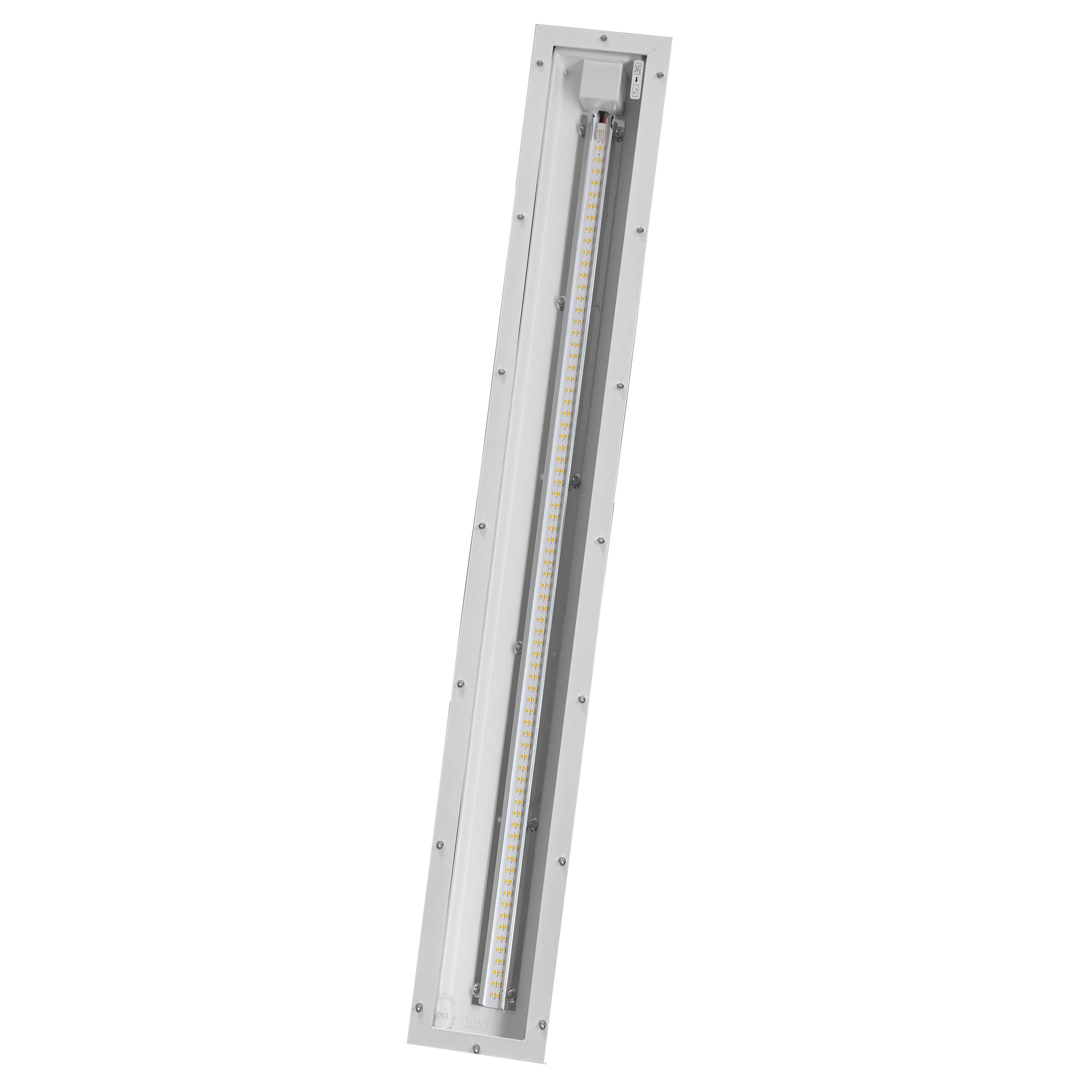

S
600 mm
Body material: Welded aluminum
Mounting method:Surface mounting, SuspendedProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Ball-proof:YesLight source type:LED
Light outlet:DirectImpact strength:IK10
Nominal voltage (V):220...240Degree of protection (IP):IP65
Fire resistance D:YesColor temperature (K):4000, 6500, 3000, 5700
Rated lifetime L80/B50 (h):80000Rated ambient temperature (°C):-30...+60, -25...+45
Dimming DALI:YesOptical system:C
front glass cover
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

5200
31300

System power (W)

30
180
Product name
MEGAN090M2KCW4V1/DALI
Effective luminous flux (lm): 8500
System power (W): 51
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1KCN4V1/ND
Effective luminous flux (lm): 10500
System power (W): 61
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1KCW2V1/ND
Effective luminous flux (lm): 10500
System power (W): 61
Color temperature (K): 2700
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1KCW4V1/ND
Effective luminous flux (lm): 10500
System power (W): 61
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1KCW4V2/DALI
Effective luminous flux (lm): 10500
System power (W): 61
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1KCW4V2/ND
Effective luminous flux (lm): 10500
System power (W): 61
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1PCNW4V2/DALI
Effective luminous flux (lm): 8000
System power (W): 61
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN100M1PCNW4V2/ND
Effective luminous flux (lm): 8000
System power (W): 61
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN150M2KCW4V1/DALI
Effective luminous flux (lm): 15000
System power (W): 96
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN150M2KCW4V1/DALI/HT60
Effective luminous flux (lm): 15000
System power (W): 96
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -30...+60
MEGAN150M2KCW4V1/ND
Effective luminous flux (lm): 15000
System power (W): 96
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN150M2KCW4V2/DALI
Effective luminous flux (lm): 15700
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN150M2KCW4V2/ND
Effective luminous flux (lm): 15700
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN150M2KCW4V2/ND/HT60
Effective luminous flux (lm): 15700
System power (W): 92
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+60
MEGAN150M2KN4V1/DALI
Effective luminous flux (lm): 14000
System power (W): 96
Color temperature (K): 4000
Optical system: KN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN150M2PCNW4V1/ND
Effective luminous flux (lm): 13500
System power (W): 96
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN200M2KCN4V1/ND
Effective luminous flux (lm): 21000
System power (W): 122
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN200M2KCW4V1/DALI
Effective luminous flux (lm): 21000
System power (W): 122
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN200M2KCW4V1/ND
Effective luminous flux (lm): 21000
System power (W): 122
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN200M2KCW4V2/ND
Effective luminous flux (lm): 21000
System power (W): 122
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN200M2KN4V2/ND
Effective luminous flux (lm): 19500
System power (W): 122
Color temperature (K): 4000
Optical system: KN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN200M2PCN4V2/ND
Effective luminous flux (lm): 15800
System power (W): 122
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN250M3KCW4V1/DALI
Effective luminous flux (lm): 27000
System power (W): 155
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN250M3KCW4V1/DALI/HT60
Effective luminous flux (lm): 27000
System power (W): 155
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -30...+60
MEGAN250M3KCW4V1/ND
Effective luminous flux (lm): 27000
System power (W): 155
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN250M3KCW4V2/ND
Effective luminous flux (lm): 27000
System power (W): 155
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN250M3PCOW4V1/DALI
System power (W): 155
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN250M3PCW4V1/DALI
Effective luminous flux (lm): 26200
System power (W): 155
Color temperature (K): 4000
Optical system: PC
Length (mm): 1275
Rated ambient temperature (°C): -40...+45
MEGAN250M3PCW4V1/ND
Effective luminous flux (lm): 26200
System power (W): 155
Color temperature (K): 4000
Optical system: PC
Length (mm): 1275
Rated ambient temperature (°C): -40...+45
MEGAN300M3KCW4V1/ND
Effective luminous flux (lm): 31300
System power (W): 180
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN300M3KCW4V2/DALI
Effective luminous flux (lm): 31300
System power (W): 180
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN300M3KCW4V2/ND
Effective luminous flux (lm): 31300
System power (W): 180
Color temperature (K): 4000
Optical system: C
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN300M3PCNW4V2/ND
Effective luminous flux (lm): 24000
System power (W): 180
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN300M3PCW5V2/ND
Effective luminous flux (lm): 30500
System power (W): 180
Color temperature (K): 5700
Optical system: PC
Length (mm): 1275
Rated ambient temperature (°C): -25...+45
MEGAN50S1KCW4V1/ND
Effective luminous flux (lm): 5200
System power (W): 30
Color temperature (K): 4000
Optical system: C
Length (mm): 700
Rated ambient temperature (°C): -25...+45
MEGAN50S1KCW4V2/ND
Effective luminous flux (lm): 5200
System power (W): 30
Color temperature (K): 4000
Optical system: C
Length (mm): 700
Rated ambient temperature (°C): -25...+45
MEGAN50S1KCW4V2/ND/HT60
Effective luminous flux (lm): 5200
System power (W): 30
Color temperature (K): 4000
Optical system: C
Length (mm): 700
Rated ambient temperature (°C): -25...+45
