Product series
MODUS NAR
Linear luminaires with optic
Standard price from:
On request

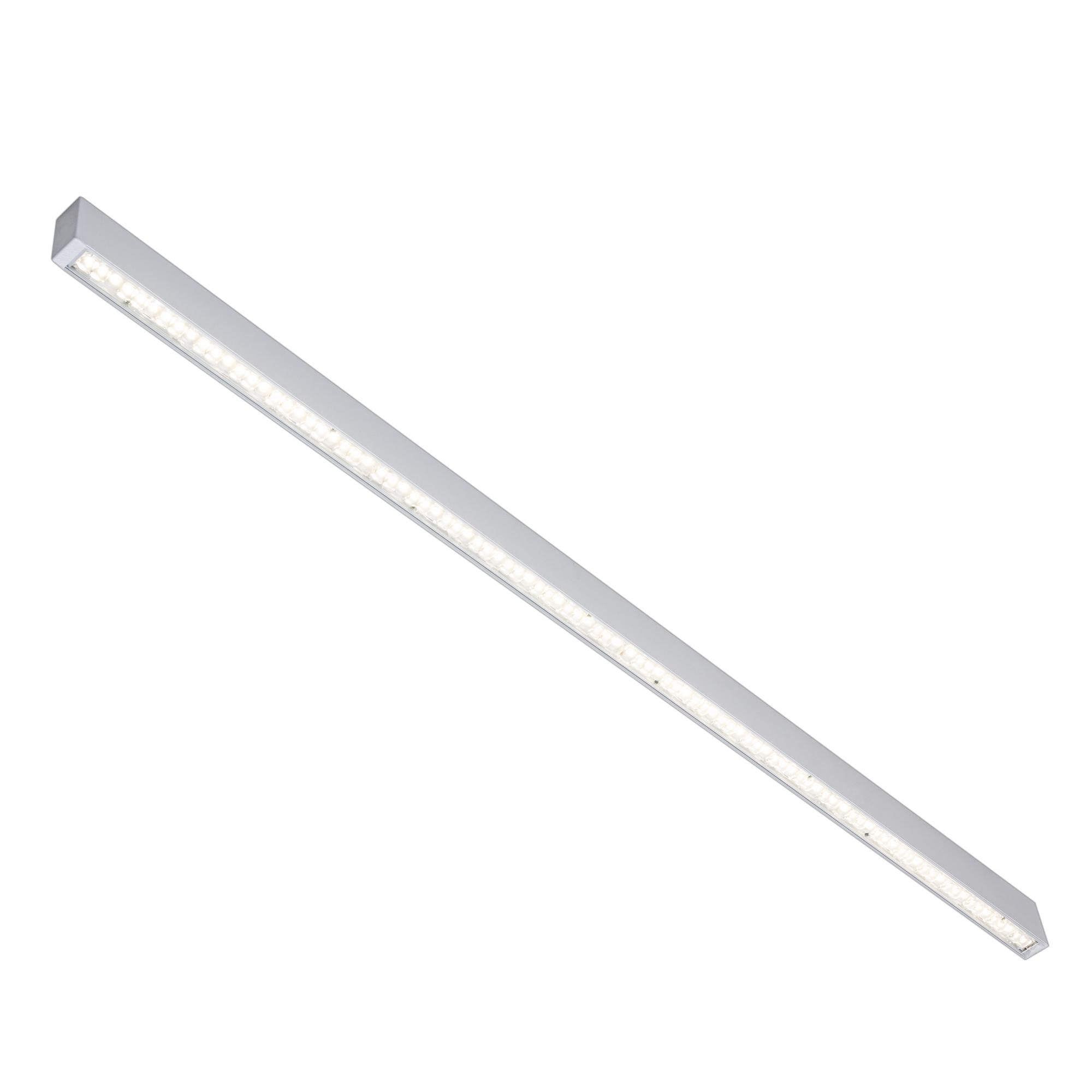

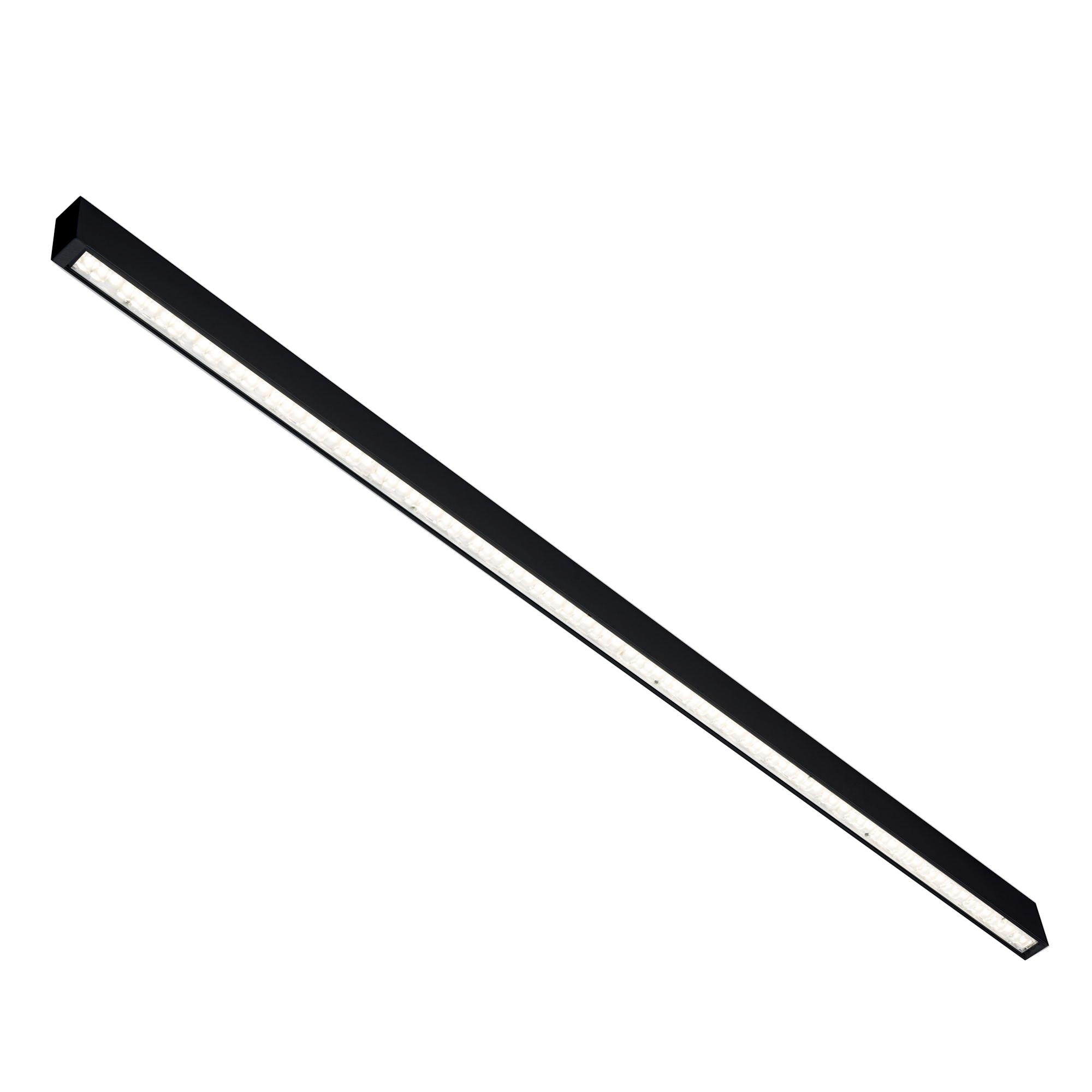

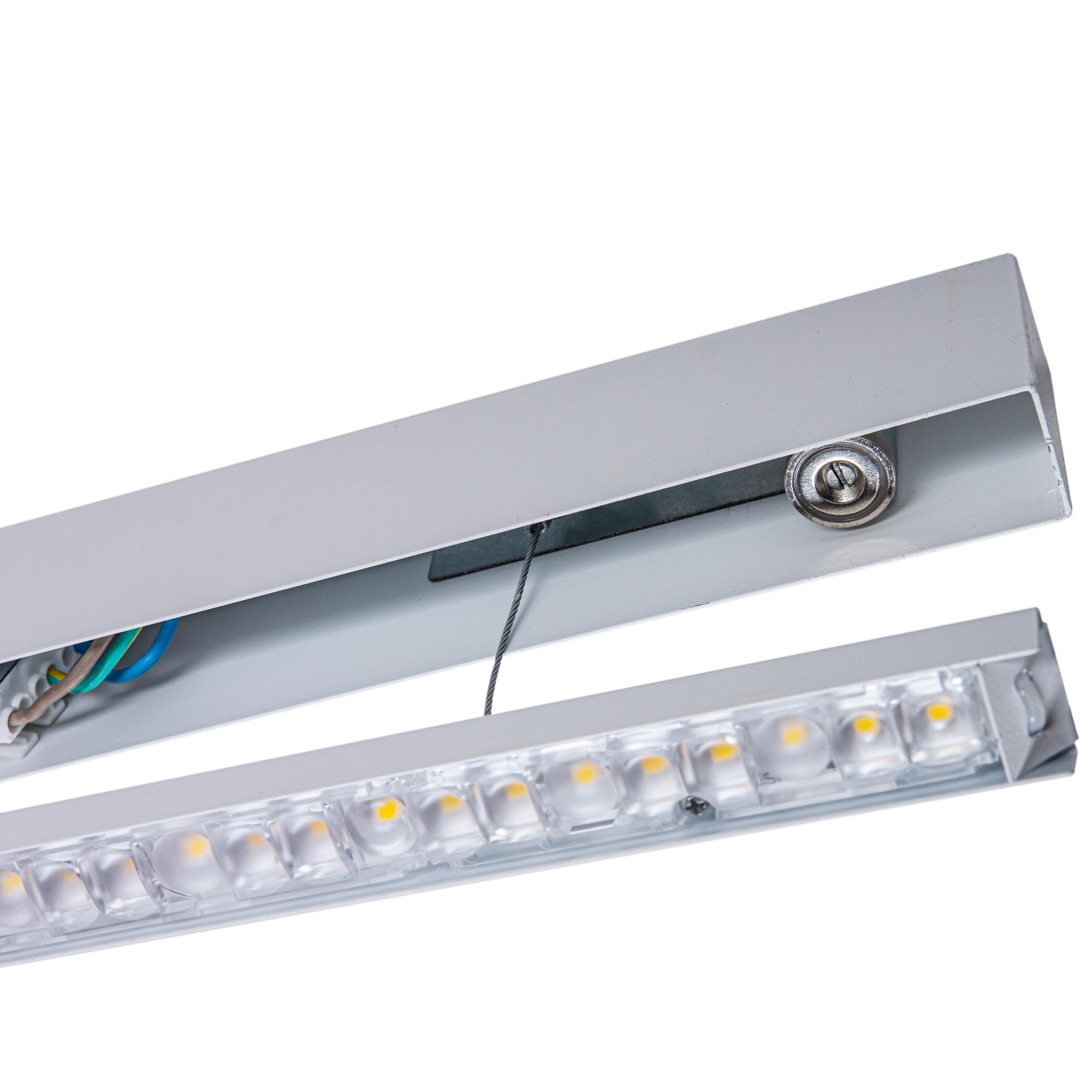

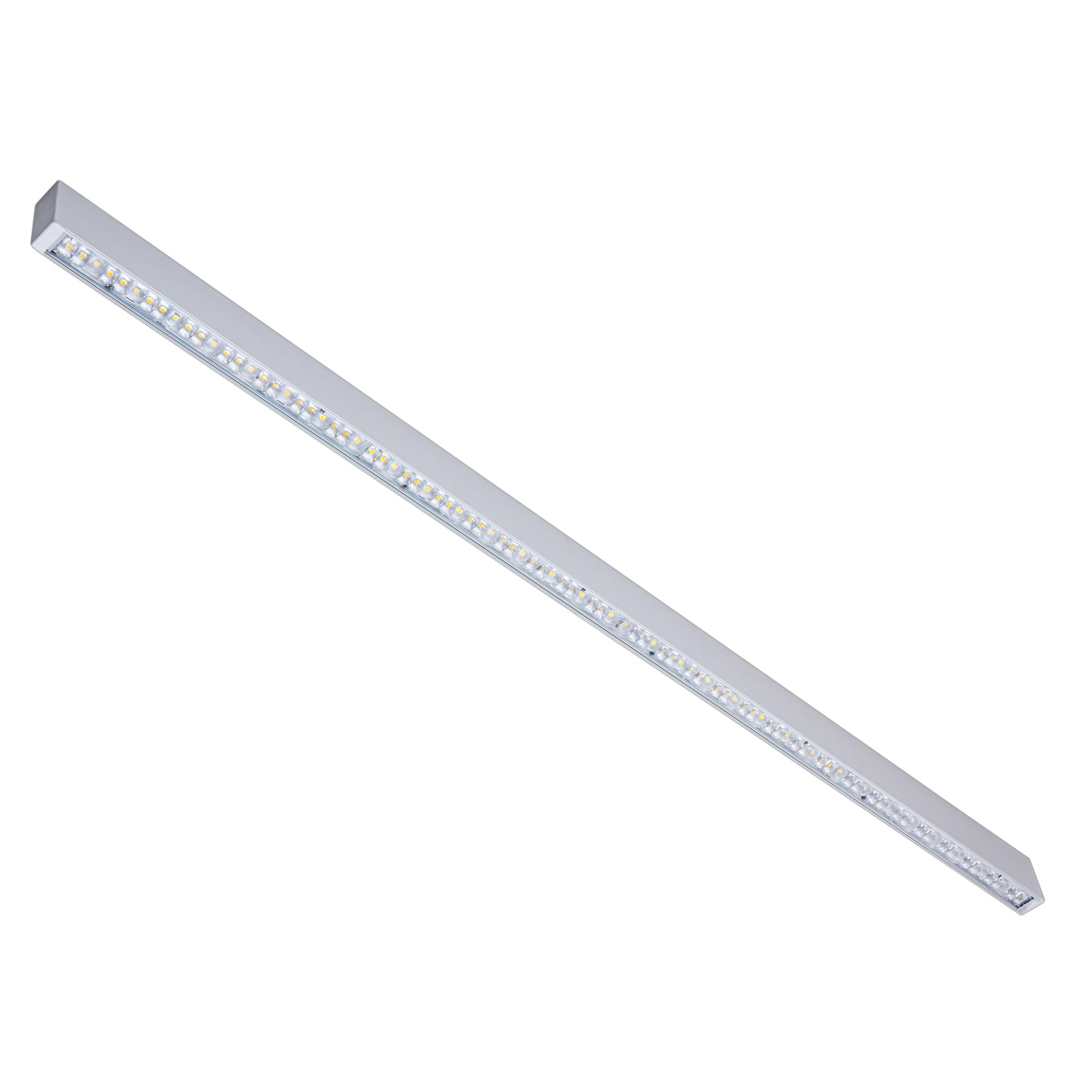

Small /subtile/ luminaire with metal body and clear optical system.

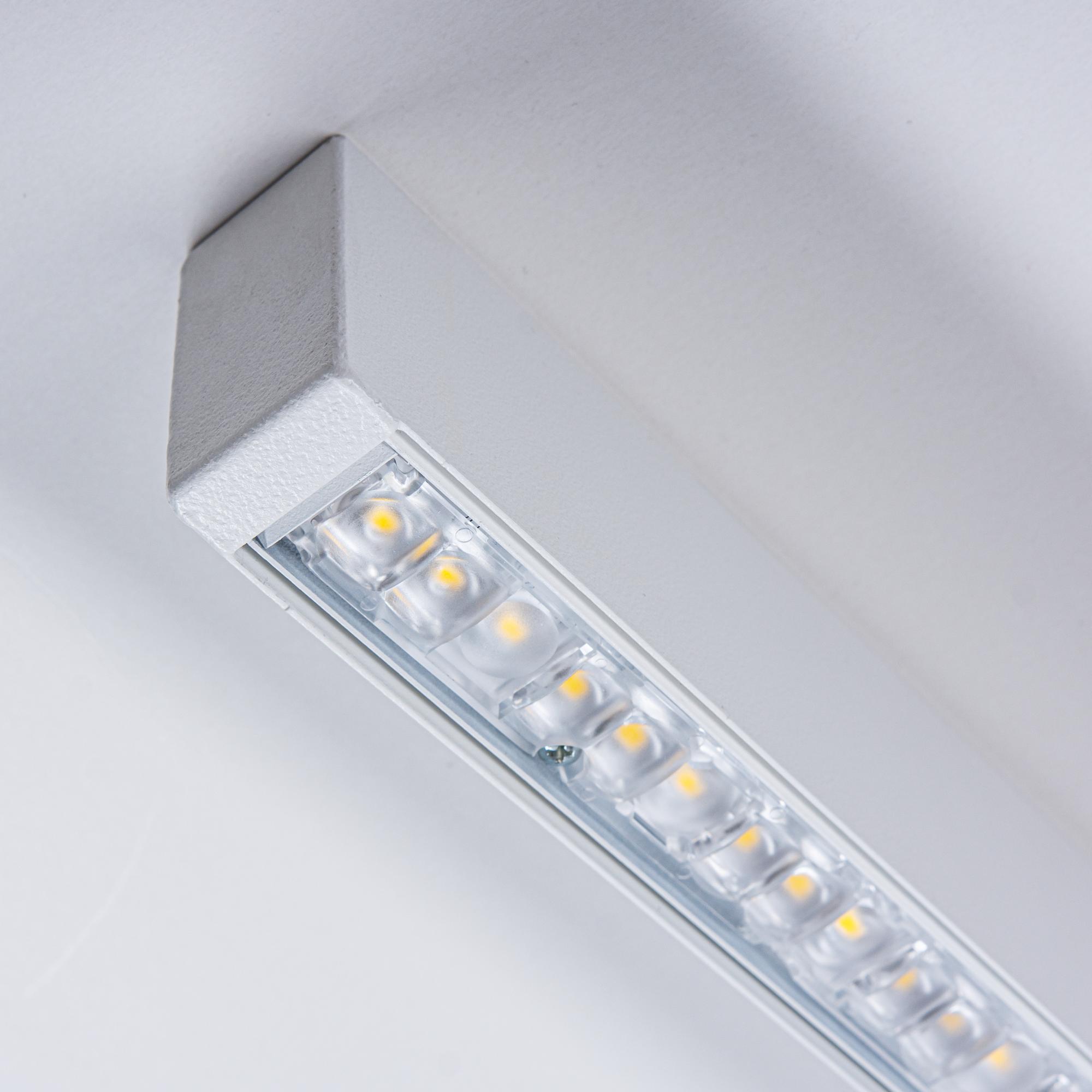

Thank to clear optic luminaire reach a high effectivity. It is possible to choose wide beam, narrow beam or asymetrical lighting characteristic.

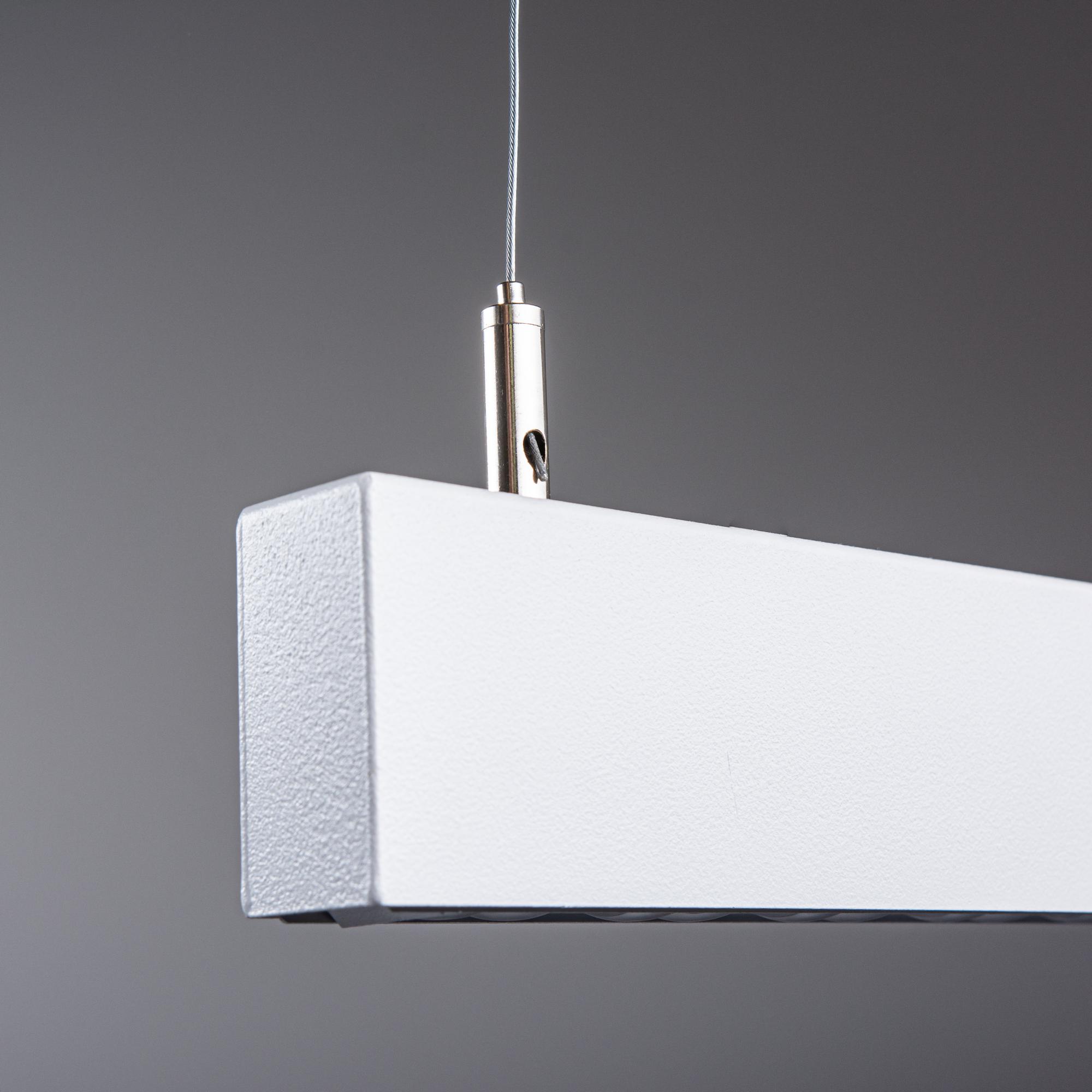

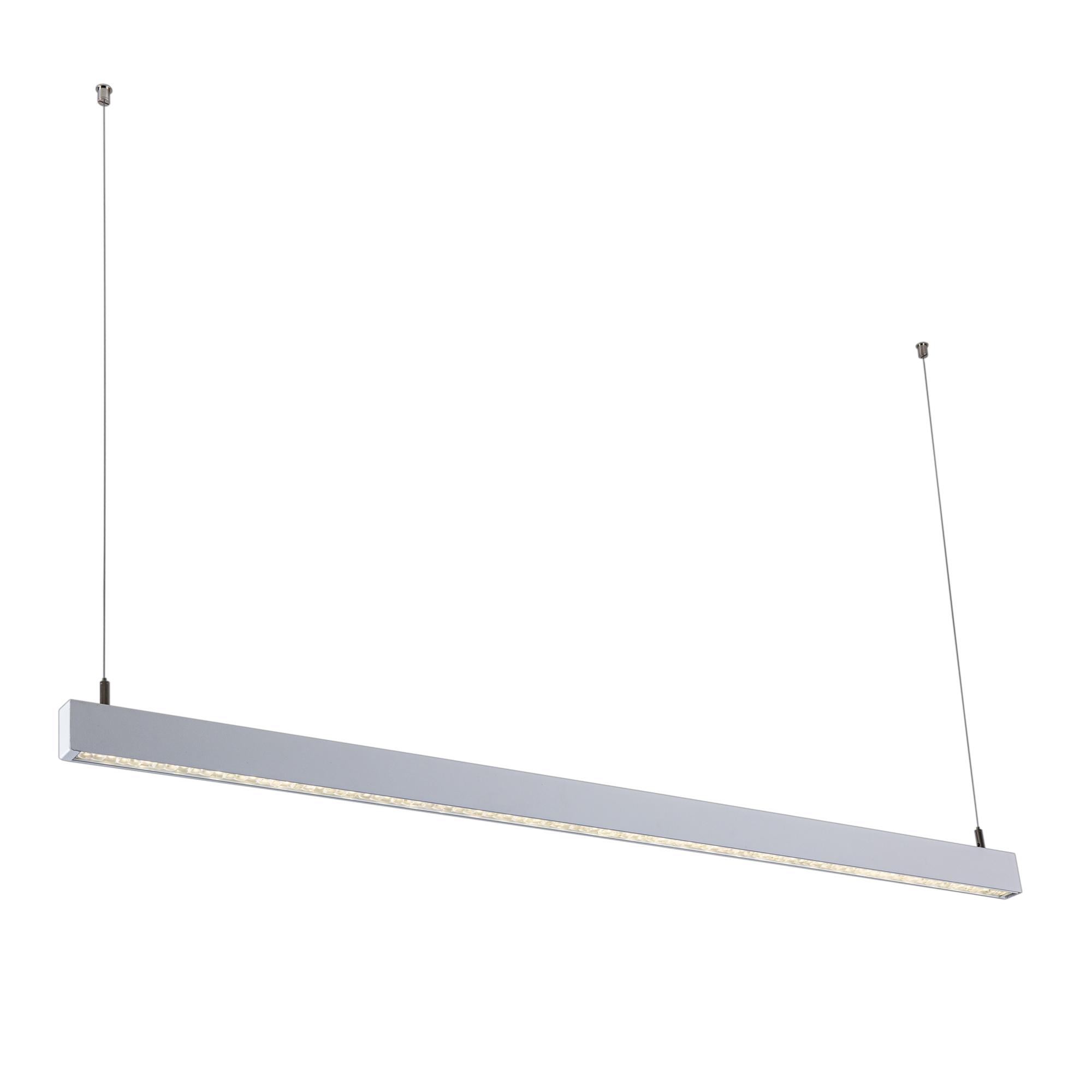

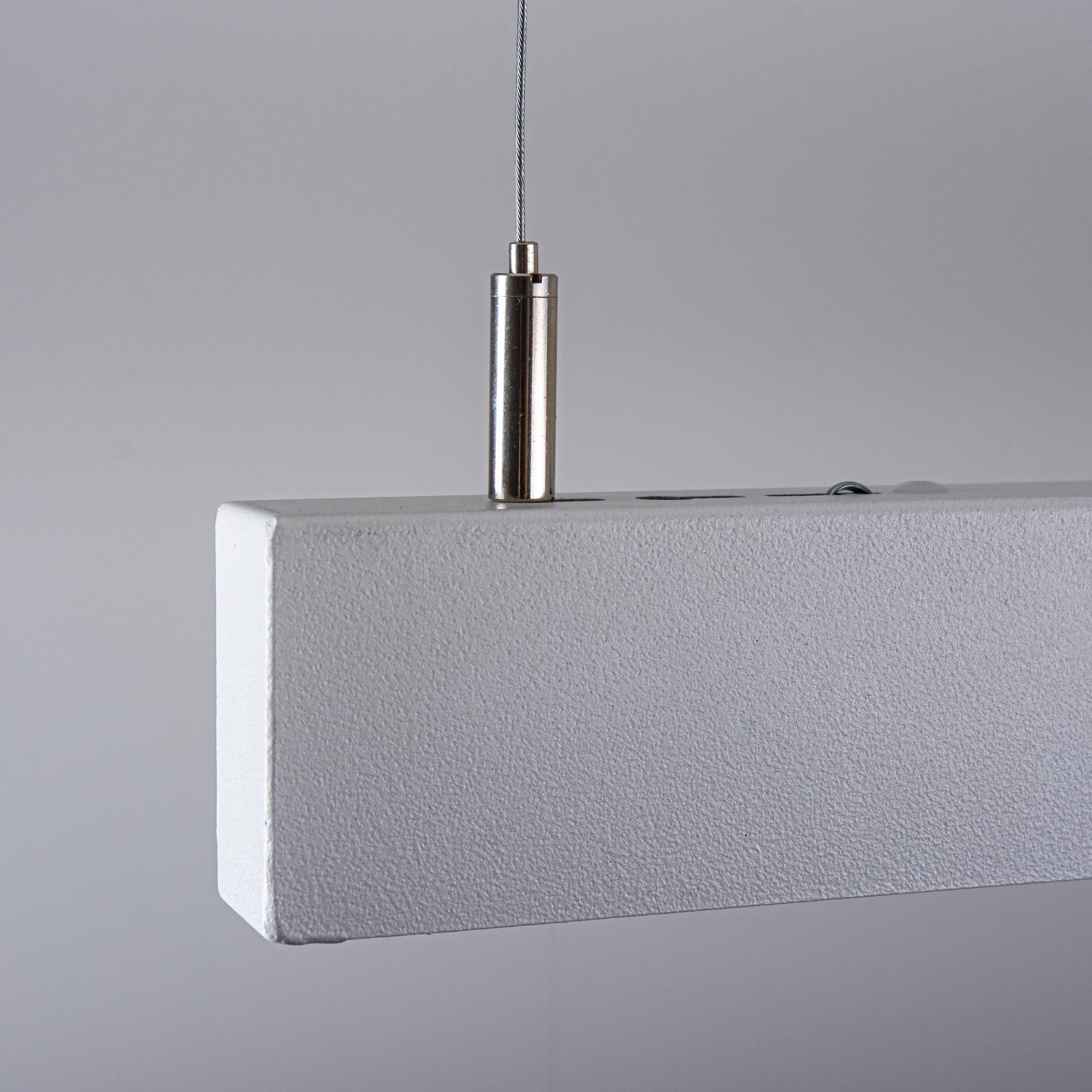

Installation possible like pendant (needs to be ordered NARZAVES - pending set with 2x wire and transparent power supply) or like surface luminaire.
Finishing is standartly in white colour, another colours on request.
| Size version: | M 1200 mm S 600 mm | Body material: | White painted steel | Mounting method: | Pendant, Surface mounting | Protection class: | I | With movement sensor: | No | Type of control gear: | ND non-dimm DALI DALI dimm | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Light sharing: | Symmetric | Nominal voltage (V): | 220...240 |

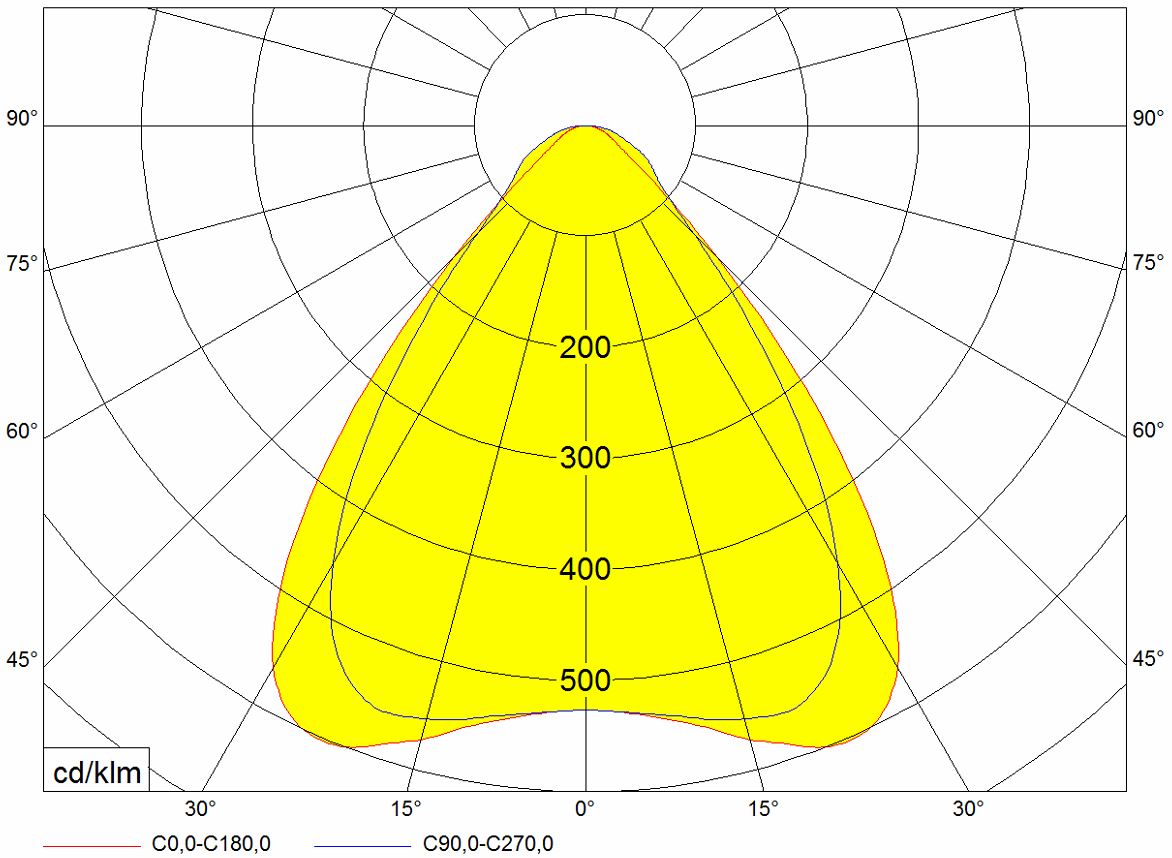

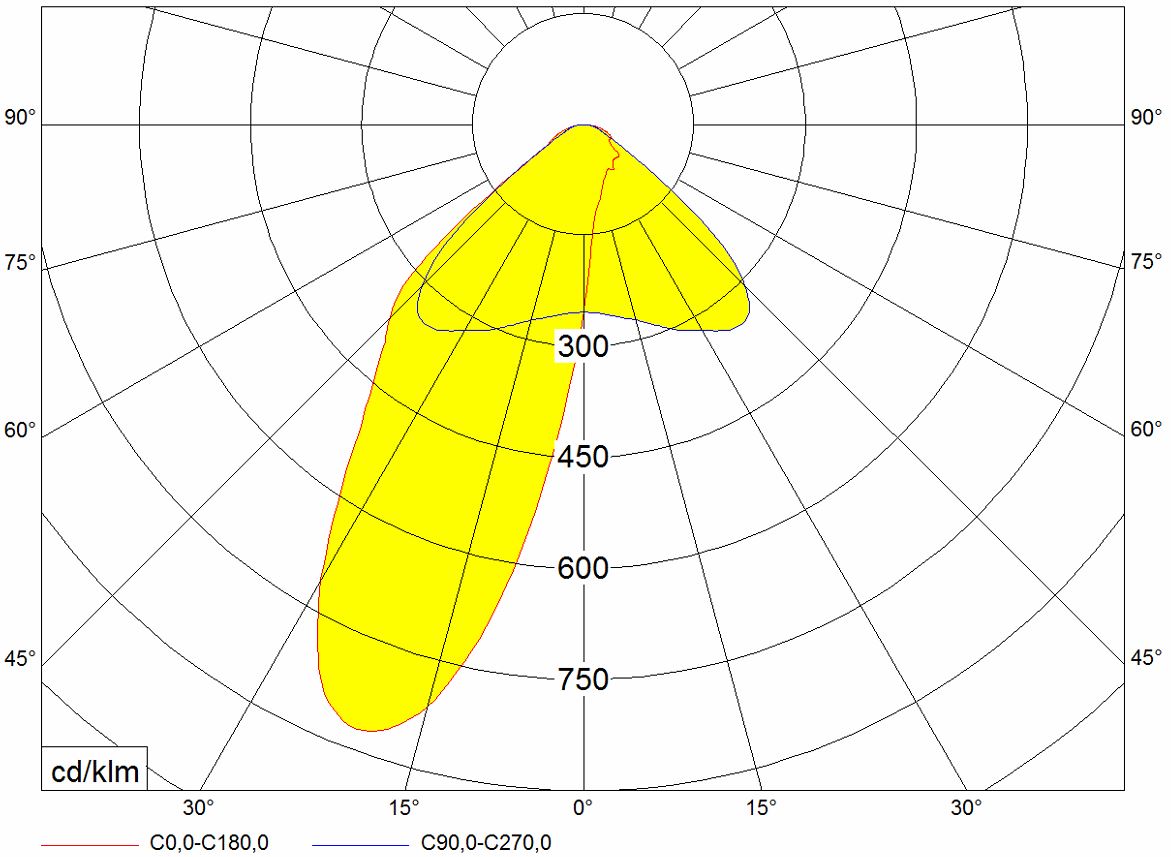

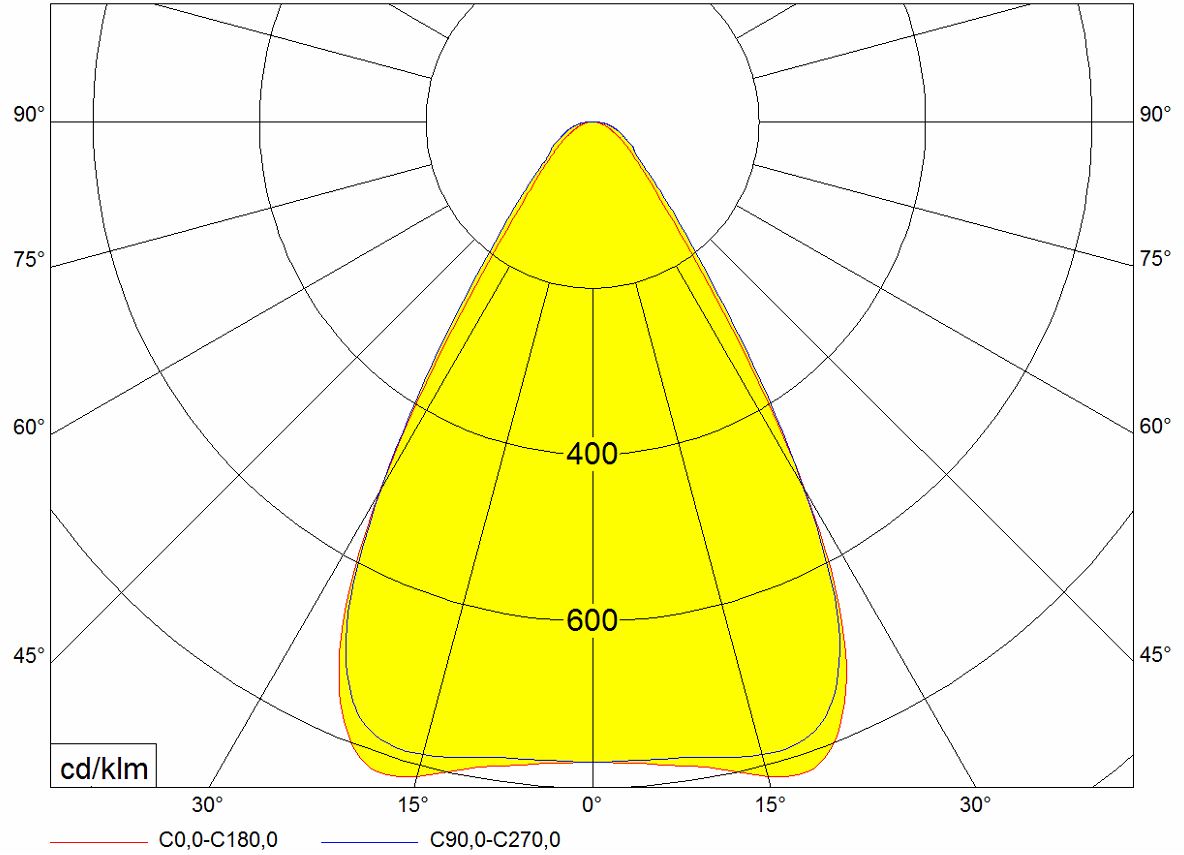

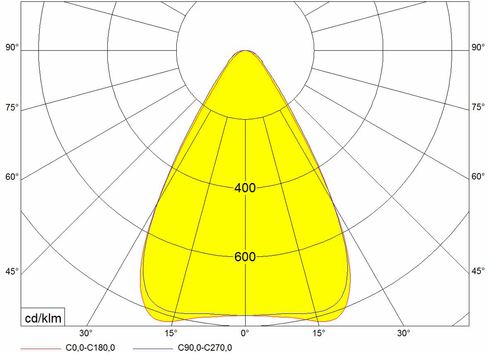

| Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Product category: | Batten luminaire | Optical system: | Z60 Narrow beam optic 60° Z90 Wide beam optic 90° ZAS asymetrical optic | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
Color housing
NAR2000S3BZ60/ND
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 3000
Optical system: Z60
Length (mm): 630
Color housing: White
NAR2000S4BZ60/DALI
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z60
Length (mm): 630
Color housing: White
NAR2000S4BZ60/ND
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z60
Length (mm): 630
Color housing: White
NAR2000S4BZ90/ND
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z90
Length (mm): 630
Color housing: White
NAR2000S4BZAS/ND
Effective luminous flux (lm): 1800
System power (W): 13
Color temperature (K): 4000
Optical system: AS
Length (mm): 630
Color housing: White
NAR2000S4CZ90/DALI
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z90
Length (mm): 630
Color housing: Black
NAR2000S4CZ90/ND
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z90
Length (mm): 630
Color housing: Black
NAR2000S4HZ60/DALIBTC
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z60
Length (mm): 630
Color housing: Brown
NAR2000S4SZ60/DALI
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 4000
Optical system: Z60
Length (mm): 630
Color housing: Grey
NAR3000M3BZ60/DALI
Effective luminous flux (lm): 2800
System power (W): 18
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1190
Color housing: White
NAR4000M3BAS/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: AS
Length (mm): 1190
Color housing: White
NAR4000M3BZ90/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z90
Length (mm): 1190
Color housing: White
NAR4000M3CZ60/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1190
Color housing: Black
NAR4000M3CZ90/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z90
Length (mm): 1190
Color housing: Black
NAR4000M4BAS/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: AS
Length (mm): 1190
Color housing: White
NAR4000M4BZ60/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1190
Color housing: White
NAR4000M4BZ60/DALIBTC
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1190
Color housing: White
NAR4000M4BZ60/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1190
Color housing: White
NAR4000M4BZ90/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1190
Color housing: White
NAR4000M4BZ90/DALIBTC
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1190
Color housing: White
NAR4000M4BZ90/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1190
Color housing: White
NAR4000M4CZ60/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1190
Color housing: Black
NAR4000M4CZ90/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1190
Color housing: Black
Product page - PDF
CE declaration
LDT files
NAR_Z90.JPGProjekty realizované se svítidly MODUS:
