Product series New

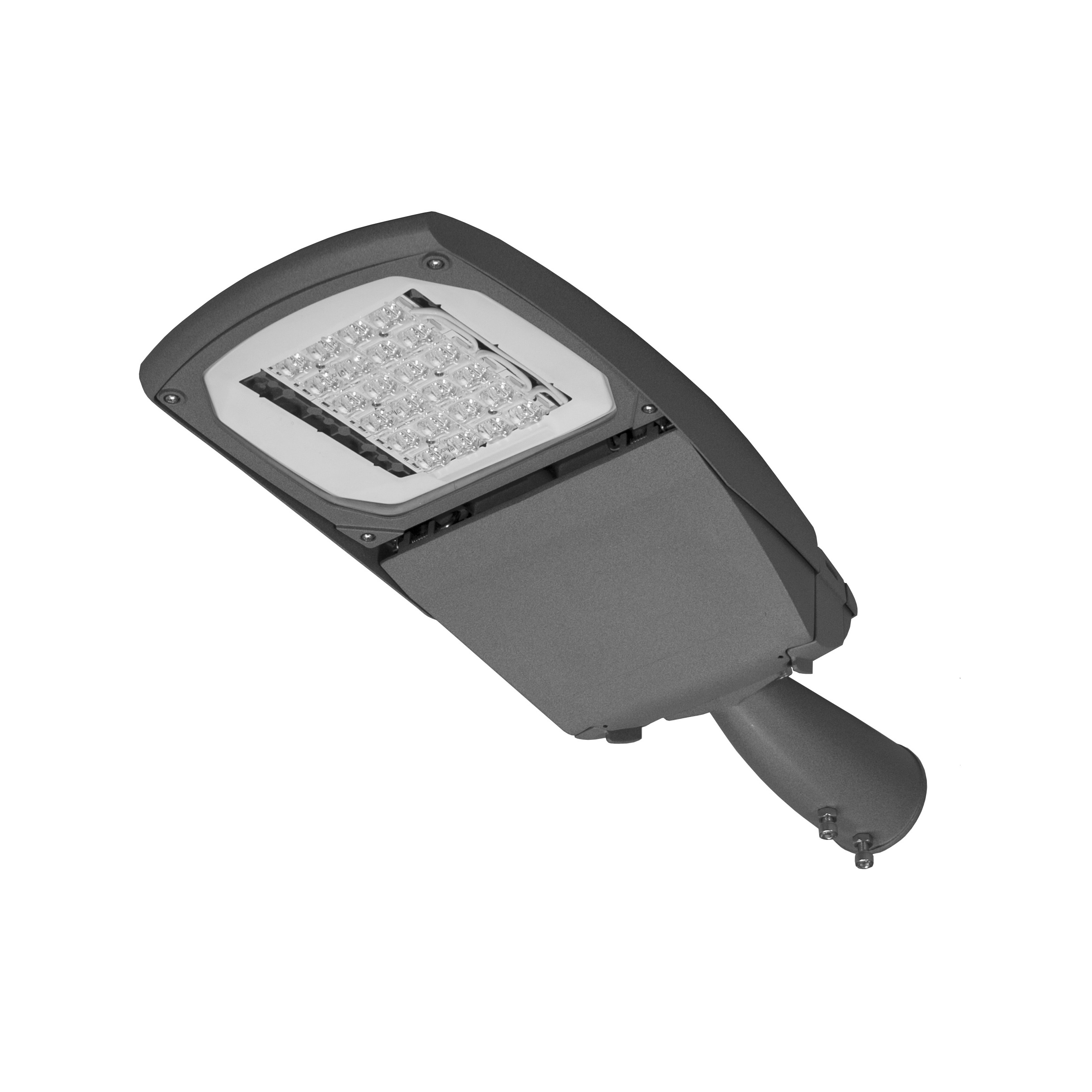

MODUS NOD NEO

LED street luminaire with SMART possibilities

MODUS NOD NEO
220-240 v.png
6 IP66.jpg
11 L70_100000_H.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

Lumen output up to 20.000lm, with a SMART solutions possibility.

Luminaire is produced in 3 sizes, depents on power:

- NODN...S - small body (565x210mm)

- NODN...M - medium body (655x260mm)

- NODN...L - large body (795x305mm)

Type of control gear:LED operating device current-controlledColor rendering index CRI:70-79
Light source type:LEDLight outlet:Direct
Impact strength:IK10Nominal voltage (V):220...240
Degree of protection (IP):IP66Color temperature (K):4000, 3000, 2700, 2200
Rated lifetime L70/B50 (h):100000
Rated ambient temperature (°C):-25...+45
Dimming DALI:YesProduct category:Luminaire for streets and places
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1900
22500

System power (W)

13
151
Product name
NODNL180KC3W/REG/PO
Effective luminous flux (lm): 18800
System power (W): 125
Color temperature (K): 3000
NODNL220KC4W/ASTRO
Effective luminous flux (lm): 22500
System power (W): 151
Color temperature (K): 4000
NODNL220KC4W/ND
Effective luminous flux (lm): 22500
System power (W): 151
Color temperature (K): 4000
NODNL220KC4W/REG/ASTRO
Effective luminous flux (lm): 22500
System power (W): 151
Color temperature (K): 4000
NODNM120KC2EW/ND
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 2700
NODNM120KC2S/ND
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 2700
NODNM120KC3S/REG/ASTRO
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC3W/ND
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC3W/REG
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC3W/REG/ASTRO
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC3WZHMS/COR
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC3WZHMS/REG
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC3WZHS/REG
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 3000
NODNM120KC4S/ND
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 4000
NODNM120KC4W/ND
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 4000
NODNM120KC5AS/ND
Effective luminous flux (lm): 11600
System power (W): 74
Color temperature (K): 5000
NODNM150KC2S/REG
Effective luminous flux (lm): 14300
System power (W): 107
Color temperature (K): 2700
NODNM150KC2W/ND
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 2700
NODNM150KC2W/REG
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 2700
NODNM150KC3W/ND
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 3000
NODNM150KC3W/REG
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 3000
NODNM150KC3WZH/REG
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 3000
NODNM150KC4S/ND
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 4000
NODNM150KC4W/REG
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 4000
NODNM150KC4W/REG/STEP
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 4000
NODNM150KC5AS/ND
Effective luminous flux (lm): 15500
System power (W): 107
Color temperature (K): 5000
NODNS020KC3W/REG
Effective luminous flux (lm): 1900
System power (W): 13
Color temperature (K): 3000
NODNS030KC2S/ND
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 2700
NODNS030KC2W/ND
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 2700
NODNS030KC2W/REG
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 2700
NODNS030KC2W/REG/Y053S189/5
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 2700
NODNS030KC2WZHMS/AR/Y...
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 2700
NODNS030KC2WZHMS/COR
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 2700
NODNS030KC3W/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
NODNS030KC3W/REG
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
NODNS030KC3W/REG/ASTRO
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 3000
NODNS030KC4S/ND
Effective luminous flux (lm): 2600
System power (W): 18
Color temperature (K): 4000
NODNS030KC4W/ND
Effective luminous flux (lm): 2700
System power (W): 18
Color temperature (K): 4000
NODNS030KC4WA/REG
Effective luminous flux (lm): 1900
System power (W): 18
Color temperature (K): 2200
NODNS050KC1W/REG/ASTRO
Effective luminous flux (lm): 3800
System power (W): 31
Color temperature (K): 2200
NODNS050KC2S/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC2S/REG
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC2S/REG/ASTRO
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC2W/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC2W/REG
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC2W/REG/ASTRO
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC2WZHMS/COR
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 2700
NODNS050KC3EW/REG/ASTRO
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 3000
NODNS050KC3S/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 3000
NODNS050KC3W/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 3000
NODNS050KC3W/REG
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 3000
NODNS050KC3WZHMS/COR
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 3000
NODNS050KC3WZHS/ASTRO
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 3000
NODNS050KC4S/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 4000
NODNS050KC4W/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 4000
NODNS050KC4W/REG
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 4000
NODNS050KC4WZHS/REG
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 4000
NODNS050KC5W/ND
Effective luminous flux (lm): 4400
System power (W): 31
Color temperature (K): 5000
NODNS070KC2S/ND
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 2700
NODNS070KC2W/ND
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 2700
NODNS070KC3S/ND
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 3000
NODNS070KC3W/ND
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 3000
NODNS070KC3W/REG
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 3000
NODNS070KC3WZHS/ASTRO
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 3000
NODNS070KC4S/ND
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 4000
NODNS070KC4SZHS/REG
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 4000
NODNS070KC4W/ND
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 4000
NODNS070KC4W/REG/STEP
Effective luminous flux (lm): 6800
System power (W): 47
Color temperature (K): 3000
NODNS090KC2W/REG/ASTRO
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 2700
NODNS090KC3EWZH/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3S/ND
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3S/REG/Y077
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3W/ND
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3W/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3WZH/ASTRO
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3WZH/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3WZHBT/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3WZHMS/COR
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3WZHMS/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC3WZHS/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 3000
NODNS090KC4AS/ND
Effective luminous flux (lm): 9200
System power (W): 63
Color temperature (K): 4000
NODNS090KC4EW/ND
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
NODNS090KC4EW/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
NODNS090KC4S/ND
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
NODNS090KC4S/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
NODNS090KC4W/ND
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
NODNS090KC4W/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
NODNS090KC4WZHS/REG
Effective luminous flux (lm): 8800
System power (W): 63
Color temperature (K): 4000
Show all versions

Projekty realizované se svítidly MODUS:


Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Office building of HAGER company

MODUS SPMI + MODUS QP

Detail reference

Commercial centrum

MODUS Q SKY

Detail reference

Tennis play-ground Bratislava (SK)

MODUS MEGAL

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
