Product series

MODUS OKTA

Industrial LED fitting with higher IP protection

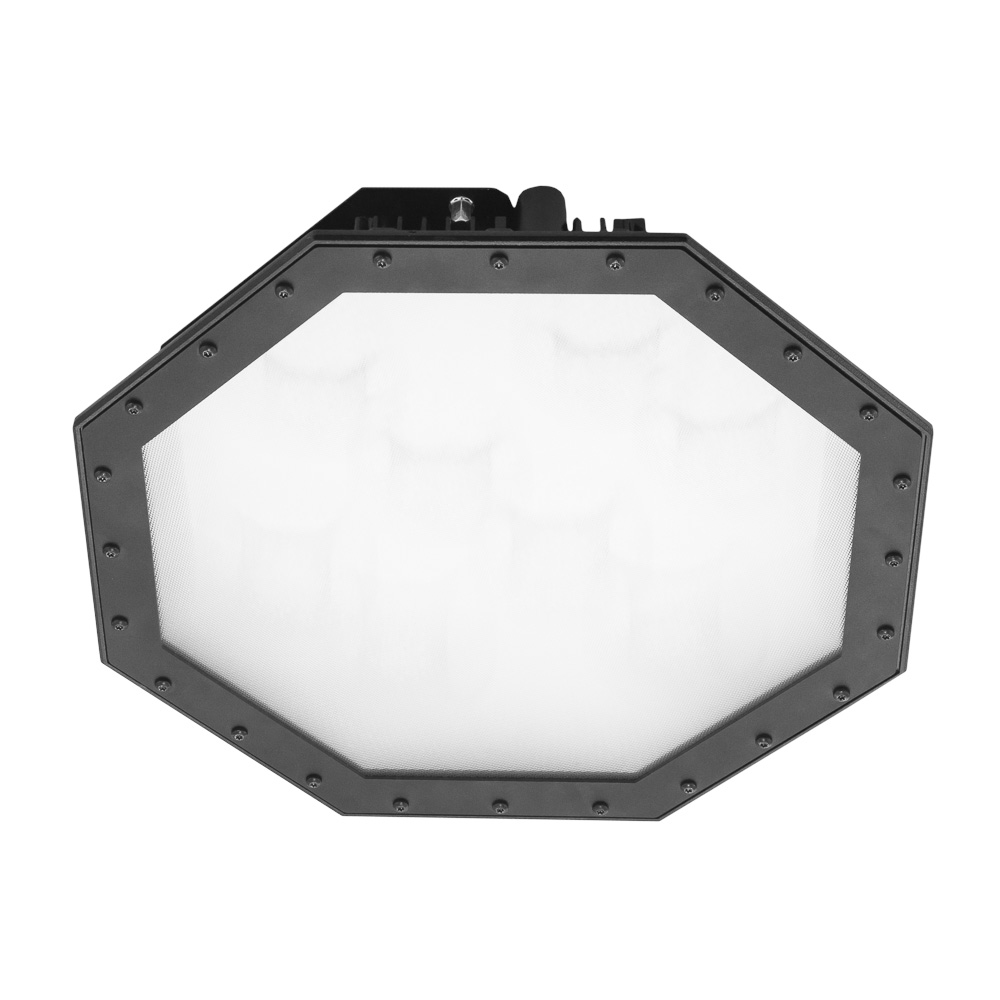

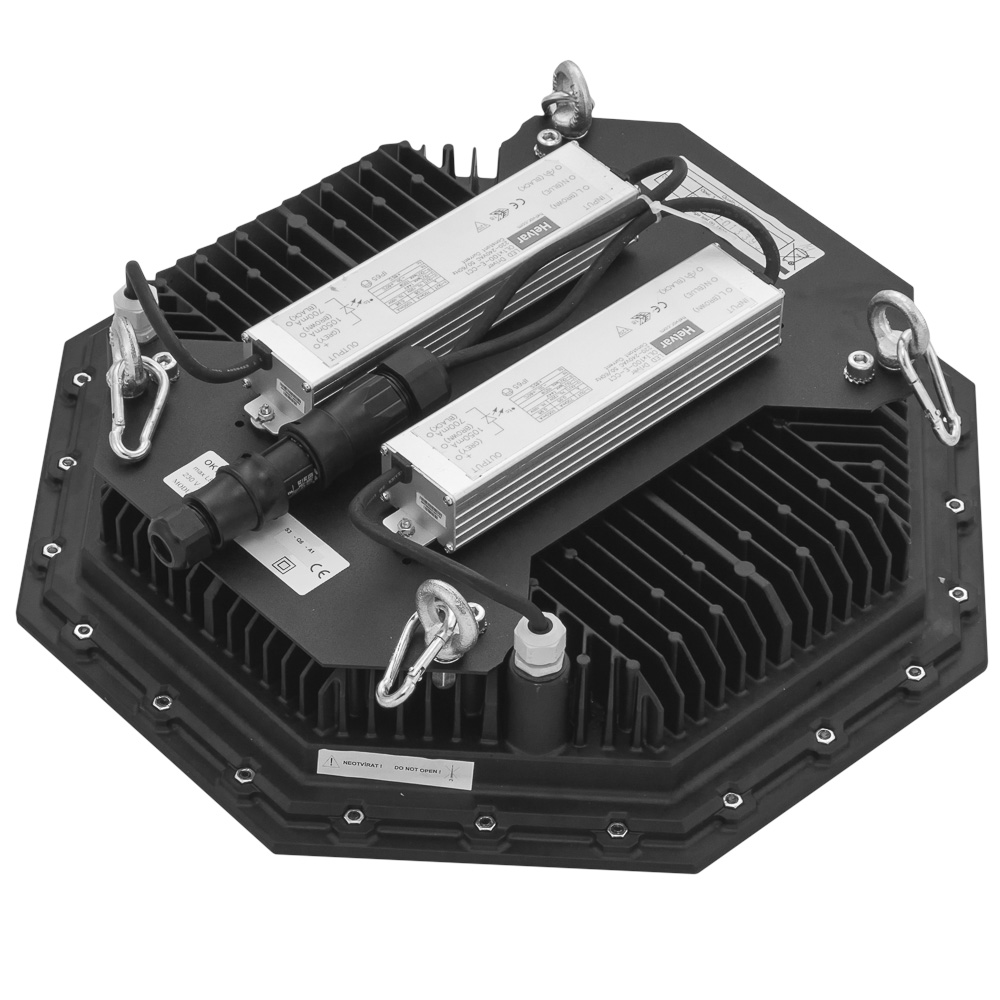

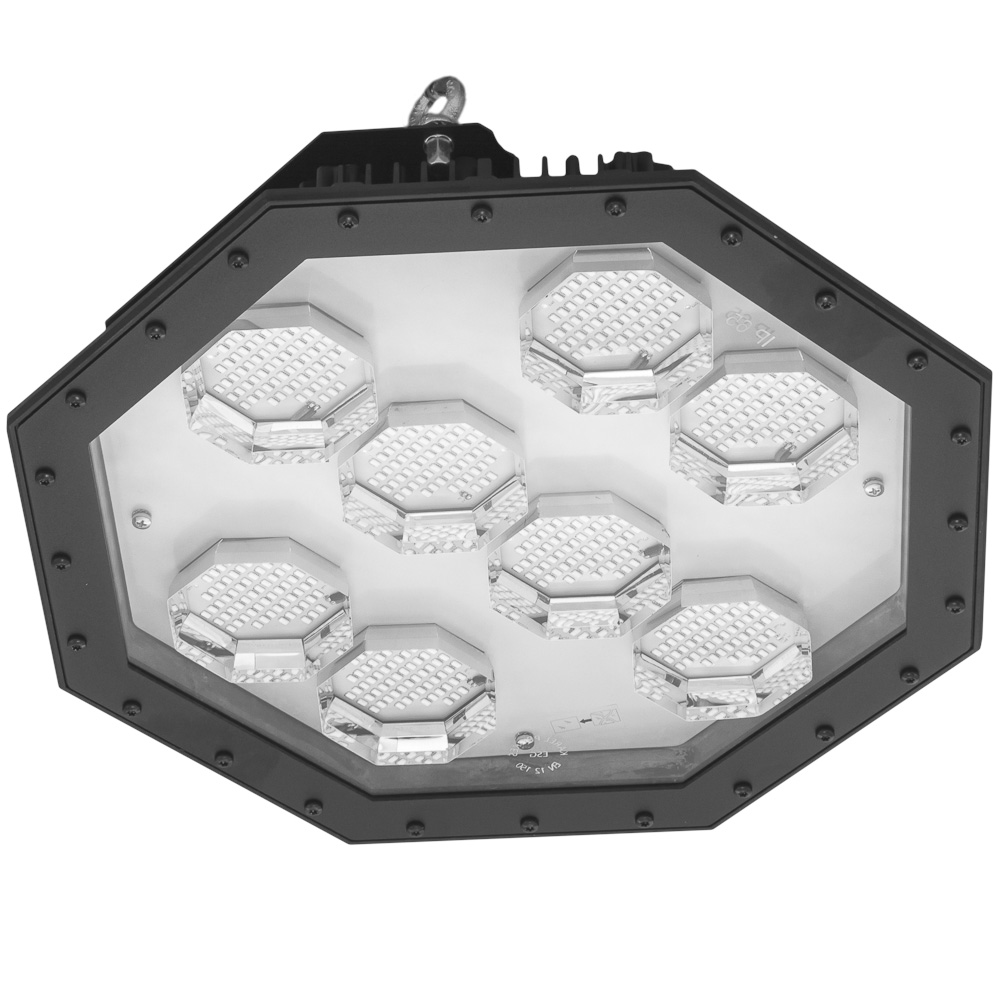

MODUS OKTA8 KC
11 L80_80000_h.jpg

Price from:

5 600 Kč
( 6 776 Kč including VAT )

Body:

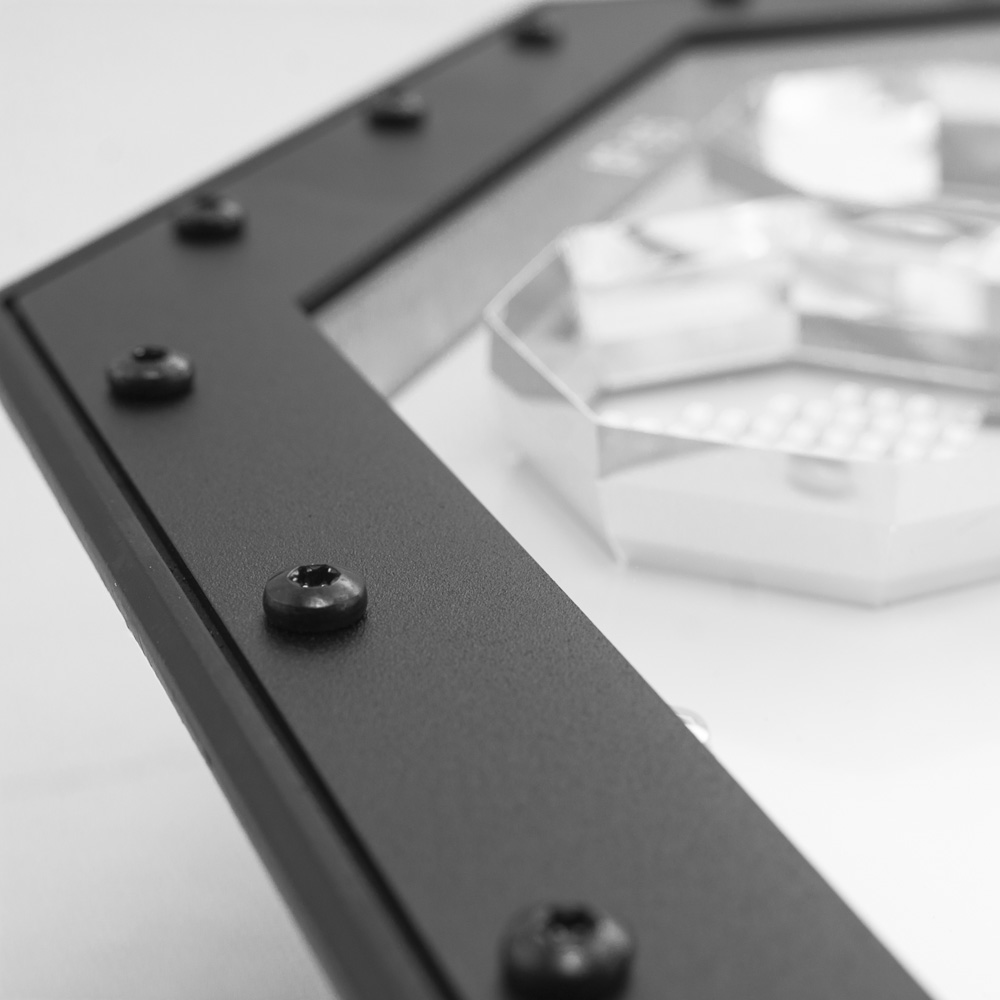

Powder painted non-corressive high-pressure die-cast aluminium





LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4…cold white 4000K

5…daylight 5700K



Wiring:

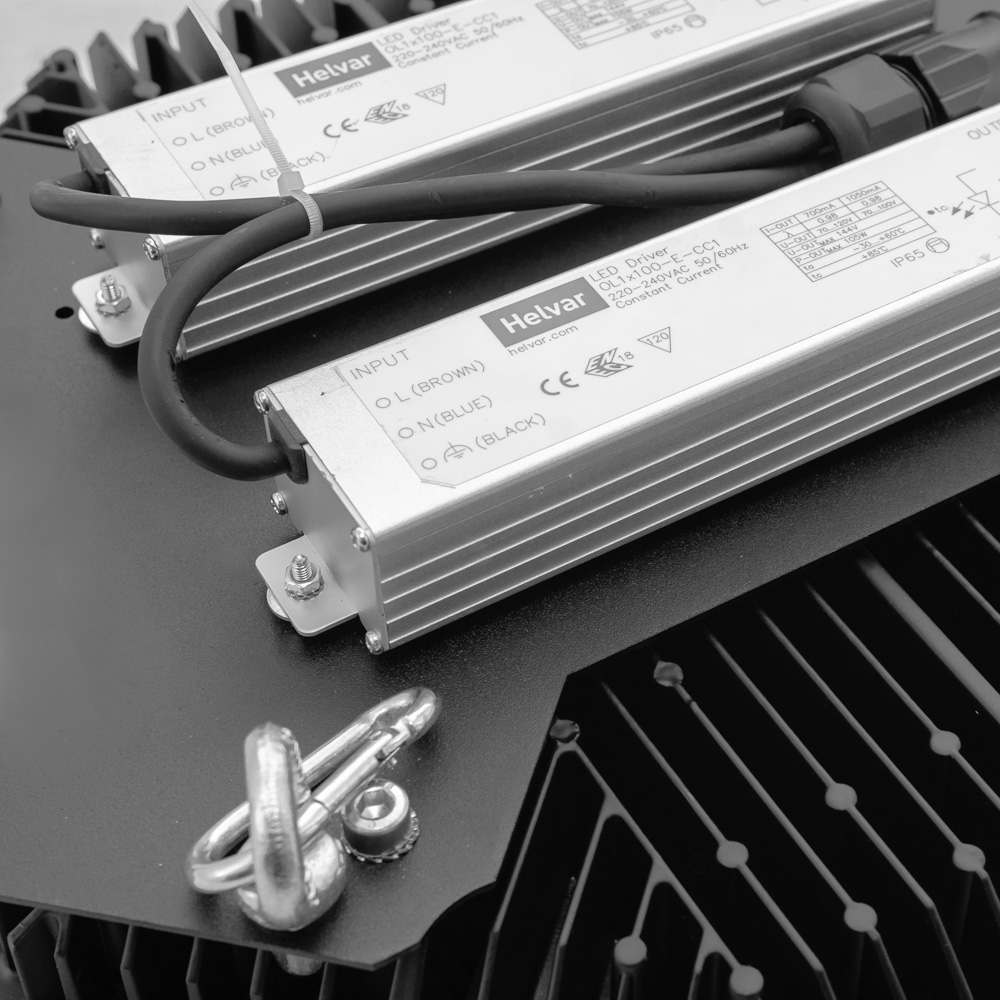

LED current driver

ND – not dimmable (standard)

DALI – dimmable DALI



Application:

Floodlight for indoor application such industrial production and storage halls

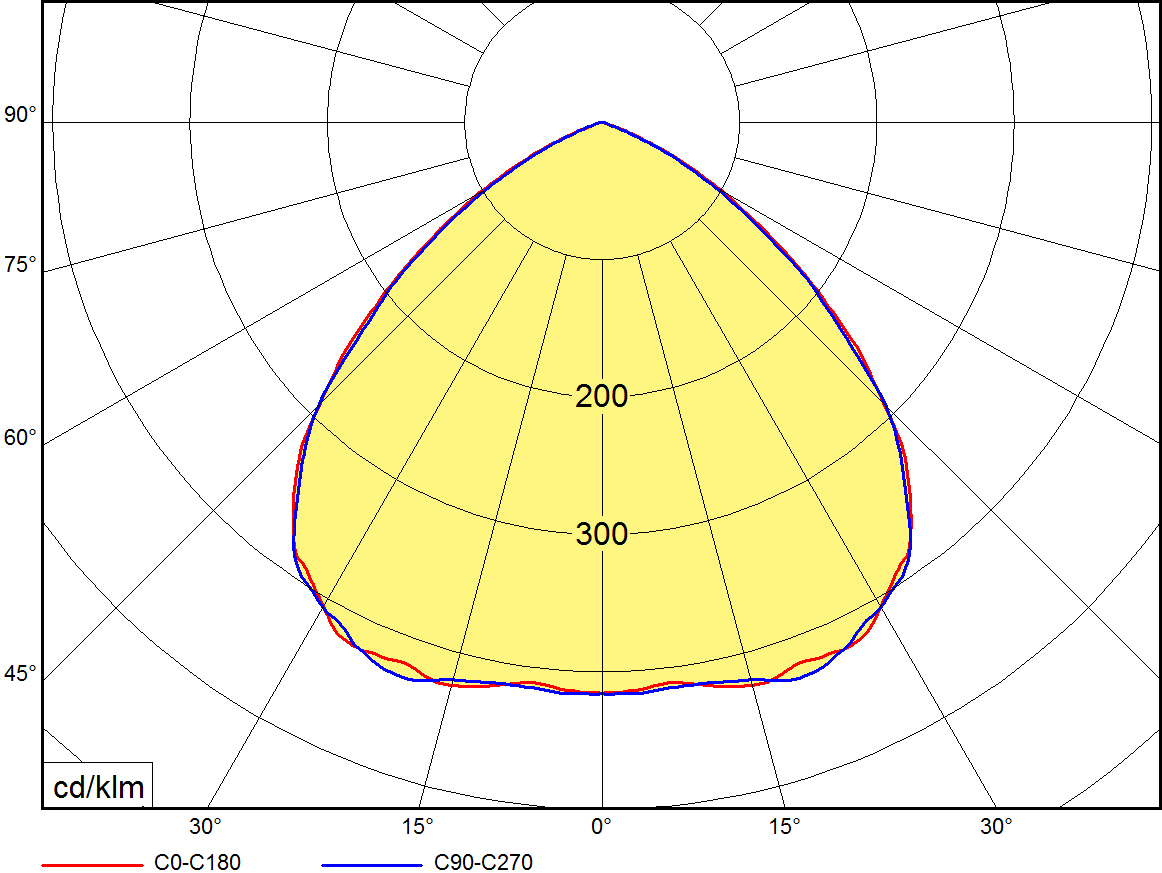

105° light distribution beam

Fittings are certified to the ambient temperature Ta = 45 ° C



Accessories:

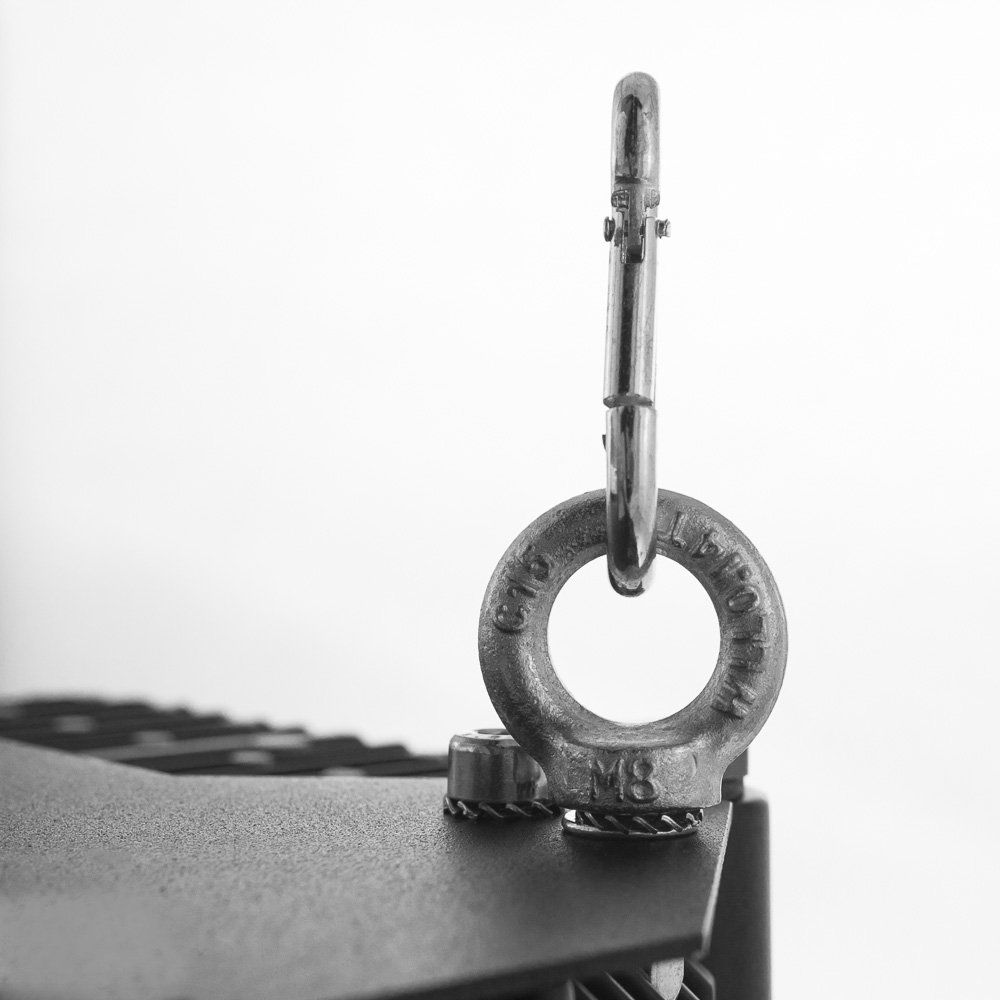

OKTAZAVES1 - Chain suspension set for OKTA, 1 suspension point

OKTAZAVES2 - Chain suspension set for OKTA, 2 suspension points

OKTAPIR - PIR senzor for OKTA

Body material:Aluminium die-castMounting method:Suspended
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Lamp type:LED
Impact strength:IK10
Degree of protection (IP):IP65
Color temperature (K):4000, 3000, 5700Rated life time L80/B50 (h):80000
Rated ambient temperature (°C):-10...+45Dimming DALI:Yes
Optical system:PC
polycarbonate cover
PCO
polycarbonate opal cover
C
front glass cover
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

11200
25500

System power (W)

87
173
Product name
OKTA8KC3V1/1400DALI
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 3000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC3V1/1400ND
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 3000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC3V1/1400ND/B
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 3000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC4V1/1400DALI
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 4000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC4V1/1400DALI/NTC
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 4000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC4V1/1400ND
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 4000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC4V1/1400ND/B
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 4000
Optical system: KC
Outer diameter (mm): 465
OKTA8KC5V1/1400DALI
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 5700
Optical system: KC
Outer diameter (mm): 465
OKTA8KC5V1/1400DALI/NTC
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 5700
Optical system: KC
Outer diameter (mm): 465
OKTA8KC5V1/1400ND
Effective luminous flux (lm): 25500
System power (W): 173
Color temperature (K): 5700
Optical system: KC
Outer diameter (mm): 465
OKTA8PC3V1/1400ND
Effective luminous flux (lm): 24500
System power (W): 173
Color temperature (K): 3000
Optical system: PC
Outer diameter (mm): 465
OKTA8PC4V1/1400DALI
Effective luminous flux (lm): 24500
System power (W): 173
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 465
OKTA8PC4V1/1400ND
Effective luminous flux (lm): 24500
System power (W): 173
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 465
OKTA8PC5V1/1400DALI
Effective luminous flux (lm): 24500
System power (W): 173
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 465
OKTA8PC5V1/1400ND
Effective luminous flux (lm): 24500
System power (W): 173
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 465
OKTA8PCO3V1/1400ND
Effective luminous flux (lm): 22500
System power (W): 173
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 465
OKTA8PCO4V1/1400ND
Effective luminous flux (lm): 22500
System power (W): 173
Color temperature (K): 4000
Optical system: PCO
Outer diameter (mm): 465
OKTA8PCO5V1/1400DALI
Effective luminous flux (lm): 22500
System power (W): 173
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 465
OKTA8PCO5V1/1400ND
Effective luminous flux (lm): 22500
System power (W): 173
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 465

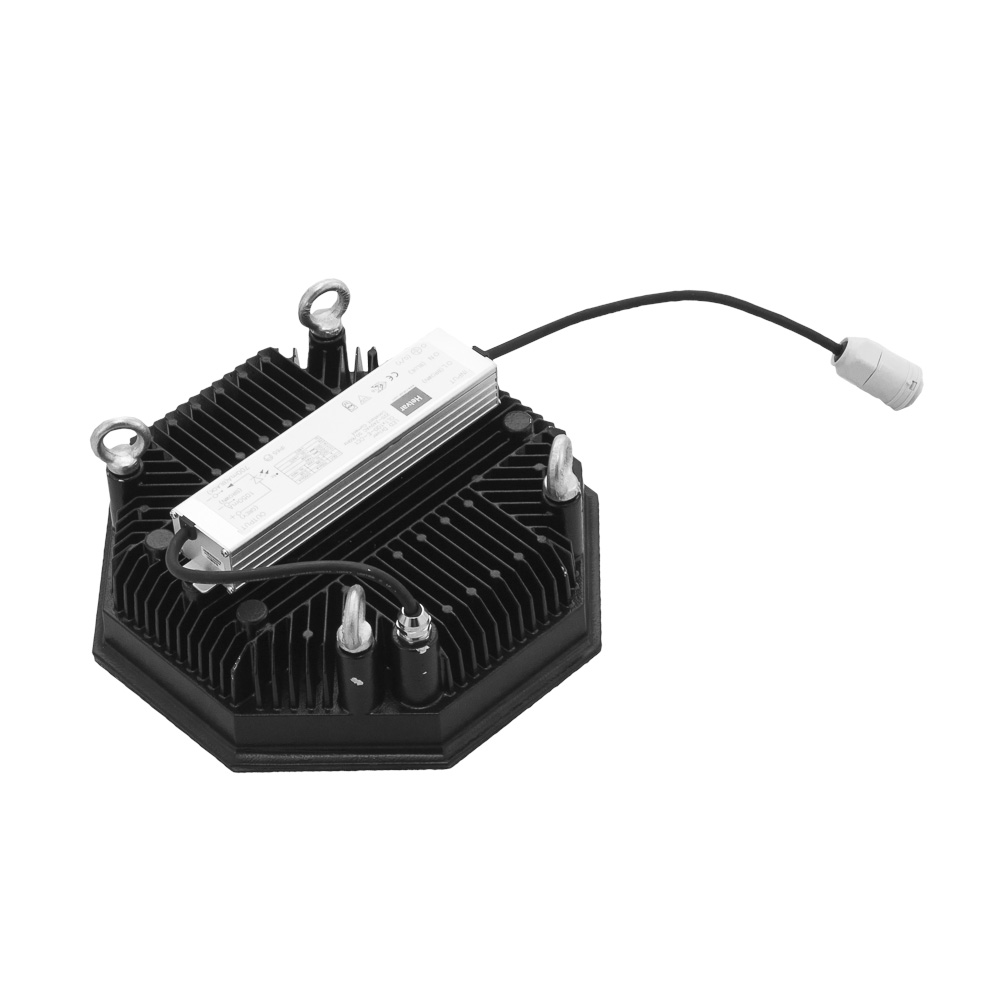

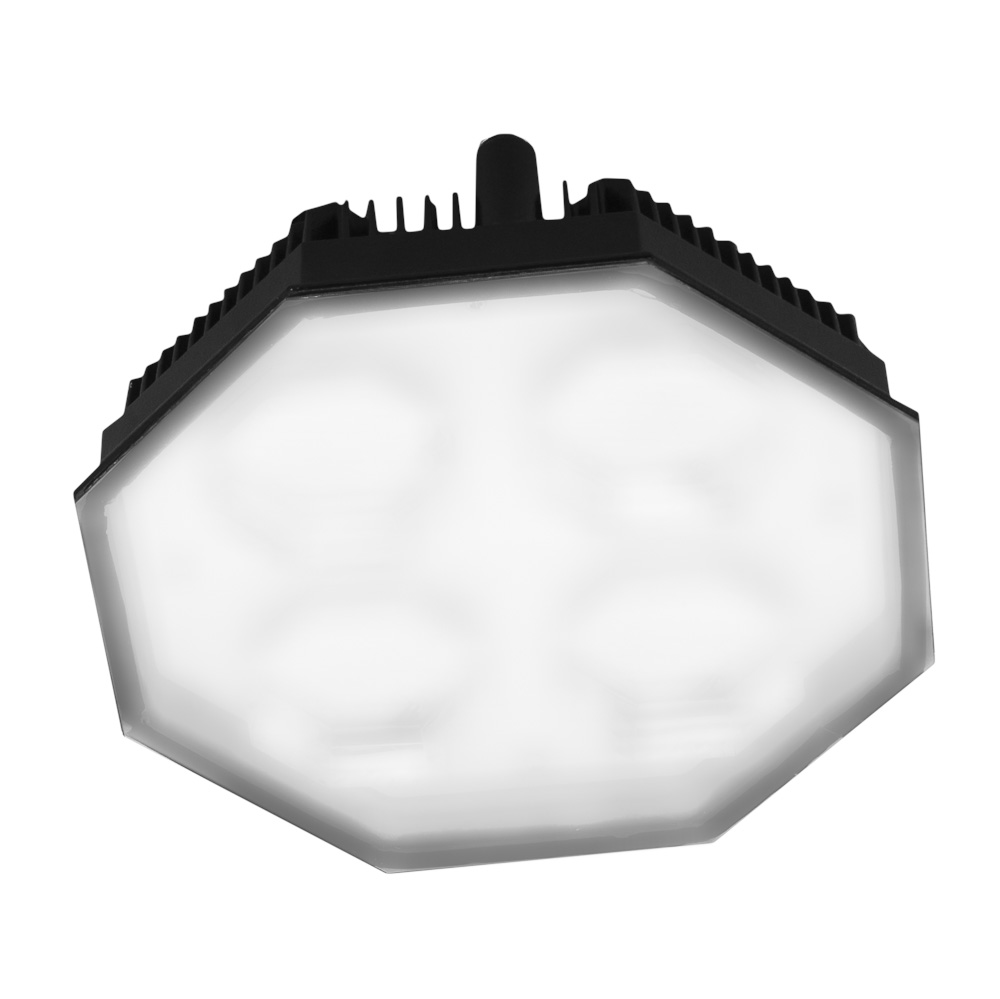

OKTAS4PC3V1/700DALI
Effective luminous flux (lm): 12200
System power (W): 87
Color temperature (K): 3000
Optical system: PC
Outer diameter (mm): 300
OKTAS4PC3V1/700ND
Effective luminous flux (lm): 12200
System power (W): 87
Color temperature (K): 3000
Optical system: PC
Outer diameter (mm): 300
OKTAS4PC4V1/700DALI
Effective luminous flux (lm): 12200
System power (W): 87
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 300
OKTAS4PC4V1/700ND
Effective luminous flux (lm): 12200
System power (W): 87
Color temperature (K): 4000
Optical system: PC
Outer diameter (mm): 300
OKTAS4PC5V1/700DALI
Effective luminous flux (lm): 12200
System power (W): 87
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 300
OKTAS4PC5V1/700ND
Effective luminous flux (lm): 12200
System power (W): 87
Color temperature (K): 5700
Optical system: PC
Outer diameter (mm): 300
OKTAS4PCO3V1/700ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 3000
Optical system: PCO
Outer diameter (mm): 300
OKTAS4PCO4V1/700ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 4000
Optical system: PCO
Outer diameter (mm): 300
OKTAS4PCO5V1/700DALI
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 300
OKTAS4PCO5V1/700ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5700
Optical system: PCO
Outer diameter (mm): 300
Honda 027_WEB.jpg

Industry areal Honda

MODUS OKTA

Detail reference
EGE_Beenjup AWRP_03.JPG

Beenjup AWRP

MODUS OKTA

Detail reference

Sport centrum in Serbia - video

MODUS OKTA + RX + LLL

Detail reference
MODUS SENZORS

MODUS SENZORS

Sensors for MODUS luminaires

Suspension OKTA

Suspension OKTA

Chain suspension sets for MODUS OKTA
