Product series
MODUS OS

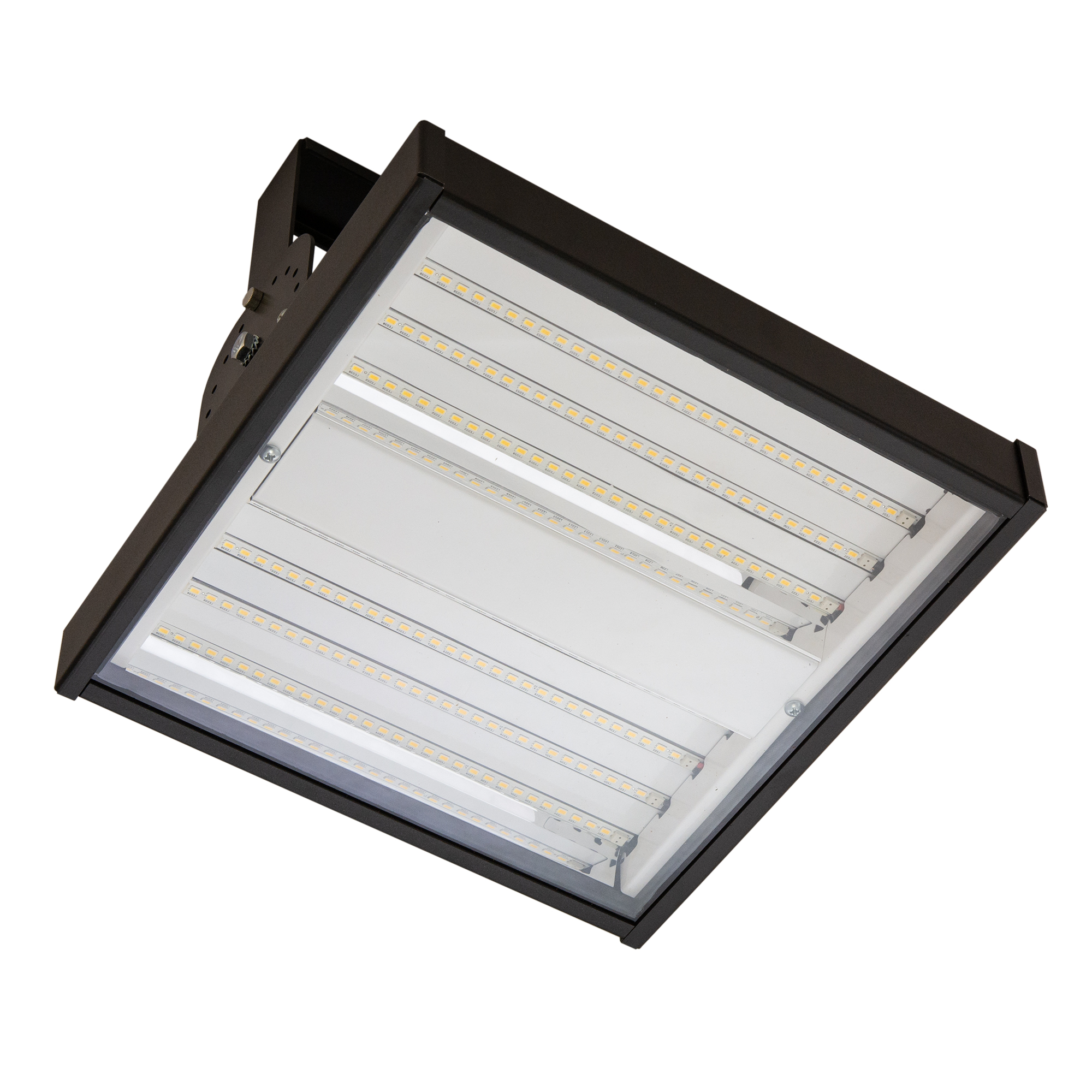

LED floodlight

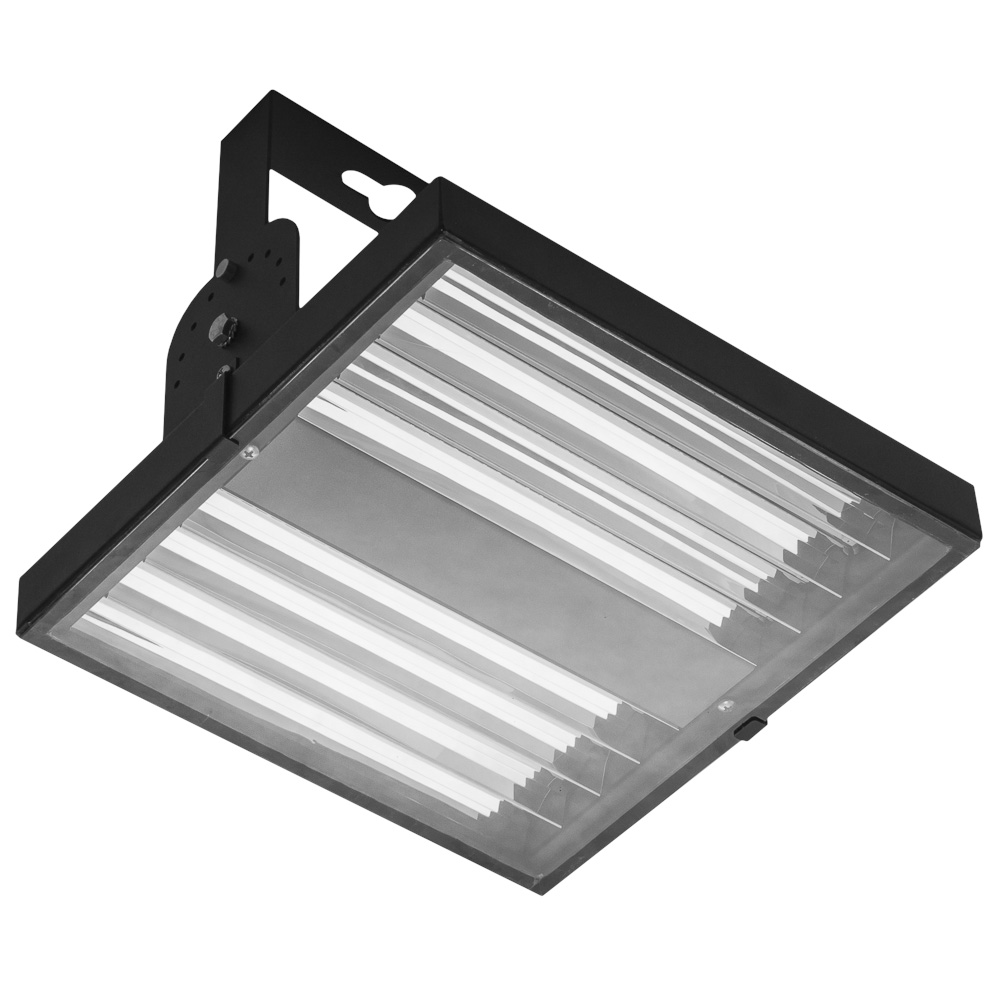

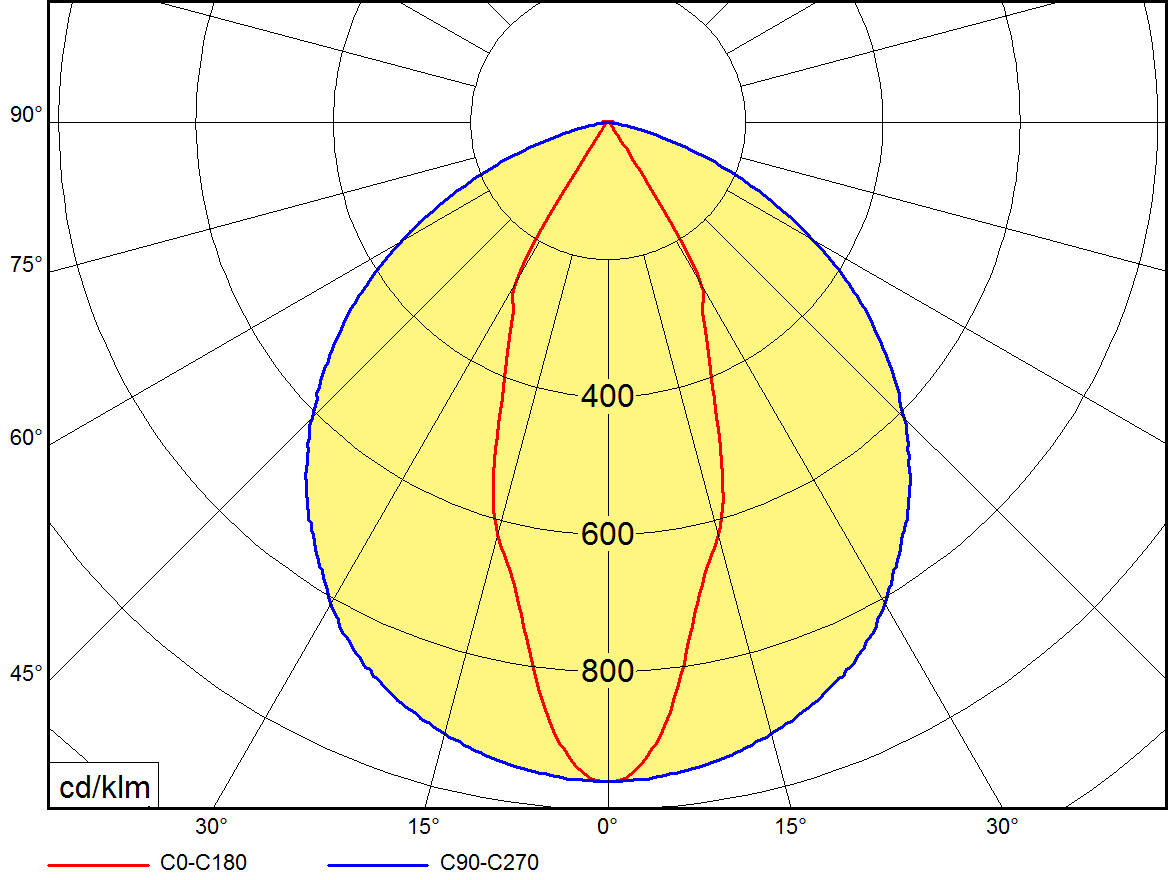

MODUS OS100 PC S - narrow beam
MODUS OS100 PCO S

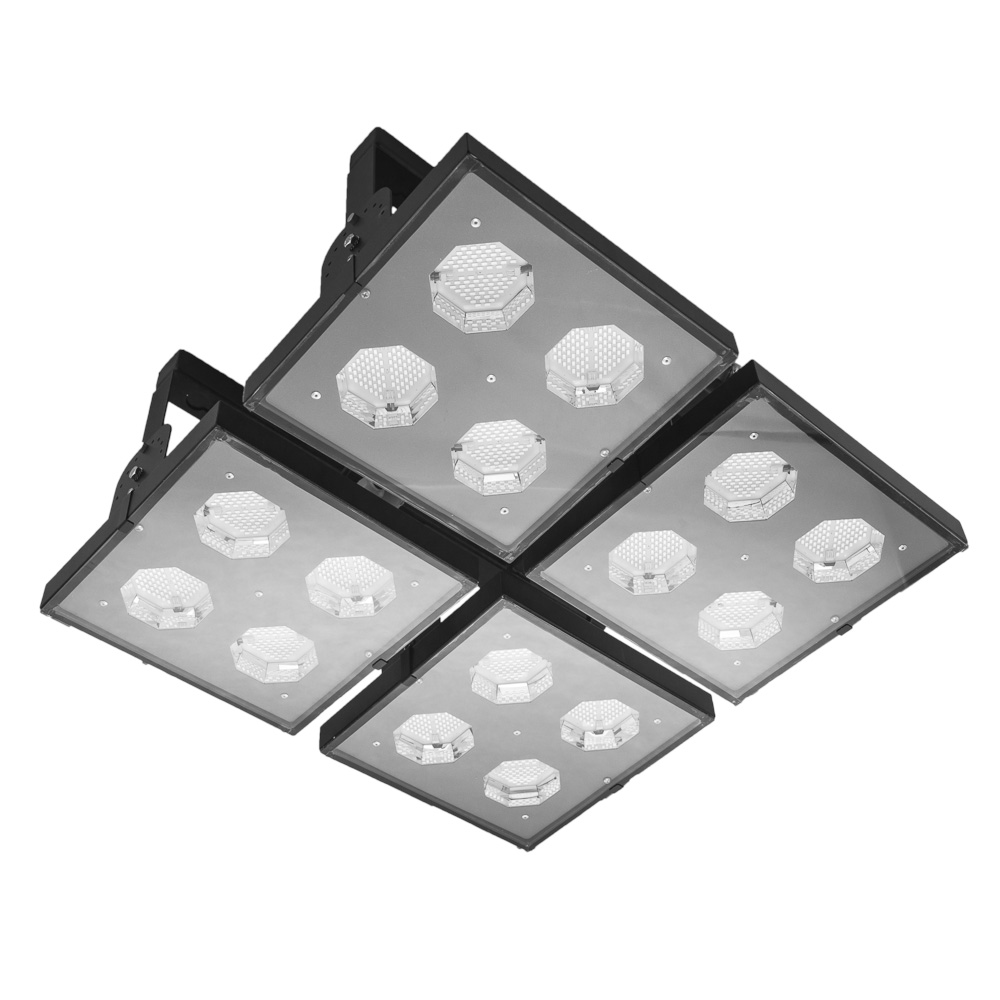

Holder OSRSM4
Holder OSRSM4
Holder OSRSM4
Holder OSRSM4
Holder OSRSM4
Holder OSRSM4
Price from:
4 700 Kč
( 5 687 Kč including VAT )Body:
Black powder painted aluminium sheet
Optic:

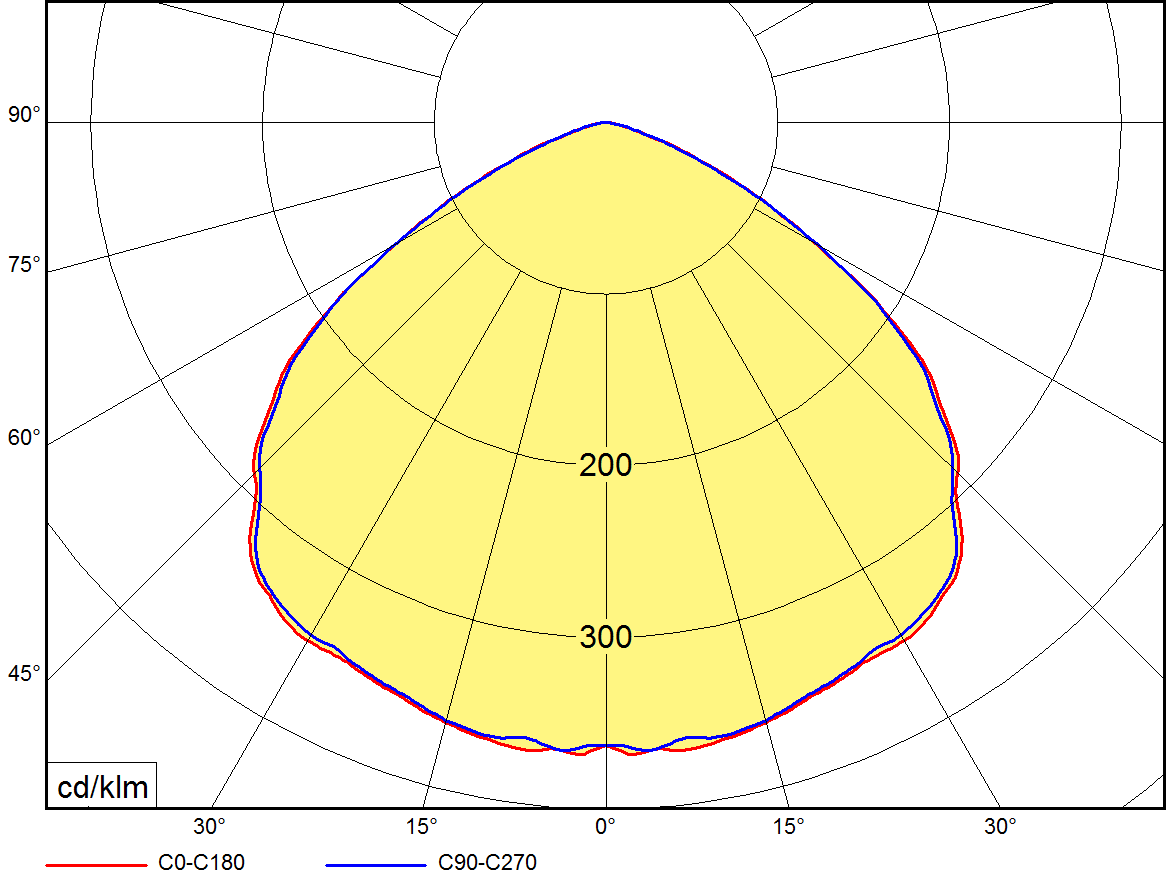

S - wide beam
N - narrow beam
Cover:
KC - clear glass
PC - clear polycarbonate cover, mechanical resistance IK10
PCO - opal polycarbonate cover, mechanical resistance IK10
LED:
Mid Power LED
CRI 80 (CRI 90 on request)
4…cold white 4000K
5…daylight 5700K
Wiring:
LED current driver
ND – not dimmable (standard)
DALI – dimmable DALI
Application:
Floodlight for both indoor and outdoor application
Accessories:
OSRSM2 - holder for 2 floodlights OS
OSRSM3 - holder for 3 floodlights OS

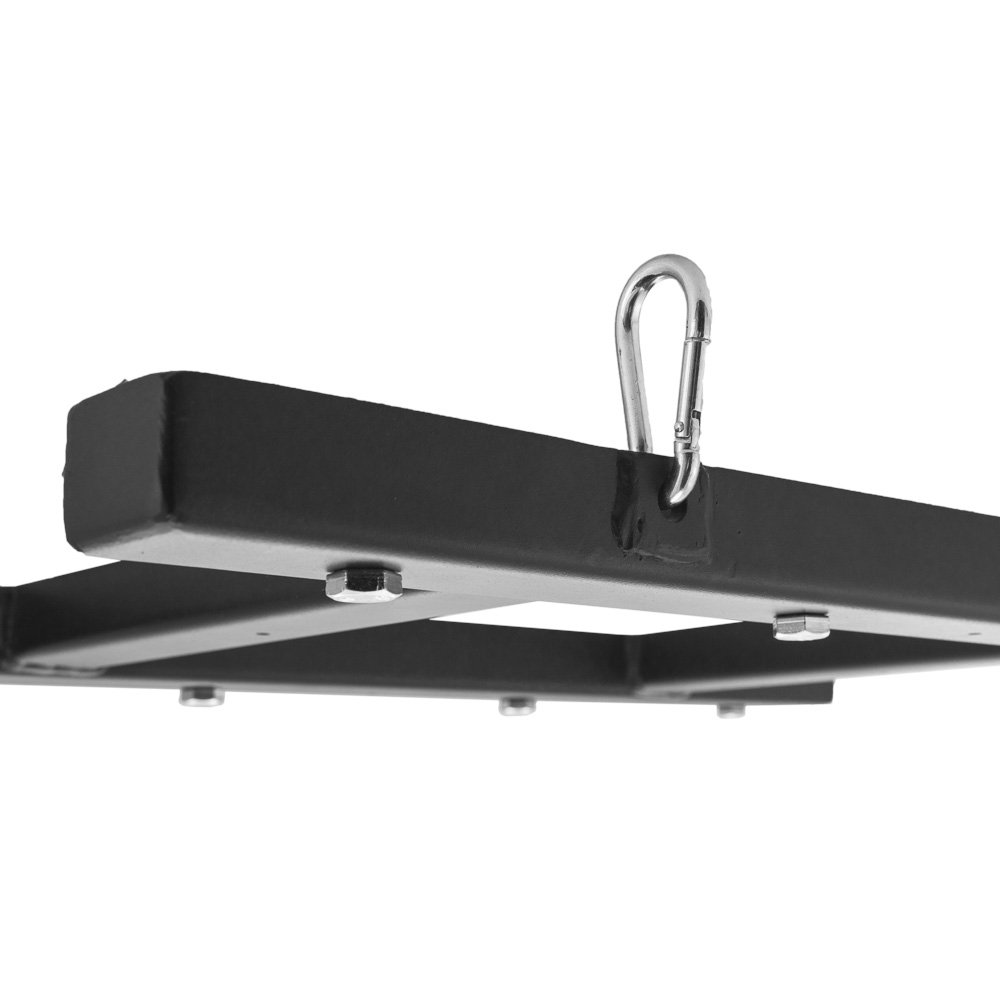

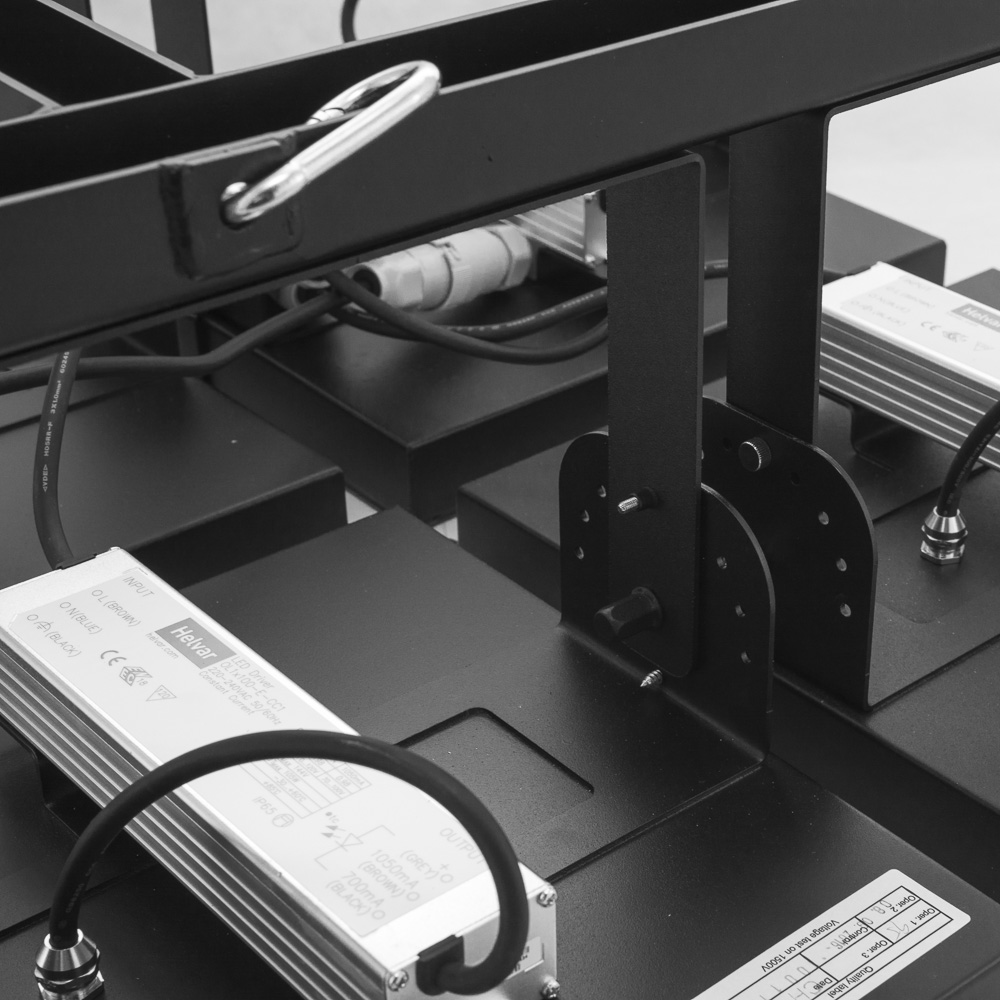

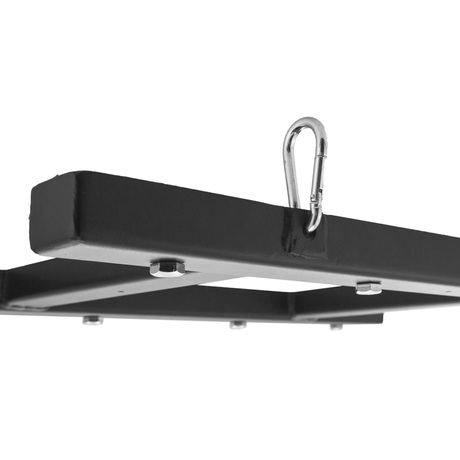

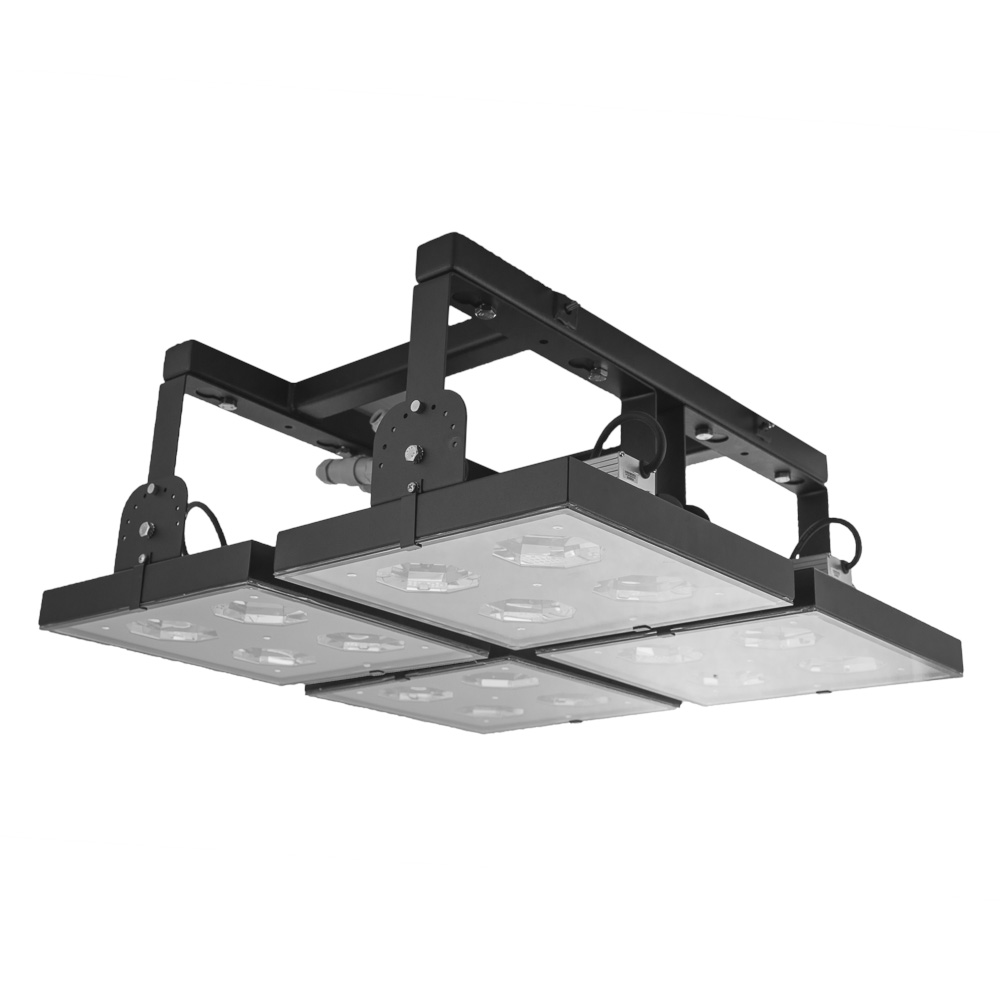

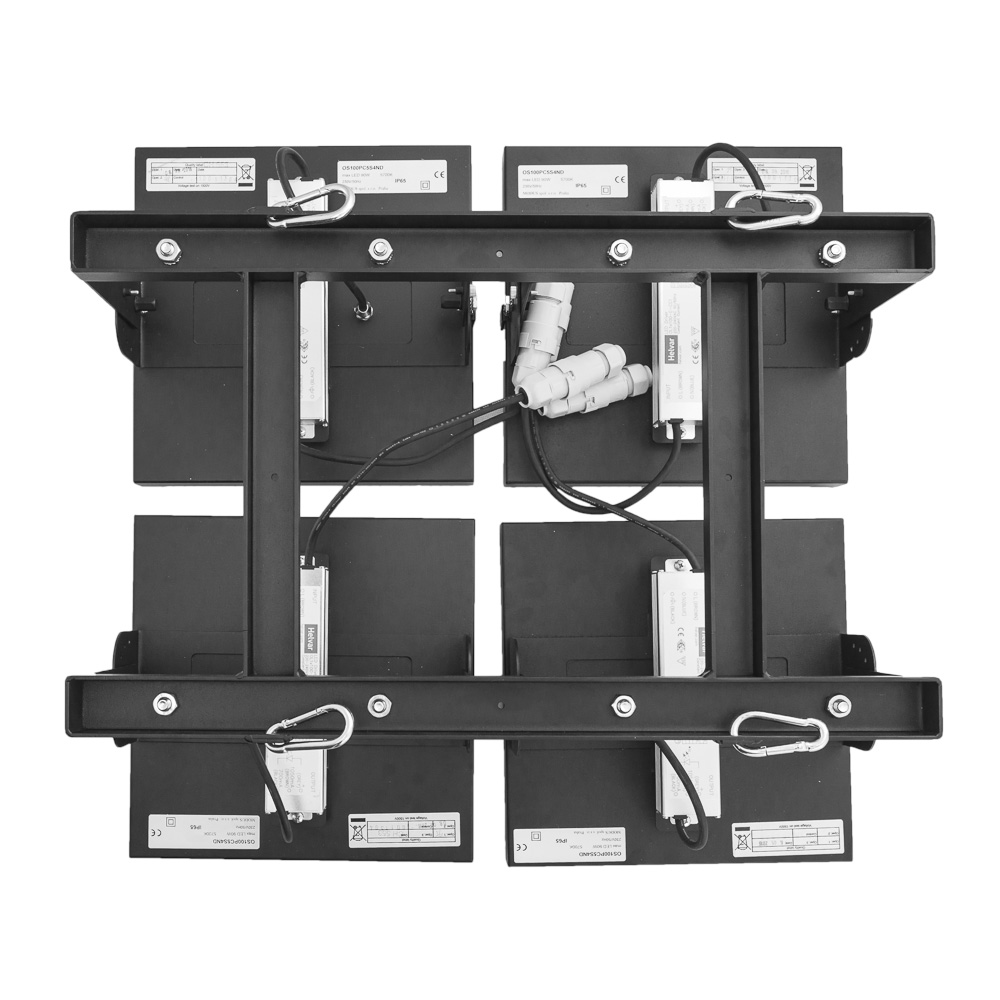

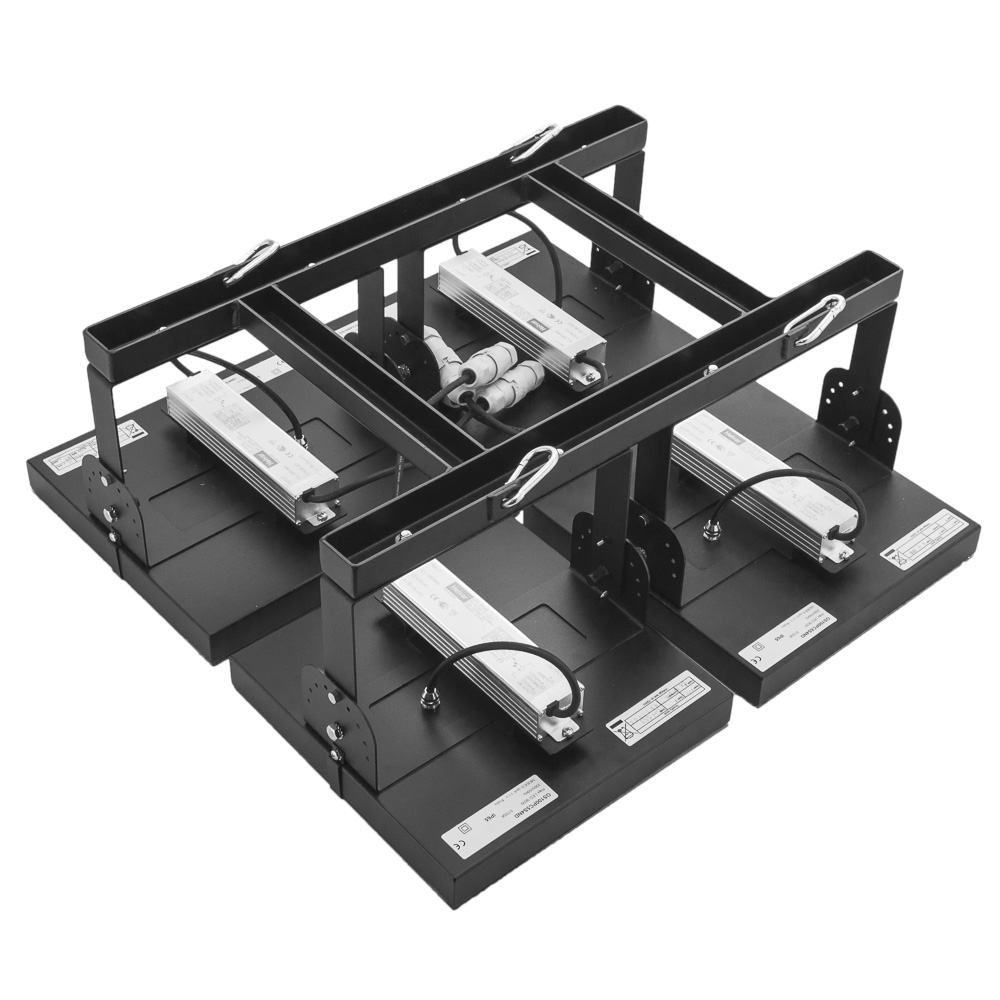

OSRSM4 - holder for 4 floodlights OS
swing hook for pendant installation (inside packing)
| Body material: | Welded aluminum | Mounting method: | Surface mounting, Suspended | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Lamp type: | LED | Impact strength: | IK10 |
| Degree of protection (IP): | IP65 | Color temperature (K): | 4000, 3000, 5700 | Rated life time L80/B50 (h): | 80000 | Dimming DALI: | Yes | Optical system: | PCO polycarbonate opal cover OS PCS symetrický optický systém, AL reflektory, čirý polykarbonátový kryt OS PCN hlubokozářič, lineární AL reflektory, čirý polykarbonátový kryt |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
OS100KC5S4ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 5700
Optical system: KC
OS100PC3N8ND/9003
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 3000
Optical system: OS PCN
OS100PC3S4ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 3000
Optical system: OS PCS
OS100PC4S4DALI
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 4000
Optical system: OS PCS
OS100PC4S4ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 4000
Optical system: OS PCS
OS100PC4S4V1DALI
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 4000
Optical system: OS PCS
OS100PC4S4V1ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 4000
Optical system: OS PCS
OS100PC5AS8ND
Effective luminous flux (lm): 11800
System power (W): 87
Color temperature (K): 5700
Optical system: OS AS
OS100PC5N8DALI
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5700
Optical system: OS PCN
OS100PC5N8ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5700
Optical system: OS PCN
OS100PC5S4DALI
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 5700
Optical system: OS PCS
OS100PC5S4ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 5700
Optical system: OS PCS
OS100PC5S4V1ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 5700
Optical system: OS PCS
OS100PCO5S4ND
Effective luminous flux (lm): 11700
System power (W): 87
Color temperature (K): 5700
Optical system: PCO
OS150KC5S8ND
Effective luminous flux (lm): 18600
System power (W): 118
Color temperature (K): 5700
Optical system: KC
OS150PC4N8ND
Effective luminous flux (lm): 18000
System power (W): 118
Color temperature (K): 4000
Optical system: OS PCN
OS150PC4S8ND
Effective luminous flux (lm): 18600
System power (W): 118
Color temperature (K): 4000
Optical system: OS PCS
OS150PC4S8ND/9003
Effective luminous flux (lm): 18600
System power (W): 118
Color temperature (K): 4000
Optical system: OS PCS
OS150PC5AS8ND
Effective luminous flux (lm): 18600
System power (W): 118
Color temperature (K): 5700
Optical system: OS AS
OS150PC5S8ND
Effective luminous flux (lm): 18600
System power (W): 118
Color temperature (K): 5700
Optical system: OS PCS
OS200KC4S8ND
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 4000
Optical system: KC
OS200KC5S8ND
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 5700
Optical system: KC
OS200PC3N8ND
Effective luminous flux (lm): 26000
System power (W): 179
Color temperature (K): 3000
Optical system: OS PCN
OS200PC3S8ND
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 3000
Optical system: OS PCS
OS200PC4N8ND
Effective luminous flux (lm): 26000
System power (W): 179
Color temperature (K): 4000
Optical system: OS PCN
OS200PC4S8ND
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 4000
Optical system: OS PCS
OS200PC4S8V1DALI
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 4000
Optical system: OS PCS
OS200PC5AS8ND
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 5700
Optical system: OS AS
OS200PC5N8ND
Effective luminous flux (lm): 26000
System power (W): 179
Color temperature (K): 5700
Optical system: OS PCN
OS200PC5S8ND
Effective luminous flux (lm): 27000
System power (W): 179
Color temperature (K): 5700
Optical system: OS PCS
OS200PCO4S8ND
Effective luminous flux (lm): 22000
System power (W): 179
Color temperature (K): 4000
Optical system: PCO
