Product series
MODUS OXC
Street lighting with aluminium body
Standard price from:
On request

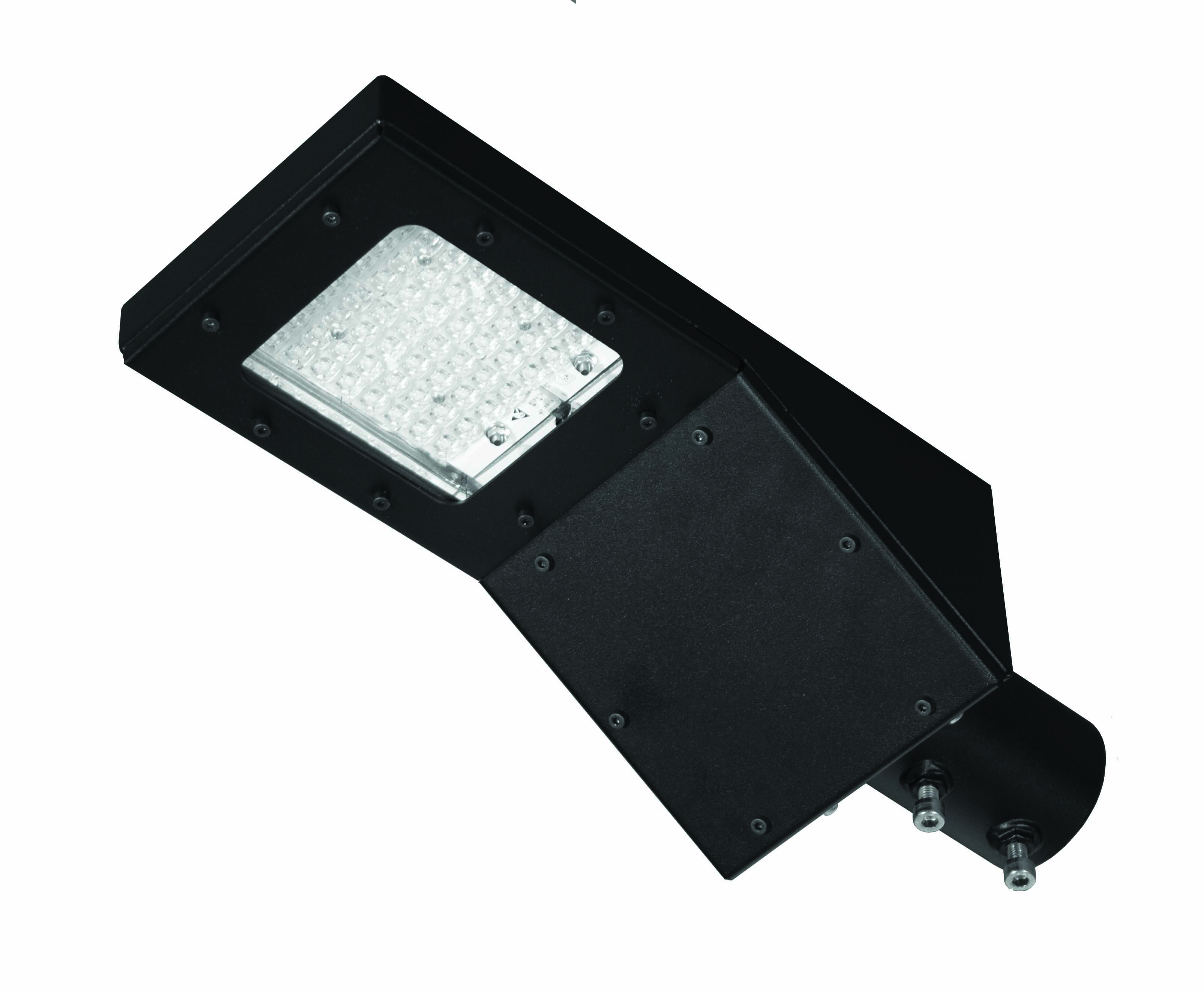

Luminaire with black body with possibility several different optics (clear glass, clear polycarbonate, wide-angle lenses). Luminaire is produced with external connector - luminaire is non-openable - quick installation.
Two wattage version in offer: 18W- 2200 lm and 26W - 3200 lm.
| Body material: | Welded aluminum | Mounting method: | Side-entry, Post-top | Protection class: | I | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Impact strength: | IK08 | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 3000, 2700, 5700 | Rated lifetime L70/B50 (h): | 40000 | Product category: | Luminaire for streets and places | Optical system: | PC polycarbonate cover KC clear cover | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
OXC2000KC4W/NDS60
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 4000
Optical system: C
OXC2000PC3W/NDS60
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 3000
Optical system: PC
OXC2000PC3W/NDV60
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 3000
Optical system: PC
OXC2000PC4W/NDV60
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 4000
Optical system: PC
OXC2000PC4W/NDV76
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 4000
Optical system: PC
OXC3000KC4W/NDS60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: C
OXC3000PC2W/NDS60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 2700
Optical system: PC
OXC3000PC2W/NDV60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 2700
Optical system: PC
OXC3000PC3W/NDS60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: PC
OXC3000PC3W/NDS60/EU
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: PC
OXC3000PC3W/NDV60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: PC
OXC3000PC3W/NDV60/EU
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 3000
Optical system: PC
OXC3000PC4W/NDS60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PC
OXC3000PC4W/NDS60/9006/EU
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PC
OXC3000PC4W/NDS60/EU
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PC
OXC3000PC4W/NDV60
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PC
OXC3000PC4W/NDV60/9006/EU
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PC
OXC3000PC4W/NDV60/EU
Effective luminous flux (lm): 3200
System power (W): 26
Color temperature (K): 4000
Optical system: PC
Product page - PDF
LDT files
