Product series New
MODUS PAR TRACK

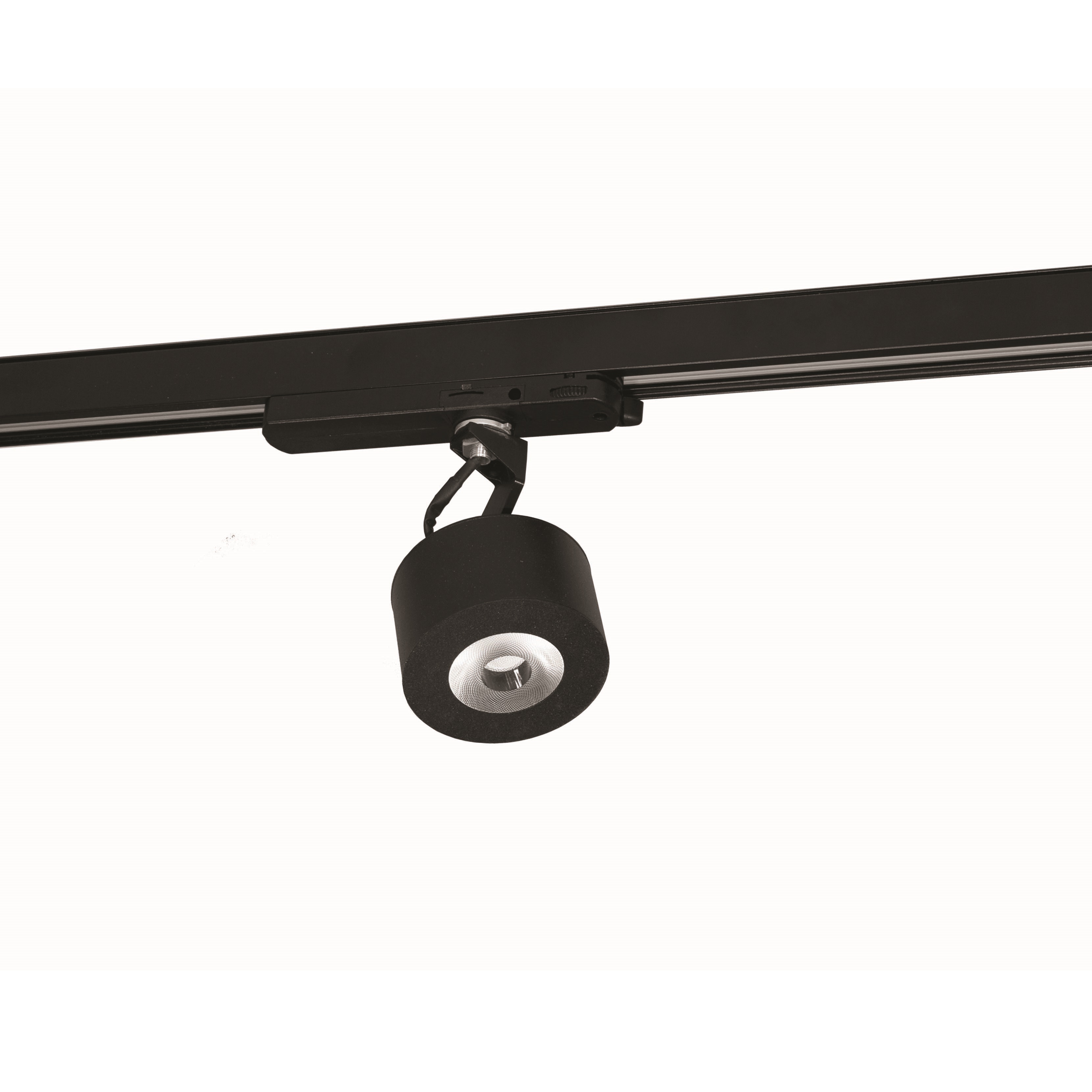

Spotlight for a track system










Standard price from:
On request
Circular light fixture made from an aluminum profile for installation in a track system.
Standard body color: white or black (others available on request).
The optical part consists of special optics in the style of deep-beam (N) or wide-beam (W).
Light units are compatible with commonly used systems (EUTRACK 3/, ONETRACK 3P, IVELA 3P, NORDIC ALUMINIUM XTS4 3P, ...)
Mounting method: | Surface mounting, Suspended | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP20 | Color temperature (K): | 4000, 6500, 3000, 2700, 5700 |
Suitable for light-track mounting: | Yes | Rated lifetime L80/B50 (h): | 80000 | Dimming DALI: | Yes | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |

Filters
Effective luminous flux (lm)
Product name
Effective luminous flux (lm)
Color temperature (K)
Suitable for light-track mounting
PARTR1000N3C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
PARTR1000N4C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
PARTR1000W3B/ND
Effective luminous flux (lm): 1050
PARTR1000W3C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
PARTR1000W4B/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Suitable for light-track mounting: Yes
PARTR1000W4C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
PARTR1500N4C/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
PARTR1500W4B/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
PARTR1500W4C/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
PARZTR1000W3C/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Suitable for light-track mounting: Yes
