MODUS PAR Z

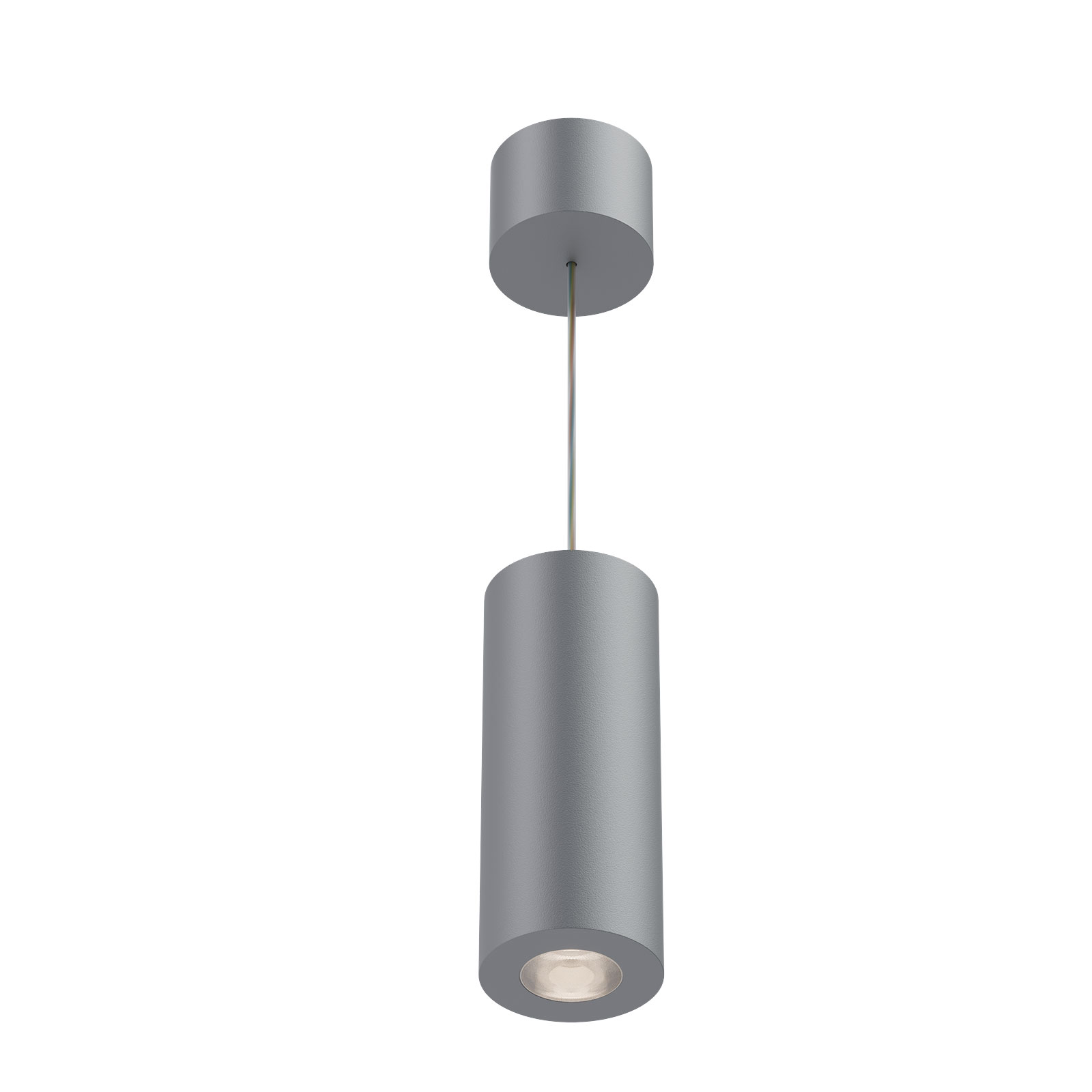

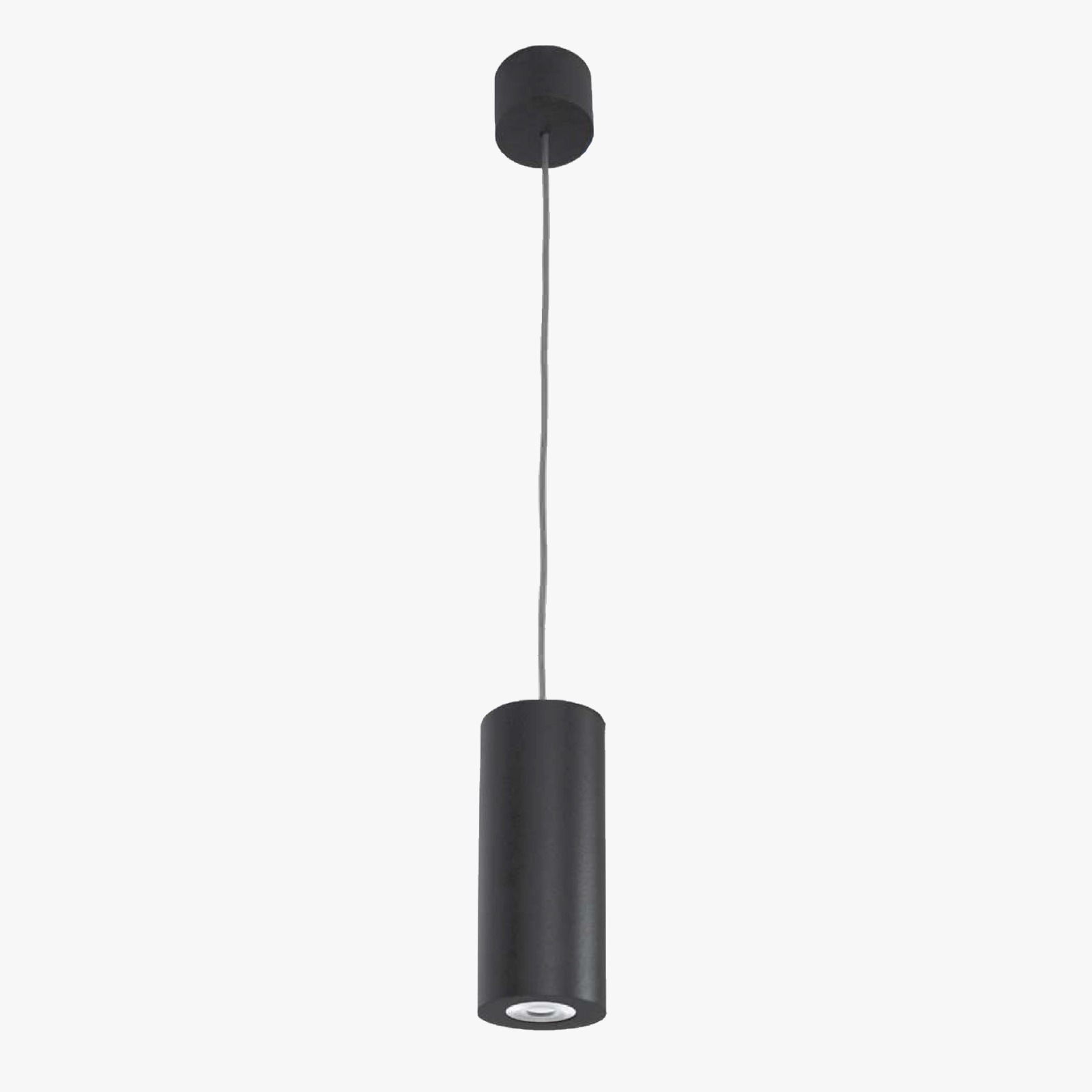

Pendant aluminum luminaire

MODUS PAR Z
třída ochrany I.PNG
220-240 v.png
11 L70_100000_H.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

The body of the lamp is made of an aluminum profile. The standard painting is black, but it can be produced in silver or white, or other colors as required (RAL sample).

PAR Z - pendant fitting - the current supply is a transparent electrical supply with a Kevlar core (also used for hanging)

PAR D - recessed fitting (standard protection IP44, if required, a version with IP54 can be produced)

PAR S - wall fitting (only direct lighting or direct/indirect)

PAR P - ceiling surfaced fitting

PAR V - movable fitting (IP54)

The optical part of the lamp can be chosen from two types - a deep beam or a wide beam.

Mounting method:SuspendedProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDLight sharing:Symmetric
Nominal voltage (V):220...240Degree of protection (IP):IP20, IP40
Color temperature (K):4000, 3000, 2700, 5700
Rated lifetime L70/B50 (h):100000
Dimming DALI:YesProduct category:Ceiling / wall luminaires
Made in Czech republic:YesReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

650
1900

System power (W)

7
18
Product name
PARZ1000N3C/ND
Effective luminous flux (lm): 1100
Color temperature (K): 3000
Color housing: Black
PARZ1000N4B/ND
Effective luminous flux (lm): 1100
Color temperature (K): 4000
Color housing: White
PARZ1000N4C/ND
Effective luminous flux (lm): 1100
Color temperature (K): 4000
Color housing: Black
PARZ1000N4C/ND/2,5
Effective luminous flux (lm): 1100
Color temperature (K): 4000
Color housing: Black
PARZ1000W3B/ND
Effective luminous flux (lm): 1080
Color temperature (K): 3000
Color housing: White
PARZ1000W4B/ND
Effective luminous flux (lm): 1080
Color temperature (K): 4000
Color housing: White
PARZ1000W4C/ND
Effective luminous flux (lm): 1080
Color temperature (K): 4000
Color housing: Black
PARZ1500N3B/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Color housing: White
PARZ1500N3C/DALI
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Color housing: Black
PARZ1500N4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Color housing: White
PARZ1500W2S/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 2700
Color housing: Grey
PARZ1500W3B/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Color housing: White
PARZ1500W3C/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 3000
Color housing: Black
PARZ1500W3S/ND
Effective luminous flux (lm): 1400
System power (W): 14
Color temperature (K): 3000
Color housing: Grey
PARZ1500W4/7016/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Color housing: Anthracite
PARZ1500W4B/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Color housing: White
PARZ1500W4C/ND
Effective luminous flux (lm): 1500
System power (W): 14
Color temperature (K): 4000
Color housing: Black
PARZ1800W4B/ND
Effective luminous flux (lm): 1900
System power (W): 18
Color temperature (K): 4000
Color housing: White
PARZ700N3B/ND
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 3000
Color housing: White
PARZ700N3C/DALI
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 3000
Color housing: Black
PARZ700N4B/ND
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 4000
Color housing: White
PARZ700N4B/ND/90
Effective luminous flux (lm): 650
System power (W): 7
Color temperature (K): 4000
Color housing: White
PARZ700N4C/ND
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 4000
Color housing: Black
PARZ700N4C/ND/3
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 4000
Color housing: Black
PARZ700W3C/ND
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 3000
Color housing: Black
PARZ700W4C/DALI
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 4000
Color housing: Black
PARZ700W4C/ND
Effective luminous flux (lm): 750
System power (W): 7
Color temperature (K): 4000
Color housing: Black
Show all versions

Product page - PDF

KL_EN_PAR.pdf >

Assembly instruction

ZL_1340001114_PARZ.pdf >

LDT files

MODUS PAR Z-ldt-data.zip >
