Product series
MODUS PARKLED

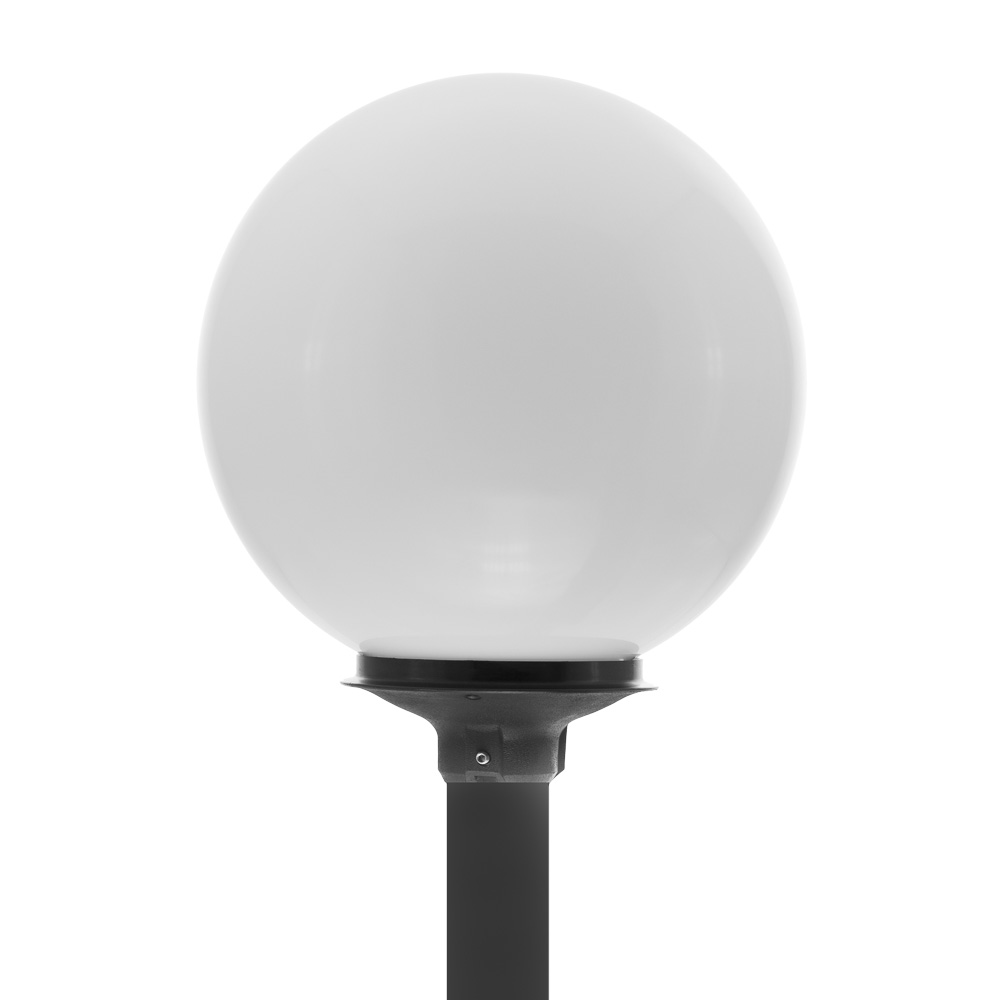

Park LED luminaire
MODUS PARK LED
Standard price from:
On request
Body:

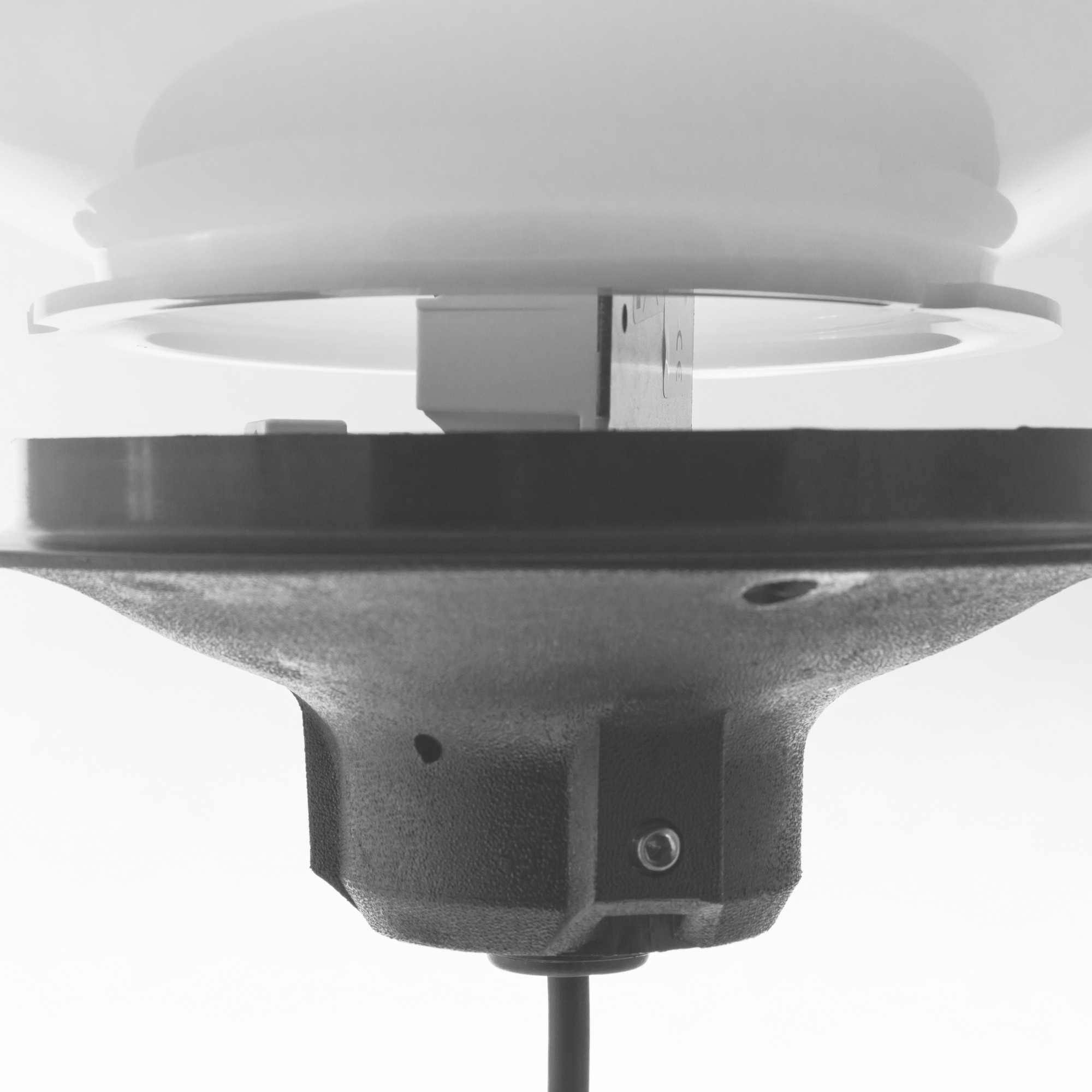

Chassis CH400 for installation on post 60 mm
Optic:
Opal ball dia. 400 mm, PMMA
LED:
Mid Power LED
3...warm white 3 000K
4...cold white 4 000K
Wiring:
LED current driver
ND – not dimmable
Application:
Park luminaire for illuminating parks, pedestrian zones, parking places, ...
| Mounting method: | Post-top | Protection class: | I | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89 | Light source type: | LED | Light outlet: | Direct/indirect | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP44 |
| Color temperature (K): | 4000, 6500, 3000, 5700 | Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Optical system: | KO opal cover | Made in Czech republic: | Yes | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Diameter (mm)
17084010701
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 4000
PARKLED1000KO400PMMA3
Effective luminous flux (lm): 1300
Color temperature (K): 3000
Diameter (mm): 400
PARKLED2500KO400PMMA3
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 400
PARKLED2500KO400PMMA4
Effective luminous flux (lm): 2500
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 400
PARKLED3500KO400PMMA2
Effective luminous flux (lm): 3300
System power (W): 29
Color temperature (K): 2700
Diameter (mm): 400
PARKLED5000KO400PC3
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 3000
Diameter (mm): 400
PARKLED5000KO400PC3DALI
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 3000
Diameter (mm): 400
PARKLED5000KO400PMMA2
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 2700
Diameter (mm): 400
PARKLED5000KO400PMMA3
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 3000
Diameter (mm): 400
PARKLED5000KO400PMMA4
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 4000
Diameter (mm): 400
PARKLED5000KO400PMMA4DALI
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 4000
Diameter (mm): 400
Product page - PDF
LDT files
PARKLED.PNGProjekty realizované se svítidly MODUS:
