Product series New

MODUS PED

Outdoor LED light fitting

MODUS PED
220-240 v.png
6 IP66.jpg
11 L70_100000_H.jpg
en 62 471.png

Standard price from:

On request

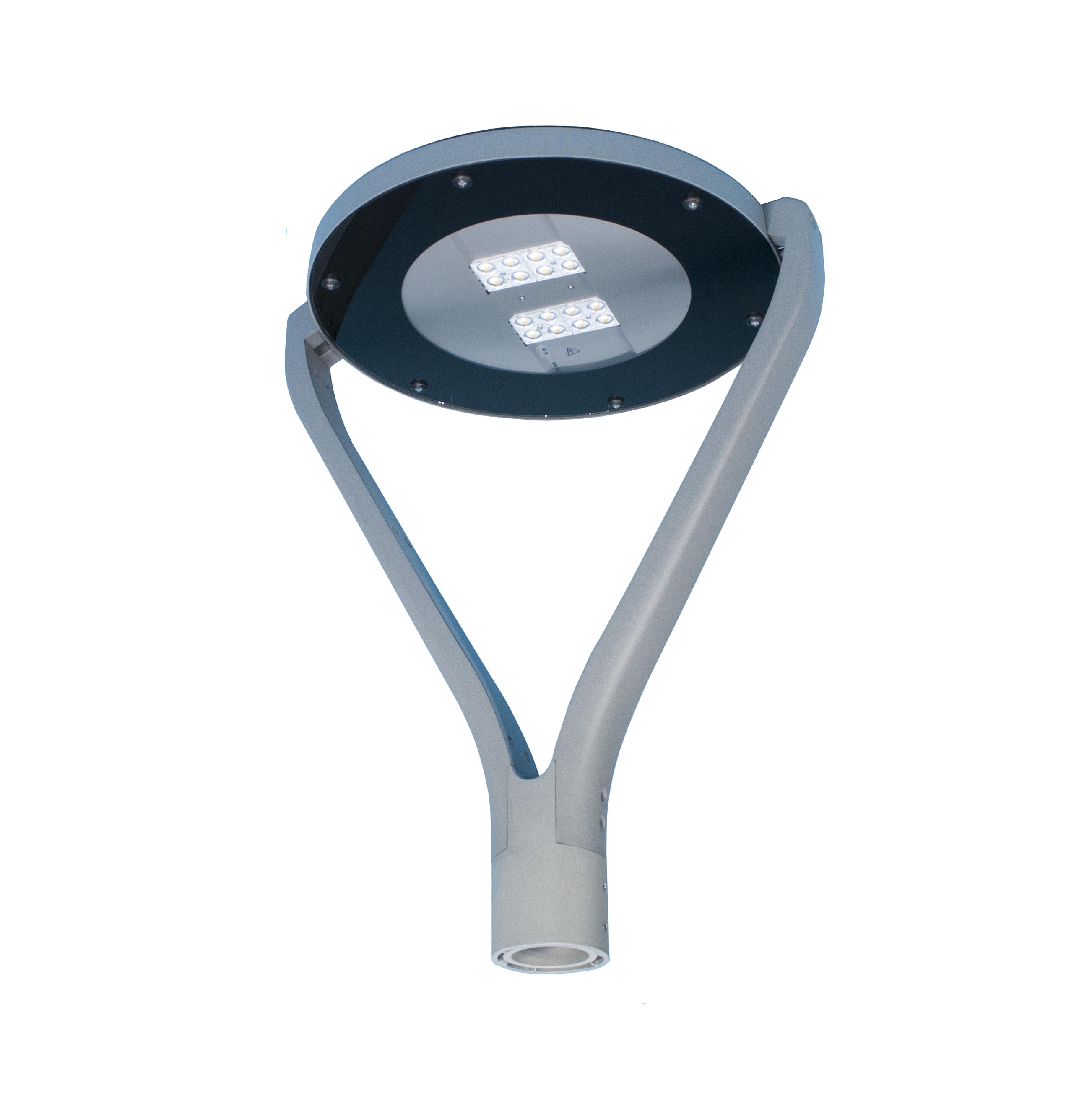

PED is a contemporary LED park luminaire designed for public spaces where functionality, durability, and visual quality must coexist. Its organically shaped body appears light and elegant while maintaining the robustness required for long-term outdoor operation.

The compact luminaire head combined with a smoothly shaped arm creates a refined silhouette that integrates naturally into urban environments, parks, and residential areas.

PED offers optical distributions tailored for roads, pedestrian paths, and park areas. The light is evenly distributed, enhancing visual comfort and spatial clarity.

The luminaire supports:

  • safe pedestrian and cyclist movement,

  • clear orientation during nighttime,

  • visual continuity within the urban environment.

Different optical options allow adaptation to specific lighting tasks—from narrow pathways to open park spaces.

The luminaire body is made of die-cast aluminum with a matte finish and protected by tempered glass. Its construction is compact and technically clean, avoiding unnecessary visual complexity.

The organic curve of the arm adds softness, making PED suitable for both historically sensitive locations and contemporary urban projects.

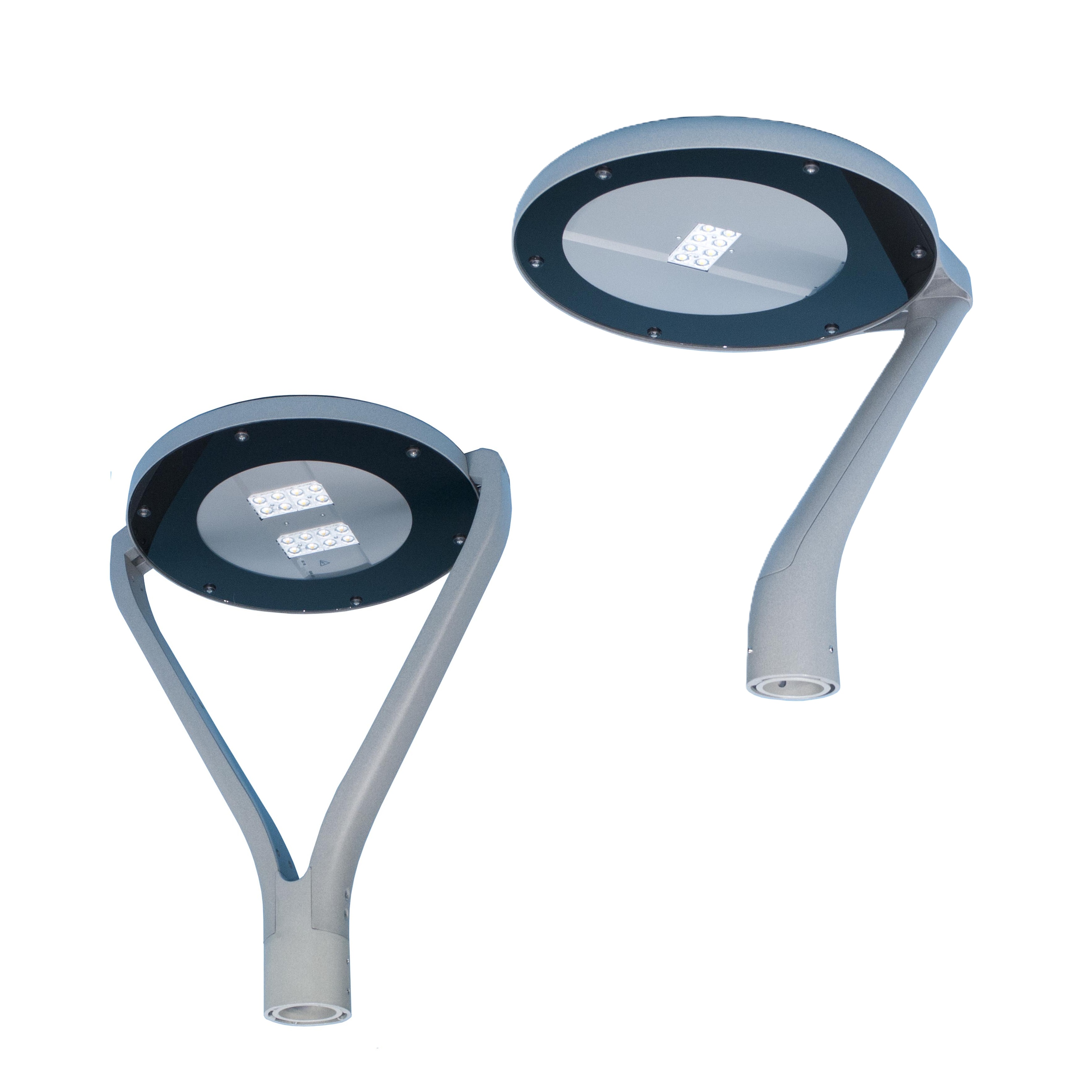

The PED family includes two structural variants:

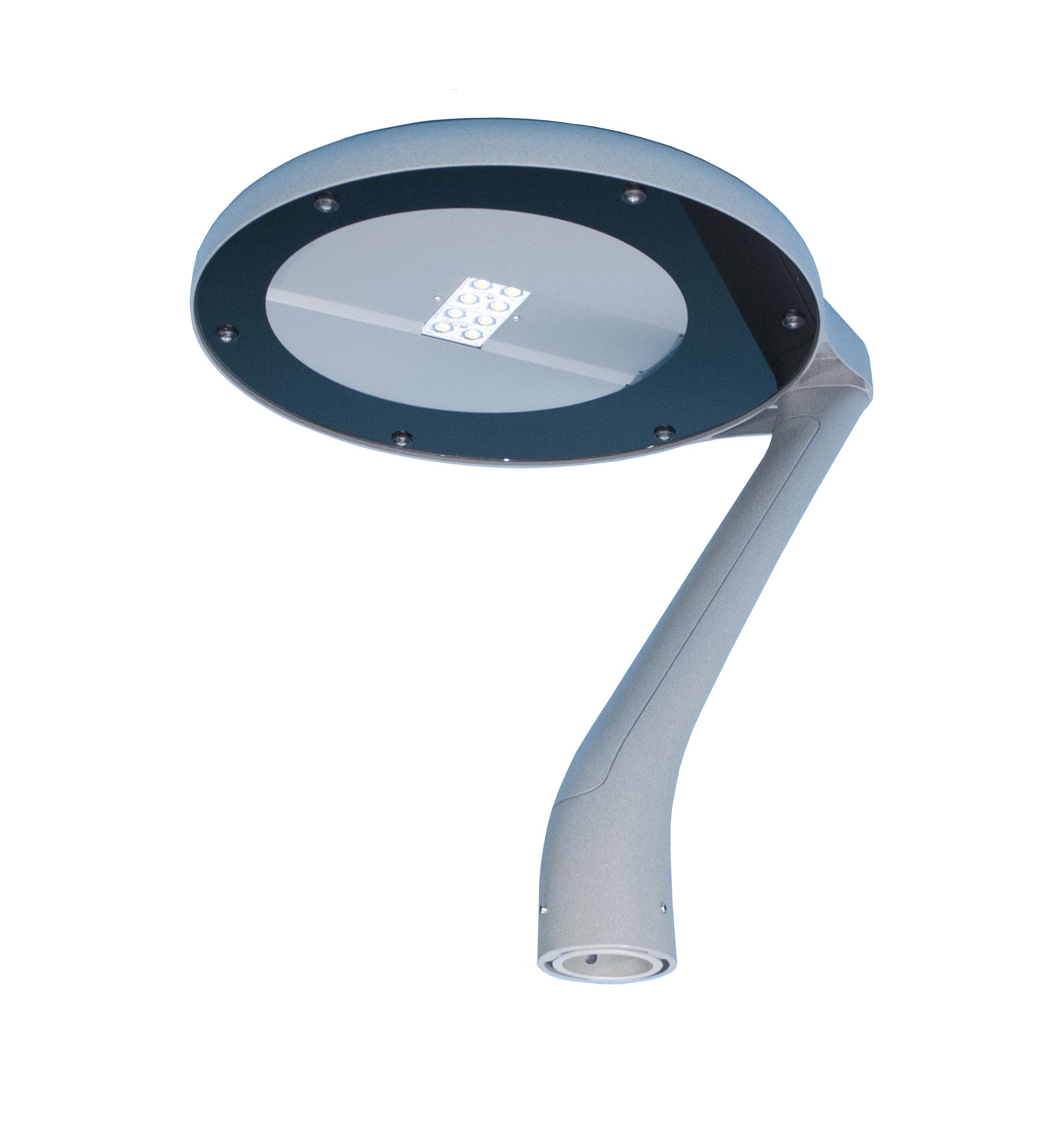

  • PED1 – luminaire with a single support arm

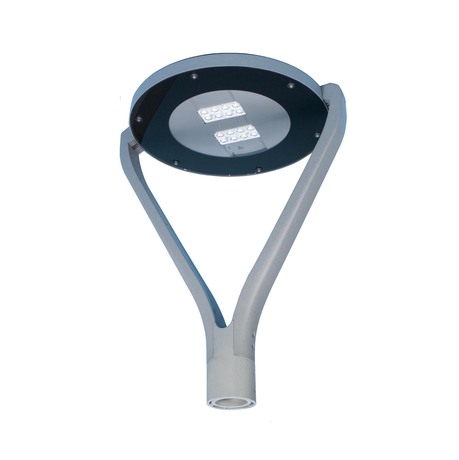

  • PED2 – luminaire with dual support arms

Both versions are designed for pole mounting and allow seamless integration into various public lighting systems.

Body material:Aluminium die-castMounting method:Outdoor fitting direct
Protection class:IType of control gear:LED operating device current-controlled
Color rendering index CRI:70-79Light source type:LED
Impact strength:IK08Nominal voltage (V):220...240
Degree of protection (IP):IP66
Color temperature (K):4000, 3000, 2700, 5000
Rated lifetime L70/B50 (h):100000Dimming DALI:Yes
Product category:Luminaire for streets and placesMade in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MODUS SMART:Astro Dim
Astro Dim
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1800
7350

System power (W)

12
53
Product name

Product page - PDF

Assembly instruction
