Standard price from:
On request
Thanks to its metal body, the luminaire is suitable for use in areas with elevated ambient temperature Ta 45 degrees Celsius. The luminaire cover can be made of several different materials.
The luminaire is installed as surface or pendant (in this case it is necessary to order the suspension set ZH/UNI4).
Luminaires are installed without opening them, the connection to the mains is via external connectors in the luminaire fronts.
Impact protection for PCO and PCN versions is IK10 (surface) or IK09 (pendant).
Read more about news in industry fitting.
Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.
| Size version: | M 1200 mm S 600 mm | Mounting method: | Surface mounting, Suspended | Protection class: | I | With movement sensor: | No | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 80-89, 90-100 | Light source type: | LED | Color temperature controllable (K): | Yes | Light outlet: | Direct | Light sharing: | Symmetric | Impact strength: | IK09, IK10 | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 |
| Color temperature (K): | 4000, 6500, 3000, 2700, 5700, 2700...6500 | Rated lifetime L80/B50 (h): | 80000 | Rated ambient temperature (°C): | -25...+45 | Dimming 1-10 V: | Yes | Dimming DALI: | Yes | Optical system: | KO opal cover PCO polycarbonate opal cover KN nanoprizmatic cover PCN Polycarbonate nanoprismatic cover | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Removeable light source, replaceable ballast Removeable light source, replaceable ballast | Photobiological safety EN 62 471: | RG 0 | MacAdam binning: | SDCM 3 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Luminaire efficacy (lm/W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
PKK4000RM2KN4ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKK4000RM2KO3ND/7016
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKK4000RM2KO4ND
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK4000RM2KO4ND/EU
Effective luminous flux (lm): 4200
System power (W): 30
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK4000RM2PCO4ND
Effective luminous flux (lm): 3700
System power (W): 30
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKK4000SS4KN4ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
PKK4000SS4PCO4ND
Effective luminous flux (lm): 3800
System power (W): 30
Color temperature (K): 4000
Optical system: PCO
PKK5000SS4KN4DALI
Effective luminous flux (lm): 5650
System power (W): 42
Color temperature (K): 4000
Optical system: KN
PKK6000RM2KN4DALI
Effective luminous flux (lm): 6800
System power (W): 54
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKK6000RM2KN4ND
Effective luminous flux (lm): 6800
System power (W): 54
Color temperature (K): 4000
Optical system: KN
Length (mm): 1200
PKK6000RM2KO3ND/7016
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 3000
Optical system: KO
Length (mm): 1200
PKK6000RM2KO4DALI
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK6000RM2KO4DALI/HT60
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK6000RM2KO4ND
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK6000RM2KO4ND/EU
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK6000RM2KO4ND/HT60
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK6000RM2KO4ND/P
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK6000RM2KOMIX/BTC
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 2700...6500
Optical system: KO
Length (mm): 1200
PKK6000RM2PCN4ND/90
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKK6000RM2PCN4ND/P
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKK6000RM2PCO4DALI
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKK6000RM2PCO4ND
Effective luminous flux (lm): 5900
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
PKK6000SS4PCO4DALI
Effective luminous flux (lm): 6300
System power (W): 54
Color temperature (K): 4000
Optical system: PCO
PKK8000RM2KCN4ND
Effective luminous flux (lm): 7400
System power (W): 65
Color temperature (K): 4000
Optical system: KCN
Length (mm): 1200
PKK8000RM2KO4DALI
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK8000RM2KO4ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 4000
Optical system: KO
Length (mm): 1200
PKK8000RM2PCN4ND
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKK8000RM2PCN4ND/P
Effective luminous flux (lm): 7500
System power (W): 65
Color temperature (K): 4000
Optical system: PCN
Length (mm): 1200
PKK8000RM2PCO4ND/P
Effective luminous flux (lm): 7400
System power (W): 65
Color temperature (K): 4000
Optical system: PCO
Length (mm): 1200
CE declaration
LDT files

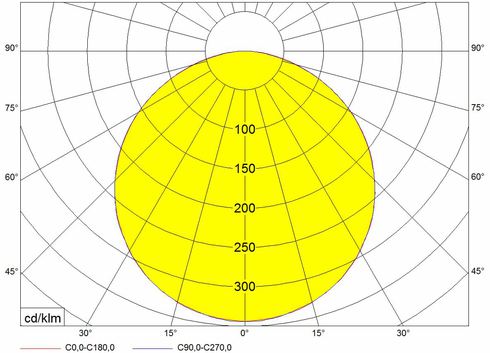

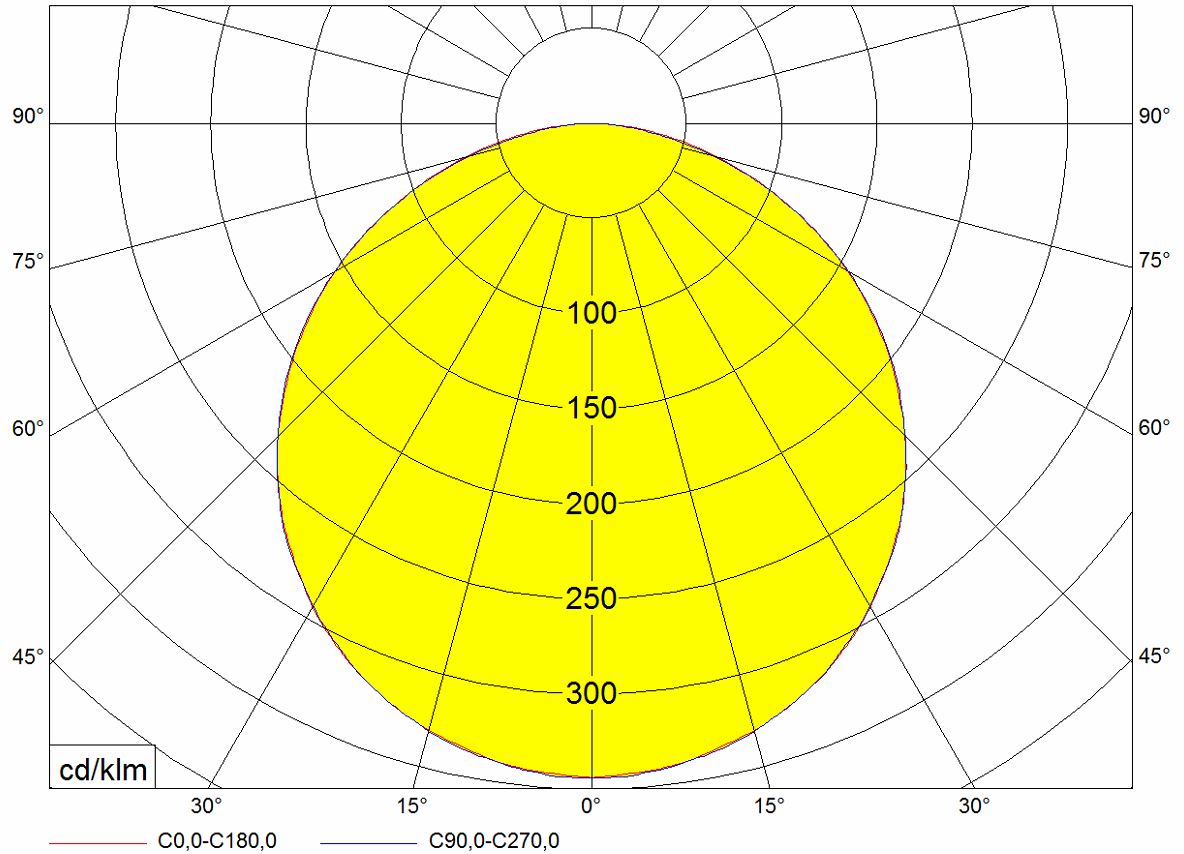

PKK KO.JPG

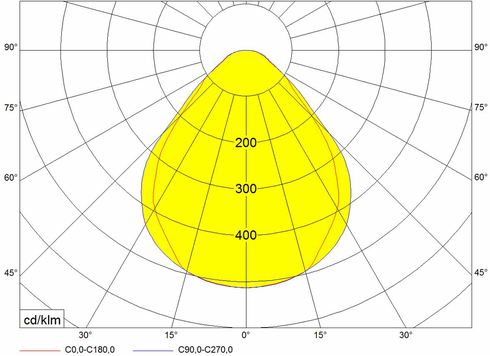

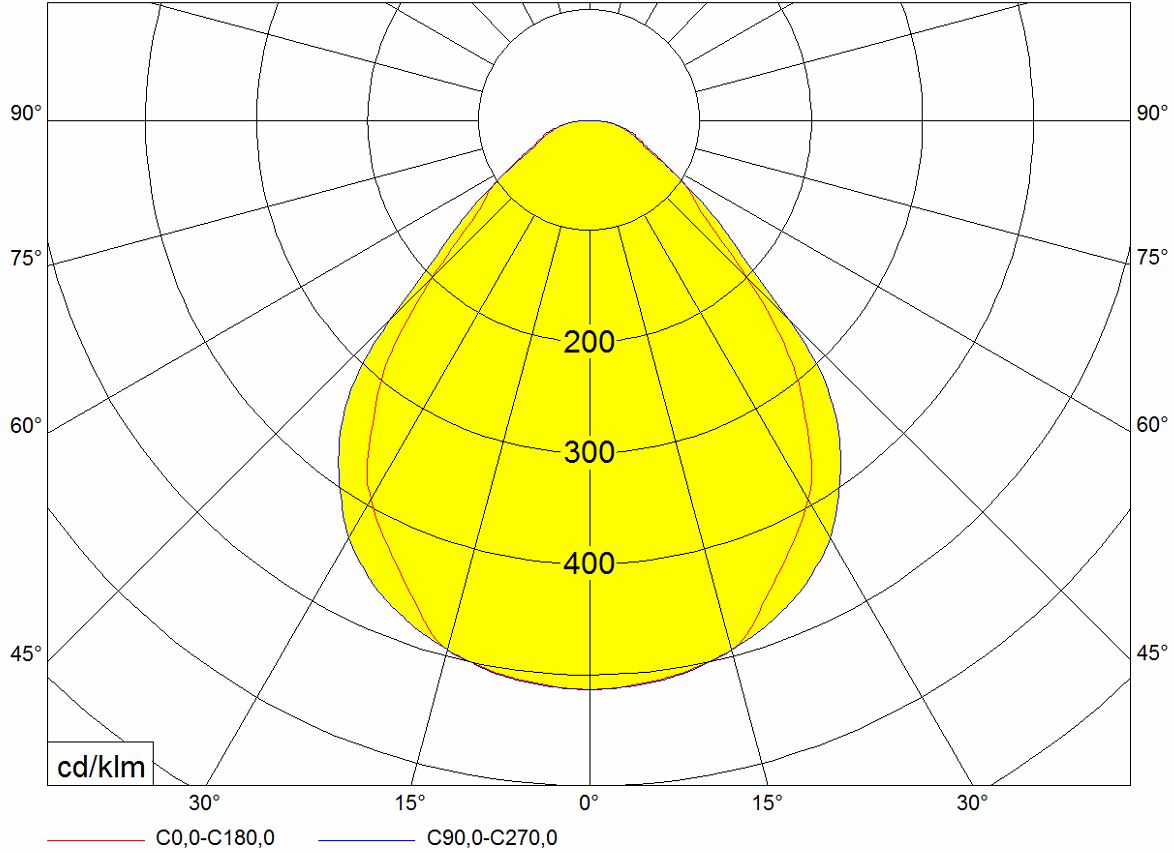

PKK KN.JPG

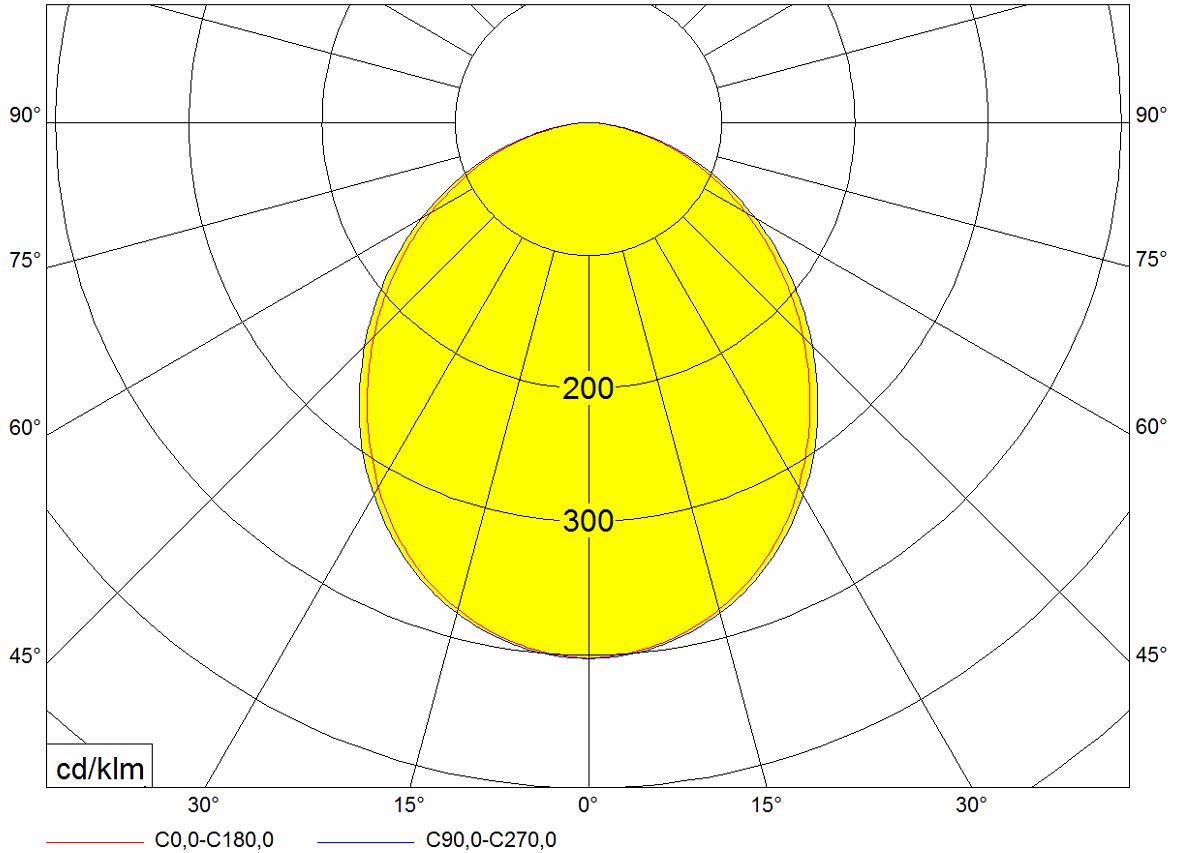

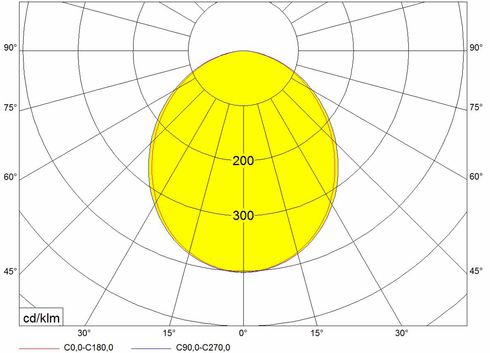

PKK PCO.JPG

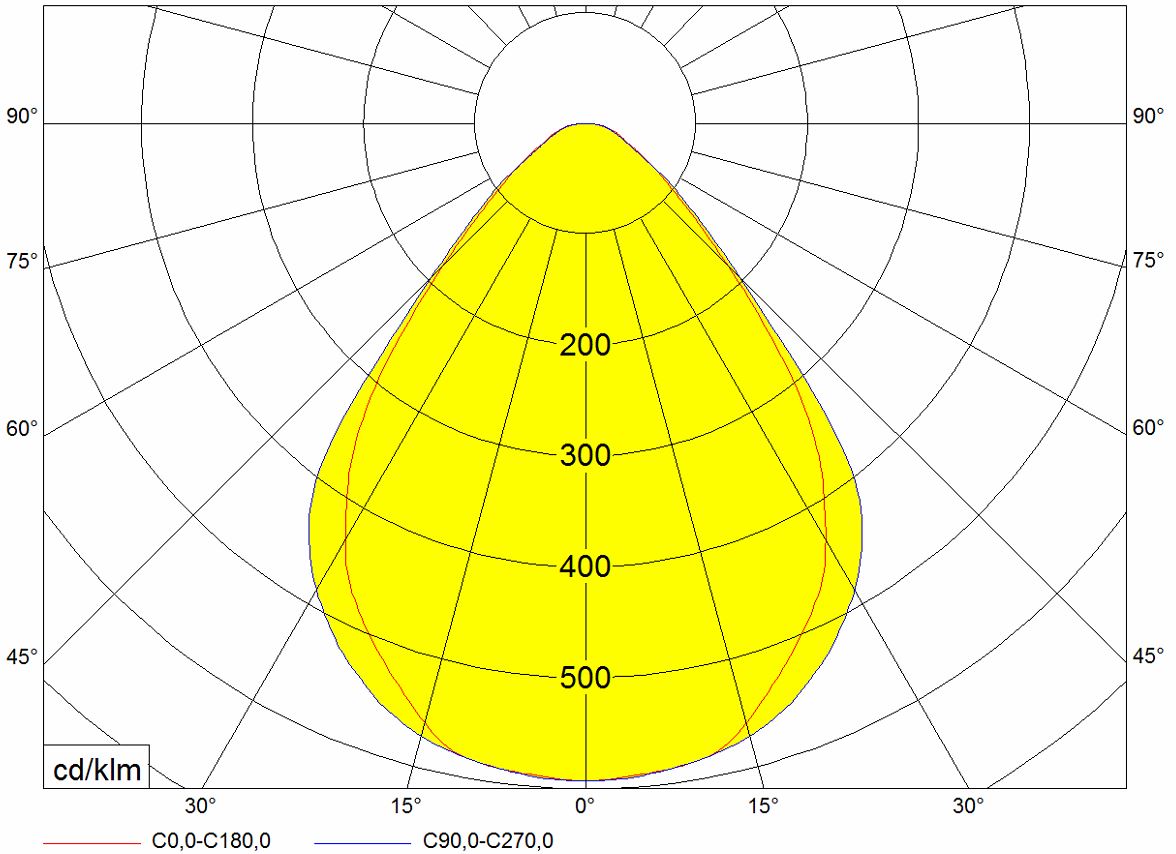

PKK PCN.JPGProjekty realizované se svítidly MODUS:
