MODUS QPN
Surface LED panel with UGR19

11 L80_80000_h.jpg

LED panel with universal installation like surfaced, recessed and pendant.

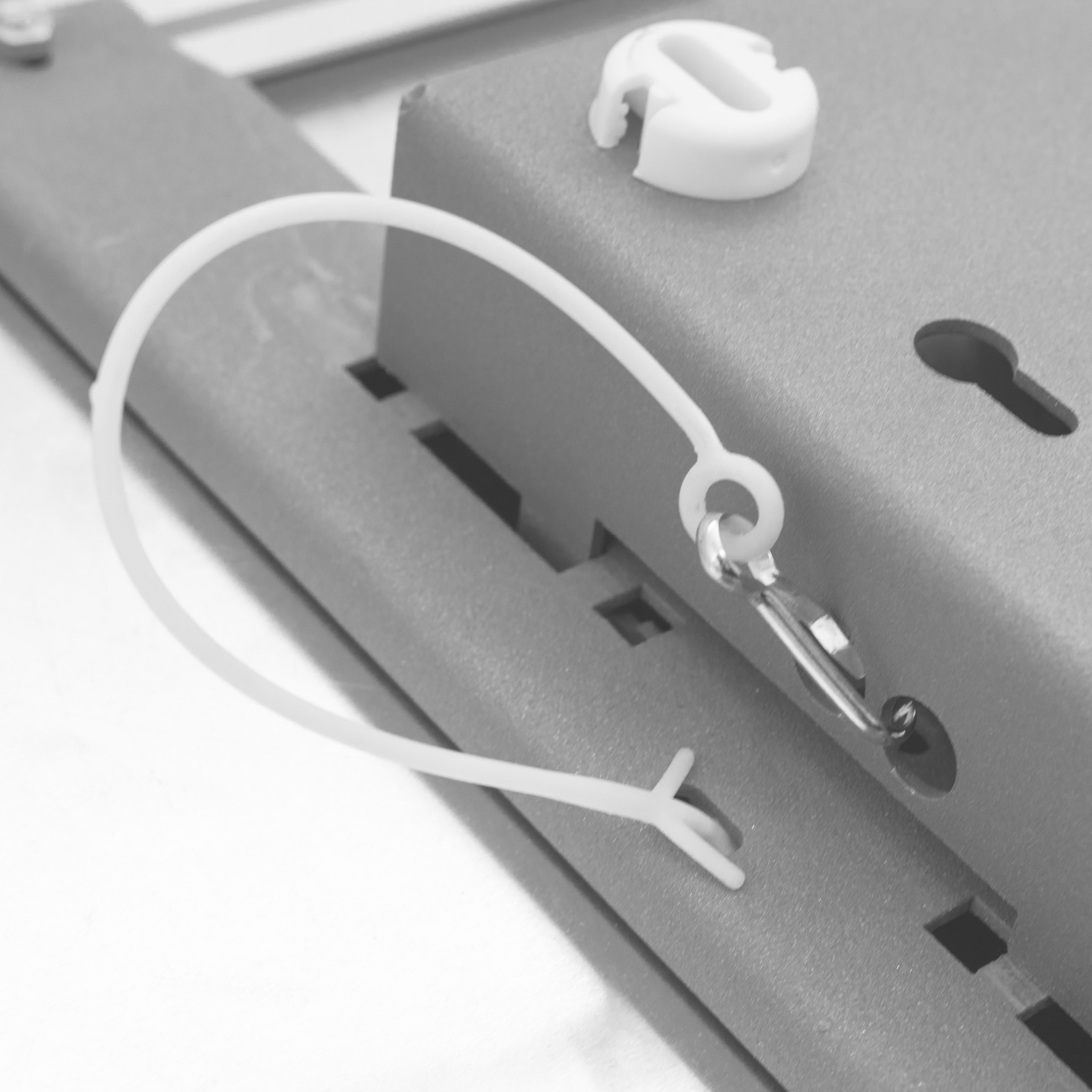

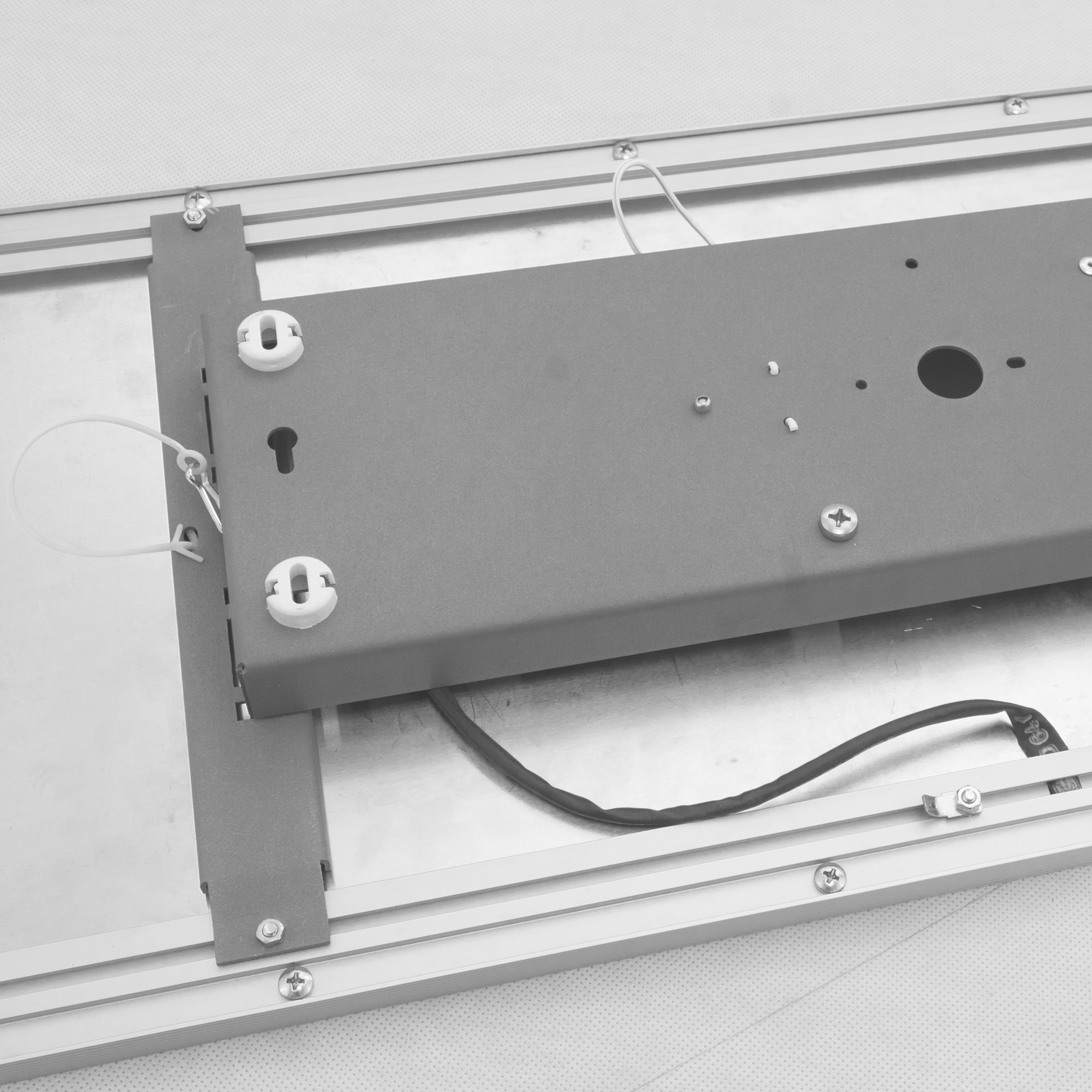

Surfaced instalation is made via metal box, where driver is situated. By this installation there is distance between ceiling and luminaire about 4 cm, which makes interesting "levitation" efect.

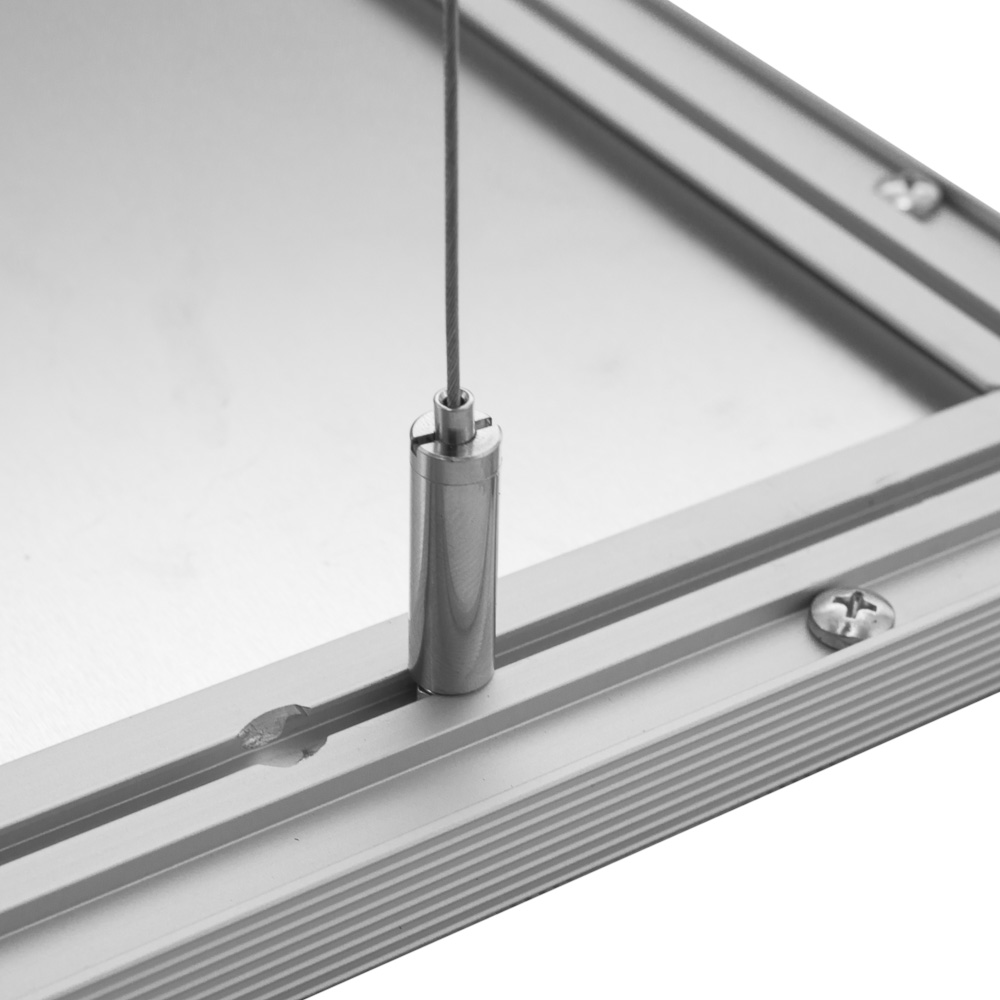

For pendant installation hanging set ZHQ22 needs to be ordered - 4 wires suspension.

Luminaire can be supplied with wireless Bluetooth control - more information here.

Show more...

Main features

Lamp type:LED
Color temperature (K):2900, 3800, 5300
Color rendering index CRI:80-89, 90-100
Rated life time L80/B50 (h):80000
Degree of protection (IP):IP20

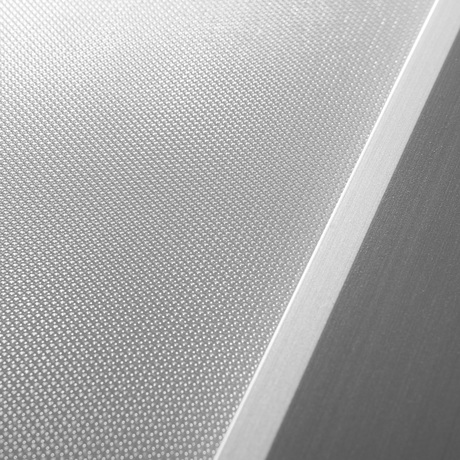

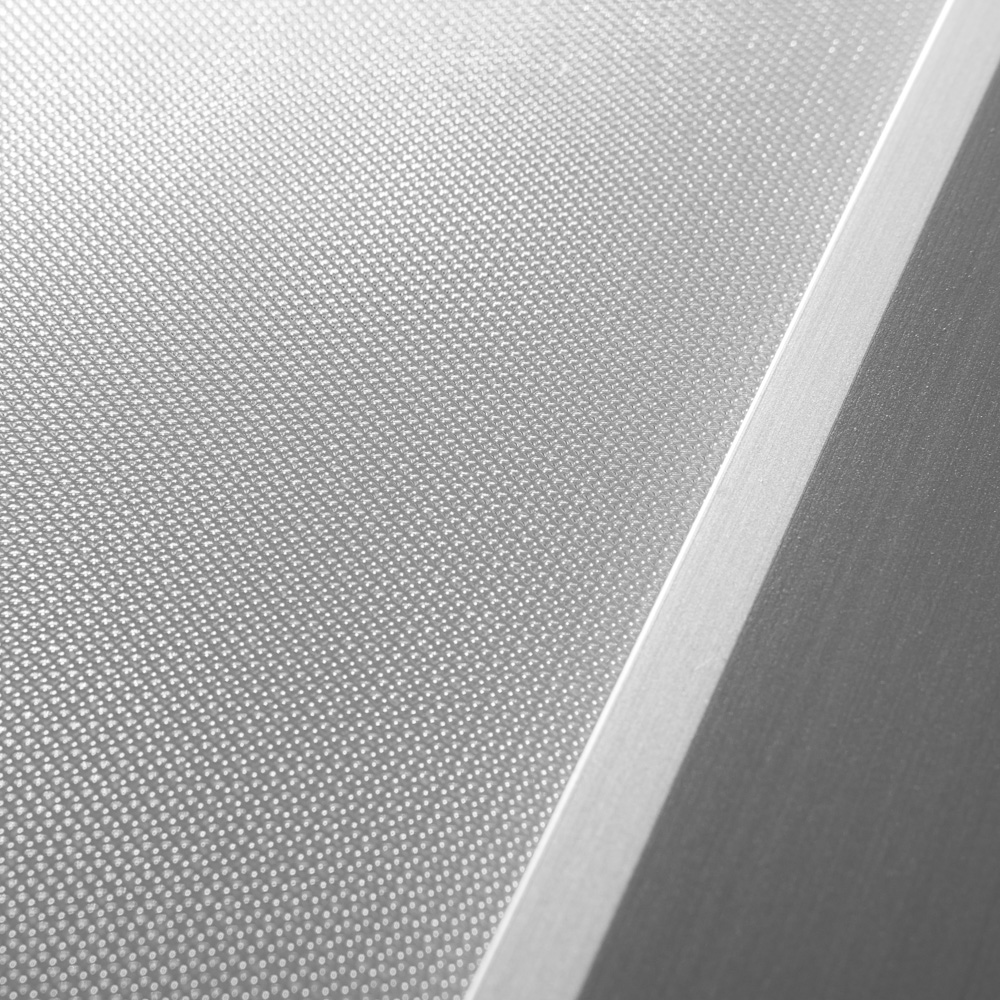

Optical system:KN - nanoprizmatic cover
Size version:A - 600x600 mm or 625x625 mm
B - 600x300 mm
C - 1200x300 mm
E - 300x300 mm

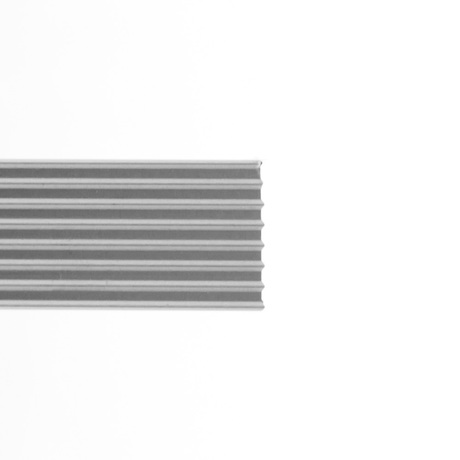

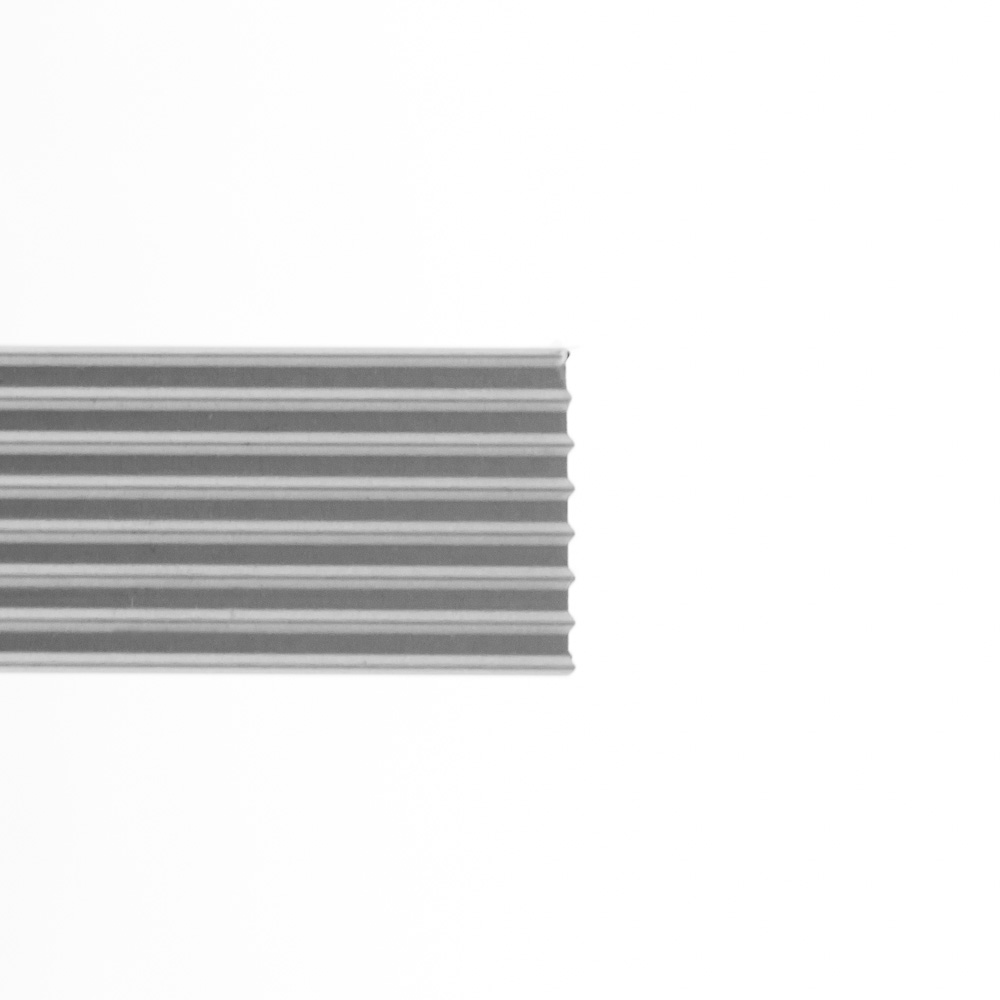

Body material:Eloxal aluminium frame
Mounting method:Surface mounting, Built-in, Pendant
Protection class:I
Type of control gear:LED operating device current-controlled
Fit for monitor workplace:Yes
Dimming 1-10 V:Yes
Dimming DALI:Yes

Download

  • MODUS QN AMODUS QN A

Light distribution


Accessories

Pendant mounting of luminairesWire suspensions sets
QVESTRAMAluminium frame for recessed installation

Versions

Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 2900
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 2900
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 2900
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 2900
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 2900
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 2900
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 2900
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 2900
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 700
System power (W): 9
Color temperature (K): 2900
Length (mm): 296
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming 1-10 V: Yes
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 3400
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4700
System power (W): 52
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 3800
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 3800
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 3800
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 1800
System power (W): 17
Color temperature (K): 3800
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming 1-10 V: Yes
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 3900
System power (W): 35
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 8500
System power (W): 70
Color temperature (K): 3800
Length (mm): 1196
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 12500
System power (W): 106
Effective luminous flux (lm): 700
System power (W): 9
Color temperature (K): 3800
Length (mm): 296
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 6600
System power (W): 66
Color temperature (K): 3800
Length (mm): 1496
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming DALI: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Dimming 1-10 V: Yes
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 5300
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 5300
Length (mm): 596
Width (mm): 596
Raster (mm): 600
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 5300
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 5300
Length (mm): 622
Width (mm): 622
Raster (mm): 625
Effective luminous flux (lm): 2500
System power (W): 26
Color temperature (K): 5300
Length (mm): 596
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 5300
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 4000
System power (W): 34
Color temperature (K): 5300
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 5600
System power (W): 54
Color temperature (K): 5300
Length (mm): 1196
Width (mm): 296
Raster (mm): 600
Effective luminous flux (lm): 6800
System power (W): 70
Color temperature (K): 5300
Length (mm): 1196
Width (mm): 596
Raster (mm): 600
