Product series
MODUS RX

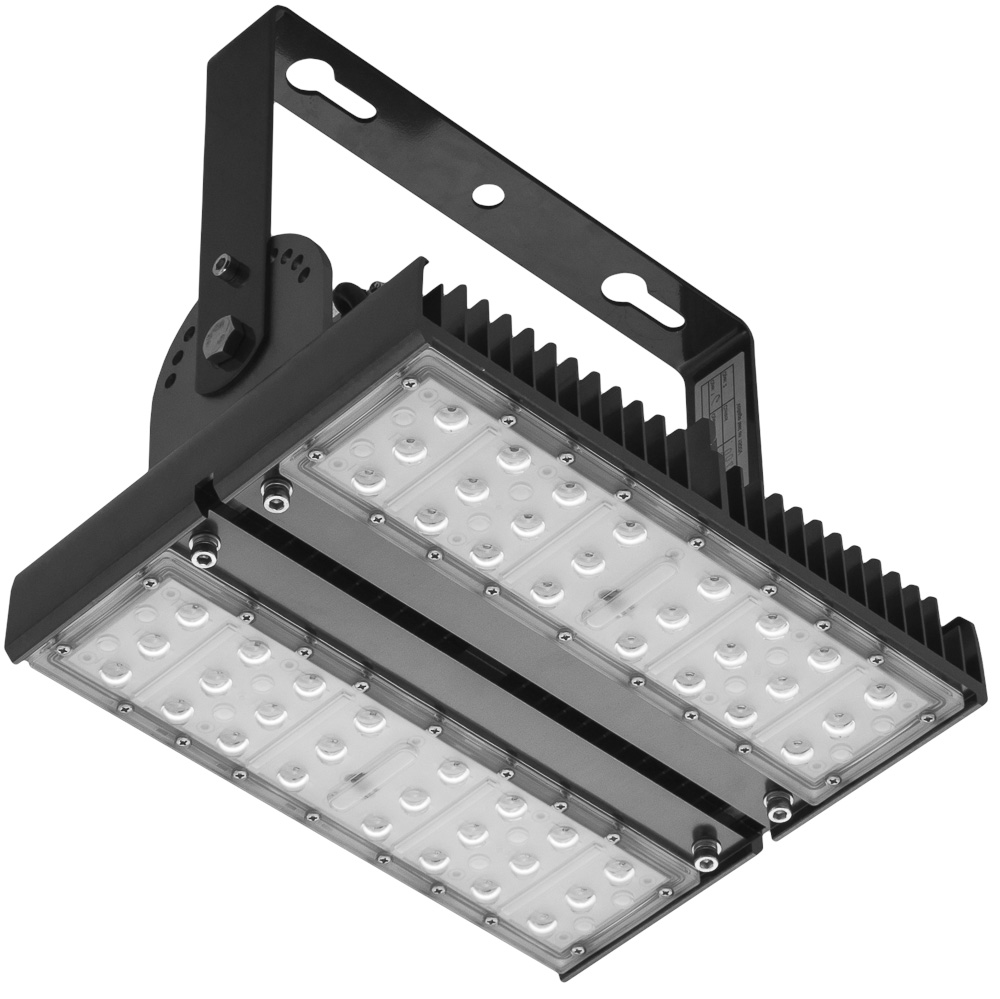

LED floodlight
MODUS RX2
Price from:
5 600 Kč
( 6 776 Kč including VAT )Body:
Powder painted non-corressive high-pressure die-cast aluminium
Optic:
Symetric glare-free optic lens

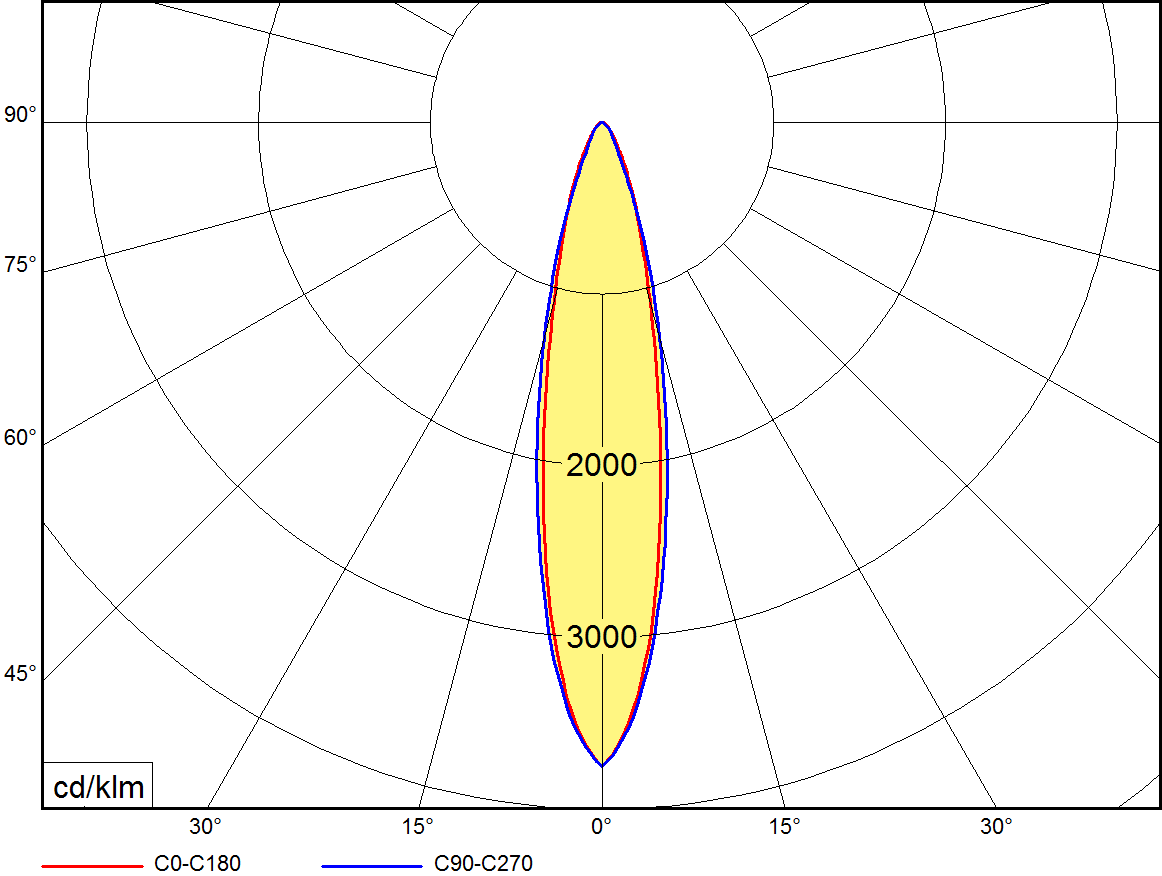

45° - narrow beam 45°
90° - wide beam 90°
LED:
High Power LED
CRI 80
4…cold white 4000K
5…daylight 5000K
Wiring:
LED current driver
ND – not dimmable (standard)
DALI - dimmable by DALI
Application:
Floodlight for both indoor and outdoor application
Available with narrow beam or wide beam optic.

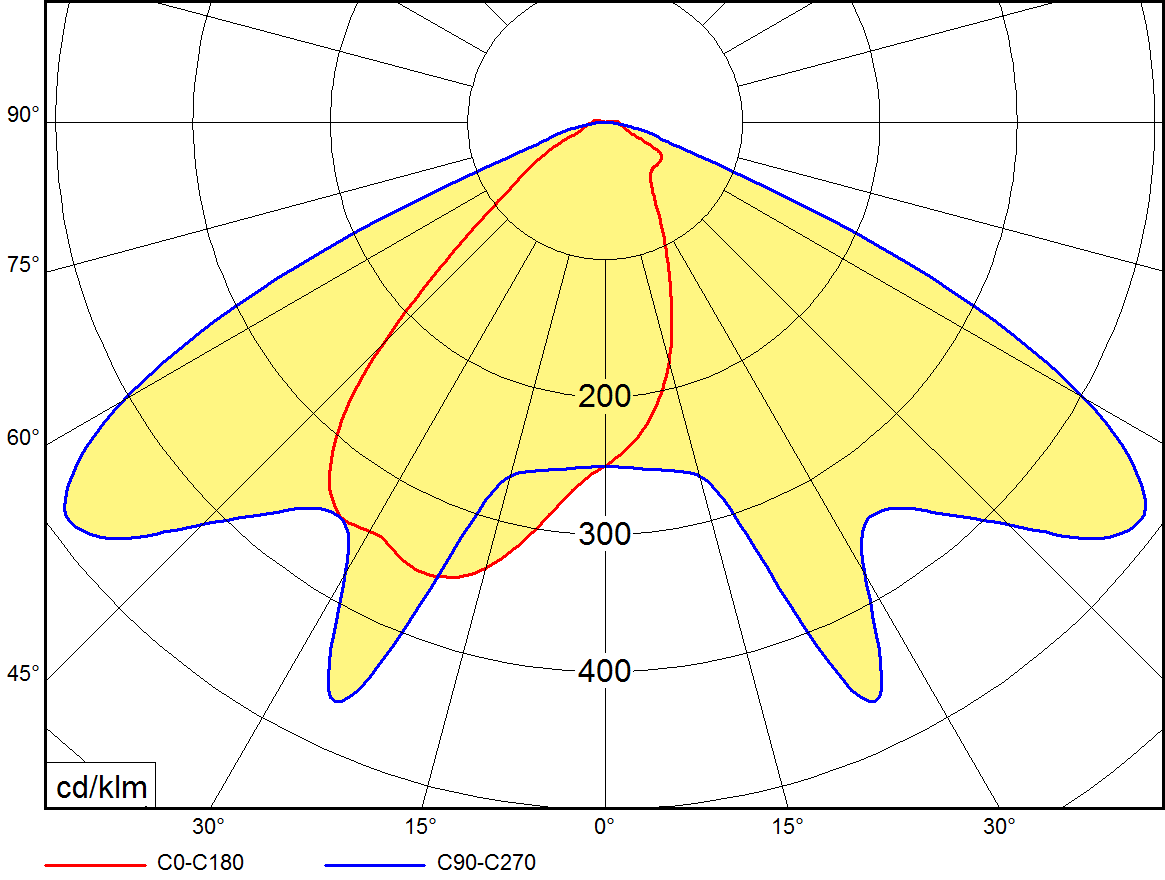

| Lamp type: | LED | Color temperature (K): | 4000, 5000 | Color rendering index CRI: | 80-89 | Rated life time L80/B50 (h): | 80000 | Degree of protection (IP): | IP65 | Optical system: | 45N Symetrický PMMA optický systém, hlubokozářič 45° 90W Symetrický PMMA optický systém, širokozářič 90° RX AS Asymetrický PMMA optický systém |
| Body material: | Aluminium die-cast | Mounting method: | Surface mounting, Pendant | Protection class: | I | Type of control gear: | LED operating device current-controlled | Dimming DALI: | Yes |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
RX120AS4/DALI
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 4000
Optical system: RX AS
RX120AS4/ND
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 4000
Optical system: RX AS
RX120AS5/ND
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 5000
Optical system: RX AS
RX120C45N3/DALI/70
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 3000
Optical system: 45N
RX120C45N3/ND/70
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 3000
Optical system: 45N
RX120C45N4/DALI
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 4000
Optical system: 45N
RX120C45N4/ND
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 4000
Optical system: 45N
RX120C45N5/DALI
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 5000
Optical system: 45N
RX120C45N5/ND
Effective luminous flux (lm): 12800
System power (W): 108
Color temperature (K): 5000
Optical system: 45N
RX120C90W3/DALI/70
Effective luminous flux (lm): 13100
System power (W): 108
Color temperature (K): 3000
Optical system: 90W
RX120C90W3/ND/70
Effective luminous flux (lm): 13100
System power (W): 108
Color temperature (K): 3000
Optical system: 90W
RX120C90W4/ND
Effective luminous flux (lm): 13100
System power (W): 108
Color temperature (K): 4000
Optical system: 90W
RX120C90W4/ND/9006
Effective luminous flux (lm): 13100
System power (W): 108
Color temperature (K): 4000
Optical system: 90W
RX120C90W5/DALI
Effective luminous flux (lm): 13100
System power (W): 108
Color temperature (K): 5000
Optical system: 90W
RX120C90W5/ND
Effective luminous flux (lm): 13100
System power (W): 108
Color temperature (K): 5000
Optical system: 90W
RX250AS4/ND
Effective luminous flux (lm): 25500
System power (W): 209
Color temperature (K): 4000
Optical system: RX AS
RX250AS5/ND
Effective luminous flux (lm): 25500
System power (W): 209
Color temperature (K): 5000
Optical system: RX AS
RX250C45N4/DALI
Effective luminous flux (lm): 25500
System power (W): 209
Color temperature (K): 4000
Optical system: 45N
RX250C45N4/ND
Effective luminous flux (lm): 25500
System power (W): 209
Color temperature (K): 4000
Optical system: 45N
RX250C45N5/ND
Effective luminous flux (lm): 25500
System power (W): 209
Color temperature (K): 5000
Optical system: 45N
RX250C90W4/ND
Effective luminous flux (lm): 26100
System power (W): 209
Color temperature (K): 4000
Optical system: 90W
RX250C90W4/ND/9006
Effective luminous flux (lm): 26100
System power (W): 209
Color temperature (K): 4000
Optical system: 90W
RX250C90W5/ND
Effective luminous flux (lm): 26100
System power (W): 209
Color temperature (K): 5000
Optical system: 90W
RX400AS4/ND
Color temperature (K): 4000
Optical system: RX AS
RX500AS4/ND
Color temperature (K): 4000
Optical system: RX AS
RX500C90W5/ND
Color temperature (K): 5000
Optical system: 90W
