Product series

MODUS SOFT

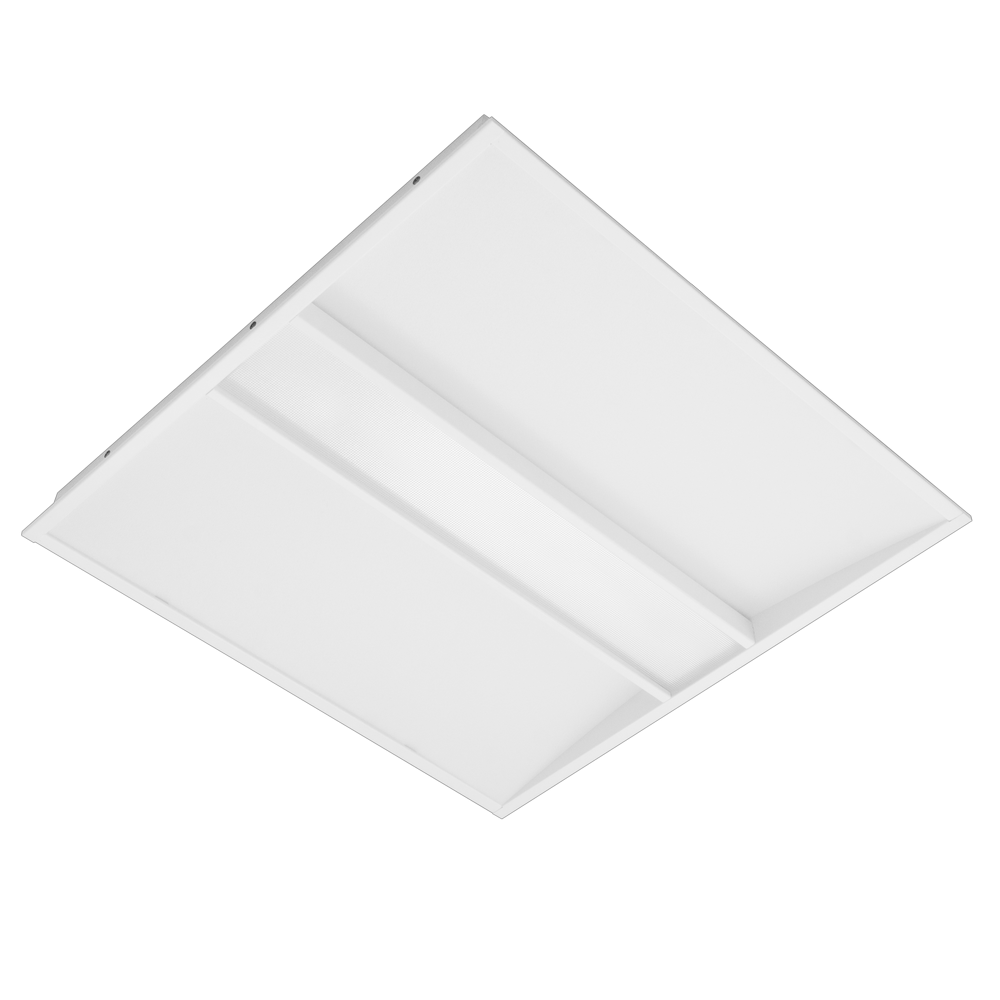

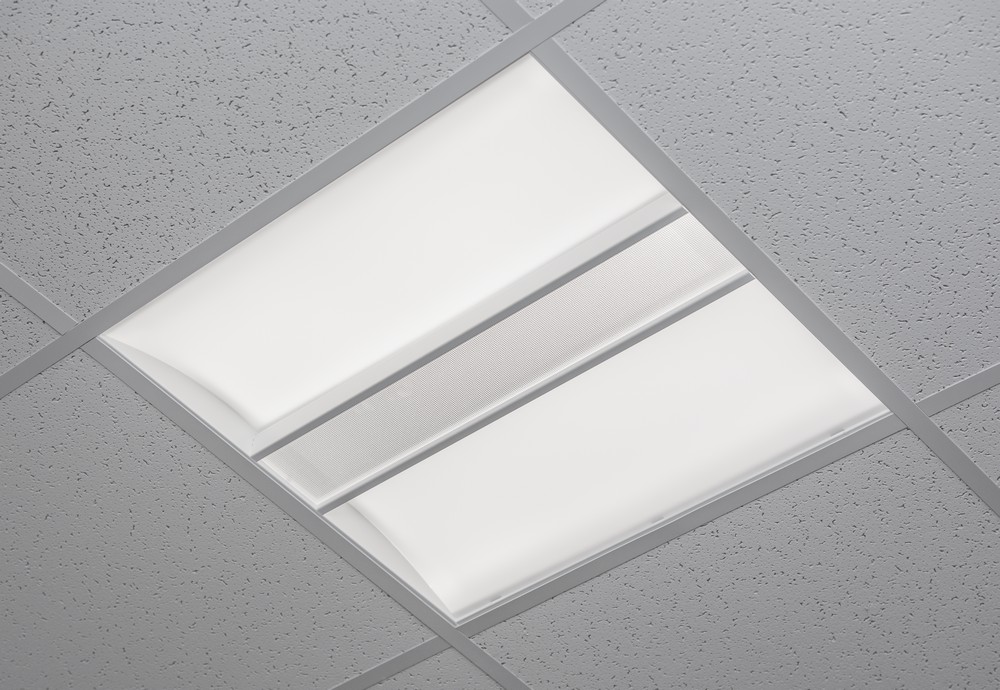

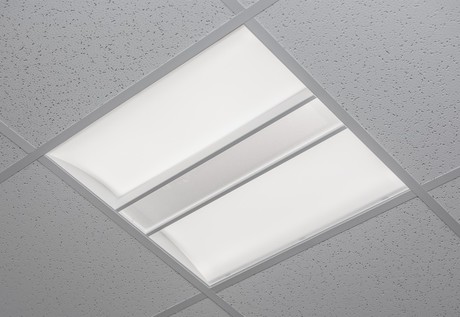

Recessed luminaire with "soft" light

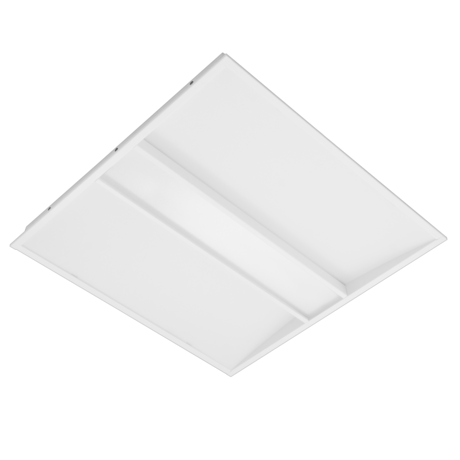

MODUS SOFT
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

New concept for M600 and M625 recessed luminaires for office and another interior places. Luminaire is using our own moduls with Samsung chips.

Main advantage of this luminaire is completely new design, which is different from today most used luminaires - flat LED panels, these new luminaires are ideal choice for users which likes to have something different.

Thanks to construction of optical part there is soft effect, which gives more comfortable feeling from luminous flux which is comming from luminaire.

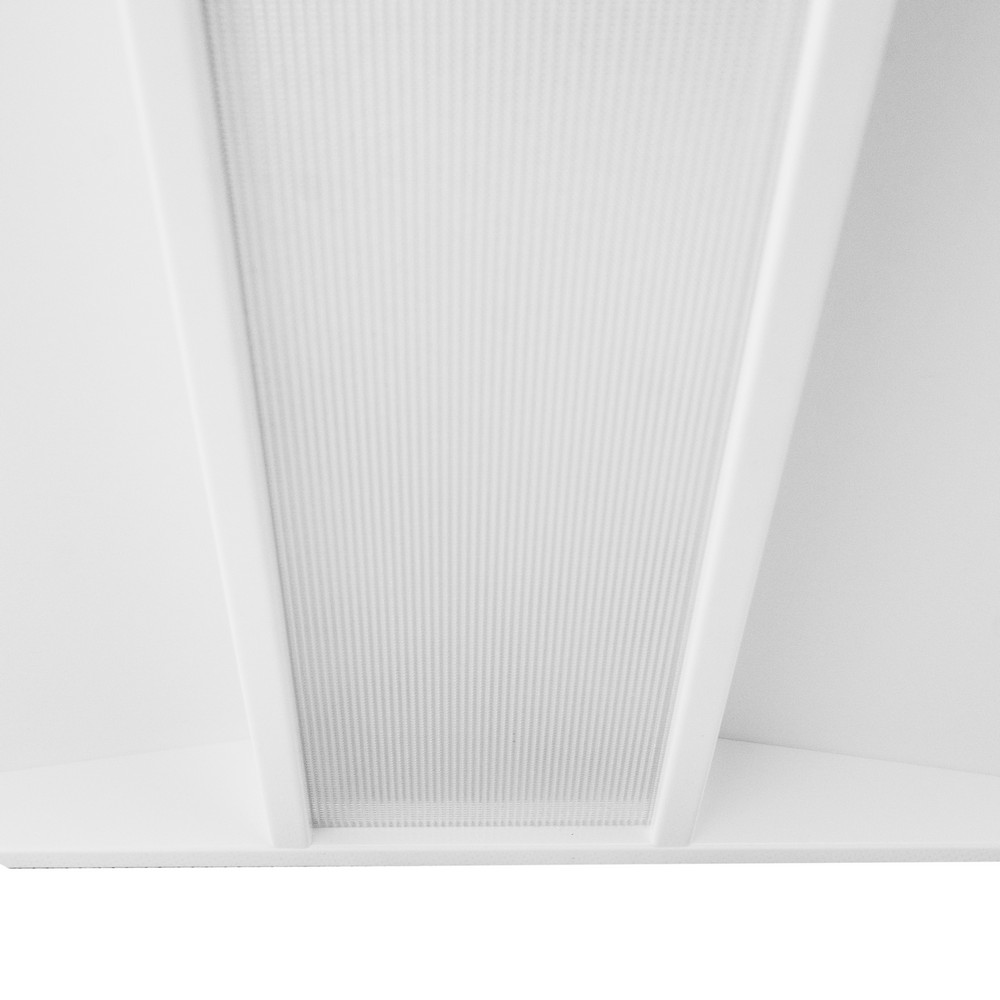

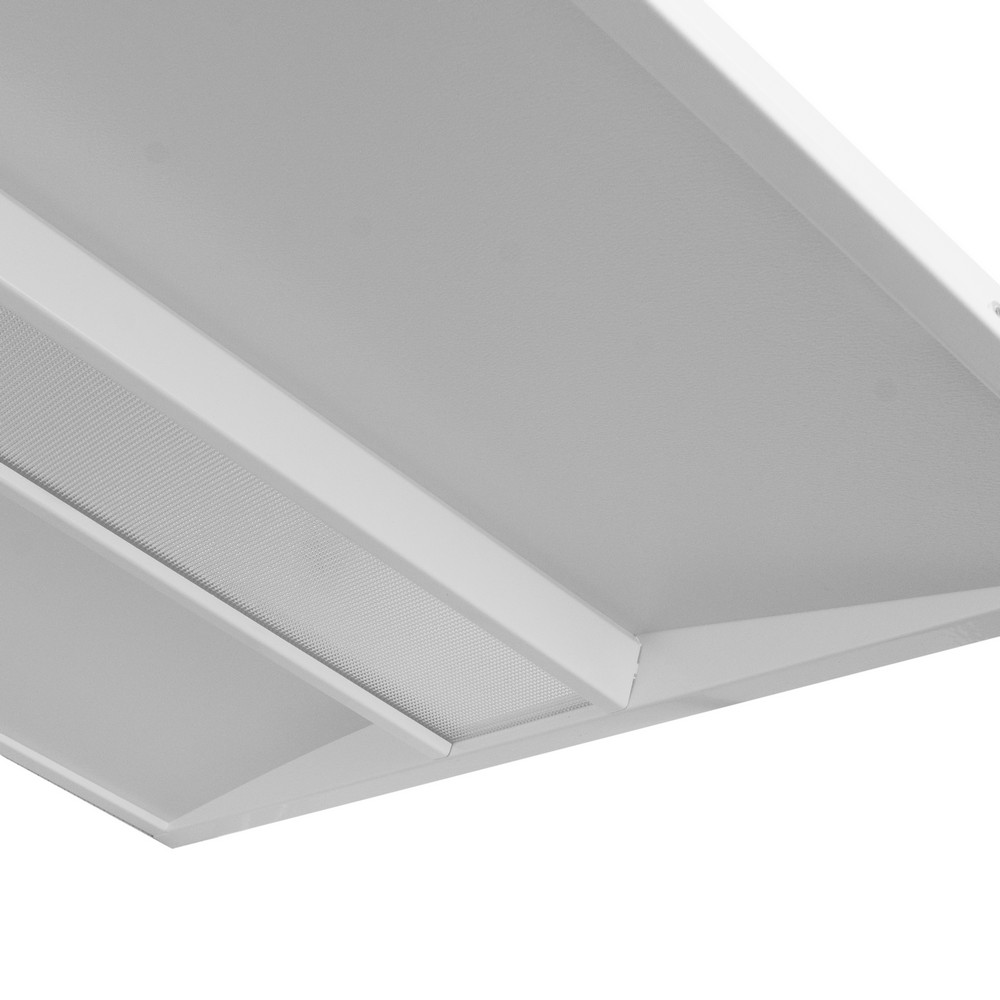

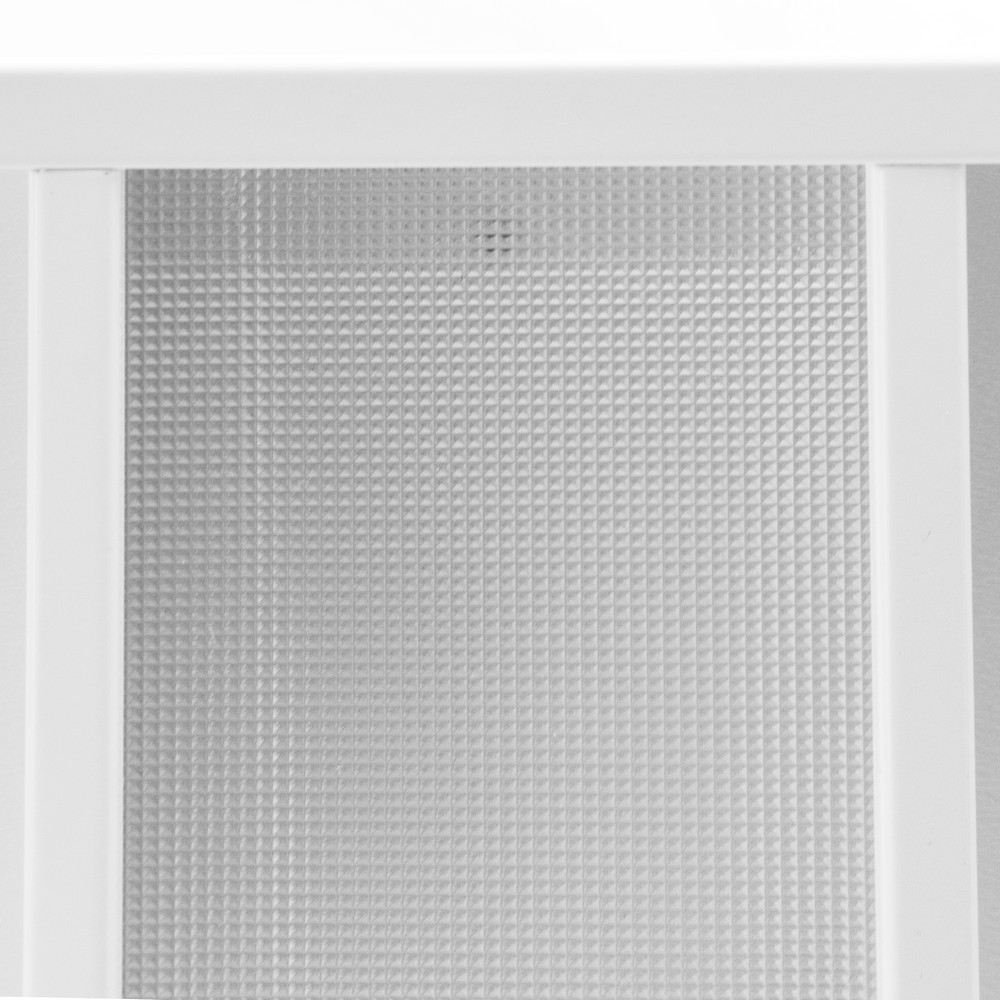

Optical part is made from two different materials - opal cover on sides and microprisma cover in the middle part - interesting design solution.

Luminaire can be supplied with wireless Bluetooth control - more information here.

Find out more about human centric lighting and tunable white in our MODUS TUNABLE LIGHT catalogue.

Size version:A
600x600 mm or 625x625 mm
Body material:White painted steel
Mounting method:Built-in, Surface mountingProtection class:II
With movement sensor:YesType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89Light source type:LED
Color temperature controllable (K):YesNominal voltage (V):220...240
Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700, 2700...6500
Rated lifetime L80/B50 (h):80000Dimming 1-10 V:Yes
Dimming DALI:YesOptical system:SOFT
Translucent acrylic desk, opal and microprismatic cover
Made in Czech republic:YesReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3200
4300

System power (W)

29
55
Product name
SOFT2000A4KN600DALI
Color temperature (K): 4000
Raster (mm): 600
SOFT2500A4KN600ND
Color temperature (K): 4000
Raster (mm): 600
SOFT3000A3KN600DALI
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 3000
Raster (mm): 600
SOFT3000A3KN600ND
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 3000
Raster (mm): 600
SOFT3000A3KN600ND/FS
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 3000
Raster (mm): 600
SOFT3000A3KN625DALI
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 3000
Raster (mm): 625
SOFT3000A3KN625ND
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 3000
Raster (mm): 625
SOFT3000A3KO600DALI/F5W
System power (W): 29
Color temperature (K): 3000
Raster (mm): 600
SOFT3000A4KN600DALI
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 4000
Raster (mm): 600
SOFT3000A4KN600DALI/9010
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 4000
Raster (mm): 600
SOFT3000A4KN600ND
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 4000
Raster (mm): 600
SOFT3000A4KN600ND/FS
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 4000
Raster (mm): 600
SOFT3000A4KN625DALI
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 4000
Raster (mm): 625
SOFT3000A4KN625ND
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 4000
Raster (mm): 625
SOFT4000A3KN600DALI
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Raster (mm): 600
SOFT4000A3KN600DALI/F5W
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Raster (mm): 600
SOFT4000A3KN600ND
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Raster (mm): 600
SOFT4000A3KN600ND/FS
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Raster (mm): 600
SOFT4000A3KN625DALI
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Raster (mm): 625
SOFT4000A3KN625ND
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 3000
Raster (mm): 625
SOFT4000A4KN600DALI
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 600
SOFT4000A4KN600DIM
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 600
SOFT4000A4KN600ND
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 600
SOFT4000A4KN600ND/FS
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 600
SOFT4000A4KN600ND/S147
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 600
SOFT4000A4KN625DALI
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 625
SOFT4000A4KN625ND
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 4000
Raster (mm): 625
SOFT4000A5KN600DALI
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 5700
Raster (mm): 600
SOFT4000A5KN600ND
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 5700
Raster (mm): 600
SOFT4000A5KN600ND/FS
Effective luminous flux (lm): 4300
System power (W): 42
Color temperature (K): 5700
Raster (mm): 600
SOFT6000D3KN600ND
System power (W): 55
Color temperature (K): 3000
Raster (mm): 600
SOFT6000D4KN600ND
System power (W): 55
Color temperature (K): 4000
Raster (mm): 600

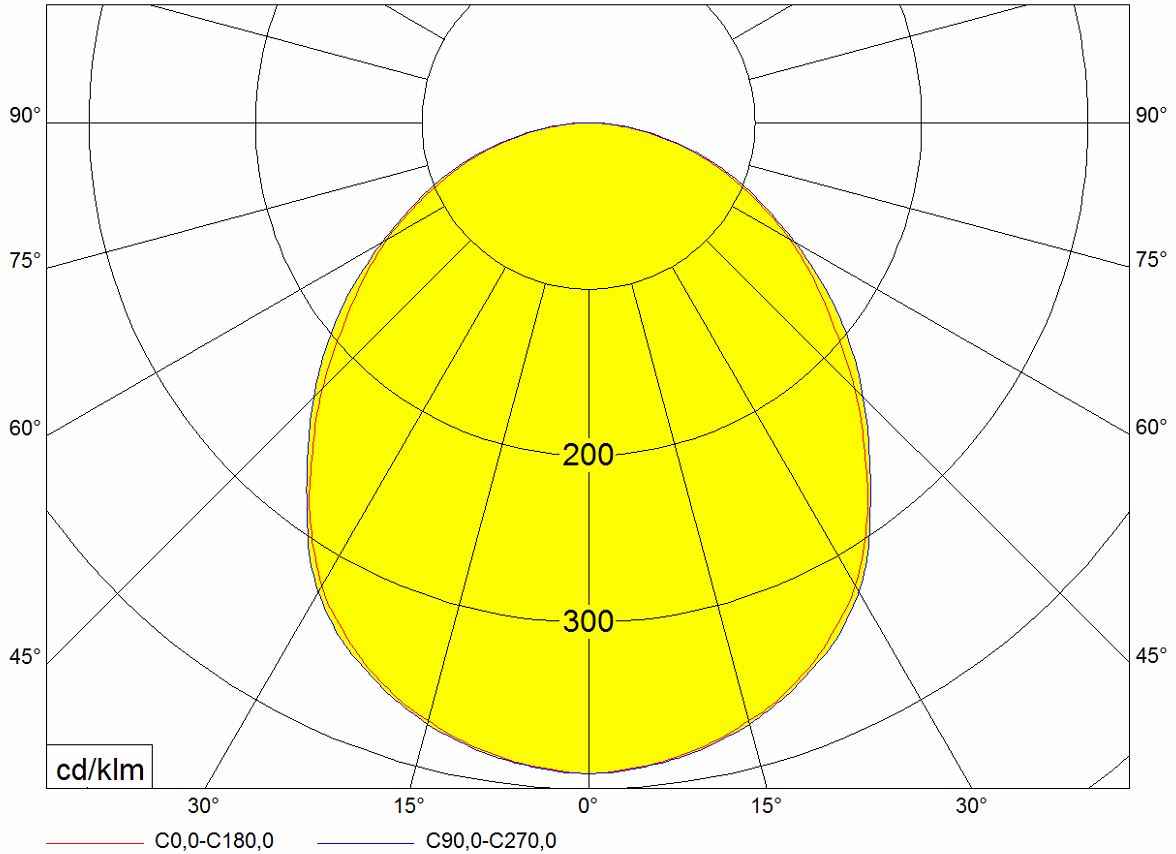

21_1 SOFT.JPG21_1 SOFT.JPG
